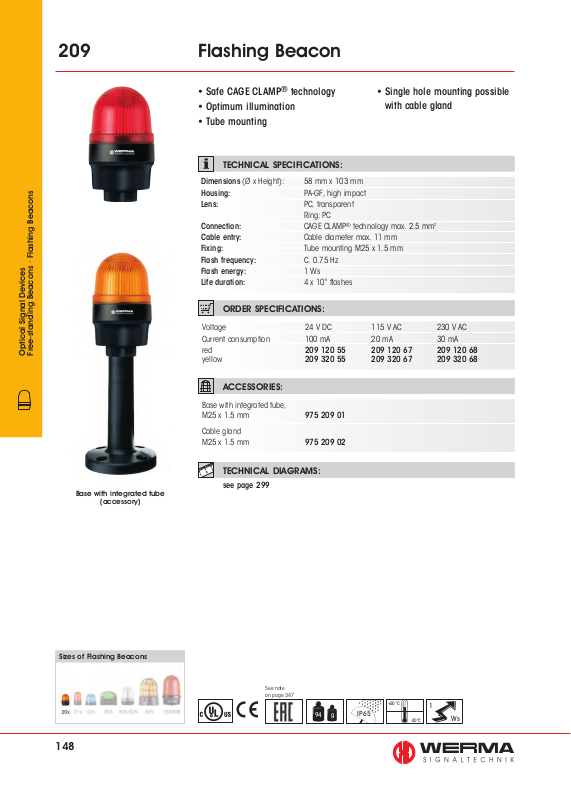

Werma 209 Flashing Beacon Catalog Page

209 Flashing Beacon

Optical Signal Devices

Free-standing Beacons · Flashing Beacons

• Safe CAGE CLAMP® technology

• Optimum illumination

• Single hole mounting possible
with cable gland

• Tube mounting

TECHNICAL SPECIFICATIONS:

Dimensions (Ø x Height): 58 mm x 103 mm
Housing: PA-GF, high impact
Lens: PC, transparent

Ring: PC
Connection: CAGE CLAMP

®

technology max. 2.5 mm

Cable entry: Cable diameter max. 11 mm
Fixing: Tube mounting M25 x 1.5 mm
Flash frequency: C. 0.75 Hz
Flash energy: 1 Ws
Life duration: 4 x 10

6

fl ashes

ORDER SPECIFICATIONS:

Voltage 24 V DC 115 V AC 230 V AC
Current consumption 100 mA 20 mA 30 mA
red 209 120 55 209 120 67 209 120 68

yellow 209 320 55 209 320 67 209 320 68

2

Base with integrated tube

(accessory)

Sizes of Flashing Beacons

ACCESSORIES:

Base with integrated tube,
M25 x 1.5 mm 975 209 01

Cable gland
M25 x 1.5 mm 975 209 02

TECHNICAL DIAGRAMS:

see page 299

148

See note
on page 347

94 g

IP 65

+50°C

-20°C

1

Ws
