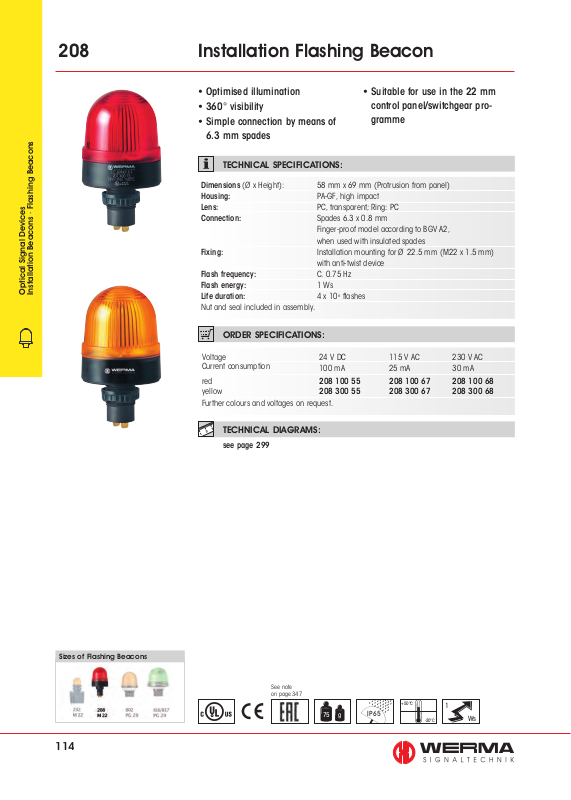

Werma 208 Installation Flashing Beacon Catalog Page

208 Installation Flashing Beacon

Flashing Beacons

•

Optical Signal Devices

Installation Beacons

• Optimised illumination

• 360° visibility

• Simple connection by means of

• Suitable for use in the 22 mm
control panel/switchgear pro­gramme

6.3 mm spades

TECHNICAL SPECIFICATIONS:

Dimensions (Ø x Height): 58 mm x 69 mm (Protrusion from panel)
Housing: PA-GF, high impact
Lens: PC, transparent; Ring: PC
Connection: Spades 6.3 x 0.8 mm

Finger-proof model according to BGV A2,
when used with insulated spades
Fixing: Installation mounting for Ø 22.5 mm (M22 x 1.5 mm)
with anti-twist device

Flash frequency: C. 0.75 Hz
Flash energy: 1 Ws
Life duration: 4 x 10

Nut and seal included in assembly.

ORDER SPECIFICATIONS:

Voltage 24 V DC 115 V AC 230 V AC
Current consumption

red 208 100 55 208 100 67 208 100 68
yellow 208 300 55 208 300 67 208 300 68

Further colours and voltages on request.

100 mA 25 mA 30 mA

6

fl ashes

Sizes of Flashing Beacons

TECHNICAL DIAGRAMS:

see page 299

See note
on page 347

75 g

IP 65

+50°C

-20°C

1

Ws

114
