WEN 4208 User Manual

2

3

CONTENTS

 8" Drill Press Model# 4208
 Motor: 120 V, 60 Hz, 2.3 A, 1/3HP
 Horsepower: 1/3 HP (single phase)
 Drilling capacity: 2"
 Drill Depth / Spindle Travel: 2"
 Chuck capacity: 1/2"
 Table size: 6-1/2" x 6-1/2" (16 x 16 cm)

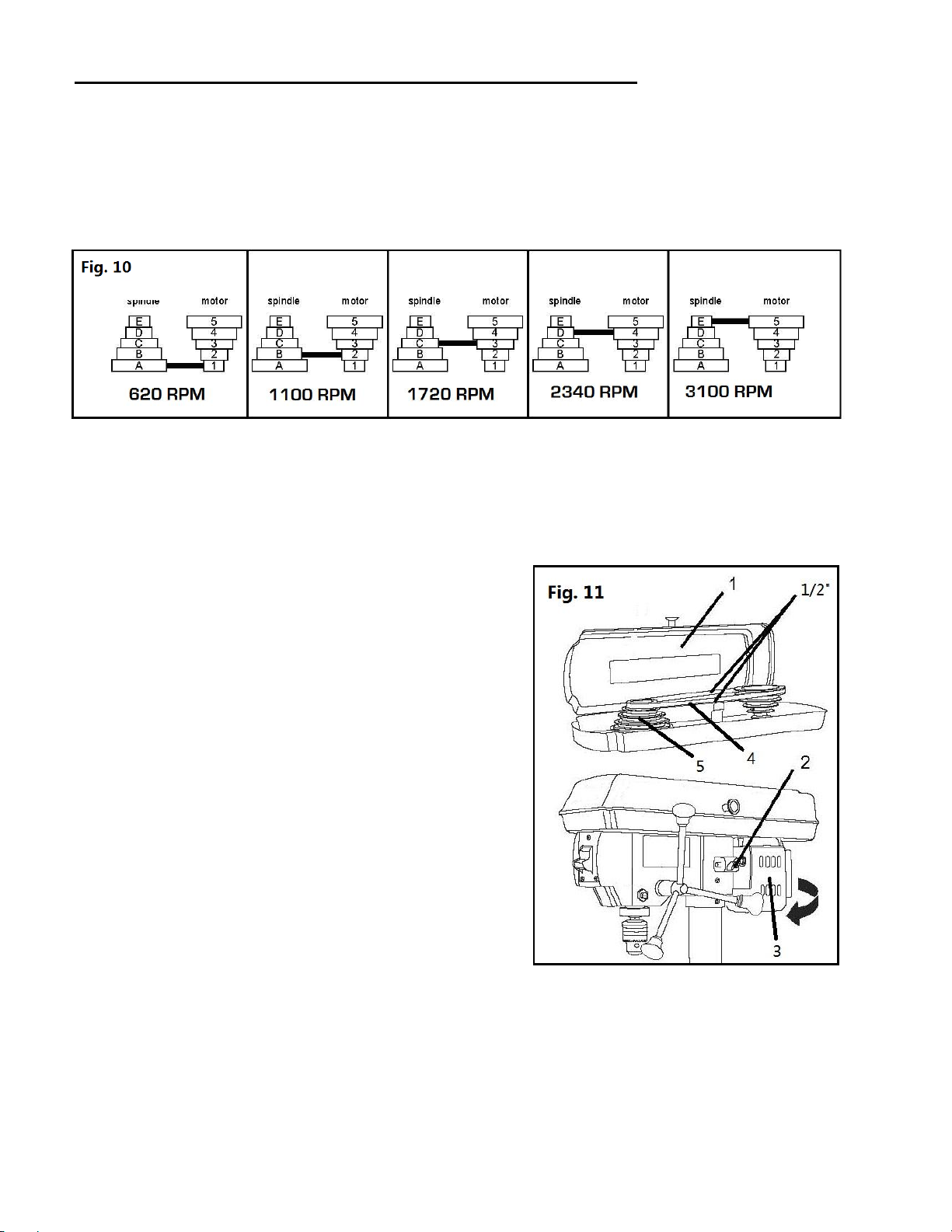

 Pulley speeds: 5 (620, 1100, 1720, 2340, 3100 RPM)
 Overall height: 22.8" (58 cm)
 Weight: 35 lb

Warning! We strongly recommend that this item not be modified and/or used for any application
other than that for which it was designed. If you have any questions relative to its application, do not
use the equipment until you have consulted us and we have advised you.

Contact Great Lakes Technologies, LLC at [phone]M-F 8am-5pm CST

Technical data…..……………………………………………………….. 3
General safety rules…….……………………………………………….. 4
Specific safety rules for drill press……………………………………… 6
Electrical information…………………………………………………... 7
Assembly and adjustments……………………………………………… 9
Operation………………………………………………………………... 16

Maintenance…………………………………………………………….. 19
Exploded view…………………………………………………………… 20
Parts list………………………………………………………………… 21
Warranty………………………………………………………………… 22

TECHNICAL DATA

4

GENERAL SAFETY RULES

Safety is a combination of common sense, staying alert, and knowing how your drill press works.

SAVE THESE SAFETY INSTRUCTIONS.

WARNING: To avoid mistakes that could cause serious injury, do not plug in the drill press

until the following steps have been read and understood.

1. READ and become familiar with this entire instruction manual. LEARN the tool’s applications,

limitations, and possible hazards.

2. AVOID DANGEROUS CONDITIONS. Do not use power tools in wet or damp areas or expose them

to rain. Keep work areas well-lit.

3. DO NOT use power tools in the presence of flammable liquids or gases.

4. ALWAYS keep your work area clean, uncluttered, and well-lit. DO NOT work on floor surfaces that

are slippery with sawdust or wax.

5. KEEP BYSTANDERS AT A SAFE DISTANCE from the work area, especially when the tool is

operating. NEVER allow children or pets near the tool.

6. DO NOT FORCE THE TOOL to do a job for which it was not designed.

7. DRESS FOR SAFETY. Do not wear loose clothing, gloves, neckties, or jewelry (rings, watches, etc.)

when operating the tool. Inappropriate clothing and items can get caught in moving parts and draw
you in. ALWAYS wear non-slip footwear and tie back long hair.

8. WEAR A FACE MASK OR DUST MASK as the drilling operation produces dust.

WARNING: Dust generated from certain materials can be hazardous to your health. Always
operate the drill press in a well-ventilated area and provide for proper dust removal. Use dust
collection systems whenever possible.

9. ALWAYS remove the power cord plug from the electric outlet when making adjustments, changing

parts, cleaning or working on the tool.

10. KEEP GUARDS IN PLACE AND IN WORKING ORDER.

11. AVOID ACCIDENTAL START-UPS. Make sure the power switch is in the OFF position before

plugging in the power cord.

12. REMOVE ADJUSTMENT TOOLS. Always make sure all adjustment tools are removed from the

drill press before turning it on.

5

GENERAL SAFETY RULES (CONTINUED)

13. NEVER LEAVE A RUNNING TOOL UNATTENDED. Turn the power switch to OFF. Do not

leave the tool until it has come to a complete stop.

14. NEVER STAND ON A TOOL. Serious injury could result if the tool tips or is accidentally hit.

DO NOT store anything above or near the tool.

15. DO NOT OVERREACH. Keep proper footing and balance at all times. Wear oil-resistant

rubber-soled footwear. Keep the floor clear of oil, scrap, and other debris.

16. MAINTAIN TOOLS PROPERLY. ALWAYS keep tools clean and in good working order. Follow

instructions for lubricating and changing accessories.

17. CHECK FOR DAMAGED PARTS. Check for alignment of moving parts, jamming, breakage,

improper mounting, or any other conditions that may affect the tool’s operation. Any part that is

damaged should be properly repaired or replaced before use.

18. MAKE THE WORKSHOP CHILDPROOF. Use padlocks and master switches and ALWAYS

remove starter keys.

19. DO NOT operate the tool if you are under the influence of drugs, alcohol, or medication that could

affect your ability to use the tool properly.

20. USE SAFETY GOGGLES AT ALL TIMES—that comply with ANSI Z87.1. Normal safety glasses

only have impact resistant lenses and are not designed for safety. Wear a face or dust mask when
working in a dusty environment. Use ear protection, such as plugs or muffs, during extended periods
of operation.

6

SPECIFIC SAFETY RULES FOR DRILL PRESS

WARNING: Do not operate your drill press until it is completely assembled and installed

according to the instructions.

1. Never turn on the drill press before clearing the table of all objects (tools, scraps, etc.).

2. Always keep hands and fingers away from the drill bit.

3. Do not drill material that does not have a flat surface, unless a suitable support is used.

4. Never start the drill press with the drill bit pressed against the workpiece.

5. Make sure the table lock is tightened before starting the machine.

6. Never perform layout, assembly, or set-up work on the table while the drill is in use.

7. Make sure drill bit is securely locked in the chuck.

8. Make sure chuck key is removed from the chuck before turning power on.

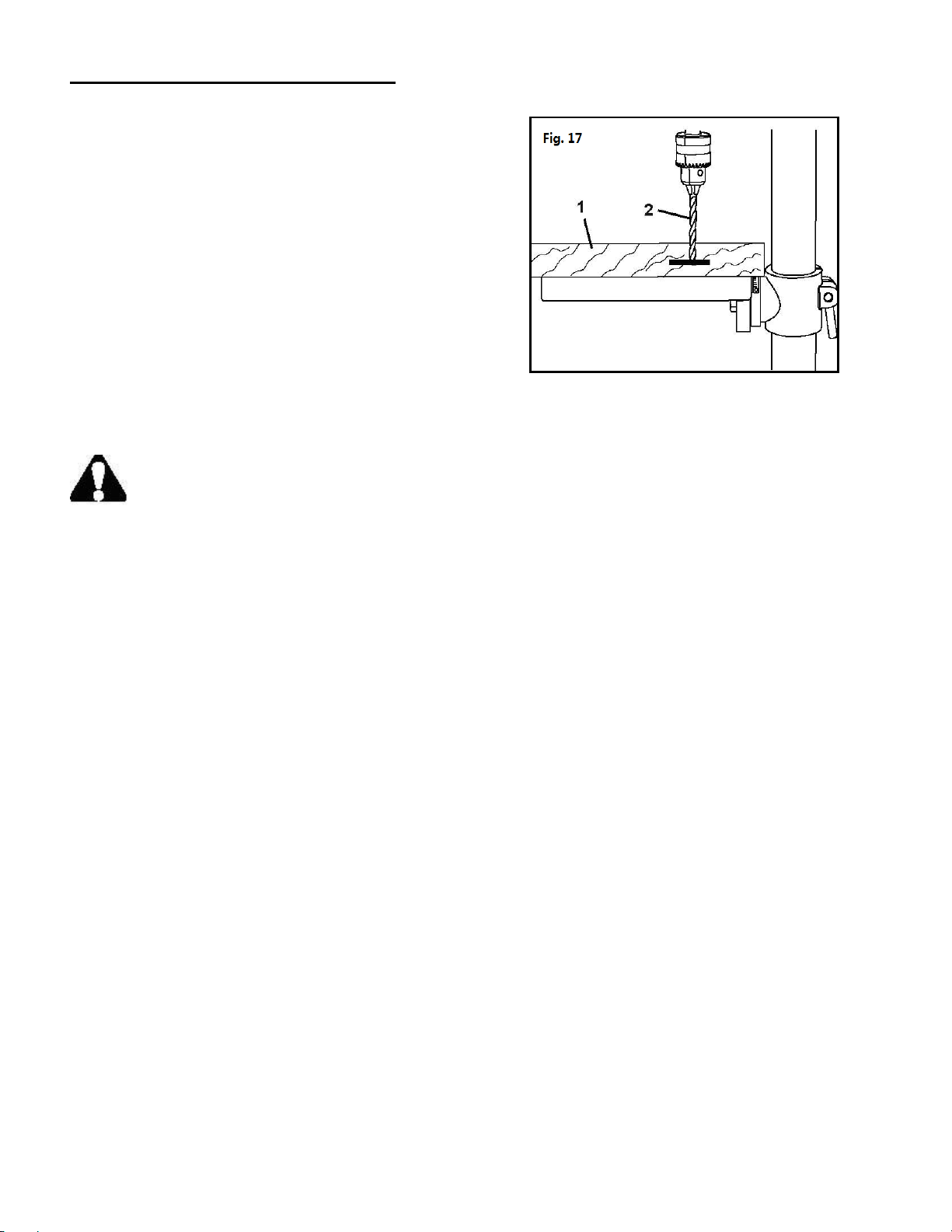

9. Adjust the table or depth stop to avoid drilling into the table.

10. Always stop the drill before removing scrap pieces from the table.

11. Use clamps or a vise to secure workpiece to the table. This will prevent workpiece from rotating with

the drill bit.

12. Do not wear gloves when operating a drill press.

13. Shut the power off, remove the drill bit, and clean the table before leaving the drill press.

14. Set the drill press to the speed appropriate for the job.

15. Should any part of your drill press be missing, damaged, or any electrical component fail to perform

properly, shut power off and unplug the drill press. Replace missing, damaged, or failed parts before
resuming operation.

7

ELECTRICAL INFORMATION

Grounding instructions

IN THE EVENT OF A MALFUNCTION OR BREAKDOWN, grounding provides the path of least
resistance for electric current and reduces the risk of electric shock. This tool is equipped with an electric
cord that has an equipment grounding conductor and a grounding plug. The plug MUST be plugged into
a matching outlet that is properly installed and grounded in accordance with ALL local codes and
ordinances.

DO NOT MODIFY THE PLUG PROVIDED. If it will not fit the outlet, have the proper outlet installed
by a licensed electrician.

IMPROPER CONNECTION of the equipment grounding conductor can result in electric shock. The
conductor with the green insulation (with or without yellow stripes) is the equipment grounding
conductor. If repair or replacement of the electric cord or plug is necessary, DO NOT connect the
equipment grounding conductor to a live terminal.

CHECK with a licensed electrician or service personnel if you do not completely understand the
grounding instructions, or if you are not sure if the tool is properly grounded.

USE ONLY THREE-WIRE EXTENSION CORDS that have 3-pronged plugs and outlets that accept the
tool's plug as shown in Fig. A. Repair or replace a damaged or worn cord immediately.

CAUTION: In all cases, make certain the outlet in question is properly grounded. If you are not sure if it
is, have a licensed electrician check the outlet.

WARNING: This drill press is for indoor use only. Do not expose to rain or use in damp
locations.
