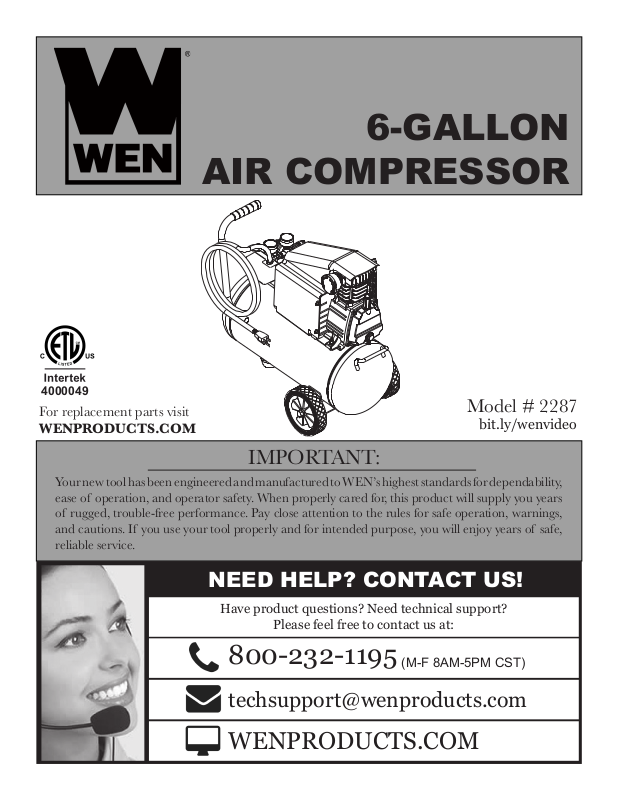

Wen 2287 User Manual

4000049

For replacement parts visit

WENPRODUCTS.COM

6-GALLON

AIR COMPRESSOR

Model # 2287

bit.ly/wenvideo

IMPORTANT:

Your new tool has been engineered and manufactured to WEN’s highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years
of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings,
and cautions. If you use your tool properly and for intended purpose, you will enjoy years of safe,
reliable service.

NEED HELP? CONTACT US!

Have product questions? Need technical support?

Please feel free to contact us at:

800-232-1195

(M-F 8AM-5PM CST)

[e-mail]

WENPRODUCTS.COM

TABLE OF CONTENTS

Technical Data
General Safety Rules
Specific Safety Rules for Compressors
Electrical Information
Know Your Compressor

Assembly
Operation
Maintenance
Troubleshooting
Parts List & Exploded View
Warranty

TECHNICAL DATA

Model Number:
Motor:
Capacity:
Max PSI:
Approximate Cut-in Pressure:
Approximate Cut-out Pressure:
Air Outlet:
Air Flow:

Duty Cycle:
Compression Process:
Product Dimensions:
Weight:

2
3
4
6
7
8
8
10
11
12
14

2287

120V, 13A, 60 Hz, 3 Wire

6 Gallon

125 PSI

95 PSIG

125 PSIG

Quick-Coupler, 1/4˝ NPT

3.2 CFM at 90 PSI

4.2 CFM at 40 PSI
50%

Single Stage

23.6 x 13.8 x 22.8 inches

57.3 pounds

2

GENERAL SAFETY RULES

Safety is a combination of common sense, staying alert and knowing how your item works.

SAVE THESE SAFETY INSTRUCTIONS.

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instruc-

tions may result in electric shock, fire and serious injury. To avoid mistakes and serious injury, do not
plug in your tool until the following steps have been read and understood.

WORK AREA SAFETY

1. Keep work area clean and well lit. Cluttered or dark areas invite accidents. Do not work on floor surfaces that are
slippery with sawdust or wax. Keep the ground clear of tripping hazard.

2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
Power tools create sparks which may ignite the dust or fumes.

3. Keep bystanders at a safe distance from the work area. Never allow children or pets near the tool.

ELECTRICAL SAFETY

1. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric
shock.

2. Power tool plugs must match the outlet. Never modify the plug in any way. Modified plugs with non-matching
outlets will increase the risk of electric shock.

3. Check all power supplies periodically. Do not use defective cords. Damaged or entangled cords increase the risk
of electric shock.

4. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away
from heat, oil, sharp edges or moving parts.

PERSONAL SAFETY

1. Stay alert. Watch what you are doing and use common sense when operating a power tool. Do not use a power
tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while op­erating power tools may result in serious personal injury.

2. Do not wear loose clothing, gloves, neckties, or jewelry (rings, watches, etc.) when operating the tool. Inappropri­ate clothing and items can get caught in moving parts and draw you in. Always wear non-slip footwear and tie back
long hair.

3. Use personal protective equipment. Always wear safety goggles at all times that comply with ANSI Z87.1. Use ear
protection such as plugs or muffs during extended periods of operation. Wear work gloves to protect your hands.
Wear a face mask or dust mask to fight the dust.

4. Keep proper footing and balance at all times and do not overreach when operating the power tool.

WARNING: Dust generated from certain materials can be hazardous to your health. Always operate
the tool in a well-ventilated area and wear dust mask. Use dust collection systems when processing
wood and plastics. Dust extractors or dust bags must not be connected when processing metals.

3

GENERAL SAFETY RULES

POWER TOOL USE AND CARE

1. Avoid accidental start-ups. Make sure the power switch is in the OFF position before connecting the plug to a
power source or carrying the tool.

2. Check power tool for damaged parts. Check for misalignment of moving parts, jamming, breakage, improper
mounting, or any other conditions that may affect the tool’s operation. Do not use the power tool if the switch does
not turn ON/OFF. Any part that is damaged should be properly repaired or replaced before use.

3. Do not force the tool to do a job for which it was not designed. Use the correct power tool and accessories and
follow the instructions for your application to prevent hazardous situations.

4. Remove adjustment tools. Always make sure all adjustment tools or wrenches are removed from the tool before
turning on the power tool.

5. Keep guards in place and in working order before operating the tool. All protection and safety devices must be
in place after completing repair and maintenance procedures

6. Never leave a running tool unattended. Do not leave the tool until it has come to a complete stop.

POWER TOOL MAINTENANCE

1. Always disconnect the power cord plug from the electrical outlet when making adjustments, changing parts, or
storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

2. Maintain power tools properly. Safely store power tools out of the reach of children. Always keep tools clean and
in good working order. Follow instructions for lubricating and changing accessories.

3. Only have your power tool serviced by a qualified repair person using only identical replacement parts. Use of
any other part can cause personal injury and damage to the tool.

SPECIFIC RULES FOR AIR COMPRESSORS

WARNING: To avoid mistakes and serious injury, do not plug in your tool until the following steps have been read
and understood.

1. Use your air compressor in accordance with these instructions, taking into account working conditions and the
task at hand. Use of the compressor for operations other than its intended use could result in personal injury.

2. Always operate the compressor in a well ventilated area away from combustible materials, gasoline, or solvent
vapors. Your air compressor must be kept at least 20 feet away from explosive vapors.

3. Do not use your air compressor if the pressure switch does not turn on and off. An air compressor that cannot
be controlled with the switch is dangerous and must be repaired.

4. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect
your air compressor’s operation. If damaged, have your air compressor repaired by a qualified service technician
before using it again. Many accidents are caused by poorly maintained compressors.

4

SPECIFIC RULES FOR AIR COMPRESSORS

5. Keep your air compressor in a well-ventilated area. Do not cover during use.

6. Do not spray flammable liquids in a confined area or towards a hot surface. The spray area must be well-ventilat­ed. Do not smoke while spraying. Do not spray when a spark or flame is present.

7. Do not adjust the regulator higher than the marked maximum pressure of any attached pneumatic tools or equip­ment.

8. Do not direct the air stream at people or animals.

9. Do not use your air compressor to supply breathing air.

10. To prevent burns or other injuries, do not touch any exposed metal parts on compressor during or immediately
after operation. The air compressor’s cylinder head and air lines get hot during operation and will remain hot for
several minutes after operation.

11. Do not leave your air compressor unattended for an extended period while plugged in. Unplug compressor and
detach hoses and accessories after use.

12. Drain tank daily or after use. Internal rust causes tank failures and explosions.

13. Do not use the air hose to move your air compressor.

14. Do not grind, puncture, torch or in anyway modify the compressor’s tank.

15. Disconnect the plug from the power source and drain all air from the tank before making any adjustments,
changing accessories, or storing your air compressor. This reduces the risk of starting your air compressor acciden­tally.

16. Maintain your air compressor. Keep your air compressor clean for maximum performance. Follow the instruc­tion for maintenance and changing accessories if necessary. Keep your air compressor dry, clean and free from oil
and grease.

17. Store your air compressor out of the reach of children and do not allow people unfamiliar with either the com­pressor or these instructions to operate it. An air compressor is dangerous in the hands of an untrained user.

18. Ignoring any of the above rules and guidelines automatically voids the warranty for the unit.
