Wells RW-36 Installation Manual

ELECTRICAL

MODEL VOLTS WATTS AMPS PHASE WIRING

RW-36
RW-36 SINGLE 14 AWB Cu 90°C
RW-36

RW-36HD, RWT-36/36HD MODELS HAVE THE SAME ELECTRICAL
SPECIFICATIONS AS THE STANDARD MODELS

120 1350
208

1014

11.3

4.9

5.61350240

SINGLE 14 AWB Cu 90°C

SINGLE

FIELD

GAUGE

23

(584)

TEMP.

RATING

90°C14 AWB Cu

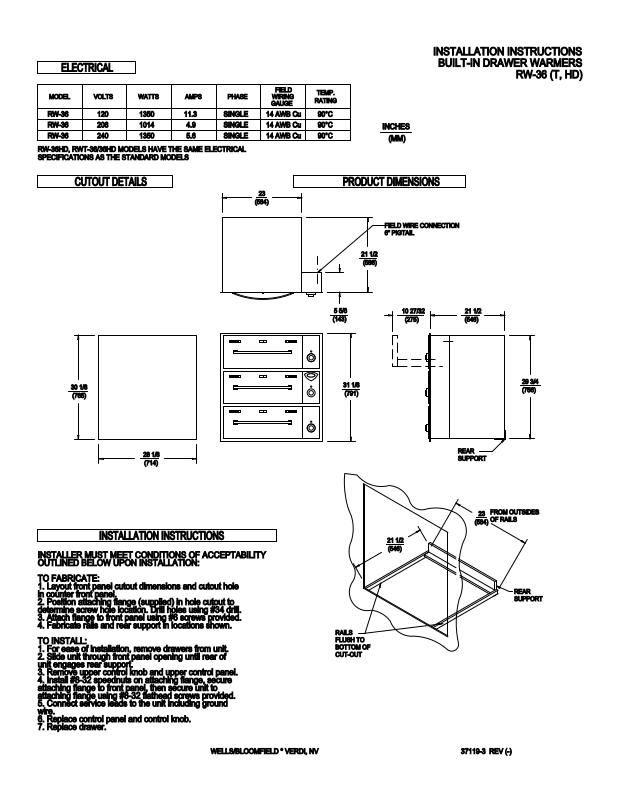

INSTALLATION INSTRUCTIONS

BUILT-IN DRAWER WARMERS

RW-36 (T, HD)

INCHES

(MM)

PRODUCT DIMENSIONSCUTOUT DETAILS

FIELD WIRE CONNECTION
6" PIGTAIL

21 1/2

(586)

30 1/8

(765)

28 1/8

(714)

INSTALLATION INSTRUCTIONS

INSTALLER MUST MEET CONDITIONS OF ACCEPTABILITY
OUTLINED BELOW UPON INSTALLATION:

TO FABRICATE:

1. Layout front panel cutout dimensions and cutout hole
in counter front panel.

2. Position attaching flange (supplied) in hole cutout to
determine screw hole location. Drill holes using #34 drill.

3. Attach flange to front panel using #6 screws provided.

4. Fabricate rails and rear support in locations shown.
TO INSTALL:

1. For ease of installation, remove drawers from unit.

2. Slide unit through front panel opening until rear of
unit engages rear support.

3. Remove upper control knob and upper control panel.

4. Install #8-32 speednuts on attaching flange, secure
attaching flange to front panel, then secure unit to
attaching flange using #8-32 flathead screws provided.

5. Connect service leads to the unit including ground
wire.

6. Replace control panel and control knob.

7. Replace drawer.

5 5/8

(143)

31 1/8

(791)

RAILS
FLUSH TO
BOTTOM OF
CUT-OUT

21 1/2

(546)

10 27/32

(275)

21 1/2
(546)

REAR
SUPPORT

23

(584)

29 3/4
(756)

FROM OUTSIDES
OF RAILS

REAR
SUPPORT

WELLS/BLOOMFIELD * VERDI, NV

37119-3 REV (-)
