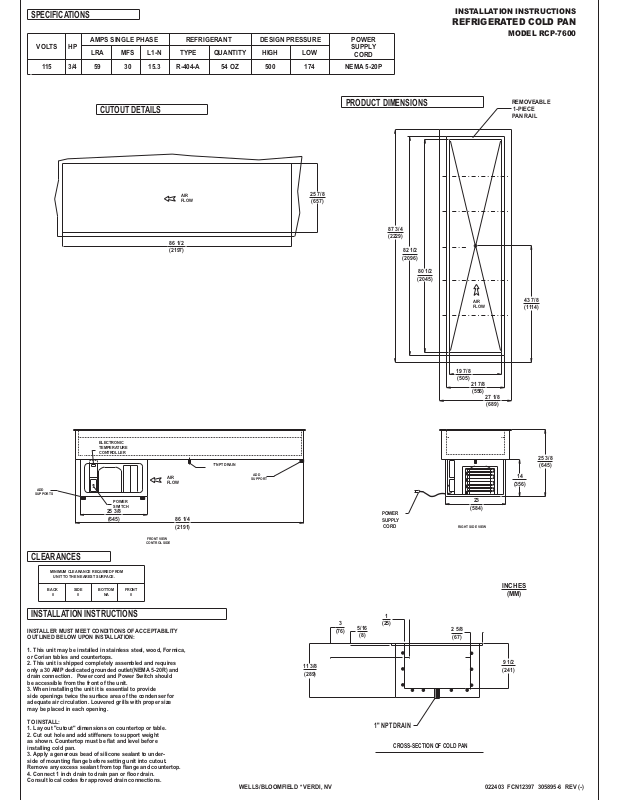

Wells RCP-7600 Installation Manual
SPECIFICATIONS
VOLTS
HP
115
3/4 15.330
AMPS SINGLE PHASE
LRA
MFS L1-N
59
REFRIGERANT
R-404-A 54 OZ
DESIGN PRESSURE
HIGH LOWQUANTITYTYPE
174500
POWER
SUPPLY
CORD
NEMA 5-20P
INSTALLATION INSTRUCTIONS
REFRIGERATED COLD PAN
MODEL RCP-7600
CUTOUT DETAILS
86 1/2
(2197)
AIR
FLOW
25 7/8
(657)
PRODUCT DIMENSIONS
87 3/4
(2229)
82 1/2
(2096)
80 1/2
(2045)
19 7/8
(505)
AIR
FLOW
21 7/8
(556)
27 1/8
(689)
REMOVEABLE
1-PIECE
PAN RAIL
43 7/8
(1114)
ELECTRONIC
TEMPERATURE
CONTROLLER
AIR
FRONT VIEW
CONTROL SIDE
FLOW
86 1/4
(2191)
ADD
SUPPORTS
POWER
SWITCH
25 3/8
(645)
CLEARANCES
MINIMUM CLEARANCE REQUIRED FROM
UNIT TO THE NEAREST SURFACE.
FRONT
BOTTOM
SIDE
BACK
0
0
0
NA
INSTALLATION INSTRUCTIONS
INSTALLER MUST MEET CONDITIONS OF ACCEPTABILITY
OUTLINED BELOW UPON INSTALLATION:
1. This unit may be installed in stainless steel, wood, Formica,
or Corian tables and countertops.
2. This unit is shipped completely assembled and requires
only a 30 AMP dedicated grounded outlet(NEMA 5-20R) and
drain connection. Power cord and Power Switch should
be accessible from the front of the unit.
3. When installing the unit it is essential to provide
side openings twice the surface area of the condenser for
adequate air circulation. Louvered grills with proper size
may be placed in each opening.
TO INSTALL:
1. Lay out "cutout" dimensions on countertop or table.
2. Cut out hole and add stiffeners to support weight
as shown. Countertop must be flat and level before
installing cold pan.
3. Apply a generous bead of silicone sealant to underside of mounting flange before setting unit into cutout.
Remove any excess sealant from top flange and countertop.
4. Connect 1 inch drain to drain pan or floor drain.
Consult local codes for approved drain connections.
1"NPT DRAIN
ADD
SUPPORT
WELLS/BLOOMFIELD * VERDI, NV
11 3/8
(289)
(76)
25 3/8
(645)
14
(356)
23
RIGHT SIDE VIEW
2 5/8
(67)
(584)
INCHES
(MM)
9 1/2
(241)
POWER
SUPPLY
CORD
1
5/16
(8)
(25)
3
1" NPT DRAIN
CROSS-SECTION OF COLD PAN
022403 FCN12397 305895-6 REV (-)
