Wells LLW-11 Service Manual

SERVICE PARTS LIST

PL003

Countertop Warmers

003

w/ Bi-Metal Controls

Models:

LLW-4, LLW-7, LLW-11,

LLW-1220

CONTENTS

Description page

Parts List …………………………………………………... 2
Models ……………………………………………………… 3
LLW-4………………………………….………. 3
LLW-7………………………………………….. 4
LLW-11………………………………………… 5
LLW-1220…………...………………………… 6

p/n PL003 040602 wwm

PART # DESCRIPTION

OPTIONAL ACCESSORIES

ELECTRICAL

20934 CORD SET 240V 15A 4FT
21496 ELEM 120V 900W LLW-1220
60469 CORD SET 5-15P 6FT
62896 CONNECTOR WIRE 12-14 GA
65640 ELEM 120V 625W LLW-11
65642 THERMO 215DEG LLW
66327 ELEM 120V 325W LLW-4
66337 ELEM 120V 525W LLW-7
66660 ELEM 240V 1200W LLW-1220

PART # DESCRIPTION

MECHANICAL

51217 STRAI N RELIEF 90DEG HEYCO
56196 INSUL FG .6 MICRO 1"X9"X150'
65643 COVER BOTTOM LLW-11
65644 KNOB BLACK LLW LLSC
65645 POT 11QT CLEAR ANODIZED ALUM
65737 SHELL WRAP LLW-11
65755 PAN ASSY LLW-1220
66325 POT ANIDIZED ALUMINUM LLW-4
66335 POT ANODIZED CLEAR LLW-7

503370 PAN ELEMENT MODS

6411-11 INSUL BOT

PART # DESCRIPTION

HARDWARE, etc.

50397 CLIP ELEM M P
51053 NUT 8-32 KEPS MS NICKEL
51717 SCREW 8-32X7/8 PH FL ROLOCK NI
53977 SCREW 8-32X3/8 PH BND HD MS NI
54222 WASHER 1/2 OD X 7/32 ID ZINC
54284 RIVET POP 3/32DX1/8
55736 NUT 8-32 HEX KEPS MS GREEN
57567 SCREW 8ABX3/8 PH TR HD SMS ZI

2

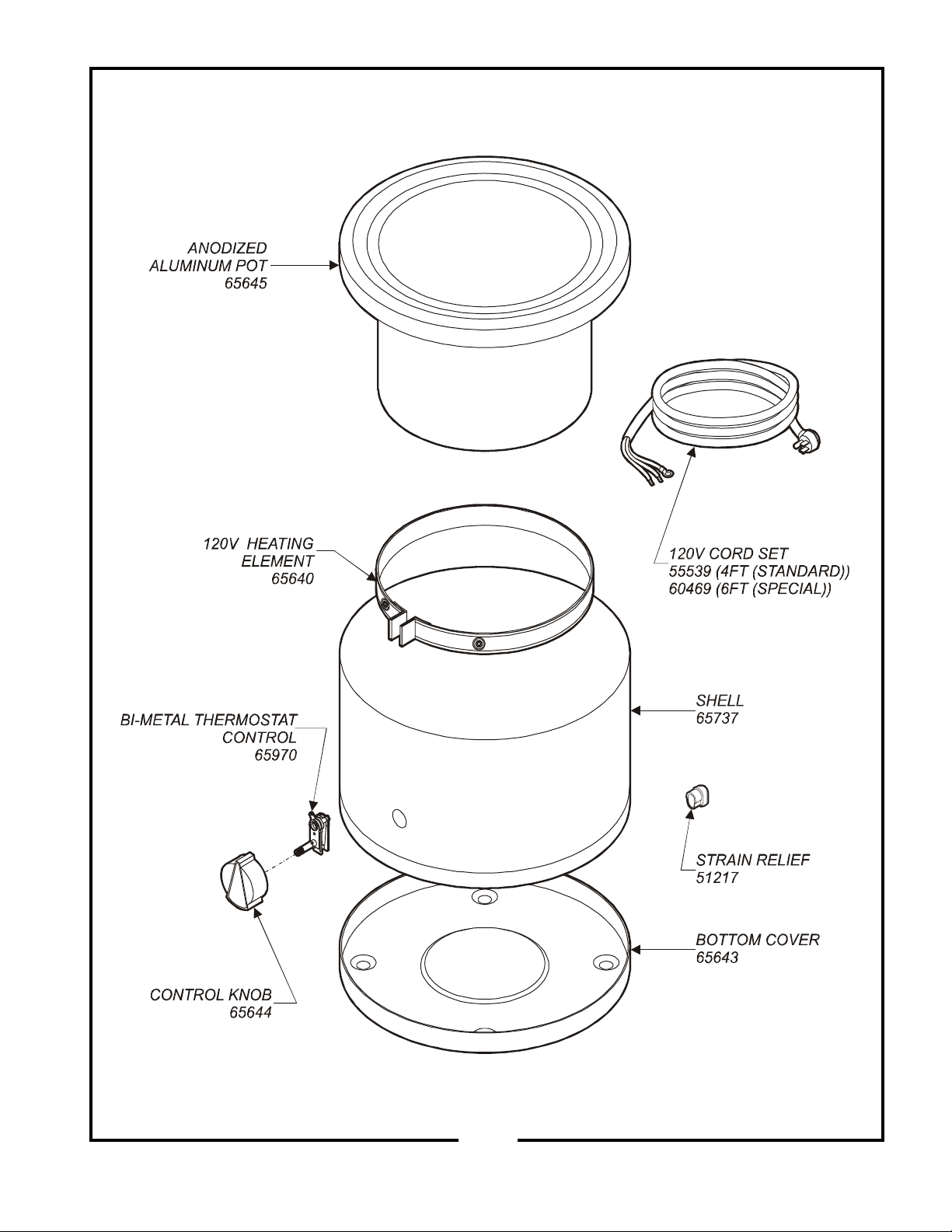

COUNTERTOP WARMER
W/ BI-METAL CONTROL
MODEL LLW-4

3
