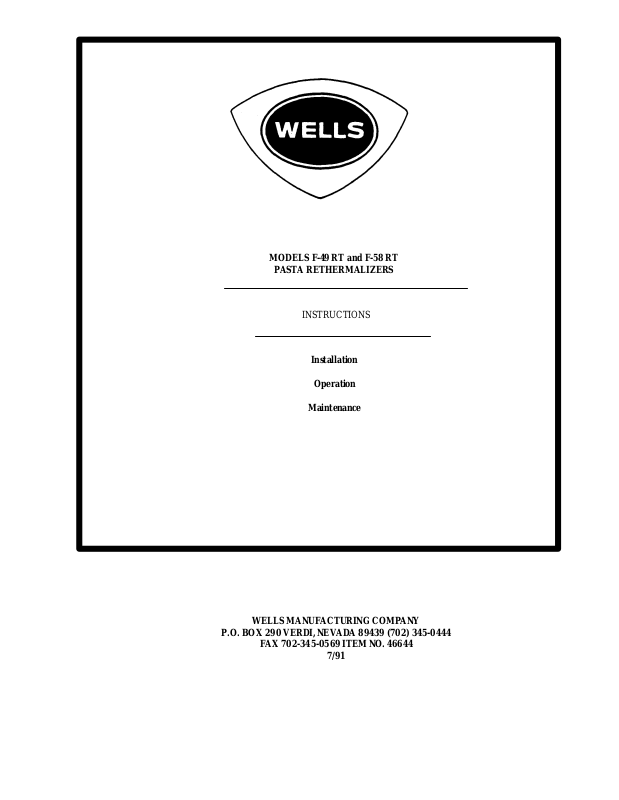

Wells F-58RT Service Manual

MODELS F -49 RT and F-58 RT

PASTA RETHERMALIZERS

INSTRUCTIONS

Installation

Operation

Maintenance

WELLS MANUFACTURING COMPANY

P.O. BOX 290 VERDI, NEVADA 89439 [phone]

FAX [phone] ITEM NO. 46644

7/91

TABLE OF CONTENTS

DESCRIPTION PAGE
Warranty 3
Shipping Damage Claim Procedure 4
Specification Information/Features 4
Warnings! 5
Installation Instructions 6
Operating Instructions 7-8
Cleaning Instructions 8
Warranty Exclusions 9

2

WARRANTY STATEMENT

All commercial cooking equipment manufactured by WELLS is warranted against defects in materials and
workmanship for a period of one year from the date of original installation or 18 months from the date of
shipment from our factory, whichever comes first and is for the benefit of the original purchaser only, except
that;
a. with respect to the stainless steel frypot for gas fryers, model number WFG-40-2, serial number SS-1000

and up, the stainless steel frypot is warranted to be free from welding defects that could cause
shortening leaks for the lifetime of the fryer, except that after one year, the warranty is limited to frypot
part replacement only.

b. with respect to the mild steel frypot for gas fryers, model number WFG-40-2, serial number CR-1000

and up, the mild steel frypot is warranted to be free from welding defects that could cause shortening
leaks for two years, except that after one year, the warranty is limited to frypot part replacement only. c.
with respect to Lite line Products, warranty is one year parts and 90 days

labor on carry-in portable models. THIS WARRANTY IS THE COMPLETE AND ONLY
WARRANTY, EXPRESSED OR IMPLIED IN LAW OR IN FACT, INCLUDING BUT NOT LIMITED
TO, WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE,
AND/OR FOR DIRECT, INDIRECT OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH
WELLS' PRODUCTS. This warranty is void if it is determined that upon inspection by an authorized service
agency that the equipment has been modified, misused, misapplied, improperly installed, or damaged in
transit or by fire, flood or act of God. It, also, does not apply if the serial nameplate has been removed or
service is performed by unauthorized personnel. The prices charged by Wells for its products are based upon
the limitations in this warranty. Sellers obligation under this warranty is limited to the repair of defects
without charge by a WELLS' factory authorized service agency or one of its sub-service agencies and is
limited to a 60 mile radius to the nearest authorized service agency or one of its sub-service agencies. This
service will be provided on customer's premises for non-portable models. Portable models (a device with a
cord and plug) must be taken or shipped to the closest authorized service agency, transportation charges
prepaid for service. In addition to restrictions contained in this warranty, specific limitations are shown in the
Service Policy and Procedure Guide. WELLS' authorized service agencies are located in principal cities. This
warranty is valid in the United States and Canada and void elsewhere. Please consult your classified
telephone directory, your foodservice equipment dealer or write the Factory Service Department, Wells

Manufacturing Coapany, P.O. Box 280, Verdi, Nevada 89439, phone[phone], for information
and other details concerning warranty.

3

SHIPPING CLAIM PROCEDURE:
For your protection, please note that equipment in this shipment was carefully inspected and packed by

skilled personnel before leaving the factory. The transportation company assumes full responsibility for safe
delivery upon acceptance of this shipment.

IF SHIPMENT ARRIVES DAMAGED:
We cannot assume responsibility for damage or loss incurred in transit. We will, however, be glad to furnish

you with the necessary documents to support your claim.

1. VISIBLE LOSS OR DAMAGE — Be certain this is noted on freight bill or express receipt and

signed by the person delivering.

2. FILE CLAIM FOR DAMAGES IMMEDIATELY— Regardless of extent of damage.

3. CONCEALED LOSS OR DAMAGE — If damage is unnoticed until merchandise is unpacked, notify

transportation company or carrier immediately, and file "concealed damage" claim with them. This
should be done within (15) days of date of delivery is made to you. Be sure to retain container for
inspection.

WELLS MODELS F-49 RT and F-58 RT PASTA RETHERMALIZER8 FEATURES:
ON/OFF SWITCH: Front mounted power switch allows thermostat setting to be pre-set (F-58 RT only).

AUTOLJFT: Adjustable timer and lift mechanism maintains consistent cook times on food product (F-58 RT
only).

TEMPERATURE CONTROL: Automatically regulates temperature of water, eliminates over and under
heating, and is fully adjustable from 80° to 210° F. Built -in OFF position.

TEMPERATURE LIGHT: This light glows ON when temperature control dial is turned to heating positio n.
Light turns OFF when water reaches desired temperature. Periodically cycles ON and OFF as temperature is
automatically maintained.

HEATING ELEMENTS: Heavy-duty, stainless steel element located under the portion baskets. They allow
hot water to rise naturally through the food for uniform heating.

SAFETY HIGH LIMIT CONTROL: Turns power OFF to heating element if an over-temperature condition is
reached.

PORTION BASKETS: Fine mesh construction and completely interchangeable in stainless steel holding
rack.

WATER POT: Removable stainless steel pot may be taken to sink and washed. Water capacity is 9 quarts.
ELEMENT LEFT HANDLE: Spring loaded handle used to raise heating element out of water pot. Self-

locking in upper position.
STAINLESS STEEL SHELL: Stainless steel shell is durable and easy to clean.

4
