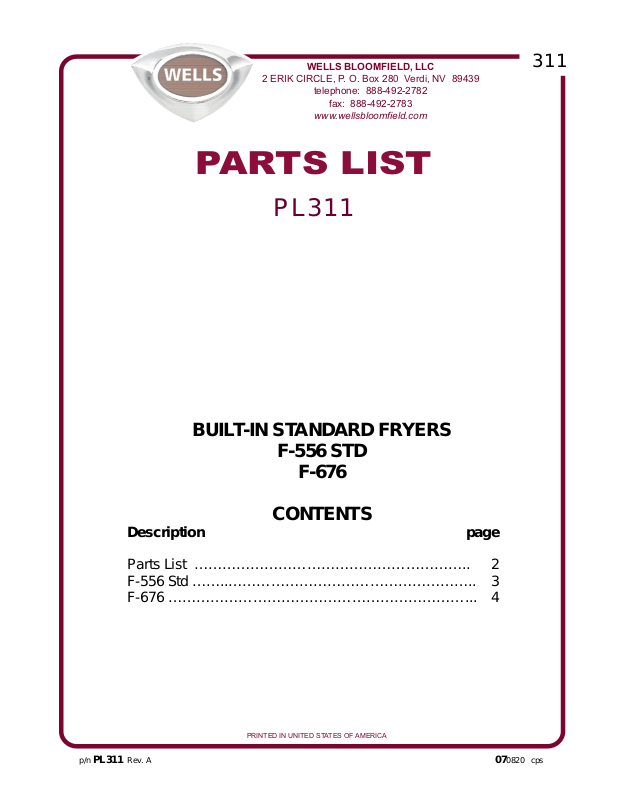

Page 1
WELLS BLOOMFIELD, LLC
2 ERIK CIRCLE, P. O. Box 280 Verdi, NV 89439
telephone: 888-492-2782
fax: 888-492-2783
www.wellsbloomfield.com
PARTS LIST
PL311
311
BUILT-IN STANDARD FRYERS
F-556 STD
F-676
CONTENTS
Description page
Parts List ………………………………………………….. 2
F-556 Std ……..…………………………………………….. 3
F-676 ………………………………………………………... 4
PRINTED IN UNITED STATES OF AMERICA
p/n PL311 Rev. A 070820 cps
Page 2
PART # DESCRIPTION
OPTIONAL ACCESSORIES
20161 FRY BASKET, HALF-SIZE
20162 FRY BASKET FULL-SIZE
20169 FRYPOT, F-49, F-55, F-67
20690 CRUMB CRADLE 12"x8½"
21010 COVER, FRYPOT
ELECTRICAL
50131 TERMINAL BLOCK 3P
50133 THERMOSTAT, F-676
50516 INDICATOR LIGHT, AMBER
51157 INDICATOR LIGHT, RED
53068 TERMINAL BLOCK 2P
54005 JUMPER, FLAME SENSOR, F-55
54131 CONNECTOR WIRE 12-14 GA
55510 THERMOSTAT, F-556
58656 THERMO, HI-LIMIT SAFETY
62842 ELEMENT, 208V, F-556
62866 E.EMENT, 240V, F-556
62891 ELEMENT, 208V, F-676
62892 ELEMENT, 240V, F-676
62899 HEAD ASSY COMPLETE 208V F-676
62900 HEAD ASSY COMPLETE 240V F-676
62903 HEAD ASSY COMPLETE 208V F-556
62904 HEAD ASSY COMPLETE 240V F-556
63652 ELEM & THERMO KIT 208V F- 676
63653 ELEM & THERMO KIT 240V F- 676
63654 ELEM & THERMO KIT 208V F-556
63655 ELEM & THERMO KIT 240V F-556
PART # DESCRIPTION
MECHANICAL
50183 BRACKET, PIVOT, F-556, F-676
50464 CONTROL BOX, SHELL ONLY
51206 BASKET ROD
52427 SUPPORT ROD, CONTROL HEAD
52806 COVER, PIVOT BRACKET
52428 SPRING, SUPPORT ROD
53245 COVER, PIVOT INTERMEDIATE, F-676
54066 KNOB, TEMP CONTROL F-676
54323 COVER, CONTROL BOX, F-49
54452 RETAINER, BASKET ROD
55028 COVER, CONTROL BOX, F-55, F-67
55511 KNOB, TEMP CONTROL F-556
PART # DESCRIPTION
HARDWARE, etc.
50157 CLAMP, CAPILLARY
50172 NUT, FRYER ELEMENT
50176 LOCK WASHER, ELEMENT (pk 10)
50177 FIBER WASHER, ELEMENT
51040 GROMMET INSULATION 7/8"
51053 NUTS, 8-32 KEPS (pk 100)
51207 WASHER, SS BASKET ROD
51208 WASHER, NEOPRENE BASKET ROD
51717 SCREW 8-32 x 7/8 PH FL
51718 SCREW 8-32 x 3/16 RD (pk 10)
51881 SLEEVING VARGLAS 5/8 DIA
53890 SCREW 12-24 x3/4 (pk 10)
53935 SCREW #6SMS x 1/4 (pk 100)
55566 SCREW #6SMS # 1/4 TH SS (pk100)
55736 NUT, 8-32 KEPS GREEN (pk 10)
61974 NUT 8-32 7/8" LG ALUM (pk 10)
62504 CLIP, THERMOBULB (pk 4)
63665 CLIP THERMOBULB (pk 10)
63736 BOOT, ROCKER SWITCH
PL311 Service Parts List - Built-In Standard Fryer
2
Page 3
BUILT-IN SINGLE-HEAD FRYER
50516
amber
51157
red
58656
hi-limit safety
53068
50464
50176
54452
50177
lock washer
50172
fiber washer
(pk 10)
62504
(pk 4)
RESET
50157
52428
52427
55511
55510
temp control
62842 (208V)
62866 (240V)
53890
62504
(pk 4)
(pk 10)
51717
52806
(pk 40)
20161
20162
1/2 SIZE
FULL SIZE
20169
PL311 Service Parts List - Built-In Standard Fryer
50183
55028
55566
(pk 100)
51206
55736
green KEPS
(pk 10)
51208
51207
(pk 4)
53068
54005
50131
61974
(pk 10)
51053
(pk 100)
3
Page 4
BUILT-IN DUAL-HEAD FRYER
FRY HEAD COMPONENTS
50176
50516
amber
51157
red
58656
hi-limit safety
54452
50177
lock washer (pk 10)
fiber washer
50172
50157
62504
(pk 4)
RESET
50157
52428
52427
54066
50133
temp control
62891 (208V)
62892 (240V)
51208
51207
63665
(pk 10)
(pk 4)
PL311 Service Parts List - Built-In Standard Fryer
50464
55028
55566
(pk 100)
51206
NOTE: Fryer has two identical
fryer heads. One only is shown.
4
Page 5
BUILT-IN DUAL-HEAD FRYER
CABINET COMPONENTS
53245
50183
53895
53890
51717
52806
(pk 10)
(pk 40)
20161
20162
1/2 SIZE
FULL SIZE
20169
PL311 Service Parts List - Built-In Standard Fryer
55736
green KEPS
(pk 10)
53068
54005
50131
61974
(pk 10)
5
