Wells F-49 PARTS LIST

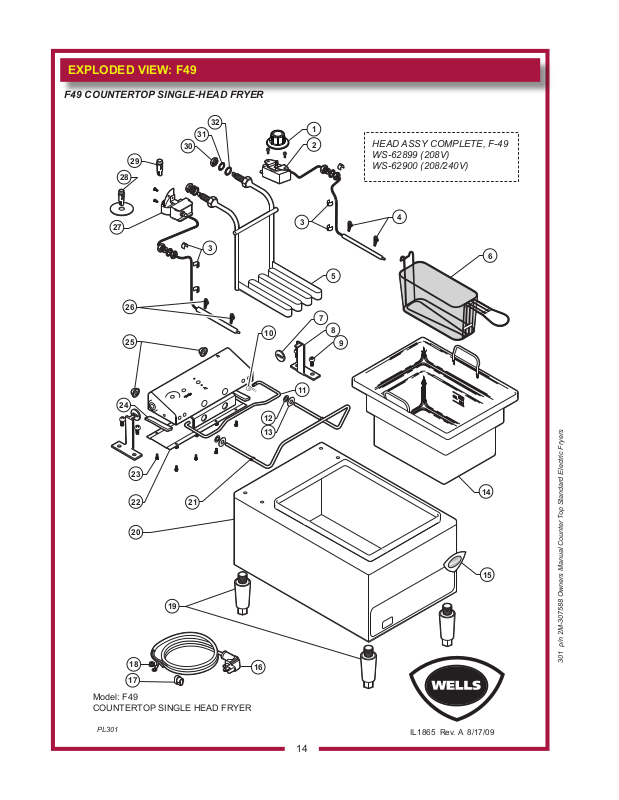

EXPLODED VIEW: F49
Model: F49
COUNTERTOP SINGLE HEAD FRYER
PL301
IL1865 Rev. A 8/17/09
HEAD ASSY COMPLETE, F-49
WS-62899 (208V)
WS-62900 (208/240V)
1
2
3
4
6
5
7
8
9
3
32
31
30
29
28
27
26
25
10
11
14
12
13
24
23
22
21
20
19
15
16
18
17
F49 COUNTERTOP SINGLE-HEAD FRYER
301 p/n 2M-307588 Owners Manual Counter Top Standard Electric Fryers
14
PARTS LIST: F49
301 p/n 2M-307588 Owners Manual Counter Top Standard Electric Fryers
F49 COUNTERTOP SINGLE-HEAD FRYER
Fig No. Part Number Description
1 2R-34066 KNOB CONTROL ASSY
2 2T-30133 THERMO CTRL
3 2C-30157 CLIP CAPILLARY
4 2C-43665 CLAMP THERMO BULB F49
2N-42891UL ELEM 208V 4600W
5
2N-42892UL ELEM 240V 4600W
2B-43688 BASKET WIRE TWIN
6
2B-43689 BASKET WIRE SINGLE FULL
7 E7-33436 WASHER SLOTTED PIVOT BRKT
8 E7-33435 BRKT PIVOT F49
9 2C-33890 SCREW 12-24X3/4PH PAN ROL
10 2P-32428 SPRING SUPPORT ROD
11 2A-32427 ROD SUPPORT SHORT HEAD
12 2C-31208 WASHER NEOPRENE BASKET
13 2C-31207 WASHER FLAT SS BASKET ROD
14 2D-301344 POT ASSY - F SERIES FRYER
15 2M-300534 TRADEMARK DOMED LABEL
16 2E-35259 CORD SET 250V 30A 12G 6-30P
17 2K-45788 STRAIN RELIEF SR7W-2 LLF
18 2C-35736 NUT 8-32 HEX KEPS MS GREEN
2R-Y5092 FEET ADJ 4GRAY 3/8-16 PK, PLASTIC
19
2A-Z0314 FEET ADJ METAL 4IN
20 DD-34206 SHELL ASSY F49
21 WS-51206 BASKET ROD
22 E7-34323 COVER CONTROL BOX F49
23 2C-35566 SCREW 6-32X1/4 PH TR HD
24 2I-35747 GASKET DRWR RWS CLOSED CE
25 2P-34452 CAP PUSH ON TYPE BASKET
26 2C-49689 CLAMP BULB SS F49RT
27 WS-58656 HI-LIMIT MAN RESET 440°F
28 2J-31157 LIGHT SIGNAL RED
29 2J-30516 LIGHT SIGNAL AMBER
30 2C-30172 NUT 7/8-14 HEX
31 2C-30176 WASHER LOCK FTG TUBE FRAM
32 2I-Z12311 GASKET-FIBER WASHER
NI WS-62899 HEAD ASSY F49 208V
NI WS-62900 HEAD ASSY F49 208/240
NI
WS-Z21128
RELAY 240V
Part of Head
Assy
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
15
