Wells BMW-206ULST Specifications
W E L L S M A N U F A C T U R I N G
WELLS
I T E M N O .

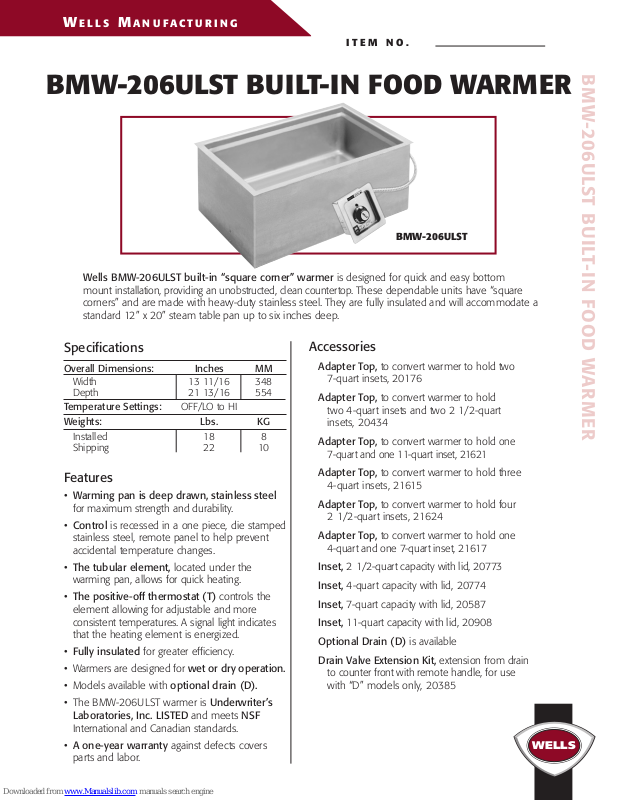

BMW-206ULST BUILT-IN FOOD WARMER
BMW-206ULST
Wells BMW-206ULST built-in “square corner” warmer is designed for quick and easy bottom
mount
corners” and are made with heavy-duty stainless steel. They are fully insulated and will accommodate a
standard 12” x 20” steam table pan up to six inches deep.
installation, providing an unobstructed, clean countertop.
These dependable units have “square
BMW-206ULST BUILT-IN FOOD WARMER
Specifications
Overall Dimensions: Inches MM
W
idth 13 11/16 348
Depth 21 13/16 554
Temperature Settings: OFF/LO to HI
Weights: Lbs. KG
Installed 18 8
Shipping 22 10
Features
• Warming pan is deep drawn, stainless steel
f
or maximum strength and durability.
• Control is recessed in a one piece, die stamped
stainless steel, remote panel to help prevent
accidental temperature changes.
• The tubular element, located under the
warming pan, allows for quick heating.
• The positive-off thermostat (T) controls the
element allowing for adjustable and more
consistent temperatures. A signal light indicates
that the heating element is energized.
• Fully insulated for greater efficiency.
• Warmers are designed for wet or dry operation.
• Models available with optional drain (D).
• The BMW-206ULST warmer is Underwriter’s
Laboratories, Inc. LISTED and meets NSF
International and Canadian standards.
• A one-year warranty against defects covers
parts and labor.
Accessories
Adapter Top, to convert warmer to hold two
7-quart insets, 20176
Adapter Top, to convert warmer to hold
two 4-quart insets and two 2 1/2-quart
insets, 20434
Adapter Top, to convert warmer to hold
7-quart and one 11-quart inset, 21621
Adapter Top, to convert warmer to hold three
4-quart insets, 21615
Adapter Top, to convert warmer to hold four
2 1/2-quart insets, 21624
Adapter Top, to convert warmer to hold
4-quart and one 7-quart inset, 21617
Inset, 2 1/2-quart capacity with lid, 20773
Inset, 4-quart capacity with lid, 20774
Inset, 7-quart capacity with lid, 20587
Inset, 11-quart capacity with lid, 20908
Optional Drain (D) is available
Drain Valve Extension Kit, extension from
to counter front with remote handle,
with “D” models only, 20385
one
one
drain
for use
(143)
5 5/8
(105)
4 1/8
(149)
5 7/8
(159)
6 1/4
(211)
8 5/16
(348)
13 11/16
(306)
12 1/16
(554)
21 13/16
(510)
20 3/32
BMW-206ULSTD ONLY
1/2 IN DRAIN NPT
W E L L S M A N U F A C T U R I N G
STD.4
R
LISTED
R
E6070 E6070
C
R
LISTED
M O D E L
B M W - 2 0 6 U L S T
B U I LT- I N WA R M E R
D I M E N S I O N S :
INCH
(MM)
MINIMUM CLEARANCE FROM UNIT
TO THE NEAREST SURFACE
BACK SIDE BOTTOM FRONT
1 1 6 3/4 4 1/8
(25) (25) (171) (105)
B M W - 2 0 6 U L S T E L E C T R I C A L S P E C I F I C AT I O N S :
MODELS VOLTS WATTS AMPS PHASE POWER SU PPLY CORD
BMW-206ULST 120 1200 10.0 SINGLE NONE
BMW-206ULST 208 1240 6.0 SINGLE NONE
BMW-206ULST 240 1650 6.9 SINGLE
All models with a 'D' suffix have the same electrical specifications as the standard versions.
NOTE: Specifications are subject to change without notice. See installation instructions prior to installing the unit.
This document is not for installation purposes.
THIS UNIT IS DESIGNED TO BE INSTALLED IN METAL COUNTERS ONLY
WELLS MANUFAC TU RING COMPANY
2 ER IK C IR CL E, PO BOX 280, VERDI, NV 89439 U .S.A.
USA PH ON E: ( 775) 689-5700 • FAX: (775) 689-5972
FOR ORDER S ONLY: (888) 356- 536 2 • FAX: (800 ) 356 -5142
www. we lls-m fg .com
© 20 02 WE LLS MA NUFA CT U RIN G • P RIN TED IN TH E U .S .A.
03 /0 2 • R EV (A) • PAR T NO. 3 02 118
NONE
