Wel-Bilt 143396 Instruction Manual

18V Cordless

Chain Saw

Item # 143396

WARNING:

Read and understand RULES FOR SAFE OPERATION

and instructions carefully before operating.

Failure to follow the safety rules and other basic safety

precautions may result in serious personal injury.

INSTRUCTION MANUAL

SPECIFICATIONS:

Chain speed: 465 FPM; Length of guide bar: 8-5/16in.; Saw chain type: 25 AP;
Saw chain pitch: 1/4in.; Saw chain No. of drive links: 42

IMPORTANT SAFETY INSTRUCTIONS

WARNING: WHEN USING A CORDLESS CHAIN SAW, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO

PERSONS, INCLUDING THE RISK OF FIRE, ELECTRIC SHOCK, AND INJURY TO PERSONS, INCLUDING THE FOLLOWING:

READ ALL INSTRUCTIONS.

1. Keep Work Area Clean
Cluttered areas invite injuries. Do not start cutting until you have a clear work area,
secure footing, and a planned retreat path from the falling tree.

2. Consider Work Area Environment
Use extreme caution when cutting small size brush and saplings because the slender
material may catch the saw chain and be whipped toward you or pull you off balance. Do
not operate a chain saw in a tree unless specifically trained to do so. When cutting a limb
that is under tension be alert for spring back so that you will not be struck when the tension
in the wood fibers is released. Don't expose chain saw to rain. Don't use chain saw in
damp or wet locations. Do not use chain saw in presence of flammable liquids or gases.

3. Guard Against Electric Shock
Prevent body contact with grounded surfaces. For example: metal pipes, wire fences.

4. Keep Children Away
Do not let visitors contact chain saw. All visitors should be kept away from work area.

5. Store Idle Chain Saw
When not in use, chain saws should be stored in a dry, and high or locked-up place.
Keep out of the reach of children. When storing saw, use a scabbard or carrying case.

6. Don't Force Chain Saw
It will do the job better and safer at the rate for which it was intended.

Item No. Description

1 Right cover, chain
2 Inner gear
3 Star gear
4 Shaft
5 Bearing
6 Plate
7 Screw, ST
8 Washer

9 Sprocket
10 Washer, bore
11 Locking ring
12 Left cover, chain
13 Screw
14 Guide Bar, chain
15 Chain
16 Washer
17 Spring washer
18 Bolt
19 Front hand guard
20 Screw, left case
21 Case, left

Item No. Description

22 Rubber cover
23 Cover, motor
24 Relief
25 Spring
26 Wire
27 Support, motor
28 Motor & gear assy
29 Button, switch
30 Case, right
31 Hex Key
32 Battery
33 Connector, body to battery
34 Switch
35 Safety switch
36 Spring, safety
37 Cover, inner
38 Screw
39 Big washer
40 Star gear
41 Plate, gear inner

36

35

34

33

41

40

39

38

37

24

25

28

29

30

26

27

31

32

20

19

21

23

22

9

10

11

12

1

8

7

6

5

4

3

2

13

14

15

16

17

18

10

Thank you very much for choosing a Wel-BiltTMproduct! For future reference,
please complete the owner's record below:

Model: _______________ Purchase Date: _______________

Save the receipt, warranty and these instructions. It is important that you read
the entire manual to become familiar with this product before you begin using it.

This machine is designed for certain applications only. The distributor cannot
be responsible for issues arising from modification. We strongly recommend
this machine is not modified and/or used for any application other than that for
which it was designed. If you have any questions relative to a particular application,
DO NOT use the machine until you have first contacted the distributor to
determine if it can or should be performed on the product.

For technical questions please call 1-800-222-5381.

1

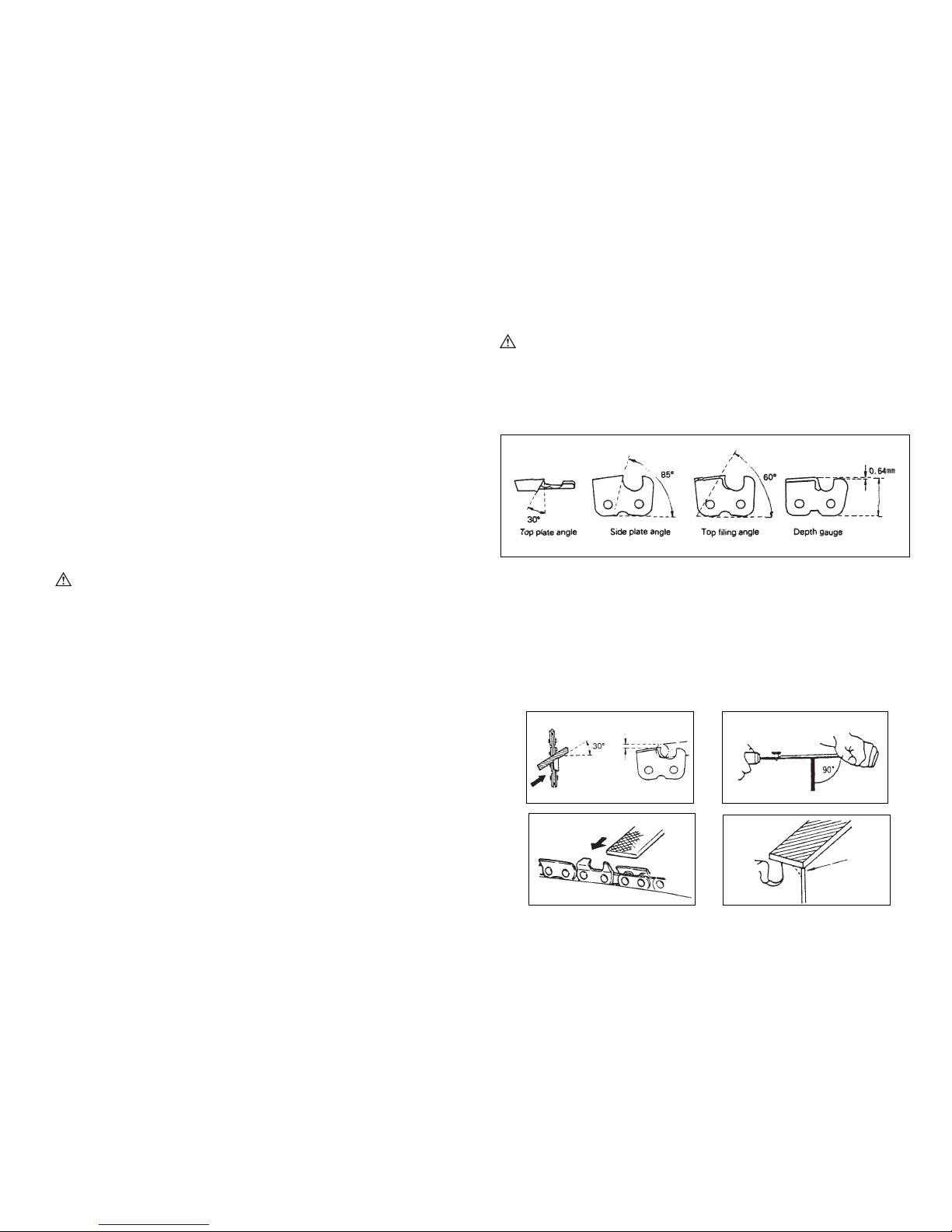

Cleaning guide bar

Chips and sawdust will build up in the guide bar groove,
clogging it and impairing oil flow. Always clean out the

chips and sawdust when sharpening or replacing the
saw chain.

Storing machine

Clean the machine before storing. Remove any chips and sawdust from the machine after
removing the chain cover. After cleaning the machine, run it under no load. Then remove the

battery cartridge from the machine and lubricate the saw chain and guide bar.

9 2

12. Disconnect Chain Saw
Disconnect battery cartridge from chain saw when not in use, before servicing, and when
changing accessories and attachments, such as saw chain and guard.

13. Stay Alert
Watch what you are doing. Use common sense. Do not operate chain saw when you are
tired. Keep all parts of the body away from the saw chain when the motor is operating.
Before you start the saw, make sure the saw chain is not in contact with anything.

14. Check Damaged Parts
Before further use of the chain saw, a guard or other part that is damaged should be
carefully checked to determine that it will operate properly and perform its intended function.
Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting,
and any other conditions that may affect its operation. A guard or other part that is damaged
should be properly repaired or replaced by an authorized service center unless otherwise
indicated elsewhere in this instruction manual. Have defective switches re placed by
authorized se rvice center. Do not use chain saw if switch does not turn it on and off.
Do not operate a chain saw that is damaged, improperly adjusted, or is not completely and
securely assembled. Be sure that the saw chain stops moving when the trigger is released.

15. Guard Against Kickback
WARNING: KICKBACK may occur when the nose or tip of the guide bar touches
an object, or when the wood closes in and pinches the saw chain in the cut. Tip contact
in some cases may cause a lightning fast reverse reaction, kicking the guide bar up
and back towards the operator. Pinching the saw chain along the top of the guide bar
may push the guide bar rapidly back towards the operator. Either of these reactions may
cause you to lose control of the saw which could result in serious injury to user. The
following precautions should be followed to minimize kickback.

(1) Grip saw firmly. Hold the chain saw firmly with both hands when the motor is running.

Use a firm grip with thumbs and fingers encircling the chain saw handles.

Hex wrench

Saw chain

Guide bar complete

Scabbard

Guide bar

Screwdriver

File

Battery cover

7. Use Right Tool
Cut wood only. Don't use chain saw for purpose not intended - for example

- Don’t use chain saw for cutting plastic, masonry or non-wood building materials.

8. Dress Properly
Do not wear loose clothing or jewelry. They can get caught in moving parts. Work
gloves and non-skid footwear are recommended when working outdoors. Wear protective
hair covering to contain long hair.

9. Use Safety Glasses
Use safety goggles or safety glasses with side shields which comply with current national
standards, or when needed, a face shield.

10. Carrying Saw
Carry the chain saw with the saw stopped, finger off the switch, the guide bar and saw
chain to the rear.

11. Maintain Chain Saw With Care
Keep tools sharp and clean for better and safer performance. Follow instructions for lubricating
and changing accessories. Keep handles dry, clean, and free from oil and grease.
