Model No. WESY5984.1
Visit our website at
www.weiderfitness.com
new products, prizes,
fitness tips, and much more!
erial No.
S
Write the serial number in the
space above for future reference.
Serial Number Decal (under seat)
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you
have questions, or if a part is
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT
DIRECTLY.
CALL TOLL-FREE:
1-877-992-5999
Mon.–Fri., 6 a.m.–6 p.m. MST
ON THE WEB:
www.weiderservice.com
USER’S MANUAL
CAUTION
Read all precautions and instructions in this manual before
using this equipment. Save this
manual for future reference.
TABLE OF CONTENTS
Keep hands and
fingers clear of
this area.
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
EFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
B
SSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
A
ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
CABLE DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
Note: A PART IDENTIFICATION CHART and a PART LIST/EXPLODED DRAWING are attached in the center of
this manual. Remove the PART IDENTIFICATION CHART and PART LIST/EXPLODED DRAWING before beginning assembly.
WARNING DECAL PLACEMENT
The decals shown here have been
placed on the resistance system. If a
decal is missing or illegible, please call
the toll-free telephone number on the
front cover of this manual and to order
a free replacement decal. Apply the
decal in the location shown.
MAX by WEIDER is a trademark of ICON IP
2
, Inc.
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read the following important precautions
before using the resistance system.
1. Read all instructions in this manual and all
warnings on the resistance system before
using the resistance system. Use the resistance system only as described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the resistance system are
adequately informed of all precautions.
3. The resistance system is intended for home
use only. Do not use the resistance system
in any commercial, rental, or institutional setting.
4. Keep the resistance system indoors, away
from moisture and dust. Place the resistance
system on a level surface, with a mat
beneath it to protect the floor or carpet. Make
sure that there is enough clearance around
the resistance system to mount, dismount,
and use the resistance system.
5. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
6. Keep children under 12 and pets away from
the resistance system at all times.
12. Pull on the low pulley cable only while sitting
on the bench or standing on the base plate.
Pull on the high pulley cables only while sitting on the bench, with the seat in one of the
three positions closest to the upright base,
or while standing on the base plate.
13. When adding resistance, both ends of the
resistance bars must rest under the two “U”channels. Add and remove resistance bars
from the “U”-channels one resistance bar at
a time.
14. Keep clear of the area around the “U”-channels while the resistance system is in use.
Do not add or remove resistance bars from
the “U”-channels while the end of the long
cable is pulled out.
15. Always adjust the resistance bar assembly to
the horizontal position and make sure the
fulcrum knob is secure before using the
resistance system.
16. Make sure the rings on the resistance bars
are pushed against the tray before using the
resistance system.
7. Keep hands and feet away from moving
parts.
8. Always wear athletic shoes for foot protection while exercising.
9. The top frame is not designed to be used for
pull-up exercises. Do not hang on the top
frame.
The resistance system is designed to sup-
10.
port a maximum user weight of 300 pounds.
11. The resistance system is designed to be
used with the included resistance, and the
resistance included with a MAX by WEIDER
ACK. Do not use the resistance sys
P
MAX
tem with any other type of resistance.
17. If you purchase the optional lat bar, always
disconnect it from the short cables when
performing an exercise that does not require
it.
Make sure the storage knob is in place and
18.
fully tightened each time the resistance system is used.
Make sure that the cables remain on the pul-
19.
leys at all times. If the cables bind as you are
exercising, stop immediately and make sure
that the cables are on the pulleys. Replace all
cables at least every two years.
If you feel pain or dizziness while exercising,
20.
-
stop immediately and begin cooling down.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
3
BEFORE YOU BEGIN
Thank you for selecting the innovative MAX by WEI-
™
ADVANTAGE resistance system. The resistance
DER
system offers a selection of stations designed to devel-
p every major muscle group of the body. Whether your
o
goal is to tone your body, build dramatic muscle size
and strength, or improve your cardiovascular system,
the resistance system will help you to achieve the specific results you want.
For your benefit, read this manual carefully before
using the resistance system.
after reading this manual, see the front cover of this
ASSEMBLED DIMENSIONS:
Height: 82 in. / 208 cm
Width: 66 in. / 168 cm
Depth: 80 in. / 192 cm
Fulcrum Knob
If you have questions
manual. To help us assist you, please note the product
model number and serial number before calling. The
model number is WESY5984.1. The serial number can
e found on a decal attached to the resistance system
b
(see the front cover of this manual).
To avoid a registration fee for any service needed
under warranty, you must register the resistance
system at www.weiderservice.com/registration.
Before reading further, please review the drawing below
and familiarize yourself with the parts that are labeled.
Top Frame
Lat Tower
High Pulley
Resistance Bars
Upright
Storage Knob
Backrest
Curl Pad
Curl Bar
Leg Lever
“U”-Channel
Low Pulley
Base Plate
Seat
Seat Knob
4
ASSEMBLY
Make Things Easier for Yourself
This manual is designed to ensure that the resistance system can be assembled successfully by
most people. However, it is important to realize
that the versatile resistance system has many
parts and that the assembly process will take
time. Most people find that by setting aside plenty
of time, assembly will go smoothly.
To hire an authorized service technician to
assemble the weight system, call toll-free
1-800-445-2480.
Before beginning assembly, carefully read the
following information and instructions:
For help identifying small parts, use the PART
•
IDENTIFICATION CHART.
parts may have been pre-attached for shipping. If
a part is not in the parts bag, check to see if it
has been pre-attached.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
Note: Some small
• Assembly requires two persons.
• Tighten all parts as you assemble them, unless
nstructed to do otherwise.
i
• As you assemble the resistance system, make
sure all parts are oriented as shown in the drawings.
The included Allen wrenches and the following tools (not included) are required for assembly:
• Two adjustable wrenches
• One rubber mallet
• One standard screwdriver
• One Phillips screwdriver
• Lubricant, such as grease or petroleum jelly,
and soapy water.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
1.
Before beginning assembly, make sure that
you have read and understand the information in the box above.
Attach two Plastic Feet (53) and two Large Plastic
Feet (102) to the Base (1) with four M4 x 16mm
Screws (62).
Attach the Upright (3) to the Base (1) with two
M10 x 66mm Carriage Bolts (83), two M10 x
72mm Bolts (64), and four M10 Nylon Locknuts
(76) as shown.
complete if the Upright and Base are tipped
on their sides.
Note: This step will be easier to
1
3
64
76
76
76
1
53
53
62
102
62
102
62
83
5
2. Attach a Wheel (31) to the outside of the Base (1)
with an M10 x 80mm Bolt (81), three M10
ashers (75), and an M10 Nylon Locknut (76).
W
Do not overtighten the Locknut; the Wheel
ust be able to turn easily.
m
Attach the other Wheel (not shown) in the
same manner.
2
76
75
75
81
31
1
3. Orient the Cross Tube (11) as shown, with the
welded tubes at the bottom. Attach the Cross
Tube and the Foot Plate (23) to the Upright (3)
with two M10 x 147mm Carriage Bolts (73), two
M10 Washers (75), and two M10 Nuts (47).
4. Press the Front Leg Foot (27) onto the bottom of
the Front Leg (6). Note that the front of the
Front Leg Foot is taller than the back.
Attach the Bench Rail (5), with the hook on the
bottom, to the Front Leg (6) with four M10 x
25mm Button Screws (87).
3
4
Front
73
23
3
75
11
5
87
87
6
47
Welded
Tube
Hook
5. Lubricate an M10 x 103mm Bolt (66) with grease.
Attach the Bench Rail (5) to the Upright (3) with
the Bolt and an M10 Nylon Locknut (76). Do not
overtighten the Locknut; the Bench Rail must
be able to pivot easily.
ighten the Storage Knob (30) into the Upright (3)
T
and the Bench Rail (5).
27
5
30
Insert the bolt
through this hole
5
76
Grease
3
66
6
6. Attach the Lat Tower (4) to the Upright (3) with
four M10 x 25mm Button Screws (87), and four
10 Lock Washers (103).
M
ttach the Name Plate (89) to the Lat Tower (4)
A
with two M4 x 16mm Screws (62).
6
4
103
87
7. Attach two Eyebolts (34) to the Top Frame (10)
with two M8 Washers (59) and two M8 Nylon
Locknuts (65). Do not overtighten the Locknuts;
the Eyebolts must be able to rotate freely.
Attach the Top Frame (10) to the Lat Tower (4)
with two M10 x 65mm Button Screws (70), two
M10 Washers (75), and the Top Frame Cover
(93). Make sure that the Eyebolts (34) are ori-
ented as shown in the inset drawing. If they
are not, turn the Top Frame around and reattach it.
62
89
62
103
3
7
65
59
70
75
93
10
34
34
87
65
59
4
Attach the Leg Lever (7) to the Front Leg (6) with
8.
a Long Pin (107) and a Cotter Pin (108).
Side View
10
4
34
8
107
6
7
108
7
9. Attach two 8mm Metal Spacers (97), a 61mm
Metal Spacer (39), and two Bearing Wheels (46)
o one end of the Seat Carriage (12) with an M8 x
t
104mm Bolt (60) and an M8 Nylon Locknut (65)
s shown. M
a
shown in the inset drawing; the Seat Knob
(not shown) will not engage the Bench Rail
(not shown) if they are incorrectly oriented.
Do not overtighten the Locknut; the Bearing
Wheels must be able to roll easily.
Attach two Bearing Wheels (not shown) to the
other end of the Seat Carriage (12) in the
same manner.
ake sure the parts are oriented as
9
60
65
97
46
39
97
46
97
Wide
Side
2
1
Attach second
set of wheels
46
39
here
46
97
10. Attach the Seat Knob (45) to the Seat Carriage
(12) with two M6 x 13mm Bolts (92) and two M6
Nylon Locknuts (69). Make sure that the slot in
the Knob is aligned with the slot in the Seat
Carriage, as shown.
Orient the Seat (13) and the Seat Carriage (12)
as shown. Attach the Seat to the Seat Carriage
with four 1/4" x 16mm Screws (82).
11. Pull out the Seat Knob (45) as far as it will go, and
set the Seat Carriage (12) on the Bench Rail (5).
Loosely attach two 8mm Metal Spacers (97), a
61mm Metal Spacer (39), and two Bearing
Wheels (46) to the center holes in the Seat
Carriage (12) with two M8 Flange Nuts (19) and
the M8 x 114mm Bolt (57). Make sure that the
serrated edge of the Flange Nuts are against
the Seat Carriage.
10
11
57
19
12
13
12
82
45
13
69
19
82
Slots
92
45
92
5
While a second person presses down on the Seat
(13), hold the wheel assembly firmly against the
bottom of the Bench Rail (5) and properly tighten
the M8 Flange Nuts (19). Make sure that three
threads are extending past the Nut, and that
the wide sides of all six Bearing Wheels (46)
are pressed against the Bench Rail.
Engage the Seat Knob (45) into an adjustment
hole in the Bench Rail (5).
39
97
97
Wide
Side
Adjustment
Hole
46
39
46
97
97
46
8
12. Attach a Plastic Foot (53) to the Backrest Frame
(15) with an M4 x 16mm Screw (62).
Attach the two Guard Plates (17) to the inside of
he Backrest Frame (15) with four M4 x 16mm
t
Screws (62).
13. Attach the Backrest (14) to the Backrest Frame
(15) with four 1/4" x 45mm Screws (58).
1
13
2
15
3
5
62
62
17
62
17
14
15
58
14. Insert the rod on the Backrest Frame (15) into the
slot in the Seat Carriage (12). Hold the Backrest
Frame vertically over the Seat Carriage and
slide the rod into the slot, as shown in the
inset drawing.
Attach the two 10-pound Short Resistance Bar
15.
Caps (20) to the 10-pound Center Resistance Bar
(44) with two M4 x 12mm Flat Head Screws (85).
Attach the two 10-pound Resistance Bar Caps
(101) to the 10-pound Removable Resistance Bar
(67), the two 20-pound Resistance Bar Caps (88)
to the 20-pound Removable Resistance Bar (36),
the four 80-pound Resistance Bar Caps (100) to
the two 80-pound Resistance Bars (95), and the
two 40-pound Resistance Bar Caps (79) to the
40-pound Resistance Bar (96) with ten M4 x
12mm Flat Head Screws (85).
14
15
Rod
15
12
85
44
67
36
85
20
95
85
101
15
Rod
85
Slot
12
96
79
85
100
88
9
16. Locate the Fulcrum (18) on the Lat Tower (4) (see
he inset drawing). Slide the Tray (35) onto the
t
rods on the Fulcrum.
ented as shown in the drawing.
et the resistance bars into the Tray (35) in the
S
ollowing order: the 10-pound Removable
f
Resistance Bar (67), the 20-pound Removable
Resistance Bar (36), an 80-pound Resistance Bar
(95), the 10-pound Center Resistance Bar (44), an
80-pound Resistance Bar (95), and the 40-pound
Resistance Bar (96).
rings are on the side shown and the arrows
point toward the Tray.
Attach the Cover Plate (72), with the edges up, to
the Tray (35) with two M8 x 19mm Button Screws
(86).
Make sure the Tray is ori-
Make sure the indicated
16
Rings on
this side
17
4
18
35
18
72
6
8
Rods
Edges
up
67
44
6
9
95
95
36
17. Locate the Long Cable (80). Insert one end of
the Cable through the welded tube on the indicated end of the Cross Tube (11) and then through a
Swivel Arm (22). If necessary, use the tip of a
screwdriver to pull the end of the Cable out of the
Swivel Arm.
ed side of the welded rod in the Swivel Arm.
Insert the Swivel Arm (22) into the welded tube
on the Cross Tube (11). Secure the Swivel Arm
with an M4 x 5mm Screw (104).
Wrap the Long Cable (80) around a 90mm Pulley
(28). Attach the Pulley inside of the Swivel Arm
(22) with an M10 x 42mm Button Bolt (71) and an
M10 Nylon Locknut (76).

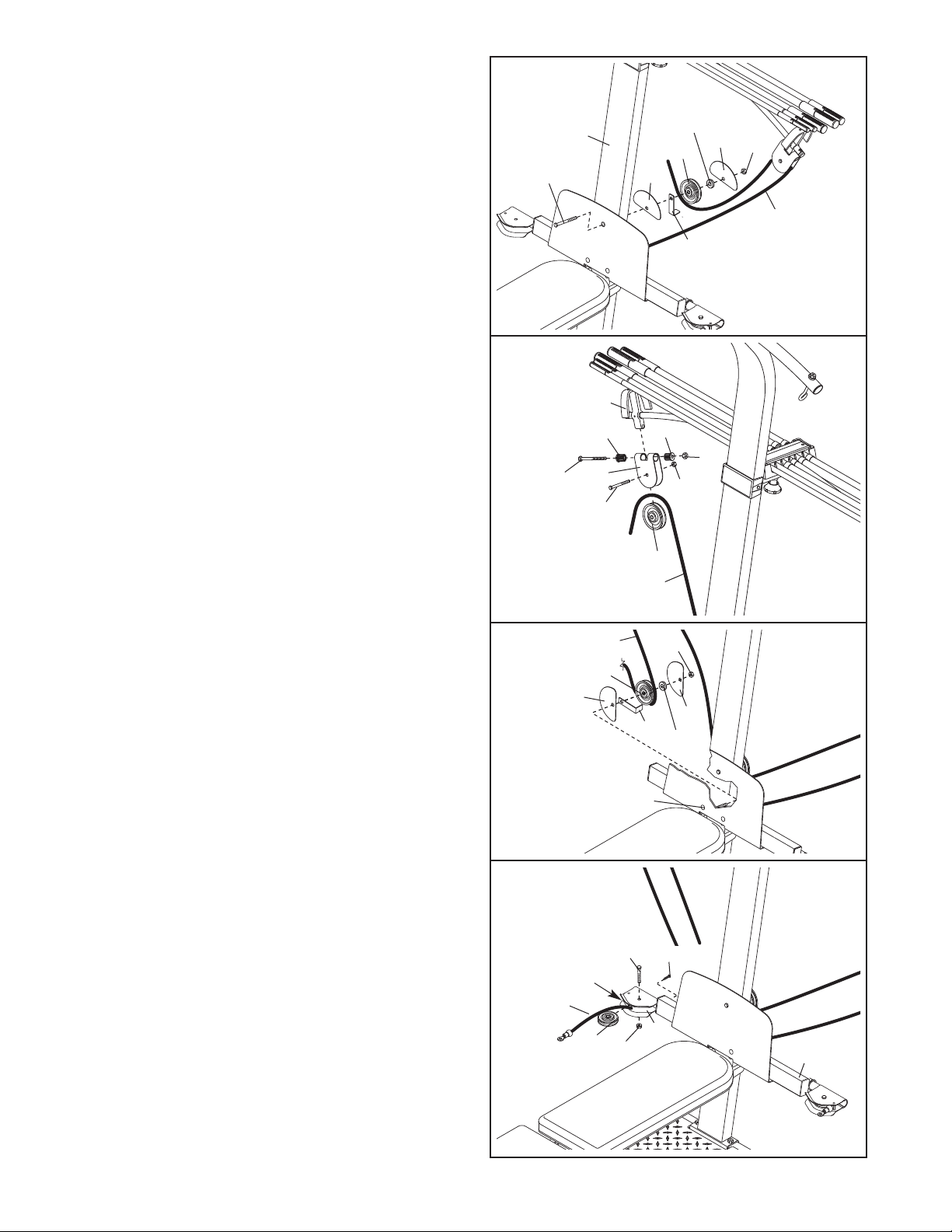

18. Wrap the Long Cable (80) around a 90mm Pulley
(28). Attach the Pulley, a Cable Trap (29), an M10
asher (75), and two Finger Guards (110) to the
W
indicated M10 x 147mm Carriage Bolt (73) with
an M10 Nylon Locknut (76). Make sure the
Cable Trap and Finger Guards are oriented as
shown.
Attach a Pulley Housing (94) to the indicated “U”-
19.
channel on the 10-pound Center Resistance Bar
(44) with an M10 x 128mm Button Bolt (24), two
Pivot Bushings (74), and an M10 Nylon Locknut
(76).
rap the Long Cable (80) over a 90mm Pulley
W
Attach the Pulley inside of the Pulley
(28).
Housing (94) with an M10 x 42mm Button Bolt
(71) and an M10 Nylon Locknut (76).
Be sure the Cable is on the indicat-
18
19
73
71
74
110
44
76
29
28
80
80
11
75
28
“U”-Channel
76
94
71
104
22
Rod
76
76
110
10
28
80
74
24
20. Wrap the Long Cable (80) under a 90mm Pulley
(28) as shown. Attach the Pulley, a Cable Trap
29), an M10 Washer (75), and two Finger
(
Guards (110) to the Upright (3) with an M10 x
27mm Button Bolt (56) and an M10 Nylon
1
Locknut (76). Note: The Bolt will be packaged
separately for identification. Make sure the
Cable Trap and Finger Guards are oriented as
shown.
20
56
110
28
75
29
110
76
80
3
21. Attach a Pulley Housing (94) to the indicated “U”channel on the 10-pound Center Resistance Bar
(44) with an M10 x 128mm Button Bolt (24), two
Pivot Bushings (74), and an M10 Nylon Locknut
(76).
Wrap the Long Cable (80) over a 90mm Pulley
(28). Attach the Pulley inside of the Pulley
Housing (94) with an M10 x 42mm Button Bolt
(71) and an M10 Nylon Locknut (76).
22. Wrap the Long Cable (80) around a 90mm Pulley
(28). Attach the Pulley, a Cable Trap (29), an M10
Washer (75), and two Finger Guards (110) to the
indicated M10 x 147mm Carriage Bolt (73) with
an M10 Nylon Locknut (76). Make sure the
Cable Trap and Finger Guards are oriented as
shown.
21
22
24
110
44
74
94
71
28
80
80
29
74
76
76
28
76
110
75
23. Make sure there are no resistance bars under the
“U”-channels on the 10-pound Center Resistance
Bar (not shown). Have a second person pull on
the Long Cable (80) to create slack in the Cable.
Insert the end of the Long Cable (80) through the
welded tube on the indicated end of the Cross
1) and then through the remaining Swivel
ube (1
T
Arm (22). Make sure the Cable is on the indi-
cated side of the welded rod in the Swivel
Arm.
Insert the Swivel Arm (22) into the welded tube
ube (11). Secure the Swivel Arm
on the Cross
with an M4 x 5mm Screw (104).
Wrap the Long Cable (80) around a 90mm Pulley
(28). Attach the Pulley inside of the Swivel
(22) with an M10 x 42mm Button Bolt (71) and an
M10 Nylon Locknut (76).
T
Arm
11
23
80
Rod
28
71
76
73
104
22
1
1
24. Locate the Leg Lever Cable (32), which has two
ends that are the same length and a third end
hat is longer.
t
oute the longest end of the Leg Lever Cable
R
(32) through the hole in the Front Leg (6), and
attach it inside of the hole in the Leg Lever (7)
with the Short Pin (109) and a cotter Pin (108).
24
109
32
6
108
7
25. Attach a 90mm Pulley (28) inside of the hole in
the Front Leg (6) with an M10 x 91mm Bolt (90),
two 26mm Spacers (52), two M10 Washers (75),
and an M10 Nylon Locknut (76). Make sure the
Pulley is above the Leg Lever Cable (32).
Slide the two free ends of the Leg Lever Cable
(32) onto the hook welded to the bottom of the
Bench Rail (5).
26. Locate the two Short Cables (33). Wrap one of
the Cables over a 90mm Pulley (28). Attach the
Pulley to a High Pulley Housing (21) with an M10
x 42mm Button Bolt (71) and an M10 Nylon
Locknut (76).
Repeat this step with the other Short Cable
(33).
27. Slide the Long Pad Tube (61) through the Front
Leg (6). Slide two Foam Pads (26) onto the tube.
Assemble the two Short Pad Tubes (9) to the
Leg Lever (7) in the same manner.
25
26
27
5
6
28
90
75
52
21
71
26
7
6
52
28
75
76
76
33
32
Attach the Curl Pad (77) to the Curl Post (40) with
28.
two 1/4" x 16mm Screws (82).
29.
Make sure that all parts have been properly tight-
The use of the remaining parts will be
ened.
explained in
following page.
Before using the resistance system, pull the long
cable a few times to be sure that it moves
smoothly over the pulleys. If the cable does not
move smoothly
IMPORTANT: If the cables are not properly
installed, they may be damaged when heavy
resistance is used. See the CABLE DIAGRAM
on page 17 for proper cable routing.
ADJUST
MENTS, beginning on the
, find and correct the problem.
12
28
77
61
9
9
40
82
26
ADJUSTMENTS
This section explains how to adjust the resistance system. See the EXERCISE GUIDELINES on page 17 for
important information about how to get the most benefit from your exercise program. Also, refer to the accompa-
ying exercise guide to see the correct form for each exercise.
n
Make sure all parts are properly tightened each time you use the resistance system. Replace worn parts immediately. The resistance system can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use
solvents. The resistance bars can be cleaned with a vinyl and rubber protectant, available at an automotive or
department store.
ATTACHING THE HIGH PULLEYS AND LEG LEVER

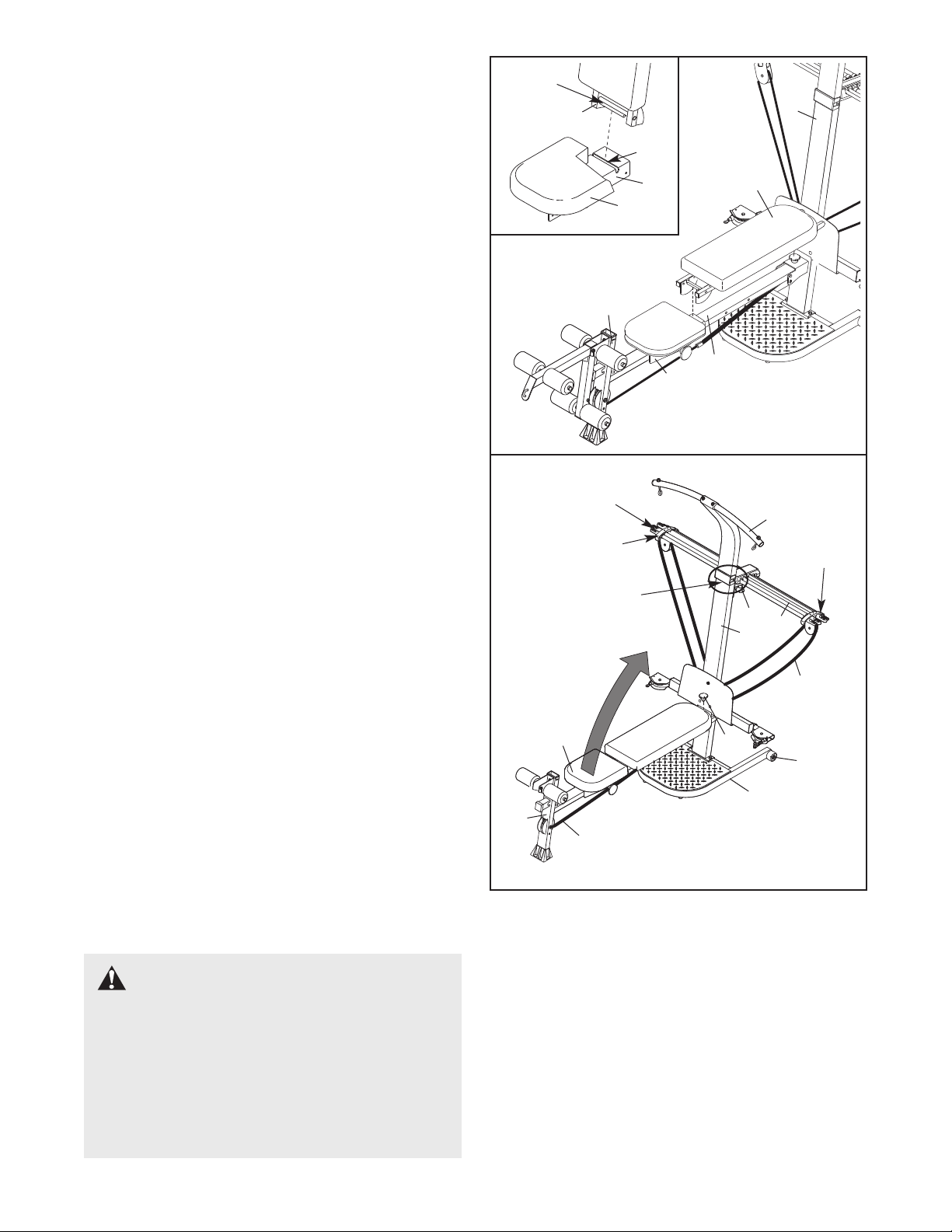

To use a high pulley, slide the hook on the High
Pulley Housing (21) onto the Eyebolt (34). Attach the
end of the Short Cable (33) without the ball to the end
of the Long Cable (80) with a Cable Clip (51).
the other high pulley in the same manner.
o use the Leg Lever (7), it must be attached to the
T
resistance system (see ATTACHING THE LEG
LEVER on page 16). Attach the Leg Lever Cable (32)
to the Leg Lever with the Short Pin (109) and a Cotter
Pin (108) (see the inset drawing). Attach the two ends
of the Leg Lever Cable to the ends of the Long Cable
(80) with two Cable Clips (51).
Remove the high pulleys, and detach the Leg Lever
Cable (32) from the Long Cable (80), when not in
use. Store the ends of the Leg Lever Cable on the
hook under the Bench Rail (not shown).
Attach
32
33
34
21
7
Ball
32
109
108
80
51
51
Hook
ADJUSTING THE SEA
The Seat (13) can be secured in any of four positions
on the Bench Rail (5). To move the Seat, pull the
Seat Knob (45) out as far as it will go, and slide the
Seat to the desired position. Engage the Seat Knob
into an adjustment hole in the Bench Rail.
may be necessary to lift up on the Seat in order to
engage the Seat Knob.
To perform row exercises, the leg press strap must be
attached to the long cable (see ATTACHING THE
ACCESSORIES, on page 14), and the Seat Carriage
(12) must be able to roll along the Bench Rail (5).
First, remove the Backrest (14) from the Seat
Carriage (see ADJUSTING THE BACKREST on page
15). Then, pull the Seat Knob (45) out as far as it will
go, and turn the Knob so that the pin rests at the end
of the “L”-shaped slot (see the inset drawing).
T
Note: It
13
13
14
45
12
5
“L”-Slot
Pin
12
45
ATTACHING THE ACCESSORIES
ith a high pulley attached to the resistance system
W
(see ATTACHING THE HIGH PULLEYS AND LEG
EVER on page 13), attach a Short Handle (49) to the
L
Short Cable (33) with a Cable Clip (51).
The Short Handles (49), Long Handles (not shown), or
Ankle Strap (not shown) can be attached to the Long
Cable (80) with a Cable Clip (51). Attach the Curl Bar
(8) to the Leg Lever (7) with a Cable Clip. Attach the
Leg Press Strap (not shown) to both ends of the Long
Cable, or the optional lat bar to the Short Cables (33),
with two Cable Clips.
33
51
49
Note: An optional lat bar can be purchased by calling
the toll-free telephone number on the front cover of
this manual and asking for model number WEMC0442.
ADJUSTING THE RESISTANCE
To add resistance, hold a “U”-channel on the 10pound Center Resistance Bar (44) firmly and push
the end of a resistance bar under it. Repeat with the
other end of the resistance bar. If more resistance is
needed, add one resistance bar at a time.
Note: When adding resistance, always start with the
heaviest resistance bar to be used, and finish with the
lightest resistance bar. When removing resistance
bars from the “U”-channels, start with the lightest
resistance bar and finish with the heaviest.
WARNING: When adding resist-
ance, make sure that both ends of the resistance bar rest under the two “U”-channels. The
rings on the Removable Resistance Bars (36,
67) must be pushed against the T
not add or remove resistance bars from the
“U”-channels while the end of the Long Cable
(80) is pulled out.
ray (35). Do
80
“U”-Channel
67
35
36
44
“U”-Channel
80
Resistance
Bars
Note: The resistance system uses progressive resistance. As the resistance bars begin to bend, the
amount of resistance will increase gradually. As the
resistance bars bend further, the resistance will
increase rapidly.
Additional resistance can be added to the resistance
system by calling the toll-free telephone number on
nd asking for model
the front cover of this manual
number
WEMC0942 (200-pound MAX
WEMC0642 (100-pound MAX
a
PACK).
ACK) or
P
14
ADJUSTING THE BACKREST
he Backrest (14) can be used in a level position or
T
one of three inclined positions. To use the Backrest in
level position, secure the Seat Carriage (12) to the
a
adjustment hole in the Bench Rail (5) next to the Front
Leg (6) (see ADJUSTING THE SEAT on page 13).
To use the Backrest (14) in an inclined position,
secure the Seat Frame (12) to one of the other three
adjustment holes in the Bench Rail (5). Rest the
Backrest against the Upright (3).
Rod
15
13
Slot
1
3
4
2
1
For row exercises, remove the Backrest (14). Hold
the Backrest vertically over the Seat (13) and lift the
rod out of the slot in the Seat Carriage (12) (see the
inset drawing).
STORING THE RESISTANCE SYSTEM
To store the resistance system, remove the Leg Lever
(not shown) (see ATTACHING THE LEG LEVER on
page 16). Slide the ends of the Leg Lever Cable (32)
onto the hook on the bottom of the Bench Rail (5).
Make sure the Seat (13) is in the position closest to
the Front Leg (6) (see ADJUSTING THE SEAT on
page 13). Next, remove the Storage Knob (30) from
the Upright (3). Lift the Front Leg toward the Top
Frame (10), and tighten the Storage Knob into the
side of the Upright and the Bench Rail. Remove all of
the resistance bars from the “U”-channels on the 10pound Center Resistance Bar (44) (see ADJUSTING
THE RESISTANCE on page 14). Finally, loosen the
Fulcrum Knob (43) and pull it out as far as it will go.
Turn the resistance bar assembly vertically and
engage the Fulcrum Knob into the fulcrum on the Lat
Tower (4).
cally will prolong the life of the resistance bars.
o move the resistance system, place the toe of your
T
shoe on the end of the Base (1) and hold the resistance system in the indicated area.
system back onto the Wheels (31) and roll it to the
new location.
or pinch your hands when you tilt the system
back.
Note: Storing the resistance bars verti-
ilt the resistance
T
Be careful not to let the Front Leg (6)
Resistance
“U”-Channel
13
6
6
Bars
Hold in
this area
32
12
5
10
“U”-Channel
43
44
3
80
30
31
1
WARNING: Make sure that all of
the resistance bars are removed from the “U”channels before moving the resistance bar
assembly to the stored position.
Make sure that the resistance bar assembly is
in the horizontal position and that the Storage
Knob (30) is in place and fully tightened each
time the resistance system is used.
15
USING THE REMOVABLE RESISTANCE BARS
The Removable Resistance Bars (36, 67) can be used
to exercise apart from the resistance system, as shown
in the video or on the exercise guide. To remove a
Resistance Bar, pull it out of the Tray (35).
o replace the Removable Resistance Bars (36, 67),
T
slide them into the Tray (35) from the side shown, so
that the arrows on the rings point toward the Tray.
Make sure the rings are pushed against the Tray.
ATTACHING THE LEG LEVER
Attach the Leg Lever (7) to the Front Leg (6) with the
Long Pin (107) and a Cotter Pin (108). Attach the Leg
Lever Cable (32) to the Leg Lever with the Short Pin
(109) and a Cotter Pin.
Remove the Leg Lever from the Front Leg (6) by
removing the Long and Short Pins (107, 109).
67
36
109
5
3
Rings
107
108
7
32
6
ATTACHING THE CURL PAD
to use the Curl Pad (77), insert the Curl Post (40) into
the Front Leg (6) and secure it with the Knob (55).
Remove the Curl Post (40) from the Front Leg (6)
when performing an exercise that does not require it.
108
77
40
55
6
16
CABLE DIAGRAM
The cable diagram shows the proper routing of the
Long Cable (80). Use the diagram to make sure that
the cable has been assembled correctly. If the cable
has not been correctly routed, the resistance system
ill not function properly and damage may occur. The
w
numbers show the correct route for the cable.
Long Cable (80)
5
7
6
4
3
2
1
17
EXERCISE GUIDELINES
THE FOUR BASIC TYPES OF WORKOUTS
Muscle Building
o increase the size and strength of your muscles,
T
push them close to their maximum capacity. Your muscles will continually adapt and grow as you progressively increase the intensity of your exercise. You can
adjust the intensity level of an individual exercise in
two ways:
• by changing the amount of resistance used
• by changing the number of repetitions or sets per-
formed. (A “repetition” is one complete cycle of an
exercise, such as one sit-up. A “set” is a series of
repetitions.)
The proper amount of resistance for each exercise
depends upon the individual user. You must gauge
your limits and select the amount of resistance that is
right for you. Begin with 3 sets of 8 repetitions for each
exercise you perform. Rest for 3 minutes after each
set. When you can complete 3 sets of 12 repetitions
without difficulty, increase the amount of resistance.
Toning
You can tone your muscles by pushing them to a moderate percentage of their capacity. Select a moderate
amount of resistance and increase the number of repetitions in each set. Complete as many sets of 15 to
20 repetitions as possible without discomfort. Rest for
1 minute after each set. Work your muscles by completing more sets rather than by using high amounts of
resistance.
Weight Loss
To lose weight, use a low amount of resistance and
increase the number of repetitions in each set.
Exercise for 20 to 30 minutes, resting for a maximum
of 30 seconds between sets.
Cross T
Cross training is an efficient way to get a complete and
well-balanced fitness program. An example of a balanced program is:
• Plan strength training workouts on Monday,
Wednesday, and Friday.
• Plan 20 to 30 minutes of aerobic exercise, such as
running on a treadmill or riding on an elliptical or
exercise bike, on Tuesday and Thursday.
• Rest from both strength training and aerobic exercise
for at least one full day each week to give your body
time to regenerate.
The combination of strength training and aerobic exercise will reshape and strengthen your body, plus develop your heart and lungs.
raining
PERSONALIZING YOUR EXERCISE PROGRAM
Determining the exact length of time for each workout,
s well as the number of repetitions or sets completed,
a
is an individual matter. It is important to avoid overdoing it during the first few months of your exercise program. You should progress at your own pace and be
sensitive to your body’s signals. If you experience pain
or dizziness at any time while exercising, stop immediately and begin cooling down. Find out what is wrong
before continuing. Remember that adequate rest and a
proper diet are important factors in any exercise program.
WARMING UP
Begin each workout with 5 to 10 minutes of stretching
and light exercise to warm up. Warming up prepares
your body for more strenuous exercise by increasing
circulation, raising your body temperature and delivering more oxygen to your muscles.
WORKING OUT
Each workout should include 6 to 10 different exercises. Select exercises for every major muscle group,
emphasizing areas that you want to develop most. To
give balance and variety to your workouts, vary the
exercises from session to session.
Schedule your workouts for the time of day when your
energy level is the highest. Each workout should be
followed by at least one day of rest. Once you find the
schedule that is right for you, stick with it.
EXERCISE FORM
Maintaining proper form is an essential part of an
effective exercise program. This requires moving
through the full range of motion for each exercise, and
moving only the appropriate parts of the body.
Exercising in an uncontrolled manner will leave you
feeling exhausted. On the exercise guide accompany
ing this manual you will find photographs showing the
correct form for several exercises, and a list of the
muscles affected. Refer to the muscle chart on the
next page to find the names of the muscles.
The repetitions in each set should be performed
smoothly and without pausing. The exertion stage of
each repetition should last about half as long as the
return stage. Proper breathing is important. Exhale
during the exertion stage of each repetition and inhale
during the return stroke. Never hold your breath.
-
18
Rest for a short period of time after each set. The
O
P
Q
R
S
T
U
V
X
W
N
M
J
G
F
H
I
K
E
C
D
B
A
L

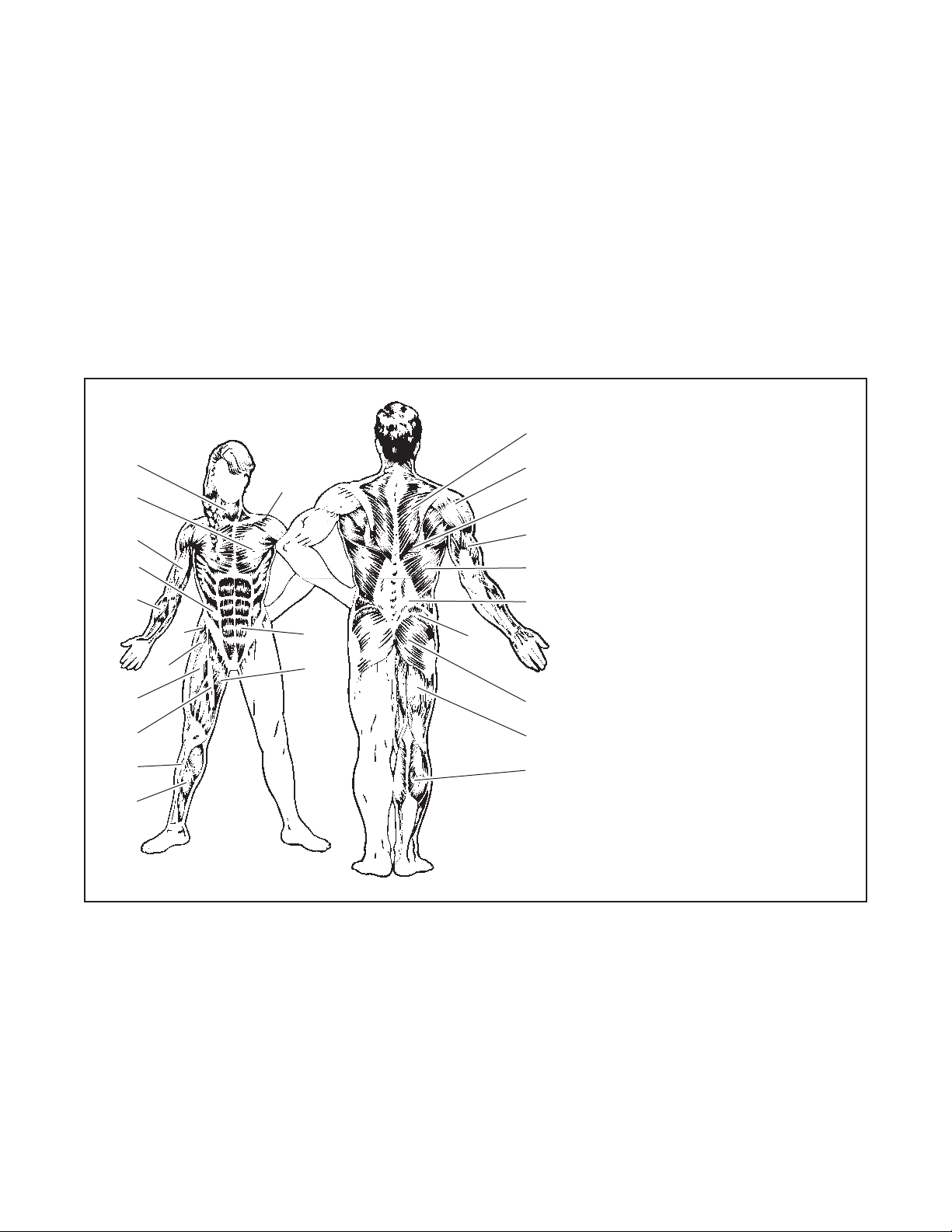

MUSCLE CHART
A. Sternomastoid (neck)
B. Pectoralis Major (chest)
C. Biceps (front of arm)
D. Obliques (waist)
E. Brachioradials (forearm)
F. Hip Flexors (upper thigh)
G. Abductor (outer thigh)
H. Quadriceps (front of thigh)
I. Sartorius (front of thigh)
J. Tibialis Anterior (front of calf)
K. Soleus (front of calf)
L. Anterior Deltoid (shoulder)
M. Rectus Abdominus (stomach)
N. Adductor (inner thigh)
O. Trapezius (upper back)
P. Rhomboideus (upper back)
Q. Posterior Deltoid (shoulder)
R. Triceps (back of arm)
S. Latissimus Dorsi (mid back)
T. Spinae Erectors (lower back)
U. Gluteus Medius (hip)
V. Gluteus Maximus (buttocks)
W. Hamstring (back of leg)
X. Gastrocnemius (back of calf)
ideal resting periods are:
Rest for three minutes after each set for a muscle
•
building workout.
Rest for one minute after each set for a toning work-
•
out.
• Rest for 30 seconds after each set for a weight loss
workout.
Plan to spend the first couple of weeks familiarizing
yourself with the equipment and learning the proper
form for each exercise.
COOLING DOWN
End each workout with 5 to 10 minutes of stretching.
Include stretches for both your arms and legs. Move
slowly as you stretch and do not bounce. Ease into
each stretch gradually and go only as far as you can
ithout strain. Stretching at the end of each workout
w
is an effective way to increase flexibility.
STAYING MOTIVATED
For motivation, keep a record of each workout. List the
date, the exercises performed, the resistance used,
and the numbers of sets and repetitions completed.
Record your weight and key body measurements at
the end of every month. Remember, the key to achieving the greatest results is to make exercise a regular
and enjoyable part of your everyday life.
19
M10 Nylon Locknut (76)
M8 Nylon Locknut (65)
M6 Nylon Locknut (69)
M8 Flange Nut (19)
M8 Washer (59)
M10 Lock Washer (103)
M6 x 13mm Bolt (92)
M4 x 16mm Screw (62)
M4 x 12mm Flat
Head Screw (85)
M10 x 42mm Button Bolt (71)
M10 x 25mm Button Screw (87)
M8 x 19mm Button Screw (86)
M10 Nut (47)
M4 x 5mm Screw (104)
1/4" x 16mm Bolt (82)
M10 Washer (75)
PART IDENTIFICATION CHART
efer to the drawings below to identify small parts used in assembly. The number in parentheses below each
R
drawing is the key number of the part, from the PART LIST on the reverse side of this page.
parts may have been pre-attached. If a part is not in the parts bag, check to see if it has been pre-attached.
Note: Some small
M10 x 103mm Bolt (66)
M10 x 91mm Bolt (90)
M10 x 80mm Bolt (81)
M10 x 65mm Button Screw (70)
M10 x 147mm Carriage Bolt (73)
M10 x 128mm Button Bolt (24)
M10 x 72mm Bolt (64)
M8 x 114mm Rod (57)
M8 x 104mm Bolt (60)
M10 x 66mm Carriage Bolt (83)
M10 x 127mm Button Bolt (56)
1/4" x 45mm Bolt (58)
PART LIST—Model No. WESY5984.1 R1005A
Key No. Qty. Description Key No. Qty. Description
1 1 Base
2 1 Base Plate
3 1 Upright
4 1 Lat Tower
5
6 1 Front Leg
7 1 Leg Lever
8 1 Curl Bar
9 2 Short Pad Tube
10 1 Top Frame
11 1 Cross Tube
12 1 Seat Carriage
13 1 Seat
14 1 Backrest
15 1 Backrest Frame
16 1 Backrest Cap
17 2 Guard Plate
18 1 Fulcrum
19 2 M8 Flange Nut
20 2 10-pound Short Resistance Bar
21 2 High Pulley Housing
22 2 Swivel Arm
23 1 Foot Plate
24 2 M10 x 128mm Button Bolt
25 4 Arm Bushing
26 6 Foam Pad
27 1 Front Leg Foot
28 10 90mm Pulley
29 3 Cable Trap
30 1 Storage Knob
31 2 Wheel
32 1 Leg Lever Cable
33 2 Short Cable
34 2 Eyebolt
35 1 Tray
36
37 2 Fulcrum Bushing
38 2 38mm Round Inner Cap
39 3 61mm Metal Spacer
40 1 Curl Post
41 2 38mm x 64mm Inner Cap
42 1 45mm Square Inner Cap
43 1 Fulcrum Knob
44 1 10-pound Center Resistance Bar
45 1 Seat Knob
46 6 Bearing Wheel
47 2 M10 Nut
48 1 Leg Press Strap
49 2 Short Handle
50 1 Ankle Strap
51 4 Cable Clip
52 2 26mm Spacer
53 3 Plastic Foot
54 2 25mm Square Inner Cap
55 1 Knob
56 1 M10 x 127mm Button Bolt
57 1 M8 x 114mm Rod
58 4 1/4" x 45mm Screw
1 Bench Rail
Cap
1
20-pound Removable Resistance
Bar
59 2 M8 Washer
60 2 M8 x 104mm Bolt
61 1 Long Pad Tube
62 15 M4 x 16mm Screw
3 1 45mm Angled Inner Cap
6
64 2 M10 x 72mm Bolt
65 4 M8 Nylon Locknut
66 1 M10 x 103mm Bolt
67 1 10-pound Removable Resistance
Bar
68 1 Front Leg Plate
69 2 M6 Nylon Locknut
70 2 M10 x 65mm Button Screw
71 6 M10 x 42mm Button Bolt
72 1 Cover Plate
73 2 M10 x 147mm Carriage Bolt
74 4 Pivot Bushing
75 15 M10 Washer
76 19 M10 Nylon Locknut
77 1 Curl Pad
78 6 19mm Round Inner Cap
79 2 40-pound Resistance Bar Cap
80 1 Long Cable
81 2 M10 x 80mm Bolt
82 6 1/4" x 16mm Screw
83 2 M10 x 66mm Carriage Bolt
84 1 Fulcrum Endcap
85 12 M4 x 12mm Flat Head Screw
86 2 M8 x 19mm Button Screw
87 8 M10 x 25mm Button Screw
88 2 20-pound Resistance Bar Cap
89 1 Name Plate
90 1 M10 x 91mm Bolt
91 1 Retainer Ring
92 2 M6 x 13mm Bolt
93 1 Top Frame Cover
94
95 2 80-pound Resistance Bar
96 1 40-pound Resistance Bar
97 6 8mm Metal Spacer
98 2 38mm x 50mm Inner Cap
99 1 38mm x 76mm Inner Cap
100 4 80-pound Resistance Bar Cap
101 2 10-pound Resistance Bar Cap
102 2 Large Plastic Foot
103 4 M10 Lock Washer
104 2 M4 x 5mm Screw
105 1 45mm Square Outer Cap
106 1 Leg Lever Bushing
107 1 Long Pin
108 2 Cotter Pin
109 1 Short Pin
110 6 Finger Guard
111 2 19mm Round Inner Cap
112 2 Long Handle
# 1 User’s Manual
# 1 Exercise Guide
# 1 Exercise Decal
# 2 Allen Wrench
# 1 Allen Wrench
2
Pulley Housing
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of the user’s manual for information about ordering replacement parts.
63
51
69
79
100
93
7
0
65
59
38
34
1
0
65
59
38
34
14
15
16
21
71
28
54
62
17
17
62
58
58
62
58
53
62
13
89
62
62
4
87
87
3
28
28
73
30
76
66
99
5
76
82
82
65
60
12
19
45
92
92
65
97
46
46
49
33
75
56
19
60
57
76
64
76
39
46
97
97
46
39
46
97
35
91
37
37
18
43
85
28
24
74
74
94
71
76
76
28
74
76
74
71
24
94
76
85
100
79
20
88
101
85
85
67
36
44
95
96
85
101
88
20
85
8
5
100
86
72
84
103
103
39
97
98
31
75
81
75
76
76
75
81
31
98
75
22
41
80
25
25
11
41
80
75
75
25
47
104
71
28
22
28
76
104
71
76
62
53
26
26
62
53
62
62
83
83
1
2
102
42
7
23
78
78
9
61
9
8
111
77
108
107
40
109
108
106
62
102
28
76
76
29
29
29
110
110
110
110
110
110
75
75
75
76
111
32
62
112
48
50
2
1
71
28
76
33
52
76
75
52
76
75
90
75
52
27
28
6
105
87
55
82
68
EXPLODED DRAWING—Model No. WESY5984.1 R1005A
ORDERING REPLACEMENT PARTS
To order replacement parts, see the front cover of this manual. To help us assist you, please be prepared to give
the following information:
the MODEL NUMBER of the product (WESY5984.1)
•
• the NAME of the product (MAX by WEIDER ADVANTAGE resistance system)
• the SERIAL NUMBER of the product (see the front cover of this manual)
• the KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST and EXPLODED DRAWING in the
center of this manual)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of five (5) years from the date of purchase.
ICON warrants the resistance bars for the lifetime of the product. Shipping of the resistance bars is not
covered. Labor is covered for one (1) year. This warranty extends only to the original purchaser. ICON's
obligation under this warranty is limited to replacing or repairing, at ICON's option, the product through
one of its authorized service centers. All repairs for which warranty claims are made must be pre-authorized by ICON. If the product is shipped to a service center, freight charges to and from the service center
will be the customer’s responsibility. For in-home service, the customer will be responsible for a minimal
trip charge.
able to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON
authorized service center; products used for commercial or rental purposes; or products used as store
display models. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss
of property
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
This warranty does not extend to any product or damage to a product caused by or attribut
, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other
-
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Part No. 218525 R1005A Printed in China © 2004 ICON IP, Inc.
Loading...
