Weider Total Body Works 5000, WEEVBE1444.0 User Manual

Page 1
Model No. WEEVBE1444.0 Serial No.
Write the serial number in the space above for future reference.
Serial Number
Decal
QUESTIONS?
As a manufacturer, we are com­mitted to providing complete customer satisfaction. If you have questions, or if there are missing or damaged parts, please call:
USER’S MANUAL
08457 089 009
CAUTION
Read all precautions and instruc­tions in this manual before using this equipment. Save this manual for future reference.
Page 2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
SSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
A
ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

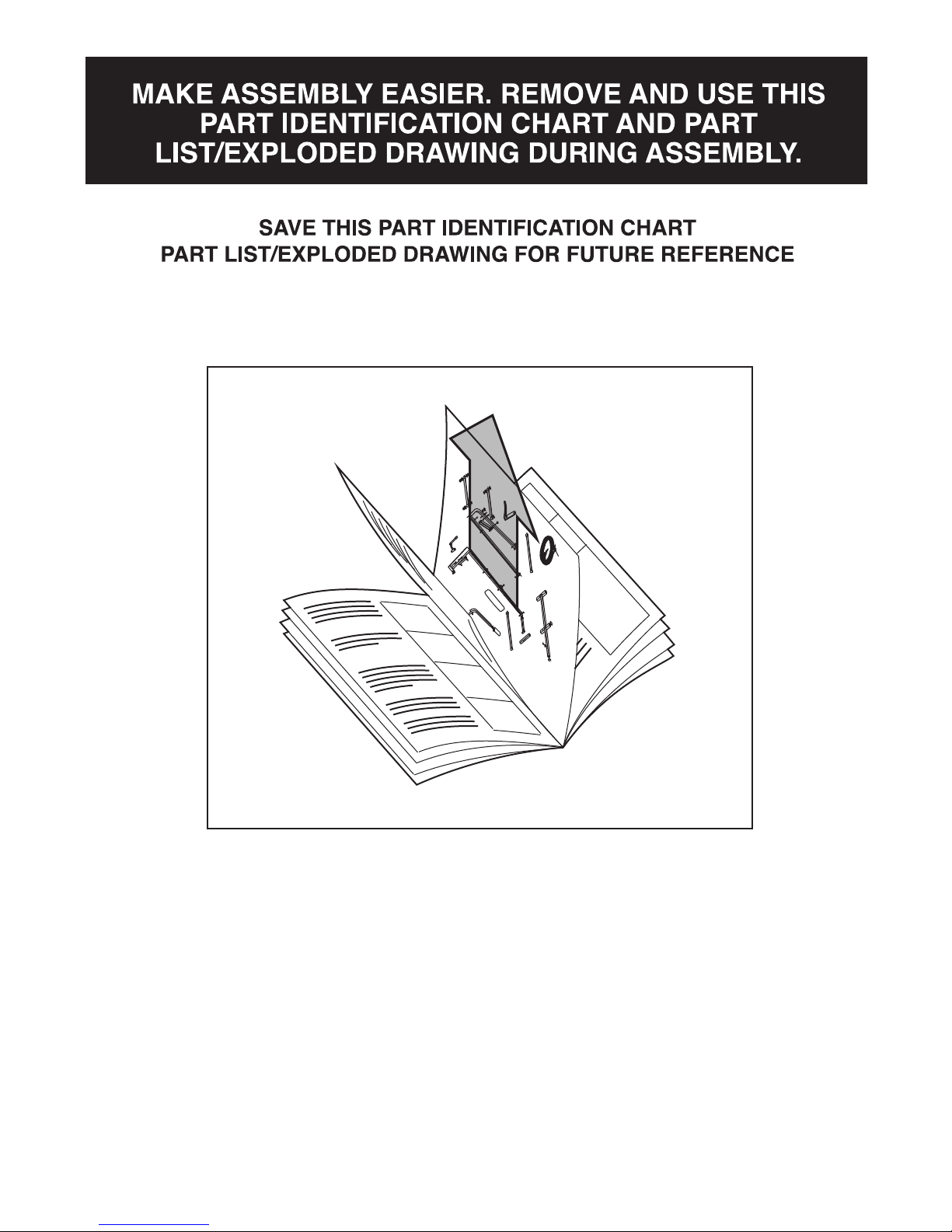

Note: A PART IDENTIFICATION CHART and a PART LIST/EXPLODED DRAWING are attached in the center of this manual. Remove the PART IDENTIFICATION CHART and PART LIST/EXPLODED DRAWING before begin­ning assembly.
WEIDER is a registered trademark of ICON IP, Inc.
2
Page 3
IMPORTANT PRECAUTIONS
• Misuse of this product may result in serious injury.
• Read user’s manual and follow all warnings and operating instructions prior to use.
• Do not allow children on or around machine.
• Replace label if damaged, illegible, or removed.
WARNING
!
WARNING: To reduce the risk of serious injury, read the following important precau-
tions before using the weight training system.
. Read all instructions in this manual and all
1
warnings on the weight training system before using the weight training system. Use the weight training system only as described in this manual.
2. It is the responsibility of the owner to ensure that all users of the weight training system are adequately informed of all precautions.
ion while exercising.
t
8. Keep children under 12 years old and pets away from the weight training system at all times.
9. Keep hands and feet away from moving parts.
10. Always tie back long hair to prevent it from becoming caught.
3. The weight training system is intended for home use only. Do not use the weight train­ing system in any commercial, rental, or institutional setting.
4. Keep the weight training system indoors, away from moisture and dust. Place the weight training system on a level surface, with a mat beneath it to protect the floor or carpet. Make sure that there is enough clear­ance around the weight training system to mount, dismount, and use the weight training system.
5. Inspect and properly tighten all parts regular­ly. Replace any worn parts immediately.
6. The weight training system should not be used by persons weighing over 114 kg (250 lbs.).
7. Always wear athletic shoes for foot protec-
11. If you feel pain or dizziness at any time while exercising, stop immediately and begin cool­ing down.

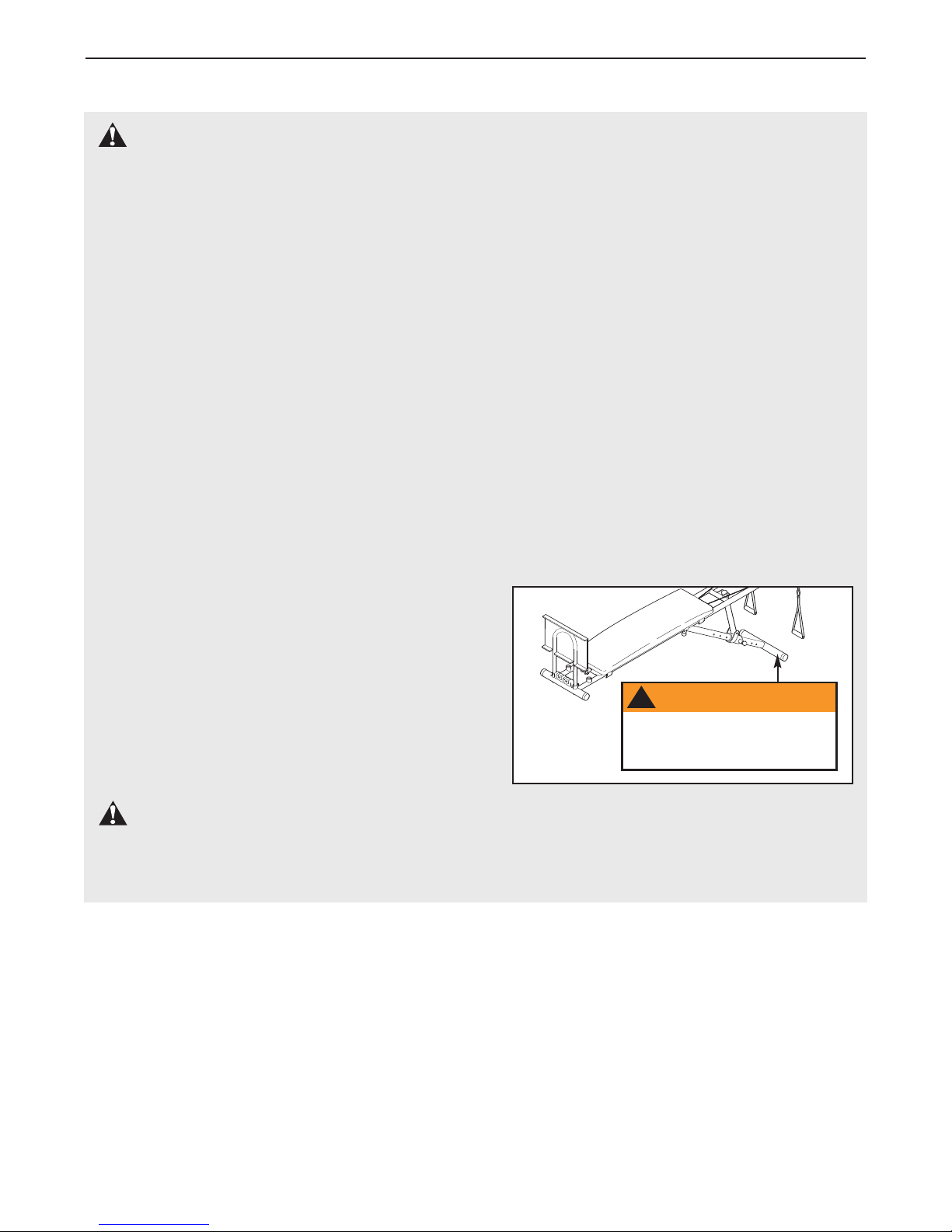

12. The decal shown below has been placed on the weight training system in the indicated location. If the decal is missing, or if it is not legible, call the telephone number on the front cover of this manual and order a free replacement decal. Apply the decal in the location shown.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
3
Page 4
BEFORE YOU BEGIN
hank you for selecting the WEIDER
T WORKS 5000 weight training system. The versatile TOTAL BODY WORKS 5000 is designed to help you develop every major muscle group of the body. Whether your goal is a shapely figure, dramatic mus­cle size and strength, or a healthier cardiovascular system, the TOTAL BODY WORKS 5000 will help you to achieve the specific results you want.
For your benefit, read this manual carefully before using the WEIDER TOTAL BODY WORKS 5000
Top Frame
Seat
®
OTAL BODY
T
eight training system. If you have questions after
w
reading this manual, please see the front cover of this manual. To help us assist you, please note the product model number and serial number before calling. The model number is WEEVBE1444.0. The serial number can be found on a decal attached to the weight train­ing system (see the front cover of this manual).

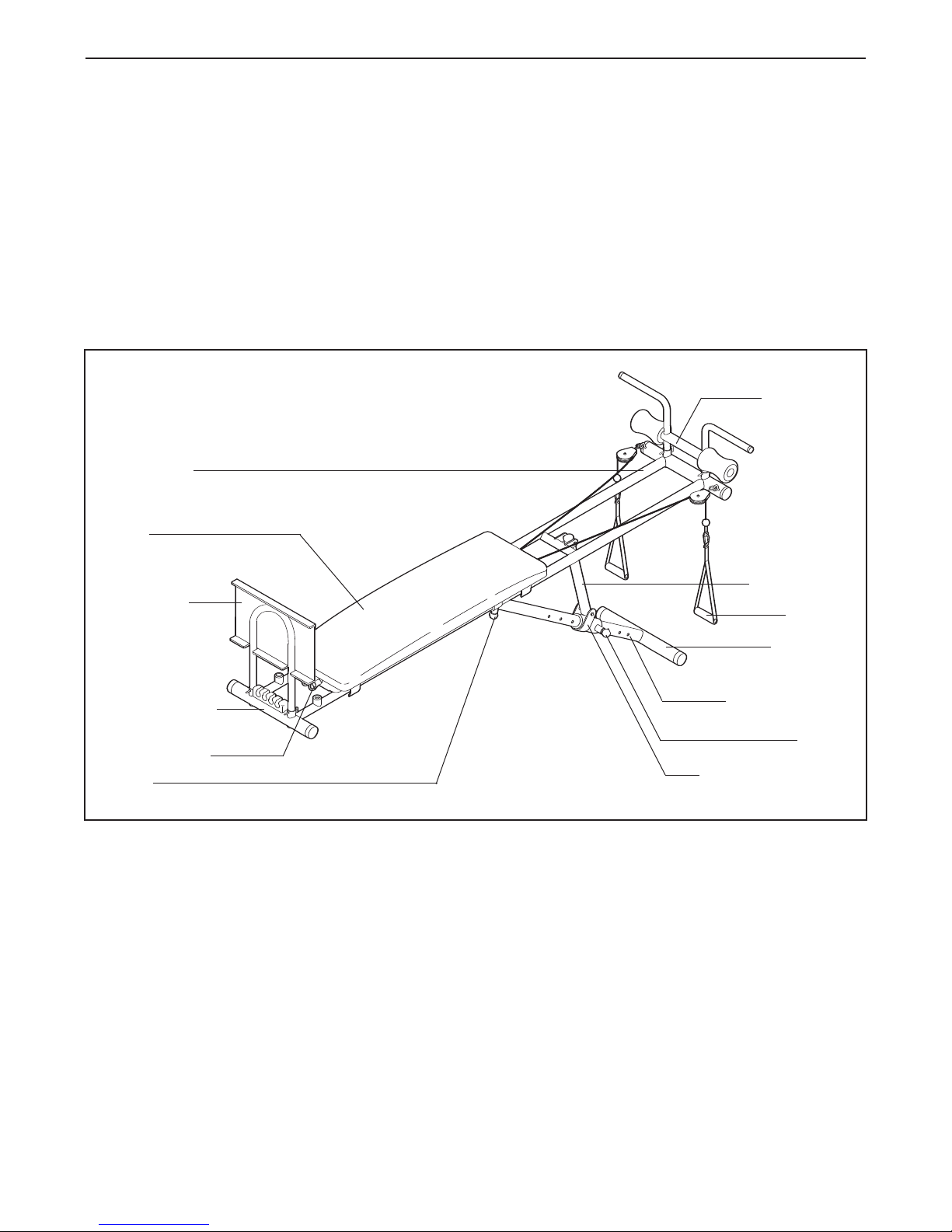

Before reading further, please review the drawing below and familiarise yourself with the parts that are labelled.
Handlebar
Foot Plate
Bottom Frame
Bungee Cord
Knob
Support Leg
Handle
Stabiliser
Adjustment Leg
Knob
Adjustment Bracket
4
Page 5
ASSEMBLY
Make Things Easier for Yourself
verything in this manual is designed to ensure
E that the weight training system can be assem-
led successfully by anyone. Most people find
b that by setting aside plenty of time, assembly will go smoothly.
ighten all parts as you assemble them, unless
• T instructed to do otherwise.
• For help identifying small parts, use the PART IDENTIFICATION CHART.
Assembly may require the included grease and the following tools (not included):
Before beginning assembly, carefully read the following information and instructions:
• Assembly requires two people.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
• As you assemble the weight training system, make sure all parts are oriented as shown in the drawings.

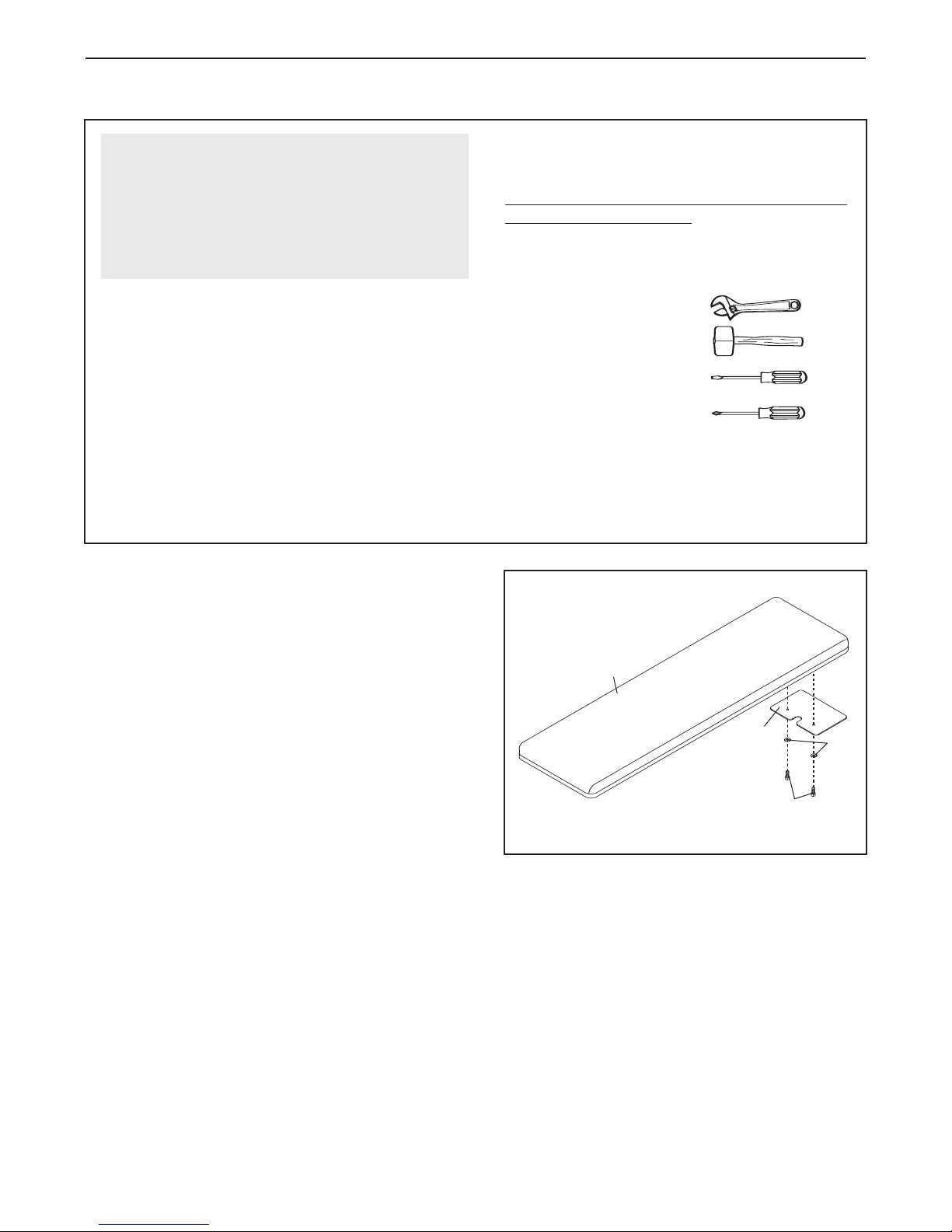

1. Attach the Pulley Guard (59) to the Backrest (4) with two M6 x 16mm Screws (60) and two M6 Washers (39).
• Two adjustable wrenches
• One rubber mallet
• One standard screwdriver
• One Phillips screwdriver
• Clear tape or masking tape, and soapy water.
Assembly will be more convenient if you have a socket set, a set of open-end or closed-end wrenches, or a set of ratchet wrenches.
1
4
59
39
60
5
Page 6

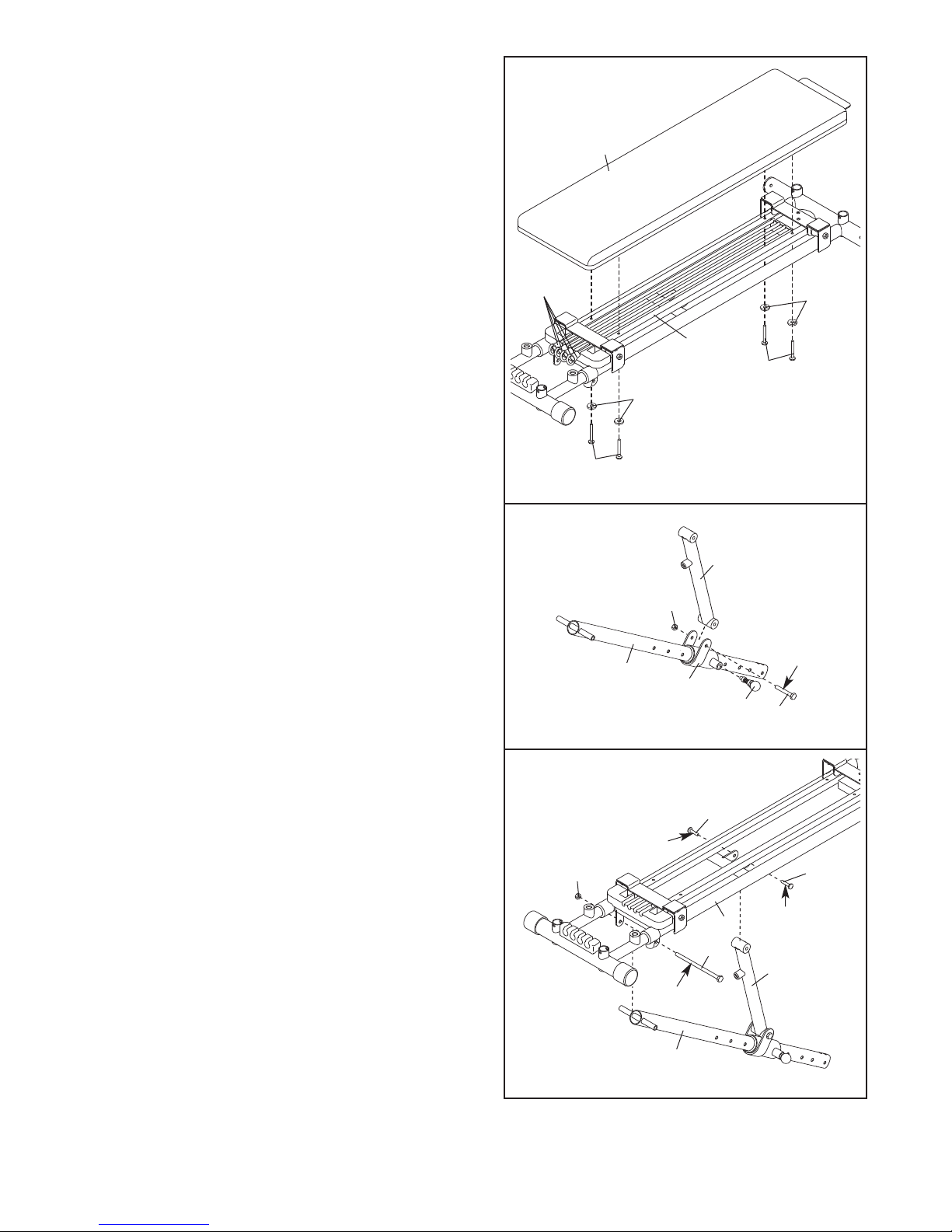

2. Make sure that the Bungee Cords (35) are resting in the brackets on the Backrest Frame (3). Attach
he Backrest (4) to the Backrest Frame with four M6
t x 38mm Screws (51) and four M6 Washers (39).
ake sure that the Backrest is holding the
M Bungee Cords in place.
2
4
3. Grease an M10 x 80mm Bolt (43). Attach the Support Leg (7) to the Adjustment Bracket (48) with the Bolt and an M10 Nylon Locknut (45). Do not
overtighten the Locknut; the Support Leg must be able to pivot easily.
Slide the Adjustment Bracket (48) onto the Adjustment Leg (5). Engage the indicated Knob (58) into the Adjustment Leg, and fully tighten the Knob.
35
3
51
39
51
3
7
45
5
48
58
39
Grease
43
4. Note: The backrest is not shown in this step for
.
clarity
Grease an M10 x 175mm Bolt (42). Attach the Adjustment Leg (5) to the Top Frame (1) with the Bolt and an M10 Nylon Locknut (45). Do not over-
tighten the Bolt; the Adjustment Leg must be able to pivot easily.
Grease two M10 x 20mm Screws (9). Attach the Support Leg (7) to the Top Frame (1) with the Screws. Do not overtighten the Screws; the
Support Leg must be able to pivot easily.
4
9
Grease
45
Grease
5
42
1
Grease
9
7
6
Page 7

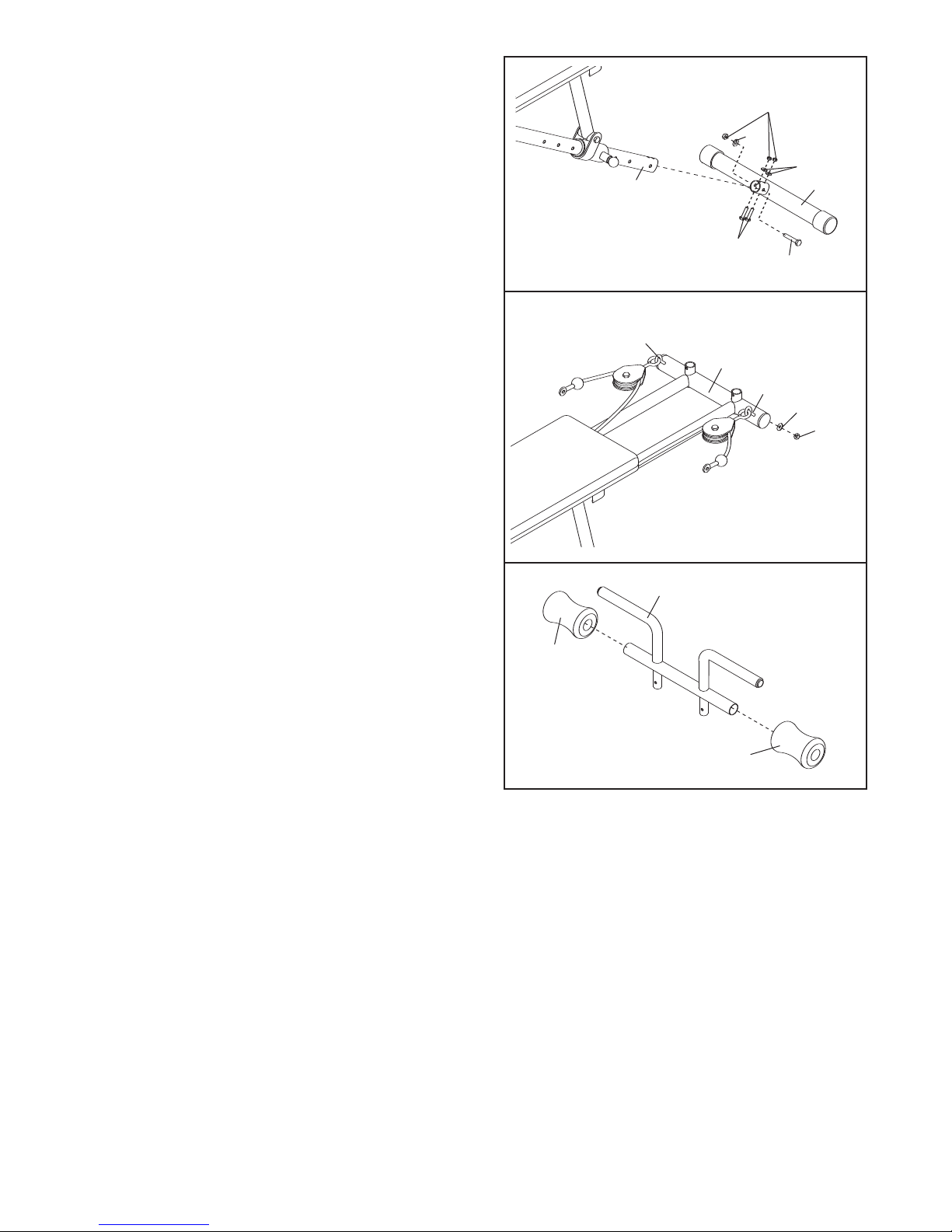

5. Attach the Stabiliser (6) to the Adjustment Leg (5) with three M8 x 52mm Bolts (40), three M8 Black Zinc Washers (54), and three M8 Black Zinc Nylon Locknuts (46). Make sure that the head of the
olt is in the hexagonal hole in the Stabilizer.
B
5
6
4
54
54
5
40
6
40
6. Attach an 108mm Eyebolt (31) to the Top Frame (1) with an M8 Bright Zinc Washer (55) and an M8 Bright Zinc Nylon Locknut (36).
the Locknut; the Eyebolt must be able to pivot easily.
Repeat this step on the other side of the Top Frame (1).
7. Slide a Foam Pad (16) onto each side of the Handlebar (29).
8. Make sure that all parts have been properly tight­ened. The use of the remaining parts will be explained in ADJUSTMENTS, beginning on the next page.
Do not overtighten
6
31
1
31
55
36
7
16
29
16
7
Page 8

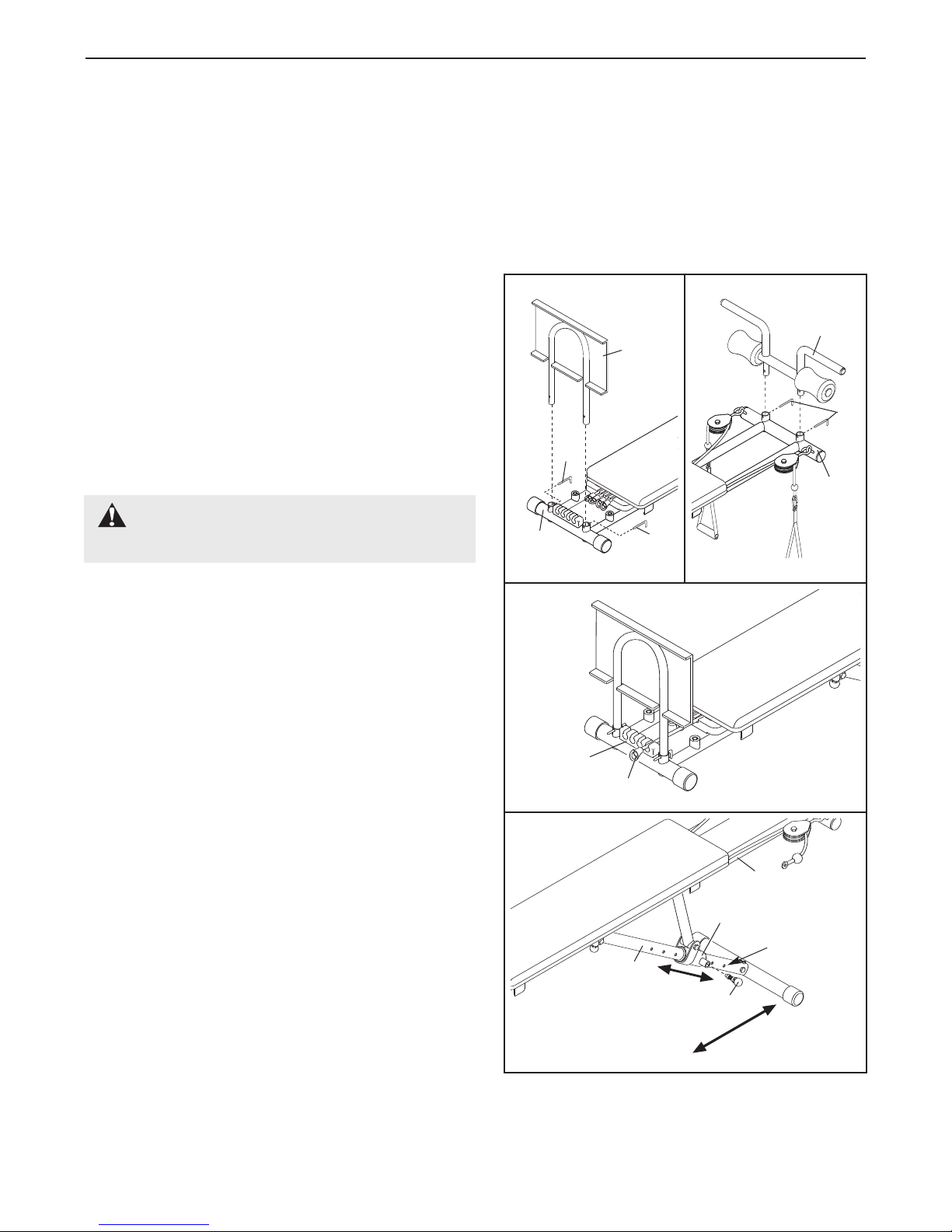

ADJUSTMENTS
The weight training system is designed to use your own body weight as resistance. The steps below explain
ow the weight training system can be adjusted and folded for storage. Refer to the accompanying exercise
h guide to see the correct form for each exercise.
Make sure all parts are properly tightened each time the weight training system is used. Replace any worn parts immediately. The weight training system can be cleaned with a damp cloth and mild, non-abrasive detergent; never use solvents.
ATTACHING THE FOOT PLATE OR HANDLEBAR
For some exercises, the Foot Plate (8) will need to be attached to the weight training system. Slide the Foot Plate into the Bottom Frame (2) and secure it with two L-Pins (17).
For some exercises, the Handlebar (29) will need to be attached to the weight training system. Slide the Handlebar into the L-Pins (17).
Top Frame (1) and secure it with two
CAUTION: Remove the Handlebar (29)
if performing an exercise that does not require it.
ADJUSTING THE RESISTANCE
To increase the resistance of the weight training sys­tem, pull a Bungee Cord (35) down and slide it into the Bungee Bracket (10). For more resistance, slide more Bungee Cords into the Bungee Bracket.
29
8
17
17
1
2
10
17
35
ADJUSTING THE INCLINE
The incline of the weight training system can be adjust­ed to change the resistance level of your workout.
op Frame (1) until the indi
o adjust the incline, lift the
T cated Knob (58) on the Adjustment Bracket (48) can be removed from the hole in the Adjustment Leg (5). Slide
Adjustment Bracket to the desired position and
the insert the Knob into a hole in the
Make sure that the Knob on the Adjustment Bracket is fully inserted into a hole in the Adjustment Leg.
T
Adjustment Leg.
Note:
1
-
5
48
Holes
58
8
Page 9

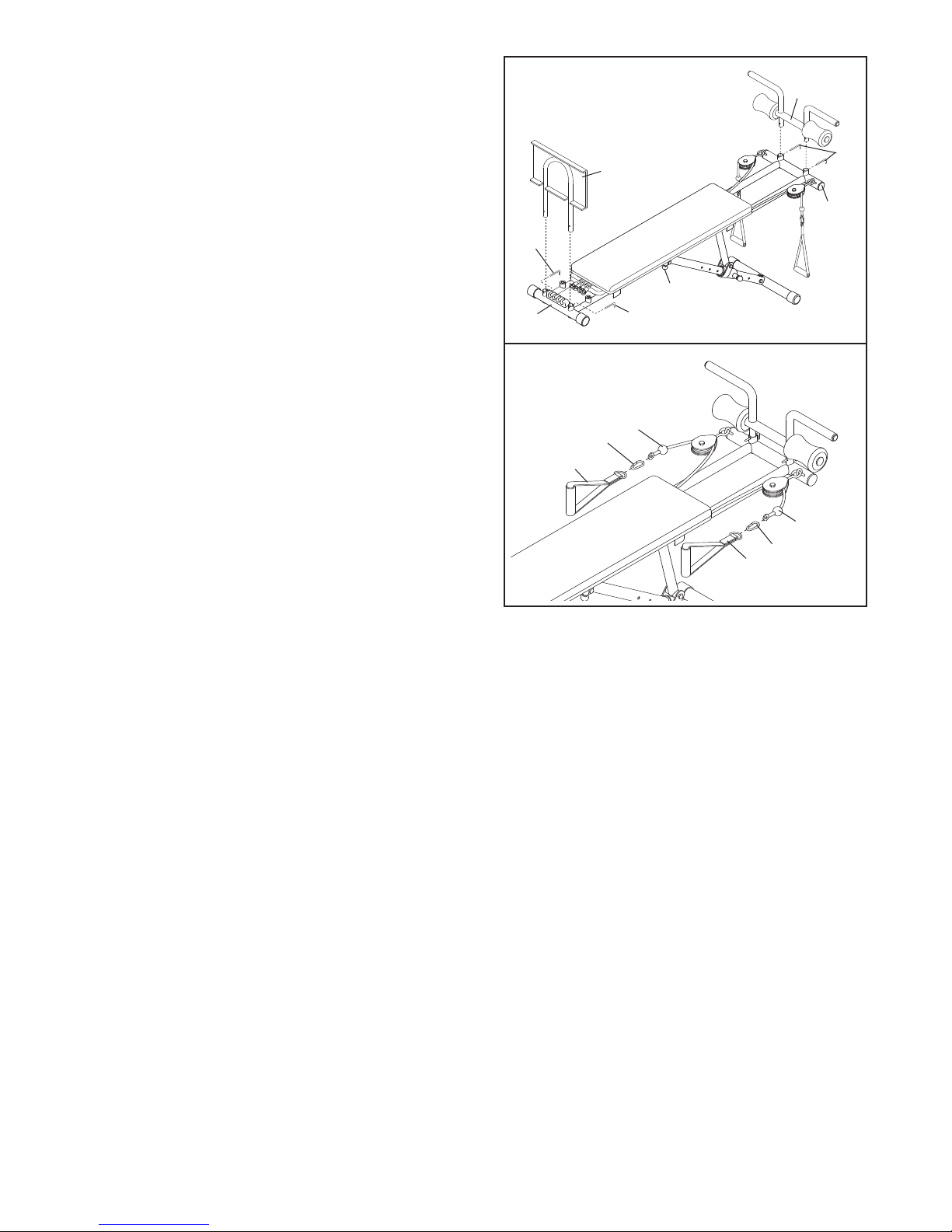

STORING THE WEIGHT TRAINING SYSTEM
o store the weight training system, detach the
T Handlebar (29) from the Top Frame (1), and the Foot
late (8) from the Bottom Frame (2), by removing the
P four L-Pins (17). Next, pull out the indicated Knob (58) and slide the Bottom Frame as far into the Top Frame as it will go. Finally, adjust the system to the fully declined position. (See ADJUSTING THE INCLINE, on page 8.)
ATTACHING THE HANDLES
Attach the Handles (34) to the ends of the Cable (32) with the two Cable Clips (33).
17
29
7
1
8
1
58
2
34
17
32
33
32
33
34
9
Page 10
EXERCISE GUIDELINES
THE FOUR BASIC TYPES OF WORKOUTS
Muscle Building
o increase the size and strength of your muscles,
T push them close to their maximum capacity. Your mus­cles will adapt and grow as you progressively increase the intensity of your exercise. You can adjust the inten­sity level of an individual exercise in two ways:
• by changing the amount of weight used
• by changing the number of repetitions or sets per-
formed. (A “repetition” is one complete cycle of an exercise, such as one sit-up. A “set” is a series of repetitions.)
The proper amount of weight for each exercise depends upon the individual user. You must gauge your limits and select the amount of weight that is right for you. Begin with 3 sets of 8 repetitions for each exercise you perform. Rest for 3 minutes after each set. When you can complete 3 sets of 12 repetitions without difficulty, increase the amount of weight.
Toning
You can tone your muscles by pushing them to a mod­erate percentage of their capacity. Select a moderate amount of weight and increase the number of repeti­tions in each set. Complete as many sets of 15 to 20 repetitions as possible without discomfort. Rest for 1 minute after each set. Work your muscles by complet­ing more sets rather than by using high amounts of weight.
Weight Loss
To lose weight, use a low amount of weight and increase the number of repetitions in each set. Exercise for 20 to 30 minutes, resting for a maximum of 30 seconds between sets.
Cross Training
Cross training is an ef well-balanced fitness program. An example of a bal­anced program is:
Plan strength training workouts on Monday,
•
Wednesday, and Friday.
• Plan 20 to 30 minutes of aerobic exercise, such as
running on a treadmill or riding on an elliptical exer­ciser or an exercise cycle, on
• Rest from both strength training and aerobic exercise
for at least one full day each week to give your body time to regenerate.
The combination of strength training and aerobic exer­cise will reshape and strengthen your body, plus devel­op your heart and lungs.
ficient way to get a complete and
uesday and Thursday.
T
PERSONALIZING YOUR EXERCISE PROGRAM
Determining the exact length of time for each workout,
s well as the number of repetitions or sets completed,
a is an individual matter. It is important to avoid overdo­ing it during the first few months of your exercise pro­gram. You should progress at your own pace and be sensitive to your body’s signals. If you experience pain or dizziness at any time while exercising, stop immedi­ately and begin cooling down. Find out what is wrong before continuing. Remember that adequate rest and a proper diet are important factors in any exercise pro­gram.
WARMING UP
Begin each workout with 5 to 10 minutes of stretching and light exercise to warm up. Warming up prepares your body for more strenuous exercise by increasing circulation, raising your body temperature and deliver­ing more oxygen to your muscles.
WORKING OUT
Each workout should include 6 to 10 different exercis­es. Select exercises for every major muscle group, emphasizing areas that you want to develop most. To give balance and variety to your workouts, vary the exercises from session to session.
Schedule your workouts for the time of day when your energy level is the highest. Each workout should be followed by at least one day of rest. Once you find the schedule that is right for you, stick with it.
EXERCISE FORM
Maintaining proper form is an essential part of an effective exercise program. This requires moving through the full range of motion for each exercise, and moving only the appropriate parts of the body. Exercising in an uncontrolled manner will leave you feeling exhausted. On the exercise guide accompany ing this manual you will find photographs showing the correct form for several exercises, and a list of the muscles affected. Refer to the muscle chart on the next page to find the names of the muscles.
The repetitions in each set should be performed smoothly and without pausing. The exertion stage of each repetition should last about half as long as the return stage. Proper breathing is important. Exhale during the exertion stage of each repetition and inhale during the return stroke. Never hold your breath.
-
10
Page 11
Rest for a short period of time after each set. The
O
P
Q
R
S
T
U
V
X
W
N
M
J
G
F
H
I
K
E
C
D
B
A
L

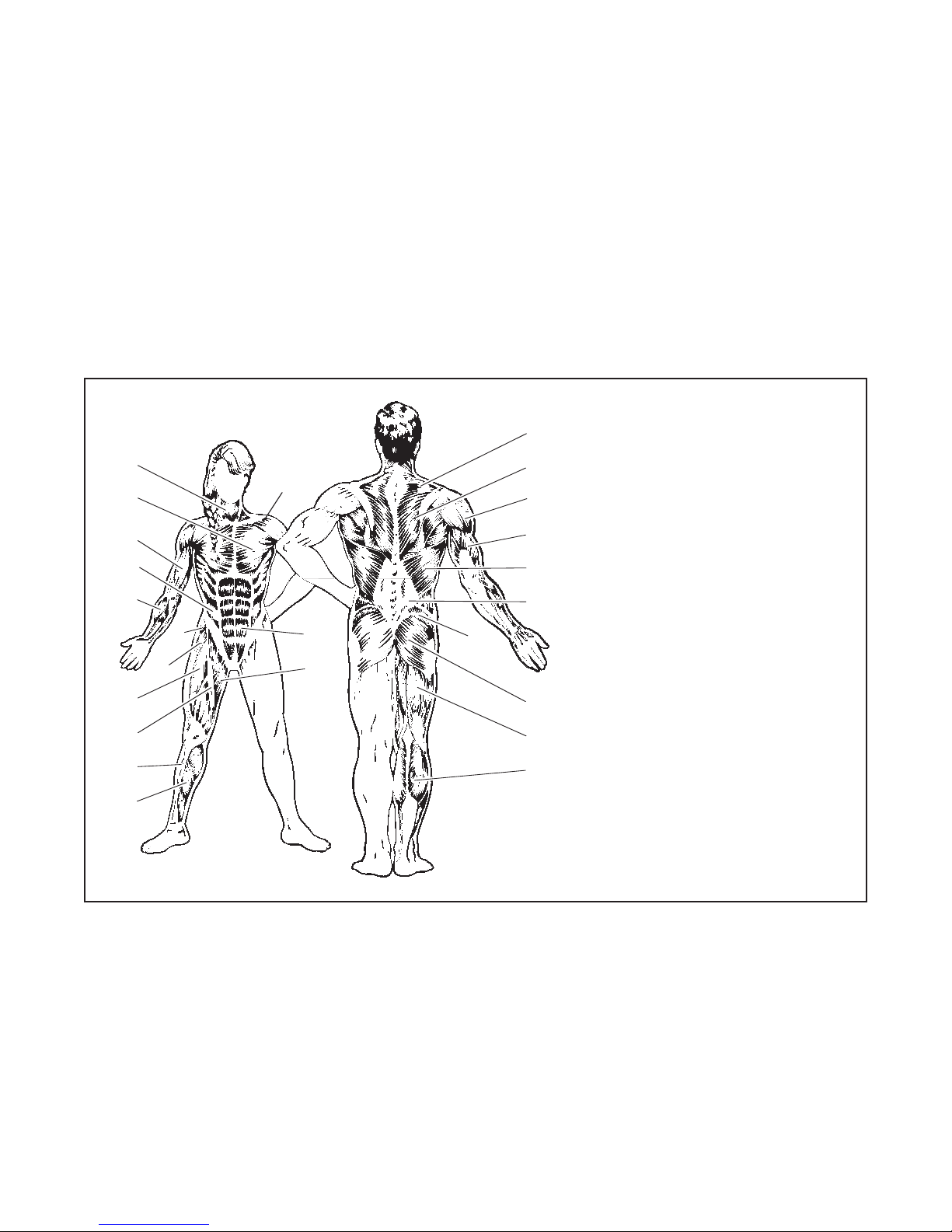

MUSCLE CHART
A. Sternomastoid (neck) B. Pectoralis Major (chest) C. Biceps (front of arm) D. Obliques (waist) E. Brachioradials (forearm) F. Hip Flexors (upper thigh) G. Abductor (outer thigh) H. Quadriceps (front of thigh) I. Sartorius (front of thigh) J. Tibialis Anterior (front of calf) K. Soleus (front of calf) L. Anterior Deltoid (shoulder) M. Rectus Abdominus (stomach) N. Adductor (inner thigh) O. Trapezius (upper back) P. Rhomboideus (upper back) Q. Posterior Deltoid (shoulder) R. Triceps (back of arm) S. Latissimus Dorsi (mid back) T. Spinae Erectors (lower back) U. Gluteus Medius (hip) V. Gluteus Maximus (buttocks) W. Hamstring (back of leg) X. Gastrocnemius (back of calf)
ideal resting periods are:
Rest for three minutes after each set for a muscle
•
building workout. Rest for one minute after each set for a toning work-
•
out.
• Rest for 30 seconds after each set for a weight loss
workout. Plan to spend the first couple of weeks familiarizing yourself with the equipment and learning the proper form for each exercise.
COOLING DOWN
End each workout with 5 to 10 minutes of stretching. Include stretches for both your arms and legs. Move
slowly as you stretch and do not bounce. Ease into each stretch gradually and go only as far as you can
ithout strain. Stretching at the end of each workout
w is an effective way to increase flexibility.
STAYING MOTIVATED
For motivation, keep a record of each workout. List the date, the exercises performed, the resistance used, and the numbers of sets and repetitions completed. Record your weight and key body measurements at the end of every month. Remember, the key to achiev­ing the greatest results is to make exercise a regular and enjoyable part of your everyday life.
11
Page 12
ORDERING REPLACEMENT PARTS
If you encounter any difficulties with this product, or if you need to order replacement parts, call the ICON Health & Fitness, Ltd. office, or write:
ICON Health & Fitness, Ltd. Unit 4, Revie Road Industrial Estate Revie Road Beeston Leeds, LS118JG UK
Tel:
08457 089 009
Outside the UK: 0 (44) 113 3877133 Fax: 0 (44) 113 3877125
When ordering parts, please be prepared to give the following information:
• the MODEL NUMBER of the product (WEEVBE1444.0)
• the NAME of the product (WEIDER TOTAL BODY WORKS 5000 weight training system)
• the SERIAL NUMBER of the product (see the front cover of this manual)
• the KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST and EXPLODED DRAWING in the
center of this manual)
Part No. 213652 R1005A
Printed in China
2005 ICON IP, Inc.
©
Page 13
8
1
Page 14
M6 Washer (39)
M8 Washer (54, 55)
M8 Nylon Locknut (36, 46)
M10 Nylon Locknut (45)
M10 x 175mm Bolt (42)
M8 x 52mm Bolt (40)
M10 x 20mm Screw (9)
M10 x 80mm Bolt (43)
M6 x 38mm Screw (51)
M6 x 16mm Screw (60)

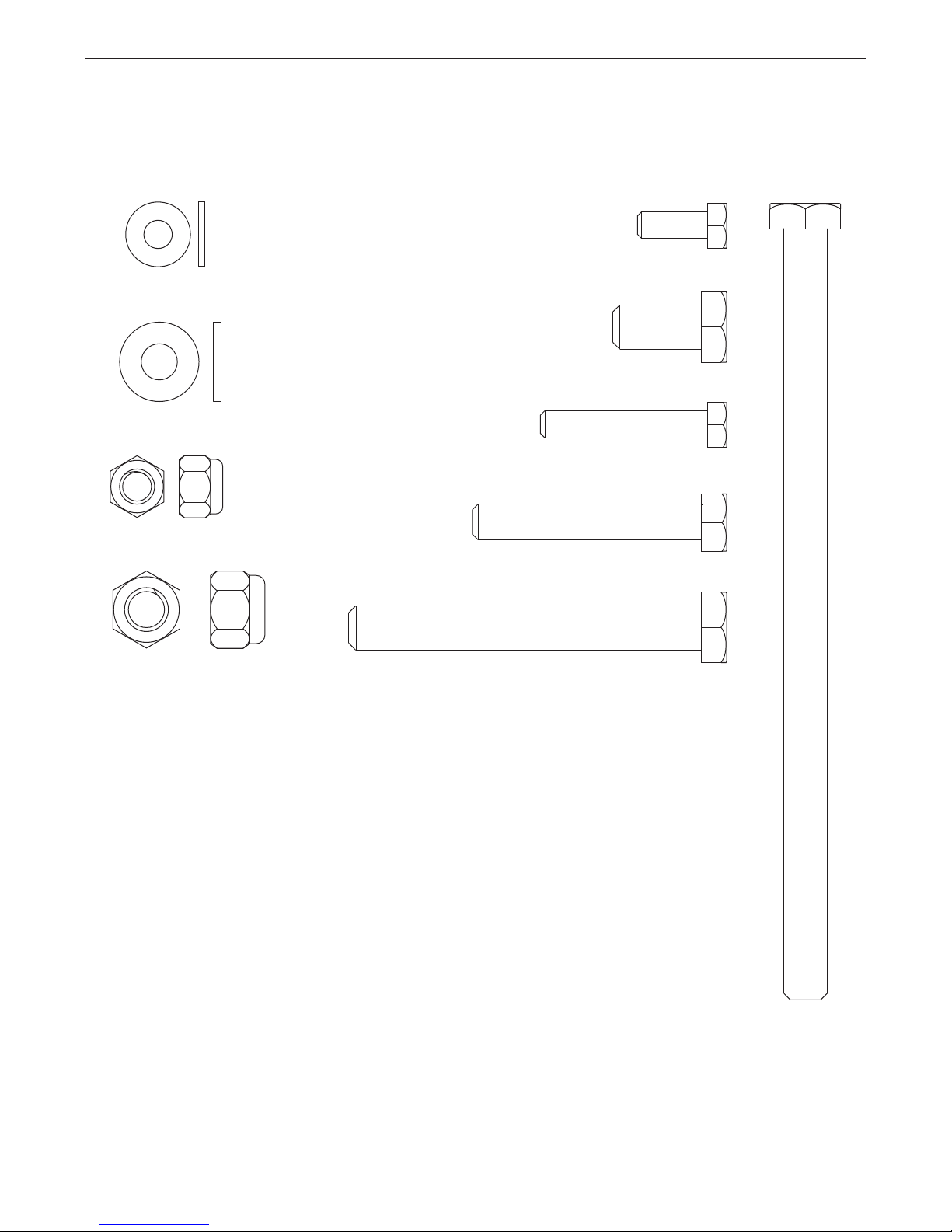

PART IDENTIFICATION CHART
efer to the drawings below to identify small parts used in assembly. The number in parentheses by each draw-
R ing is the key number of the part, from the PART LIST in the center of this manual.
may have been pre-attached. If a part is not in the parts bag, check to see if it has been pre-attached.
Note: Some small parts
Page 15

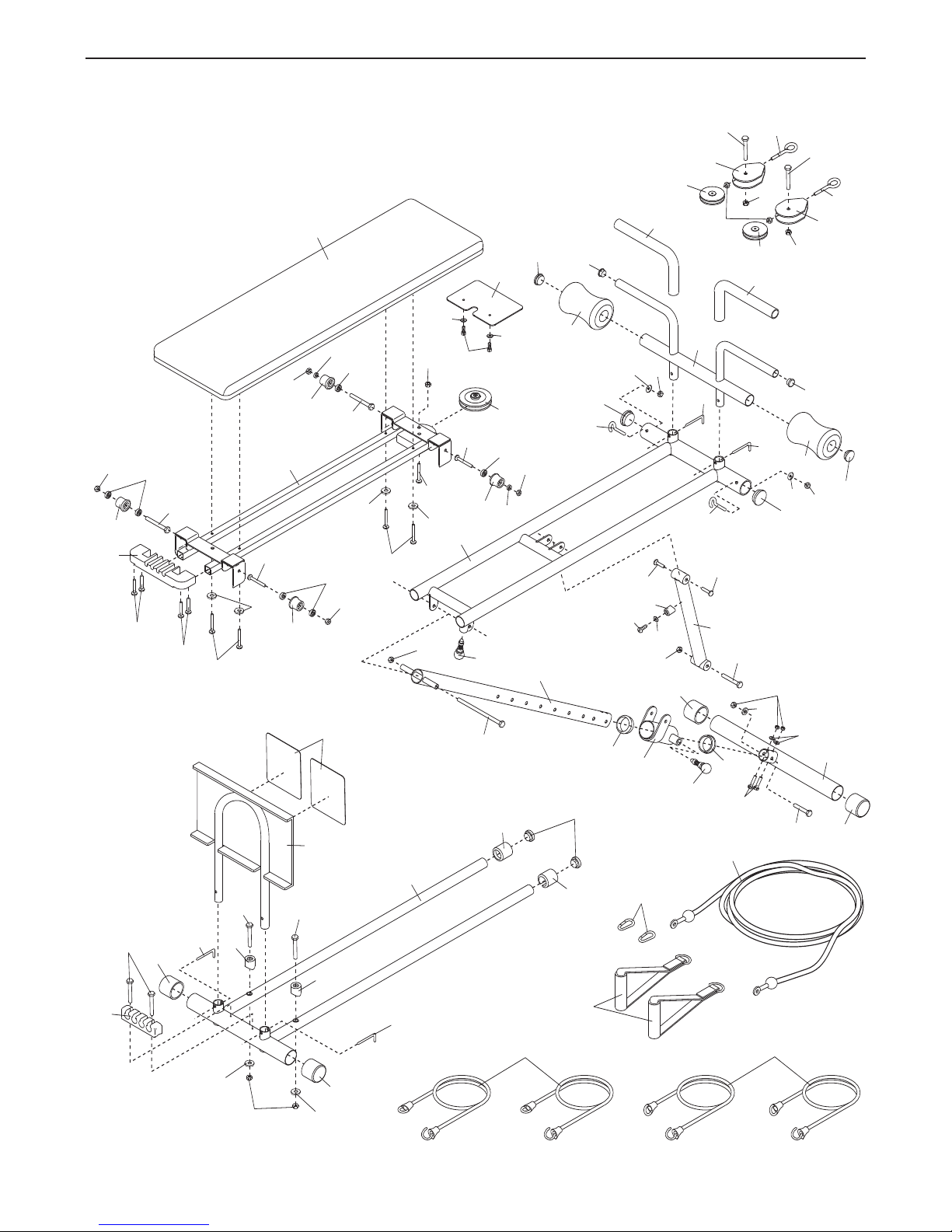

PART LIST—Model No. WEEVBE1444.0 R1005A
Key No. Qty. Description Key No. Qty. Description
1 1 Top Frame 2 1 Bottom Frame 3 1 Backrest Frame 4 5 1 Adjustment Leg 6 1 Stabiliser 7 1 Support Leg 8 1 Foot Plate 9 2 M10 x 20mm Screw
10 1 Bungee Bracket
11 1 Backrest Bracket 12 4 50mm Outer Cap 13 2 50mm Inner Cap 14 2 25mm Round Inner Cap 15 2 Handgrip 16 2 Foam Pad 17 4 L-Pin 18 2 Pulley Housing 19 2 70mm Pulley 20 1 90mm Pulley 21 1 Right 38/32mm Bushing 22 1 M10 x 45mm Bolt 23 6 Small Bushing 24 2 Small Wheel 25 2 Big Bushing 26 2 Big Wheel 27 2 Bumper 28 2 32mm Round Inner Cap 29 1 Handlebar 30 2 60mm Eyebolt 31 2 108mm Eyebolt 32 1 Cable 33 2 Cable Clip
1 Backrest
34 2 Handle 35 4 Bungee Cord 36 2 M8 Bright Zinc Nylon Locknut
7 2 M10 x 43mm Bolt
3 38 2 M8 x 90mm Bolt 39 6 M6 Washer 40 3 M8 x 52mm Bolt 41 2 M10 x 63mm Screw 42 1 M10 x 175mm Bolt 43 1 M10 x 80mm Bolt 44 2 Grip Tape 45 7 M10 Nylon Locknut 46 7 M8 Black Zinc Nylon Locknut 47 6 M4 x 20mm Self-tapping Screw 48 1 Adjustment Bracket 49 2 56mm Bushing 50 2 38mm Round Inner Cap 51 4 M6 x 38mm Screw 52 2 M10 Ball Head Nut 53 2 M8 x 85mm Bolt 54 3 M8 Black Zinc Washer 55 2 M8 Bright Zinc Washer 56 2 M10 Washer 57 1 Left 38/32mm Bushing 58 2 Knob 59 1 Pulley Guard 60 2 M6 x 16mm Screw 61 1 Small Bumper 62 1 M4 x 16mm Self-tapping Screw 63 1 M4 Washer
# 1 User’s Manual # 1 Exercise Guide # 1 Grease Packet
Note: “#” Indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover for information on ordering replacement parts.
Page 16
29
14
14
15
15
16
16
50
50
39
53
46
53
38
46
38
46
59
1
2
3
4
5
6
7
8
10
11
12
12
12
12
13
13
20
18
18
19
19
57
26
27
27
30
30
31
31
32
33
34
35
35
37
3
7
51
51
47
47
47
41
41
42
9
43
40
58
58
45
9
45
46
17
17
22
45
5
2
49
4948
21
28
17
17
36
36
40
4
5
55
55
54
54
39
39
56
45
56
44
61
63
62
45
60
39
39
23
26
23
24
25
23
24
25
23
46
EXPLODED DRAWING—Model No. WEEVBE1444.0 R1005A
Loading...
