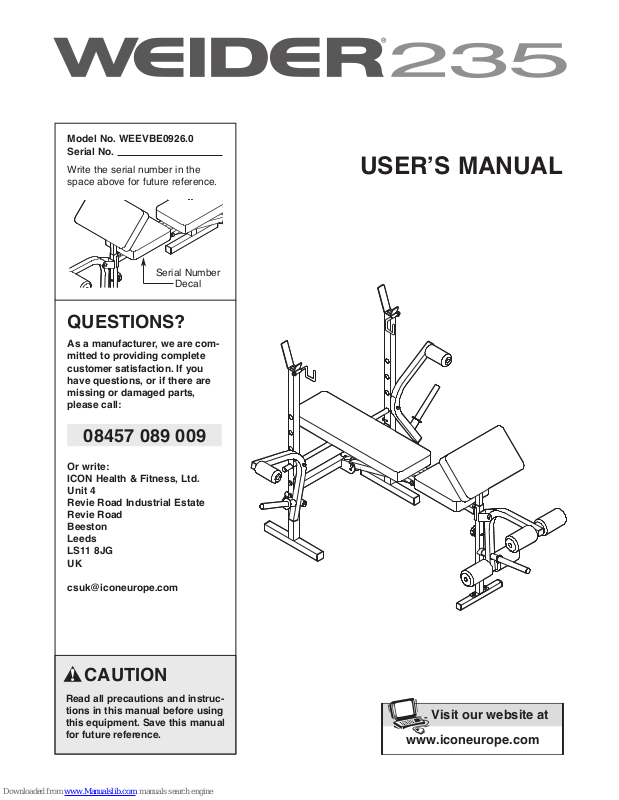

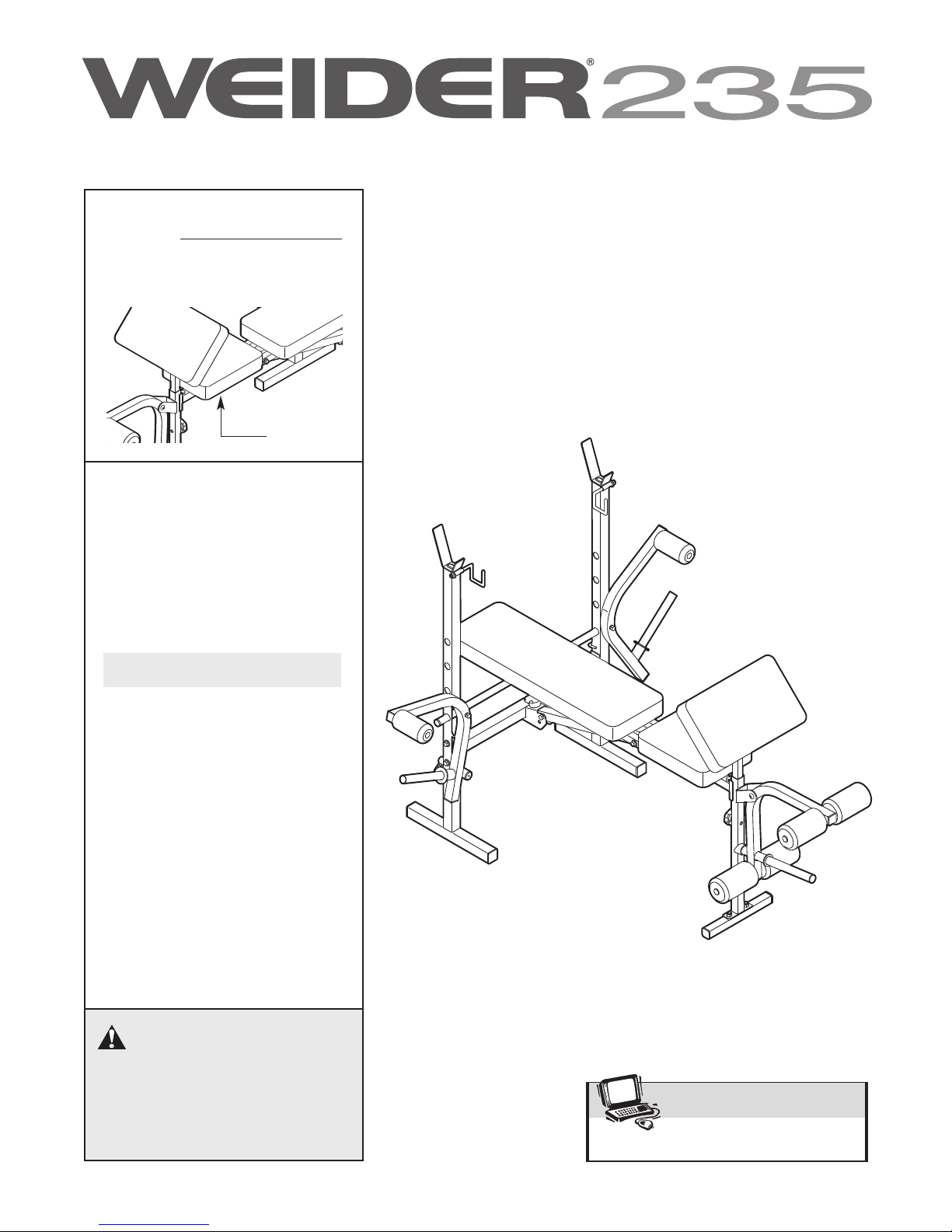

USER’S MANUAL
Or write: ICON Health & Fitness, Ltd. Unit 4 Revie Road Industrial Estate Revie Road Beeston Leeds LS11 8JG UK
CAUTION
Read all precautions and instruc­tions in this manual before using this equipment. Save this manual for future reference.
Page 2
TABLE OF CONTENTS
ARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
W
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
EFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
B
PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARNING DECAL PLACEMENT

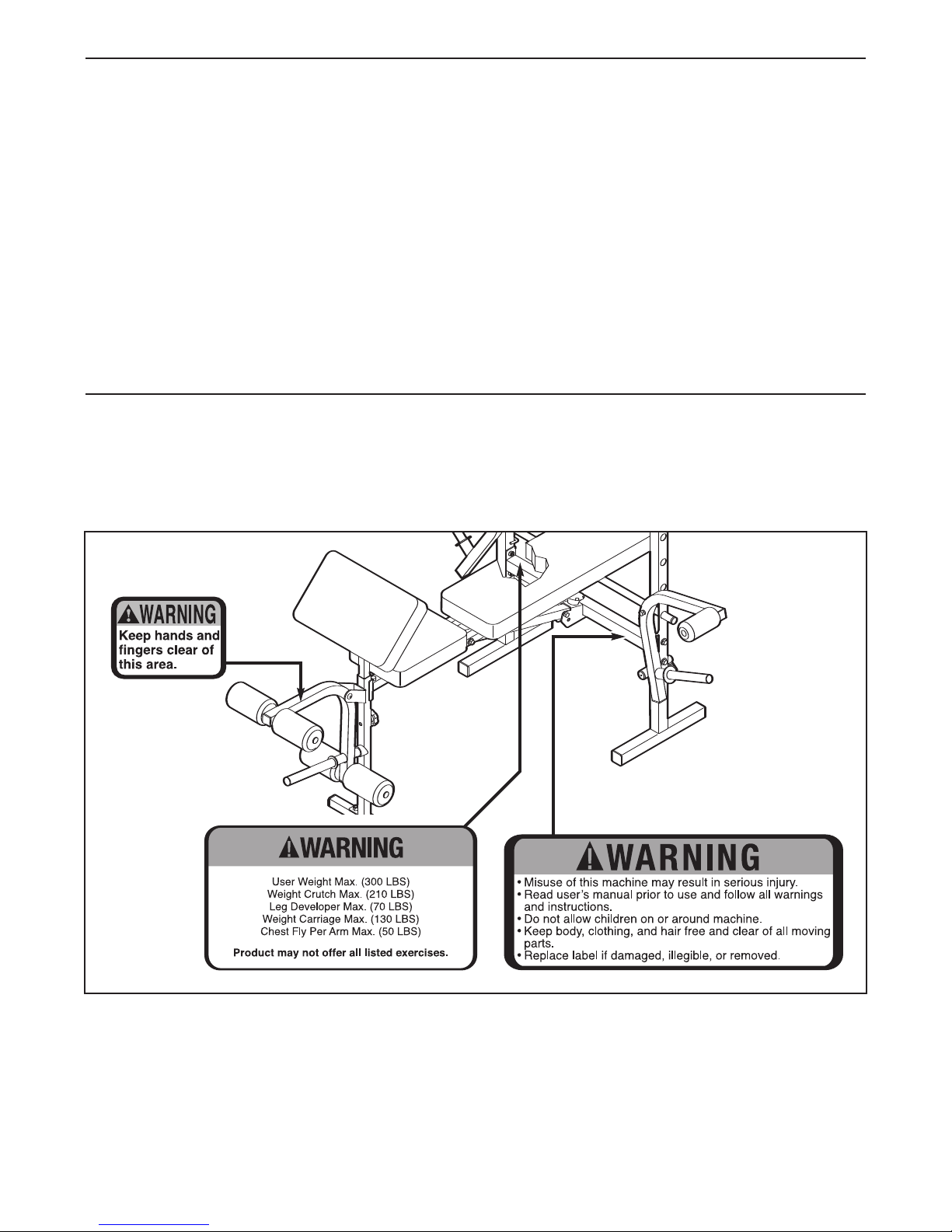

The warning decals shown below have been placed on the weight bench in the locations shown. If a decal is missing or illegible, call the telephone number on the front cover of this manual and order a free replacement decal. Apply the decal in the location shown.
WEIDER is a registered trademark of ICON IP, Inc.
2
Page 3
IMPORTANT PRECAUTIONS
WARNING:T
before using the weight bench.
ead all instructions in this manual
1.
R
warnings on the weight bench
the weight bench. Use the weight bench only
s described in this manual.
a
2. It is the responsibility of the owner to ensure that all users of the weight bench are ade­quately informed of all precautions.
3. The weight bench is intended for home use only. Do not use the weight bench in a com­mercial, rental, or institutional setting.
4. Keep the weight moisture and dust. Place the weight a level surface, with a mat beneath it to pro­tect the floor or carpet. Make sure that there is enough clearance around the weight to mount, dismount, and use it.
5. Inspect and properly tighten all parts regular­ly. Replace any worn parts immediately.
6. Keep children under the age of 12 and pets away from the weight bench at all times.
7. Keep hands and feet away from moving parts.
8. Always wear athletic shoes for foot protec­tion while exercising.
9. The weight bench is designed to support a maximum user weight of 300 lbs. (136 kg)
o reduce the risk of serious injury, read the following important precautions
and all
before using
bench
indoors, away from
bench
bench
on
and a maximum total weight of 510 lbs. (231 kg). Do not place more than 210 lbs. (95 kg), including a barbell and weights, on the weight rests. Do not place more than 70 lbs. (32 kg) on the leg lever. Do not place more than 50 lbs. (23 kg) on each fly arm. Note: The weight bench does not include a barbell or weights.
10. Always place equal amounts of weight on both ends of your barbell when using it.
11. Do not use a barbell that is longer than 5 ft. (1,5 m) with the weight bench.
12. When adding or removing weights, always keep some weight on both ends of the bar­bell and secure the barbell with the barbell hooks to prevent the barbell from tipping.
13. When using the leg lever, place a barbell with the same amount of weight on the weight rests to balance the bench.
14. When using the backrest in an inclined posi­tion or a level position, make sure that the support rod is inserted completely through the uprights and turned to the locked posi­tion.
If you feel pain or dizziness while exercising,
15. stop immediately and cool down.
WARNING:Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
3
Page 4
BEFORE YOU BEGIN
Thank you for selecting the new WEIDER®235 weight bench. The versatile WEIDER 235 weight bench is designed to be used with your own weight set (not
ncluded) to develop the major muscle groups of the
i body. Whether your goal is a shapely figure, dramatic muscle size and strength, or a healthier cardiovascular system, the WEIDER 235 weight bench will help you to achieve the specific results you want.
For your benefit, read this manual carefully before using the weight bench. If you have questions after
ASSEMBLED DIMENSIONS: Height: 45 in. (114 cm) Width: 50 in. (127 cm) Depth: 60 in. (152 cm)
Seat
reading this manual, please see the front cover of this manual. To help us assist you, note the product model number and serial number before contacting us. The
odel number is WEEVBE0926.0. The serial number
m can be found on a decal attached to the weight bench (see the front cover of this manual).

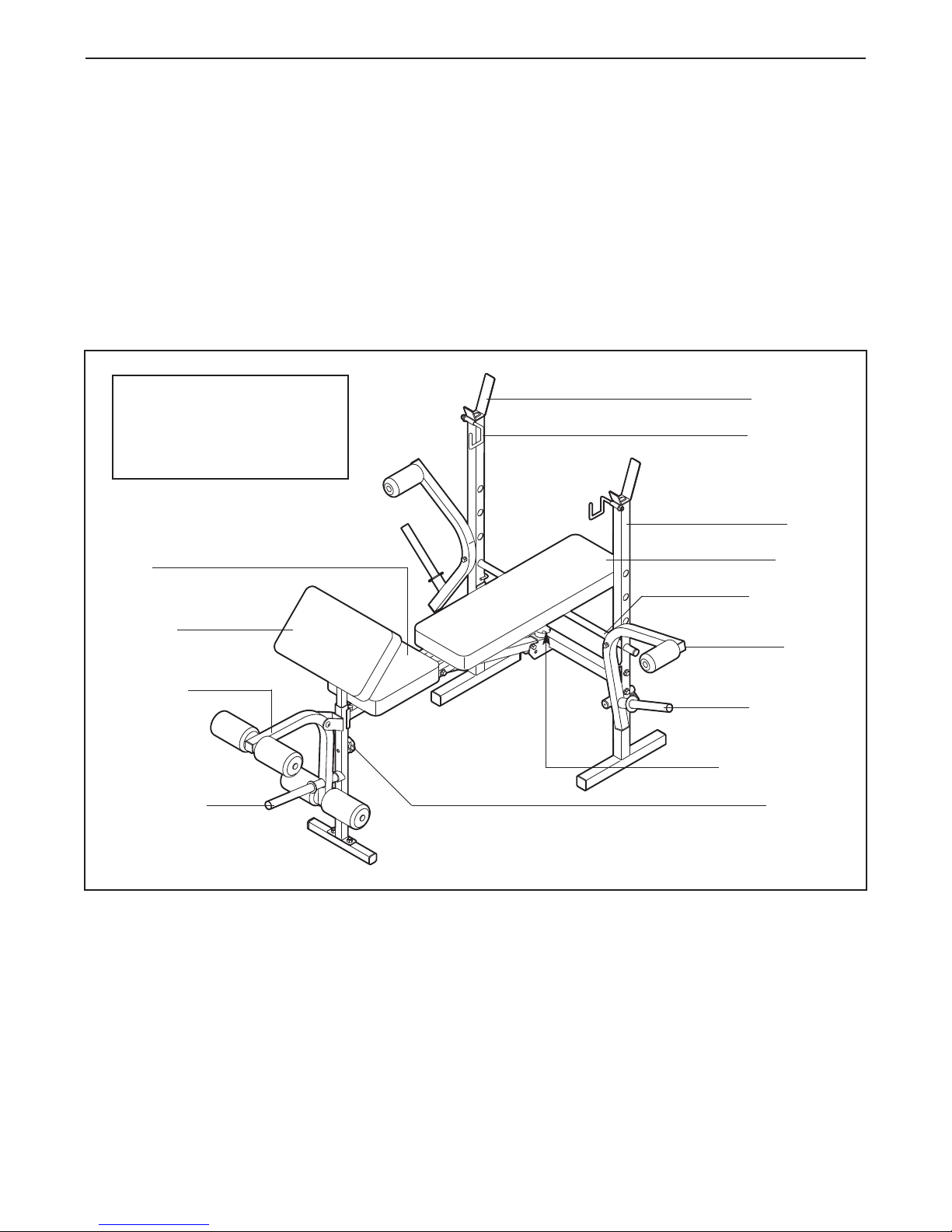

Before reading further, please look at the drawing below and familiarize yourself with the parts that are labelled.
Weight Rest
Barbell Hook
Upright
Backrest
Curl Pad
Leg Lever
Weight Tube
Support Rod
Fly Arm
Weight Tube
Adjustment Knob
Curl Knob
4
Page 5
M8 Zinc Nylon
Locknut (36)
M10 Nylon
Locknut (25)
M6 Washer (20)
M8 Washer (12)
M10 Washer (26)
M8 Zinc
Washer (35)
M8 Nylon
Locknut (13)
M6 x 16mm
Screw (21)
M6 x 38mm Screw (22)
M8 x 53mm Bolt (14)
M10 x 52mm Bolt Set (24)
M8 x 43mm
Carriage Bolt (29)
M10 x 55mm Bolt (30)
M10 x 137mm Bolt (28)
M10 x 125mm Bolt (51)
PART IDENTIFICATION CHART

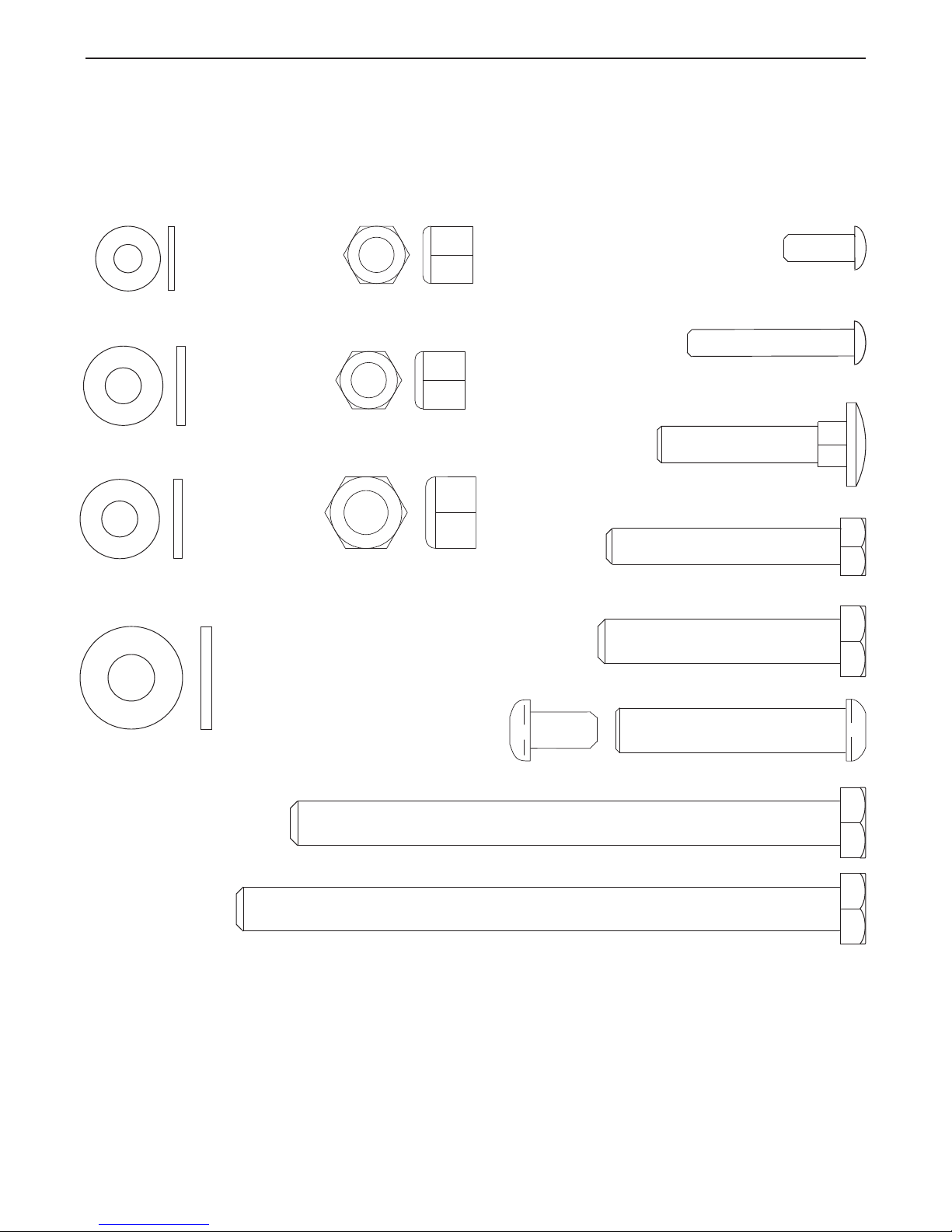

This chart is provided to help you identify the small parts used in assembly. The number in parenthesis below each part refers to the key number of the part from the PART LIST on page 14. Important: Some parts may
have been preassembled for shipping purposes. If you cannot find a part in the parts bags, check to see
f it has been preassembled.
i
5
Page 6
ASSEMBLY
Make Assembly Easier
This manual is designed to ensure that the weight bench can be assembled successfully by anyone. Most people find that by setting aside plenty of time, assembly will go smoothly.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
aterials until assembly is completed.
m
In addition to the included hex key and grease packets, the following tools (not included) may be required for assembly:
Before beginning assembly, carefully read the following information and instructions:
Assembly requires two persons.
•
• For help identifying small parts, see the PART IDENTIFICATION CHART on page 5.
•
Tighten all parts as you assemble them, unless instructed to do otherwise.
• As you assemble the weight bench, make sure all parts are oriented as shown in the drawings.
1.
Before assembling the weight bench, make sure that you have read and understand the information in the box above.

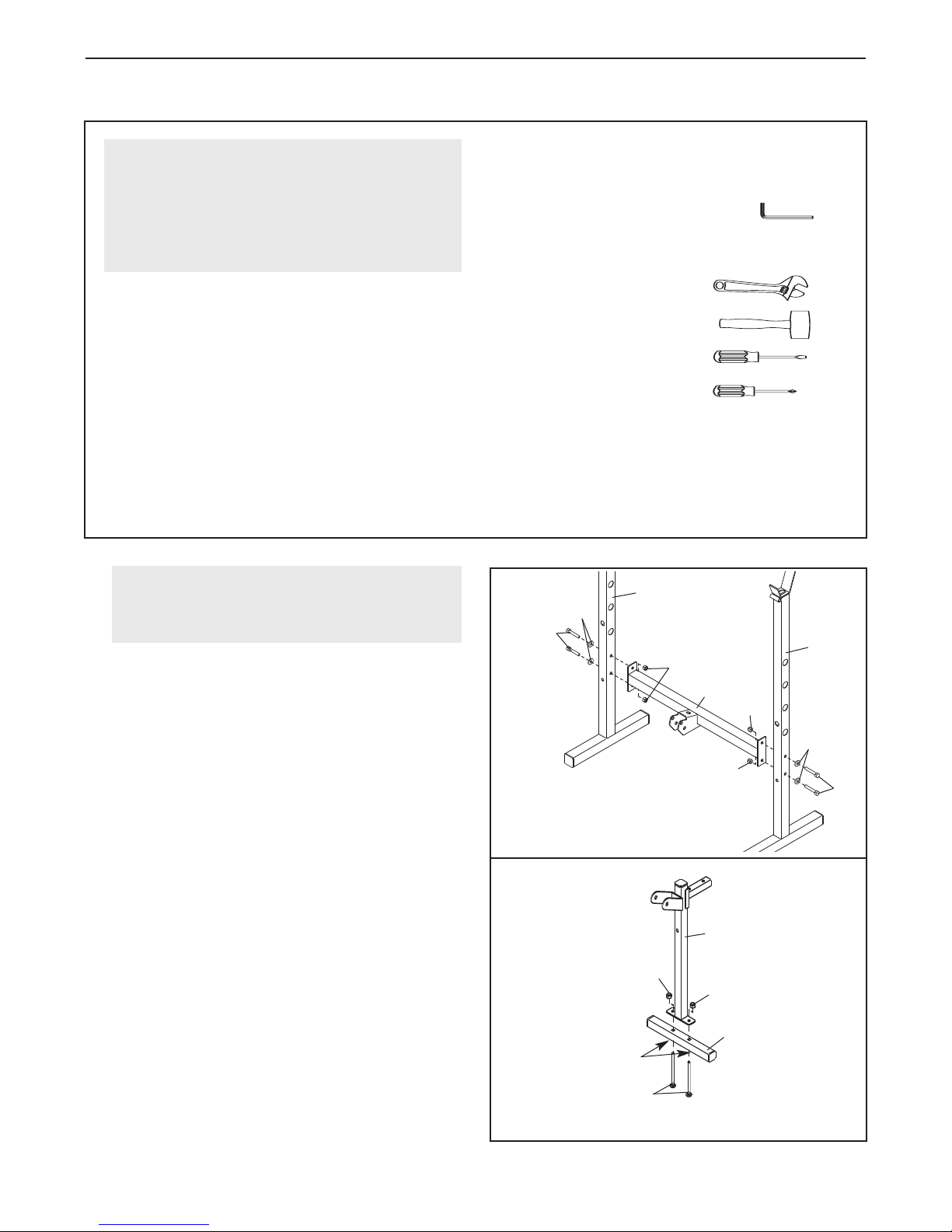

Attach the Crossbar (3) to the two Uprights (1) with four M8 x 53mm Bolts (14), four M8 Washers (12), and four M8 Nylon Locknuts (13). Do not tighten
the Nylon Locknuts yet.
• Two adjustable spanners
• One rubber mallet
• One standard screwdriver
• One Phillips screwdriver
Assembly will be more convenient if you have a socket set, a set of open-end or closed-end span­ners, or a set of ratchet spanners.
1
12
14
1
1
13
3
13
12
2. Orient the Stabilizer (31) so the recessed holes are facing the floor. Attach the Stabilizer to the Front Leg (8) with two M8 x 43mm Carriage Bolts (29) and two M8 Nylon Locknuts (13). Do not
tighten the Nylon Locknuts yet.
13
14
2
8
13
13
31
Recessed
Holes
29
6
Page 7

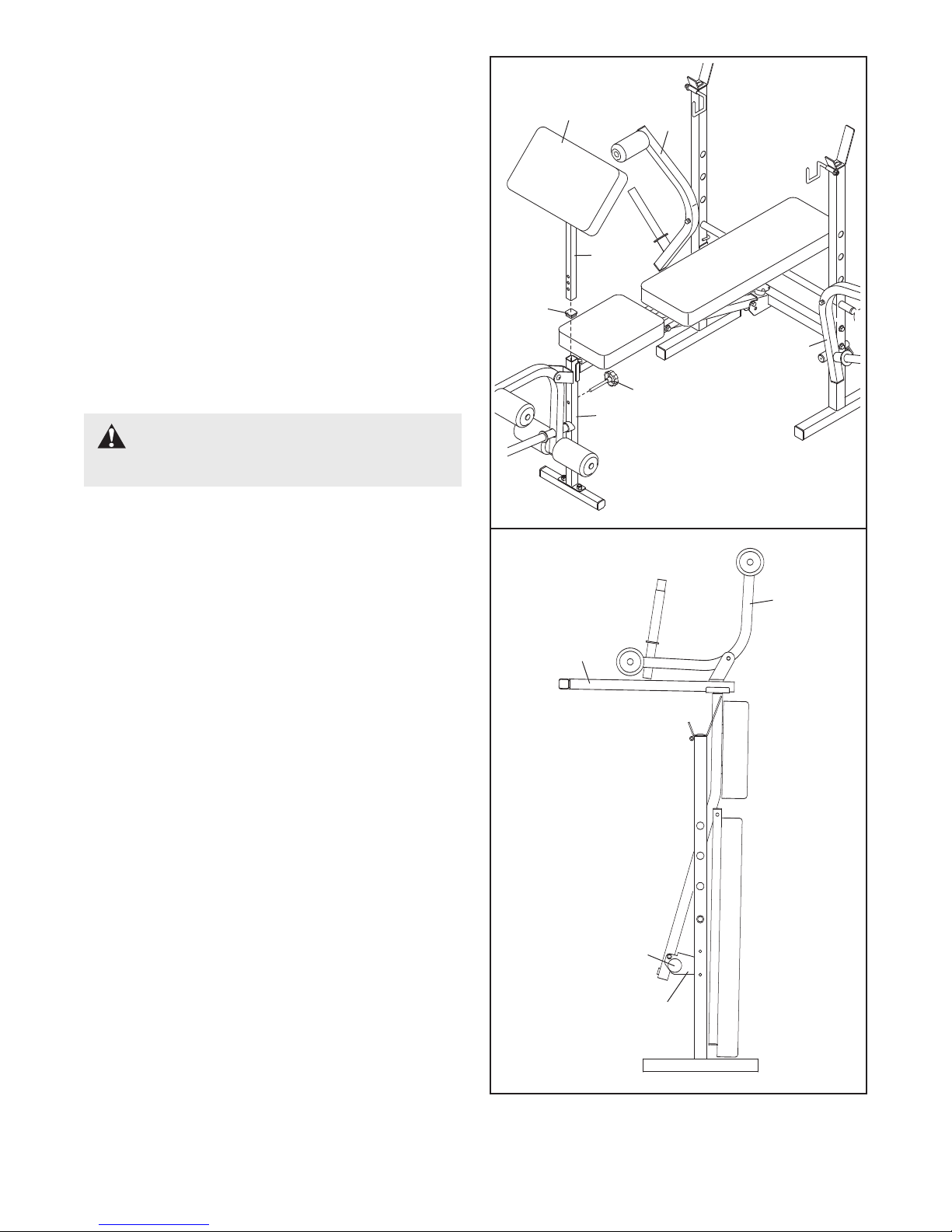

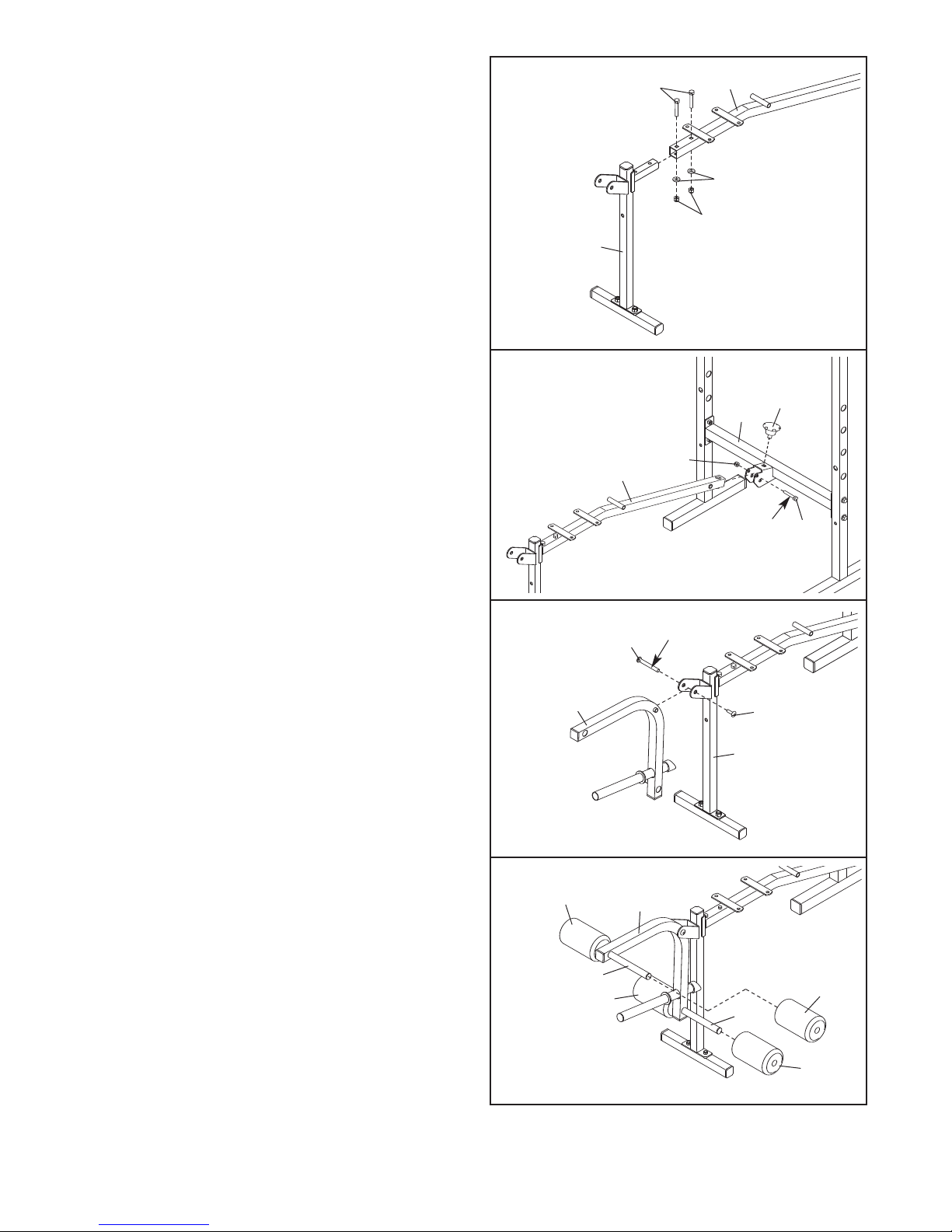

3. Attach the Front Leg (8) to the Frame (2) with two M8 x 43mm Carriage Bolts (29), two M8 Washers
12), and two M8 Nylon Locknuts (13). D
(
tighten the Nylon Locknuts yet.
o not
3
8
29
2
12
3
1
4. Apply some of the included grease to an M10 x 55mm Bolt (30). Attach the Frame (2) to the upper set of holes in the bracket on the Crossbar (3) with the Bolt and an M10 Nylon Locknut (25). Do not
overtighten the Nylon Locknut; the Frame must pivot easily.
Tighten the Adjustment Knob (23) into the bracket on the Crossbar (3) and the Frame (2).
5. Apply grease to the barrel of an M10 x 52mm Bolt Set (24). Attach the Leg Lever (4) to the bracket on the Front Leg (8) with the Bolt Set. Make sure
that the barrel of the Bolt Set is inserted through both sides of the bracket on the Front Leg.
4
23
3
2
5
24
4
25
Grease
Grease
24
8
30
6. Insert the two Long Pad Tubes (10) into the Leg Lever (4). Slide two Large Foam Pads (18) onto each Long Pad Tube.
6
18
10
18
4
18
10
18
7
Page 8

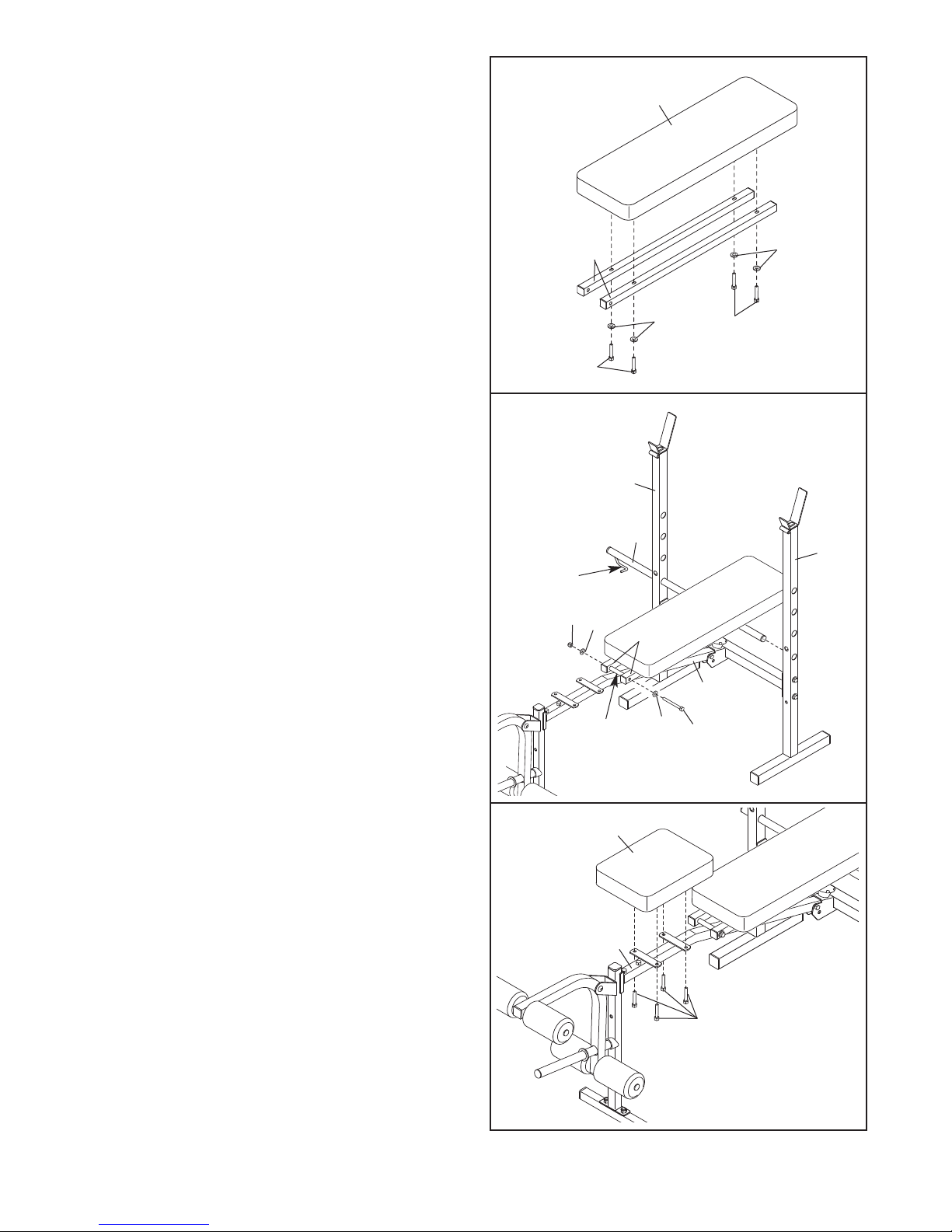

7. Attach the two Backrest Tubes (5) to the Backrest (6) with four M6 x 38mm Screws (22) and four M6
ashers (20). D
W
o not tighten the Screws yet.
7
6
8. Insert the Support Rod (7) through a set of holes in the Uprights (1). Make sure that the locking pin is on the side shown. Rotate the Support Rod to the locked position, with the locking pin wrapped around the right Upright.
Apply grease to an M10 x 137mm Bolt (28). Attach the Backrest Tubes (5) to the welded tube on the Frame (2) with the Bolt, two M10 Washers (26), and an M10 Nylon Locknut (25). Do not
overtighten the Nylon Locknut; the Backrest Tubes must pivot easily.
See steps 1–3. Tighten the M8 Nylon Locknuts
(13) used in these steps.
See step 7. Tighten the four M6 x 38mm Screws (22).
8
Locking
Pin
5
22
25
26
Welded
Tube
20
20
1
7
5
26
22
1
2
28
9. Attach the Seat (11) to the brackets on the Frame (2) with four M6 x 16mm Screws (21).
9
1
1
2
21
8
Page 9

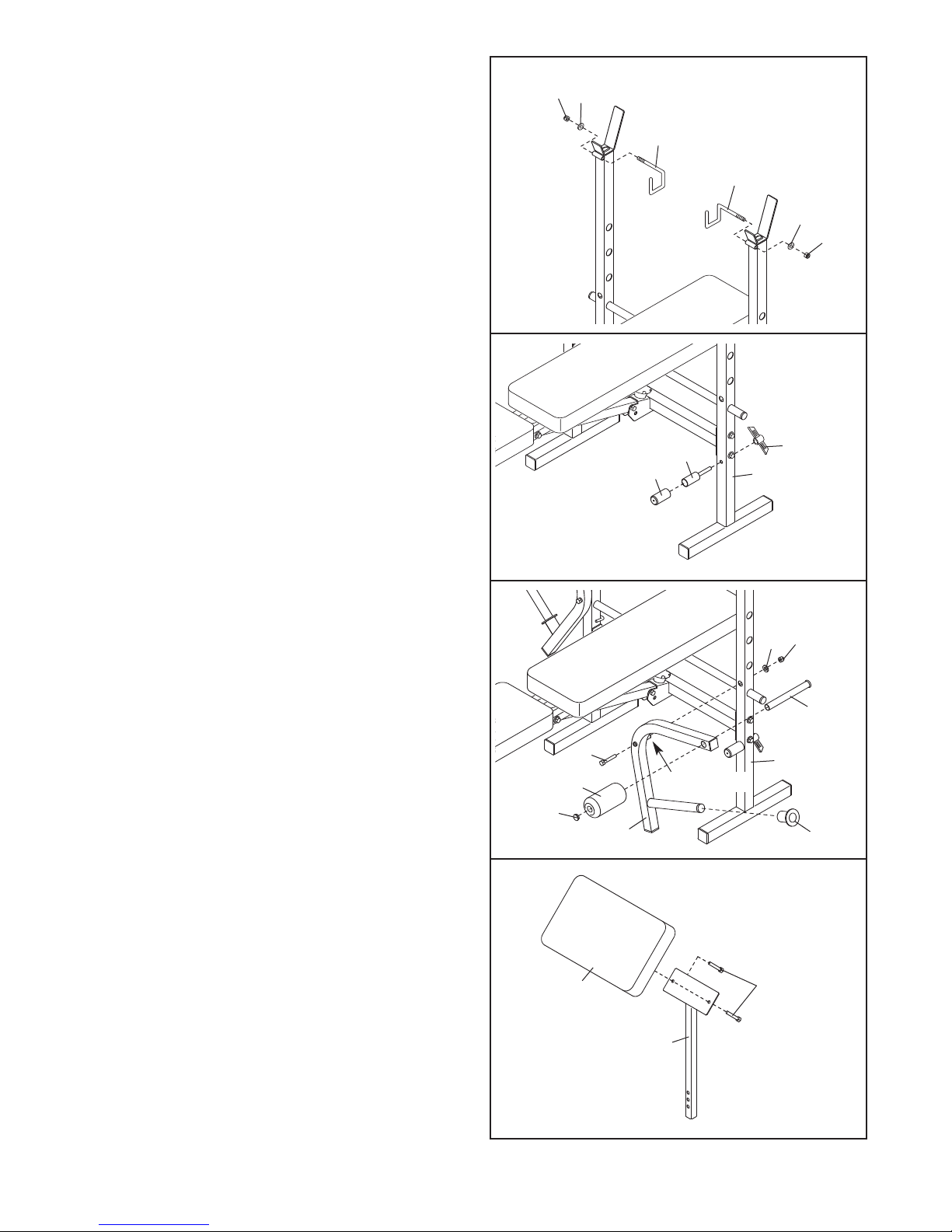

10. Attach the Right Barbell Hook (32) to the right Upright (1) with an M8 Zinc Washer (35) and an
8 Zinc Nylon Locknut (36). D
M
the Nylon Locknut; the Barbell Hook must
ivot easily.
p
o not overtighten
10
36
5
3
32
Attach the Left Barbell Hook (33) to the left Upright (1) with an M8 Zinc Washer (35) and an M8 Zinc Nylon Locknut (36). Do not overtighten
the Nylon Locknut; the Barbell Hook must pivot freely.
11. Attach a Bumper (45) to the left Upright (1) with a Wing Knob (47). Press a Bumper Cover (46) onto the Bumper.
Repeat this step for the other side of the weight bench.
12. Identify the Left Fly Arm (40), which has a welded pivot tube on the indicated side. Attach the Left Fly Arm to the left Upright (1) with an M10 x 125mm Bolt (51), an M10 Washer (26), and an M10 Nylon Locknut (25).
11
12
46
45
33
35
36
47
1
25
26
Insert a Short Pad Tube (44) into the Left Fly Arm (40). Slide a Small Foam Pad (43) onto the Short Pad Tube, and press a 19mm x 1mm Round Inner Cap (53) into the Short Pad Tube. Then, slide a Spacer (42) onto the Left Fly Arm.
Repeat this step for the other side of the weight bench.
13. Attach the Curl Pad (48) to the Curl Post (49) with two M6 x 16mm Screws (21).
14. Make sure that all parts are properly tightened
before you use the weight bench. The use of all remaining parts will be explained in ADJUSTMENTS, starting on page 10.
13
53
43
48
51
40
44
1
Pivot Tube
42
21
49
9
Page 10
ADJUSTMENTS
The weight bench is designed to be used with your own weight set (not included). The steps below explain how the weight bench can be adjusted. Refer to the accompanying exercise guide to see the correct form for several exercises.
Make sure that all parts are properly tightened each time the weight bench is used. Replace any worn parts immedi­ately. The weight bench can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.
ADJUSTING THE BACKREST

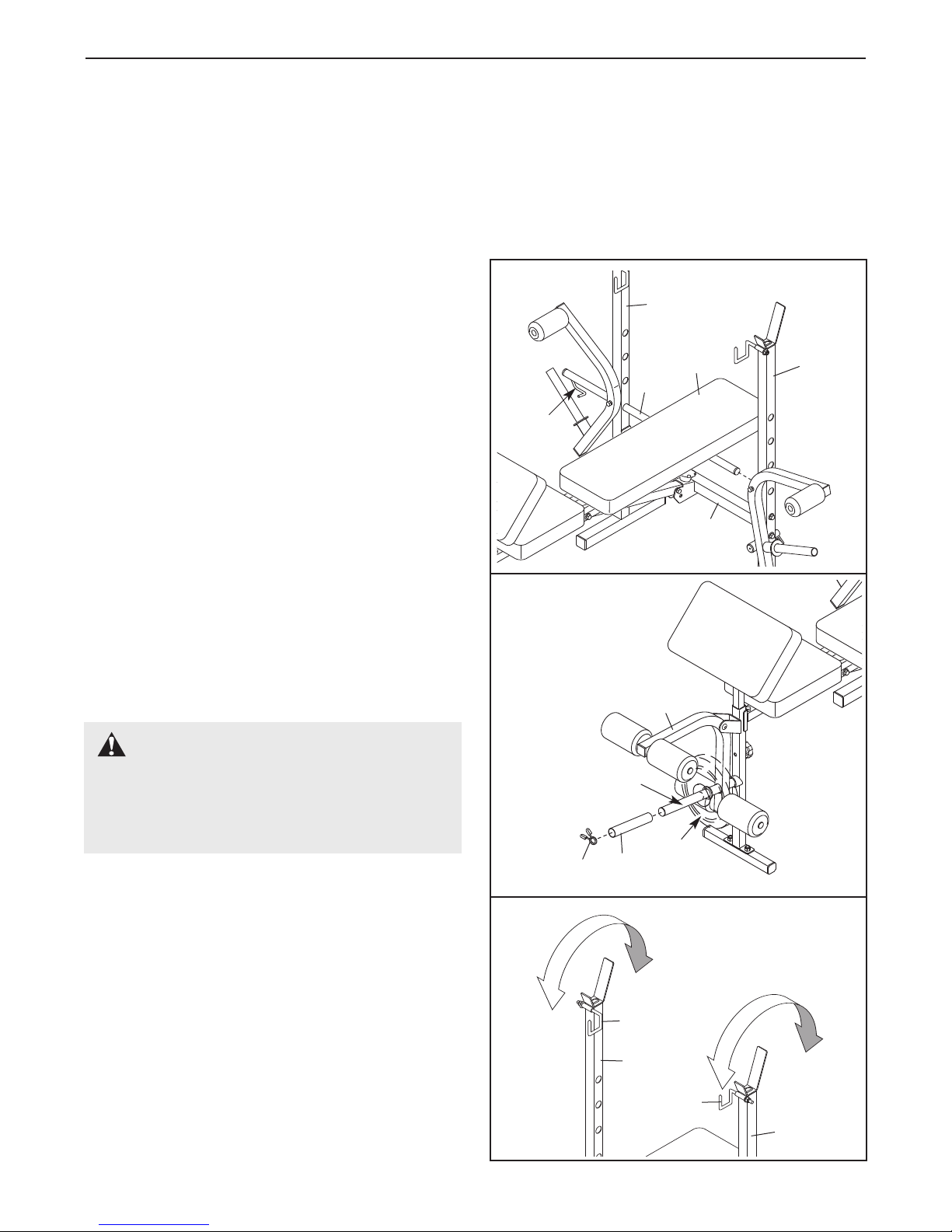

The Backrest (6) can be used in a declined position, a level position, or any of three inclined positions. To use the Backrest in a declined position, remove the Support Rod (7) and lay the Backrest on the Crossbar (3).
To use the Backrest (6) in a level position or an inclined position, insert the Support Rod (7) through a set of holes in the Uprights (1). Rotate the Support Rod to the locked position, so the locking pin is wrapped around the Upright. Then, rest the Backrest on the Support Rod.
USING THE LEG LEVER
To use the Leg Lever (4), slide the desired weights onto the weight tube on the Leg Lever. If the weights have large center holes, slide the Weight Adapter (34) onto the weight tube. Always secure weights with the Weight Clip (37).
WARNING:
than 70 lbs. (32 kg) on the Leg Lever (4). When using the Leg Lever, place a barbell with the same amount of weight on the weight rests to balance the weight bench.
Do not place more
Locking
Pin
37
Weight
ube
T
34
1
7
W
4
eight
6
3
1
USING THE BARBELL HOOKS
To change weights while your barbell is on the Uprights (1), secure the barbell by rotating the Barbell Hooks (32, 33) over the barbell. This will reduce the possibility of the barbell tipping while you are chang­ing weights.
32
1
33
1
10
Page 11
USING THE CURL PAD
o use the Curl Pad (48), remove the 30mm x 2mm
T Square Inner Cap (39). Then, insert the Curl Post
49) into the Front Leg (8), and attach the Curl Post
( with the Curl Knob (52).
passes through one of the holes in the Curl Post. Note: when you are not using the Curl Pad, remove the Curl Post and reinsert the Square Inner Cap into the Front Leg.
USING THE FLY ARMS
Make sure the Curl knob
48
41
49
To use the Right and Left Fly Arms (40, 41), slide the desired weights onto the weight tubes on the Fly Arms. If the weights have large center holes, slide Weight Adapters (not shown) onto the weight tubes. Always secure weights with Weight Clips (not shown).
WARNING:
than 50 lbs. (23 kg) on each Fly Arm (40, 41).
STORING THE WEIGHT BENCH
Before storing the weight bench, remove any weights from the Leg Lever (4). To store the weight
bench, first remove the Adjustment Knob (23) from the indicated bracket. Next, lift the Front Leg (8) as far as it will go. Then, tighten the Adjustment Knob into the bracket. The Adjustment Knob will prevent the weight bench from unfolding.
left and right fly arms are not shown.
Do not place more
Note: For clarity, the
39
40
52
8
4
8
23
Bracket
11
Page 12
EXERCISE GUIDELINES
THE FOUR BASIC TYPES OF WORKOUTS
Muscle Building
o increase the size and strength of your muscles,
T push them close to their maximum capacity. Your mus­cles will continually adapt and grow as you progres­sively increase the intensity of your exercise. You can adjust the intensity level of an individual exercise in two ways:
• by changing the amount of weight used
• by changing the number of repetitions or sets per-
formed. (A “repetition” is one complete cycle of an exercise, such as one sit-up. A “set” is a series of repetitions.)
The proper amount of weight for each exercise depends upon the individual user. You must gauge your limits and select the amount of weight that is right for you. Begin with 3 sets of 8 repetitions for each exercise you perform. Rest for 3 minutes after each set. When you can complete 3 sets of 12 repetitions without difficulty, increase the amount of weight.
Toning
You can tone your muscles by pushing them to a mod­erate percentage of their capacity. Select a moderate amount of weight and increase the number of repeti­tions in each set. Complete as many sets of 15 to 20 repetitions as possible without discomfort. Rest for 1 minute after each set. Work your muscles by complet­ing more sets rather than by using high amounts of weight.
Weight Loss
To lose weight, use a low amount of weight and increase the number of repetitions in each set. Exercise for 20 to 30 minutes, resting for a maximum of 30 seconds between sets.
Cross T
Cross training is an efficient way to get a complete and well-balanced fitness program. anced program is:
• Plan weight training workouts on Monday,
W Plan 20 to 30 minutes of aerobic exercise, such as
•
cycling or swimming, on Tuesday and Thursday.
• Rest from both weight training and aerobic exercise
for at least one full day each week to give your body time to regenerate.
The combination of weight training and aerobic exer cise will reshape and strengthen your body op your heart and lungs.
raining
ednesday
, and Friday.
An example of a bal
, plus devel
-
-
PERSONALISING YOUR EXERCISE PROGRAM
Determining the exact length of time for each workout,
s well as the number of repetitions or sets completed,
a is an individual matter. It is important to avoid overdo­ing it during the first few months of your exercise pro­gram. You should progress at your own pace and be sensitive to your body’s signals. If you experience pain or dizziness at any time while exercising, stop immedi­ately and begin cooling down. Find out what is wrong before continuing. Remember that adequate rest and a proper diet are important factors in any exercise pro­gram.
WARMING UP
Begin each workout with 5 to 10 minutes of stretching and light exercise to warm up. Warming up prepares your body for more strenuous exercise by increasing circulation, raising your body temperature and deliver­ing more oxygen to your muscles.
WORKING OUT
Each workout should include 6 to 10 different exercis­es. Select exercises for every major muscle group, emphasizing areas that you want to develop most. To give balance and variety to your workouts, vary the exercises from session to session.
Schedule your workouts for the time of day when your energy level is the highest. Each workout should be followed by at least one day of rest. Once you find the schedule that is right for you, stick with it.
EXERCISE FORM
Maintaining proper form is an essential part of an effective exercise program. through the full range of motion for each exercise, and moving only the appropriate parts of the body. Exercising in an uncontrolled manner will leave you feeling exhausted. On the exercise guide accompany ing this manual you will find photographs showing the correct form for several exercises, and a list of the muscles af find the names of the muscles.
The repetitions in each set should be performed smoothly and without pausing. The exertion stage of each repetition should last about half as long as the return stage. Proper breathing is important. Exhale
-
during the exertion stage of each repetition and inhale during the return stroke. Never hold your breath.
fected. See the muscle chart on page 13 to
This requires moving
-
12
Page 13
Rest for a short period of time after each set. The
O
P Q
R
S
T
U
V
X
W
N
M
J
G
F
H
I
K
E
C D
B
A
L

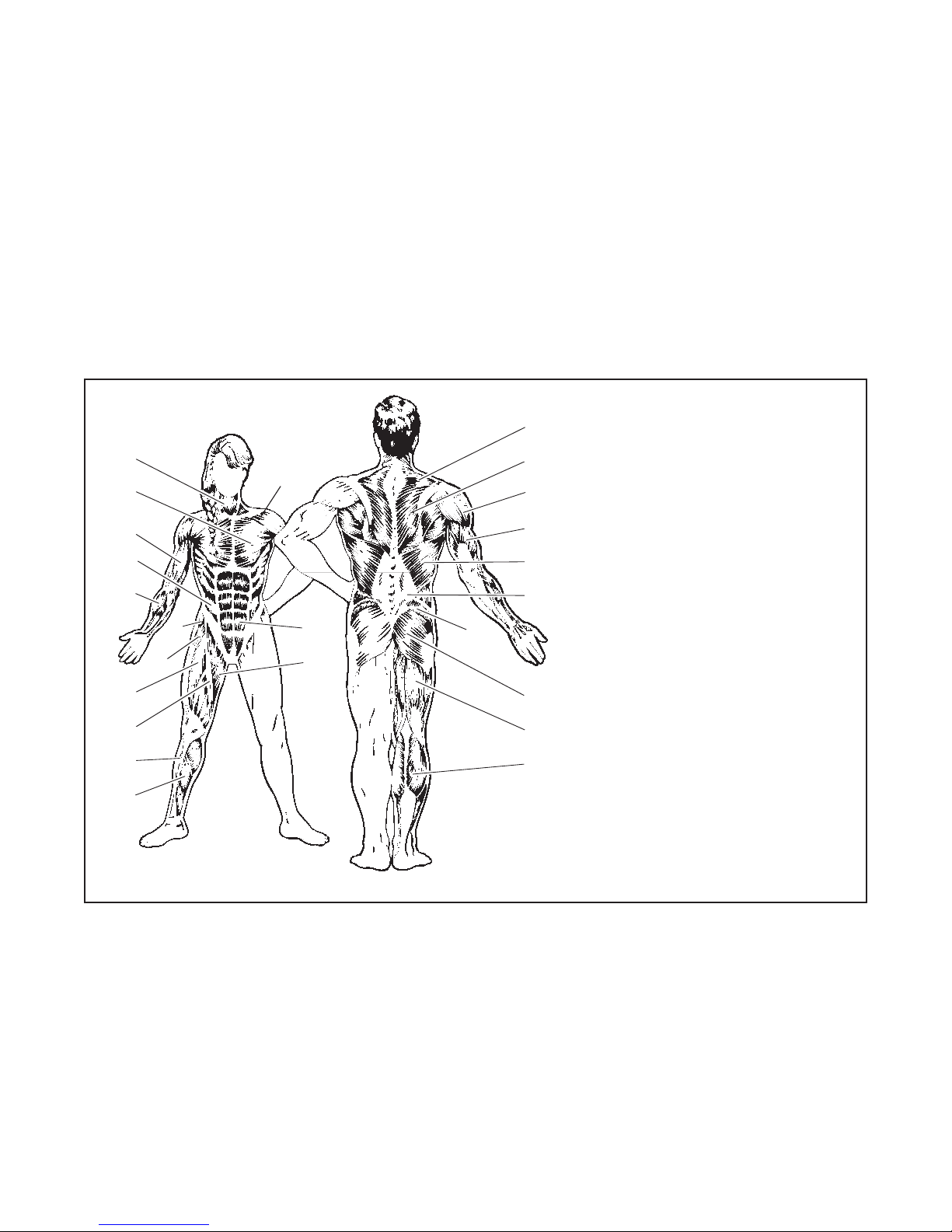

MUSCLE CHART
A. Sternomastoid (neck) B. Pectoralis Major (chest) C. Biceps (front of arm) D. Obliques (waist) E. Brachioradials (forearm) F. Hip Flexors (upper thigh) G. Abductor (outer thigh) H. Quadriceps (front of thigh) I. Sartorius (front of thigh) J. Tibialis Anterior (front of calf) K. Soleus (front of calf) L. Anterior Deltoid (shoulder) M. Rectus Abdominus (stomach) N. Adductor (inner thigh) O. Trapezius (upper back) P. Rhomboideus (upper back) Q. Posterior Deltoid (shoulder) R. Triceps (back of arm) S. Latissimus Dorsi (mid back) T. Spinae Erectors (lower back) U. Gluteus Medius (hip) V. Gluteus Maximus (buttocks) W. Hamstring (back of leg) X. Gastrocnemius (back of calf)
ideal resting periods are:
Rest for three minutes after each set for a muscle
•
building workout. Rest for one minute after each set for a toning work-
•
out.
• Rest for 30 seconds after each set for a weight loss
workout. Plan to spend the first couple of weeks familiarizing yourself with the equipment and learning the proper form for each exercise.
COOLING DOWN
End each workout with 5 to 10 minutes of stretching. Include stretches for both your arms and legs. Move
slowly as you stretch and do not bounce. Ease into each stretch gradually and go only as far as you can
ithout strain. Stretching at the end of each workout
w is an effective way to increase flexibility.
STAYING MOTIVATED
For motivation, keep a record of each workout. List the date, the exercises performed, the weight used, and the numbers of sets and repetitions completed. Record your weight and key body measurements at the end of every month. Remember, the key to achieving the greatest results is to make exercise a regular and enjoyable part of your everyday life.
13
Page 14
PART LIST—Model No. WEEVBE0926.0 R0906A
Key No. Qty. Description Key No. Qty. Description
1 2 Upright 2 1 Frame 3 4 1 Leg Lever 5 2 Backrest Tube 6 1 Backrest 7 1 Support Rod 8 1 Front Leg
9 2 22mm Round Inner Cap 10 2 Long Pad Tube 11 1 Seat 12 6 M8 Washer 13 8 M8 Nylon Locknut 14 4 M8 x 53mm Bolt 15 1 25mm Round Angled Cap 16 4 38mm Square Inner Cap 17 8 30mm Square Inner Cap 18 4 Large Foam Pad 19 3 25mm Round Inner Cap 20 4 M6 Washer 21 6 M6 x 16mm Screw 22 4 M6 x 38mm Screw 23 1 Adjustment Knob 24 1 M10 x 52mm Bolt Set 25 4 M10 Nylon Locknut 26 4 M10 Washer 27 4 25mm Square Inner Cap 28 1 M10 x 137mm Bolt 29 4 M8 x 43mm Carriage Bolt
1 Crossbar
30 1 M10 x 55mm Bolt 31 1 Stabilizer
2 1 Right Barbell Hook
3 33 1 Left Barbell Hook 34 3 Weight Adapter 35 2 M8 Zinc Washer 36 2 M8 Zinc Nylon Locknut 37 3 Weight Clip 38 4 19mm Round Inner Cap 39 1 30mm x 2mm Square Inner Cap 40 1 Left Fly Arm 41 1 Right Fly Arm 42 2 Spacer 43 2 Small Foam Pad 44 2 Short Pad Tube 45 2 Bumper 46 2 Bumper Cover 47 2 Wing Knob 48 1 Curl Pad 49 1 Curl Post 50 4 Bushing 51 2 M10 x 125mm Bolt 52 1 Curl Knob 53 2 19mm x 1mm Round Inner Cap
# – User’s Manual # – Exercise Guide # – Grease Packet # – Hex Key
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover of this manual for information about ordering replacement parts.
14
Page 15
8
19
4
17
24
15
17
17
29
13
13
31
34
37
10
18
38
10
18
18
11
2
3
16
1
9
7
9
14
22
6
5
22
20
20
27
25
26
5
27
23
12
33
35
36
32
35
36
20
28
26
13
21
39
24
16
1
25
14
16
13
13
13
13
30
16
29
17
38
38
38
12
12
21
41
40
42
42
43
43
44
44
45
46
45
46
47
47
48
49
50
50
50
50
25
25
51
51
52
17
17
17
17
26
26
53
53
19
19
37
34
34

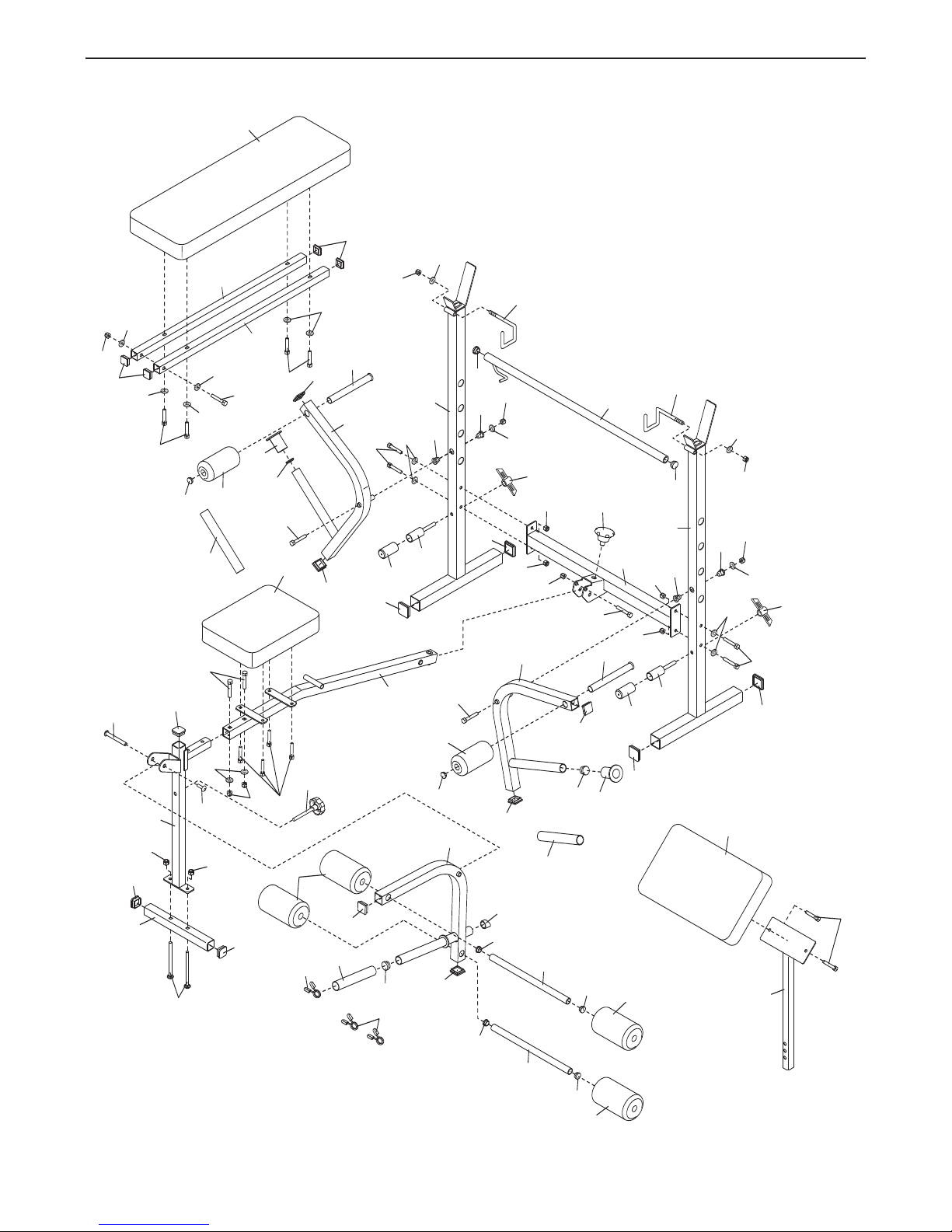

EXPLODED DRAWING—Model No. WEEVBE0926.0 R0906A
15
Page 16
ORDERING REPLACEMENT PARTS
f you encounter any problems with this product, or if you need to order replacement parts, contact the ICON
I Health & Fitness, Ltd. office, or write:
ICON Health & Fitness, Ltd.
ustomer Service Department
C Unit 4 Revie Road Industrial Estate Revie Road Beeston Leeds LS11 8JG UK
Tel:
08457 089 009
Outside the UK: 0 (044) 113 387 7133 Fax: 0 (044) 113 387 7125
When ordering parts, please be prepared to provide the following information:
• the MODEL NUMBER of the product (WEEVBE0926.0)
• the NAME of the product (WEIDER 235 weight bench)
• the SERIAL NUMBER of the product (see the front cover of this manual)
• the KEY NUMBER and DESCRIPTION of the part(s) (see pages 14 and 15)
Part No. 242019 R0906A Printed in China © 2006 ICON IP, Inc.
Loading...
