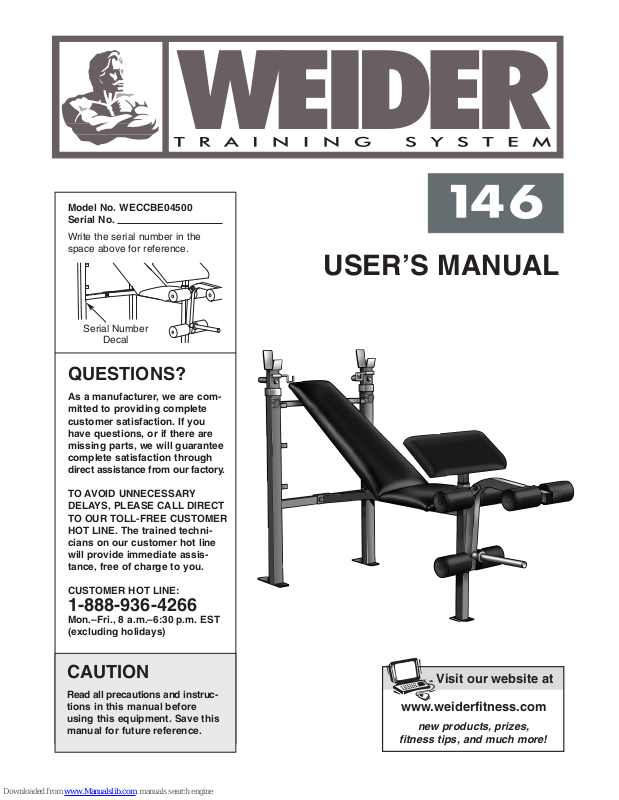

Page 1
Model No. WECCBE04500
Visit our website at
www.weiderfitness.com
new products, prizes,
fitness tips, and much more!
Serial No.
Write the serial number in the
space above for reference.
Serial Number
Decal
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you
have questions, or if there are
missing parts, we will guarantee
complete satisfaction through
direct assistance from our factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL DIRECT
TO OUR TOLL-FREE CUSTOMER
HOT LINE. The trained technicians on our customer hot line
will provide immediate assistance, free of charge to you.
USER’S MANUAL
CUSTOMER HOT LINE:
1-888-936-4266
Mon.–Fri., 8 a.m.–6:30 p.m. EST
(excluding holidays)
CAUTION
Read all precautions and instructions in this manual before
using this equipment. Save this
manual for future reference.
Page 2
Table of Contents
• Misuse of this product may result in serious
injury.
• Read user’s manual and follow all warnings
and operating instructions prior to use.
• Do not allow children on or around machine.
• Replace label if damaged, illegible, or removed.
WARNING
!
Keep hands and
fingers clear of
this area.
Warning Decal Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Important Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Part Identification Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Adjusting the Weight Bench . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Exercise Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Part List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Exploded Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Ordering Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
Warning Decal Placement
The decals shown below have been placed on the weight bench. If a decal is missing, or if it is not legible, please call our Customer Service Department at 1-888-936-4266 to order a free replacement decal.
Apply the replacement decal in the location shown.
WEIDER is a registered trademark of ICON Health & Fitness, Inc.
2
Page 3
Important Precautions
WARNING: To reduce the risk of serious injury, read the following important precautions before
using the weight bench.
1. Read all instructions in this manual before
using the weight bench.
2. Use the weight bench only as described in
this manual.
3. It is the responsibility of the owner to ensure
that all users of the weight bench are adequately informed of all precautions.
4. Use the weight bench only on a level surface.
Cover the floor beneath the weight bench for
protection.
5. Inspect and tighten all parts each time you
use the weight bench. Replace any worn
parts immediately.
6. Keep children under the age of 12 and pets
away from the weight bench at all times.
7. Always use an equal amount of weight on
each side of your barbell (not included).
8. Do not use a barbell that is longer than five
feet with the weight bench.
9. When you are using the leg lever, place a
barbell with the same amount of weight on
the weight rests to balance the bench.
10. Always wear athletic shoes for foot protec-
tion while exercising.
11. Keep hands and feet away from moving parts.
12. The weight bench is designed to support a
maximum of 164 kg (360 pounds), including
the user, a weight bar, and weights. Do not
place more than 50 kg (110 pounds), including a barbell and weights, on the weight
rests; do not place more than 23 kg (50
pounds) on the leg lever for normal use; the
leg lever can support 45 kg (100 pounds)
when stationary (see 16).
13. When using the backrest in an inclined position, make sure that the support tube is fully
seated in the adjustment brackets on the
uprights.
14. When using the dip handles, always place
100 pounds on the leg lever to balance the
weight bench.
15. When you are changing weights, always
secure the barbell with the barbell hooks to
prevent it from falling off the bench.
16. If you feel pain or dizziness at any time while
exercising, stop immediately and begin cooling down.
17. The weight bench is intended for home use
only. Do not use the weight bench in any
commercial, rental or institutional setting.
WARNING: Before beginning this or any exercise program, consult your physician. This is especially
important for persons over the age of 35 or persons with pre-existing health problems. Read all
instructions before using. ICON assumes no responsibility for personal injury or property damage
sustained by or through the use of this product.
3
Page 4
Before You Begin
Thank you for selecting the versatile WEIDER®146
®
weight bench. The WEIDER
146 is designed to be
used with your own weight set (not included) to develop every major muscle group of the body. Whether
your goal is a shapely figure, dramatic muscle size
and strength, or a healthier cardiovascular system, the
®
WEIDER
146 will help you achieve the specific results
you want.
For your benefit, read this manual carefully before
®
using the WEIDER
146 weight bench. If you have
additional questions, please call our Customer Service
Weight Rests
Dip Handle
Support Tube
Department at
1-888-936-4266, Monday through
Friday, 8 a.m. until 6:30 p.m. EST (excluding holidays).
To help us assist you, please note the product model
number and serial number before calling. The model
number is WECCBE04500. The serial number can be
found on a decal attached to the weight bench (see
the front cover of this manual).
Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.
Barbell Hook
Large Threaded Knob
Backrest
Uprights
Seat
Curl Pad
Leg Lever
Weight Tube
4
Page 5
Part Identification Chart
M10 x 130mm Bolt (9)
—1
M10 x 70mm Bolt (26)—5
M8 x 40mm Screw (25)—8
M8 x 16mm Screw (23)—3
M10 Washer (22)—4
M8 Nylon Locknut (33)—7
M8 Washer (20)—18
M10 Nylon Locknut (21)—6
M8 x 60mm Bolt (37)—2
M8 x 55mm Bolt (27)—2
M8 x 51mm Bolt (39)—1
11mm x 10.5mm Spacer (38)–2
M6 x 16mm Screw (42)—2
R0402A
5
Page 6
Assembly
Before beginning assembly, carefully read the
following information and instructions:
Make Things Easier for Yourself!
Everything in this manual is designed to ensure
that the weight bench can be assembled successfully by anyone. However, it is important to
recognize that the weight bench has many
small parts and that the assembly process will
take time. Most people find that by setting
aside plenty of time, and by deciding to make
the task enjoyable, assembly will go smoothly.
Assembly requires two people.
•
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
• For help identifying the small parts, use the PART
IDENTIFICATION CHART on page 5.
• As you assemble the weight bench, make sure all
parts are oriented as shown in the drawings.
The following tools (not included) are required
for assembly:
• Two (2) adjustable wrenches
• One (1) rubber mallet
• One (1) standard screwdriver
• One (1) phillips screwdriver
• Lubricant, such as grease or petroleum jelly
plus soapy water.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
1. Before assembling this product, make sure you
have read and understand the information in the
box above.
Attach the Crossbar (3) to the Right Upright (1) with
two M10 x 70mm Bolts (26), a Support Plate (40),
and two M10 Nylon Locknuts (21).
the Left Upright is turned as shown. Do not tighten
the Nylon Locknuts yet.
Attach the Crossbar (3) to the Left Upright (16) in the
same manner.
2. Attach the Front Leg (8) to the Frame (2) with three
M8 x 16mm Screws (23) and three M8 Washers (20).
Do not tighten the Screws yet.
Make sure that
1
16
26
21
40
40
3
1
2
23
20
23
A
23
2
20
26
8
6
Page 7
3. Attach the Frame (2) to the Crossbar (3) with two M8
x 55mm Bolts (27) and two M8 Nylon Locknuts (33).
3
3
33
27
2
4. Attach a Dip Handle (24) to one of the Weight Rests
(19) with an M8 x 60mm Bolt (37), an 11mm x
10.5mm Spacer (38), two M8 Washers (20), and an
M8 Nylon Locknut (33). Slide a Handgrip (12) onto
the Dip Handle. Press a 25.4mm Round Inner Cap
(17) into the end of the Dip Handle.
Attach the other Dip Handle (24) to the other Weight
Rest (19) in the same manner.
Attach the Right Barbell Hook (28) to one of the
Weight Rests (19) with an M8 Washer (20) and an
M8 Nylon Locknut (33).
oriented as shown.
to the other Weight Rest (19) in the same manner. Do
not tighten the Nylon Locknuts; the Barbell Hooks
must be easy to turn.
5. Press a 50mm Square Bushing (18) onto each
Upright (1, 16) and tap them into place with a rubber
mallet.
Slide a Weight Rest (19) into the Right Upright (1).
Align one of the adjustment holes in the Weight Rest
with the adjustment hole in the Upright. Tighten the
Large Threaded Knob (32) into the adjustment hole in
the Upright.
Attach the other Weight Rest (19) to the Left Upright
(16) in the same manner.
The Barbell Hook must be
Attach the Left Barbell Hook (30)
27
4
20
33
33
20
17
19
5
18
32
1
24
28
38
20
19
32
12
30
19
37
19
18
16
6. Tap a 38mm Square Inner Cap (15) into each end of
the Leg Lever (4).
Tap a 25.4mm Round Inner Cap (17) into each end of
the weight tube (B).
5
4
15
17
17
B
15
7
Page 8
7. Lubricate the M10 x 70mm Bolt (26). Attach the Leg
Lever (4) to the bracket (C) on the Front Leg (8) with
the Bolt, two M10 Washers (22) and an M10 Nylon
Locknut (21).
the Leg Lever must be easy to turn.
Attach the Leg Lever Lock (36) to the Front Leg (8)
with an M8 x 51mm Bolt (39), an M8 Washer (20),
and an M8 Nylon Locknut (33).
Nylon Locknut; the Leg Lever Lock must be easy
to turn.
Do not tighten the Nylon Locknut;
Do not tighten the
7
21
4
33
22
8
C
22
26
Lubricate
20
39
36
8. Press two 19mm Round Inner Caps (14) into each
Short Pad Tube (10). Press two 19mm Round Inner
Caps into the Long Pad Tube (35).
Insert the Short Pad Tubes (10) into the holes in the
Leg Lever (4). Slide two Foam Pads (34) onto each
Pad Tube.
Insert the Long Pad Tube (35) into the holes in the
bracket (C) on the Front Leg (8). Slide a Foam Pad
(34) onto each end of the Long Pad Tube.
9. Press a 25.4mm Square Inner Cap (13) into the indicated end of each Backrest Tube (5).
Attach each Backrest Tube (5) to the Backrest (6)
with two M8 x 40mm Screws (25) and two M8
Washers (20).
in the Backrest Tubes are oriented as shown. Do
not tighten the four Screws yet.
Make sure that the indicated holes
8
34
35
34
14
9
25
20
Holes
14
14
10
14
34
4
25
20
5
C
34
8
13
6
10. Press a 25.4mm Square Inner Cap (13) into each end
of the Support Tube (7). Set the Support Tube into
the middle set of adjustment brackets (D) on the
Uprights (1, 16).
Lubricate the M10 x 130mm Bolt (9). Attach the
Backrest Tubes (5) to the Frame (2) with the Bolt, two
M10 Washers (22), and an M10 Nylon Locknut (21).
Do not overtighten the Nylon Locknut.
Rest the Backrest (6) on the Support Tube (7).
Tighten the Nylon Locknuts (21 and 33) and the
Screws (23) used in steps 1 to 3. Tighten the four
Screws (25) used in step 9.
8
10
Lubricate
2
13
1
22
9
5
22
21
7
D
6
13
16
Page 9
11. Press a 25.4mm Square Inner Cap (13) into each end
of the seat support brackets on the Frame (2).
Attach the Seat (11) to the seat support brackets on
the Frame (2) with four M8 x 40mm Screws (25) and
four M8 Washers (20).
11
11
13
20
2
20
13
25
12. Attach the Curl Pad (41) to the Curl Upright (29) with
two M6 x 16mm Screws (42).
Slide the Curl Upright (29) into the Front Leg (8).
Align one of the adjustment holes in the Curl Upright
with the adjustment hole in the Front Leg. Tighten the
Small Threaded Knob (31) into the adjustment hole in
the Front Leg.
Make sure all parts are properly tightened before
13.
using the weight bench. The use of all remaining
parts will be explained in ADJUSTING THE
WEIGHT BENCH beginning below.
12
42
41
29
8
31
Adjusting the Weight Bench
This section explains how to adjust the weight bench. See the EXERCISE GUIDELINES on page 11 for important information on how to get the most benefit from your exercise program. Also, refer to the accompanying
exercise poster to see the correct form for each exercise.
Inspect and tighten all parts each time you use the weight bench. Replace any worn parts immediately. The
weight bench can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.
ADJUSTING THE BACKREST
The Backrest (6) can be used in a level position, two
inclined positions, or a declined position.
To use the Backrest in a
Backrest. Insert the Support Tube (7) into the lowest set
of adjustment brackets (D) on the Uprights (1, 16). Lay
the Backrest Tubes (5) on the Support Tube.
To use the Backrest (6) in an
the Backrest. Insert the Support Tube (7) into one of the
two upper sets of adjustment brackets (D) on the Uprights
(1, 16). Lay the Backrest Tubes (5) on the Support Tube.
To use the Backrest (6) in a
Backrest and remove the Support Tube. Lay the Backrest
Tubes on the Crossbar (3).
level position, first lift the
inclined position, first lift
declined position, lift the
D
5
1
6
3
7
16
9
Page 10
ADJUSTING THE WEIGHT RESTS/DIP HANDLES
To adjust the Weight Rests (19), remove the Large
Threaded Knobs (32) from the Uprights (1, 16). Move the
Weight Rests to the desired height and replace the Large
Threaded Knobs.
19
WARNING: The weight rests must be set at the
same height.
WARNING: When using the dip handles, always
place 45 kg (100 pounds) on the leg lever to balance the weight bench.
ATTACHING WEIGHTS TO THE LEG LEVER
To use the Leg Lever (4), slide the desired weights (not
included) onto the weight tube (E).
WARNING: Do not place more than 23 kg (50
pounds) on the leg lever for normal use.
WARNING: When using the dip handles, always
place 45 kg (100 pounds) on the leg lever to balance the weight bench.
WARNING: Do not place more than 100 pounds on
the leg lever.
LOCKING THE LEG LEVER
32
1
4
E
19
16
Some exercises, such as sit-ups, can be performed more
comfortably with the Leg Lever (4) locked. To lock the Leg
Lever, turn the Leg Lever Lock (36) until it engages the
Short Pad Tube (10).
ATTACHING THE CURL POST
For some exercises, the Curl Post (29) must be attached
to the weight bench. Insert the Curl Post into the indicated
hole in the Front Leg (8). Align the holes in the Front Leg
and the Curl Post. Secure the Curl Post with the Small
Threaded Knob (31).
the Threaded Knob.
When the Curl Post (29) is not in use, store it away from
the weight bench so that it does not interfere with your
exercise.
Make sure that you fully tighten
36
4
10
29
31
8
10
Page 11
USING THE BARBELL HOOKS
To change weights while your barbell (not included) is on
the Weight Rests (19), secure the barbell with the Barbell
Hooks (28, 30). To do this, flip the Barbell Hooks over the
barbell. This will reduce the possibility of the barbell tipping while you are changing weights.
Exercise Guidelines
19
19
28
30
THE FOUR BASIC TYPES OF WORKOUTS
Muscle Building
The only way to increase the size and strength of
your muscles is to push them close to their maximum
capacity. When you progressively increase the intensity of your exercise, your muscles will continually
adapt and grow. You can tailor the individual exercise
to the proper intensity level in two ways:
• by changing the amount of weight used
• by changing the number of repetitions or sets per-
formed (A “repetition” is one complete cycle of an
exercise, such as one sit-up. A “set” is a series of
repetitions).
The proper amount of weight for each exercise obviously depends upon the individual user. You must
gauge your limits and select the amount of weight that
is right for you. Begin with 3 sets of 8 repetitions for
each exercise you perform. Rest for 3 minutes after
each set. When you can complete 3 sets of 12 repetitions without difficulty, increase the amount of weight.
Toning
You can tone your muscles by pushing them to a
moderate percentage of their capacity. Select a moderate amount of weight and increase the number of
repetitions in each set. Complete as many sets of 15
to 20 repetitions as possible without discomfort. Rest
for 1 minute after each set. Work your muscles by
completing more sets rather than by using high
amounts of weight.
Weight Loss
To lose weight, use a low amount of weight and
increase the number of repetitions in each set.
Exercise for 20 to 30 minutes, resting for a maximum
of 30 seconds between sets.
Cross Training
Many people desire a complete and well-balanced fitness program, and cross training is a very efficient
way to accomplish this. One example of a balanced
program is:
• Plan weight training workouts on Monday,
Wednesday and Friday.
• Plan 20 to 30 minutes of aerobic exercise, such as
cycling, running or swimming on Tuesday and
Thursday.
• Rest from both weight training and aerobic exercise
for at least one full day each week to give your body
time to regenerate.
The combination of weight training and aerobic exercise will reshape and strengthen your body plus
develop your heart and lungs.
PERSONALIZING YOUR EXERCISE PROGRAM
Specifying the exact length of time for each workout,
as well as the number of repetitions or sets for each
exercise, is a highly individual matter. It is very important to avoid overdoing it during the first few months
of your exercise program. You should progress at
your own pace and be sensitive to your body’s signals. If you experience pain or dizziness at any time
while exercising, stop immediately and begin cooling
down. Find out what is wrong before continuing.
Remember that adequate rest and a proper diet are
important factors in any exercise program.
WARMING UP
Begin each workout with 5 to 10 minutes of stretching
and light exercise to warm up. Warming up prepares
your body for more strenuous exercise by increasing
circulation, raising your body temperature and delivering more oxygen to your muscles.
11
Page 12
WORKING OUT
N
O
P
Q
R
S
T
U
W
V
M
L
J
G
F
H
I
K
E
C
D
B
A
Each workout should include 6 to 10 different exercises. Select exercises for every major muscle group
with emphasis on the areas that you want to develop
the most. To give balance and variety to your workouts, vary the exercises from session to session.
Schedule your workouts for the time of day when your
energy level is the highest. Each workout should be
followed by at least one day of rest. Once you find the
schedule that is right for you, stick with it. Remember,
the key to achieving the greatest results is to make
exercise a regular and enjoyable part of your daily life.
EXERCISE FORM
You will gain the greatest benefits from exercising by
maintaining proper form. This requires moving
through the full range of motion for each exercise and
moving only the appropriate parts of the body.
Exercising in an uncontrolled manner will leave you
feeling exhausted. On the exercise poster accompanying this manual, you will find photographs showing
the correct form for several exercises. A description of
each exercise is also provided, along with a list of the
muscles affected. Refer to the muscle chart below to
find the locations of the muscles.
The repetitions in each set should be performed
smoothly and without pausing. The exertion stage of
each repetition should last about half as long as the
return stage. Proper breathing is important. Exhale
during the exertion stage of each repetition and inhale
during the return stroke. Never hold your breath!
You should rest for a short period of time after each
set. The ideal resting periods are:
• Rest three minutes after each set for a muscle building workout
• Rest one minute after each set for a toning workout
• Rest 30 seconds after each set for a weight loss
workout
Plan to spend the first couple of weeks familiarizing
yourself with the equipment and learning the proper
form for each exercise.
COOLING DOWN
End each workout with 5 to 10 minutes of stretching.
Include stretches for both your arms and legs. Move
slowly as you stretch and do not bounce. Ease into
each stretch gradually and go only as far as you can
without strain. Stretching at the end of each workout
is very effective for increasing flexibility.
MUSCLE CHART
A. Sternomastoid (neck)
B. Pectoralis Major (chest)
C. Biceps (front of arm)
D. Obliques (waist)
E. Brachioradials (forearm)
F. Hip Flexors (upper thigh)
G. Abductor (outer thigh)
H. Quadriceps (front of thigh)
I. Sartorius (front of thigh)
J. Tibialis Anterior (front of calf)
K. Soleus (front of calf)
L. Rectus Abdominus (stomach)
M. Adductor (inner thigh)
N. Trapezius (upper back)
O. Rhomboideus (upper back)
P. Deltoid (shoulder)
Q. Triceps (back of arm)
R. Latissimus Dorsi (mid back)
S. Spinae Erectors (lower back)
T. Gluteus Medius (hip)
U. Gluteus Maximus (buttocks)
V. Hamstring (back of leg)
W. Gastrocnemius (back of calf)
12
Page 13
Part List - Model No. WECCBE04500
Key No. Qty. Description Key No. Qty. Description
R0803A
1 1 Right Upright
2 1 Frame
3 1 Crossbar
4 1 Leg Lever
5 2 Backrest Tube
6 1 Backrest
7 1 Support Tube
8 1 Front Leg
9 1 M10 x 130mm Bolt
10 2 Short Pad Tube
11 1 Seat
12 2 Handgrip
13 8 25.4mm Square Inner Cap
14 6 19mm Round Inner Cap
15 2 38mm Square Inner Cap
16 1 Left Upright
17 4 25.4mm Round Inner Cap
18 2 50mm Square Bushing
19 2 Weight Rest
20 18 M8 Washer
21 6 M10 Nylon Locknut
22 4 M10 Washer
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of the user’s manual for information about ordering replacement parts.
23 3 M8 x 16mm Screw
24 2 Dip Handle
25 8 M8 x 40mm Screw
26 5 M10 x 70mm Bolt
27 2 M8 x 55mm Bolt
28 1 Right Barbell Hook
29 1 Curl Upright
30 1 Left Barbell Hook
31 1 Small Threaded Knob
32 2 Large Threaded Knob
33 7 M8 Nylon Locknut
34 6 Foam Pad
35 1 Long Pad Tube
36 1 Leg Lever Lock
37 2 M8 x 60mm Bolt
38 2 11mm x 10.5mm Spacer
39 1 M8 x 51mm Bolt
40 2 Support Plate
41 1 Curl Pad
42 2 M6 x 16mm Screw
# 1 User’s Manual
# 1 Exercise Poster
13
Page 14
6
5
11
2
4
10
10
34
34
34
34
8
3
16
7
19
28
24
12
31
32
35
34
14
14
14
14
21
22
22
26
15
15
14
17
14
34
26
40
21
33
12
19
33
17
18
30
33
13
13
18
32
38
33
20
17
20
20
33
37
25
20
20
25
1
20
20
20
23
23
23
20
20
25
27
27
22
21
22
9
5
13
13
13
17
33
20
36
39
29
41
42
42
Exploded Drawing—Model No. WECCBE04500
R0803A
14
Page 15
Ordering Replacement Parts
To order replacement parts, call our Customer Service Department toll-free at 1-888-936-4266, Monday through
Friday, 8 a.m. until 6:30 p.m. EST (excluding holidays). When ordering parts, please be prepared to give the following information:
• The MODEL NUMBER of the product (WECCBE04500)
®
• The NAME of the product (WEIDER
• The SERIAL NUMBER of the product (see the front cover of this manual)
• The KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST on page 13 and the EXPLODED
DRAWING on page 14).
146 weight bench)
ICON of Canada Inc.
900 de l’Industrie
St-Jérôme, Québec
Canada, J7Y 4B8
PLACE
STAMP
HERE
15
Page 16
Limited Warranty
®
of/du Canada Inc.
™
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of one (1) year from the date of purchase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or
repairing, at ICON's option, the product at one of its authorized service centers. All products for which warranty claim is made must be received by ICON at one of its authorized service centers with all freight and other
transportation charges prepaid, accompanied by sufficient proof of purchase. All returns must be pre-authorized by ICON. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON
authorized service center, products used for commercial or rental purposes, or products used as store display
models. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection
with the use or performance of the product or damages with respect to any economic loss, loss of property,
loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein.
Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation
may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from province to
province.
ICON OF CANADA, 900 de l’Industrie, St. jerôme, QC J7Y 488
PRODUCT WARRANTY REGISTRATION
IMPORTANT: MAIL WITHIN 14 DAYS OF PURCHASE
NAME:
ADDRESS:
COUNTY:
MODEL NO.:
SERIAL NO.: PURCHASE DATE:
RETAILER NAME:
1) Primary user(s) of product:
o Male o Female o Family
2) Age of primary user:
o 0–24 o 35–44 o 55–64
o 25–34 o 45–54 o 65 and over
3) Annual household income:
o 0–9,999 o 15,000–19,999
o 10,000–14,999 o 20,000+
4) How many times a week do you exercise?
o Less than 3 times o 3 times or more
5) Have you ever purchased an ICON product before?
o Ye s o No
6) Where did you first see or hear about ICON products?
o Magazine o Friend/relative
o Newspaper Ad o Store
o Other
7) What was the primary reason for purchasing this ICON product?
o Store Employee o Television Ads o Colour
o Electronic Features o Magazine Ads o Price
o Product Design o Product Innovation
o Other Features
PHONE:
POSTCODE:
RETAILER ADDRESS:
8) Did you consider purchasing fitness equipment from another
manufacturer?
o No o Yes
What other Manufacturer?
9) Based on your impression of what you have purchased,
would you buy another ICON product?
o Ye s o No o No Opinion
If not, what other brand name equipment would you purchase?
10) What other type of exercise equipment do you own?
o Bicycle o Exercise Cycle o Treadmill
o Home Gym o Weight Bench o Stepper
o Cardio Glide o Other
11) Which type of magazines do you read regularly?
o Sports o Fitness o Motoring
o Business o Computer o General
12) Do you wish to be sent further bulletins about ICON products?
o Ye s o No
THANK YOU FOR YOUR TIME
© 2000 ICON of Canada, Inc. Printed in Canada
Part No. 166649 R0803A Printed in China © 2003 ICON Health & Fitness, Inc.
Loading...
