CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
Model No. WEBE37330
Serial No.
Write the serial number in the
space above for future reference.
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you
have questions, or if there are
missing or damaged parts, we
will guarantee complete satisfaction through direct assistance from our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLLFREE CUSTOMER HOT LINE.
The trained technicians on our
customer hot line will provide
immediate assistance, free of
charge.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
USER’S MANUAL
Serial Number Decal (Under Seat)
Visit our website at
www.weiderfitness.com
new products, prizes,
fitness tips, and much more!
2
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
CABLE DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
Note: APART IDENTIFICATION CHART and a PART LIST/EXPLODED DRAWING is attached in the center of
this manual. Remove the PART IDENTIFICATION CHART and PART LIST/EXPLODED DRAWING before beginning assembly.
WEIDER is a registered trademark of ICON Health & Fitness, Inc.
TABLE OF CONTENTS
3
WARNING DECAL PLACEMENT
The decals shown here have been placed on
the weight bench. If a decal is missing or
illegible, please call our Customer Service
Department toll-free at 1-800-999-3756,
Monday through Friday, 6 a.m. until 6 p.m.
Mountain Time, to order a free replacement
decal. Apply the decal in the location shown.
Decal 1
Decal 3
Decal 3
Decal 2
Decal 2
Decal 2
Decal 2
Decal 1
!
WARNING
• Misuse of this
product may result in
serious injury.
• Read user’s manual
and follow all warnings
and operating instructions prior to use.
• Do not allow children
on or around machine.
• Replace label if
damaged, illegible,
or removed.
Keep hands and
fingers clear of
this area.
1. Read all instructions in this manual before
using the weight bench. Use the weight
bench only as described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the weight bench are adequately informed of all precautions.
3. The weight bench is intended for home use
only. Do not use the weight bench in any
commercial, rental, or institutional setting.
4. Use the weight bench only on a level surface.
Cover the floor beneath the weight bench to
protect the floor.
5. Make sure all parts are properly tightened
each time the weight bench is used. Replace
any worn parts immediately.
6. Keep children under 12 and pets away from
the weight bench at all times.
7. Keep hands and feet away from moving parts.
8. Always wear athletic shoes for foot protection while exercising.
9. Make sure that the cables remain on the pulleys at all times. If the cables bind as you are
exercising, stop immediately and make sure
that the cables are on the pulleys.
10. Always set both weight rests and both safety
spotters at the same height.
11. The weight bench is designed to support a
maximum user weight of 300 pounds and a
maximum total weight of 610 pounds. Do not
place more than 310 pounds, including the
barbell, on the weight rests. Do not place
more than 150 pounds on the weight carriage. Note: The weight bench does not
include a barbell or weights.
12. Always place an equal amount of weight on
each side of the weight carriage or barbell.
13. Always secure the weights with the weight
clips when they are mounted on the weight
carriage.
14.
Always exercise with a partner. Your partner
should be ready to catch the barbell if you
cannot complete a repetition.
15. Always disconnect the lat bar from the
weight rack when performing an exercise
that does not require the lat bar.
16. Always move the bench out of the way when
performing squat exercises.
17. If you feel pain or dizziness while exercising,
stop immediately and begin cooling down.
WARNING:
Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
WARNING: To reduce the risk of serious injury, read the following important precautions
before using the weight bench.
IMPORTANT PRECAUTIONS
4
ASSEMBLED
DIMENSIONS:
Height: 83 in.
Width: 66 in.
Depth: 90 in.
5
Weight Carriage
Wheel
Safety Spotter
Ab Sling
Weight Rest
Curl Pad
Right Side
Left Side
Note: The terms “right side” and “left side” are determined relative to a person sitting on the
bench; they do not correspond to right and left on the drawings in this manual.
Backrest
Dip Arm
Low Pulley Station
High Pulley Station
Leg Lever
Seat
Backrest
Pull-up Bar
Butterfly Arm
Lat Bar
BEFORE YOU BEGIN
Thank you for selecting the versatile WEIDER®CLUB
C670 weight bench. The weight bench offers a selection of weight stations designed to develop every major
muscle group of the body. Whether your goal is to tone
your body, build dramatic muscle size and strength, or
improve your cardiovascular system, the weight bench
will help you to achieve the specific results you want.
For your benefit, read this manual carefully before
using the weight bench. If you have questions after
reading this manual, please call our Customer Service
Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time
(excluding holidays). To help us assist you, please note
the product model number and serial number before
calling. The model number is WEBE37330. The serial
number can be found on a decal attached to the weight
bench (see the front cover of this manual).
Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.
6
Before beginning assembly, carefully read the
following information and instructions:
• Assembly requires two people.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
• As you assemble the weight bench, make sure all
parts are oriented as shown in the drawings.

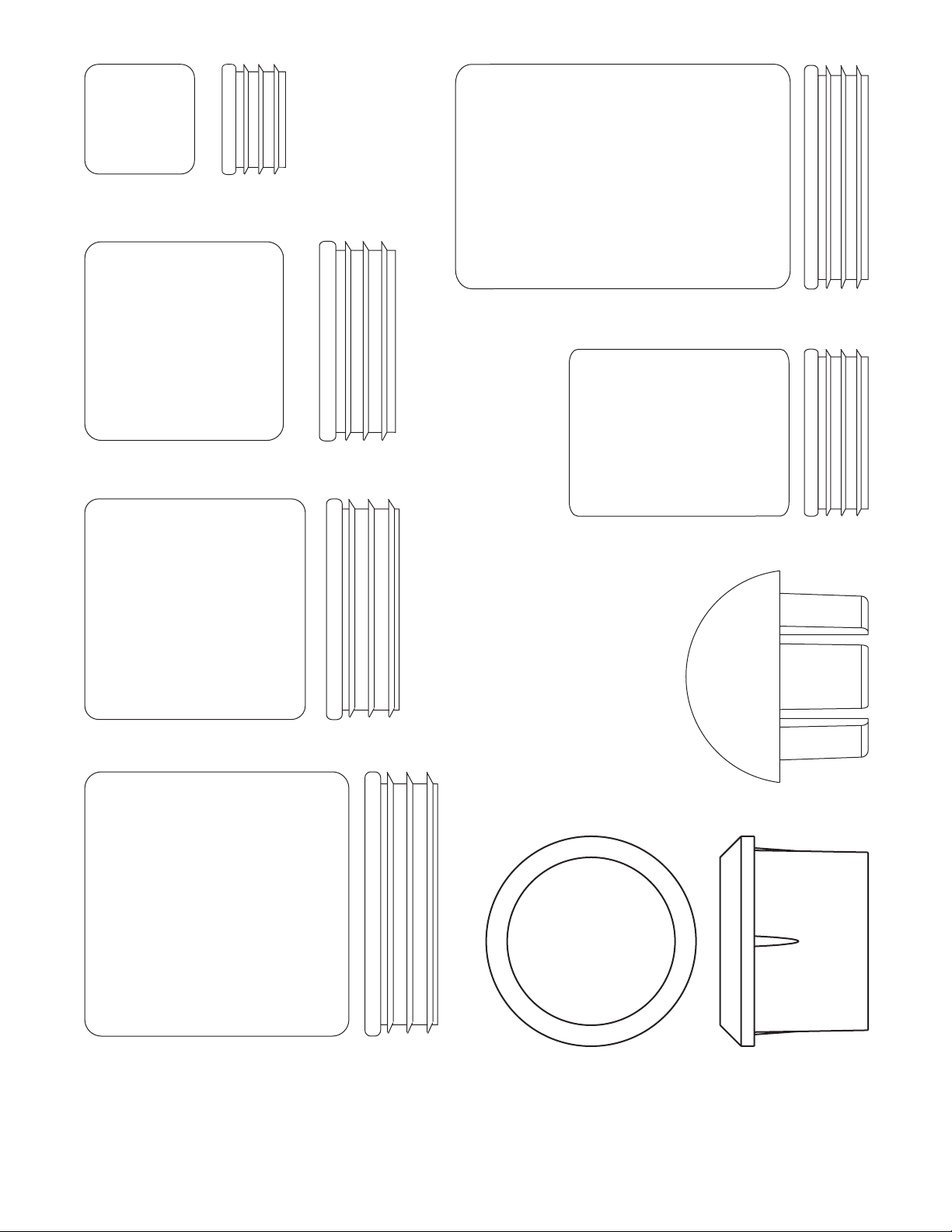

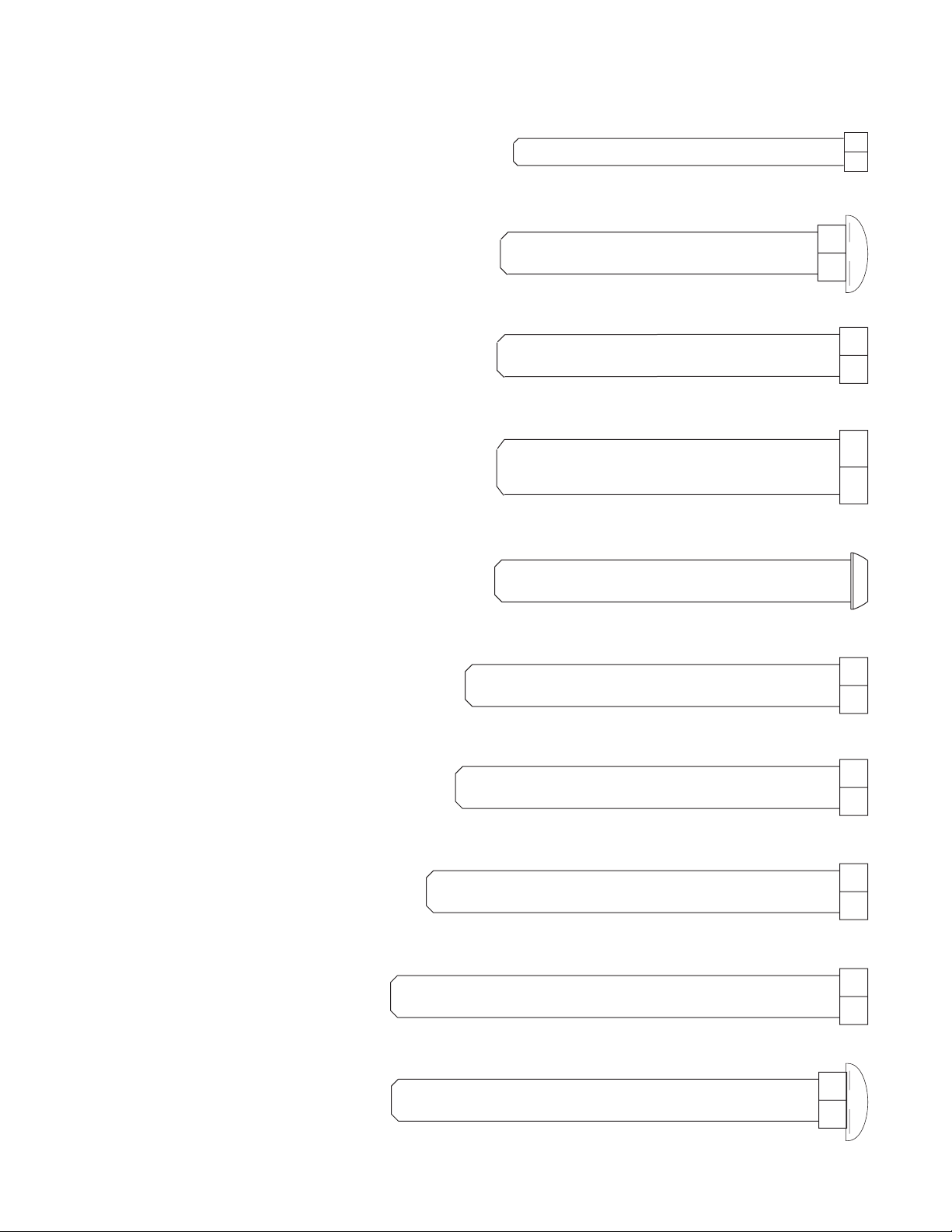

• For help identifying small parts, use the
PART
IDENTIFICA
TION CHART.
The included Allen wrench and the following
tools (not included) are required for assembly:
•Two adjustable wrenches
• One rubber mallet
• One standard screwdriver
• One Phillips screwdriver
• Lubricant, such as grease or petroleum jelly,
and soapy water.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
Make Things Easier for Yourself
Everything in this manual is designed to ensure
that the weight bench can be assembled successfully by anyone. However, it is important to
realize that the versatile weight bench has many
parts and that the assembly process will take
time. Most people find that by setting aside plenty of time, assembly will go smoothly.
ASSEMBLY
1.
Attach a Small Base Cap (20) to the Stabilizer (2)
with two M4 x 16mm Screws (36). Attach anoth-
er Small Base Cap in the same manner.
Pull the Small Adjustment Knob (23) out and slide
the Seat Bracket Sleeve (93) between the tubes
in the Bench Frame (1) as shown. Engage the
Knob into the Sleeve and Bench Frame. Attach
the Sleeve to the Bench Frame with four M4 x
16mm Screws (36).
Attach the Bench Frame (1) to the Stabilizer (2)
with two M10 x 65mm Bolts (100), two M10
Washers (35), and two M10 Nylon Locknuts (34).
Do not tighten the Locknuts yet.
1
2
1
93
36
20
35
35
36
36
34
100
Before beginning assembly, make sure you
understand the information in the box
above. For help identifying small parts, use
the PART IDENTIFICATION CHART.
20
7
2. Attach a Small Base Cap (20) to the Bench Base
(3) with two M4 x 16mm Screws (36). Attach the
other Small Base Cap in the same manner.
Press the 51mm x 76mm Inner Cap (14) into the
indicated end of the Bench Leg (4).
Attach the Bench Leg (4) to the Bench Base (3)
with four M10 x 71mm Bolts (31), two Bench
Base Joint Plates (25), and four M10 Nylon
Locknuts (34). Do not tighten the Locknuts yet.
4. Press two 38mm x 50mm Inner Caps (15) into
the Backrest Frame (6).
Attach the Backrest Bracket (16) to the Backrest
Frame (6) with two M10 x 56mm Bolts (30), two
M10 Washers (35), and two M10 Nylon Locknuts
(34).
5. Press a 38mm x 50mm Inner Cap (15) into the
Seat Frame (7).
Attach the Seat Bracket (17) to the Seat Frame
(7) with two M10 x 56mm Bolts (30), two M10
Washers (35), and two M10 Nylon Locknuts (34).
Do not tighten the Locknuts yet.
3. Attach the Bench Leg (4) to the Bench Frame (1)
with four M10 x 94mm Bolts (98), two Bench Joint
Plates (24), and four M10 Nylon Locknuts (34).
Tighten the M10 Nylon Locknuts (34) used in
steps 1–3.
2
14
3
4
5
1
4
24
34
24
98
15
6
16
34
30
35
35
15
15
7
34
17
34
30
35
35
34
25
25
20
31
31
20
36
3
4
8
6. Pull out the Small Adjustment Knob (23) that is
nearer the Stabilizer (2). Insert the Backrest
Bracket (16) between the tubes on the Bench
Frame (1) and engage the Small Adjustment
Knob into one of the holes in the Bracket.
Pull out the Small Adjustment Knob (23) by the
Seat Bracket Sleeve
(93). Insert the Seat Bracket
(17) into the
Seat Bracket Sleeve and engage the
Small Adjustment Knob into one of the holes in
the Bracket.
Lubricate the M10 x 102mm Bolt (99) with
grease. Attach the Seat Frame (7) and the
Backrest Frame (6) to the Bench Frame (1) with
the Bolt, two M10 Washers (35), and an M10
Nylon Locknut (34). Do not overtighten the
Locknut; the Seat Frame and Backrest Frame
must be able to pivot easily.
Tighten the M10 Nylon Locknuts (34) used in
step 5.
7. Press three 50mm Square Inner Caps (13) and a
48mm Round Inner Cap (19) into the Leg Lever
(5).
Lubricate the M10 x 85mm Bolt (103) with
grease. Attach the Leg Lever (5) to the Leg Lever
Bracket (18) with the Bolt and an M10 Nylon
Locknut (34).
Loosen the Adjustment Knob (22) by turning it
counterclockwise several turns. Pull the Knob out
and slide the Leg Lever Bracket (18) into the Seat
Frame (7). Tighten the Adjustment Knob into the
Leg Lever Bracket.
8. Attach the Backrest (11) to the Backrest Frame
(6) with four M6 x 16mm Screws (29)
9. Attach the Seat (10) to the Seat Frame (7) with
four M6 x 16mm Screws (29)
6
23
6
34
99
16
35
2
35
Lubricate
1
23
7
7
5
13
13
19
13
18
34
103
22
7
8
9
11
10
29
6
29
Lubricate
29
17
93
9
10. Press two 25mm Square Inner Caps (28) into a
Pad Tube (27). Slide the Pad Tube into a hole in
the Leg Lever (5). Slide two Foam Pads (26) onto
the Pad Tube.
Assemble the other Pad Tube (27) in the same
manner.
12. Attach a Large Base Cap (70) to the Left Base
(40) with two M4 x 16mm Screws (36). Attach
another Large Base Cap to the other end of
the Left Base in the same manner.
Attach the Left Base (40) to the Center Base (39)
with two M10 x 78mm Bolts (32) and two M10
Nylon Locknuts (34). Do not tighten the
Locknuts yet.
Repeat this step with the Right Base (not
shown).
Insert two M10 x 75m Carriage Bolts (90) up
through the Center Base (39).
11.Press a 45mm Square Inner Cap (12) into the
bottom of the Curl Post (8).
Attach the Curl Pad (9) to the Curl Post (8) with
two M6 x 16mm Screws (29).
10
5
27
27
26
28
11
9
8
12
29
12
39
34
40
70
70
36
90
32
26
28
10
13. Attach a Rear Upright (43) to the Left Base (40)
with two M10 x 78mm Bolts (32) and two M10
Nylon Locknuts (34). Note: The Rear Uprights
are shorter than the Front Uprights (not
shown). Make sure the holes are on the side
shown. Do not tighten the Locknuts yet.
Repeat this step with the other Rear Upright
(43) and the Right Base (38).
14. Press a 60mm Square Inner Cap (64) into the top
of the Left Front Upright (44).
Attach the Left Front Upright (44) to the Left Base
(40) with four M10 x 78mm Bolts (32), two Rack
Joint Plates (85), and two M10 Nylon Locknuts
(34). Do not tighten the Locknuts yet.
Make sure the holes on the Left Front Upright
(44) face the holes on the Rear Upright (43),
and that the numbers on the Left Front
Upright face the numbers on the Right Front
Upright (not shown).
Repeat this step with the right Front Upright
(not shown) and the Right Base (38).
13
14
43
43
Holes
40
34
32
38
64
43
44
Numbers
Holes
32
32
85
85
40
38
34
34
11
15. Loosen the two Adjustment Knobs (22) on the
Left Safety Spotter (51) by turning them counterclockwise. Pull both Knobs out at the same time
and slide the Left Safety Spotter (51) onto the
Left Uprights (43, 44) and engage and tighten the
Adjustment Knobs (22) into a set of holes in the
Uprights.
Repeat this step with the Right Safety Spotter
(50) and Right Uprights (not shown).
16. Loosen the Adjustment Knob (22) on the Right
Weight Rest (52) by turning it counterclockwise.
Pull the Knob out and slide the Right Weight Rest
(52) onto the Right Front Upright (110). Engage
and tighten the Adjustment Knob (22) into a hole
in the Upright.
Repeat this step with the Left Weight Rest
(not shown) and the Left Front Upright (not
shown).
17. Press a 60mm Square Inner Cap (64) into the
indicated end of the Right Top Frame (47).
Attach the Right Top Frame (47) to the right Rear
Upright (43) with two M10 x 78mm Bolts (32) and
two M10 Nylon Locknuts (34). Do not tighten the
Locknuts yet.
Repeat this step with the Left Top Frame (not
shown) and the left Rear Upright (not shown).
15
51
22
22
110
44
43
22
50
16
17
52
47
32
43
34
64
12

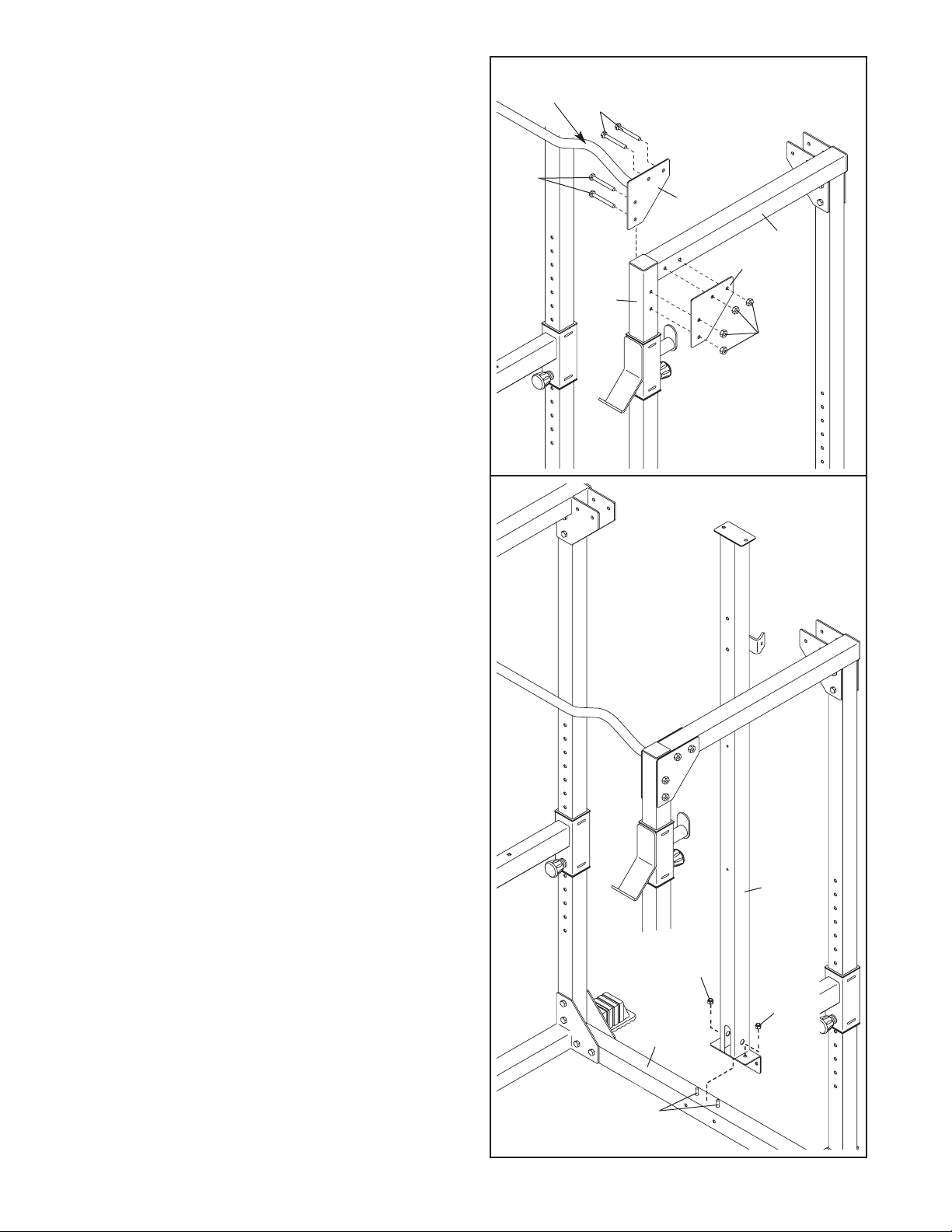

18. Attach the Chin-up Bar (54), with the bends going
up, to the Left Front Upright (44) and the Left Top
Frame (48) with four M10 x 78mm Bolts (32), a
Rack Joint Plate (85), and four M10 Nylon
Locknuts (34). Do not tighten the Locknuts yet.
Attach the Chin-up Bar (54) to the Right Front
Upright (not shown) and the Right Top Frame
(not shown) in the same manner.
19. Attach the Center Upright (45) to the Center Base
(39) with the two M10 x 75mm Carriage Bolts
(90), and two M10 Nylon Locknuts (34). Do not
tighten the Locknuts yet.
18
32
54
Bend
32
34
85
44
48
19
90
45
39
34
34
13

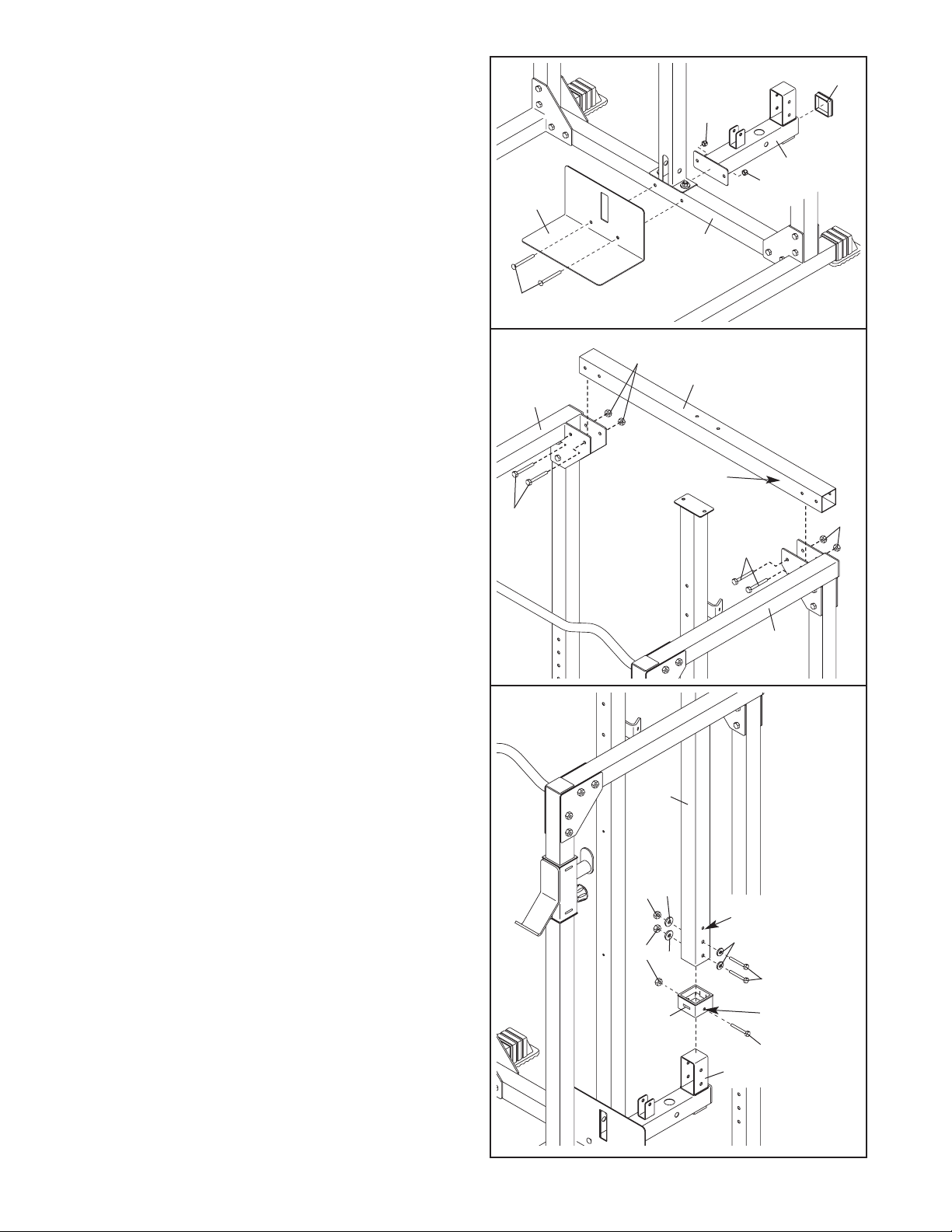

20. Press a 60mm Square Inner Cap (64) into the
Weight Guide Base (41).
Attach the Foot Plate (67) and the Weight Guide
Base (41) to the Center Base (39) with two M10 x
81mm Button Bolts (104) and two M10 Nylon
Locknuts (34). Do not tighten the Locknuts yet.
22. Slide the Weight Carriage Stop (65) onto the
Weight Guide Upright (42) as shown, and attach
it at the indicated hole with an M10 x 87mm Bolt
(106) and an M10 Nylon Locknut (34).
Attach the Weight Guide Upright (42) to the
Weight Guide Base (41) with two M10 x 75mm
Bolts (92), four M10 Washers (35), and two M10
Nylon Locknuts (34). Do not tighten the
Locknuts yet.
21. Attach the Center Top Frame (46) to the Left Top
Frame (48) with two M10 x 78mm Bolts (32) and
two M10 Nylon Locknuts (34). Make sure the
decal is in the indicated location. Do not tighten the Locknuts yet.
Attach the Center Top Frame (46) to the Right
Top Frame (47) with two M10 x 78mm Bolts (32)
and two M10 Nylon Locknuts (34). Do not tight-
en the Locknuts yet.
20
67
104
39
34
34
41
64
21
46
Decal
47
48
34
32
34
32
22
65
35
35
35
92
106
Hole closer
to bottom
41
Hole
42
34
34
14
23. Press two 48mm Weight Carriage Caps (63) into
the Weight Carriage (62).
Insert an M10 x 19mm Bolt (102) into the bracket
on the Weight Carriage (62) from the side shown.
Slide the Weight Carriage (62) onto the Weight
Guide Upright (42) so that the weight tube is
toward the Center Upright (45).
25. Attach the Butterfly Bracket (55) to the Center
Upright (45) with two M10 x 78mm Bolts (32), two
M10 Washers (35), and two M10 Nylon Locknuts
(34).
24. Press two 60mm Square Inner Caps (64) into the
Weight Guide Top Frame (49).
Attach the Weight Guide Top Frame (49) to the
Weight Guide Upright (42) with two M10 x 75mm
Bolts (92), four M10 Washers (35), and two M10
Nylon Locknuts (34). Do not tighten the
Locknuts yet.
Attach the Weight Guide Top Frame (49) to the
Center Top Frame (46) with two M10 x 78mm
Bolts (32) and two M10 Nylon Locknuts (34).
Tighten the M10 Nylon Locknuts (34) used in
steps 12–24.
23
24
63
63
42
45
64
64
49
46
34
34
92
35
35
35
35
34
42
32
102
62
Weight
Tube
25
45
35
35
34
55
32
32
15
26. Press a 50mm Square Inner Cap (13) and a
25mm Square Inner Cap (28) into the Right
Butterfly Arm (56). Wet the bottom of the Butterfly
Arm with soapy water and slide a Butterfly Foam
Pad (66) onto the Arm.
Lubricate a 1/2” x 78mm Bolt (97) and the
Butterfly Bushings (79) with grease. Attach the
Right Butterfly Arm (56) to the Butterfly Bracket
(55) with the Bolt and a 1/2” Nylon Locknut (94).
Cover the Bolt and Locknut with two Butterfly
Caps (80). Do not overtighten the Locknut; the
Butterfly Arm must be able to pivot easily.
Repeat this step with the Left Butterfly Arm
(57).
27. Press two Caps w/Holes (61) and two Handgrips
(59) onto the Dip Arm (60).
Attach the Dip Arm (60) to the Left Safety Spotter
(51) with two M10 x 97mm Carriage Bolts (101)
and two M10 Nylon Locknuts (34). Make sure
the warning decal is in the indicated location.
Note: The Dip Arm (60) can be attached to the
Right Safety Spotter (not shown) in the same
manner.
28. Attach the Butterfly Backrest (112) to the Center
Upright (45) with two M6 Washers (78) and two
M6 x 75mm Screws (96).
26
79
Lubricate
Lubricate
80
97
94
80
55
28
56
57
79
13
66
34
60
Warning Decal
61
59
59
34
51
61
28
112
78
96
78
96
45
27
101
16
29. Locate the Medium Cable (69). Route the Cable
up through the Weight Guide Top Frame (49) and
over a Pulley (87). Attach the Pulley inside the
Top Frame with an M10 x 75mm Bolt (92), two
M10 Washers (35), two 17mm Spacers (89), and
an M10 Nylon Locknut (34).
31. Wrap the Medium Cable (69) under a Pulley (87).
Attach the Pulley and a Cable Trap (88) to the
indicated hole in the Pulley Plates (82) with an
M10 x 45mm Bolt (33) and an M10 Nylon Locknut
(34). Make sure the Cable Trap is oriented to
hold the Cable in the groove of the Pulley.
33. Attach the Medium Cable (69) to the M10 x
19mm Bolt (102) in the Weight Carriage (62) with
an M10 Nylon Locknut (34).
32. Route the Medium Cable (69) up through the
Weight Guide Top Frame (49), over a Pulley (87),
and back down through the Top Frame. Attach
the Pulley inside the Top Frame with an M10 x
75mm Bolt (92), two M10 Washers (35), two
17mm Spacers (89), and an M10 Nylon Locknut
(34).
30. Route the Medium Cable (69) over a Pulley (87)
and down through the Weight Guide Top Frame
(49). Attach the Pulley inside the Top Frame with
an M10 x 75mm Bolt (92), two M10 Washers
(35), two 17mm Spacers (89), and an M10 Nylon
Locknut (34).
29
49
69
69
89
89
89
35
35
34
92
89
49
35
35
92
30
34
87
69
82
33
31
32
33
34
88
69
89
89
49
35
35
34
62
69
102
92
34
87
87
87
17
34. Locate the Butterfly Cable (109). Attach the
Cable to the Left Butterfly Arm (57) with an M8 x
43mm Shoulder Bolt (107), an M10 Small Washer
(95), and an M8 Nylon Locknut (108).
36. Wrap the Butterfly Cable (109) under a Pulley
(87). Attach the Pulley to the Double “U”-bracket
(81) with an M10 x 45mm Bolt (33) and an M10
Nylon Locknut (34).
38. Attach the Butterfly Cable (109) to the Right
Butterfly Arm (56) with an M8 x 43mm Shoulder
Bolt (107), an M10 Small Washer (95), and an M8
Nylon Locknut (108).
35. Wrap the Butterfly Cable (109) over a “V”-pulley
(86). Attach the “V”-pulley and a Large Cable
Trap (111) to the bracket on the Center Upright
(45) with an M10 x 60mm Bolt (105) and an M10
Nylon Locknut (34). Make sure the Cable Trap
is oriented to hold the Cable in the groove of
the Pulley.
37. Wrap the Butterfly Cable (109) over a “V”-pulley
(86). Attach the “V”-pulley and a Large Cable
Trap (111) to the other side of the bracket on the
Center Upright (45) with an M10 x 60mm Bolt
(105) and an M10 Nylon Locknut (34). Make sure
the Cable Trap is oriented to hold the Cable in
the groove of the Pulley.
34
107
108
95
109
57
35
86
105
109
111
34
45
37
38
86
105
109
111
34
45
36
87
109
81
33
107
108
95
109
56
34
18
39. Locate the Long Cable (68). Route the eyelet
end of the Cable through the Foot Plate (67) and
the Center Upright (45), and under a Pulley (87).
Attach the Pulley (87) inside the Center Upright
(45) with an M10 x 75mm Bolt (92), two M10
Washers (35), two 17mm Spacers (89), and an
M10 Nylon Locknut (34). Note: The Foot Plate
(67) is shown pulled away from the Center
Upright for clarity.
43. Attach the Long Cable (68) inside the Weight
Guide Base (41) with an M10 x 75mm Bolt (92),
two M10 Washers (35), two 28mm Spacers (91),
and an M10 Nylon Locknut (34).
42. Wrap the Long Cable (68) over a Pulley (87).
Attach the Pulley and a Cable Trap (88) to the
second set of holes from the bottom of the Pulley
Plates (82) with an M10 x 45mm Bolt (33) and an
M10 Nylon Locknut (34). Make sure the Cable
Trap is oriented to hold the Cable in the
groove of the Pulley.
40. Wrap the Long Cable (68) over a Pulley (87).
Attach the Pulley to the Double “U”-bracket (81)
with an M10 x 45mm Bolt (33) and an M10 Nylon
Locknut (34).
41. Wrap the Long Cable (68) under a Pulley (87).
Attach the Pulley to the Weight Guide Base (41)
with an M10 x 45mm Bolt (33) and an M10 Nylon
Locknut (34).
39
40
67
68
45
34
35
35
89
87
89
92
87
68
34
81
33
41
42
43
68
87
34
33
41
82
33
34
34
35
91
91
88
68
87
68
44. Make sure that all parts are properly tightened
before the weight bench is used. The use of all
remaining parts will be explained in ADJUSTMENTS, beginning on the following page.
41
92
35
This section explains how to adjust the weight bench. See the EXERCISE GUIDELINES on page 24 for important information about how to get the most benefit from your exercise program. Also, refer to the accompanying
exercise guide to see the correct form for each exercise.
Make sure all parts are properly tightened each time the weight bench is used. Replace any worn parts immediately. The weight bench can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.
19
ADJUSTING THE BACKREST AND SEAT
The Backrest (11) can be adjusted to ten different
positions. Pull the Small Adjustment Knob (23 [shown
removed]) out as far as it can go and reposition the
Backrest. Release the Knob and make sure it
engages a hole in the Backrest Bracket (16).
The Seat (10) can be adjusted in the same manner.
11
9
8
22
16
10
23
23
ATTACHING THE CURL PAD OR LEG LEVER
To use the Curl Pad (9), remove the Adjustment Knob
(22) and the Leg Lever Bracket (18) from the Seat
Frame (7). Slide the Curl Post (8) into the Seat Frame
and secure it in place with the Adjustment Knob.
Attach the Leg Lever (5) in the same manner.
18
5
7
ADJUSTMENTS
WARNING: The Seat Frame (7)
must be positioned in the most inclined position before using the Leg Lever (5).
20
5
58
54
76
75
ADDING WEIGHT TO THE LEG LEVER
To add weight (not included) to the Leg Lever (5),
slide the desired amount of weight onto the weight
tube.
Weight
Tube
Weight
USING THE AB SLINGS
To use the Ab Slings (76), use the Large Cable Clips
(75) to attach them to the Chin-up Bar (54).
74
74
69
73
62
71
WARNING:Do not place more than
150 pounds on the Leg Lever (5).
ADDING WEIGHT TO THE WEIGHT CARRIAGE
To add weight (not included) to the Weight Carriage
(62), slide the desired amount of weight onto the
weight tube. Secure the weight with a Weight Clip
(71).
WARNING:
Do not place more than
150 pounds on the Weight Carriage (62).
Weight
ATTACHING THE ACCESSORIES
Attach the Lat Bar (58) to the Medium Cable (69) with
a Small Cable Clip (74). For some exercises, the
Chain (73) should be attached between the Lat Bar
and the Medium Cable with two Small Cable Clips.
Adjust the length of the Chain between the Lat
Bar and the Cable so the Lat Bar is in the correct
starting position for the exercise to be performed.
The Lat Bar (58) or the Ankle Strap (not shown) can
be attached to either cable in the same manner.
WARNING: Always disconnect the
Lat Bar (58) when performing an exercise that
does not require using the Lat Bar.
21
101
101
60
34
51
Decal
ATTACHING THE DIP ARM
To attach the Dip Arm (60), first move a Safety Spotter
(50 or 51) to the highest position possible (see USING
THE WEIGHT RESTS AND SAFETY SPOTTERS
below). Attach the Dip Arm to the outside of the Safety
Spotter with two M10 x 97mm Carriage Bolts (101)
and two M10 Nylon Locknuts (34). Make sure the
warning decal is in the indicated location.
WARNING:Always set 75 pounds
on the Weight Carriage (not shown) before
using the Dip Arm (60).
USING THE WEIGHT RESTS AND SAFETY
SPOTTERS
Before beginning an exercise, move the Weight Rests
(52, 53) and the Safety Spotters (50, 51) to sets of
holes in the Uprights (43, and 44/110) that are best
suited for that exercise. Do this by turning the
Adjustment Knobs (22) counterclockwise until they are
loose. Pull the Knobs out and slide the Weight Rests
or the Safety Spotters to the desired heights. Engage
the Knobs into the adjustment holes in the Uprights
and turn the Knobs clockwise until they are tight.
The selected holes for the Safety Spotters (50, 51)
should represent the lowest point to which you want
the barbell to go during the exercise. The selected
holes for the Weight Rests (52, 53) should be at a
comfortable height for lifting and replacing the barbell.
Perform the exercise as shown on the accompanying
exercise guide. Note: Make sure the Adjustment
Knobs (22) are fully tightened.
52
43
110
Adjustment
Holes
50
22
22
22
50
53
51
SETTING UP FOR SQUAT EXERCISES
Squat exercises should be performed inside the rack
(behind the dotted line in the picture). When performing squat exercises, set the Weight Rests (52, 53)
and the Safety Spotters (50, 51) at a comfortable
height in the manner describe in USING THE
WEIGHT RESTS AND SAFETY SPOTTERS above.
Squat
Area
34
82
33
87
88
TIGHTENING THE CABLES
Woven cable, the type of cable used on the weight
rack, can stretch slightly after it is first used. If there is
slack in the cables, tighten them by removing the M10
x 45mm Bolt (33) and the M10 Nylon Locknut (34)
attaching the lower Pulley (87) and Cable Trap (88) to
the two Pulley Plates (82). Reattach the lower Pulley
and Cable Trap to a higher set of holes in the Pulley
Plates using the Bolt and Nylon Locknut.
22
4
21
MOVING THE BENCH
To move the weight bench, lift the Bench Leg (4) so
that the bench pivots onto the Wheels (21). Roll the
bench to the desired location and set the Bench Leg
down.
CABLE DIAGRAMS
The cable diagrams below show the proper routing of the Long Cable (68), the Medium Cable (69), and the
Butterfly Cable (109). Use the diagram to make sure that the cables and the cable traps have been assembled
correctly. If the cables have not been correctly routed, the weight rack will not function properly and damage
may occur. The numbers show the correct route for each cable. Make sure that the cable traps do not touch
or bind the cables.
1
2
3
4
6
1
2
3
4
5
1
2
Long Cable (68)
Length: 5570mm
Butterfly Cable (109)
Length: 1730mm
Medium Cable (69)
Length: 2930mm
3
4
5
5
23
24
EXERCISE GUIDELINES
THE FOUR BASIC TYPES OF WORKOUTS
Muscle Building
To increase the size and strength of your muscles,
push them close to their maximum capacity. Your muscles will continually adapt and grow as you progressively increase the intensity of your exercise. You can
adjust the intensity level of an individual exercise in
two ways:
• by changing the amount of resistance used
• by changing the number of repetitions or sets per-
formed. (A “repetition” is one complete cycle of an
exercise, such as one sit-up. A“set” is a series of
repetitions.)
The proper amount of resistance for each exercise
depends upon the individual user. You must gauge
your limits and select the amount of resistance that is
right for you. Begin with 3 sets of 8 repetitions for each
exercise you perform. Rest for 3 minutes after each
set. When you can complete 3 sets of 12 repetitions
without difficulty, increase the amount of resistance.
Toning
You can tone your muscles by pushing them to a moderate percentage of their capacity. Select a moderate
amount of resistance and increase the number of repetitions in each set. Complete as many sets of 15 to
20 repetitions as possible without discomfort. Rest for
1 minute after each set. Work your muscles by completing more sets rather than by using high amounts of
resistance.
Weight Loss
To lose weight, use a low amount of resistance and
increase the number of repetitions in each set.
Exercise for 20 to 30 minutes, resting for a maximum
of 30 seconds between sets.
Cross Training
Cross training is an efficient way to get a complete and
well-balanced fitness program. An example of a balanced program is:
• Plan strength training workouts on Monday,
Wednesday, and Friday.
• Plan 20 to 30 minutes of aerobic exercise, such as
running on a treadmill or riding on an elliptical or
exercise bike, on Tuesday and Thursday.
• Rest from both strength training and aerobic exercise
for at least one full day each week to give your body
time to regenerate.
The combination of strength training and aerobic exercise will reshape and strengthen your body, plus develop your heart and lungs.
PERSONALIZING YOUR EXERCISE PROGRAM
Determining the exact length of time for each workout,
as well as the number of repetitions or sets completed,
is an individual matter. It is important to avoid overdoing it during the first few months of your exercise program. You should progress at your own pace and be
sensitive to your body’s signals. If you experience pain
or dizziness at any time while exercising, stop immediately and begin cooling down. Find out what is wrong
before continuing. Remember that adequate rest and a
proper diet are important factors in any exercise program.
WARMING UP
Begin each workout with 5 to 10 minutes of stretching
and light exercise to warm up. Warming up prepares
your body for more strenuous exercise by increasing
circulation, raising your body temperature and delivering more oxygen to your muscles.
WORKING OUT
Each workout should include 6 to 10 different exercises. Select exercises for every major muscle group,
emphasizing areas that you want to develop most. To
give balance and variety to your workouts, vary the
exercises from session to session.
Schedule your workouts for the time of day when your
energy level is the highest. Each workout should be
followed by at least one day of rest. Once you find the
schedule that is right for you, stick with it.
EXERCISE FORM
Maintaining proper form is an essential part of an
effective exercise program. This requires moving
through the full range of motion for each exercise, and
moving only the appropriate parts of the body.
Exercising in an uncontrolled manner will leave you
feeling exhausted. On the exercise guide accompanying this manual you will find photographs showing the
correct form for several exercises, and a list of the
muscles affected. Refer to the muscle chart on the
next page to find the names of the muscles.
The repetitions in each set should be performed
smoothly and without pausing. The exertion stage of
each repetition should last about half as long as the
return stage. Proper breathing is important. Exhale
during the exertion stage of each repetition and inhale
during the return stroke. Never hold your breath.
25
Rest for a short period of time after each set. The
ideal resting periods are:
• Rest for three minutes after each set for a muscle
building workout.
• Rest for one minute after each set for a toning work-
out.
• Rest for 30 seconds after each set for a weight loss
workout.
Plan to spend the first couple of weeks familiarizing
yourself with the equipment and learning the proper
form for each exercise.
COOLING DOWN
End each workout with 5 to 10 minutes of stretching.
Include stretches for both your arms and legs. Move
slowly as you stretch and do not bounce. Ease into
each stretch gradually and go only as far as you can
without strain. Stretching at the end of each workout
is an effective way to increase flexibility.
STAYING MOTIVATED
For motivation, keep a record of each workout. The
chart on pages 26 and 27 of this manual can be photocopied and used to schedule and record your workouts. List the date, the exercises performed, the resistance used, and the numbers of sets and repetitions
completed. Record your weight and key body measurements at the end of every month. Remember, the
key to achieving the greatest results is to make exercise a regular and enjoyable part of your everyday life.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
MUSCLE CHART
O
P
Q
R
S
T
U
V
W
X
A. Sternomastoid (neck)
B. Pectoralis Major (chest)
C. Biceps (front of arm)
D. Obliques (waist)
E. Brachioradials (forearm)
F. Hip Flexors (upper thigh)
G. Abductor (outer thigh)
H. Quadriceps (front of thigh)
I. Sartorius (front of thigh)
J. Tibialis Anterior (front of calf)
K. Soleus (front of calf)
L. Anterior Deltoid (shoulder)
M. Rectus Abdominus (stomach)
N. Adductor (inner thigh)
O. Trapezius (upper back)
P. Rhomboideus (upper back)
Q. Posterior Deltoid (shoulder)
R. Triceps (back of arm)
S. Latissimus Dorsi (mid back)
T. Spinae Erectors (lower back)
U. Gluteus Medius (hip)
V. Gluteus Maximus (buttocks)
W. Hamstring (back of leg)
X. Gastrocnemius (back of calf)
26
MONDAY
Date:
/ /
EXERCISE WEIGHT SETS REPS
EXERCISE WEIGHT SETS REPS
EXERCISE WEIGHT SETS REPS
AEROBIC EXERCISE
AEROBIC EXERCISE
TUESDAY
Date:
/ /
WEDNESDAY
Date:
/ /
THURSDAY
Date:
/ /
FRIDAY
Date:
/ /
Make photocopies of this page for scheduling and recording your workouts.
27
MONDAY
Date:
/ /
EXERCISE WEIGHT SETS REPS
EXERCISE WEIGHT SETS REPS
EXERCISE WEIGHT SETS REPS
AEROBIC EXERCISE
AEROBIC EXERCISE
TUESDAY
Date:
/ /
WEDNESDAY
Date:
/ /
THURSDAY
Date:
/ /
FRIDAY
Date:
/ /
Make photocopies of this page for scheduling and recording your workouts.
PART IDENTIFICATION CHART—Model No. WEBE37330 R0803B
M4 x 16mm Screw (36)
1/2" Nylon Locknut (94)
M6 x 16mm Screw (29)
M10 x 19mm Bolt (102)
M10 Nylon Locknut (34)
M8 x 43mm Shoulder Bolt (107)
M8 Nylon Locknut (108)
M10 Washer (35)
M10 Small Washer (95)
M6 Washer (78)
M10 x 45mm Bolt (33)
M10 x 56mm Bolt (30)
M10 x 60mm Bolt (105)
M10 x 65mm Bolt (100)
17mm Spacer (89)
28mm Spacer (91)
M10 x 75mm Bolt (92)
M10 x 71mm Bolt (31)
M6 x 75mm Screw (96)
M10 x 75mm Carriage Bolt (90)
M10 x 78mm Bolt (32)
1/2" x 78mm Bolt (97)
M10 x 81mm Button Bolt (104)
M10 x 85mm Bolt (103)
M10 x 87mm Bolt (106)
M10 x 94mm Bolt (98)
M10 x 102mm Bolt (99)
M10 x 97mm Carraige Bolt (101)
25mm Square Inner Cap (28)
45mm Square Inner Cap (12)
51mm x 76mm Inner Cap (14)
38mm x 50mm Inner Cap (15 )
50mm Square Inner Cap (13)
60mm Square Inner Cap (64)
48mm Round Inner Cap (19)
48mm Weight Carriage Cap (63)
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of the user’s manual for information about ordering replacement parts.
Key No. Qty. Description Key No. Qty. Description
11Bench Frame
21Stabilizer
31Bench Base
41Bench Leg
51Leg Lever
61Backrest Frame
71Seat Frame
81Curl Post
91Curl Pad
10 1 Seat
11 1 Backrest
12 1 45mm Square Inner Cap
13 5 50mm Square Inner Cap
14 1 51mm x 76mm Inner Cap
15 3 38mm x 50mm Inner Cap
16 1 Backrest Bracket
17 1 Seat Bracket
18 1 Leg Lever Bracket
19 1 48mm Round Inner Cap
20 4 Small Base Cap
21 2 Wheel
22 7 Adjustment Knob
23 2 Small Adjustment Knob
24 2 Bench Joint Plate
25 2 Bench Base Joint Plate
26 4 Foam Pad
27 2 Pad Tube
28 6 25mm Square Inner Cap
29 10 M6 x 16mm Screw
30 4 M10 x 56mm Bolt
31 4 M10 x 71mm Bolt
32 36 M10 x 78mm Bolt
33 7 M10 x 45mm Bolt
34 78 M10 Nylon Locknut
35 28 M10 Washer
36 28 M4 x 16mm Screw
37 2 Bushing
38 1 Right Base
39 1 Center Base
40 1 Left Base
41 1 Weight Guide Base
42 1 Weight Guide Upright
43 2 Rear Upright
44 1 Left Front Upright
45 1 Center Upright
46 1 Center Top Frame
47 1 Right Top Frame
48 1 Left Top Frame
49 1 Weight Guide Top Frame
50 1 Right Safety Spotter
51 1 Left Safety Spotter
52 1 Right Weight Rest
53 1 Left Weight Rest
54 1 Chin-up Bar
55 1 Butterfly Bracket
56 1 Right Butterfly Arm
57 1 Left Butterfly Arm
58 1 Lat Bar
59 4 Handgrip
60 1 Dip Arm
61 2 Cap w/Hole
62 1 Weight Carriage
63 2 48mm Weight Carriage Cap
64 7 60mm Square Inner Cap
65 1 Weight Carriage Stop
66 2 Butterfly Foam Pads
67 1 Foot Plate
68 1 Long Cable
69 1 Medium Cable
70 4 Large Base Cap
71 2 Weight Clip
72 1 Ankle Strap
73 1 Chain
74 2 Small Cable Clip
75 2 Large Cable Clip
76 2 Ab Sling
77 2 Safety Spotter Cover
78 2 M6 Washer
79 4 Butterfly Bushing
80 4 Butterfly Cap
81 1 Double “U”-bracket
82 2 Pulley Plate
83 1 Carriage Stop Bushing
84 14 Square Bushing
85 6 Rack Joint Plate
86 2 “V”-pulley
87 9 Pulley
88 2 Cable Trap
89 8 17mm Spacer
90 2 M10 x 75mm Carriage Bolt
91 2 28mm Spacer
92 9 M10 x 75mm Bolt
93 1 Seat Bracket Sleeve
94 2 1/2” Nylon Locknut
95 2 M10 Small Washer
96 2 M6 x 75mm Screw
97 2 1/2” x 78mm Bolt
98 4 M10 x 94mm Bolt
99 1 M10 x 102mm Bolt
100 2 M10 x 65mm Bolt
101 2 M10 x 97mm Carriage Bolt
102 1 M10 x 19mm Bolt
103 1 M10 x 85mm Bolt
104 2 M10 x 81mm Button Bolt
105 2 M10 x 60mm Bolt
106 1 M10 x 87mm Bolt
107 2 M8 x 43mm Shoulder Bolt
108 2 M8 Nylon Locknut
109 1 Butterfly Cable
1101 Right Front Upright
111 2 Large Cable Trap
1121 Butterfly Backrest
#1User’s Manual
#1Exercise Chart
#1Allen Wrench
PART LIST—Model No. WEBE37330 R0803B
EXPLODED DRAWING—Model No. WEBE37330 R0803B
10
9
30
34
35
35
15
99
11
15
30
35
35
26
13
28
28
27
1
100
6
33
2
34
29
21
35
34
34
35
21
33
20
36
24
93
24
36
7
15
29
23
35
4
34
16
35
20
36
98
8
29
12
28
26
28
34
37
13
5
18
37
29
22
103
29
34
34
17
23
34
14
19
13
20
36
31
20
3
25
36
25
EXPLODED DRAWING—Model No. WEBE37330 R0803B
32
35
34
72
89
34
39
67
92
35
84
62
102
35
69
34
63
92
89
35
87
35
34
68
32
90
70
104
84
84
63
84
71
34
70
32
60
101
101
84
36
106
83
65
34
68
59
61
34
84
51
64
35
92
91
33
91
35
34
87
36
40
32
59
61
34
22
34
34
34
41
34
36
70
22
92
64
89
34
35
87
89 87
74
34
89
74
58
32
59
34
64
34
92
35
92
35
49
34
87
59
34
46
32
80
47
34
92
35
35
34
35
92
69
35
80
107
64
64
32
35
32
34
34
34
34
111
34
105
79
55
109
97
28
95
79
32
32
42
87
82
34
48
105
86
34
111
32
86
32
57
95
107
79
28
94
80
80
108
79
56
33
88
34
32
34
96
108
13
82
88
87
73
43
34
87
33
81
34
87
33
96
78
78
45
13
66
34
112
34
66
34
43
32
54
22
84
75
76
75
22
84
53
84
64
52
85
34
76
64
84
32
32
34
32
34
85
44
22
50
84
36
110
22
77
36
36 84
32
38
84
34
77
32
34
85
32
85
85
84
36
36
34
70
85
32
Part No. 199228 R0803B Printed in China © 2003 ICON Health & Fitness, Inc.
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This
warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing
or repairing, at ICON's option, the product through one of its authorized service centers. All repairs for which
warranty claims are made must be pre-authorized by ICON. This warranty does not extend to any product or
damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage
or repairs not provided by an ICON authorized service center; products used for commercial or rental purposes; or products used as store display models. No other warranty beyond that specifically set forth above
is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or
consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
To order replacement parts, simply call our Customer Service Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be prepared to give the following information:
1. The MODEL NUMBER of the product (WEBE37330)
2. The NAME of the product (WEIDER
®
CLUB C670 weight bench)
3. The SERIAL NUMBER of the product (see the front cover of this manual)
4. The KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST and EXPLODED DRAWING in the
center of this manual)
ORDERING REPLACEMENT PARTS
Loading...
