USER’S MANUAL
Visit our website at
www.weiderfitness.com
new products, prizes,
fitness tips, and much more!
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
Model No. WEBE29910
Serial No.
Write the serial number in the
space above for future reference.
Serial Number Decal (Under Seat)
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you
have questions, or if there are
missing or damaged parts, we
will guarantee complete satisfaction through direct assistance
from our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLLFREE CUSTOMER HOT LINE.
The trained technicians on our
customer hot line will provide
immediate assistance, free of
charge.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
2
WARNING DECAL PLACEMENT
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
CABLE DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
BENCH ADJUSTMENT CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
Note: A PART LIST/EXPLODED DRAWING is attached in the center of this manual. Remove the PART
LIST/EXPLODED DRAWING before beginning assembly.
WEIDER is a registered trademark of ICON Health & Fitness, Inc.
TABLE OF CONTENTS
The decals shown here have been placed on
the weight bench. If a decal is missing or illegible, please call our Customer Service
Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain
Time, to order a free replacement decal. Apply
the decal in the location shown.
Keep hands and
fingers clear of
this area.
3
1. Read all instructions in this manual before
using the weight bench. Use the weight
bench only as described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the weight bench are adequately informed of all precautions.
3. The weight bench is intended for home use
only. Do not use the weight bench in any
commercial, rental, or institutional setting.
4. Use the weight bench only on a level surface.
Cover the floor beneath the weight bench to
protect the floor.
5. Make sure all parts are properly tightened
each time you use the weight bench. Replace
any worn parts immediately.
6. Keep children under 12 and pets away from
the weight bench at all times.
7. Keep hands and feet away from moving parts.
8. Always wear athletic shoes for foot protection while exercising.
9. Make sure that the cables remain on the pulleys at all times. If the cables bind as you are
exercising, stop immediately and make sure
that the cables are on the pulleys.
10. Always set both weight rests at the same
height.
11. The weight bench is designed to support a
maximum user weight of 250 pounds. Do not
place more than 310 pounds, including the
barbell, on the weight rests. Do not place
more than 150 pounds on the weight carriage. Note: The weight bench is designed to
be used with an Olympic barbell. The weight
bench does not include a barbell or weights.
12. Always place an equal amount of weight on
each side of the weight carriage or barbell.
13. Always secure the weights with the weight
clips when they are mounted on the weight
carriage.
14.
Always exercise with a partner. Your partner
should be ready to catch the barbell if you
cannot complete a repetition.
15. Always set the back leg over the center base
before using the leg lever. Always attach the
bench cable to the low cable before performing a bench exercise.
16. Always move the bench out of the way when
performing squat exercises. Always disconnect the barbell from the high cable when performing an exercise that does not require it.
The barbell could be lifted off of the weight
rests and fall.
17. If you feel pain or dizziness at any time while
exercising, stop immediately and begin cooling down.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
WARNING: To reduce the risk of serious injury, read the following important precautions
before using the weight bench.
IMPORTANT PRECAUTIONS
4
Weight Carriage
Pulley Arm
Pulley Arm
Safety Spotter
Weight Rest
Weight Rest
Power Assist Leg
Bench Cable
Bracket
Right Side
Left Side
Note: The terms “right side” and “left side” are determined relative to a person sitting on the
bench; they do not correspond to right and left on the drawings in the manual.
Backrest
Low Pulley
Station
Leg Lever
Seat
Pull-up Bar
BEFORE YOU BEGIN
Thank you for selecting the versatile WEIDER®PRO
575 weight bench. The WEIDER
®
PRO 575 offers a
selection of weight stations designed to develop every
major muscle group of the body. Whether your goal is
to tone your body, build dramatic muscle size and
strength, or improve your cardiovascular system, the
PRO 575 will help you to achieve the specific results
you want.
For your benefit, read this manual carefully before
using the weight bench. If you have additional ques-
tions, please call our Customer Service Department
toll-free at 1-800-999-3756, Monday through Friday,
6 a.m. until 6 p.m. Mountain Time (excluding holidays).
To help us assist you, please note the product model
number and serial number before calling. The model
number is WEBE29910. The serial number can be
found on a decal attached to the weight bench (see
the front cover of this manual).
Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.
5
PART IDENTIFICATION CHART
Refer to the drawings below to identify small parts used in assembly. The number in parentheses by each drawing is the key number of the part, from the PART LIST in the center of this manual. Note: Some small parts
may have been pre-attached. If a part is not in the parts bag, check to see if it has been pre-attached.
M10 x 57mm Bolt (78)
M10 Nylon Locknut (77)
M10 Washer (79)
M10 x 62mm Carriage Bolt (74)
M6 Locknut (80)
M6 Washer (62)
M8 x 12mm Screw (43)
M5 Washer (92)
M10 x 45mm Bolt (76)
M10 x 25mm Button Bolt (81)
M10 x 75mm Bolt (73)
M10 x 78mm Bolt (70)
M10 x 81mm Bolt (65)
M10 x 86mm Bolt (63)
M10 x 91mm Bolt (67)
M10 x 97mm Bolt (90)
M10 x 100mm Bolt (66)
M4 x 19mm Screw (68)
M6 x 16mm
Bolt (72)
M10 x 102mm Bolt (91)
M10 x 120mm Bolt (75)
M10 x 154mm Bolt (69)
M10 x 164mm Bolt (71)
6
Before beginning assembly, carefully read the
following information and instructions:
• Assembly requires two people.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
• As you assemble the weight bench, make sure all
parts are oriented as shown in the drawings.
• For help identifying small parts, use the PART
IDENTIFICATION CHART on page 5.
The following tools (not included) are required
for assembly:
• Two adjustable wrenches
• One rubber mallet
• One standard screwdriver
• One Phillips screwdriver
• Lubricant, such as grease or petroleum jelly,
and soapy water.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
Make Things Easier for Yourself
Everything in this manual is designed to ensure
that the weight bench can be assembled successfully by anyone. However, it is important to
realize that the versatile weight bench has many
parts and that the assembly process will take
time. Most people find that by setting aside plenty of time, assembly will go smoothly.
23
2
Numbers
on this
side
Numbers
on this
side
Holes
on this
side
1
77
22
50
74
77
ASSEMBLY
1.
Press a 2” x 3” Square Inner Cap (50) into the
end of the Right Base (22).
Identify the Right Upright (2) by the positions of
the numbers and holes. Attach the Right Upright
to the Right Base (22) with two M10 x 62mm
Carriage Bolts (74) and two M10 Nylon Locknuts
(77). Note: Be sure that the numbers on the
Right Upright are on the side shown. Do not
tighten the Nylon Locknuts yet.
Repeat this step with the Left Base (23) and Left
Upright (1). Note: Be sure the numbers on the
Left Upright are on the side shown in the inset
drawing.
1
Before beginning assembly, make sure you
understand the information in the box
above. Important: Some of the parts
described in the assembly steps may be
pre-assembled.
5. Press two 75mm Bushings (26) into the top and
bottom of the Safety Spotter (10).
Attach the two Safety Spotter Bumpers (34) to the
Safety Spotter (10) with two M10 x 25mm Button
Bolts (81), two M10 Washers (79), and two M10
Nylon Locknuts (77).
Pull the Knob (30) out as far as it will go. Slide the
Safety Spotter (10) onto the top of the Center
Upright (3) and engage the Knob into an adjustment hole. Turn the Knob clockwise until tight.
Press a 60mm Square Inner Cap (46) into the top
of the Center Upright (3).
4
7
4. Attach the Center Upright (3) to the Center Base
(24) with two M10 x 75mm Bolts (73), four M10
Washers (79), and two M10 Nylon Locknuts (77).
Do not tighten the Nylon Locknuts yet.
3
3. Press two 2” Round Inner Caps (47) into the ends
of the weight tube on the Weight Carriage (25).
Press two 75mm Bushings (26) into the top and
bottom of the Weight Carriage.
Orient the Weight Carriage (25) and Center
Upright (3) so that the welded bolt and letters are
on the indicated sides. Slide the Weight Carriage
onto the bottom of the Center Upright.
Attach the Carriage Stop (27) to the indicated
hole in the Center Upright (3) with an M10 x
86mm Bolt (63) and an M10 Nylon Locknut (77).
2
22
77
77
24
53
53
50
1
90
90
23
5
77
3
63
47
47
Weight
Tube
Letters near
the top of
this side
Welded
Bolt
27
26
26
25
77
79
79
73
24
3
26
77
77
26
3
81
79
79
81
Adjustment
Hole
34
34
10
46
30
2. Press two 50mm Thick Square Inner Caps (53)
and a 2” x 3” Inner Cap (50) into the ends of the
Center Base (24).
Have a second person hold the Right and Left
Uprights (1, 2 [not shown]). Attach the Right and
Left Bases (22, 23) to the Center Base (24) with
two M10 x 97mm Bolts (90) and two M10 Nylon
Locknuts (77). Do not tighten the Nylon
Locknuts yet.
8
6. Press two 75mm Bushings (26) into the top and
bottom of the Right Weight Rest (12).
Pull the Knob (30) out as far as it will go. Slide the
Right Weight Rest (12) onto the Right Upright (2)
and engage the Knob into an adjustment hole in
the Upright. Turn the Knob clockwise until tight.
Repeat this step with the Left Weight Rest (not
shown).
8. Press two 38.1mm x 76.2mm Inner Caps (49) into
the end of the Right and Left Frames (5, 6).
Attach the Right and Left Frames (5, 6) to the
Center Upright (3) with an M10 x 81mm Bolt (65)
and an M10 Nylon Locknut (77).
Attach the Right Frame (5) to the Center Frame
(4) with an M10 x 120mm Bolt (75), an M10
Washer (79), and an M10 Nylon Locknut (77).
Attach the Left Frame (6) to the Center Frame in
the same manner.
Do not tighten the M10 Nylon Locknuts (77) yet.
6
9
30
26
12
26
2
89
6
5
77
9
65
9. Press a 60mm Square Arched Inner Cap (89) into
the end of the Top Frame (9).
Attach the Top Frame (9) to the Right and Left
Frames (5, 6) with two M10 x 81mm Bolts (65)
and two M10 Nylon Locknuts (77). Do not tight-
en the Nylon Locknuts yet.
7
8
46
77
77
79
77
79
79
77
2
1
4
Decal
49
49
5
6
3
4
65
75
75
79
79
77
77
46
70
70
70
70
7. Press two 60mm Square Inner Caps (46) into the
top of the Left and Right Uprights (1, 2).
Orient the Center Frame (4) with the decal on the
side shown. Attach the Center Frame to the Left
and Right Uprights (1, 2) with four M10 x 78mm
Bolts (70), four M10 Washers (79), and four M10
Nylon Locknuts (77). Do not tighten the Nylon
Locknuts yet.
9
11
12
13
13. Press a 38mm x 50mm Inner Cap (64) into the
indicated part of the Sliding Seat Frame (15).
Press two 75mm Bushings (26) into the ends of
the Sliding Seat Frame.
Orient the Sliding Seat Frame (15) as shown. Pull
the Knob (not shown) out as far as it will go. Slide
the Sliding Seat Frame onto the Bench Frame
(14) and engage the Knob into an adjustment
hole in the Bench Frame.
Press a 60mm Square Angled Inner Cap (95) into
the end of the Bench Frame (14).
10
77
79
79
46
70
70
26
26
95
15
14
64
Knob
14
18
51
51
77
74
39
52
78
77
79
79
8
To p
40
Decal
5
10. Orient the Pull-up Bar (8) with the bend on top.
Attach the Pull-up Bar to the Right Frame (5) with
two M10 x 57mm Bolts (78), two M10 Washers
(79), and two M10 Nylon Locknuts (77). Do not
tighten the Nylon Locknuts yet.
Attach the Pull-up Bar (8) to the Left Frame (not
shown) in the same manner.
Tighten the M10 Nylon Locknuts (77) used in
steps 1–10.
11. Press two 38mm x 50mm Inner Caps (52) into
the top of the Back Leg (39). Press two 50mm
Square Inner Caps (51) into the ends of the
Stabilizer (40).
Orient the Stabilizer (40) so the decal is in the
position shown. Attach the Back Leg (39) to the
Stabilizer with two M10 x 62mm Carriage Bolts
(74) and two M10 Nylon Locknuts (77). Do not
tighten the Nylon Locknuts yet.
12. Press a 60mm Square Inner Cap (46) into the top
of the Front Leg (18).
Orient the Bench Frame (14) as shown. Attach
the Bench Frame to the Front Leg (18) with two
M10 x 78mm Bolts (70), two M10 Washers (79),
and two M10 Nylon Locknuts (77). Do not tight-
en the Nylon Locknuts yet.
10
14. Attach the Bench Frame (14) to the Back Leg
(39) with an M10 x 78mm Bolt (70), two M10 x
164mm Bolts (71), an M10 Washer (79), and
three M10 Nylon Locknuts (77). Do not tighten
the Nylon Locknuts yet.
17. Press two 38mm Square Inner Caps (44) into the
ends of the Support Leg (13).
Lubricate an M10 x 154mm Bolt (69). Attach the
Support Leg (13) to the Backrest Frame (16) with
the Bolt, two M10 Washers (79), and an M10
Nylon Locknut (77).
Lubricate an M10 x 164mm Bolt (71). Attach the
Support Leg (13) to the Back Leg (39) with the
Bolt, two M10 Washers (79), and an M10 Nylon
Locknut (77).
Lubricate two M10 x 45mm Bolts (76). Attach the
Backrest Frame (16) to the Sliding Seat Frame
(15) with the Bolts, two M10 Washers (79), and
two M10 Nylon Locknuts (77).
Do not overtighten the M10 Nylon Locknuts
(77); the Support Leg (13) and the Backrest
Frame (16) must be able to pivot easily.
16. Press four 25.4mm x 38.1mm Inner Caps (45)
into the Backrest Frame (16).
Orient the Backrest (38) as shown. Attach the
Backrest to the Backrest Frame (16) with four M6
x 16mm Bolts (72).
38
45
16
72
72
45
77
79
77
14
70
71
39
14
15. Attach the Leg Lever Bumper (54) to the Front
Leg (18) with the M4 x 19mm Screw (68) and an
M5 Washer (92).
Press a 38.1mm x 76.2mm Inner Cap (49) and a
2” x 3” Inner Cap (50) into the Leg Lever (19).
Lubricate an M10 x 102mm Bolt (91). Attach the
Leg Lever (19) to the Front Leg (18) with the Bolt
and an M10 Nylon Locknut (77). Do not over-
tighten the Nylon Locknut; the Leg Lever must
be able to pivot easily.
68
18
Lubricate
49
50
77
91
15
16
17
19
54
92
79
79
79
77
77
77
76
76
44
44
39
13
69
79
16
15
71
79
11
18
18. Press two 38mm Square Inner Caps (44) into the
ends of the Seat Frame (17).
Orient the Seat (37) with the wide end on the side
shown. Attach the Seat (37) to the Seat Frame
(17) with four M6 x 16mm Bolts (72).
37
Wide End
72
72
17
44
44
19
19. Lubricate an M10 x 154mm Bolt (69). Attach the
Seat Frame (17) to the Backrest Frame (16) with
the Bolt, two M10 Washers (79), and an M10
Nylon Locknut (77). Do not overtighten the
Nylon Locknut; the Seat Frame must be able
to pivot easily.
20. Attach the Right and Left Power Assist Legs (20,
21) to the Leg Lever (19) with two M10 x 100mm
Bolts (66) and two M10 Nylon Locknuts (77).
21. Refer to the CABLE DIAGRAMS on page 16 of
this manual to identify the different cables
included with the weight bench.
Locate the Bench Cable (58). Route the Cable
through the Front Leg (18) and attach it to the
Leg Lever (19) with an M10 x 91mm Bolt (67),
two 35mm Spacers (82), two M10 Washers (79),
and an M10 Nylon Locknut (77).
Press a 2” x 3” Inner Cap (50) into the bottom of
the Leg Lever (19).
69
20
21
77
79
79
18
67
82
82
50
19
58
66
20
19
16
77
79
79
17
Lubricate
77
21
25
12
22
18
96
96
35
58
76
22. Route the Bench Cable (58) under a 4 1/2” Pulley
(35). Attach the Pulley to the Front Leg (18) with
an M10 x 75mm Bolt (73), two 17mm Spacers
(96), two M10 Washers (79), and an M10 Nylon
Locknut (77).
23. Attach the Bench Cable (58) to the Back Leg (39)
with a Cable Clip (28).
24. Press a 19mm Round Inner Cap (48) into each
end of the three Pad Tubes (41).
Slide two Pad Tubes (41) through the holes in the
Leg Lever (19). Slide the third Pad Tube through
the holes in the Front Leg (18). Slide two Foam
Pads (42) onto each Pad Tube.
25. Locate the High Cable (61).
See the inset drawing. Slide a Cable Ball (56)
onto the end of the High Cable (61). Thread an
M6 Locknut (80) onto the Cable as far as it will
go. Tighten a Cable Eye (57) onto the Cable.
Hold the Cable Eye and fully tighten the Locknut
against the Cable Eye. Slide the Cable Ball over
the Locknut and the Cable Eye.
Route the end of the High Cable (61) without a
Cable Ball (56) through the tube on the left Pulley
Arm (7). Wrap the Cable around a 4 1/2” Pulley
(35) and attach the Pulley to the Pulley Arm with
an M10 x 45mm Bolt (76) and an M10 Nylon
Locknut (77). Note: Be sure the Cable is under
the indicated pin on the Pulley Arm.
73
77
79
79
7
Tube
Pin
35
61
56
77
58
42
42
42
48
48
19
18
41
28
39
23
24
61
56
80
57
13
27
28
29
30
35
36
55
76
5
7
35
76
93
33
77
77
77
76
61
Tube
27. Wrap the High Cable (61) around a 4 1/2” Pulley
(35). Attach the Pulley and a Large Cable Trap
(55) to the “U”-Bracket (33) with an M10 x 45mm
Bolt (76) and an M10 Nylon Locknut (77).
28. Wrap the High Cable (61) around an 88mm
Pulley (36). Attach the Pulley and a Small Cable
Trap (93) to the Right Frame (5) with an M10 x
45mm Bolt (76) and an M10 Nylon Locknut (77).
29. Route the High Cable (61) through the tube on
the right Pulley Arm (7). Wrap the Cable around a
4 1/2” Pulley (35). Attach the Pulley to the Pulley
Arm with an M10 x 45mm Bolt (76) and an M10
Nylon Locknut (77).
See the inset drawing. Slide a Cable Ball (56)
onto the end of the High Cable (61). Thread an
M6 Locknut (80) onto the Cable as far as it will
go. Tighten a Cable Eye (57) onto the Cable.
Hold the Cable Eye and fully tighten the Locknut
against the Cable Eye. Slide the Cable Ball over
the Locknut and the Cable Eye.
30. Locate the Carriage Cable (60). Attach the end
of the Cable inside the Top Frame (9) with an
M10 x 75mm Bolt (73), two 27mm Spacers (94),
two M10 Washers (79), and an M10 Nylon
Locknut (77).
61
61
61
56
73
60
94
94
9
79
79
77
80
57
6
61
93
76
36
77
26. Wrap the High Cable (61) around an 88mm
Pulley (36). Attach the Pulley and a Small Cable
Trap (93) to the Left Frame (6) with an M10 x
45mm Bolt (76) and an M10 Nylon Locknut (77).
26
32. Wrap the Carriage Cable (60) around an 88mm
Pulley (36). Attach the Pulley inside the Top
Frame (9) with an M10 x 75mm Bolt (73), two
17mm Spacers (96), two M10 Washers (79), and
an M10 Nylon Locknut (77).
32
33. Wrap the Carriage Cable (60) around an 88mm
Pulley (36). Attach the Pulley between the Right
and Left Frames (5, 6) with an M10 x 81mm Bolt
(65), two 15mm Spacers (83), and an M10 Nylon
Locknut (77).
34. Attach the end of the Carriage Cable (60) to the
welded bolt on the Weight Carriage (25) with an
M10 Nylon Locknut (77).
33
34
14
77
79
79
77
5
6
73
65
9
96
60
60
77
25
96
83
83
36
31
31. Wrap the Carriage Cable (60) around a 4 1/2”
Pulley (35). Attach the Pulley and a Large Cable
Trap (55) to the single set of holes in the pair of
Pulley Plates (31) with an M10 x 45mm Bolt (76)
and an M10 Nylon Locknut (77).
60
35
77
76
31
55
60
36
36. Route the Low Cable (59) through the Center
Upright (3) and under the bar in the bracket on the
Center Base (24). Wrap the Cable around an
88mm Pulley (36). Attach the Pulley to the rear
hole in the bracket on the Center Base with an
M10 x 45mm Bolt (76) and an M10 Nylon Locknut
(77).
36
37. Wrap the Low Cable (59) around a 4 1/2” Pulley
(35). Attach the Pulley and a Large Cable Trap
(55) to the bottom set of holes in the pair of
Pulley Plates (31) with an M10 x 45mm Bolt (76)
and an M10 Nylon Locknut (77).
38. Wrap the Low Cable (59) around an 88mm Pulley
(36). Attach the Pulley to the front hole in the
bracket on the Center Base (24) with an M10 x
45mm Bolt (76) and an M10 Nylon Locknut (77).
37
38
15
76
77
36
3
59
24
76
76
77
77
55
35
36
Bracket
59
24
59
31
Bracket
Bar
35. Locate the Low Cable (59). Lay the Cable inside
the bracket on the Center Base (24) so that the
ball is on the side shown. Attach a 4 1/2” Pulley
(35) inside the bracket with an M10 x 45mm Bolt
(76) and an M10 Nylon Locknut (77).
35
59
24
35
77
76
Ball
Bracket
39. Attach the Low Cable (59) to the “U”-Bracket (33)
with an M6 Washers (62) and an M6 Locknut
(80). Do not completely tighten the Locknut; it
should be threaded onto the end of the Cable
until only two threads are showing above the
Locknut, as shown in the inset drawing.
39
16
80
62
33
40. Make sure all parts of the weight bench are properly tightened. In addition, pull each cable a few
times to make sure the cables move smoothly over the pulleys. If the cables do not move smoothly,
locate and correct the problem. When weights are used, the cables may be damaged if they are
incorrectly routed. Refer to the CABLE DIAGRAMS below for correct cable routing.
The use of all remaining parts will be explained in ADJUSTMENTS, beginning on the following page.
59
59
33
80
CABLE DIAGRAMS
The cable diagrams below show the proper routing of the Bench Cable (58), the Low Cable (59), the Carriage
Cable (60), and the High Cable (61). Use the diagram to make sure that the cables and the cable traps have
been assembled correctly. If the cables have not been correctly routed, the weight bench will not function properly and damage may occur. The numbers show the correct route for each cable. Make sure that the cable
traps do not touch or bind the cables.
1
2
3
4
5
6
7
1
2
3
4
5
1
2
Bench Cable (58)
High Cable (61)
Carriage Cable (60)
Low Cable (59)
3
1
2
3
4
5
This section explains how to adjust the weight bench. The first time you perform an exercise that uses the safety
spotter, adjust the bench to the position that is best for you. Note the position of the weight rest and safety spotter on the BENCH ADJUSTMENT CHART, on page 20 of this manual. When preparing to perform the exercise
again, refer back to the chart for a quick reference to your personal settings.
See the EXERCISE GUIDELINES on page 21 for important information about how to get the most benefit from
your exercise program. Also, refer to the accompanying exercise guide to see the correct form for each exercise.
Make sure all parts are properly tightened each time you use the weight bench. Replace any worn parts immediately. The weight bench can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.
17
ADJUSTING THE BACKREST
The Backrest (38) can be used in a decline position,
a level position, or any of five incline positions. To
adjust the Backrest, turn the Knob (30) counterclockwise until loose. Pull the Knob out as far as it will go
and slide the Sliding Seat Frame (15) to the desired
position. Engage the Knob into an adjustment hole in
the Bench Frame (14). Turn the Knob clockwise until
tight.
38
30
2
1
11
30
15
14
Adjustment
Holes
ADJUSTING THE WEIGHT RESTS AND SAFETY
SPOTTER
Before performing an exercise that uses a barbell,
adjust the Weight Rests (11, 12) and Safety Spotter
(25) to the height that is best suited for that exercise.
The Weight Rests should be at a comfortable height
for lifting and replacing the barbell. Moving the Safety
Spotter (10) will change the distance that the barbell
can move. First, attach the barbell to the high cable
(see ATTACHING A BARBELL TO THE CABLES, on
page 18). Then, set the Safety Spotter to the position
that will stop the barbell at the lowest point that you
want it to go during the exercise.
To adjust a Weight Rest (11, 12) turn the Knob (30)
counterclockwise until loose. Pull the Knob out as far
as it will go and move the Weight Rest to the desired
height. Engage the Knob into an adjustment hole in
the Upright (1, 2) and turn it clockwise until tight.
The Safety Spotter (10) can be adjusted in the same
manner.
12
10
WARNING: Always adjust both
Weight Rests (11, 12) to the same height before
exercising.
ADJUSTMENTS
18
28
59
58
25
98
Weight
Tube
Weight
Barbell

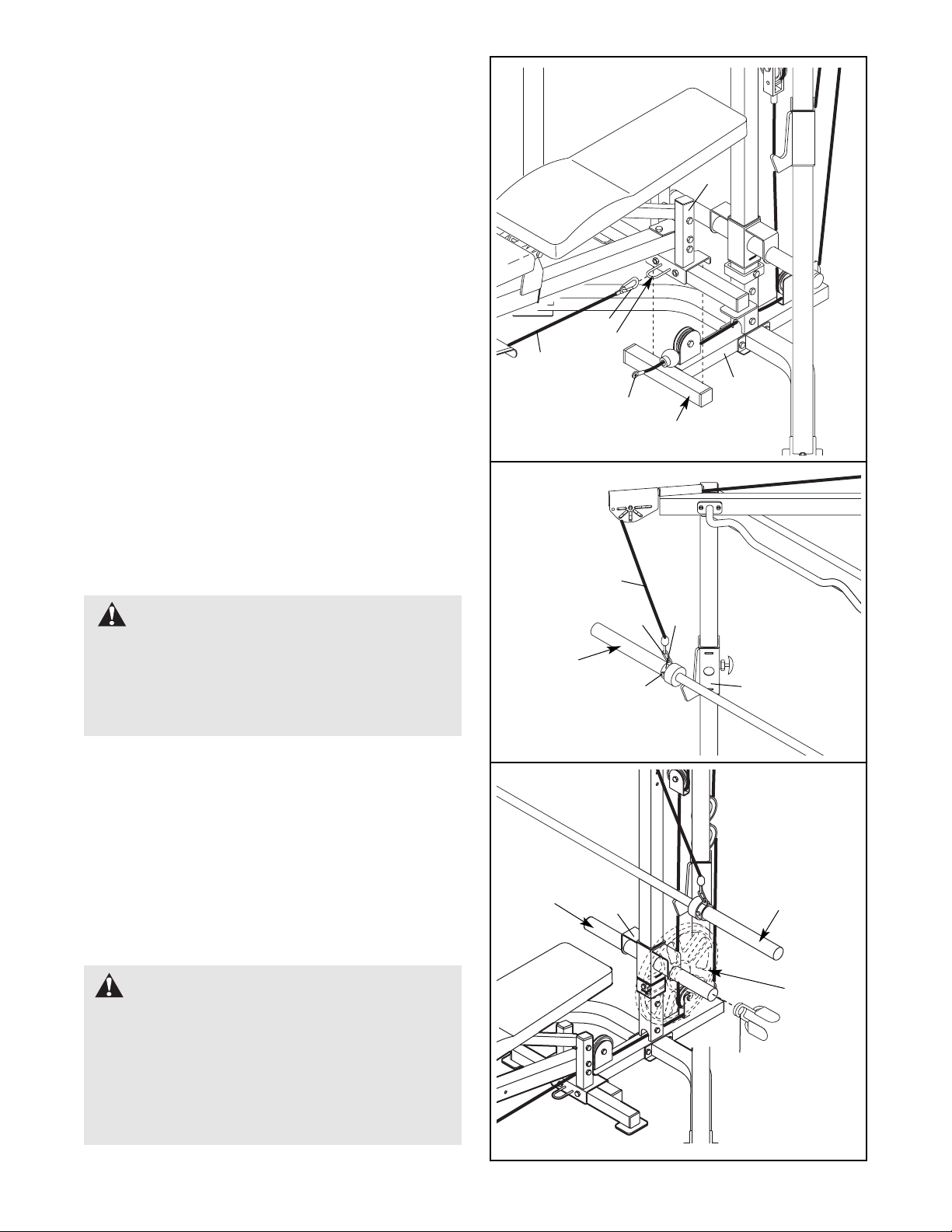

ATTACHING THE BENCH TO THE RACK
To perform bench and leg lever exercises, the weight
bench must be attached to the weight rack. To attach
the bench to the rack, rest the Back Leg (39) over the
crossbar on the Center Base (24). Note: Be sure
that the Low Cable (59) goes through the Back
Leg. Next, attach the Bench Cable (58) to the Low
Cable with a Cable Clip (28).
When the bench is not attached to the rack, use the
Cable Clip (28) to attach the Bench Cable (58) to the
bracket on the Back Leg (39).
Crossbar
39
24
Bracket
ATTACHING WEIGHTS TO THE WEIGHT CARRIAGE OR BARBELL
Slide the desired amount of weight (not included)
onto the weight tube on the Weight Carriage (25) or
the barbell. Secure the weight to the Weight Carriage
with Weight Clips (98).
Do not place weights on the Weight Carriage (25)
when performing exercises that use the barbell.
WARNING: Do not place more than
150 pounds on the Weight Carriage (25). Do not
place more than 310 pounds, including the barbell, on the Weight Rests (11, 12) Always place
the same amount of weight on each side of the
Weight Carriage or barbell. Always secure the
weights to the Weight Carriage with Weight
Clips (98).
Barbell
28
43
29
12
61
ATTACHING A BARBELL TO THE CABLES
To use a barbell (not included) with the Safety Spotter
(not shown), set the barbell on the Weight Rests (11
[not shown], 12). Slide a Barbell Ring (29) onto each
end of the barbell and tighten the M8 x 12mm Screw
(43). Attach each end of the High Cable (61) to the
Barbell Rings with two Cable Clips (28).
WARNING: Use only an Olympic
barbell (not included) with the Barbell Rings
(29). Always disconnect the barbell from the
High Cable (61) when performing an exercise
that does not require it. The barbell could be lifted off of the weight rests and fall.
19
ATTACHING THE ACCESSORIES TO THE CABLES
To use the Row Bar (38), attach it to the High Cable
(61) or Low Cable (not shown) with a Cable Clip (28).
The other accessories (not shown) can be attached
to the cables in the same manner.
Note: The accessories can be stored on the back
of the Right and Left Frames (5, 6 [not shown])
with Cable Clips (28).
USING THE POWER ASSIST LEGS
If you are unable to complete the repetition after performing a bench exercise, the Power Assist Legs (20,
21) can be used to help lift the barbell back to the
Weight Rests (not shown).
To use the Power Assist Legs (20, 21), attach the
bench to the rack and a barbell to the high cable (see
ATTACHING THE BENCH TO THE RACK and
ATTACHING A BARBELL TO THE CABLES on page
18). Press down on the Power Assist Legs with your
feet while lifting the barbell to the Weight Rests (not
shown).
28
61
21
20
87
WARNING: Always disconnect the
accessories when performing exercises that do
not require them.
A B
59
35
33
55
35
76
55
77
76
TIGHTENING THE CABLES
Woven cable, the type of cable used on the weight
bench, can stretch slightly after it is first used. If there
is slack in the cables, tighten them as described below.
See drawing A. Tighten the M6 Locknut (80) onto the
Low Cable (59) a couple of turns.
See drawing A. Remove the M10 x 45mm Bolt (76)
and the M10 Nylon Locknut (not shown) attaching the
4 1/2” Pulley (35) and Cable Trap (55) to the “U”Bracket (33). Use the Bolt and Nylon Locknut to reattach the Pulley and Cable Trap to the lower set of
holes in the “U”-Bracket.
See drawing B. Remove the M10 x 45mm Bolt (76)
and the M10 Nylon Locknut (77) attaching the lower
4 1/2” Pulley (35) and Cable Trap (55) to the Pulley
Plates (31). Use the Bolt and Nylon Locknut to reattach
the Pulley and Cable Trap to the next set of holes in
the Pulley Plates. Repeat until the cables are tight.
31
31
80
Bench
Bench Cable
Weight Rest
Safety Spotter
Exercises
Follow these steps when preparing for
each exercise:
1. Adjust the position of the bench
(be sure the bench cable is attached to
the low cable when performing any of
the bench exercises)
2. Adjust the position of the weight rests
3. Attach your barbell to the high cable
4. Adjust the position of the safety spotter
5. Add weight to the barbell.
The first time you perform the exercises
listed in the chart, note the position of the
weight rests and safety spotter in the
appropriate column.
The Bench can be:
R- removed
D- attached in a declined position
L- attached in a level position
I#- attached in one of five incline positions
(I1 indicates the least incline,
I5 indicates fully inclined.)
The Bench Cable can be:
A- attached
N- not attached
The Weight Rests can be adjusted to
positions 1–8.
Note the number of the position that is best
for each exercise.
The Safety Spotter can be adjusted to
positions A–O.
Note the letter of the position that is best
for each exercise.
20
BENCH ADJUSTMENT CHART
The chart below contains a list of exercises that require the use of the safety spotter. When preparing the weight
bench for one of these exercises, follow the steps listed below. For information about each of these steps, refer
to the ADJUSTMENTS section of this manual. Make sure the bench cable is attached to the low cable when
performing any of the bench exercises.
For each exercise, determine the positions of the bench, the weight rests, and the safety spotter that are best for
you. The first time you perform each exercise, write the positions of the weight rests and the safety spotter in the
chart. Write the number corresponding to the height of the weight rests, and the letter corresponding to the
height of the safety spotter in the appropriate column. When preparing to perform the exercise again, refer back
to the chart for a quick reference to your personal settings.
Decline Bench Press D A
Bench Press L A
Incline Bench Press 1 I1 A
Incline Bench Press 2 I2 A
Incline Bench Press 3 I3 A
Incline Bench Press 4 I4 A
Military Press I5 A
Squat R N
21
EXERCISE GUIDELINES
THE FOUR BASIC TYPES OF WORKOUTS
Muscle Building
To increase the size and strength of your muscles,
push them close to their maximum capacity. Your muscles will continually adapt and grow as you progressively increase the intensity of your exercise. You can
adjust the intensity level of an individual exercise in
two ways:
• by changing the amount of weight used
• by changing the number of repetitions or sets per-
formed. (A “repetition” is one complete cycle of an
exercise, such as one sit-up. A “set” is a series of
repetitions.)
The proper amount of weight for each exercise
depends upon the individual user. You must gauge
your limits and select the amount of weight that is right
for you. Begin with 3 sets of 8 repetitions for each
exercise you perform. Rest for 3 minutes after each
set. When you can complete 3 sets of 12 repetitions
without difficulty, increase the amount of weight.
Toning
You can tone your muscles by pushing them to a moderate percentage of their capacity. Select a moderate
amount of weight and increase the number of repetitions in each set. Complete as many sets of 15 to 20
repetitions as possible without discomfort. Rest for 1
minute after each set. Work your muscles by completing more sets rather than by using high amounts of
weight.
Weight Loss
To lose weight, use a low amount of weight and
increase the number of repetitions in each set.
Exercise for 20 to 30 minutes, resting for a maximum
of 30 seconds between sets.
Cross Training
Cross training is an efficient way to get a complete and
well-balanced fitness program. An example of a balanced program is:
• Plan weight training workouts on Monday,
Wednesday, and Friday.
• Plan 20 to 30 minutes of aerobic exercise, such as
cycling or swimming, on Tuesday and Thursday.
• Rest from both weight training and aerobic exercise
for at least one full day each week to give your body
time to regenerate.
The combination of weight training and aerobic exercise will reshape and strengthen your body, and develop your heart and lungs.
PERSONALIZING YOUR EXERCISE PROGRAM
Determining the exact length of time for each workout,
as well as the number of repetitions or sets completed,
is an individual matter. It is important to avoid overdoing it during the first few months of your exercise program. You should progress at your own pace and be
sensitive to your body’s signals. If you experience pain
or dizziness at any time while exercising, stop immediately and begin cooling down. Find out what is wrong
before continuing. Remember that adequate rest and a
proper diet are important factors in any exercise program.
WARMING UP
Begin each workout with 5 to 10 minutes of stretching
and light exercise to warm up. Warming up prepares
your body for more strenuous exercise by increasing
circulation, raising your body temperature and delivering more oxygen to your muscles.
WORKING OUT
Each workout should include 6 to 10 different exercises. Select exercises for every major muscle group,
emphasizing areas that you want to develop most. To
give balance and variety to your workouts, vary the
exercises from session to session.
Schedule your workouts for the time of day when your
energy level is the highest. Each workout should be
followed by at least one day of rest. Once you find the
schedule that is right for you, stick with it.
EXERCISE FORM
Maintaining proper form is an essential part of an
effective exercise program. This requires moving
through the full range of motion for each exercise, and
moving only the appropriate parts of the body.
Exercising in an uncontrolled manner will leave you
feeling exhausted. On the exercise guide accompanying this manual you will find photographs showing the
correct form for several exercises, and a list of the
muscles affected. Refer to the muscle chart on page
22 to find the names of the muscles.
The repetitions in each set should be performed
smoothly and without pausing. The exertion stage of
each repetition should last about half as long as the
return stage. Proper breathing is important. Exhale
during the exertion stage of each repetition and inhale
during the return stroke. Never hold your breath.
22
Rest for a short period of time after each set. The
ideal resting periods are:
• Rest for three minutes after each set for a muscle
building workout.
• Rest for one minute after each set for a toning work-
out.
• Rest for 30 seconds after each set for a weight loss
workout.
Plan to spend the first couple of weeks familiarizing
yourself with the equipment and learning the proper
form for each exercise.
COOLING DOWN
End each workout with 5 to 10 minutes of stretching.
Include stretches for both your arms and legs. Move
slowly as you stretch and do not bounce. Ease into
each stretch gradually and go only as far as you can
without strain. Stretching at the end of each workout
is an effective way to increase flexibility.
STAYING MOTIVATED
For motivation, keep a record of each workout. The
chart on page 23 of this manual can be photocopied
and used to schedule and record your workouts. List
the date, the exercises performed, the weight used,
and the numbers of sets and repetitions completed.
Record your weight and key body measurements at
the end of every month. Remember, the key to
achieving the greatest results is to make exercise a
regular and enjoyable part of your everyday life.
MUSCLE CHART
A. Sternomastoid (neck)
B. Pectoralis Major (chest)
C. Biceps (front of arm)
D. Obliques (waist)
E. Brachioradials (forearm)
F. Hip Flexors (upper thigh)
G. Abductor (outer thigh)
H. Quadriceps (front of thigh)
I. Sartorius (front of thigh)
J. Tibialis Anterior (front of calf)
K. Soleus (front of calf)
L. Rectus Abdominus (stomach)
M. Adductor (inner thigh)
N. Trapezius (upper back)
O. Rhomboideus (upper back)
P. Deltoid (shoulder)
Q. Triceps (back of arm)
R. Latissimus Dorsi (mid back)
S. Spinae Erectors (lower back)
T. Gluteus Medius (hip)
U. Gluteus Maximus (buttocks)
V. Hamstring (back of leg)
W. Gastrocnemius (back of calf)
N
A
B
C
D
E
F
G
H
I
J
K
M
L
T
O
P
Q
R
S
U
V
W
23
MONDAY
Date:
/ /
EXERCISE WEIGHT SETS REPS
EXERCISE WEIGHT SETS REPS
EXERCISE WEIGHT SETS REPS
AEROBIC EXERCISE
AEROBIC EXERCISE
TUESDAY
Date:
/ /
WEDNESDAY
Date:
/ /
THURSDAY
Date:
/ /
FRIDAY
Date:
/ /
Make photocopies of this page for scheduling and recording your workouts.
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of the user’s manual for information about ordering replacement parts.
Key No. Qty. Description Key No. Qty. Description
1 1 Left Upright
2 1 Right Upright
3 1 Center Upright
4 1 Center Frame
5 1 Right Frame
6 1 Left Frame
7 2 Pulley Arm
8 1 Pull-up Bar
9 1 Top Frame
10 1 Safety Spotter
11 1 Left Weight Rest
12 1 Right Weight Rest
13 1 Support Leg
14 1 Bench Frame
15 1 Sliding Seat Frame
16 1 Backrest Frame
17 1 Seat Frame
18 1 Front Leg
19 1 Leg Lever
20 1 Right Power Assist Leg
21 1 Left Power Assist Leg
22 1 Right Base
23 1 Left Base
24 1 Center Base
25 1 Weight Carriage
26 10 75mm Bushing
27 1 Carriage Stop
28 5 Cable Clip
29 2 Barbell Ring
30 4 Knob
31 2 Pulley Plate
32 4 Pulley Arm Bushing
33 1 “U”-Bracket
34 2 Safety Spotter Bumper
35 7 4 1/2” Pulley
36 6 88mm Pulley
37 1 Seat
38 1 Backrest
39 1 Back Leg
40 1 Stabilizer
41 3 Pad Tube
42 6 Foam Pad
43 2 M8 x 12mm Screw
44 4 38mm Square Inner Cap
45 4 25.4mm x 38.1mm Inner Cap
46 4 60mm Square Inner Cap
47 2 2” Round Inner Cap
48 6 19mm Round Inner Cap
49 3 38.1mm x 76.2mm Inner Cap
50 5 2” x 3” Inner Cap
51 2 50mm Square Inner Cap
52 2 38mm x 50mm Angled Inner Cap
53 2 50mm Thick Square Inner Cap
54 1 Leg Lever Bumper
55 3 Large Cable Trap
56 2 Cable Ball
57 2 Cable Eye
58 1 Bench Cable
59 1 Low Cable
60 1 Carriage Cable
61 1 High Cable
62 1 M6 Washer
63 1 M10 x 86mm Bolt
64 1 38mm x 50mm Inner Cap
65 4 M10 x 81mm Bolt
66 2 M10 x 100mm Bolt
67 1 M10 x 91mm Bolt
68 1 M4 x 19mm Screw
69 2 M10 x 154mm Bolt
70 7 M10 x 78mm Bolt
71 3 M10 x 164mm Bolt
72 8 M6 x 16mm Bolt
73 5 M10 x 75mm Bolt
74 6 M10 x 62mm Carriage Bolt
75 2 M10 x 120mm Bolt
76 12 M10 x 45mm Bolt
77 55 M10 Nylon Locknut
78 4 M10 x 57mm Bolt
79 35 M10 Washer
80 3 M6 Locknut
81 2 M10 x 25mm Button Bolt
82 2 35mm Spacer
83 2 15mm Spacer
84 1 Ab Strap
85 2 Handle
86 1 Ankle Strap
87 1 Row Bar
88 2 Row Bar Grip
89 1 60mm Square Arched Cap
90 2 M10 x 97mm Bolt
91 1 M10 x 102mm Bolt
92 1 M5 Washer
93 2 Small Cable Trap
94 2 27mm Spacer
95 1 60mm Square Angled Cap
96 4 17mm Spacer
97 1 75mm Bushing (PP Material)
98 2 Weight Clip
99 4 Weight Clip Sleeve
# 1 User’s Manual
# 1 Exercise Guide
PART LIST—Model No. WEBE29910 R1201B
EXPLODED DRAWING—Model No. WEBE29910 R1201B
30
26
46
76
36
77
46
89
79
93
36
76
77
77
79
32
77
79
32
77
38
65
93
26
77
49
7
11
77
32
6
30
77
77
10
34
79
79
73
36
96
96
9
83
36
83
5
78
78
26
46
35
76
80
61
56
45
79
77
76
37
77
79
26
79
34
79
81
26
81
94
94
8
30
26
12
44
57
13
79
77
79
44
76
49
32
7
55
60
77
35
78
70
79
77
44
26
72
69
30
64
16
77
79
72
76
79
45
17
44
1
76
31
61
56
35
77
76
33
59
62
80
70
4
75
79
70
79
77
39
95
52
79
77
14
70
15
69
26
46
48
72
72
48
42
35
57
80
55
31
77
3
29
79
75
70
85
84
86
2
71
79
70
58
41
71
74
74
28
51
70
42
91
79
18
54
79
77
79
77
92
77
68
96
35
55
63
79
77
43
28
88
87
88
51
40
98
77
98
73
20
96
35
90
77
73
77
60
79
26
47
50
36
77
35
59
77
7777
99
99
77
42
22
21
50
19
49
41
48
42
74
90
26
25
77
77
48
41
48
74
23
47
76
66
48
50
97
27
24
76
53
53
74
50
42
58
67
79
82
50
79
82
77
Part No. 180771 R1201B Printed in China © 2001 ICON Health & Fitness, Inc.
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This
warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing
or repairing, at ICON's option, the product at one of its authorized service centers. All products for which warranty claim is made must be received by ICON at one of its authorized service centers with all freight and other
transportation charges prepaid, accompanied by sufficient proof of purchase. All returns must be pre-authorized by ICON. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center, products used for commercial or rental purposes, or products used as store display models. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection
with the use or performance of the product or damages with respect to any economic loss, loss of property,
loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential
damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein.
Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation
may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
To order replacement parts, simply call our Customer Service Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be prepared to give the following information:
1. The MODEL NUMBER of the product (WEBE29910)
2. The NAME of the product (WEIDER
®
PRO 575 weight bench)
3. The SERIAL NUMBER of the product (see the front cover of this manual)
4. The KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST and EXPLODED DRAWING at the
center of this manual).
ORDERING REPLACEMENT PARTS
Loading...
