QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you have
questions, or if there are missing
parts, we will guarantee complete
satisfaction through direct assistance from our factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL DIRECT
TO OUR TOLL-FREE CUSTOMER
HOT LINE. The trained technicians on our customer hot line
will provide immediate assistance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
Model No. WEBE29320
Serial No.
Write the serial number in the
space above for reference.
CAUTION
Read all precautions and instructions in this manual before
using this equipment. Save this
manual for future reference.
Serial
Number
Decal
USER’S MANUAL
Visit our website at
www.weiderfitness.com
new products, prizes,
fitness tips, and much more!
2
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
Note: A PART IDENTIFICATION CHART and a PART LIST/EXPLODED DRAWING are attached in the center of
this manual. Remove the PART IDENTIFICATION CHART and PART LIST/EXPLODED DRAWING before beginning assembly.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT
WEIDER is a registered trademark of ICON Health & Fitness, Inc.
The decal shown at the
right has been placed on
the weight bench in the
indicated locations. If
the decal is missing or
illegible, please call our
Customer Service
Department toll-free at
1-800-999-3756, Monday
through Friday, 6 a.m.
until 6 p.m. Mountain
Time, to order a free
replacement decal.
Apply the replacement
decal in the location
shown.
!
WARNING
• Misuse of this
product may result in
serious injury.
• Read user’s manual
and follow all warnings
and operating instructions prior to use.
• Do not allow children
on or around machine.
• Replace label if
damaged, illegible,
or removed.
1. Read all instructions in this manual before
using the weight bench. Use the weight
bench only as described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the weight bench are adequately informed of all precautions.
3. The weight bench is intended for home use
only. Do not use the weight bench in any
commercial, rental, or institutional setting.
4. Use the weight bench only on a level surface.
Cover the floor beneath the weight bench to
protect the floor.
5. Make sure all parts are properly tightened
each time you use the weight bench. Replace
any worn parts immediately.
6. Keep children under 12 and pets away from
the weight bench at all times.
7. Keep hands and feet away from moving parts.
8. Always wear athletic shoes for foot protection while exercising.
9. Make sure that the cables remain on the pulleys at all times. If the cables bind as you are
exercising, stop immediately and make sure
that the cables are on the pulleys.
10. Always set both weight gliders and both
safety spotters at the same height.
11. The weight bench is designed to support a
maximum user weight of 300 pounds. Do not
place more than 300 pounds, including the
barbell, on the weight gliders or safety spotters. Do not place more than 150 pounds on
the weight carriage or the leg lever. Note:
The weight bench does not include weights.
12. Always place an equal amount of weight on
each side of the weight carriage or barbell.
13. Always secure the weights with the weight
clips when they are mounted on the weight
carriage or barbell.
14. Always lower the weight carriage in a controlled manner; never let the weight carriage
drop.
15. Always remove the lat bar when performing
an exercise that does not require the use of
the lat bar.
16. Always move your bench out of the way
when performing an exercise that does not
use the bench.
17. If you feel pain or dizziness at any time while
exercising, stop immediately and begin cooling down.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
WARNING: To reduce the risk of serious injury, read the following important precautions
before using the weight bench.
IMPORTANT PRECAUTIONS
3
4
Upright
Lat Tower
Weight Guide
Lat Bar
High Pulley Station
Low Pulley Station
Weight Glider
Barbell
Weight Carriage
Foot Plate
Safety Spotter
Right Side
Left Side
Note: The terms “right side” and “left side” are
determined relative to a user standing with his
back toward the weight rack; they do not refer to
right and left on the drawings in this manual.
Thank you for selecting the versatile WEIDER®PRO
375 weight bench. The PRO 375 weight bench is
designed to help you develop every major muscle
group of the body. Whether your goal is a shapely figure, dramatic increase in muscle size and strength, or
a healthier cardiovascular system, the weight bench
will help you achieve the specific results you want.
For your benefit, read this manual carefully before
using the weight bench. If you have additional ques-
tions, please call our Customer Service Department
toll-free at 1-800-999-3756, Monday through Friday,
6 a.m. until 6 p.m. Mountain Time (excluding holidays).
To help us assist you, please note the product model
number and serial number before calling. The model
number is WEBE29320. The serial number can be
found on a decal attached to the weight bench (see
the front cover of this manual).
Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.
Weight Tube
Curl Pad
Backrest
Backrest Knob
Leg Lever
Seat
BEFORE YOU BEGIN
5
Before beginning assembly, carefully read the
following information and instructions:
• Assembly requires two people.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
• As you assemble the weight bench, make sure all
parts are oriented as shown in the drawings.
• For help identifying small parts, refer to the
PART
IDENTIFICATION CHART.
The following tools (not included) are required
for assembly:
• Two adjustable wrenches
• One rubber mallet
• One standard screwdriver
• One Phillips screwdriver
• Lubricant, such as grease or petroleum jelly,
and soapy water.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
Make Things Easier for Yourself
Everything in this manual is designed to ensure
that the weight bench can be assembled successfully by anyone. However, it is important to
realize that the versatile weight bench has many
parts and that the assembly process will take
time. Most people find that by setting aside plenty of time, assembly will go smoothly.
ASSEMBLY

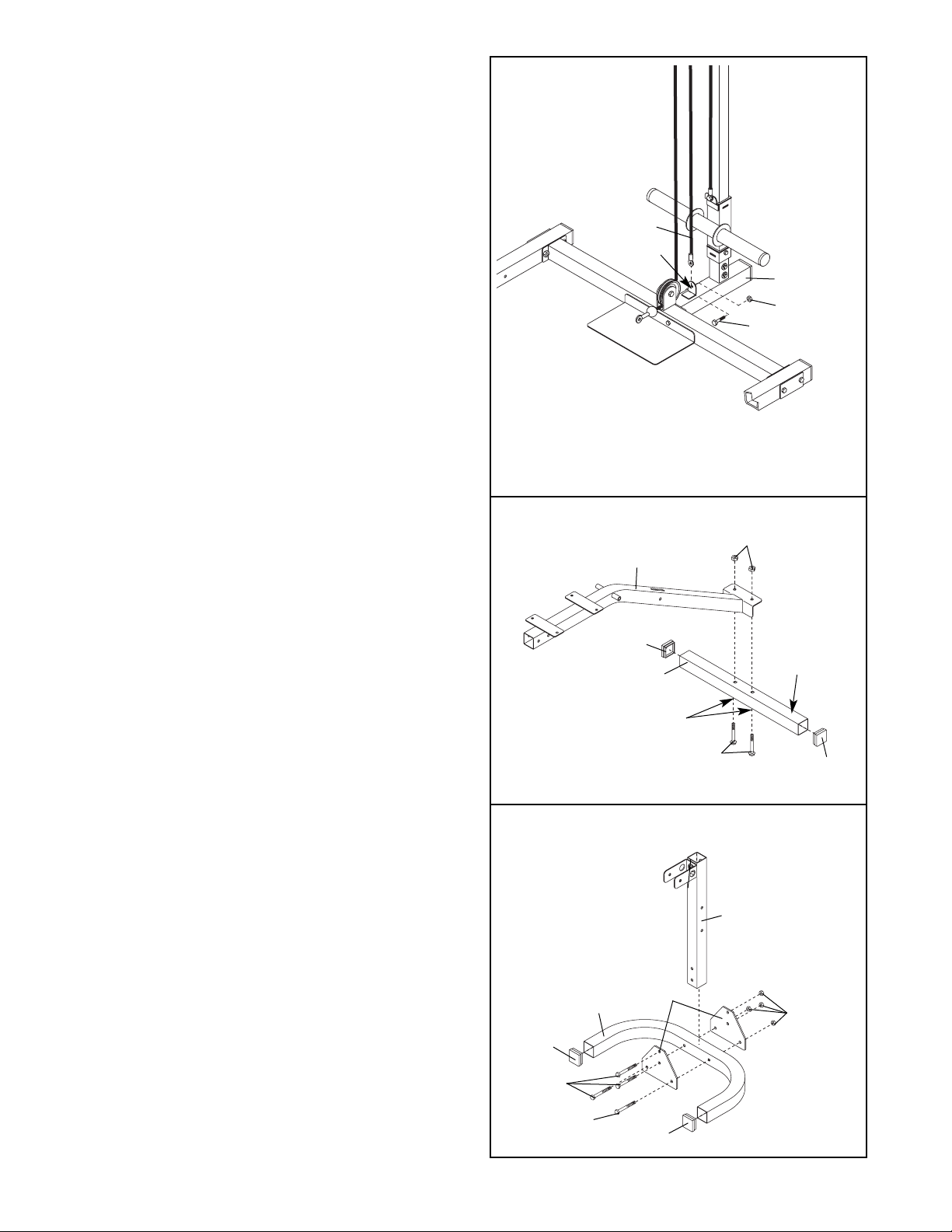

1. Before beginning, make sure you understand
the information in the box above. Note: Some
parts described in the assembly steps may be
pre-assembled.
Press a 60mm Square Inner Cap (55) into each
end of a Base (7). Attach the Base to the indicated end of the Base Crossbar (20) using a
Support Plate (57), two M10 x 80mm Bolts (41),
and two M10 Nylon Locknuts (11). Do not tight-
en the Nylon Locknuts yet.
Attach the other Base (not shown) to the opposite
end of the Base Crossbar (20) in the same manner.
2. Press a 60mm Square Inner Cap (55) into the
end of the Rear Base (3). Attach the Rear Base
and the Foot Plate (4) to the Base Crossbar (20)
using two M10 x 80mm Bolts (41) and two M10
Nylon Locknuts (11). Do not tighten the Nylon
Locknuts yet.
1
20
11
7
55
57
41
55
11
2
41
55
11
11
3
4
20
6

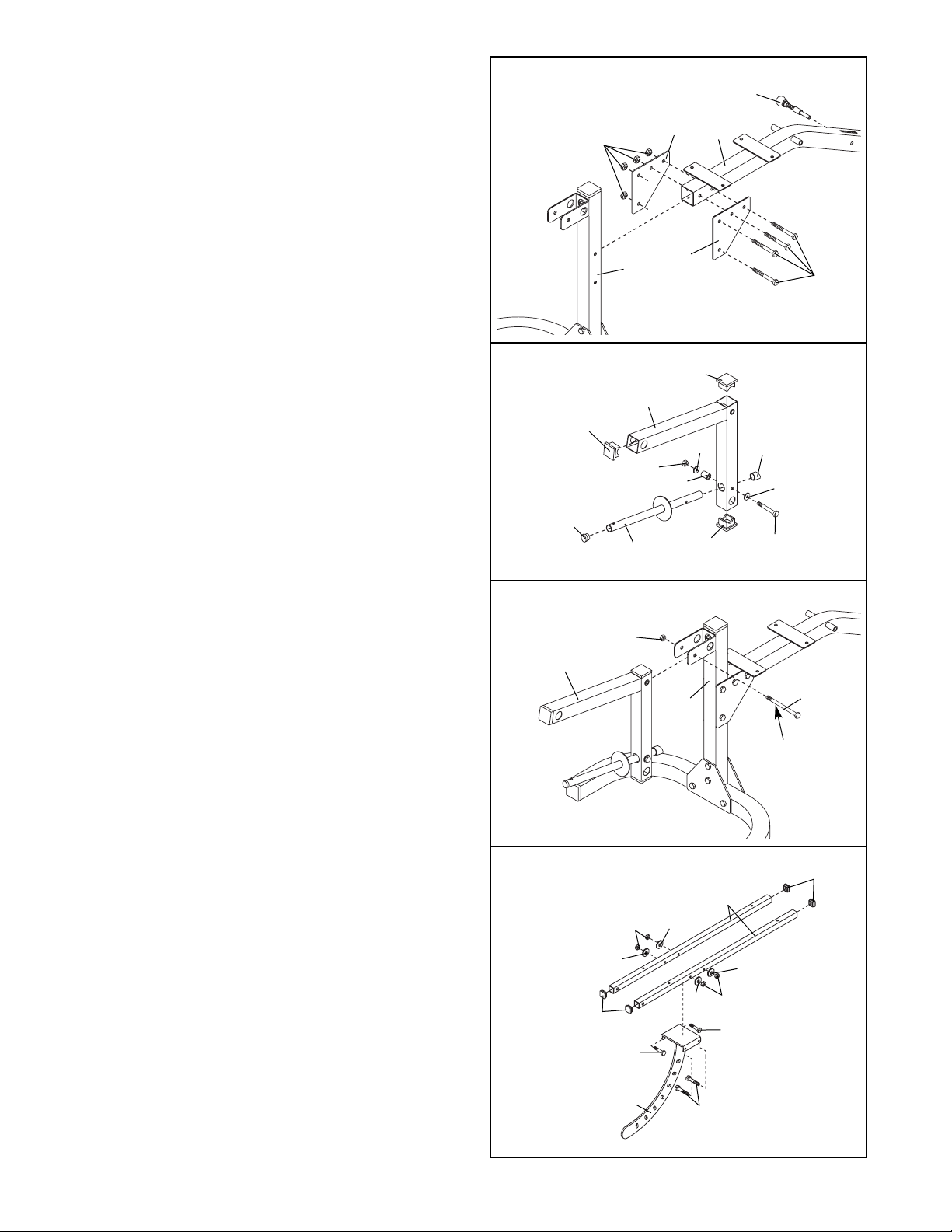

3. Attach an Upright (1) to each Base (7) using four
Joint Plates (12), eight M10 x 80mm Bolts (41),
and eight M10 Nylon Locknuts (11). Make sure
the Uprights are oriented exactly as shown. Do
not tighten the Nylon Locknuts yet.
3
1
1
41
12
12
7
7
12
12
11
41

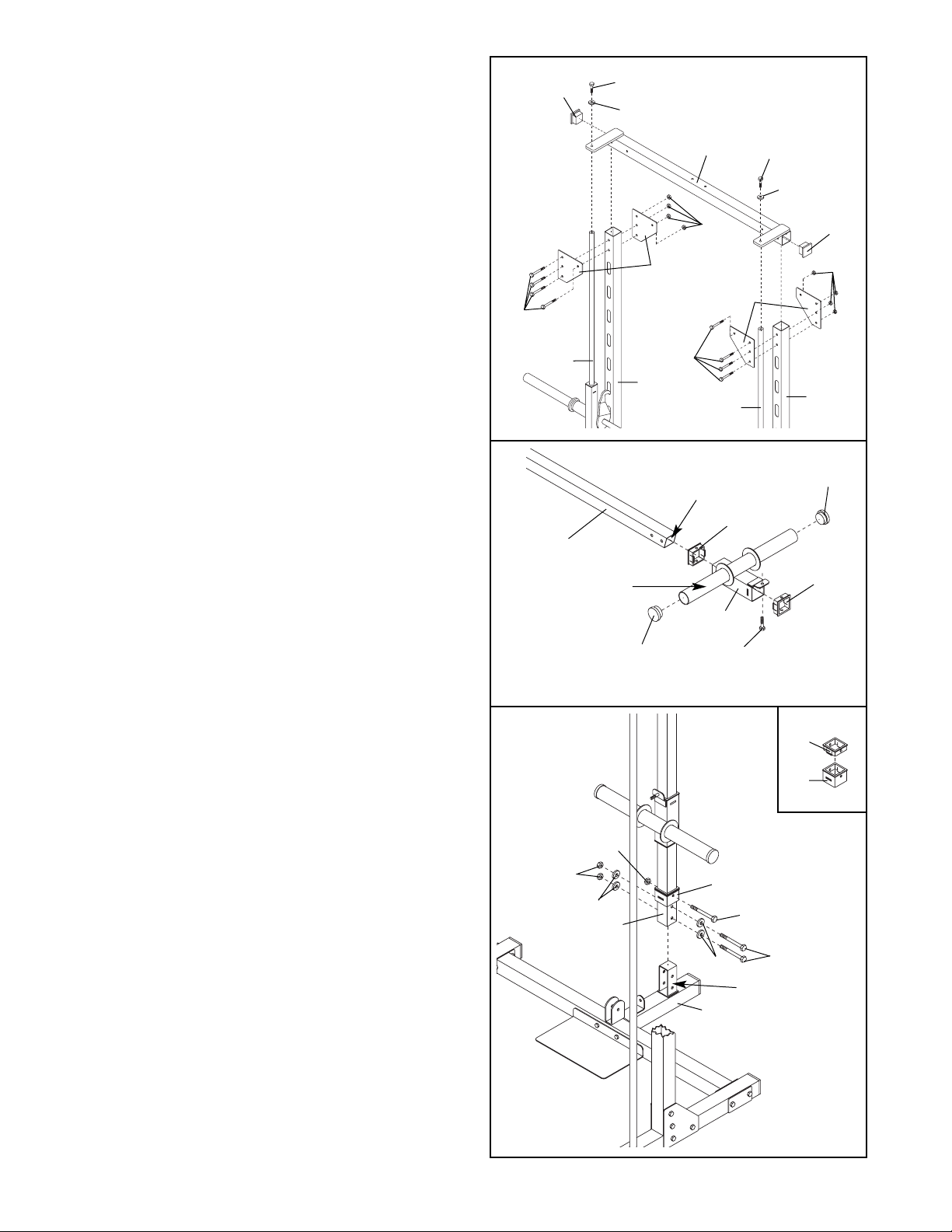

4. Insert a Weight Guide (18) into the indicated hole
in each Base (7). Attach the Weight Guides to the
Bases using two M10 x 75mm Bolts (39), four
M10 Small Washers (6), and two M10 Nylon
Locknuts (11). Do not tighten the Nylon
Locknuts yet.
5. Press a 25mm Bushing (48) into each end of the
Locking Bar (34). Slide the Barbell (35) into the
Locking Bar.
4
18
18
39
39
6
11
7
7
11
6
6
6
5
34
35
48
48
7
7. Press a 38mm Bushing (29) into each end of the
Left Weight Glider (32). Slide the Left Weight
Glider onto the indicated end of the Barbell (35)
and secure it to the Barbell using an M8 x 20mm
Screw (50). Do not tighten the Screw yet. Make
sure the Left Weight Glider is oriented exactly
as shown.
8. Press a 50mm Bushing (47) into the indicated
end of a Weight Adapter (33). Slide the Weight
Adapter onto the Barbell (35) and secure it to the
Barbell using a Large Washer (44) and an M10 x
25mm Bolt (43).
Attach the other Weight Adapter (33) to the other
end of the Barbell (35) in the same manner.
Tighten the M8 x 20mm Screws (50) used in
steps 6 and 7.
6
7
35
35
32
29
29
50
29
29
31
50
9. Note: This step requires the help of a second
person.
Slide the Right Safety Spotter (23) and the Left
Safety Spotter (24) onto the Weight Guides (18).
Make sure the Safety Spotters are oriented
exactly as shown.
Slide the assembled Locking Bar (34) and the
Right and Left Weight Gliders (31, 32) onto the
Weight Guides (18). Make sure the Locking Bar
and Weight Gliders are oriented exactly as
shown.
33
35
47
44
43
8
23
18
18
24
34
31
32
9
6. Press a 38mm Bushing (29) into each end of the
Right Weight Glider (31). Slide the Right Weight
Glider onto the indicated end of the Barbell (35)
and attach it to the Barbell using an M8 x 20mm
Screw (50). Do not tighten the Screw yet. Make
sure the Right Weight Glider is oriented exactly as shown.
8
10. Press a 60mm Square Inner Cap (55) into each
end of the Top Crossbar (9). Attach the Top
Crossbar to the Uprights (1) using four Joint
Plates (12), eight M10 x 80mm Bolts (41), and
eight M10 Nylon Locknuts (11). Do not tighten
the Nylon Locknuts yet.
Secure the Top Crossbar (9) to the Weight
Guides (18) using two M10 x 30mm Bolts (38)
and two M10 Small Washers (6).
11. Press Carriage Bushings (27) into the ends of the
Weight Carriage (22). Press two 50mm Round
Inner Caps (25) into the ends of the weight tube
on the Weight Carriage.
Insert an M10 x 20mm Bolt (26) into the bracket
on the Weight Carriage (22).
Slide the Weight Carriage (22) onto the Rear
Upright (2) as shown. Make sure that the
Weight Carriage and the Rear Upright are oriented as shown.
9
38
38
55
55
11
1
1
18
18
41
41
12
12
11
6
6
10

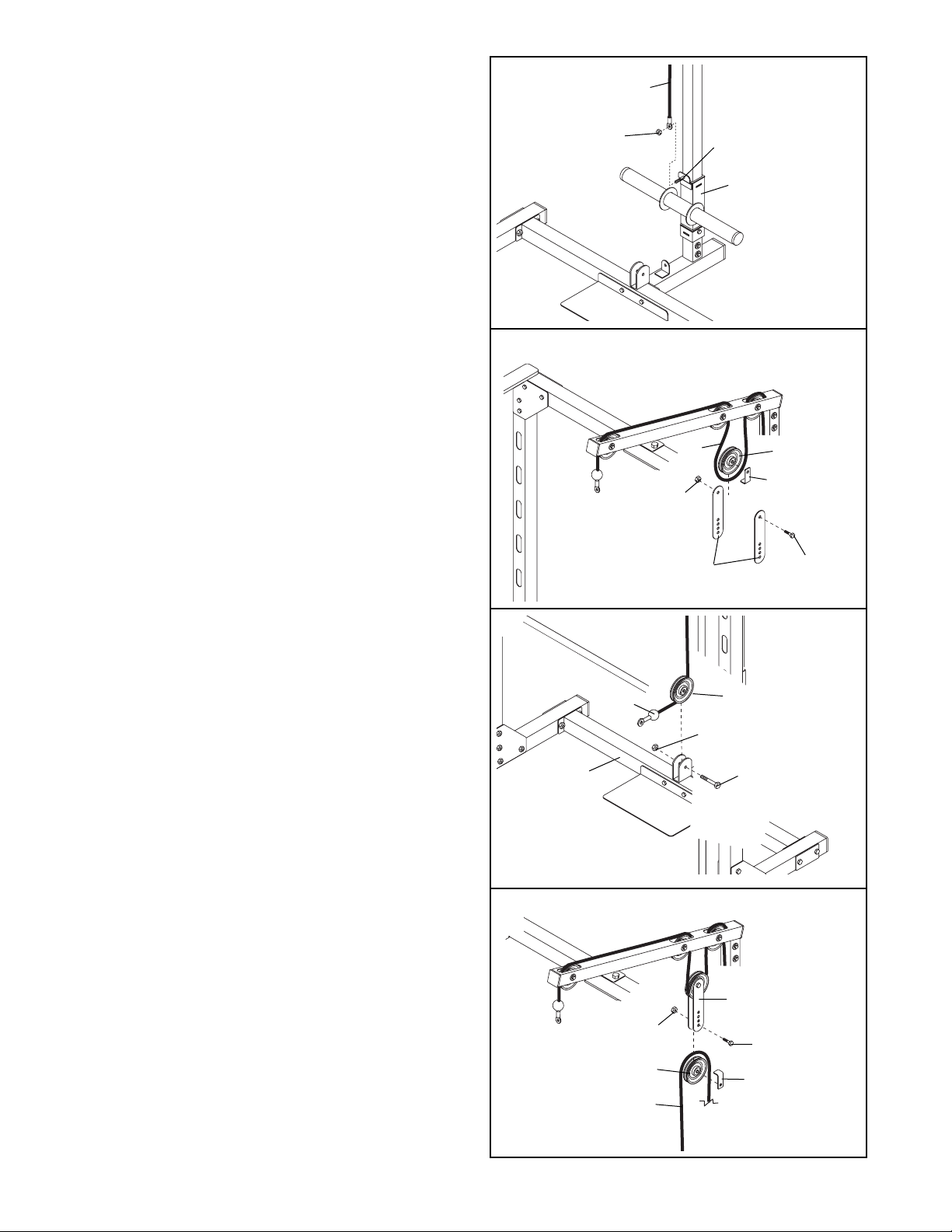

12. Refer to the inset drawing. Press a Carriage
Bushing (27) into the top of the Carriage Stop
(28) as shown.
Slide the Carriage Stop (28) onto the lower end of
the Rear Upright (2). Attach the Carriage Stop to
the Rear Upright with an M8 x 70mm Bolt (30)
and an M8 Nylon Locknut (54).
Slide the Rear Upright (2) onto the bracket on the
Rear Base (3). Attach the Rear Upright to the
Rear Base using two M10 x 65mm Bolts (56),
four M10 Small Washers (6), and two M10 Nylon
Locknuts (11). Do not tighten the Nylon
Locknuts yet.
28
2
30
56
6
3
Bracket
6
11
54
12
27
28
22
26
27
27
25
25
Weight Tube
2
Angled End
11
9
13. Press a 50mm Square Inner Cap (10) into each
end of the Pulley Bar (59). Slide the bracket on
the Pulley Bar into the top of the Rear Upright (2).
Attach the Pulley Bar to the Rear Upright using
two M10 x 65mm Bolts (56), four M10 Small
Washers (6), and two M10 Nylon Locknuts (11).
Attach the Pulley Bar (59) to the Top Crossbar (9)
using a Support Plate (57), two M10 x 80mm
Bolts (41), and two M10 Nylon Locknuts (11).
Tighten all M10 Nylon Locknuts (11) used in
steps 1–13.
15. Route the High Cable (13) around another Pulley
(5) and through the indicated slot in the Pulley
Bar (59) as shown. Attach the Pulley inside the
slot using an M10 x 65mm Bolt (56), two M10
Large Washers (58), two Pulley Spacers (15),
and an M10 Nylon Locknut (11). Do not over-
tighten the Nylon Locknut; the Pulley must be
able to turn freely.
16. Route the High Cable (13) up through the Pulley
Bar (59), around another Pulley (5), and back
down through the Pulley Bar, as shown. Attach
the Pulley inside the slot in the Pulley Bar using
an M10 x 65mm Bolt (56), two M10 Large
Washers (58), two Pulley Spacers (15), and an
M10 Nylon Locknut (11). Do not overtighten the
Nylon Locknut; the Pulley must be able to
turn freely.
56
58
5
59
15
15
13
Ball
11
58
14
56
58
59
58
11
13
5
15
15
15
57
41
10
10
11
11
59
6
9
56
Bracket
2
14. Identify the High Cable (13), which is the shorter
of the two Cables. Route the High Cable up
through the indicated slot in the Pulley Bar (59).
Make sure the ball is in the indicated location.
Route the High Cable (13) around a Pulley (5) as
shown. Attach the Pulley inside the slot in the
Pulley Bar (59) using an M10 x 65mm Bolt (56),
two M10 Large Washers (58), two Pulley Spacers
(15), and an M10 Nylon Locknut (11). Do not
overtighten the Nylon Locknut; the Pulley
must be able to turn freely.
13
16
5
15
56
58
15
11
58
13
59
10
17. Slide the indicated end of the High Cable (13)
onto the M10 x 20mm Bolt (26) in the Weight
Carriage (22). Tighten an M10 Nylon Locknut (11)
onto the Bolt.
18. Route the High Cable (13) around a Pulley (5) as
shown. Hold a Cable Trap (21) against the Pulley
and attach a Pulley Plate (19) to each side of the
Pulley using an M10 x 45mm Bolt (40) and an
M10 Nylon Locknut (11). Make sure the Cable
Trap holds the High Cable in the groove of the
Pulley. Do not overtighten the Nylon Locknut;
the Pulley must be able to turn freely.
19. Wrap the indicated end of the Low Cable (8)
around a Pulley (5). Attach the Pulley to the
bracket on the Base Crossbar (20) using an M10
x 45mm Bolt (40) and an M10 Nylon Locknut (11).
Do not overtighten the Nylon Locknut; the
Pulley must be able to turn freely.
20. Route the Low Cable (8) around a Pulley (5) as
shown. Hold a Cable Trap (21) against the Pulley
and attach the Pulley and Cable Trap to the lowest holes in the two Pulley Plates (19) using an
M10 x 45mm Bolt (40) and an M10 Nylon Locknut
(11). Make sure the Cable Trap holds the Low
Cable in the groove of the Pulley. Do not over-
tighten the Nylon Locknut; the Pulley must be
able to turn freely.
5
21
40
11
19
40
20
8
11
5
13
20
19
40
21
8
5
11
18
19
11
22
26
13
17
11
21. Attach the indicated end of the Low Cable (8) to
the bracket on the Rear Base (3) using an M10 x
20mm Bolt (26) and an M10 Nylon Locknut (11).
21
26
11
3
8
Bracket
22. Press two 50mm x 70mm Inner Caps (60) into
the ends of the Stabilizer (87).
Attach the Stabilizer (87) to the Bench Frame (63)
with two M10 x 60mm Carriage Bolts (64) and
two M10 Nylon Locknuts (11). Do not tighten the
Nylon Locknuts yet.
Note: The indents around the holes in the
Stabilizer (87) should be on the bottom, and
the decal should be in the indicated location.
23. Press two 50mm Square Inner Caps (10) into the
ends of the Front Leg Base (89).
Attach the Front Leg (73) to the Front Leg Base
(89) using the two Front Leg Plates (90), four
M10 x 70mm Bolts (85), and four M10 Nylon
Locknuts (11). Do not tighten the Nylon
Locknuts yet.
22
23
64
Indents
Decal
60
60
63
87
11
73
89
10
10
11
85
85
90
12
26. Lubricate an M10 x 70mm Bolt (85). Attach the
Leg Lever (72) to the Front Leg (73) with the Bolt
and an M10 Nylon Locknut (11). Do not over-
tighten the Nylon Locknut; the Leg Lever
must be able to pivot freely.
26
24. Attach the Front Leg (73) to the Bench Frame
(63) using two Small Joint Plates (91), four M10 x
70mm Bolts (85), and four M10 Nylon Locknuts
(11).
Tighten the M10 Nylon Locknuts (11) used in
steps 22–24.
Insert the Bench Knob (80) into the Bench Frame
(63) and tighten it fully.
27. Press four 25mm Square Inner Caps (79) into the
ends of the Backrest Frames (78).
Attach the Backrest Bracket (53) to the Backrest
Frames (78) with four M10 x 45mm Bolts (40),
four M10 Small Washers (6), and four M10 Nylon
Locknuts (11). Do not tighten the Nylon
Locknuts yet.
24
63
80
73
11
91
91
85
27
Lubricate
72
11
85
73
79
79
78
11
11
40
40
40
53
6
6
6
6
71
71
71
82
67
67
75
72
70
74
54
25
84
25. Press three 45mm Square Inner Caps (71) into
the Leg Lever (72). Press a 25mm Round Inner
Cap (84) into the indicated end of the Weight
Tube (75).
Attach the Weight Tube (75) to the Leg Lever (72)
with an M8 x 55mm Bolt (70), two M8 Flat
Washers (67), a 10mm Spacer (74), and an M8
Nylon Locknut (54).
Press an Angled Outer Cap (82) onto the back
end of the Weight Tube (75).
13
28
69
62
62
81
81
Wide
End
Wide
End
78
81
62
31. Press two 19mm Round Inner Caps (66) into
each of the three Pad Tubes (88). Slide the Pad
Tubes through the indicated holes in the Front
Leg (73) and the Leg Lever (72).
Slide two Foam Pads (65) onto each Pad Tube
(88).
30
31
68
63
88
88
66
65
65
65
72
73
65
53
61
66
66
66
29
76
6
6
Lubricate
63
11
80
78
29. Lubricate an M10 x 180mm Bolt (76). Attach the
Backrest Frames (78) to the Bench Frame (63)
with the Bolt, two M10 Small Washers (6), and an
M10 Nylon Locknut (11). Do not overtighten the
Nylon Locknut; the Backrest must be able to
pivot freely.
Pull the Bench Knob (80) out as far as it will go.
Slide the Backrest Bracket (53) into the indicated
slot on the Bench Frame (63). Engage the Bench
Knob into an adjustment hole in the Backrest
Bracket.
Tighten the M10 Nylon Locknuts (11) and the
M6 x 36mm Screws (62) used in steps 27 and
28.
30. Attach the Seat (68) to the Bench Frame (63)
with four M6 x 16mm Screws (61). Make sure
that the Seat is oriented as shown.
28. Attach the Backrest (69) to the Backrest Frames
(78) with four M6 x 36mm Screws (62) and four
M6 Washers (81). Make sure that the Backrest
is oriented as shown. Do not tighten the
Screws yet.
14
33. Make sure all parts are properly tightened
before you use the weight bench. The use of
all remaining parts will be explained in
ADJUSTMENTS, starting on the following
page.
32. Attach the Curl Pad (77) to the Curl Post (83) with
two M6 x 16mm Screws (61).
Press the two Weight Adapter Bushings (46) into
the Weight Adapter (42).
32
77
83
61
42
46
46
15
This section explains how to adjust the weight bench. See the EXERCISE GUIDELINES on page 18 for important information about how to get the most benefit from your exercise program. Also, refer to the accompanying
exercise guide to see the correct form for each exercise.
Make sure all parts are properly tightened each time the weight bench is used. Replace any worn parts immediately. The weight bench can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.
USING THE LOCKING BAR
Before starting an exercise, position the Locking Bar
(34) and the Safety Spotters (23, 24) in the correct
position for the exercise.
To do this, stand in front of the rack and grip the
Locking Bar (34) with both hands. Turn the Locking
Bar until the two hooks disengage the slots in the
Uprights (1). Raise or lower the Locking Bar to a new
position and turn it until the hooks engage the slots in
the Uprights. Note: Always start an exercise with
the barbell positioned at the lowest point to which
it will move during the exercise.
Position both Safety Spotters (23, 24) directly under
the Weight Gliders (31, 32). (See USING THE SAFETY SPOTTERS below.)
24
32
31
Hook
Hook
23
34
1
1
USING THE SAFETY SPOTTERS
To move the Safety Spotters (23, 24 [not shown]) to a
new position, grip the handles on the spotter hooks
and pull the hooks out of the slots in the Uprights (1).
Raise or lower the Safety Spotters to new positions
and pivot the hooks back into the slots in the
Uprights.
23
1
Handle
Hook
WARNING: Always set both Safety
Spotters (23, 24) at the same height.
16
13
14
ATTACHING THE LAT BAR TO THE HIGH PULLEY
STATION OR THE LOW PULLEY STATION
To use the high pulley station or the low pulley station, attach the Lat Bar (16) to the High Cable (13) or
the Low Cable (8 [not shown]) using a Cable Clip
(14).
WARNING: Always remove the Lat
Bar (16) when performing an exercise that does
not require the use of the Lat Bar.
ADJUSTMENTS
16
ATTACHING WEIGHTS TO THE BARBELL OR THE
WEIGHT CARRIAGE
To use the Barbell (35), slide the desired amount of
weight (not included) onto each end of the Barbell.
Secure the weights with Weight Clips (51).
Weights can be attached to the weight tube on the
Weight Carriage (22) in the same manner.
TIGHTENING THE CABLES
Woven cable, the type of cable used on the weight
rack, can stretch slightly when it is first used. If the
cables need to be tightened, remove the M10 Nylon
Locknut (11) and the M10 x 45mm Bolt (40) from the
lower ends of the Pulley Plates (19). Reattach the
Pulley (5) and Cable Trap (21) to the next higher hole
in the Pulley Plates with the Bolt and Nylon Locknut.
Make sure the Cable Trap holds the Low Cable (8) in
the groove of the Pulley. Repeat until the cables are
properly tightened. Do not overtighten the Nylon
Locknut; the Pulley must turn freely.
51
22
35
Weights
WARNING: Do not place more than
300 pounds on the Barbell (35). Do not place
more than 150 pounds on the Weight Carriage
(22). Always place the same amount of weight
on each side of the Barbell or the Weight
Carriage. Always secure weights with Weight
Clips (51).
19
40
21
8
5
11
REMOVING THE FOAM PADS
For some exercises, the indicated Foam Pads (65)
and Pad Tube (88) should be removed from the Front
Leg (73). To do this, slide one of the Foam Pads off
the Pad Tube, and then remove the Pad Tube.
65
65
88
73
USING THE LEG LEVER
To use the Leg Lever (72), slide the desired amount
of weight onto the Weight Tube (75).
To use Olympic weights with the Leg Lever (72), slide
the Weight Adapter (42) onto the Weight Tube (75).
Secure the Weight Adapter with the Weight Adapter
Pin (52).
72
75
52
42
Weight
WARNING: Do not place more than
150 pounds on the Weight Tube (75).
17
ADJUSTING THE BACKREST
The Backrest (69) can be adjusted to five positions.
To adjust the Backrest, pull the Backrest Knob (80)
out as far as it will go and move the Backrest up or
down. Reinsert the Knob through a hole in the
Backrest Bracket (53).
69
53
80
WARNING: Make sure the Backrest
Knob (80) is securely inserted into one of the
holes in the Backrest Bracket (53) before putting any weight on the Backrest (69).
ATTACHING THE CURL PAD
For some exercises, the Curl Pad (77) must be
attached to the weight bench. Insert the Curl Post
(83) into the Front Leg (73). Align the holes in the
Front Leg and the Curl Post. Secure the Curl Post
with the Curl Post Knob (86). Make sure that you
fully tighten the Curl Post Knob.
86
83
77
73
WARNING: When the Curl Pad (77)
is not in use, store it away from the bench so it
will not interfere with other exercises.
THE FOUR BASIC TYPES OF WORKOUTS
Muscle Building
To increase the size and strength of your muscles,
push them close to their maximum capacity. Your
muscles will continually adapt and grow as you progressively increase the intensity of your exercise. You
can adjust the intensity level of an individual exercise
in two ways:
• by changing the amount of weight used
• by changing the number of repetitions or sets per-
formed. (A “repetition” is one complete cycle of an
exercise, such as one sit-up. A “set” is a series of
repetitions.)
The proper amount of weight for each exercise
depends upon the individual user. You must gauge
your limits and select the amount of weight that is
right for you. Begin with 3 sets of 8 repetitions for
each exercise you perform. Rest for 3 minutes after
each set. When you can complete 3 sets of 12 repetitions without difficulty, increase the amount of weight.
Toning
You can tone your muscles by pushing them to a
moderate percentage of their capacity. Select a moderate amount of weight and increase the number of
repetitions in each set. Complete as many sets of 15
to 20 repetitions as possible without discomfort. Rest
for 1 minute after each set. Work your muscles by
completing more sets rather than by using high
amounts of weight.
Weight Loss
To lose weight, use a low amount of weight and
increase the number of repetitions in each set.
Exercise for 20 to 30 minutes, resting for a maximum
of 30 seconds between sets.
Cross Training
Cross training is an efficient way to get a complete
and well-balanced fitness program. An example of a
balanced program is:
• Plan weight training workouts on Monday,
Wednesday, and Friday.
• Plan 20 to 30 minutes of aerobic exercise, such as
cycling or swimming, on Tuesday and Thursday.
• Rest from both weight training and aerobic exercise
for at least one full day each week to give your body
time to regenerate.
The combination of weight training and aerobic exercise will reshape and strengthen your body, plus
develop your heart and lungs.
PERSONALIZING YOUR EXERCISE PROGRAM
Determining the exact length of time for each workout,
as well as the number of repetitions or sets completed, is an individual matter. It is important to avoid
overdoing it during the first few months of your exercise program. You should progress at your own pace
and be sensitive to your body’s signals. If you experience pain or dizziness at any time while exercising,
stop immediately and begin cooling down. Find out
what is wrong before continuing. Remember that adequate rest and a proper diet are important factors in
any exercise program.
WARMING UP
Begin each workout with 5 to 10 minutes of stretching
and light exercise to warm up. Warming up prepares
your body for more strenuous exercise by increasing
circulation, raising your body temperature and delivering more oxygen to your muscles.
WORKING OUT
Each workout should include 6 to 10 different exercises. Select exercises for every major muscle group,
emphasizing areas that you want to develop most. To
give balance and variety to your workouts, vary the
exercises from session to session.
Schedule your workouts for the time of day when your
energy level is the highest. Each workout should be
followed by at least one day of rest. Once you find the
schedule that is right for you, stick with it.
EXERCISE FORM
Maintaining proper form is an essential part of an
effective exercise program. This requires moving
through the full range of motion for each exercise,
and moving only the appropriate parts of the body.
Exercising in an uncontrolled manner will leave you
feeling exhausted. On the exercise guide accompanying this manual you will find photographs showing the
correct form for several exercises, and a list of the
muscles affected. Refer to the muscle chart on page
19 to find the names of the muscles.
The repetitions in each set should be performed
smoothly and without pausing. The exertion stage of
each repetition should last about half as long as the
return stage. Proper breathing is important. Exhale
during the exertion stage of each repetition and inhale
during the return stroke. Never hold your breath.
18
EXERCISE GUIDELINES
19
Rest for a short period of time after each set. The
ideal resting periods are:
• Rest for three minutes after each set for a muscle
building workout.
• Rest for one minute after each set for a toning work-
out.
• Rest for 30 seconds after each set for a weight loss
workout.
Plan to spend the first couple of weeks familiarizing
yourself with the equipment and learning the proper
form for each exercise.
COOLING DOWN
End each workout with 5 to 10 minutes of stretching.
Include stretches for both your arms and legs. Move
slowly as you stretch and do not bounce. Ease into
each stretch gradually and go only as far as you can
without strain. Stretching at the end of each workout
is an effective way to increase flexibility.
STAYING MOTIVATED
For motivation, keep a record of each workout. List
the date, the exercises performed, the weight used,
and the numbers of sets and repetitions completed.
Record your weight and key body measurements at
the end of every month. Remember, the key to
achieving the greatest results is to make exercise a
regular and enjoyable part of your everyday life.
MUSCLE CHART
A. Sternomastoid (neck)
B. Pectoralis Major (chest)
C. Biceps (front of arm)
D. Obliques (waist)
E. Brachioradials (forearm)
F. Hip Flexors (upper thigh)
G. Abductor (outer thigh)
H. Quadriceps (front of thigh)
I. Sartorius (front of thigh)
J. Tibialis Anterior (front of calf)
K. Soleus (front of calf)
L. Rectus Abdominus (stomach)
M. Adductor (inner thigh)
N. Trapezius (upper back)
O. Rhomboideus (upper back)
P. Deltoid (shoulder)
Q. Triceps (back of arm)
R. Latissimus Dorsi (mid back)
S. Spinae Erectors (lower back)
T. Gluteus Medius (hip)
U. Gluteus Maximus (buttocks)
V. Hamstring (back of leg)
W. Gastrocnemius (back of calf)
A
B
C
D
E
G
H
I
J
K
F
M
L
T
N
O
P
Q
R
S
U
V
W
Part No. 187095 R0702A Printed in China © 2002 ICON Health & Fitness, Inc.
To order replacement parts, simply call our Customer Service Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be prepared to give the following information when calling:
• The MODEL NUMBER of the product (WEBE29320)
• The NAME of the product (WEIDER
®
PRO 375 weight bench)
• The SERIAL NUMBER of the product (see the front cover of this manual)
• The KEY NUMBER and DESCRIPTION of the desired part(s) (see the PART LIST and the EXPLODED
DRAWING in the center of this manual)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be pre-authorized by ICON. This warranty does not
extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center; products
used for commercial or rental purposes; or products used as store display models. No other warranty
beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
ORDERING REPLACEMENT PARTS
Refer to the drawings below to identify small parts used in assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST in the center of this manual. Note: Some small
parts may have been pre-attached. If a part is not in the parts bag, check to see if it has been preattached.
PART IDENTIFICATION CHART
M6 Washer (81)
M8 Flat Washer (67)
M10 Large Washer (58)
M10 Small
Washer (6)
M8 Nylon Locknut (54)
M6 x 16mm Bolt (61)
M8 x 20mm Screw (50)
M10 x 20mm Bolt (26)
M10 x 25mm Bolt (43)
M10 Nylon Locknut (11)
M10 x 80mm Bolt (41)
M10 x 75mm Bolt (39)
M10 x 70mm Bolt (85)
M10 x 180mm Bolt (76)
M8 x 70mm Bolt (30)
M10 x 30mm Bolt (38)
M6 x 36mm Bolt (62)
M10 x 45mm Bolt (40)
M10 x 65mm Bolt (56)
M10 x 60mm Carriage Bolt (64)
M8 x 55mm Bolt (70)
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of the user’s manual for information about ordering replacement parts.
Key No. Qty. Description Key No. Qty. Description
1 2 Upright
2 1 Rear Upright
3 1 Rear Base
4 1 Foot Plate
5 6 Pulley
6 20 M10 Small Washer
7 2 Base
8 1 Low Cable
9 1 Top Crossbar
10 4 50mm Square Inner Cap
11 56 M10 Nylon Locknut
12 8 Joint Plate
13 1 High Cable
14 1 Cable Clip
15 6 Pulley Spacer
16 1 Lat Bar
17 2 Plastic Handle
18 2 Weight Guide
19 2 Pulley Plate
20 1 Base Crossbar
21 2 Cable Trap
22 1 Weight Carriage
23 1 Right Safety Spotter
24 1 Left Safety Spotter
25 2 50mm Round Inner Cap
26 2 M10 x 20mm Bolt
27 3 Carriage Bushing
28 1 Carriage Stop
29 4 38mm Bushing
30 1 M8 x 70mm Bolt
31 1 Right Weight Glider
32 1 Left Weight Glider
33 2 Weight Adapter
34 1 Locking Bar
35 1 Barbell
36 1 Left Spotter Hook
37 1 Right Spotter Hook
38 2 M10 x 30mm Bolt
39 2 M10 x 75mm Bolt
40 7 M10 x 45mm Bolt
41 24 M10 x 80mm Bolt
42 1 Weight Adapter
43 4 M10 x 25mm Bolt
44 2 Large Washer
45 4 Weight Clip Cover
46 2 Weight Adapter Bushing
47 2 50mm Bushing
48 2 25mm Bushing
49 8 45mm Square Bushing
50 2 M8 x 20mm Screw
51 2 Weight Clip
52 1 Weight Adapter Pin
53 1 Backrest Bracket
54 2 M8 Nylon Locknut
55 7 60mm Square Inner Cap
56 7 M10 x 65mm Bolt
57 3 Support Plate
58 6 M10 Large Washer
59 1 Pulley Bar
60 2 50mm x 70mm Inner Cap
61 6 M6 x 16mm Screw
62 4 M6 x 36mm Screw
63 1 Bench Frame
64 2 M10 x 60mm Carriage Bolt
65 6 Foam Pad
66 6 19mm Round Inner Cap
67 2 M8 Flat Washer
68 1 Seat
69 1 Backrest
70 1 M8 x 55mm Bolt
71 3 45mm Square Inner Cap
72 1 Leg Lever
73 1 Front Leg
74 1 10mm Spacer
75 1 Weight Tube
76 1 M10 x 180mm Bolt
77 1 Curl Pad
78 2 Backrest Frame
79 4 25mm Square Inner Cap
80 1 Bench Knob
81 4 M6 Washer
82 1 Angled Outer Cap
83 1 Curl Post
84 1 25mm Round Inner Cap
85 9 M10 x 70mm Bolt
86 1 Curl Post Knob
87 1 Stabilizer
88 3 Pad Tube
89 1 Front Leg Base
90 2 Front Leg Plate
91 2 Small Joint Plate
# 1 User’s Manual
# 1 Exercise Guide
PART LIST—Model No. WEBE29320 R0702A
EXPLODED DRAWING—Model No. WEBE29320 R0702A
25
26
27
22
27
13
11
10
25
15
5
5
58
15
11
15
41
15
5
14
13
15
11
11
45
51
12
45
51
11
80
65
12
63
6
91
76
11
86
66
88
66
68
27
56
58
11
59
58
58
11
10
6
38
55
41
87
11
60
6
92
91
11
71
88
66
65
58
30
28
54
56
6
6
6
38
56
57
9
41
60
85
61
65
73
85
67
82
72
67
54
74
66
66
71
65
11
11
12
12
2
70
75
52
41
55
19
21
11
5
11
18
64
11
90
65
71
65
66
88
84
18
1
56
55
3
6
41
11
6
8
26
11
40
5
21
5
19
55
57
41
1
41
41
49
33
47
44
43
89
90
10
46
42
11
11
8
11
7
11
12
6
39
50
29
31
29
79
10
69
85
46
11
11
40
11
4
11
49
12
11
6
55
34
37
48
49
43
81
78
77
55
7
11
20
11
11
41
50
29
32
29
48
35
11
49
23
17
62
78
40
81
6
11
62
79
41
57
12
11
44
33
49
36
6
6
83
41
39
6
12
6
55
43
47
43
49
49
24
11
17
16
11
6
40
53
40
61
Loading...
