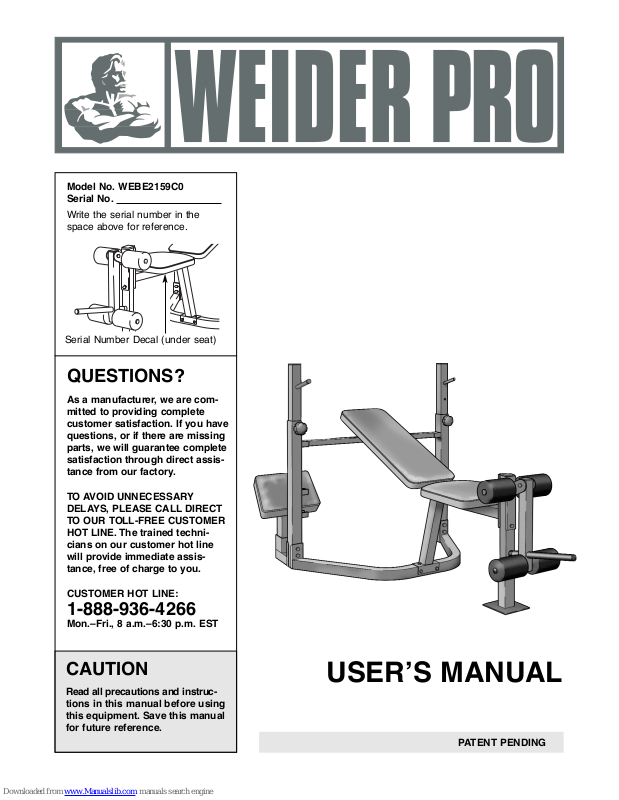

Page 1
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you have
questions, or if there are missing
parts, we will guarantee complete
satisfaction through direct assistance from our factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL DIRECT
TO OUR TOLL-FREE CUSTOMER
HOT LINE. The trained technicians on our customer hot line
will provide immediate assistance, free of charge to you.
CUSTOMER HOT LINE:
1-888-936-4266
Mon.–Fri., 8 a.m.–6:30 p.m. EST
Model No. WEBE2159C0
Serial No.
Write the serial number in the
space above for reference.
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
Serial Number Decal (under seat)
USER’S MANUAL
PATENT PENDING
Page 2
2
Warning Decal Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Important Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Part Identification Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Adjusting the Weight Bench . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Exercise Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Part List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

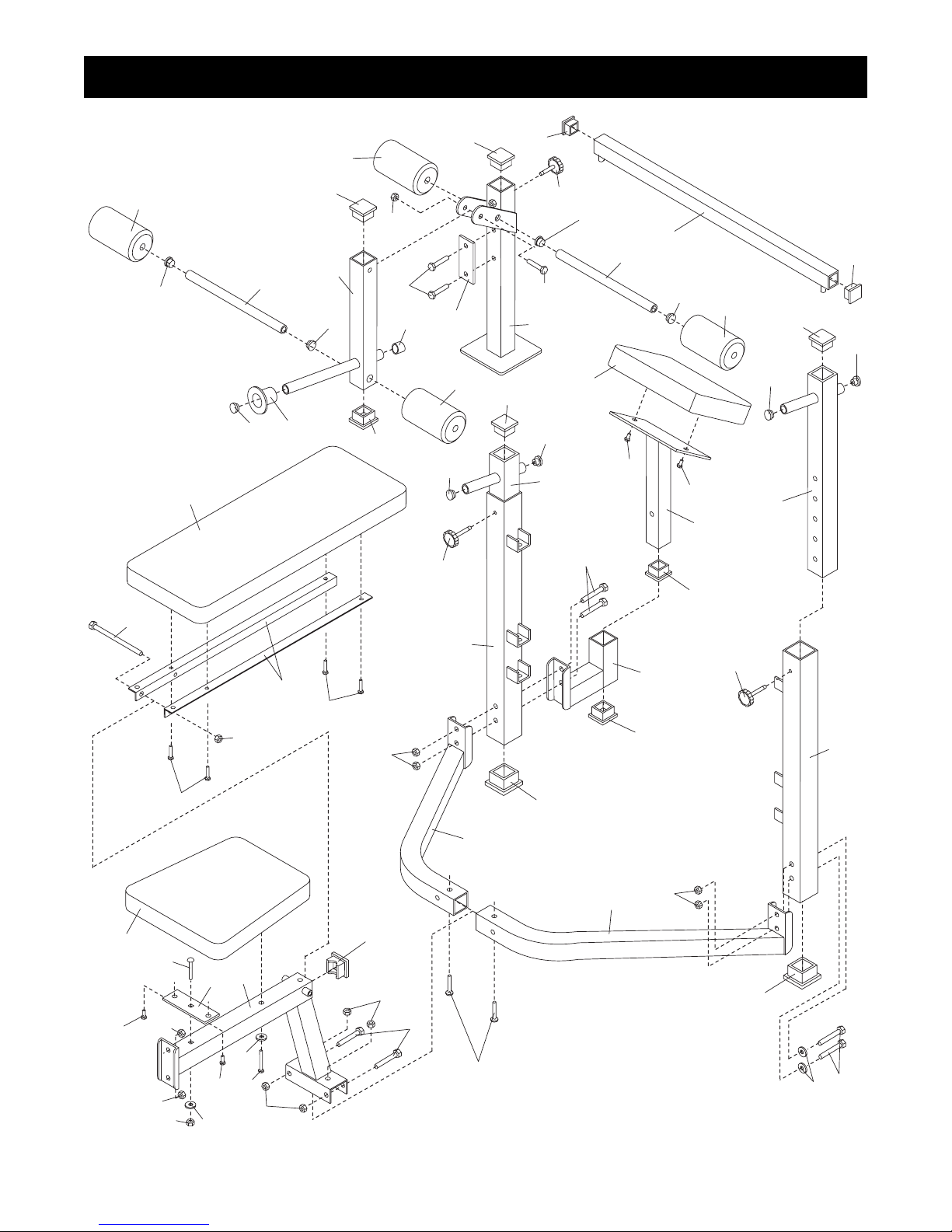

Exploded Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Ordering Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Customer Record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Warranty Registration Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Table of Contents

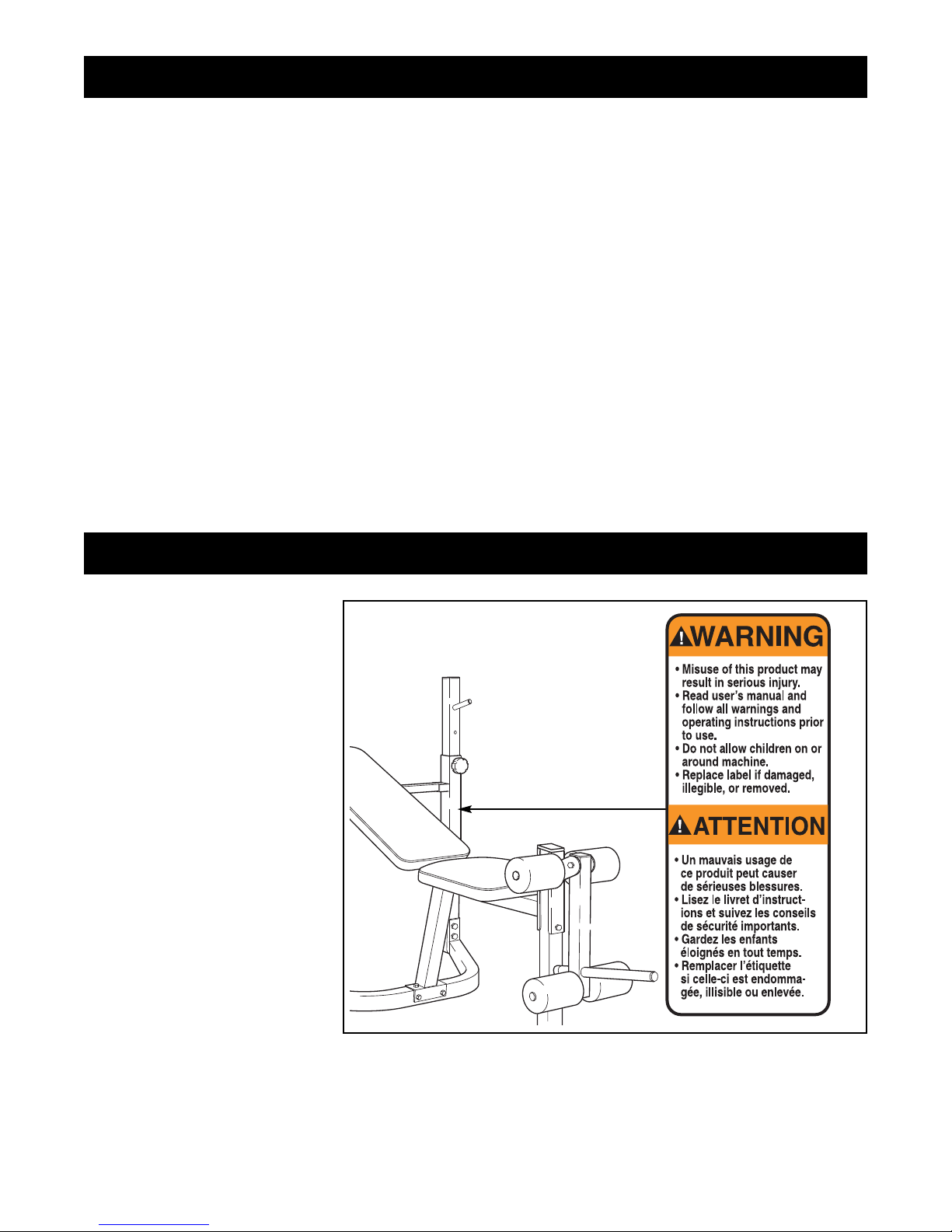

The decal shown to the right
has been placed on the weight
bench. If the decal is missing,
or if it is not legible, please call
our Customer Service
Department toll-free at 1-888936-4266, Monday through
Friday, 8 a.m. until 6:30 p.m.
Eastern Standard Time, to order
a replacement decal. Apply the
replacement decal in the location shown.
Warning Decal Placement
Page 3
3
1. Read all instructions in this manual before
using the weight bench. Use the weight
bench only as described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the weight bench are adequately informed of all precautions.
3. The weight bench is intended for home use
only. Do not use the weight bench in any
commercial, rental or institutional setting.
4. Use the weight bench only on a level surface.
Cover the floor beneath the weight bench for
protection.
5. Inspect and tighten all parts each time you
use the weight bench. Replace any worn
parts immediately.
6. Keep children under 12 and pets away from
the weight bench at all times.
7. Keep hands and feet away from moving parts.
8. Always wear athletic shoes for foot protection while exercising.
9. Do not use a barbell longer than six feet with
the weight bench.
10. Always make sure there is an equal amount
of weight on each side of your barbell.
11. The weight bench is designed to support a
maximum of 460 pounds, including the user,
a barbell and weights. Do not place more
than 210 pounds, including a barbell and
weights, on the weight rests. Do not place
more than 130 pounds on the leg lever for
normal use.
12. When performing squat exercises, always
place 50 pounds on the leg lever to balance
the bench.
13. Always fold the backrest out of the way when
performing squat exercises (see page 11).
Insert the adjustment knob into the hole in
the bench frame to hold the backrest in
place. Do not sit on the seat when the backrest is folded.
14. Do not stand with your back to the weight
bench when performing squat exercises (see
page 11). You should be able to see the
weight rests while exercising so that you can
safely return the barbell to the weight rests
when you finish the exercise.
15. When using the backrest, make sure the
adjustment tube is fully inserted into the
adjustment brackets on the uprights.
16. Always remove the curl post from the front
leg before performing leg curl or leg extension exercises with the leg lever (see page
10).
17. Always set both weight rests at the same
height. The long adjustment knob must
always be inserted through both the weight
rest and upright and firmly tightened. Never
tighten the long adjustment knob into an
upright and then set a weight rest in the
upright on top of the long adjustment knob.
18. Always exercise with a partner. When you
are performing bench press exercises, squat
exercises or toe raise exercises, your partner
should stand behind you to catch the barbell
if you cannot complete a repetition.
19. If you feel pain or dizziness at any time while
exercising, stop immediately and begin cooling down.
WARNING: Before beginning this or any exercise program, consult your physician. This is especially
important for persons over the age of 35 or persons with pre-existing health problems. Read all
instructions before using. ICON assumes no responsibility for personal injury or property damage
sustained by or through the use of this product.
To reduce the risk of serious injury, read the following important
precautions before using the weight bench.
WARNING:
Important Precautions
Page 4
4
Long Adjustment
Knob
Weight
Tube
Storage Post
Curl Pad
Backrest
Weight Rest
Leg Lever
Adjustment Brackets
Seat
Thank you for selecting the versatile WEIDER®PRO
215 Weight Bench. The PRO 215 is designed to help
you develop every major muscle group of the body.
Whether your goal is a shapely figure, dramatic muscle size and strength or a healthier cardiovascular system, the PRO 215 Weight Bench will help you achieve
the specific results you want.
For your benefit, read this manual carefully before
using the WEIDER
®
PRO 215 Weight Bench. If you
have additional questions, please call our Customer
Service Department toll-free at 1-888-936-4266,
Monday through Friday, 8 a.m. until 6:30 p.m. Eastern
Standard Time (excluding holidays). To help us assist
you, please note the product model number and serial
number before calling. The model number is
WEBE2159C0. The serial number can be found on a
decal attached to the PRO 215 Weight Bench (see the
front cover of this manual).

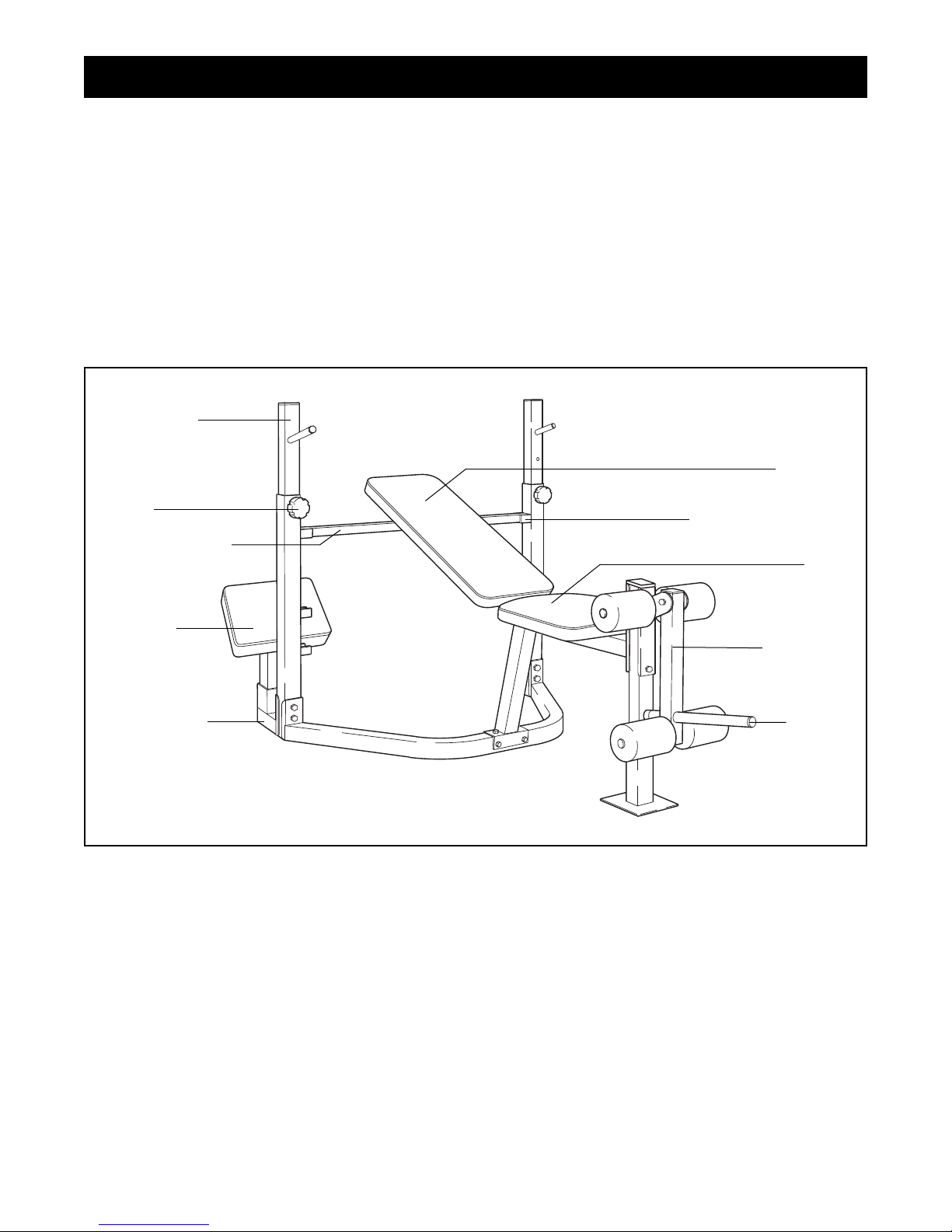

Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.
Before You Begin
Adjustment Tube
Page 5
5

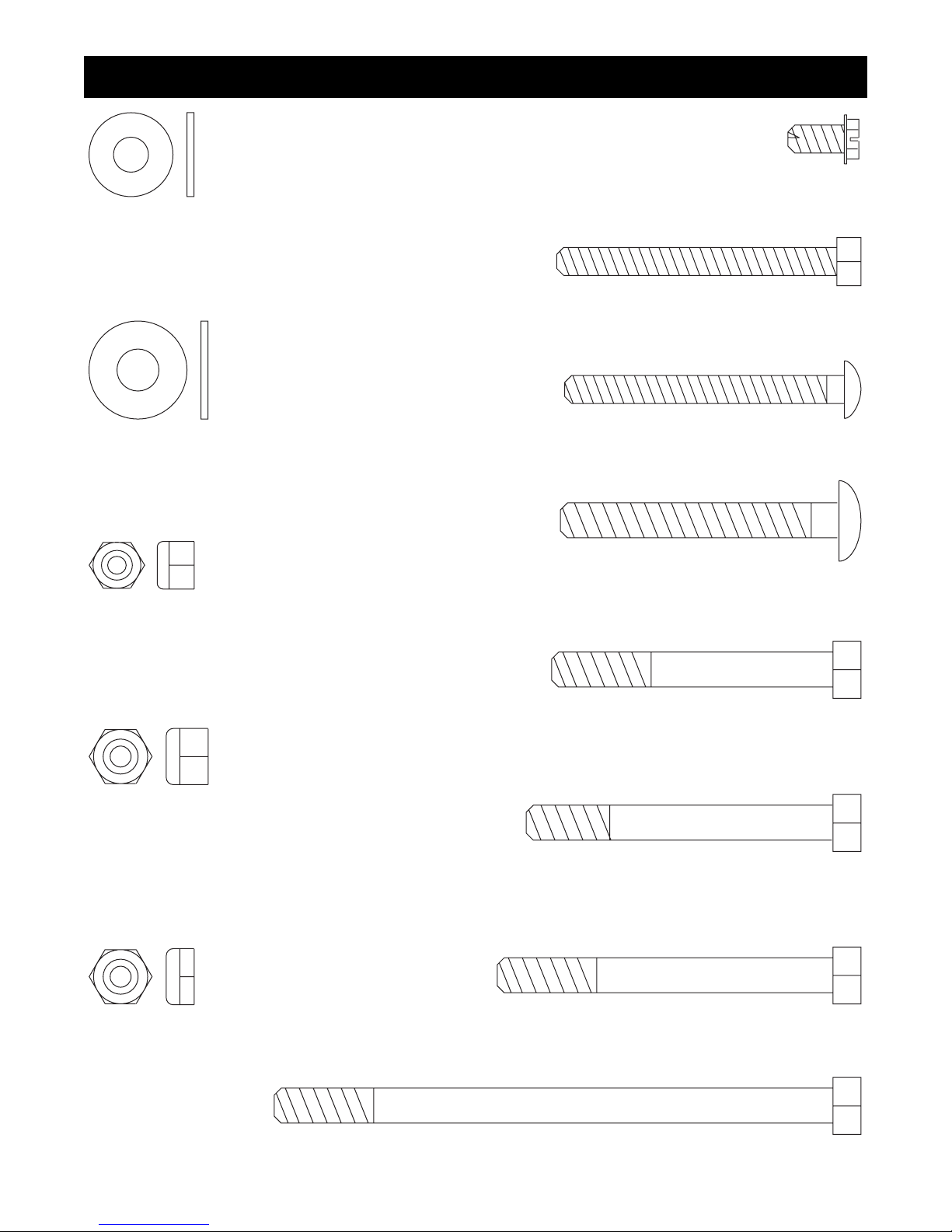

Part Identification Chart–Model No. WEBE2159C0
R0699A
1/4" Washer (16)
1/4" x 1/2" Screw (37)
1/4" x 2 1/2" Screw (36)
5/16" Washer (15)
1/4" x 2 1/2" Carriage Bolt (14)
1/4" Nylon Locknut (2)
5/16" Nylon Locknut (40)
5/16" Nylon Jamnut (39)
5/16" x 2 1/2" Carriage Bolt (35)
5/16" x 2 1/2" Bolt (41)
5/16" x 2 3/4" Bolt (42)
5/16" x 3" Bolt (32)
5/16" x 5" Bolt (43)
Page 6
6

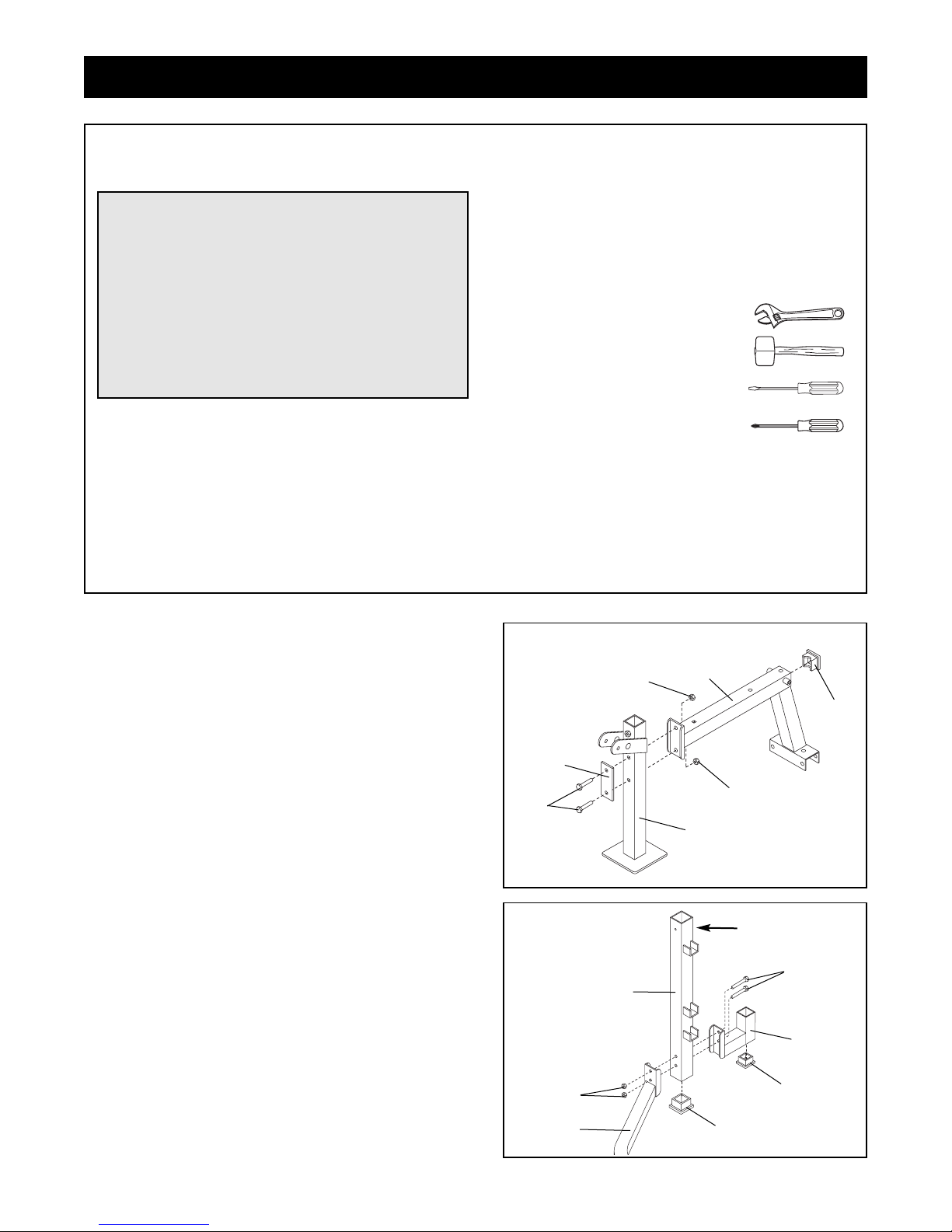

1. Before assembling this product, make sure you
have read and understand the information in the
box above.
Press the 2” Square Inner Cap With Slot (28) into the
Bench Frame (5).
Attach the Bench Frame (5) to the Front Leg (4) with
two 5/16” x 2 3/4” Bolts (42), the Support Plate (20)
and two 5/16” Nylon Locknuts (40). Do not tighten
the Nylon Locknuts yet.
2. Press a 2 1/4” Square Inner Cap (33) into the lower
end of the Left Upright (8). Do not confuse the Left
Upright with the Right Upright. Locate the welded
nut to identify each Upright.
Press a 2” Square Inner Cap (29) into the lower end
of the Storage Post (27).
Attach the Left Base (6) and the Storage Post (27) to
the Left Upright (8) with two 5/16” x 3” Bolts (32) and
two 5/16” Nylon Locknuts (40). Do not tighten the
Nylon Locknuts yet.
1
2
Before beginning assembly, carefully read the
following information and instructions:
• Assembly requires two people.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
• For help identifying the small parts, use the PART
IDENTIFICATION CHART on page 5.
• As you assemble the weight bench, make sure all
parts are oriented as shown in the drawings.
The following tools (not included) are required
for assembly:
• Two (2) adjustable wrenches
• One (1) rubber mallet
• One (1) standard screwdriver
• One (1) phillips screwdriver
• Lubricant, such as grease or petroleum jelly
plus soapy water.
Assembly will be more convenient if you have the
following tools: A socket set, a set of open-end or
closed-end wrenches or a set of ratchet wrenches.
Assembly
Make Things Easier for Yourself!
Everything in this manual is designed to ensure
that the assembly of our products can be completed successfully by anyone. However, it is important to recognize that your new equipment is a
sophisticated product with many small parts and
consequently, the assembly process will take
time. Most people find that by setting aside plenty
of time, and by deciding to make the task enjoyable, assembly will go smoothly.
40
5
42
40
4
28
20
29
33
27
8
Welded Nut
6
32
40
Page 7
7

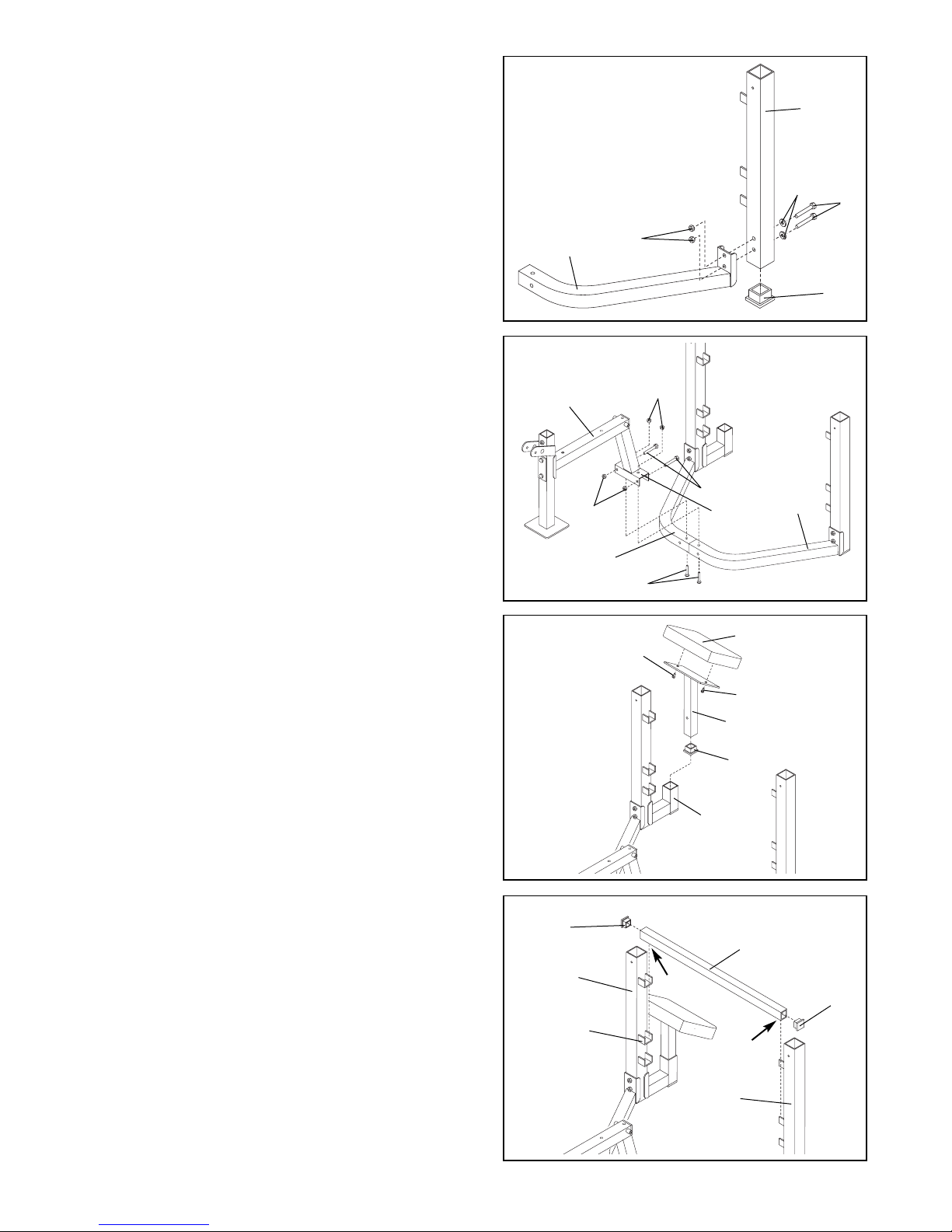

3. Press a 2 1/4” Square Inner Cap (33) into the lower
end of the Right Upright (9).
Attach the Right Base (7) to the Right Upright (9) with
two 5/16” x 3” Bolts (32), two 5/16” Washers (15) and
two 5/16” Nylon Locknuts (40).
4. Insert a 5/16” x 2 1/2” Carriage Bolt (35) through the
front hole in each Base (6, 7). Slide the mounting
bracket (A) on the Bench Frame (5) onto the Carriage
Bolts. Thread a 5/16” Nylon Locknut (40) onto each
Carriage Bolt. Do not tighten the Nylon Locknuts
yet.
Insert two 5/16” x 2 3/4” Bolts (42) through the mounting bracket (A) on the Bench Frame (5) and the
Bases (6, 7). Thread a 5/16” Nylon Locknut (40) onto
each Bolt. Now tighten the 5/16” Nylon Locknuts
(40) used in steps 1 through 4.
5. Press a 1 3/4” Square Inner Cap (19) into the lower
end of the Curl Post (10).
Attach the Curl Pad (24) to the Curl Post (10) with
two 1/4” x 1/2” Screws (37).
Slide the Curl Post (10) into the Storage Post (27).
6. Press a 1 1/4” Square Inner Cap (34) into each end
of the Adjustment Tube (12).
Insert the Adjustment Tube (12) into one set of adjustment brackets (B) on the Uprights (8, 9).
Make sure the Adjustment Tube (12) is oriented as
shown and that the pins on the Tube are fully
inserted into the slots in the adjustment brackets.
4
5
6
32
15
40
7
33
9
40
42
5
35
40
7
6
A
27
24
37
19
10
37
12
B
8
Pin
Pin
9
34
34
3
Page 8
8

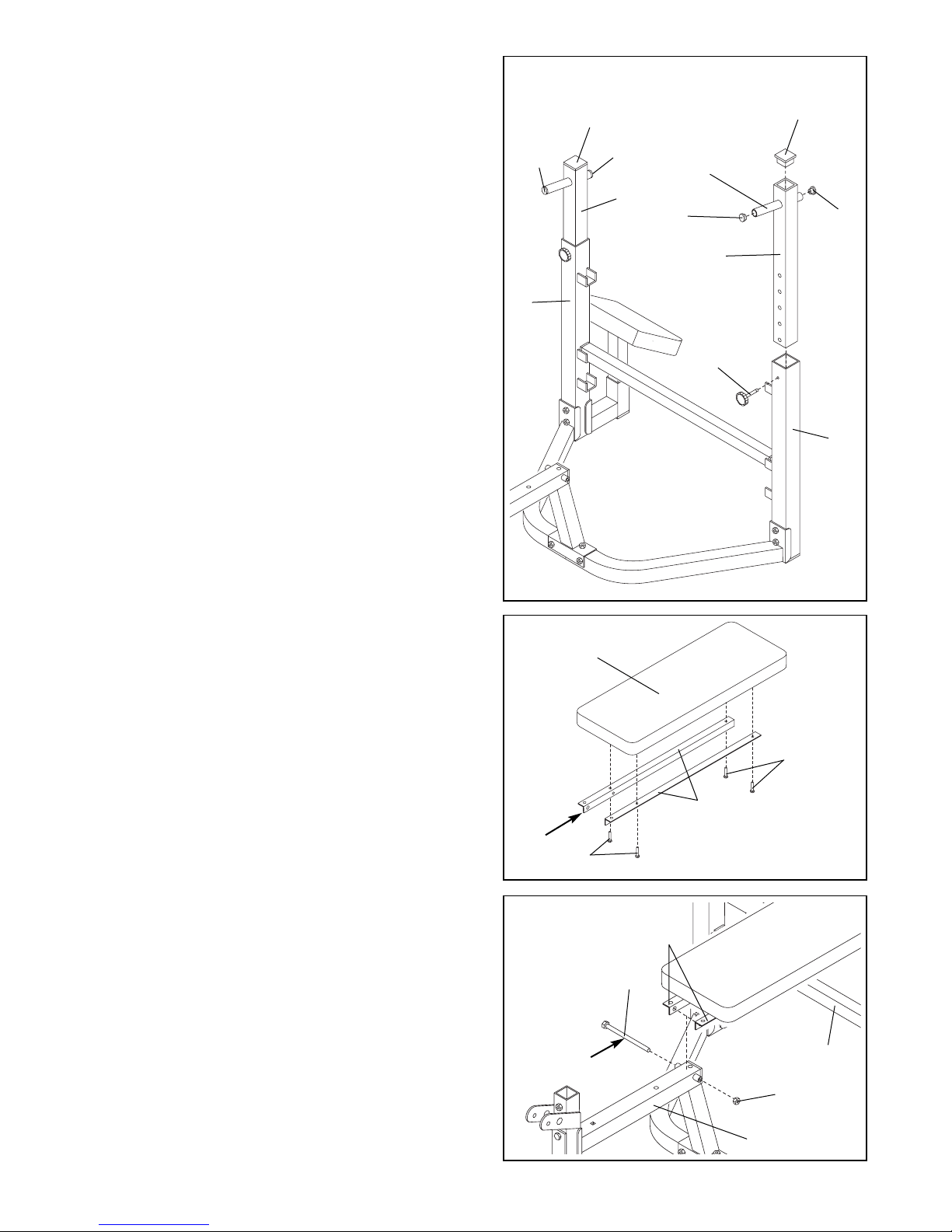

9. Lubricate a 5/16” x 5” Bolt (43). Attach the Backrest
Supports (13) to the Bench Frame (5) with the Bolt
and a 5/16” Nylon Locknut (40).
Make sure the Backrest Supports (13) are oriented as shown. Do not overtighten the Nylon
Locknut (40); the Backrest Supports must be able
to pivot freely.
Lower the Backrest (23) onto the Adjustment Tube
(12).
9
8. Attach the Backrest (23) to the Backrest Supports
(13) with four 1/4” x 1/2” Screws (37).
Make sure the Backrest Supports (13) are oriented
as shown. Note the holes on one end of the
Backrest Supports.
8
37
13
37
23
43
Lubricate
40
23
5
13
12
7. Press a 2” Square Inner Cap (29) into the upper end
of each Weight Rest (11).
Press a 1” Round Inner Cap (30) into each end of the
welded tube (C) on each Weight Rest (11).
Slide a Weight Rest (11) into the Right Upright (9).
Align one of the holes in the Weight Rest with the
hole in the Upright. Insert a Long Adjustment Knob
(25) through the Upright and the Weight Rest. Tighten
the Knob into the welded nut.
Insert the other Weight Rest (11) into the Left Upright
(8) in the same manner.
Both Weight Rests (11) must be set at the same
height.
7
29
11
30
30
30
8
C
11
25
30
9
Hole
Page 9
9
12. Lubricate the 5/16” x 2 1/2” Bolt (41).
Attach the Leg Lever (3) to the bracket (E) on the
Front Leg (4) with the Bolt (41) and a 5/16” Nylon
Jamnut (39).
12
39
3
41
E
4
Lubricate

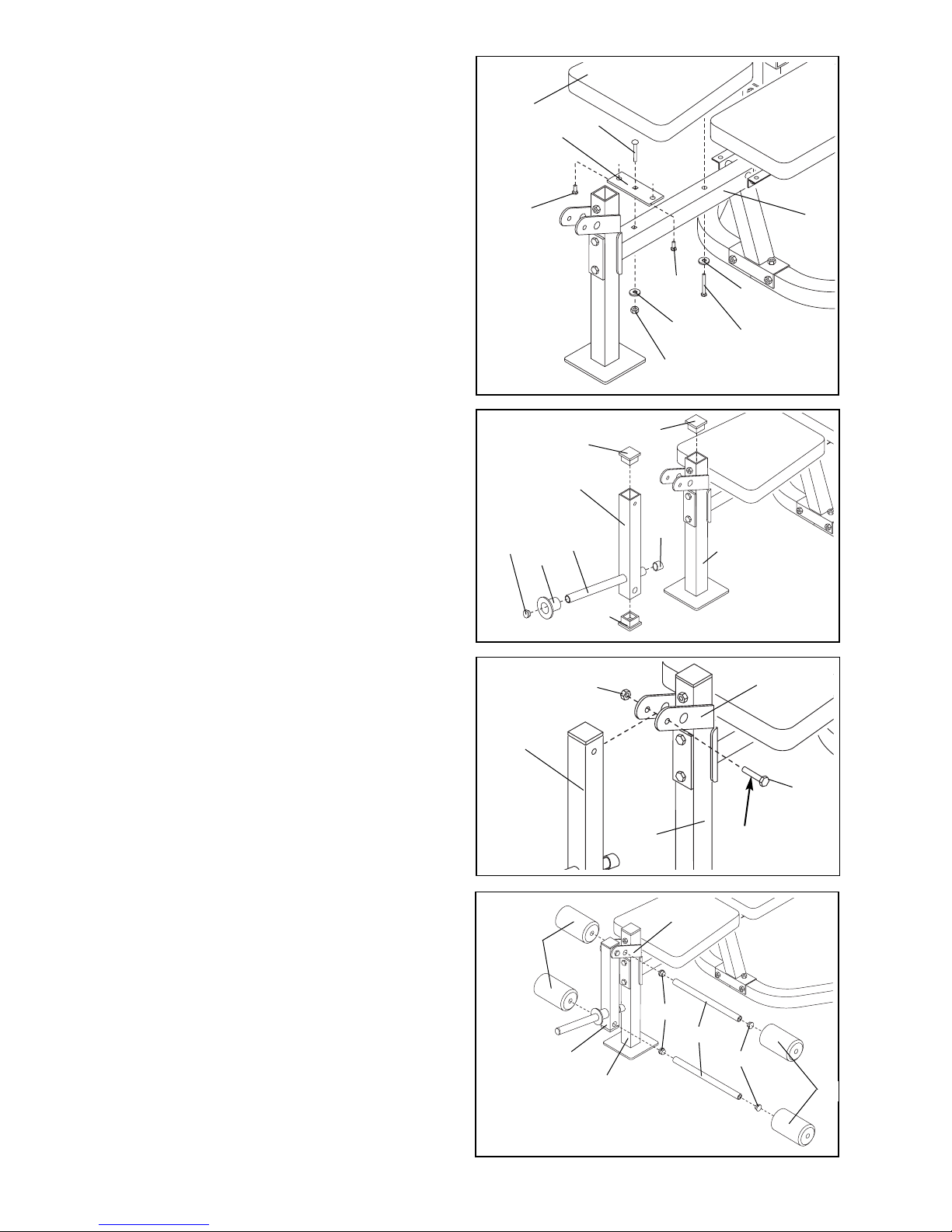

10. Insert the 1/4” x 2 1/2” Carriage Bolt (14) through the
hole in the Seat Plate (1).
Attach the Seat Plate (1) to the wide end of the Seat
(22) with two 1/4” x 1/2” Screws (37).
Insert the 1/4” x 2 1/2” Carriage Bolt (14) through the
hole in the Bench Frame (5) and secure it with a 1/4”
Washer (16) and a 1/4” Nylon Locknut (2).
Attach the narrow end of the Seat (22) to the Bench
Frame (5) with the 1/4” x 2 1/2” Screw (36) and a 1/4”
Washer (16).
11. Press a 1 3/4” Square Inner Cap (19) into each end
of the Leg Lever (3) and into the top end of the Front
Leg (4).
Press the 1” Round Angle Cap (38) onto the indicated
end of the weight tube (D). Now press a 1” Round
Inner Cap (30) into the opposite end of the weight
tube (D).
Slide the Weight Stop (21) onto the weight tube (D).
10
11
16
36
16
2
5
1
37
37
14
22
30
21
19
19
4
3
D
19
38
13. Press two 3/4” Round Inner Caps (31) into each Pad
Tube (17).
Insert a Pad Tube (17) through the hole in the Leg
Lever (3). Insert the other Pad Tube through the hole
in the bracket (E) on the Front Leg (4).
Slide two Foam Pads (18) onto each Pad Tube (17).
14. Make sure all parts are properly tightened before
you use the weight bench. The use of all remaining parts will be explained in Adjusting the Weight
Bench beginning on the next page.
13
18
E
4
17
31
31
3
18
Page 10
10

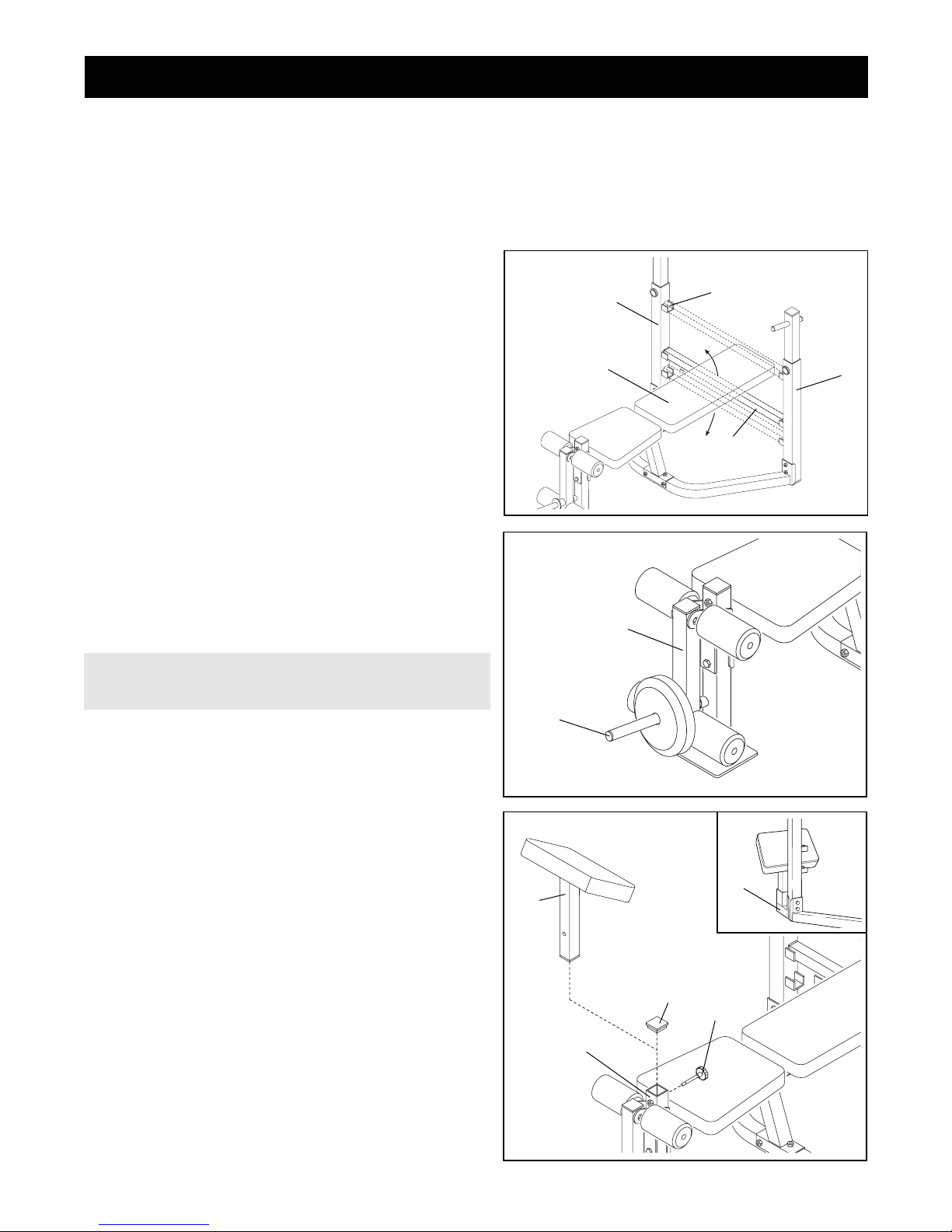

ADJUSTING THE BACKREST
The Backrest (23) can be set to three different positions:
a level position, a decline position and an incline position.
To change the position of the Backrest (23), move the
Adjustment Tube (12) to a different set of adjustment
brackets (B) on the Uprights (8, 9).
Make sure the Adjustment Tube (12) is securely seated in the adjustment brackets.
ATTACHING WEIGHTS TO THE LEG LEVER
To use the Leg Lever (3), first make sure the Weight Stop
(21, not shown) is on the weight tube (D). Then slide the
desired amount of weight (not included) onto the weight
tube.
This section explains how to adjust the weight bench. See the EXERCISE GUIDELINES on page 12 for important information on how to get the most benefit from your exercise program. Also, refer to the accompanying
exercise poster to see the correct form for each exercise.
Inspect and tighten all parts each time you use the weight bench. Replace any worn parts immediately. The
weight bench can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.
WARNING: Do not place more than 130 pounds on
the leg lever.
Adjusting the Weight Bench
23
8
9
12
B
3
D
ATTACHING THE CURL POST
For some exercises, the Curl Post (10) must be attached
to the weight bench.
Remove the 1 3/4” Square Inner Cap (19) from the Front
Leg (4). Insert the Curl Post (10) into the Front Leg. Align
the holes in the Front Leg and the Curl Post. Secure the
Curl Post with the Short Adjustment Knob (26). Make
sure that you fully tighten the Short Adjustment
Knob.
When the Curl Post (10) is not in use, store it in the
Storage Post (27) and insert the 1 3/4” Square Inner Cap
(19) back into the Front Leg (4).
26
10
19
4
27
Page 11
11

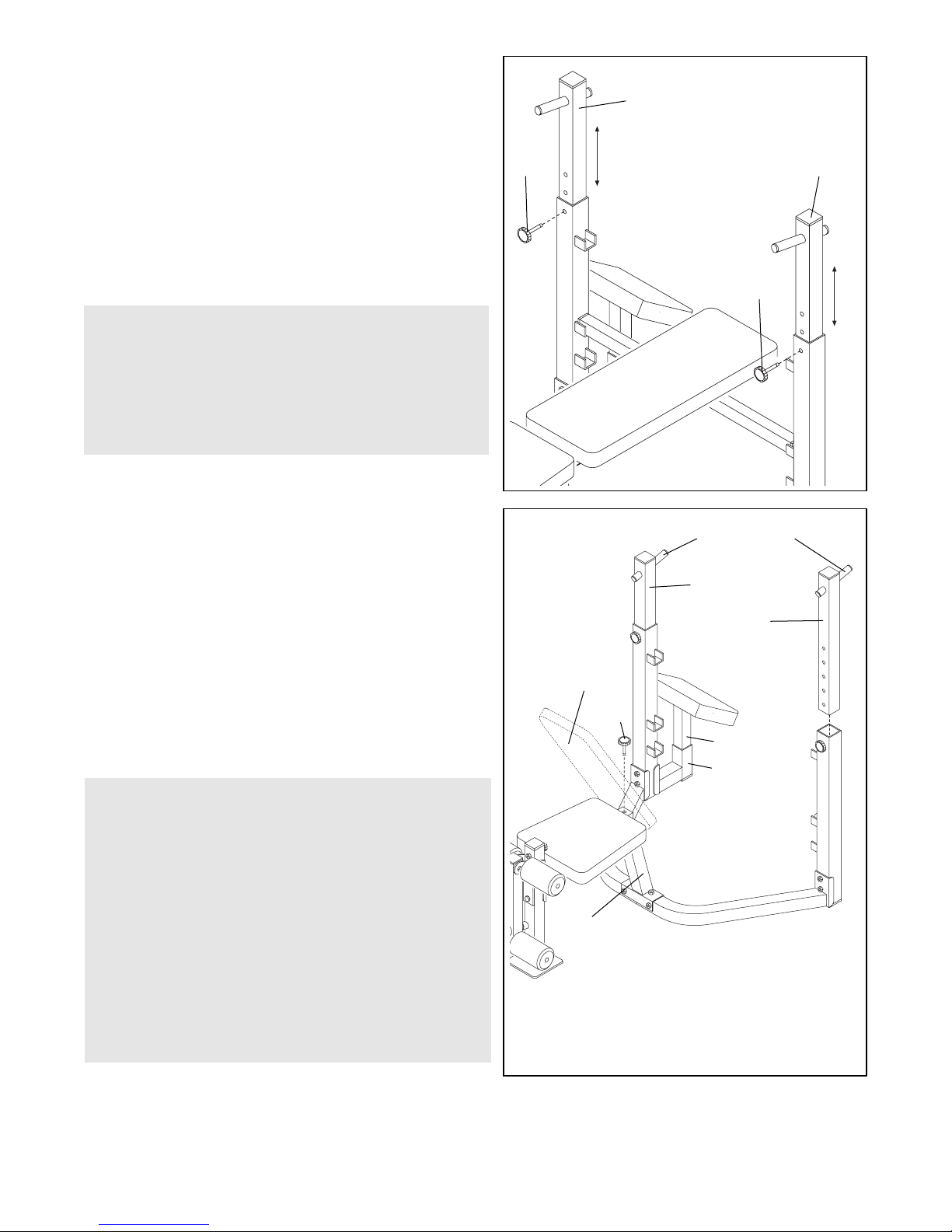

ADJUSTING THE WEIGHT RESTS
To change the height of the Weight Rests (11), first
remove the barbell (not included) from the Weight
Rests. Then remove the Long Adjustment Knob (25) from
the Weight Rest in one Upright. Position the Weight Rest
at the desired height or turn it around if needed. Align the
holes in the Weight Rest and the Upright. Secure the
Weight Rest with the Long Adjustment Knob. Make sure
that you fully tighten the Long Adjustment Knob.
Position the other Weight Rest (11) in the same manner.
Both Weight Rests must be set at the same height.
WARNING: Always set both weight rests at the
same height. The long adjustment knob must
always be inserted through both the weight rest
and upright and firmly tightened. Never tighten the
long adjustment knob into an upright and then set
a weight rest in the upright on top of the long
adjustment knob.
25
11
11
25
ADJUSTING THE BENCH FOR SQUAT EXERCISES
To perform squat or toe raise exercises, lift the Backrest
(23) to the upright position and pull it forward as far as it
will go. Insert the Adjustment Knob (26) into the hole in
the Bench Frame (5) to hold the Backrest in place.
Raise the Weight Rests (11) to the highest position and
turn them around (see ADJUSTING THE WEIGHT
RESTS above). The high side of the Welded Tubes
must be on the side shown.
Remove the Curl Post (10) from the Storage Post (27)
when performing squat or toe raise exercises.
WARNING: Always fold the backrest out of the way,
and lock it in place with the adjustment knob, when
performing squat exercises. Do not sit on the seat
when the backrest is folded.
WARNING: When performing squat exercises,
always place 50 pounds on the leg lever to balance
the bench.
WARNING: Do not stand with your back to the
weight bench when performing squat exercises.
You should be able to see the weight rests while
exercising so that you can safely return the barbell
when you finish the exercise.
11
Welded Tubes
23
26
27
10
11
5
Page 12
12
THE FOUR BASIC TYPES OF WORKOUTS
Muscle Building
The only way to increase the size and strength of
your muscles is to push them close to their maximum
capacity. When you progressively increase the intensity of your exercise, your muscles will continually
adapt and grow. You can tailor the individual exercise
to the proper intensity level in two ways:
• by changing the amount of weight used
• by changing the number of repetitions or sets per-
formed (a “repetition” is one complete cycle of an
exercise, such as one sit-up; a “set” is a series of
repetitions).
The proper amount of weight for each exercise obviously depends upon the individual user. You must
gauge your limits and select the amount of weight that
is right for you. Begin with 3 sets of 8 repetitions for
each exercise you perform. Rest for 3 minutes after
each set. When you can complete 3 sets of 12 repetitions without difficulty, increase the amount of weight.
Toning
You can tone your muscles by pushing them to a
moderate percentage of their capacity. Select a moderate amount of weight and increase the number of
repetitions in each set. Complete as many sets of 15
to 20 repetitions as possible without discomfort. Rest
for 1 minute after each set. Work your muscles by
completing more sets rather than by using high
amounts of weight.
Weight Loss
To lose weight, use a low amount of weight and
increase the number of repetitions in each set.
Exercise for 20 to 30 minutes, resting for a maximum
of 30 seconds between sets.
Cross Training
Many people desire a complete and well-balanced fitness program, and cross training is a very effective
way to accomplish this. One example of a balanced
program is:
• Plan weight training workouts on Monday,
Wednesday and Friday.
• Plan 20 to 30 minutes of aerobic exercise, such as
cycling or running on Tuesday and Thursday.
• Rest from both weight training and aerobic exercise
for at least one full day each week to give your body
time to regenerate.
The combination of weight training and aerobic exercise will reshape and strengthen your body plus
develop your heart and lungs.
PERSONALIZING YOUR EXERCISE PROGRAM
Specifying the appropriate length of time for each
workout, as well as the number of repetitions or sets
for each exercise, is a highly individual matter. It is
very important to avoid overdoing it during the first
few months of your exercise program. You should
progress at your own pace and be sensitive to your
body’s signals. If you experience pain or dizziness at
any time while exercising, stop immediately and begin
cooling down. Find out what is wrong before continuing. Remember that adequate rest and a proper diet
are important factors in any exercise program.
WARMING UP
Begin each workout with 5 to 10 minutes of stretching
and light exercise to warm up. Warming up prepares
your body for more strenuous exercise by increasing
circulation, raising your body temperature and delivering more oxygen to your muscles.
WORKING OUT
Each workout should include 6 to 10 different exercises. Select exercises for every major muscle group
with emphasis on the areas that you want to develop
the most. To give balance and variety to your workouts, vary the exercises from session to session.
Schedule your workouts for the time of day when your
energy level is the highest. Each workout should be
followed by at least one day of rest. Once you find the
schedule that is right for you, stick with it.
EXERCISE FORM
You will gain the greatest benefits from exercising by
maintaining proper form. This requires moving
through the full range of motion for each exercise and
moving only the appropriate parts of the body.
Exercising in an uncontrolled manner will leave you
feeling exhausted. On the exercise poster accompanying this manual, you will find photographs showing
the correct form for several exercises. A description of
each exercise is also provided, along with a list of the
muscles affected. Refer to the muscle chart on page
13 to find the locations of the muscles.
The repetitions in each set should be performed
smoothly and without pausing. The exertion stage of
each repetition should last about half as long as the
return stage. Proper breathing is important. Exhale
during the exertion stage of each repetition and inhale
during the return stroke. Never hold your breath!
You should rest for a short period of time after each
set. The following are guidelines for resting:
• Rest three minutes after each set for a muscle build-
Exercise Guidelines
Page 13
13
ing workout
• Rest one minute after each set for a toning workout
• Rest 30 seconds after each set for a weight loss
workout
Plan to spend the first couple of weeks familiarizing
yourself with the equipment and learning the proper
form for each exercise.
COOLING DOWN
End each workout with 5 to 10 minutes of stretching.
Include stretches for both your arms and legs. Move
slowly as you stretch and do not bounce. Ease into
each stretch gradually and go only as far as you can
without strain. Stretching at the end of each workout
is very effective for increasing flexibility.
STAYING MOTIVATED
For motivation, keep a record of each workout. List
the date, the exercises performed, the weight and the
numbers of sets and repetitions completed. Record
your weight and key body measurements at the end
of every month.
Remember, the key to achieving the greatest results
is to make exercise a regular and enjoyable part of
your everyday life.

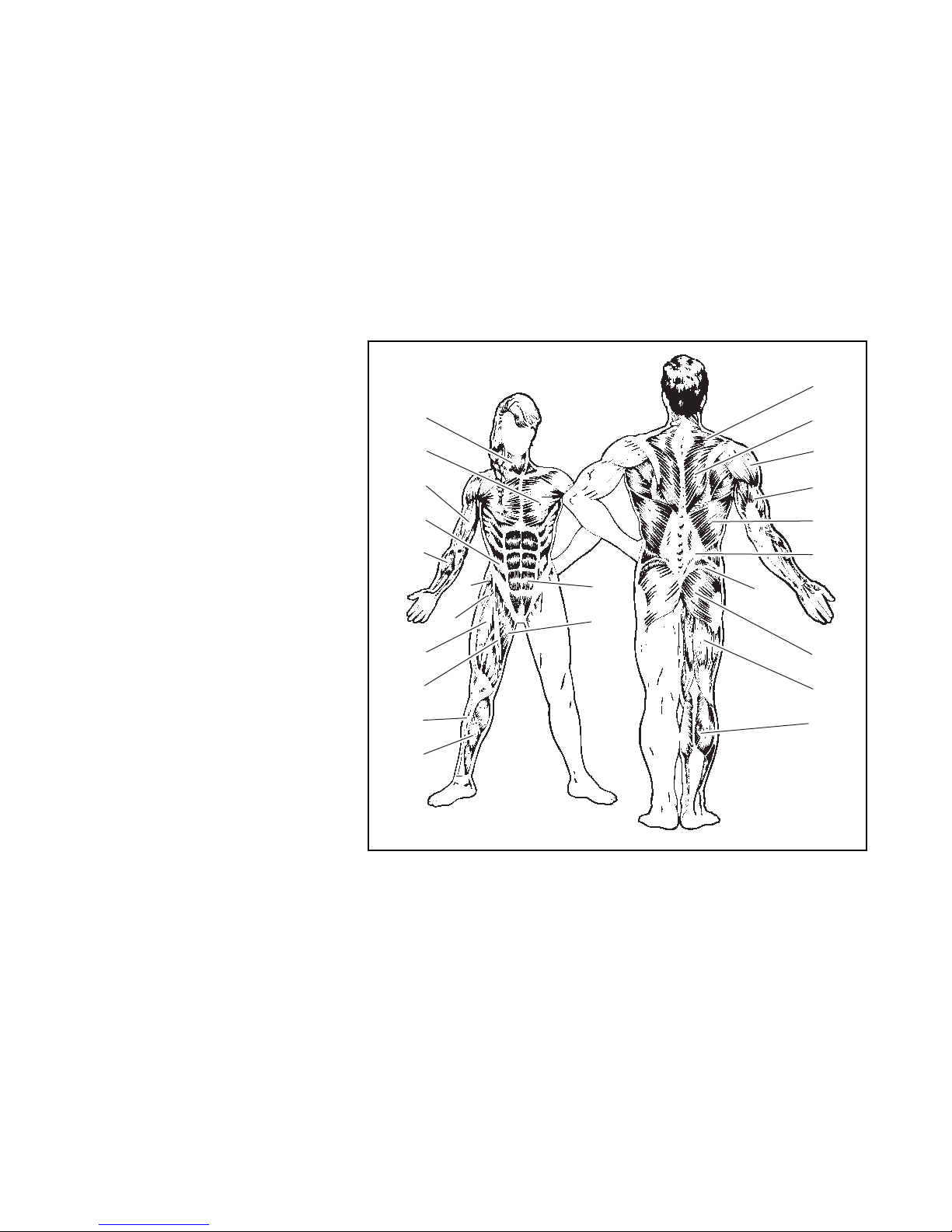

MUSCLE CHART
A. Sternomastoid (neck)
B. Pectoralis Major (chest)
C. Biceps (front of arm)
D. Obliques (waist)
E. Brachioradials (forearm)
F. Hip Flexors (upper thigh)
G. Abductor (outer thigh)
H. Quadriceps (front of thigh)
I. Sartorius (front of thigh)
J. Tibialis Anterior (front of calf)
K. Soleus (front of calf)
L. Rectus Abdominus (stomach)
M. Adductor (inner thigh)
N. Trapezius (upper back)
O. Rhomboideus (upper back)
P. Deltoid (shoulder)
Q. Triceps (back of arm)
R. Latissimus Dorsi (mid back)
S. Spinae Erectors (lower back)
T. Gluteus Medius (hip)
U. Gluteus Maximus (buttocks)
V. Hamstring (back of leg)
W. Gastrocnemius (back of calf)
N
A
B
C
D
E
F
G
M
L
T
H
I
J
O
P
Q
R
S
U
V
W
K
Page 14
14
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See page 16 for
information about ordering replacement parts.
1 1 Seat Plate
2 1 1/4” Nylon Locknut
3 1 Leg Lever
4 1 Front Leg
5 1 Bench Frame
6 1 Left Base
7 1 Right Base
8 1 Left Upright
9 1 Right Upright
10 1 Curl Post
11 2 Weight Rest
12 1 Adjustment Tube
13 2 Backrest Support
14 1 1/4” x 2 1/2” Carriage Bolt
15 2 5/16” Washer
16 2 1/4” Washer
17 2 Pad Tube
18 4 Foam Pad
19 4 1 3/4” Square Inner Cap
20 1 Support Plate
21 1 Weight Stop
22 1 Seat
23 1 Backrest
24 1 Curl Pad
25 2 Long Adjustment Knob
26 1 Short Adjustment Knob
27 1 Storage Post
28 1 2” Square Inner Cap With Slot
29 3 2” Square Inner Cap
30 5 1” Round Inner Cap
31 4 3/4” Round Inner Cap
32 4 5/16” x 3” Bolt
33 2 2 1/4” Square Inner Cap
34 2 1 1/4” Square Inner Cap
35 2 5/16” x 2 1/2” Carriage Bolt
36 1 1/4” x 2 1/2” Screw
37 8 1/4” x 1/2” Screw
38 1 1” Round Angle Cap
39 1 5/16” Nylon Jamnut
40 11 5/16” Nylon Locknut
41 1 5/16” x 2 1/2” Bolt
42 4 5/16” x 2 3/4” Bolt
43 1 5/16” x 5” Bolt
# 1 User’s Manual
# 1 Exercise Chart
Key No. Qty. Description Key No. Qty. Description
Part List–Model No. WEBE2159C0
R0699A
Page 15
15
Exploded Drawing–Model No. WEBE2159C0
R0699A
18
31
23
30
17
21
19
3
31
18
19
39
42
38
25
20
30
18
19
29
34
4
41
30
11
26
24
32
31
17
37
12
31
37
34
18
29
30
30
11
10
37
22
43
14
40
37
19
8
13
37
40
40
33
6
28
5
1
40
42
27
29
7
40
25
9
33
16
36
37
40
2
16
40
35
15
32
Page 16
16
To order replacement parts, simply call our Customer Service Department toll-free at 1-888-936-4266, Monday
through Friday, 8 a.m. until 6:30 p.m. Eastern Standard Time (excluding holidays). To help us assist you, please
be prepared to give the following information when calling:
1. The MODEL NUMBER of the product (WEBE2159C0).
2. The NAME of the product (WEIDER
®
PRO 215 Weight Bench).
3. The SERIAL NUMBER of the product (see the front cover of this manual).
4. The KEY NUMBER and DESCRIPTION of the desired part(s) (see the PART LIST and the EXPLODED
DRAWING on pages 14 and 15).
Ordering Replacement Parts
Limited Warranty
ICON OF/DU CANADA INC., (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This
warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing
or repairing, at ICON's option, the product at one of its authorized service centers. All products for which warranty claim is made must be received by ICON at one of its authorized service centers with all freight and other
transportation charges prepaid, accompanied by sufficient proof of purchase. All returns must be pre-authorized by ICON. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center, to products used for commercial or rental purposes, or to products used as store display
models. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection
with the use or performance of the product or damages with respect to any economic loss, loss of property,
loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of whatsoever nature. Some provinces do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you. The warranty extended hereunder
is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some provinces do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein.
This warranty gives you specific legal rights. You may also have other rights which vary from province to
province or so specified by the retailer of your equipment.
ICON OF/DU CANADA, 900 de l’Industrie, St-Jérôme, QC J7Y 4B8
Page 17
17
Customer Record
ICON of Canada Inc.
900 de l’Industrie
St-Jérôme, Québec
Canada, J7Y 4B8
PLACE
STAMP
HERE
Model No.: Serial No.:
Retailer Name: Purchase Date:
Retailer Address:
Page 18
Part No. 155084 J00829-C R0699A Printed in Canada © 1999 ICON Health & Fitness, Inc.
IMPORTANT: MAIL WITHIN 14 DAYS OF PURCHASE
NAME:
ADDRESS:
COUNTY:
MODEL NO.
RETAILER NAME:
PHONE:
POSTCODE:
SERIAL NO. PURCHASE DATE:
RETAILER ADDRESS:
1) Primary user(s) of product:
❏ Male ❏ Female ❏ Family
2) Age of primary user:
❏ 0–24 ❏ 35–44 ❏ 55–64
❏ 25–34 ❏ 45–54 ❏ 65 and over
3) Annual household income:
❏ 0–9,999 ❏ 15,000–19,999
❏ 10,000–14,999 ❏ 20,000+
4) How many times a week do you exercise?
❏ Less than 3 times ❏ 3 times or more
5) Have you ever purchased an ICON product before?
❏ Yes ❏ No
6) Where did you first see or hear about ICON products?
❏ Magazine ❏ Friend/relative
❏ Newspaper Ad ❏ Store
❏ Other
7) What was the primary reason for purchasing this ICON product?
❏ Store Employee ❏ Television Ads ❏ Colour
❏ Electronic Features ❏ Magazine Ads ❏ Price
❏ Product Design ❏ Product Innovation
❏ Other Features
8) Did you consider purchasing fitness equipment from another
manufacturer?
❏ No ❏ Yes
What other Manufacturer?
9) Based on your impression of what you have purchased,
would you buy another ICON product?
❏ Yes ❏ No ❏ No Opinion
If not, what other brand name equipment would you purchase?
10) What other type of exercise equipment do you own?
❏ Bicycle ❏ Exercise Cycle ❏ Treadmill
❏ Home Gym ❏ Weight Bench ❏ Stepper
❏ Cardio Glide ❏ Other
11) Which type of magazines do you read regularly?
❏ Sports ❏ Fitness ❏ Motoring
❏ Business ❏ Computer ❏ General
12) Do you wish to be sent further bulletins about ICON products?
❏ Yes ❏ No
THANK YOU FOR YOUR TIME
™
PRODUCT WARRANTY REGISTRATION
© 1999 ICON of Canada, Inc. Printed in Canada
18
of/du Canada Inc.
®
Loading...
