Page 1
www.weiderfitness.com
Model No. WEBE15910.0
Serial No.
Write the serial number in the
space above for reference.
Serial Number Decal
(under seat)
QUESTIONS?
If you have questions, or if parts are
damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
USERʼS MANUAL
CALL TOLL-FREE:
1-877-992-5999
Mon.–Fri., 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.weiderservice.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
Page 2
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
MPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
I
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

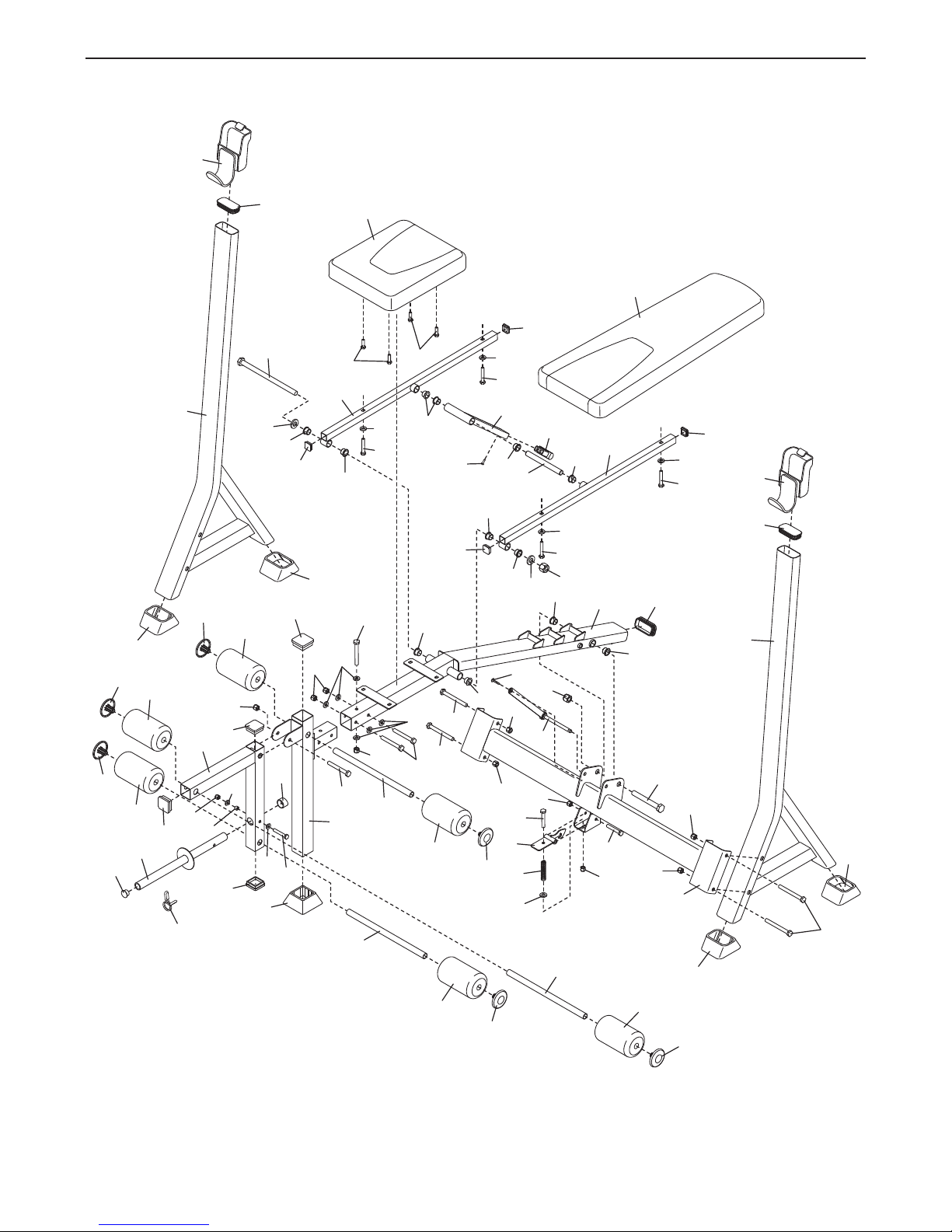

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

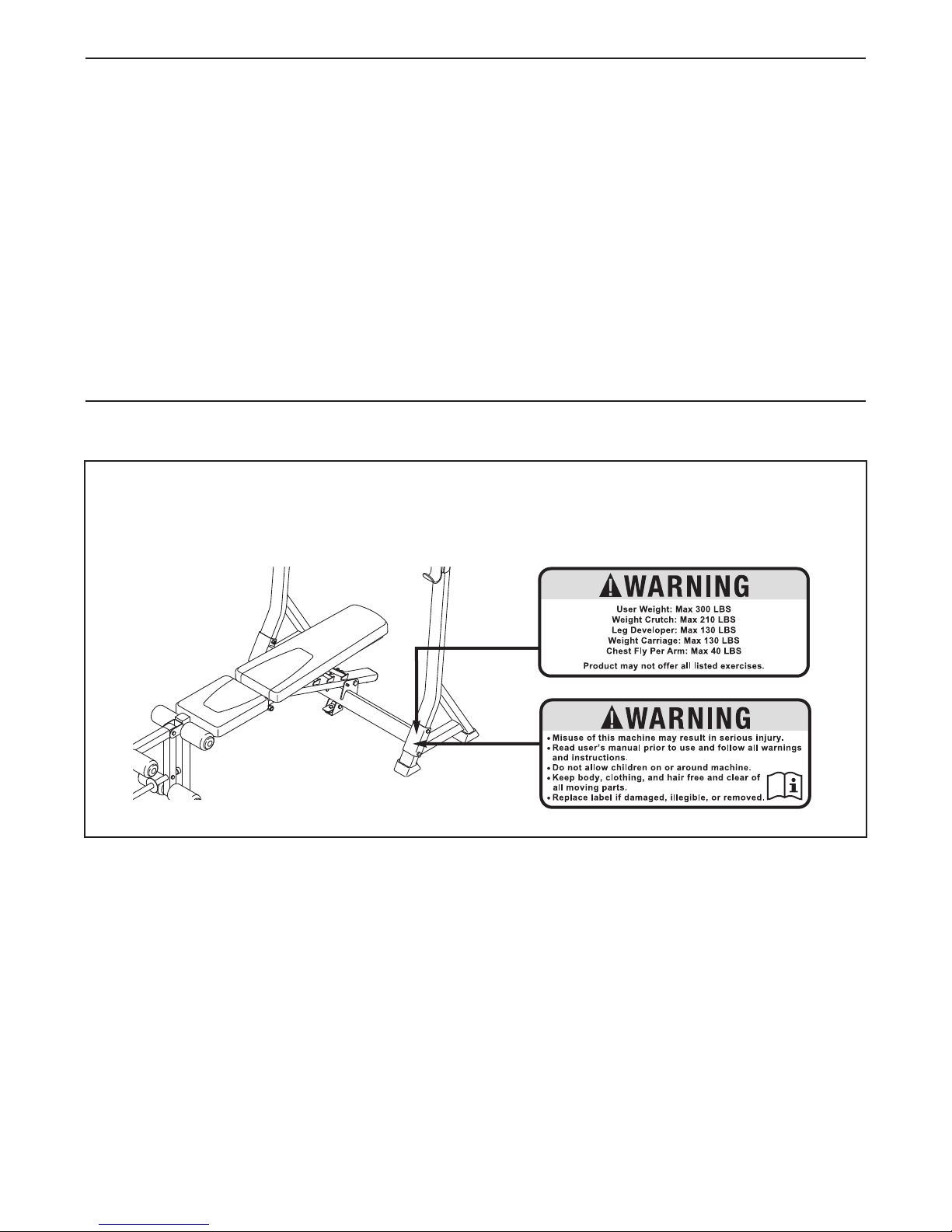

WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be shown at actual size.
WEIDER PRO is a trademark of ICON IP, Inc.
2
Page 3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your weight bench before using your weight bench.
ICON assumes no responsibility for personal injury or property damage sustained by or through the
se of this product.
u
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons with pre-existing health problems.
2. Read all instructions in this manual and all
warnings on the weight bench before using
the weight bench.
3. It is the responsibility of the owner to ensure
that all users of the weight bench are adequately informed of all precautions.
4. The weight bench is intended for home use
only. Do not use the weight bench in a commercial, rental, or institutional setting.
5. Keep the weight bench indoors, away from
moisture and dust. Place the weight bench
on a level surface, with a mat beneath it to
protect the floor or carpet. Make sure that
there is enough clearance around the weight
bench to mount, dismount, and use the
weight bench.
8. Always wear athletic shoes for foot protection while using the weight bench.
9. Always keep children under age 12 and pets
away from the weight bench.
10. Do not use a barbell that is longer than 6 ft.
(1.8 m) with the weight bench.
11. Always place the same amount of weight on
both ends of your barbell. Always keep
some weight on both ends of the barbell
while adding or removing weights to prevent
the barbell from tipping.
12. Before using the leg lever, place a barbell
with the same amount of weight on the
weight rests to balance the weight bench.
13. Always exercise with a partner. When you
are performing bench press exercises, your
partner should stand behind you to catch
the barbell if you cannot complete a repetition.
6. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
7. The weight bench is designed to support a
maximum user weight of 300 lbs. (136 kg)
and a maximum total weight of 510 lbs.
(231 kg). Do not place more than 210 lbs.
(95 kg), including a barbell and weights, on
the weight rests. Do not place more than
130 lbs. (59 kg) on the leg lever. Note: The
weight bench does not include a barbell or
weights.
14. Before using the backrest in the level position or in an inclined position, make sure
that the backrest support is properly
inserted (see ADJUSTING THE BACKREST
on page 11).
15. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
3
Page 4
BEFORE YOU BEGIN
Thank you for selecting the new WEIDER PRO™
50 L weight bench. The 350 L weight bench offers a
3
selection of exercises designed to develop the major
muscle groups of the body. Whether your goal is to
tone your body, build dramatic muscle size and
strength, or improve your cardiovascular system, the
weight bench will help you to achieve the specific
results you want.
For your benefit, read this manual carefully before
using the weight bench. If you have questions after
Weight Rest
Upright
reading this manual, please see the front cover of this
anual. To help us assist you, note the product model
m
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.

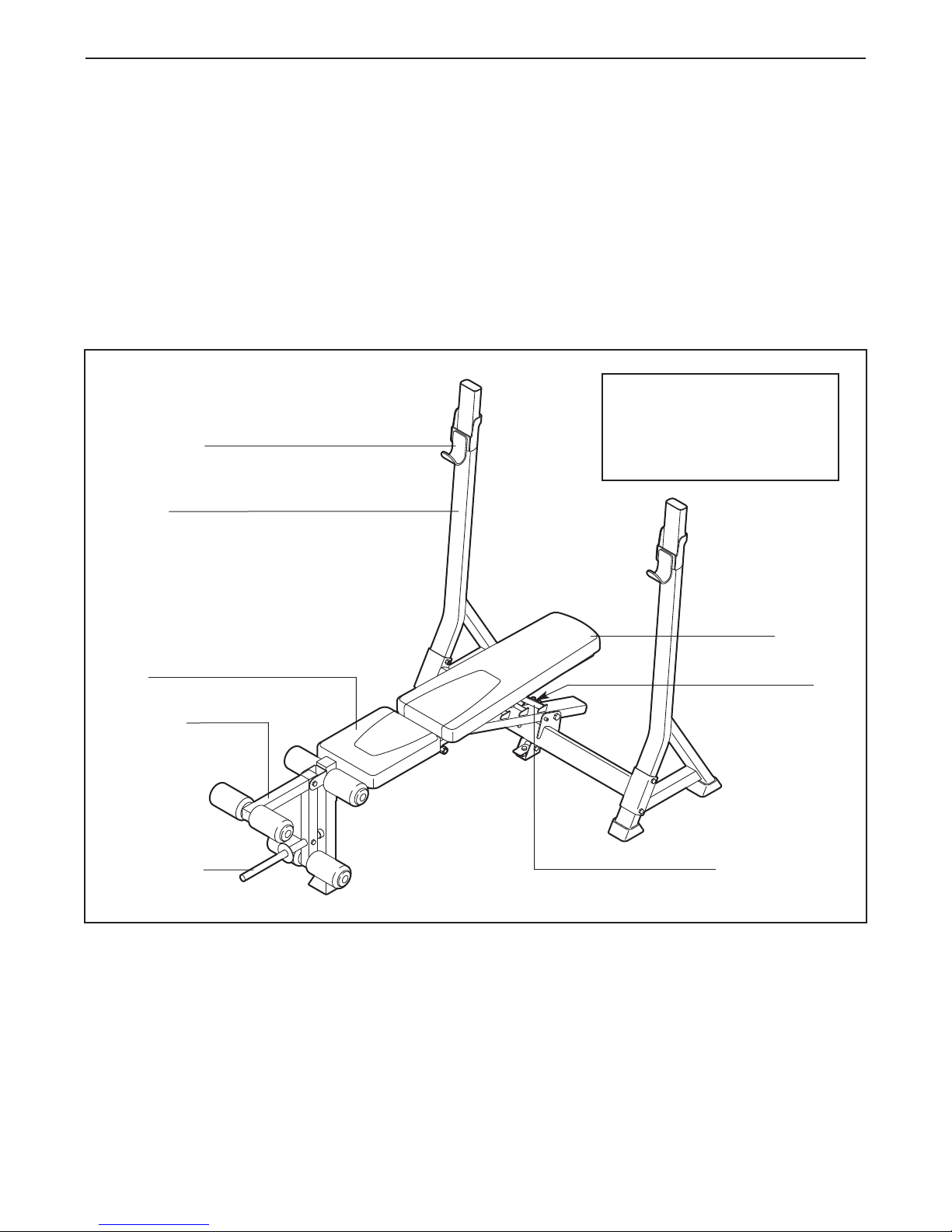

Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.
ASSEMBLED DIMENSIONS:
Height: 4 ft. 4 in. (132 cm)
Width: 3 ft. 9 in. (114 cm)
Depth: 6 ft. 1 in. (185 cm)
Seat
Leg Lever
Weight Tube
Backrest
Pin
Backrest Support
4
Page 5
M16 Washer (41)
M8 Locknut (32)
M8 Washer (30)
M6 x 40mm Screw (34)
M6 x 16mm Screw (33)
M4 x 16mm Screw (37)
M8 x 45mm Bolt (43)
M8 x 55mm Bolt (31)
M8 x 60mm Bolt (35)
M10 x 70mm Bolt (36)
M10 x 100mm Bolt (39)
M16 x 120mm Bolt (40)
M16 x 240mm Bolt (13)
M6 Washer (44)
M10 Locknut (38)
M16 Locknut (42)
Weight Tube
Bushing (29)

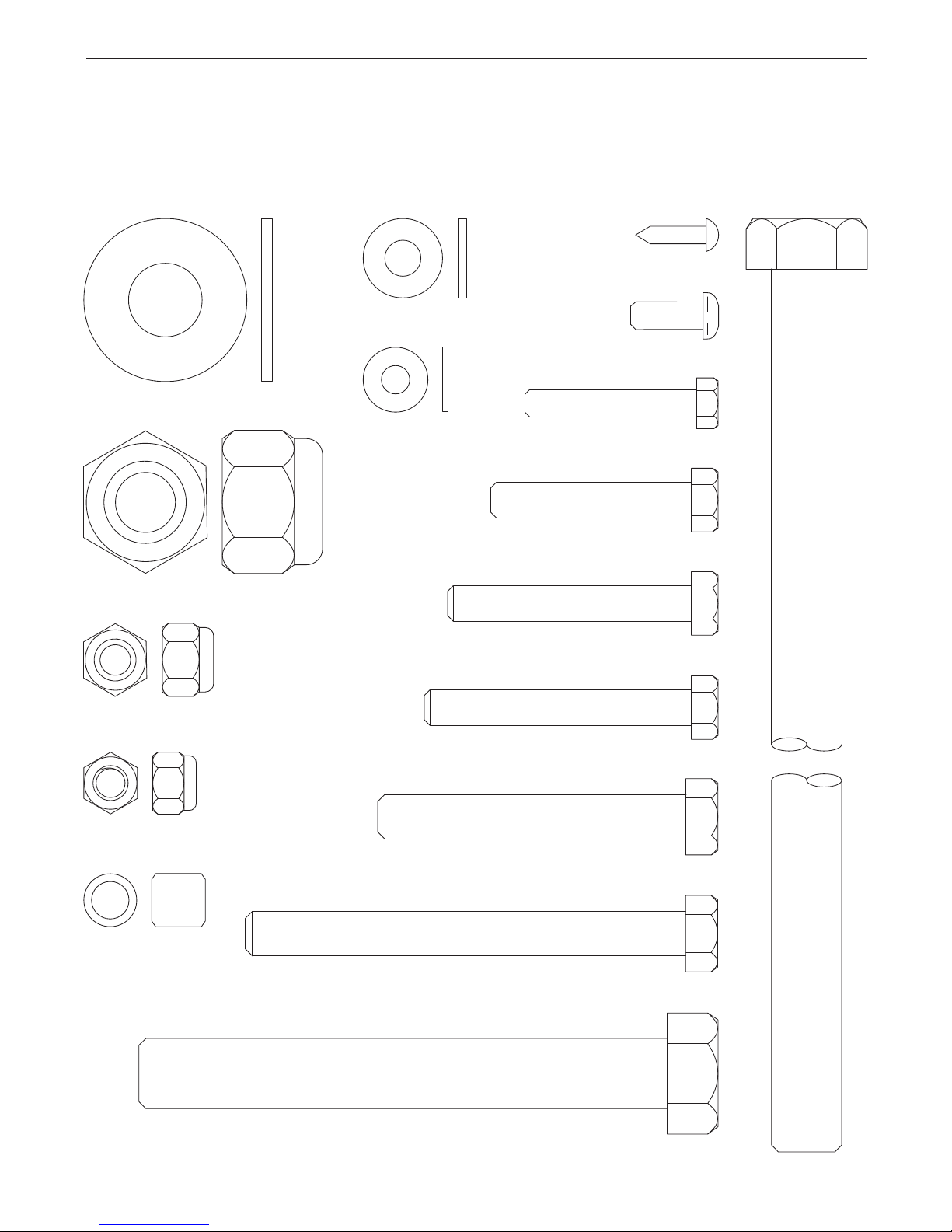

PART IDENTIFICATION CHART
ee the drawings below to identify small parts used in assembly. The number in parentheses by each drawing is
S
the key number of the part, from the PART LIST near the end of this manual. Note: If a part is not in the hard-
ware kit, check to see if it has been preattached. To avoid damaging parts, do not use power tools for
assembly.
5
Page 6

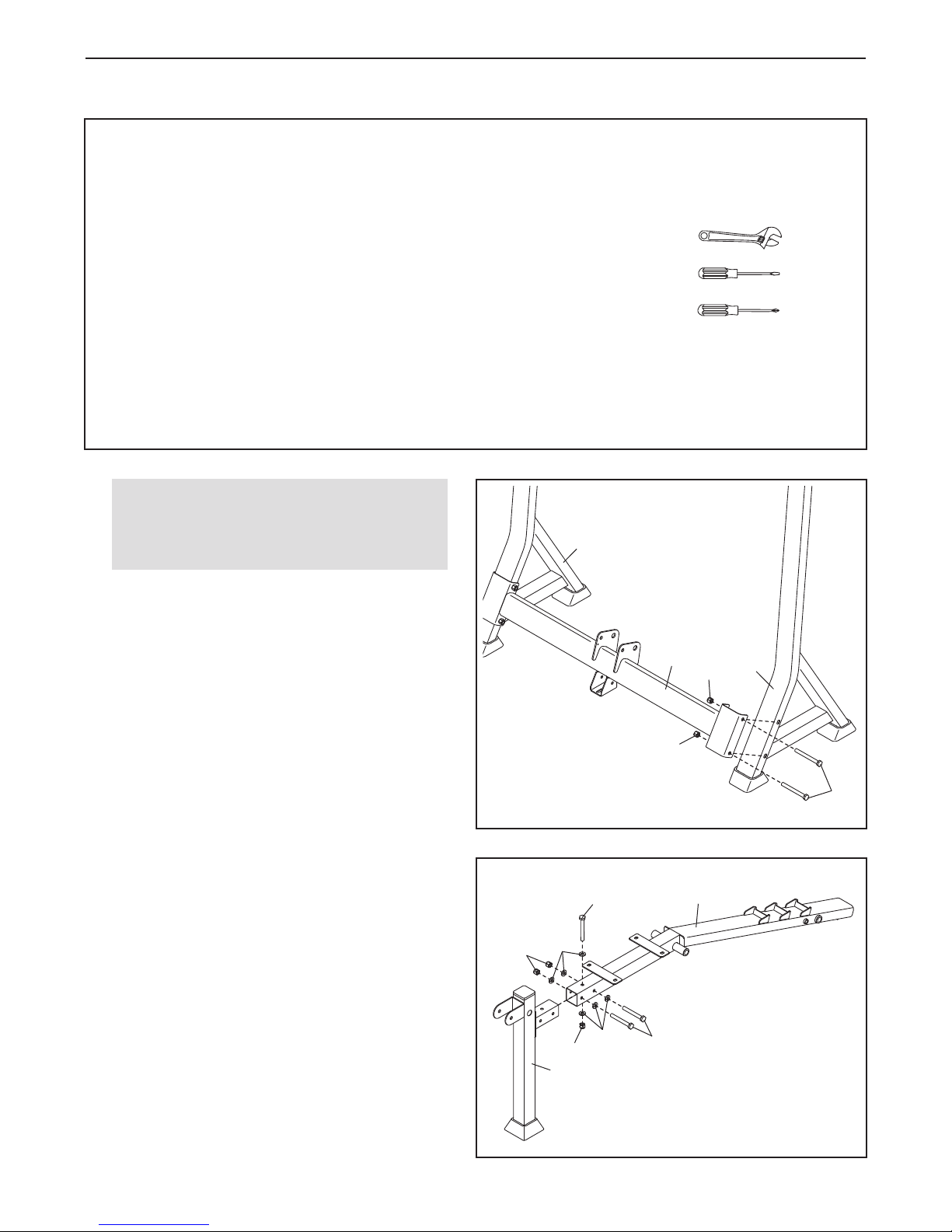

ASSEMBLY
• To hire an authorized service technician to
assemble the weight bench in your home, call
1-800-445-2480.
• Assembly requires two persons.
• Because of its size and weight, assemble the
weight bench in the location where it will be
used. Make sure that there is enough clearance to walk around the weight bench as you
assemble it.
• Place all parts in a cleared area and remove
the packing materials. Do not dispose of the
packing materials until you complete all
assembly steps.
1.
To make assembly easier, read the
assembly tips in the box above before
you begin.
• To identify small parts, see page 5.
• The following tools (not included) may be
equired for assembly:
r
two adjustable wrenches
one standard screwdriver
one Phillips screwdriver
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
1
1
Orient the Crossbar (5) and an Upright (1) as
shown.
Attach the Crossbar (5) to the Upright (1) with
two M10 x 100mm Bolts (39) and two M10
Locknuts (38). Do not tighten the Locknuts
yet.
Attach the Crossbar (5) to the other Upright
(1) in the same way.
2. Orient the Front Leg (10) and the Main Frame
(7) as shown.
Attach the Front Leg (10) to the Main Frame (7)
with three M8 x 60mm Bolts (35), six M8
Washers (30), and three M8 Locknuts (32). Do
not tighten the Locknuts yet.
5
38
38
2
7
35
32
30
10
32
35
30
1
39
6
Page 7

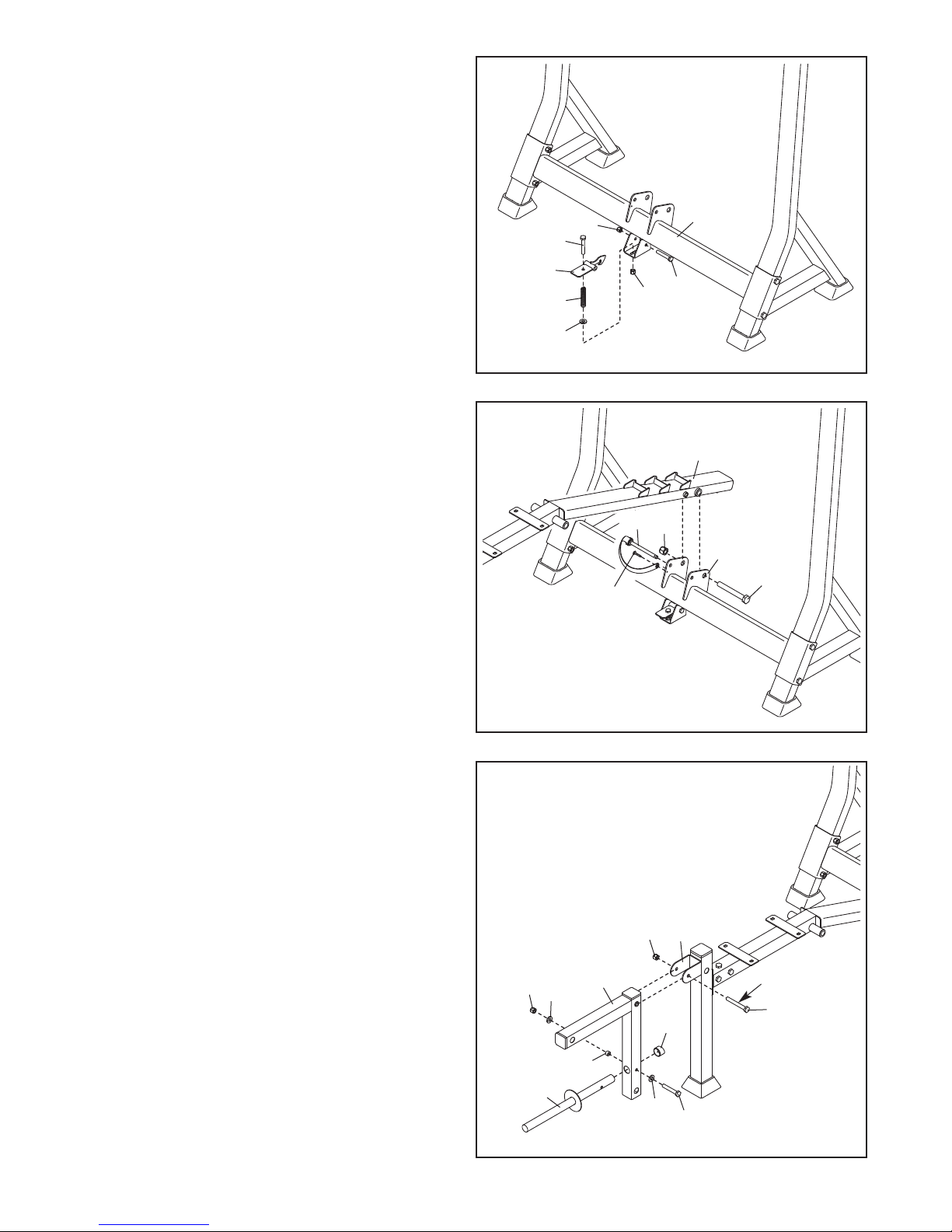

3. Orient the Folding Lever (6) as shown, and
insert it into the lower bracket on the Crossbar
(5).
Attach the Folding Lever (6) to the Crossbar (5)
ith an M8 x 60mm Bolt (35) and an M8
w
Locknut (32). Do not overtighten the Locknut;
the Folding Lever should pivot freely.
Then, attach the Folding Lever (6) and the
Spring (17) with an M8 x 45mm Bolt (43), an
M8 Washer (30), and an M8 Locknut (32).
Tighten the Locknut until three threads of
the Bolt are below the Locknut.
3
5
35
43
6
17
30
32
32
4. Attach the Main Frame (7) to the Crossbar (5)
with an M16 x 120mm Bolt (40) and an M16
Locknut (42). Do not overtighten the Locknut;
the Main Frame should pivot freely.
Attach the tether on the Pin (22) to the
Crossbar (5) with an M4 x 16mm Screw (37).
Then, insert the Pin (22) through the Crossbar
(5) and the Main Frame (7).
See steps 1 and 2. Tighten the M10 Locknuts
(38) and the M8 Locknuts (32).
5. Orient the Leg Lever (11) and the Weight Tube
(12) as shown.
Attach the Weight Tube (12) to the Leg Lever
(11) with an M8 x 55mm Bolt (31), two M8
Washers (30), a Weight Tube Bushing (29), and
an M8 Locknut (32).
4
7
22
42
5
37
5
40
Press the Bumper (25) onto the end of the
Weight Tube (12).
Apply some of the included grease to an M10 x
70mm Bolt (36).
Attach the Leg Lever (11) to the Front Leg (10)
with the M10 x 70mm Bolt (36) and an M10
Locknut (38). Do not overtighten the Locknut;
the Leg Lever must pivot easily.
38
10
32
12
30
29
11
30
25
31
Grease
36
7
Page 8

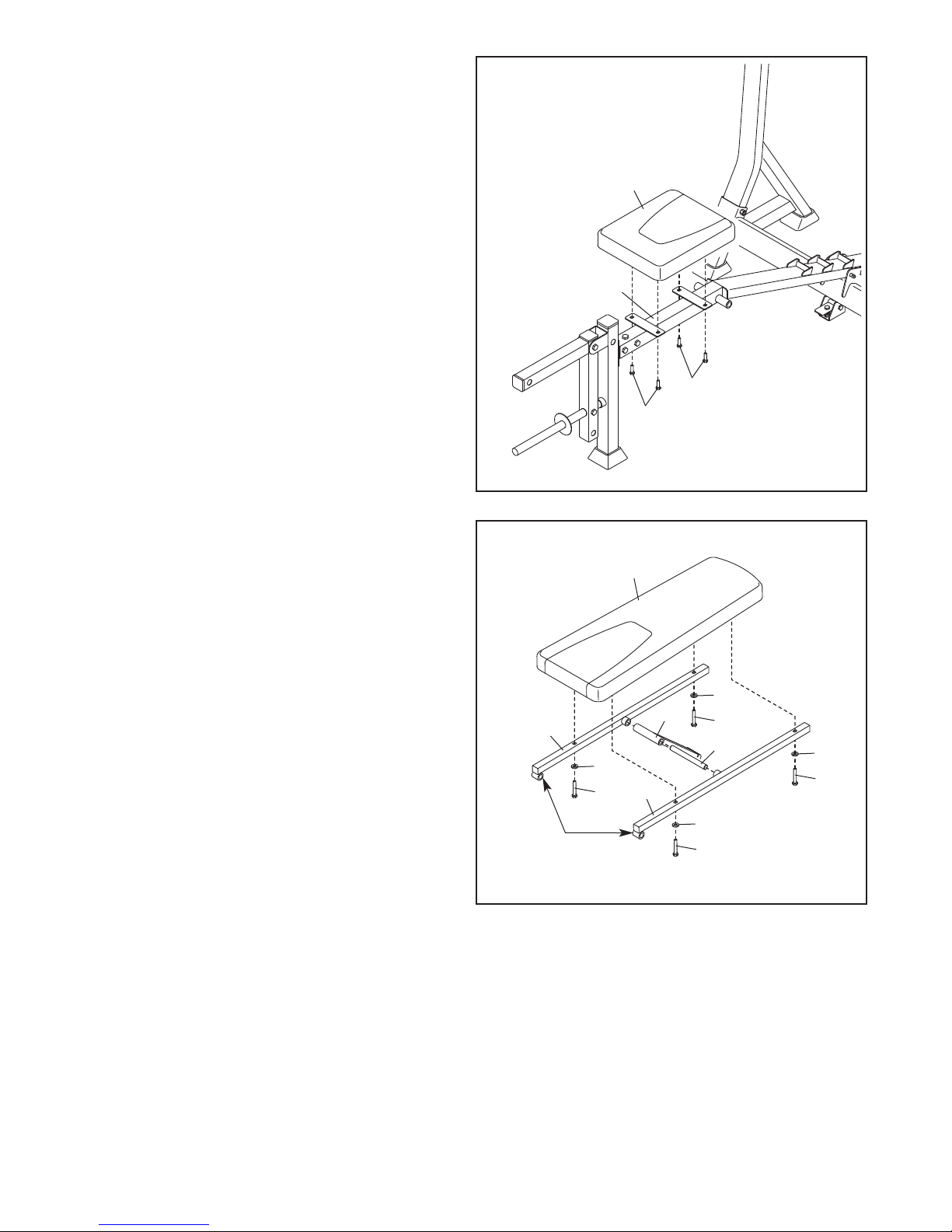

6. Attach the Seat (15) to the Main Frame (7) with
four M6 x 16mm Screws (33).
6
15
7
33
33
7. Identify Backrest Frames A and B (8, 9) and orient them so that the welded tubes are in the
locations shown.
Then, identify the Backrest Support (4) and the
Short Axle (3). Insert the Short Axle through the
Backrest Support.
Next, press a Backrest Frame (8, 9) onto each
end of the Short Axle (3).
Attach the Backrest (16) to the Backrest
Frames (8, 9) with four M6 x 40mm Screws (34)
and four M6 Washers (44).
7
16
44
9
Welded
Tubes
44
34
4
8
44
34
34
3
44
34
8
Page 9

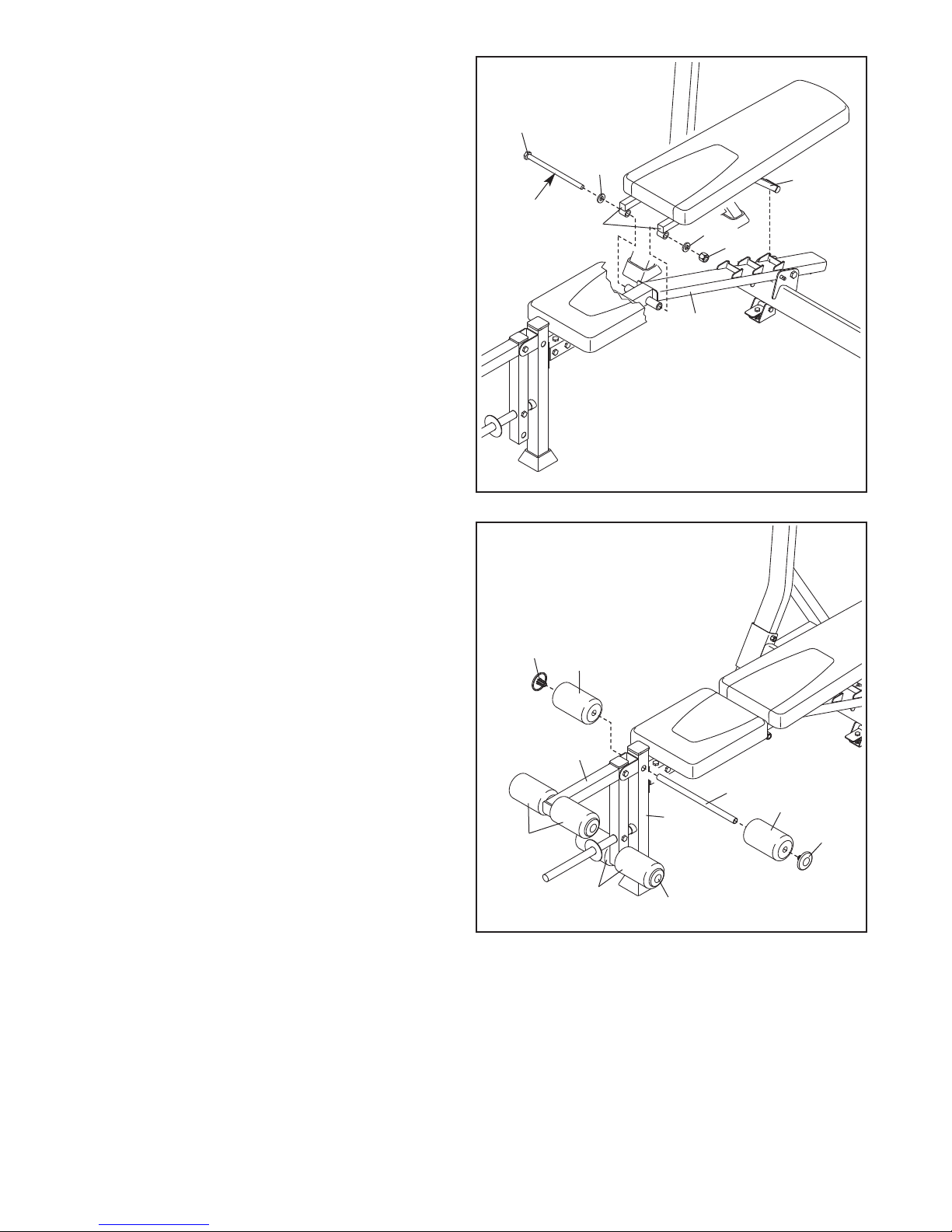

8. Apply grease to an M16 x 240mm Bolt (13).
Align the welded tubes on the Backrest Frames
8, 9) with the welded tube on the Main Frame
(
(7).
8
13
Attach the Backrest Frames (8, 9) to the Main
Frame (7) with the M16 x 240mm Bolt (13), two
M16 Washers (41), and an M16 Locknut (42).
Do not overtighten the Locknut; the
Backrest Frames must pivot easily.
Set the Backrest Support (4) in an adjustment
bracket on the Main Frame (7).
9. Insert a Pad Tube (14) through the Front Leg
(10).
Slide a Foam Pad (28) onto each end of the
Pad Tube (14). Then, press a Pad Cap (27) into
each end of the Pad Tube.
9
Grease
8, 9
41
4
41
42
7
Repeat this step to attach the other Pad
Tubes (not shown), Foam Pads (28), and Pad
Caps (27) to the Leg Lever (11).
28
27
11
28
28
10
27
14
28
27
9
Page 10

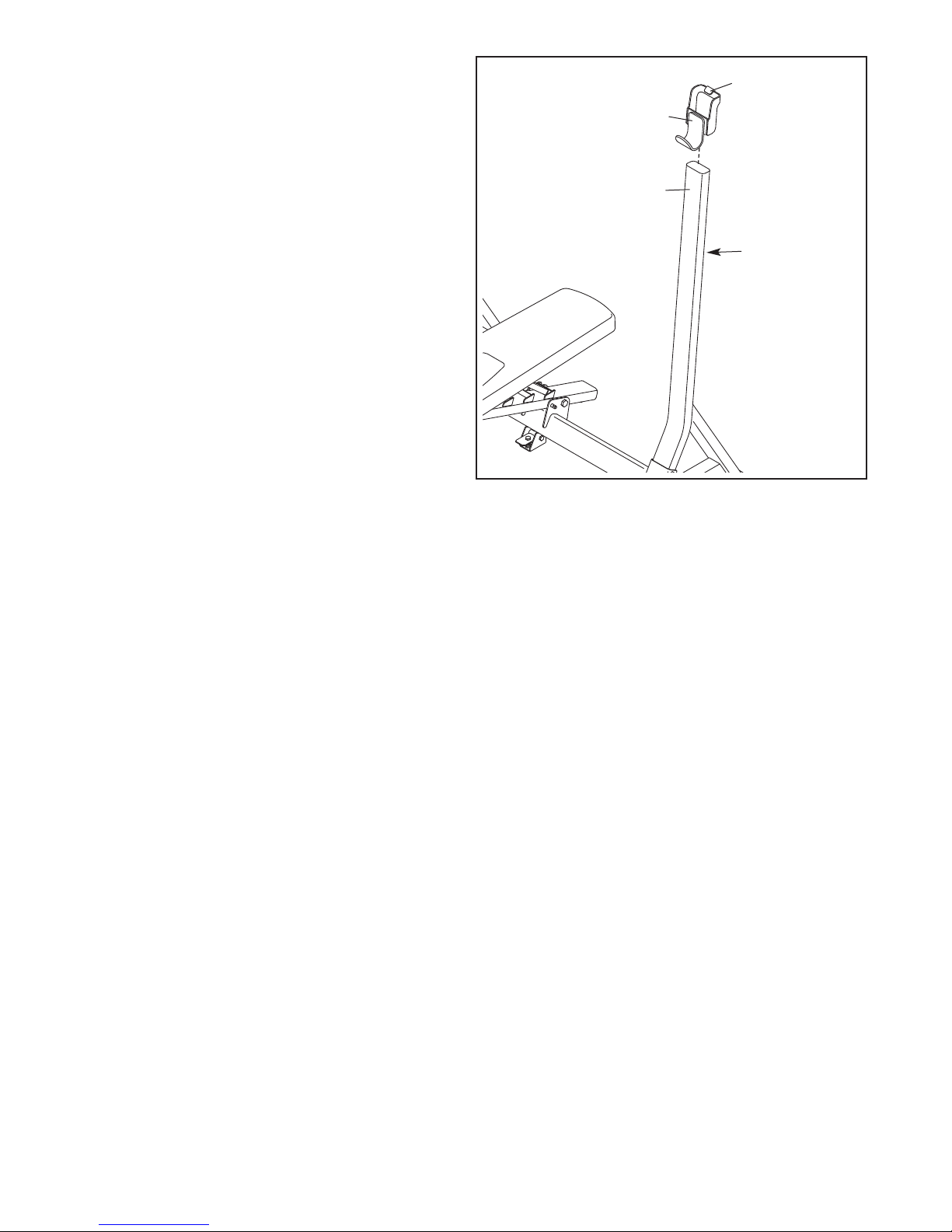

10. Slide a Weight Rest (2) onto an Upright (1).
Insert the hook on the Weight Rest into an
adjustment hole in the Upright. Make sure that
he Weight Rest is securely engaged in an
t
adjustment hole.
10
ook
H
2
Repeat this step on the other side of the
weight bench.
Make sure that the Weight Rests (2) are at
the same height.
11. Make sure that all parts are properly tightened before you use the weight bench. The use of the
remaining parts will be explained in ADJUSTMENT, beginning on page 11.
1
Adjustment
Holes
10
Page 11
ADJUSTMENT
his section explains how to adjust the weight bench. See the EXERCISE GUIDELINES on page 13 for impor-
T
tant information about how to get the most benefit from your exercise program. Also, refer to the accompanying
exercise guide to see the correct form for each exercise.
Make sure all parts are properly tightened each time you use the weight bench. Replace any worn parts immediately. The weight bench can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use
solvents.

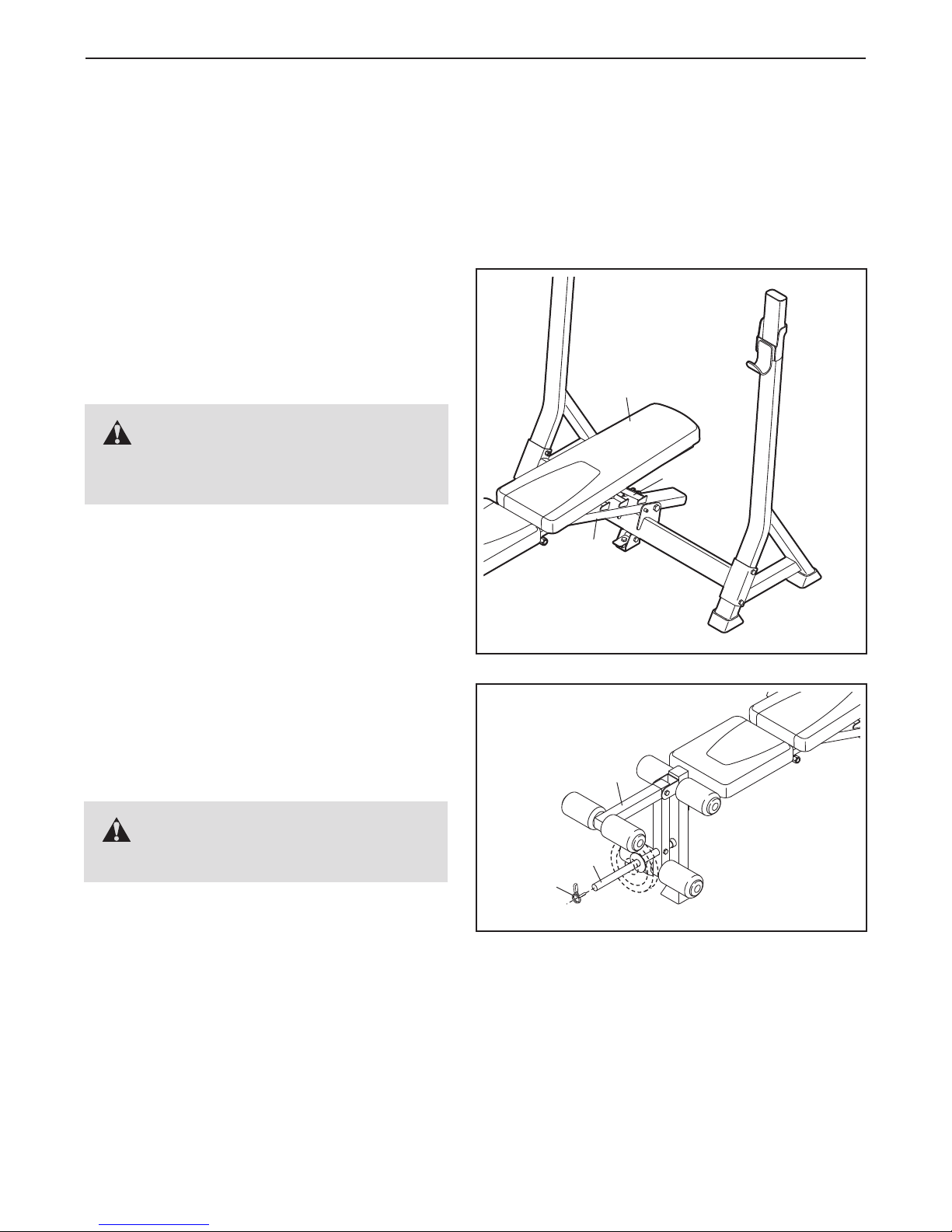

ADJUSTING THE BACKREST
To adjust the position of the Backrest (16), raise or
lower the Backrest, and set the Backrest Support
(4) in one of the adjustment brackets in the Main
Frame (7).
16
WARNING: Make sure that the
Backrest Support (4) is fully inserted into
one of the adjustment brackets.
4
USING THE LEG LEVER
To use the Leg Lever (11), slide a weight plate (not
included) onto the Weight Tube (12) and secure it
with a Weight Clip (47).
WARNING: Do not place more
than 130 lbs. (59 kg) on the Leg Lever (11).
7
11
12
47
11
Page 12

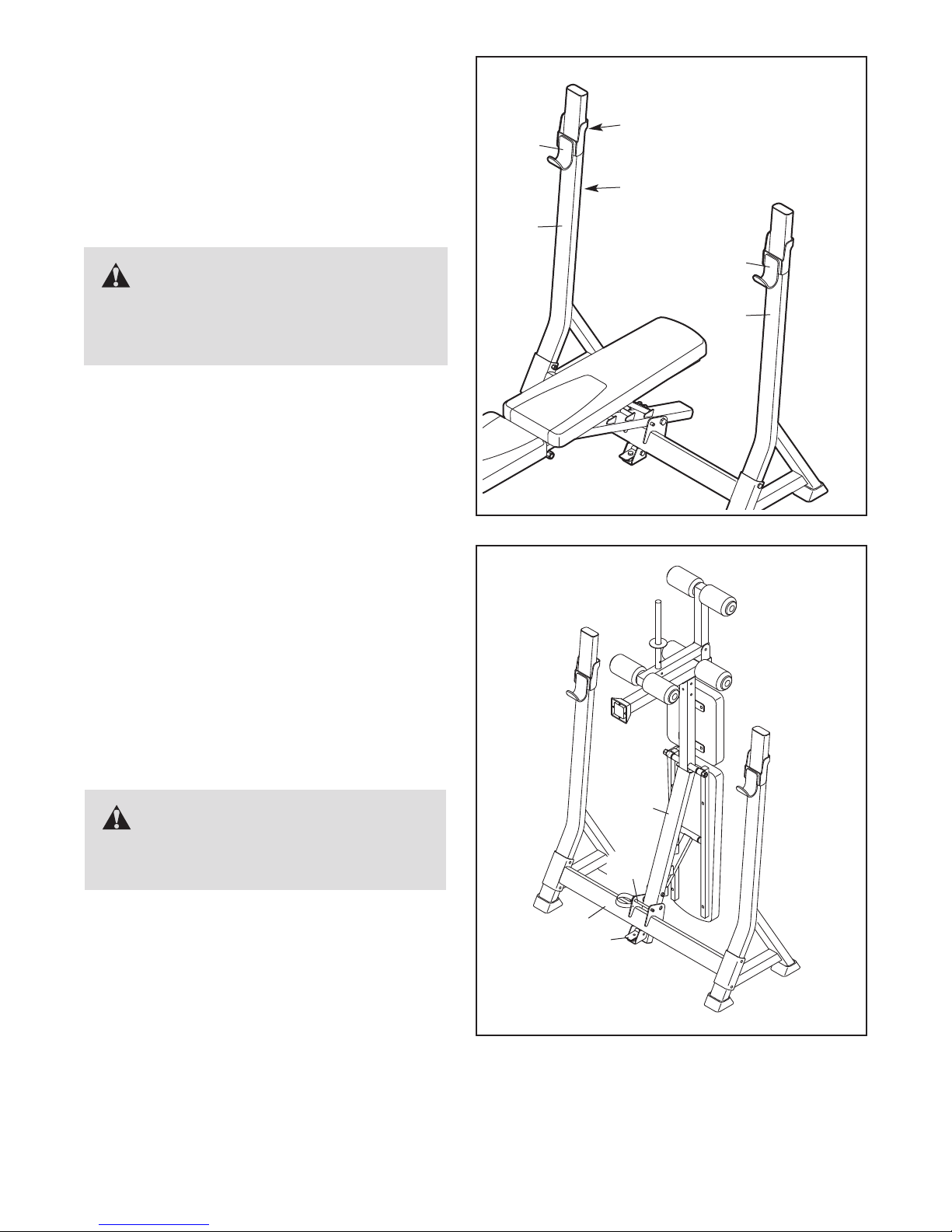

ADJUSTING THE WEIGHT RESTS
To adjust the height of a Weight Rest (2), lift the
ook on the Weight Rest, slide the Weight Rest to
h
the desired height, and then insert the hook into an
djustment hole in the Upright (1).
a
Adjust the position of the other Weight Rest (2)
in the same way.
WARNING: Make sure that
each Weight Rest (2) is securely engaged
in an adjustment hole. Always set both
Weight Rests at the same height.
Hook
2
djustment
A
Holes
1
2
1
FOLDING THE WEIGHT BENCH
To fold the weight bench for storage, first remove
the Pin (22) from the Crossbar (5) and the Main
Frame (7). Next, lift the Main Frame upward to the
position shown. Then, reinsert the Pin into the
Crossbar and the Main Frame.
To unfold the weight bench, press down on the
Folding Lever (6), remove the Pin (22), and lower
the weight bench to the floor. Then, reinsert the Pin
into the Crossbar (5) and the Main Frame (7).
WARNING: Make sure that
the Pin (22) is securely engaged in the
Crossbar (5) and the Main Frame (7).
7
22
5
6
12
Page 13
EXERCISE GUIDELINES
FOUR TYPES OF STRENGTH WORKOUTS
Note: A “repetition” is one complete cycle of an exercise, such as one sit-up. A “set” is a series of
repetitions.
Muscle Building—Work your muscles near their maximum capacity and progressively increase the intensity
of your exercise. Adjust the intensity level of an individual exercise as follows:
• Change the amount of resistance used.
• Change the number of repetitions or sets performed.
Use your own judgment to determine the amount of
resistance that is right for you. Begin with 3 sets of 8
repetitions for each exercise that you perform. Rest for
3 minutes after each set. When you can complete 3
sets of 12 repetitions without difficulty, increase the
amount of resistance.
Toning—Tone your muscles by working them to a
moderate percentage of their capacity. Select a moderate amount of resistance and increase the number
of repetitions in each set. Complete as many sets of
15 to 20 repetitions as possible without discomfort.
Rest for 1 minute after each set. Work your muscles
by completing more sets rather than by using high
amounts of resistance.
Weight Loss—To lose weight, use a low amount of
resistance and increase the number of repetitions in
each set. Exercise for 20 to 30 minutes, resting for a
maximum of 30 seconds between sets.
Cross Training—Combine strength training and aerobic exercise by following this type of program:
• Strength workouts on Monday, Wednesday, and
Friday.
• 20 to 30 minutes of aerobic exercise on Tuesday
and Thursday.
• One full day of rest each week to give your body
time to regenerate.
WORKOUT GUIDELINES
Familiarize yourself with the equipment and learn the
proper form for each exercise. Use your own judgment
to determine the appropriate length of time for each
orkout, and the numbers of repetitions and sets to
w
complete. Progress at your own pace and be sensitive
to your bodyʼs signals. Follow each strength workout
with at least one day of rest.
Warming Up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Working Out—Include 6 to 10 different exercises in
each workout. Select exercises for every major muscle
group, emphasizing areas that you want to develop. To
give balance and variety to your workouts, vary the
exercises from workout to workout.
Cooling Down—Finish with 5 to 10 minutes of
stretching. Stretching increases the flexibility of your
muscles and helps to prevent post-exercise problems.
EXERCISE FORM
Move through the full range of motion for each exercise and move only the appropriate parts of the body.
Perform the repetitions in each set smoothly and without pausing. The exertion stage of each repetition
should last about half as long as the return stage.
Exhale during the exertion stage of each repetition and
inhale during the return stroke. Never hold your
breath.
Rest for a short period of time after each set:
• Muscle Building—Rest for three minutes after each
set.
• Toning—Rest for one minute after each set.
• Weight Loss—Rest for 30 seconds after each set.
STAYING MOTIVATED
For motivation, keep a record of each workout. Write
the date, the exercises performed, the resistance
used, and the numbers of sets and repetitions completed. Record your weight and key body
measurements once a month. To achieve good results,
make exercise a regular and enjoyable part of your
life.
13
Page 14
PART LIST Model No. WEBE15910.0 R1210A
ey No. Qty. Description Key No. Qty. Description
K
12Upright
22Weight Rest
31Short Axle
4
51Crossbar
61Folding Lever
71Main Frame
81Backrest Frame A
91Backrest Frame B
10 1 Front Leg
11 1 Leg Lever
12 1 Weight Tube
13 1 M16 x 240mm Bolt
14 3 Pad Tube
15 1 Seat
16 1 Backrest
17 1 Spring
18 4 25mm Square Inner Cap
19 3 45mm Square Inner Cap
20 1 Square Outer Cap
21 4 Rectangular Outer Cap
22 1 Pin
23 12 Spacer
24 1 Backrest Support Cap
25 1 Bumper
26 1 25mm Round Cap
1 Backrest Support
27 6 Pad Cap
28 6 Foam Pad
29 1 Weight Tube Bushing
0 9 M8 Washer
3
31 1 M8 x 55mm Bolt
32 6 M8 Locknut
33 4 M6 x 16mm Screw
34 4 M6 x 40mm Screw
35 4 M8 x 60mm Bolt
36 1 M10 x 70mm Bolt
37 2 M4 x 16mm Screw
38 5 M10 Locknut
39 4 M10 x 100mm Bolt
40 1 M16 x 120mm Bolt
41 2 M16 Washer
42 2 M16 Locknut
43 1 M8 x 45mm Bolt
44 4 M6 Washer
45 1 50mm Square Inner Cap
46 3 Rectangular Inner Cap
47 1 Weight Clip
*–Userʼs Manual
*–Exercise Guide
*–Grease Packet
*–Assembly Tool
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
14
Page 15
EXPLODED DRAWING Model No. WEBE15910.0 R1210A
3
1
2
2
4
1
5
6
7
8
9
10
11
12
26
19
28
27
32
30
29
19
19
30
25
31
20
14
14
14
27
27
27
27
27
38
28
28
28
28
36
28
45
32
30
30
32
35
35
39
39
23
23
23
23
46
43
30
17
35
32
38
38
22
42
37
32
38
38
40
39
21
21
46
34
44
18
34
44
34
44
34
44
18
18
18
23
13
23
41
23
23
41
42
23
24
37
23
23
33
33
1
5
16
46
21
21
47
15
Page 16
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
LIMITED WARRANTY
IMPORTANT: You must register this product within 30 days of the purchase date to avoid added
fees for service needed under warranty. Go to www.weiderservice.com/registration.
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. Parts and labor are warranted for ninety (90) days from
the date of purchase.
This warranty extends only to the original purchaser. ICONʼs obligation under this warranty is limited to
repairing or replacing, at ICONʼs option, the product through one of its authorized service centers. All
repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped to
a service center, freight charges to and from the service center will be the customerʼs responsibility. For
replacement parts shipped while the product is under warranty, the customer will be responsible for a minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge. This
warranty does not extend to any damage to a product caused by or attributable to freight damage, abuse,
misuse, improper or abnormal usage, or repairs not provided by an ICON authorized service center; to
products used for commercial or rental purposes or as store display models; or to products transported
or purchased outside the US. No other warranty beyond that specifically set forth above is authorized by
ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in connection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantability or fitness for a particular purpose are limited in their scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights that vary from state to state.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
Part No. 310815 R1210A Printed in USA © 2010 ICON IP, Inc.
Loading...
