WEG Electric 00156ET3EJP56J-S Data Sheet

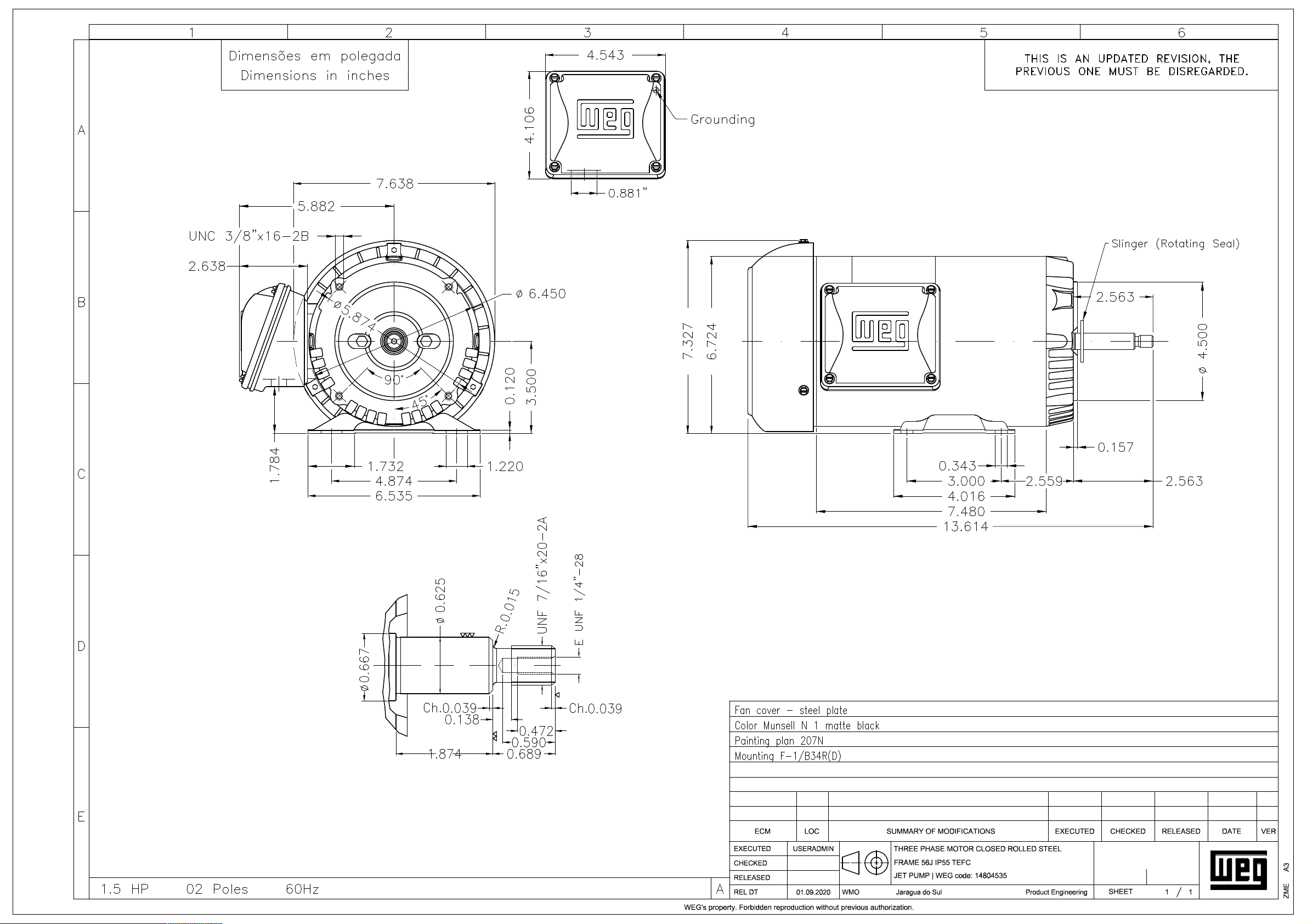

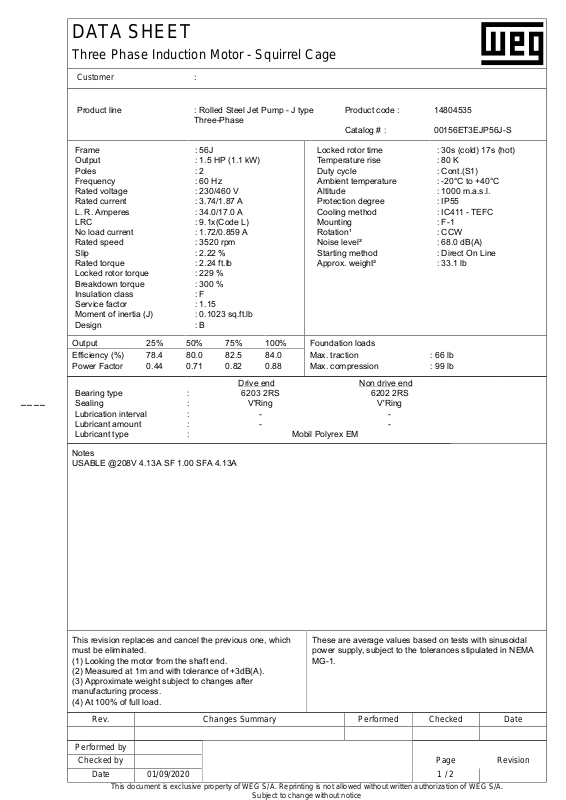

DATA SHEET
Three Phase Induction Motor - Squirrel Cage
Customer :
____
Product line : Rolled Steel Jet Pump - J type
Three-Phase
Frame
Output
Poles
Frequency
Rated voltage
Rated current
L. R. Amperes
LRC
No load current
Rated speed
Slip
Rated torque
Locked rotor torque
Breakdown torque
Insulation class
Service factor
Moment of inertia (J)
Design
Output 25% 50% 75% 100% Foundation loads
Efficiency (%) 78.4 80.0 82.5 84.0
Power Factor 0.44 0.71 0.82 0.88 Max. compression : 99 lb
Bearing type : 6203 2RS 6202 2RS
Sealing : V'Ring V'Ring
Lubrication interval : - Lubricant amount : - Lubricant type : Mobil Polyrex EM
: 56J
: 1.5 HP (1.1 kW)
: 2
: 60 Hz
: 230/460 V
: 3.74/1.87 A
: 34.0/17.0 A
: 9.1x(Code L)
: 1.72/0.859 A
: 3520 rpm
: 2.22 %
: 2.24 ft.lb
: 229 %
: 300 %
: F
: 1.15
: 0.1023 sq.ft.lb
: B
Max. traction : 66 lb
Drive end Non drive end
Product code : 14804535
Catalog # : 00156ET3EJP56J-S
Locked rotor time
Temperature rise
Duty cycle
Ambient temperature
Altitude
Protection degree
Cooling method
Mounting
Rotation¹
Noise level²
Starting method
Approx. weight³
: 30s (cold) 17s (hot)
: 80 K
: Cont.(S1)
: -20°C to +40°C
: 1000 m.a.s.l.
: IP55
: IC411 - TEFC
: F-1
: CCW
: 68.0 dB(A)
: Direct On Line
: 33.1 lb
Notes
USABLE @208V 4.13A SF 1.00 SFA 4.13A
This revision replaces and cancel the previous one, which
must be eliminated.
(1) Looking the motor from the shaft end.
(2) Measured at 1m and with tolerance of +3dB(A).
(3) Approximate weight subject to changes after
manufacturing process.
(4) At 100% of full load.
Rev. Changes Summary Performed Checked Date
These are average values based on tests with sinusoidal
power supply, subject to the tolerances stipulated in NEMA
MG-1.
Performed by
Checked by Page Revision
Date 01/09/2020
This document is exclusive property of WEG S/A. Reprinting is not allowed without written authorization of WEG S/A.
Subject to change without notice
1 / 2
VFD OPERATION CURVE
Three Phase Induction Motor - Squirrel Cage
Customer :
Product line : Rolled Steel Jet Pump - J type
Three-Phase
Product code : 14804535
Catalog # : 00156ET3EJP56J-S
Performance : 230/460 V 60 Hz 2P
Rated current : 3.74/1.87 A Moment of inertia (J) : 0.1023 sq.ft.lb
LRC : 9.1 Duty cycle : Cont.(S1)
Rated torque : 2.24 ft.lb Insulation class : F
Locked rotor torque : 229 % Service factor :
Breakdown torque : 300 % Temperature rise : 80 K
Rated speed : 3520 rpm Design : B
____
Rev. Changes Summary Performed Checked Date
Performed by
Checked by Page Revision
Date 01/09/2020
This document is exclusive property of WEG S/A. Reprinting is not allowed without written authorization of WEG S/A.
Subject to change without notice
2 / 2
