Instruction Manual
Manual de Instrucciones
Manuel d’Instructions
PE550
ENGLISH ESPAÑOL
WARNING:
Read and follow all Safety Rules and Operating Instructions before
using this product. Failure to do so can result in serious injury.
ADVERTENCIA:
Lea el manual de instrucciones y siga todas las advertencias e
instrucciones de seguridad. El no hacerlo puede resultar en lesiones graves.
A VERTISSEMENT:
Lirelemanueld’instructions etbienrespecter tous lesavertissements et toutes les instructions de sécurité. Tout défaut de le
faire pourrait entraîner des blessures graves.
Electrolux Home Products, Inc.
250 Bobby Jones Expressway
Augusta, GA 30907
CopyrightE2002 Electrolux Home Products, Inc.
530163408
FRANÇAIS
12/4/02
Page 2
SAFETY RULES
WARNING:
appliances, basic safety precautions must always be followed to reduce the risk of fire and
serious injury. Read and follow all instructions.
This power unit can be dangerous!
is responsible for following instructions and
warnings on unit and in manual. Read entire
instruction manual before using unit! Be thoroughly familiar with the controls and the proper use of the unit. Restrict the use of this unit
to persons who have read, understand and
will follow the instructions and warnings on
the unit and in the manual. Never allow children to operate this unit. Close attention is
necessary when used near children.
INSTRUCTION
MANUAL
OPERATOR SAFETY
Dress properly. Always wear safety
S
glasses or similar eye protection when operating, or performing maintenance on your
unit (safety glasses are available). Eye
protection should be marked Z87.
Always wear face or dust mask if operation
S
is dusty.
Always wear heavy, long pants, long
S
sleeves, boots, and gloves. Donotgobarefoot or wear sandals.
Secure hair above shoulder length.Se-
S
cure or remove loose clothing or clothing
with loosely hanging ties, straps, tassels,
etc. They can be caught in moving parts.
Being fully covered also helps protect you
S
from debris and pieces of toxic plants
thrown by spinning blade.
Stay alert. Do not operate when you are
S
tired, ill, upset, or under the influence of alcohol, drugs, or medication. Watch what
you are doing; use common sense.
Wear hearing protection.
S
Never start or run inside a closed room,
S
building or other unventilated area. Breathing exhaust fumes can kill.
Keep handles free of oil and fuel.
S
Always use the handle.
S
Keep hands and feet away from cutting
S
area.
Do not attempt to remove cut material nor
S
hold material to be cut when engine is running or when cutting member is moving.
Make sure spark plug is disconnected
S
when cleaning jammed material from cutting member.
Never direct discharge of material toward
S
bystanders nor allow anyone near the area
of operation. Use care in directing dis-
When using gardening
Operator
SAFETY INFORMATION
ON THE UNIT
charge to avoid glass enclosures, automobiles, and the lik e.
Don’t overreach or stand on unstable sup-
S
port. Keep good footing and balance at all
times.
UNIT SAFETY
Inspect entire unit before each use. Re-
S
place damaged parts. Check for fuel leaks.
Make sureallfasteners areinplace andsecurely fastened.
Maintain the unit according to recom-
S
mended procedures.
Throw away blades that are bent, warped,
S
cracked, broken, or damaged in any other
way. Replace parts that are cracked,
chipped, or damaged before using the unit.
Use only recommended Weed Eater
S
parts and accessories. Never use wire,
wire rope, string, flailing devices, etc.
Disconnect the spark plug before performing
S
maintenance except carburetor adjustments.
Be sure the blade stops turning when the
S
engine idles (see CARBURETOR ADJUSTMENTS).
Remove the blade before making carbure-
S
tor adjustments. Hold the unit by hand. Do
not make carburetor adjustments from the
blade side of the unit.
Keep others away when making carburetor
S
adjustments.
Never start the unit with the gearbox re-
S
moved. Theclutch canfly off andcauseserious injury.
Have all maintenance and service not ex-
S
plained in this manual performed by an authorized authorized service dealer.
EDGING SAFETY
WARNING:
edged before each use. Remove objects
(rocks, broken glass, nails, wire, string, etc.)
which can bethrown bytheblade or canwrap
around the shaft.
Keep others including children, animals,
S
bystanders, andhelpers at least 50 feet (15
meters) away. Stop the unit immediately if
you are approached.
Hold the unit firmly with both hands.
S
Keep firmfooting andbalance. Do notover-
S
reach or stand on unstable support.
Do not attempt to remove cut material nor
S
hold material to be cut when the engine is
running or when cutting member is moving.
Always keep the wheels and skidincontact
S
with the ground.
Keep all parts of your body away from the
S
blade and muffler.
Always push the unit slowly over the
S
ground. Stay alert for uneven sidewalks,
holes in the terrain, large roots, etc.
Use only for jobs explained in this manual.
S
Inspect the area to be
!
2
Page 3
Safety
Glasses
Boots
50 pieds
(15 m)
Thrown
objects
WARNING:
Blade can throw objects violently.
You can be blinded or injured.
D
Wears safety glasses or similar eye
D
protection.
WARNING:
Hazard zone for thrown objects.
Blade can throw objects violently.
D
Others can be blinded or injured.
D
Keep people and animals 50 feet (15 meters)
D
away.
Blade rotates
momentarily
after the
trigger is
released.
Instruction Manual
Allow blade to stop
before removing
it from the cut.
Safety Labels
FUEL SAFETY
Mix andpourfuel outdoors and where there
S
are not sparks or flames.
Always store gasoline in a container ap-
S
proved for flammable liquids.
Do not smoke orallow smoking near fuel or
S
the unit; do not smoke while using the unit.
Make sure the unit is properly assembled
S
and in good operating condition.
Avoid spilling fuel or oil. Wipe up all fuel
S
spills before starting unit.
Move at least 10 feet (3 meters) away from
S
fueling site before starting engine.
Stop engine and allow to cool before re-
S
moving fuel cap.
Do not store the unit with fuel in the fuel
S
tank; use up fuel left in the carburetor and
fuel line by starting the unit and letting it run
until it stops.
Store unit and fuel inanareawhere fuel va-
S
pors cannot reach sparks or open flames
from water heaters, electric motors or
switches, furnaces, etc.
TRANSPORTING AND STORAGE
Do not grasp or hold exposed blade.
S
Stop unit before leaving work area.
S
Allow unit to cool, run fuel out of the fuel
S
tank, and secure the unit before storing or
transporting it in a vehicle.
Before storing, use up fuel left in the carbu-
S
retor bystarting the unit and letting it rununtil it stops. Always allow the unit to cool before storage.
Store unitandfuel in areawherefuel vapors
S
cannot reach sparks or open flames from
WARNING:
Blade rotates momentarily after the trigger is
released.
The blade can seriously cut you or others.
D
Allow blade to stop before removing it from
D
the cut.
WARNING:
Read instruction manual.
Follow all warnings and instructions.
D
Failure to do so can result in serious
D
injury.
water heaters, electric motors or switches,
furnaces, etc.
Store unit so blade cannot accidentally
S
cause injury.
Store unit out of reach of children.
S
If situations occur which are not covered in this
manual, use care and good judgment. If you
need assistance, call 1-800-554-6723.
SPECIAL NOTICE:
equipped with a temperature limiting muffler
and spark arresting screen which meets the
requirements of California Codes 4442 and
4443. All U.S. forest land and the states of
California, Idaho, Maine, Minnesota, New
Jersey, Oregon, and Washington require by
lawthatmany internal combustion engines be
equipped with a spark arrestor screen. If you
operate inalocale wheresuchregulations exist, you are legally responsible for installing
and maintaining the operating condition of
these parts. Failure to do so is a violation of
the law. If a spark arresting screen is required in your area, contact your authorized
service dealer for the correct kit.
SPECIAL NOTICE:
tions through prolonged use of gasoline powered hand tools could cause blood vessel or
nerve damage in the fingers, hands, and
joints of people prone to circulation disorders
or abnormal swellings. Prolonged use in cold
weather hasbeenlinked tobloodvesseldamage in otherwise healthy people. If symptoms
occur such as numbness, pain, loss of
strength, change in skin color or texture, or
This unit is not
Exposure to vibra-
loss of feeling in the fingers, hands, or joints,
3
Page 4
discontinue the useofthis tool and seekmedical attention. An anti-vibration system does
not guarantee the avoidance of these problems. Users who operate power tools on a
continual and regular basis must monitor
ASSEMBLY
WARNING:
repeat all steps to ensure your unit is properly
assembled and all fasteners are secure.
Examine parts for damage. Do not use damaged parts.
NOTE:
missing or damaged, call 1-800-554--6723.
This instruction manual has been developed
to help you assemble the unit and to provide
its safe operation. It isimportant that youread
the entire manual to become familiar with the
unit
Read your instruction manual.
Tools you will need:
S
S
If you need assistance or find parts
you begin assembly.
before
Adjustable wrench
Hex wrench (provided)

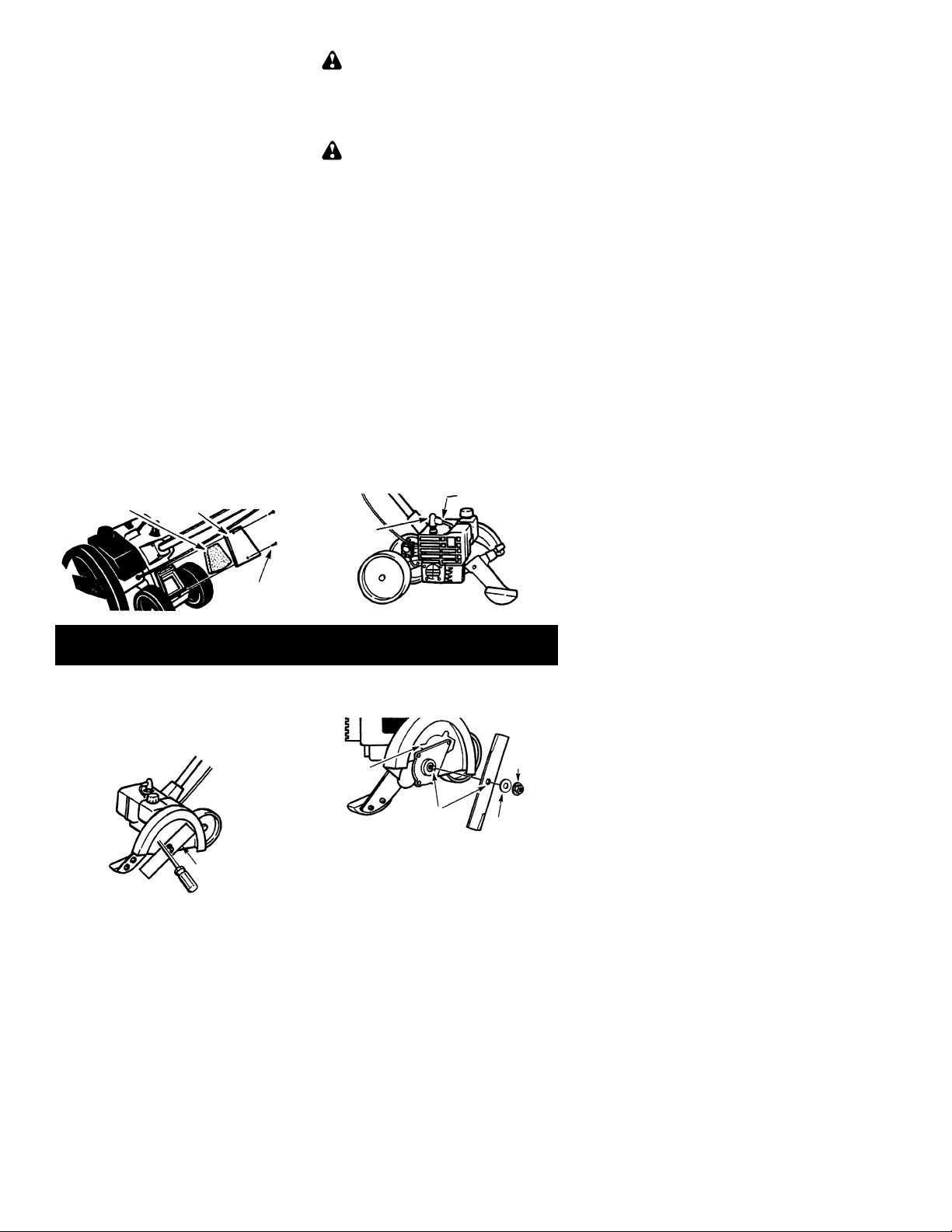

TUBE ASSEMBLY
NOTE:
besurethehandle isaligned as follows: label
on top, throttle trigger to the operator’s right
hand side.
cable must not wrap around the tube.
When performing the following step,
Throttle trigger
If received assembled,
The starter rope and the throttle
Label
closely their physical condition and the condition of this tool.
SAVE THESE INSTRUCTIONS
3. Thread one locknut onto each screw and
tighten securely.
Handle tube
Screws
Lower
Tube
NOTE:
be sure the starter rope is not caught under
the cable clamp. The starter rope must hang
freely to operate properly.
4. Align the cable clamp between the tube
When performing the following step,
screws. Install the cable clamp aroundthe
tube and throttle cable.
Starter Rope
Locknuts
1. Assemble handle tube to the lower tube (it
will be necessary to pull some of the starter rope out of the housing).
2. Align the screw holes; insert the screws
through the aligned holes.
Cable Clamp
Throttle cable
4
Page 5
OPERATION
KNOW YOUR EDGER
READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR
UNIT. Compare the illustrations with yourunit tofamiliarize yourself with the location of the various controls and adjustments. Save this manual for future reference.
Starter Rope Handle
Throttle Trigger
Spark Plug
Choke
ON/OFF
Switch
Fuel/Oil Mix Cap
Depth
Control
Lever
Primer Bulb
Muffler and
Guard
Depth
Adjusting
Skid
ON/OFF SWITCH
TheON/OFFswitchisusedtoselecttheON
or OFF position.
STARTER ROPE HANDLE
The STARTER ROPE HANDLE is used for
starting the engine.CHOKEThe CHOKE provides additional fuel to the engine when starting a cold or refueled engine.
PRIMER BULB
The PRIMER BULB removes air from the carburetor and fuel lines and fills them with fuel.
This allows you to start the engine with fewer
pullsonthestarterrope. Activatetheprimer bulb
bypressingit and allowing it to returntoitsoriginal form.
CHOKE
The CHOKE helps to supply fuel to the engine
to aid in cold starting. Activate the choke by
moving the choke lever to the FULL CHOKE
BEFORE STARTING ENGINE
WARNING:
information in the safety rules before you begin. If you do not understand the safety rules,
do not attempt to fuel your unit. Call
1-800-554-6723.
Be sure to read the fuel
FUELING ENGINE
WARNING:
when refueling.
This engine is certified to operate on un-
leaded gasoline. Before operation, gasoline
must be mixed with a good quality synthetic
2-cycle air-cooled engine oil designed to be
mixed at a ratio of 40:1. Poulan/Weed Eater
brand synthetic oil is recommended. Mix gasoline and oil ataratio of 40:1. A 40:1ratioisobtained by mixing 3.2 ounces (95 ml) of oil with
1 gallon (4 liters) of unleaded gasoline. DO
NOT USE automotive oil or boat oil. These
Remove fuel cap slowly
Air Filter
Blade Guard
Blade
position. Afterthe engineattemptsto start, move
the choke lever to the HALF CHOKE position.
Once engine hasstarted,movethe choke lever
to the OFF CHOKE position.
THROTTLE TRIGGER
The THROTTLE TRIGGER controls engine
speed. It is designed to be activated by the
right hand.
BLADE
The BLADE is designed to cut sod.
DEPTH ADJUSTING SKID
The DEPTH ADJUSTING SKID sets the
depth of the cut.
DEPTH CONTROL LEVER
The DEPTH CONTROL LEVER regulates
the cutting depth. Move the lever backward
for full depth edging, forward for half depth
edging.
oils will cause engine damage. When mixing
fuel, follow instructions printed on container.
Once oil is added to gasoline, shake container momentarily to assure that the fuel is thoroughly mixed. Always read and follow the
safety rules relating tofuelbefore fueling your
unit.
IMPORTANT
Experience indicates that alcohol blended
fuels (called gasohol or using ethanol or
methanol) can attract moisture which leads to
separation and formation of acids during storage. Acidic gas can damage the fuel system
of anengine while in storage. Toavoidengine
problems, empty the fuel system before storage for 30 days or longer. Drain the gas tank,
start the engine and let itrununtil thefuellines
and carburetor are empty. Use fresh fuel next
season.Never use engine or carburetor
cleaner products inthefueltankorpermanent
damage may occur.See the STORAGE section for additional information.
5
Page 6
STOPPING YOUR ENGINE
To stop a running engine, move the switch
S
to the OFF position.
If engine does not stop, move choke lever
S
to FULL CHOKE position.
ON/OFF Switch
STARTING YOUR ENGINE
(for location of controls, refer to the KNOW
YOUR EDGER section)
Fuel the engine; then move 10 feet (3 me-
S
ters) away from the fueling site.
DANGER:
The cutting blade will
turn when the engine starts.
WARNING:
the muffler. A hot muffler can cause serious
burns.
Rest the unit on the ground. Support the
S
unit so the blade is off of the ground and
away from trees, bushes, onlookers, etc.
STARTING
POSITION
Avoid any contact with
STARTING A COLD ENGINE (or a
warm engine after running out of
fuel)
1. Move the ON/OFF switch to the ON position.
2. Slowly press the primer bulb 6 times.
3. Move choke lever to the FULL CHOKE
position.
Choke Lever
FULL
HALF
OFF
4. Squeeze and hold the throttle trigger.
Keep throttle trigger fully squeezed until
the engine runs smoothly
.
5. Pull starter rope handle sharply until engine sounds as if it is trying to start, but do
not pull rope more than 6 times.
6. As soon as engine sounds as if it is trying
to start, move choke lever to the HALF
CHOKE position.
7. Pull starter rope sharply until engine runs,
but no more than 6 pulls. If the engine
doesn’t start after 6 pulls (at the HALF
CHOKE position), move the choke lever to
the FULL CHOKE position and press the
primer bulb 6 times. Squeeze and hold the
throttle trigger and pull the starter rope 2
more times. Move the choke lever to the
HALF CHOKE position and pull the starter
rope until the engine runs, but no more than
6pulls.
is probably flooded. Proceed to STARTING
A FLOODED ENGINE.
8. Once the engine starts, allow it to run 10
seconds, then move the choke lever to
OFF CHOKE. Allow the unit to run for 30
more seconds at OFF CHOKE before releasing the throttle trigger.
gine dies with the choke lever in the OFF
CHOKE position, move the choke lever to
the HALF CHOKE position and pull the
rope until engine runs, but no more than 6
pulls.
If enginestilldoesn’t start, it
NOTE:
NOTE:
STARTING A WARM ENGINE
1. Move the ON/OFF switch to the ON position.
2. Move the choke lever to the HALF
CHOKE position.
3. Squeeze and hold the throttle trigger.
Keep throttle trigger fully squeezed until
the engine runs smoothly.
4. Pull starter rope sharply until engine runs,
but no more than 5 pulls.
5. Allow engine to run 10 seconds, then
move the choke lever to the OFF CHOKE
position. Release the throttle trigger.
If engine has not started, pull starter
NOTE:
rope 5more pulls. If engine still does not run,it
isprobably flooded. Proceed to STARTINGA
FLOODED ENGINE.
STARTING A FLOODED ENGINE
Flooded engines can be started by placing
the choke lever in the OFF CHOKE position;
then, pull the rope to clear the engine of excessfuel.Thiscould require pulling the starter
handle many times depending on how badly
the unit is flooded.
If the unit still doesn’t start, refer to
TROUBLESHOOTING TABLE or call
1-800-554-6723.
OPERATING INSTRUCTIONS
EDGING
As you become familiar with your edger, you
will be able to determine your own operating
pace. Conditions such as depth of cut and
material being cut will regulate the speed and
time required for your edging job.
Allow the engine to warm up for one minute
S
before you begin edging.
Increase the engine speed before placing
S
the blade in the cut. For best operation, run
the engine at full throttle while cutting.
6
If en-
Page 7
Keep you edging path straight by aligning
S
the blade guide rib on the rear of the blade
guard with the edge of the sidewalk. Keep
all wheels flat on the walkway.
Blade
Guide Rib
Always work going away from people and
S
solid objects such as walls, large stones,
trees, automobiles, etc.
Be careful when edging near trees or valu-
S
able plants. The high speed metal blade
may cut roots and cause damage to the
plants.
If the blade stalls, immediately move the
S
unit rearward slightly to allow the blade to
restart. If the blade continues to stall, stop
the engine, disconnect the spark plug, and
inspect for blockage or damage.
Always keep thebladeareaclean. Stop the
S
engine, make sure the blade has completely stopped turning, and disconnect the
spark plug before cleaning.
SETTING THE EDGING DEPTH
WARNING:
the depth adjusting skid when the engine is
running. Always release the throttle trigger,
wait until the blade stops turning, move the
ON/OFF switch to the OFF position, and disconnect spark plug before making adjustments. Your edger is equipped with several
edging depths. The depth used will depend
on your personal edging preference and the
condition of the area where the edging operation is to be done.
Never attempt to adjust
NOTE:
been cut orseveral weeks have passed since
the last cut, the first edging should be done at
no more than half depth.
If the area to be edged has never
To set the depth:
Move the depth control lever forward for
S
shallower edging.
Move the depth control lever backward for
S
deeper edging.
Depth Control Lever
Depth
Adjusting
Skid
Support Arm
When edging, the trigger handle must be
raised until the skid rests on the ground. The
trigger handle must be held in the raised position during the entire edging operation to
maintain a consistent edging depth.
DEPTH ADJUSTING SKID
The surface of the depth adjusting skid will
wearovera period oftime. This partisreversible to provide a second wear surface.
1. Remove the two mounting screws which
hold the skid to the support arm.
2. Rotate the skid 180 degrees.
3. Reinstall the mounting screws.
EDGING TIPS
Inspect unit before each use.
S
Inspect the area to be cut before each use.
S
Keep unit in front of your body.
S
Cut at full throttle.
S
Keep the wheels and skid in contact with
S
the ground.
Always work going away from others.
S
MAINTENANCE
WARNING:
plug before performing maintenance except
for carburetor adjustments.
GENERAL RECOMMENDATIONS
Thewarrantyon this unit doesnotcoveritems
that have been subjected to operator abuse
or negligence. To receive full value from the
warranty, the operator must maintain unit as
instructed in this manual. Various adjustments will need to be made periodically to
properly maintain your unit.
Once eachyear,replace the spark plug, re-
S
place air filter element and check blade for
wear. Anewspark plug andaclean/new air
filter element assures proper air/fuel mixture and helps your engine run better and
last longer
.
CHECK FOR DAMAGED OR
WORN PARTS
Contact an authorized service dealer for replacement of damaged or worn parts.
Disconnect the spark
ON/OFF Switch -- Ensure ON/OFF switch
S
functions properly by moving the switch to
the OFF position and assure the engine
stops; then restart engine and continue.
Fuel Tank -- Discontinue use of edger if fuel
S
tank shows signs of damage or leaks.
Blade Guard -- Discontinue use of edger if
S
blade guard is damaged.
CHECK FOR LOOSE
FASTENERS AND PARTS
Blade nut
S
Muffler
S
Cylinder shield
S
Clutch
S
Throttle trigger
S
Handle screws
S
Fasteners
S
INSPECT AND CLEAN UNIT & LABELS
After each use, inspect complete unit for
S
loose ordamaged parts. Clean the unit and
labels using a damp cloth with a mild detergent.
Wipe off unit with a clean dry cloth.
S
7
Page 8
CLEAN AIR FILTER
A dirty air filter decreases the life and performance of the engine and increases fuel consumption and harmful emissions.
Always clean your airfilter after 5tanksoffuel
or 5 hours of operation, whichever comes
first. Clean more frequently in dusty conditions. It is advisable to replace your air filter
with a new one after every 50 hours of operation, or annually, whichever comes first.
To clean filter:
1. Clean the cover and the area around it to
keep dirt from falling into the carburetor
chamber when the cover is removed.
2. Remove the two screws and the air filter
cover from the engine.
3. Remove air filter.
NOTE:
line orotherflammable solvent to avoid creating a fire hazard or producing harmful evaporative emissions.
4. Clean the air filter using hot soapy water.
5. Lightly oil air filter before installing to im-
NOTE:
6. Squeeze the air filter to distribute oil and to
7. Reinstall air filter in housing.
CAUTION:
the corners of the housing to prevent air from
bypassing the filter and to keep dust from entering engine and causing damage.
8. Reinstall air filter cover.
Do not clean the air filter with gaso-
Rinse with clean cool water. Air dry completely before reinstalling.
prove the efficiency of the air filter. Use
2--cycle engine oil or motor oil (SAE 30).
Do not soak air filter in oil.
remove any excess oil.
Make sure air filter is fitted in to
Air Filter Cover
BLADE MAINTENANCE
WARNING:
to spin after the engine stops or after the
throttle trigger has been released. Make sure
the blade has stopped coasting and disconnect thesparkplugbefore performing workon
the blade.
WARNING:
when handling or performing maintenance on
the blade to help avoid injury.
Always replace a blade that is bent, warped,
cracked, broken, or damaged in any other
way. Never attempt to straighten and reuse a
damaged blade. Use only specified replacement blade.
The blade is reversible. When the cutting
S
edge on one side becomes worn, turn the
blade over.
Check blade for flatness periodically. Lay
S
the blade onaflat surface to inspect for flatness. Throw away a blade that is not flat
The blade will continue
Wear protective gloves
REPLACE SPARK PLUG
The spark plug should be replaced each year
to ensure the engine starts easier and runs
better. Set spark plug gap at 0.025 inches.
Ignition timing is fixed, nonadjustable.
1. Twist then pull off the spark plug boot.
2. Remove and discard the spark plug.
3. Replace with Champion RCJ--6Y spark
plug and tighten securely with a wrench.
4. Reinstall the spark plug boot.
Spark Plug Boot
.
Cover
Screws
SERVICE AND ADJUSTMENTS
BLADE REPLACEMENT
1. To remove the blade, insert a screwdriver
into the hole in the gearbox; then, remove
the nut, washer, and blade from the blade
shaft.
Blade
Spark Plug
Align the flat areaofthe blade opening with
2.
the flat side of the shaft. Place the new
blade on the shaft.
Nut
Hole
Flat sides
3. Install the washer and nut; turn nut counterclockwise on the blade shaft.
4. Bind blade by inserting a screwdriver in to
the hole inthegearbox; then, firmly tighten
nut with a wrench.
Washer
8
Page 9
CARBURETOR ADJUSTMENT
WARNING:
making idle speed adjustments. The blade
shaft will be spinning during most of this procedure. Wear your protective equipment and
observe all safety precautions. After making
adjustments, the blade shaft must not spin at
idle speed.
The carburetor has been carefully set at the
factory. Adjustments may benecessary ifyou
notice any of the following conditions:
Engine will not idle when the throttle is re-
S
leased.
The blade spins at idle.
S
Keep others away when making idle speed
adjustments. Remove the blade before making carburetor idle speed adjustments. Do not
make adjustments from the blade side of the
unit. Recheck the idle speed after each adjustment. The blade must not spin at idle
speed to avoid serious injury to the operator
or others. Make adjustments with the unit
supported so the blade is off the ground and
will not make contact with any object. Hold
the unit byhandwhilerunningandmakingadjustments. Keep all parts of your body away
from the blade and muffler.
Keep others away when
Idle Speed Adjustment
Allow engine to idle. Adjust speed until engine
runs without the blade shaft spinning (idle too
fast) or engine stalling (idle speed too slow).
Turn idle speed screw clockwise to in-
S
crease engine speedifengine stalls ordies.
STORAGE
WARNING:
steps after each use:
Allow engine to cool before storing or trans-
S
porting.
Store unit and fuel in a well ventilated area
S
where fuel vapors cannot reach sparks or
open flames from water heaters, electric
motors or switches, furnaces, etc.
Store unit with all guards in place. Position
S
unit so that any sharp object cannot accidentally cause injury.
Store unit and fuel well out of the reach of
S
children.
SEASONAL STORAGE
Prepare unit for storage at end of season or if
it will not be used for 30 days or more.
If your unit is to be stored for a period of time:
Clean the entire unit before lengthy stor-
S
age.
Store in a clean dry area.
S
Lightly oil external metal surfaces.
S
FUEL SYSTEM
Under FUELING ENGINE in the OPERATION section of this manual, seemessagelabeledIMPORTANT regarding the use of gasohol in your engine.
Perform the following
Turn idle speed screw counterclockwise to
S
decrease engine speed if the blade shaft
spins at idle speed.
WARNING:
after each adjustment. The blade shaft must
not spin atidlespeedtoavoidserious injury to
the operator or others.
If yourequire further assistance or areunsure
about performing this procedure, contact an
authorized service dealer or call
1--800--554--6723.
Fuel stabilizer is an acceptable alternative in
minimizing the formation of fuel gum deposits
during storage. Add stabilizer to the gasoline
in the fuel tank or fuel storage container. Follow the mix instructions found on stabilizer
container. Run engine at least 5 minutes after
adding stabilizer.
Recheck the idle speed
Idle Speed
Adjustment
Screw
ENGINE
Remove spark plug and pour 1 teaspoon of
S
40:1, 2-cycleengine oil (air cooled) through
the spark plug opening. Slowly pull the
starter rope 8 to 10 times to distribute oil.
Replace spark plug with new one of recom-
S
mended type and heat range.
Clean air filter.
S
Check entire unit for loose screws, nuts,
S
and bolts. Replace any damaged, broken,
or worn parts.
At the beginning of the next season, use
S
only fresh fuel having the propergasoline to
oil ratio.
OTHER
Do not store gasoline from one season to
S
another.
Replace your gasoline can if itstarts torust.
S
9
Page 10
TROUBLESHOOTING TABLE
WARNING:
recommended remedies below except remedies that require operation of the unit.
Always stop unitanddisconnect spark plugbeforeperforming all ofthe
TROUBLE CAUSE REMEDY
Engine will not
start or will run
only a few
seconds after
starting.
Engine will
not idle
properly.
Engine will not
accelerate,
lacks power,
or dies under
a load.
Engine
smokes
excessively.
Engine runs
hot.
Blade turns at
idle speed.
Blade stops under a load or
does not turn
when engine is
accelerated.
1.ON/OFF switch in OFF
position.
2. Engine flooded.
3. Fuel tank empty.
4. Spark plug not firing.
5. Fuel not reaching
carburetor.
6.Compression low.
1. Carburetor requires
adjustment.
2. Crankshaft seals worn.
3. Compression low.
1. Air filter dirty.
2. Spark plug fouled.
3. Carburetor requires
adjustment.
4. Carbon build up.
5. Compression low.
1. Choke partially on.
2. Fuel mixture incorrect.
3. Air filter dirty.
4. Carburetor requires
adjustment.
1. Fuel mixture incorrect.
2. Spark plug incorrect.
3. Carburetor requires
adjustment.
4. Carbon build-up.
1. Carburetor requires
adjustment.
2. Throttle cable binding.
3. Clutch requires repair.
1. Blade not engaged.
2. Carburetor requires
adjustment.
3. Clutch requires repair.
1. Move ON/OFF switch to the ON
position.
2. See “Difficult Starting” in
Operation Section.
2. Fill tank with correct fuel mixture.
3. Install new spark plug.
4. Check for dirty fuel filter; replace.
Check for kinked or split fuel line;
repair or replace.
5. Contact an authorized service dealer.
1. See “Carburetor Adjustment” in
Service and Adjustments Section.
2. Contact an authorized service dealer.
3. Contact an authorized service dealer.
1. Clean or replace air filter.
2. Clean or replace plug
and regap.
3. Contact an authorized service dealer.
4. Contact an authorized service dealer.
5. Contact an authorized service dealer.
1. Adjust choke.
2. Empty fuel tank and refill with
correct fuel mixture.
3. Clean or replace air filter.
4. Contact an authorized service dealer.
1. See “Fueling Engine” in Operation
section.
2. Replace with correct plug.
3. Contact an authorized service dealer.
4. Contact an authorized service dealer.
1. See “Carburetor Adjustment” in
Service and Adjustments Section.
2. Replace or repair throttle cable.
3. Contact an authorized service dealer.
1. Check gearbox.
2. Contact an authorized service dealer.
3. Contact an authorized service dealer.
10
Page 11
LIMITED WARRANTY
ELECTROLUX HOME PRODUCTS, INC.,
warrantsto theoriginalpurchaser thateachnew
Weed Eater
ment is free from defects in material and workmanship and agrees to repair or replace under
this warranty any defective gasoline product or
attachment as follows from the original date of
purchase.
2 YEARS
household purposes.
90 DAYS
mercial, professional, or income producingpurposes.
30 DAYS
purposes.
This warranty is not transferable and does not
cover damage or liability caused by improper
handling, improper maintenance, or the use of
accessories and/or attachments notspecifically
recommended by
PRODUCTS, INC.,
this warranty does not cover tune-ups, spark
plugs, filters, etc., that will wear and require replacement with reasonable use during the warranty period. This warranty does not cover predelivery setup or normal adjustments explained
in the instruction manual.
brand gasoline tool or attach-
r
--Parts and Labor, when used for
--Parts andLabor, when usedforcom-
--Parts and Labor, if used for rental
ELECTROLU X HOME
for this tool. Additionally,
U.S. EPA
EMISSION CONTROL WARRANTY STATEMENT
YOUR WARRANTY RIGHTS AND OBLIGATIONS:
Agency and ELECTROLUX HOME PRODUCTS, INC., are pleased to explain the emissions control system warranty on your year
2002--2004 small off--road engine. ELECTROLUX HOME PRODUCTS, INC., must warrant
the emission control system on your small off-road engine for the periods of time listed below
provided there has been no abuse, neglect, or
improper maintenance of your small off--road
engine. Y our emission control system includes
parts such as the carburetor and the ignition
system. Where a warrantable condition exists,
ELECTROLUX HOME PRODUCTS, INC., will
repair your small off--road engine at no cost to
you. Expenses covered underwar rantyinclude
diagnosis, parts and labor.
ER’S WARRANTY COVERAGE:
sions related part on your engine (as listed under Emissions Control Warranty Parts List) is
defective or a defect in the materials or workmanshipoftheenginecauses the failureofsuch
anemissionrelatedpart,the partwillbe repaired
or replaced by ELECTROLUX HOME PRODUCTS, INC.
SPONSIBILITIES:
gine owner , you are responsible for the
performanceof the required maintenance listed
in your instruction manual. ELECTROLUX
HOME PRODUCTS, INC., recommends that
you retain all receipts covering maintenance on
your small off--road engine, but ELECTROLUX
HOME PRODUCTS, INC., cannot deny warranty solely for the lack of receipts or for your
The U. S. Environmental Protection
MANUFACTUR-
If any emis-
OWNER’S WARRANTY RE-
As the small off--road en-
THIS WARRANTY GIVES YOU SPECIFIC
LEGAL RIGHTS, AND YOU MAY HAVE
OTHER RIGHTS WHICH VARY FROM
STATE TO STATE.
NO CLAIMS FOR CONSEQUENTIAL OR
OTHER DAMAGES WILL BE ALLOWED,
AND THERE ARE NO OTHER EXPRESS
WARR ANTIES EXCEPT THOSE EXPRESSL Y STIPULATED HEREIN.
SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR
LIMITATIONS OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE
LIMITATIONS OR EXCLUSION MAY NOT
APPLY TO YOU.
The policy of
UCTS, INC.,
products. Therefore,
PRODUCTS, INC.,
change, modify, or discontinue models, designs, specifications, and accessories of all
products at any time without notice orobligation to any purchaser.
failure to ensure the performance of all scheduled maintenance. As the small off--road engine owner, you should be aware that ELECTROLUX HOME PRODUCTS, INC., may deny
you warranty coverage if your small off- -road
engine ora part ofithas failed due toabuse,neglect, impropermaintenance, unapproved modifications, or the use of parts not made or approved by the original equipment manufacturer .
You are responsible for presenting your small
off--road engine to an ELECTROLUX HOME
PRODUCTS, INC., authorized repair center as
soon as a problem exists. Warranty repairs
should be completed in areasonableamount of
time, not to exceed 30 days. If you have any
questionsregar dingyourwar r antyrights andresponsibilities, you should contact your nearest
authorized service center or call ELECTROLUX HOME PRODUCTS, INC., at
1--800--554--6723.
MENCEMENT DATE:
gins on the date the small off--road engine is
purchased.
warranty shall be for a period of two years from
the initial date of purchase.
ERED: REPAIR OR REPLAC EM ENT OF
PARTS.
rantedpartwill be performedat no charge to the
owner at an approved ELECTROLUX HOME
PRODUCTS, INC., servicing center. If you
have any questions regarding your warranty
rights and responsibilities, you should contact
your nearest authorized service center or call
ELECTROLUX HOME PRODUCTS, INC., at
1--800--554--6723.
ELECTROLUX HOME PROD-
is to continuously improve its
ELECTROLUX HOME
reserves the right to
WARRANTY COM-
The warrantyperiodbe-
LENGTH OF COVERAGE:
WHA T IS COV-
Repair or replacement of any war-
WARRANTY PERIOD:
11
This
Page 12
Any warranted part which is not scheduled for
replacementasrequired maintenance, orwhich
isscheduledonlyforregular inspectiontotheeffect of “repair or replace as necessary” shall be
warrantedfor 2years. Anywarr antedpart which
is scheduled for replacement as required maintenance shallbewarrantedforthe periodoftime
up to the first scheduled replacement point for
that part.
charged for diagnostic labor which leads to the
determination that a warranted part is defective
if the diagnostic work is performed at an approved ELECTROLUX HOME PRODUCTS,
INC., servicing center.
DAMAGES:
UCTS,INC.,may be liablefordamages toother
engine components caused by the failure of a
warranted part still under warranty.
NOTC OVERED:
neglect, or improper maintenance are not covered.
useofadd--on ormodifiedparts can begr ounds
for disallowing a warranty claim. ELECTROLUX HOME PRODUCTS, INC., is not liable to
cover failures of warranted parts caused by the
This engine is certified to be emissions compliant for the following use:
DIAGNOSIS:
ELECTROL UX HOME PROD-
ADD--ON OR MODIFIED PARTS:
Moderate (50 hours)
Intermediate (125 hours)
Extended (300 hours)
The owner shall not be
CONSEQUENTIAL
All failures caused by abuse,
WHA T IS
useofadd--onormodifiedparts.
ACLAIM:
your warranty rights and responsibilities, you
should contact your nearest authorized service
center or call ELECTROLUX HOME PRODUCTS, INC., at 1--800--554--6723.
GET WARRANTY SERVICE:
vices or repairs shall be provided at all ELECTROLUX HOME PRODUCTS, INC., service
centers. Call 1--800--554--6723.
NANCE, REPLACEMENT AND REPAIR OF
EMISSION RELATED PARTS:
TROLUX HOME PRODUCTS, INC., approved
replacement part used in the performance of
any warranty maintenance or repair on emission related parts will be provided without
chargetothe owner ifthe partisunder warranty.
EMISSION CONTROL WARRANTY PARTS
LIST:
(covered up to maintenance schedule), Ignition
The
Module.
owner is responsible for the performance of all
required maintenance as defined in the instruction manual.
If you have any questions regarding
Carburetor, Ignition System: Spark Plug
MAINTENANCE STATEMENT:
HOW TOFILE
WHERE TO
Warranty ser-
MAINTE-
Any ELEC-
The
12
Loading...
