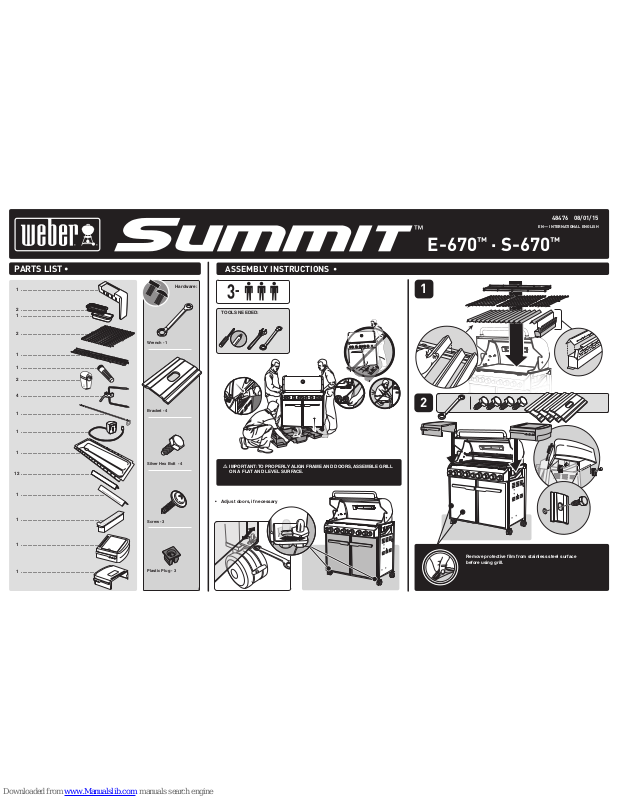

E-670™ · S-670
™

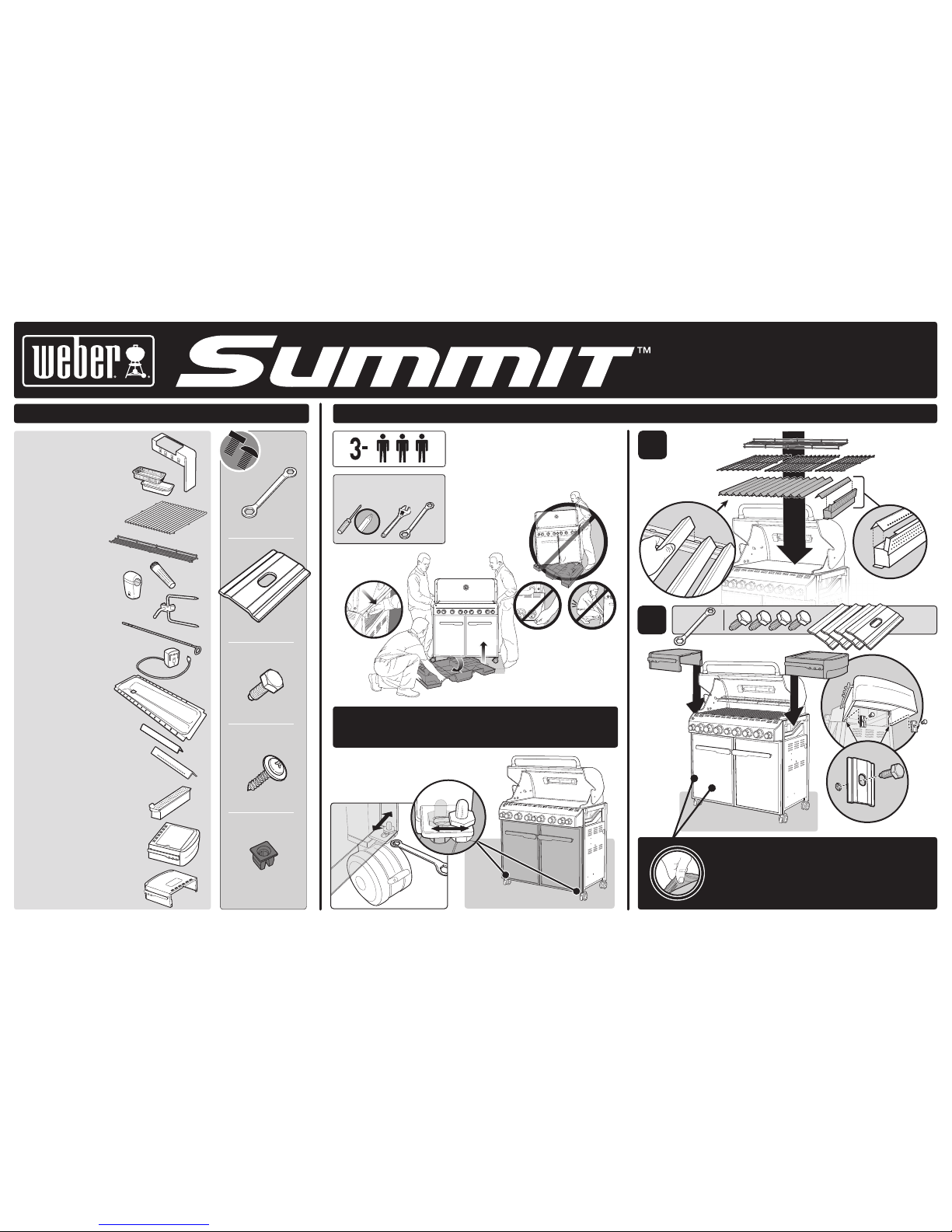

PARTS LIST •
ASSEMBLY INSTRUCTIONS •
TOOLS NEEDED:
• Adjust doors, if necessary
Remove protective film from stainless steel surface
before using grill.
m IMPORTANT: TO PROPERLY ALIGN FRAME AND DOORS, ASSEMBLE GRILL
ON A FLAT AND LEVEL SURFACE.
48476 08/01/15
EN — INTERNATIONAL ENGLISH
Hardware:
Wrench - 1
Bracket - 4
Silver Hex Bolt - 4
Screw - 3
Plastic Plug - 3

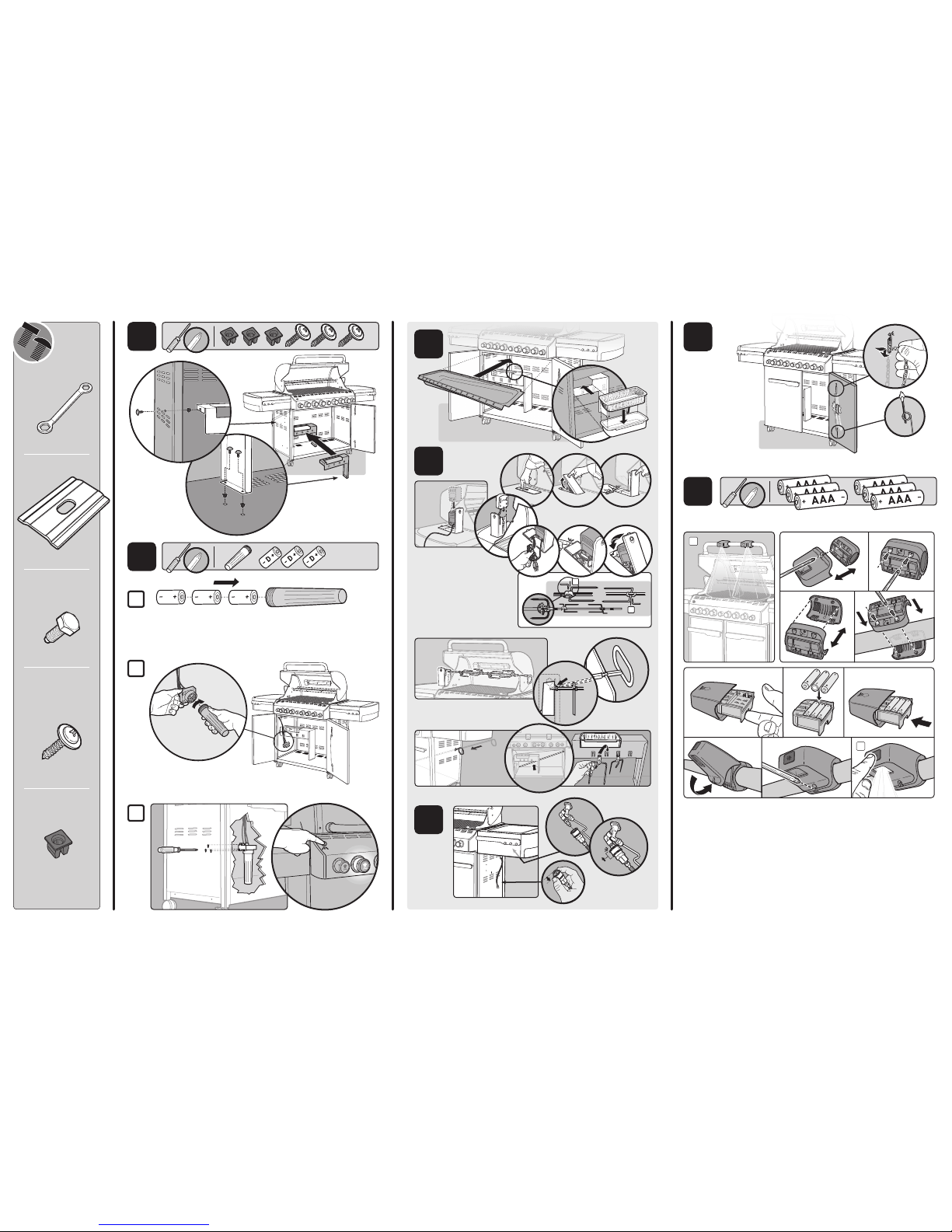

Page 2
5
6
7
4
A
B
C
8
3
2
1
9
b
a
Hardware:
Wrench - 1
Bracket - 4
Silver Hex Bolt - 4
Screw - 3
Plastic Plug - 3
See Owner’s Guide for complete
retractable rotisserie instructions.
Requires 3 “D” alkaline batteries (Included). Use alkaline batteries only. Do not mix old
and new batteries or different types of batteries (standard, alkaline or rechargeable).
Requires 6 “AAA” alkaline batteries
(not included)
See Owner’s Manual for complete gas instructions.
Before use, the grill light should be positioned as shown in illustration (a). Press the AWAKE button to
activate the grill light. The light has a ‘tilt sensor’ that will turn on the light if the grill lid is opened and
turn off the light when the grill lid is closed. If the lid is left open or closed for more than 30 minutes, the
grill light will deactivate. To turn the light back on, press the AWAKE button (b).
NOTE: The light does not turn OFF by pressing the AWAKE button.
