Weber S-470LP Owner’s Manual

E/s=47o

8936

YOU MUST READ THiS OWNER'S GUIDE

BEFORE OPERATING YOUR GAS GRILL

Z_ DANGER

if you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flames.

3. Open lid.

4. if odor continues, keep away from the appliance and immediately call your gas

supplier or your fire department.

Leaking gas may cause a fire or explosion

which can cause serious bodily injury or death, or damage to property.

z_ WARNING:

1. Do not store or use gasoline or other flammable liquids or vapors in the

vicinity of this or any other appliance.

2. An LP cylinder not connected for use

shall not be stored in the vicinity of this or any other appliance.

Z_ WARNING: Follow all leak-check

procedures carefully in this manual prior

to barbecue operation. Do this even if the

barbecue was dealer-assembled.

NOTICE TO iNSTALLER: These instructions must be left with the owner and the owner

should keep them for future use.

OUTDOOR USE ONLY.

THIS GAS APPLIANCE iS DESIGNED FOR

z_ WARNING: Do not try to light this

appliance without reading the "Lighting

instructions" section of this manual.

MEMBER

Nati0naIPROPANEGAS Ass0ciali0n

89369 US 03/03/08

US ENGLISH

DANGER

Failure to follow the Dangers, Warnings and Cautions contained in this Owner's Manual may result in serious bodily injury or death, or in a fire or an explosion causing damage to property.

z_ WARNINGS

z_ Do not store a spare or disconnected liquid propane cylinder under or near this barbecue. z_ Improper assembly may be dangerous. Please follow the assembly instructions carefully. z_ After a period of storage, and/or nonuse, the Weber ®gas barbecue should be checked for gas leaks and burner obstructions

before use. See instructions in this manual for correct procedures.

z_ Do not operate the Weber _ gas barbecue if there is a gas leak present. z_ Do not use a flame to check for gas leaks. z_ Combustible materials should never be within 24 inches (61 cm) of the back or sides of your Weber _ gas barbecue. z_ Do not put a barbecue cover or anything flammable on, or in the storage area under the barbecue.

z_ Your Weber _ gas barbecue should never be used by children. Accessible parts of the barbecue may be very hot. Keep young

children away while it is in use.

z_ You should exercise reasonable care when operating your Weber ®gas barbecue. It will be hot during cooking or cleaning and

should never be left unattended, or moved while in operation.

z_ Should the burners go out while in operation, turn all gas valves off. Open the lid and wait five minutes before attempting to

relight, using the lighting instructions.

z_ Do not use charcoal or lava rock in your Weber ®gas barbecue. z_ Never lean over open grill or place hands or fingers on the front edge of the cooking box. z_ Should a grease fire occur, turn off all burners and leave lid closed until fire is out. z_ Do not enlarge valve orifices or burner ports when cleaning the valves or burners.

z_ The Weber +gas barbecue should be thoroughly cleaned on a regular basis. Z_ Liquid propane gas is not natural gas. The conversion or attempted use of natural gas in a liquid propane unit or liquid propane

gas in a natural gas unit is dangerous and will void your warranty.

Z_ Do not attempt to disconnect any gas fitting while your barbecue is in operation. Z_ Use heat-resistant barbecue mitts or gloves when operating barbecue.

Z_ Keep any electrical supply cord and the fuel supply hose away from any heated surfaces. Z_ Combustion byproducts produced when using this product contain chemicals known to the state of California to cause cancer,

birth defects, or other reproductive harm.

Z_ Do not use this barbecue unless all parts are in place. The unit must be properly assembled according to the assembly

instructions.

Z_ Do not build this model of grill in any built-in or slide in construction, ignoring this Warning could cause a fire or an explosion

that can damage property and cause serious bodily injury or death.

z_ Proposition 65 Warning: Handling the brass material on this product exposes you to lead, a chemical known to the state of

California to cause cancer, birth defects or other reproductive harm.

(Wash hands after handfing this product.)

LIQUID PROPANE GAS UNITS ONLY:

z_ Use the pressure regulator and hose assembly that is supplied with your Weber _ gas barbecue. z_ Do not attempt to disconnect the gas regulator and hose assembly or any gas fitting while your barbecue is in operation. Z_ A dented or rusty liquid propane cylinder may be hazardous and should be checked by your liquid propane supplier. Do not

use a liquid propane cylinder with a damaged valve.

Z_ Although your liquid propane cylinder may appear to be empty, gas may still be present, and the cylinder should be

transported and stored accordingly.

z_ if you see, smell or hear the hiss of escaping gas from the liquid propane cylinder:

1. Move away from liquid propane cylinder.

2. Do not attempt to correct the problem yourself.

3. Call your fire department.

WEBER-STEPHEN PRODUCTS CO.

www.weber.com +

©2007 The following trademarks are registered in the name of Weber-Stephen Products Co., an Illinois corporation, located at 200 East Daniels Road, Palatine, Illinois 60067 U.S.A. Australia; Smokey Joe, Weber, Kettle Silhouette_, Genesis, Austria; Kettle Silhouette_, Smokey Joe, Weber, Benelux; Kettle SilhouetteY, Smokey Joe, Weber, Compact Grill Configura- tion, Botswana; Weber, Canada; Smokey Joe, Genesis, China; Kettle Silhouette_, Denmark; Kettle SilhouetteY, Smokey Joe, Weber, Finland; Smokey Joe, France; Kettle Silhouette_., Smokey Joe, Weber, One-Touch, Germany; Smokey Joe, Weber, One-Touch, Greece; Smokey Joe, Ireland; Kettle Silhouette_, Smokey Joe, Italy; Smokey Joe, Weber, Japan; Smokey Joe, Weber, Korea; Smokey Joe, Weber, New Zealand; Weber, Smokey Joe, Nigeria; Weber, Norway; Smokey Joe, Weber, Portugal; Weber, South Africa: Smokey Joe, Weber, Kettle Configuration, Spain; Smokey Joe, Weber, Sweden; Kettle Silhouette_, Smokey Joe, Switzerland; Kettle Silhouette_, Smokey Joe, Weber, United Kingdom; Smokey Joe, Weber, Weber One-Touch, U.S.A..; Kettle Configuration, Kettle SilhouetteY, Smokey Joe, Weber, One-Touch, Firespice, Go-Anywhere, U.S.A.;Kettle Configuration, Kettle Silhouette, Genesis, Fla- vorizer, Crossover, Flamgo, Performer, Rapidfire, Tuck 'N Carry, Jumbo Joe, Bar-B-Kettle, Master-Touch, Spirit, Grill Out, Summit, Platinum, 1-800-Grill-Out, Ranch, Matchless Flame, Zimbabwe; Weber, Kettle Configuration, Kettle Silhouette?..

Weber-Stephen Products Co. (Weber) hereby warrants to the ORIGINAL PURCHASER of this Weber _ gas grill that it will be free of defects in material and workmanship from the date of purchase as follows:

Aluminum castings 25-years (2 years on paint: excludes fading)

Stainless sleel Shroud, 25-years:

Porcelain-enameled shroud, 25-years

Cookbox Assembly 10-years (2 year on paint excludes fading)

Stainless sleel burners tubes, f0-years Stainless steel cooking grates, 5-years no rusl through or burn through Stainless steel F]avorizer bars, 5-years no rust through or burn through

Porcelain-enameled cast-iron

When assembled and operated in accordance with the printed instructions accompanying it. Weber may require reasonable proof of your date of purchase. THEREFORE, YOU SHOULD RETAIN

YOUR SALES SLIP OR INVOICE.

cooking grates, 5-year no rust through or burn through

Porcelain-enameled

cooking grates, 3-years no rust through or burn through

Porcelain-enameled

Flavodzer bars, 2-years no rust through or burn through

Infrared Rotisserie Burner, 2-years

AH remaining parts, 2-years

This Limited Warranty shall be limited to the repair or replacement of parts that prove defective under normal use and service and which on examination shall indicate, to Weber's satisfaction, they are

defective. Before returning any parts, contact the Customer Service Representative in your area using the contact information on our website. If Weber confirms the defect and approves the claim, Weber will elect to replace such parts without charge. If you are required to return defective parts, transportation charges must be prepaid. Weber will return parts to the purchaser, freight or postage

prepaid. This Limited Warranty does not cover any failures or operating difficulties due to accident, abuse, misuse, alteration, misapplication, vandalism, improper installation or improper maintenance or

service, or failure to perform normal and routine maintenance, including but not limited to damage caused by insects within the burner tubes, as set out in this owner's manual. Deterioration or damage due to severe weather conditions such as hail, hurricanes, earthquakes or tornadoes, discoloration due to exposure to chemicals either directly or in the atmosphere, is not covered by this Limited Warranty.

There are no other express warrants except as set forth herein and any applicable implied warranties of merchantability and fitness are limited in duration to the period of coverage of this express written Limited Warranty. Some regions de not allow limitation on how long an implied warranty lasts, so this limitation may not apply to you.

Weber is not liable for any special, indirect or consequential damages. Some regions do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you. Weber does not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment; and no

such representations are binding on Weber. This Warranty applies only to products sold at retail.

WEBER-STEPHEN PRODUCTS CO. Customer Service Center

1890 RoseHe Road, Suite 308 Schaumburg, IL 60195 USA

For replacement parts call: 1-800-446-1071

www.weber.com ®

Weber-Stephen Products Co., (Weber) mediante la presente le garantiza al COMPRADOR ORIGINAL de esta barbacoa de gas Weber e que la misma estara libra de defectos en cuanto a materiales y fabricacion a partir de la fecha de compra segt_n Io siguiente:

Piezas coladas de aluminio

Cubierta de acero inoxidable,

Cubierta porcelanizada,

Camara para asar

Tubes de acero inoxidable

de los quemadores,

Parrilas de cocci6n de

acero inoxidable.

Barras Flavorizer de

acero inoxidable,

Parrillas de cocci6n de hierro

Parrillas de cocci6n porcenlanizadas,

cuando se ensambla y opera de acuerdo alas instrucciones impresas que la acompa_an. Weber pudiese requerir prueba razonable de la fecha de compra. PeR LO TANTO, DEBERA,

GUARDAR SU RECIBO O FACTURA DE VENTA. Esta garantia limitada ester limitada a la reparacion o reemplazo de piezas que resultasen defectuosas

bale use y servicio normal y las cuales al examinarse indiquen, a plena satisfaccion de Weber, que efectivamente son piezas defectuosas. Antes de devolver cualquier parte, contacte al Representante

de Atencion al Cliente en su _trea, cuya informacion de contacto la encontrara en nuestro sitio web. Si Weber confirma el defecto y aprueba el reclamo, esta elegira reparar o reemplazar tal pieza sin cargo alguno. Si usted tiene que retornarnos las partes defectuosas, los gastos de transporte deben ser prepagados. Weber retornar_t las partes al comprador con transporte o franqueo prepagado.

Esta Garantia Limitada no cubre ninguna falla o problema de operacion a causa de accidentes, abuse, real use, alteracion, use en aplicaciones indebidas, vandalismo, instalacion inapropiada o mantenimiento o servicio inapropiados, o per no Ilevar a cabo el mantenimiento normal y rutinario,

Weber-Stephen Products Co. (Weber) garantit par le present document t_I'ACHETEUR D'ORIGINE de ce grill a gaz WebeP que celui-ci ne comportera aucun defaut de piece ni de main d'oeuvre a compter

de la date d'achat comme suit :

Tubes du brQ]eur en acier inoxydab]e,

Grilles de cuisson en acier inoxydab]e,

Barres F]avodzer en acier inoxydab]e,

Grilles de cuisson en fonte far email]Oe,

BrOleur de la rOtissoire & infrarouge,

_tcondition qu'il ait ete assemble et utilise conformement aux instructions imprimees qui I'accompagnent. Weber peut exiger une preuve raisennable de vetre date d'achat. VOUS DEVRIEZ DONC CONSERVER VOTRE TICKET DE CAISSE OU VOTRE FACTURE.

La presente Garantie limitee est limitee a la reparation ou au remplacement des pieces qui s'averent defectueuses dans le cadre d'une utilisation normale et d'un entretien normal et dent I'examen indique, _tla satisfaction de Weber, qu'elles sent defectueuses. Avant de retourner toute piece, veuillez entrer en contact avec le Representant du Service clientele le plus proche gr&ce aux coordonnees

_tvetre disposition sur notre site Internet. Si Weber confirme le defaut et approuve la demande, Weber choisira de remplacer ces pieces sans frais. S'il vous est demande de retourner les pieces defectueuses, les frais de transport devrent ¢tre prepayes. Weber retournera les pieces _tI'acheteur, france de port. La presente Garantie limitee ne couvre pas toute defaillance ou difficulte d'utilisation provequee par un

accident, une utilisation abusive, une mauvaise utilisatien, une alteration, une mauvaise application, un acte de vandalisme, une installation incorrecte eu une maintenance ou un entretien incorrects, ou le

defaut d'entretien normal et regulier, y compris mais pas seulement les demmages prevoques par des insectes a I'interieur des tubes du brt]leur, tel que decrit dans le present mode d'emplei.

colado porcelanizado,

Barras Flavorizer porcelanizadas.

Qumeador infrarrojo del

asador giratorio.

Todas la demas partes.

Fonte d'aluminium

Structure en acier inoxydable.

Structure emaillee,

Gdl]es de cuisson 6mai]lees,

Barres Flavorizer 6rnaH]ees,

Toutes les autres pieces,

25-al_os (2 ai_os para la pintura excluyendo la decoloraci6n) 25-al_os

25-aiios 10-ai_os (2 ai_os para la pintura excluyendo la decoloraci6n)

10-ai_os

5-ai_os sin pertoraciOn per fuego u oxidaciOn

5-abos sin pertoraciOn per fuego u oxidaciOn 3-abos sin pertoraciOn per fuego u oxidaciOn 2-ai_os sin pertoraciOn per fuego u oxidaciOn

2-abos 2-ai_os

25 ans (2 ans pour lapeinture & rexception de toute d@coloration) 25 ans

25 ans

Cuve,

10 ans (2 ans pour la peinture a I'exception de toute d@coloration) 10 ans

5 ans sans trou provoque par la rouille ou par une brQlure 5 ans sans trou provoque par la rouille ou par une brQlure 5 ans sans trou provoque par la rouille ou par une brQlure 3 ans sans trou provoque par la rouille ou par une brQlure 2 ans sans trou provoque par la rouille ou par une brt31ure

2 ans 2 ans

entre los que se incluyen, pero sin limitacion, los dafios causados per insectos dentro de los tubes quemadores, segL)n se detalla en este manual del propietario.

Esta Garantia Limitada no cubre el deterioro o da_os a causa de condiciones de tiempo inclemente tales come granizo, huracanes, terremotos o tornados ni tampoco la decoloracion per exposicion a sustancias quimicas bien sea per contacto directo o per que las mismas contenidas en la atmosfera.

No existe ninguna otra garantia expresa que no sean las las ac_t indicadas y cualesquier garantias implicitas de comerciabilidad y aptitud de use est_tn limitadas en duracion al tiempo de cobertura de esta expresa Garantia Limitada per escrito. Algunas regiones no permiten limitacion alguna en el tiempo que una garantia implicita pueda durar, per Io que esta limitacion pudiera no aplicarle a usted. Weber no se hace responsable de cualesquier da_os especiales, indirectos o emergentes. Algunas

regiones no permiten la exclusion o limitacion de dafios incidentales o emergentes, per Io que esta limitacion o exclusion pudieran no aplicarle a usted. Weber no autoriza a persona o empresa alguna a asumir en su nombre ninguna obligacion o responsabilidad en relacion con la venta, instalacion, use, retire, devolucion o reemplazo de sus equipos, y ninguna tal representacion sera vinculante para Weber.

Esta Garantia aplica solo a aquellos productos vendidos al per menor.

WEBER-STEPHEN PRODUCTS CO. CustomerService Center 1890 RoseHe Road, Suite308 Schaumburg, lL 60195

USA Para partes de repuesto llama a:

1-800-446-1071 www.weber.com ®

Toute deterioration ou tout dommage resultant de conditions meteorologiques graves comme de la gr¢le, des ouragans, des seismes ou des tornades, toute deceleration resultant d'une exposition a des agents chimiques directement ou dans I'atmosphere, n'est pas couverte dans le cadre de la presente

Garantie limitee.

II n'existe aucune autre garantie expresse hormis celles exposees dans le present document et toute garantie de commercialisation et de ben etat induite est limitee en duree a la periode de couverture de la presente Garantie limitee ecrite expresse. Certaines regions n'autorisent pas de limitation de duree de la garantie induite ; il est donc posible que cette limitation ne s'applique pas _tvous. Weber ne peut ¢tre tenu pour responsable de tout dommage particulier, induit ou se produisant par

voie de consequence. Certaines regions n'autorisent pas I'exclusion ou la limitation des dommages indirects ou se produisant par voie de consequence ; il est donc possible que cette limitation ou exclusion ne s'applique pas _tvous. Weber n'autorise aucune personne ou societe a presumer en son nom de toute autre obligation ou responsabilite en relation avec la vente, I'installation, I'utilisation, le retrait, le retour ou le

remplacement de ses equipements ; et aucune de ces representations ne lie Weber. La presente Garantie s'applique uniquement aux produits vendus au detail.

Para compras hechas en M_xico WEBER-STEPHEN PRODUCTS S.A. de C.V.

Marcella No. 338, Colonia Americana

44160 M_xico, C.P. M_xico

Para 9artes de repuesto llama a:

(52) (33) 3615-0736

www.webet.com ®

WEBER-STEPHEN PRODUCTS CO. Product Registration

P.O. Box 40530 Burlington, ON L7P 4W1

Pour des pieces de rechange, appelez le : 1-800-265-2150

www.weber.com ®

CatchPanHolder Sostenedordelplatorecolector

SupportdeI'egouttoir

Drip Tray Bandeja de goteo Plateau de recueil des gouttes

Platorecolector

CatchPan

Egouttoir

Parrilla de coccien

CookingGrate

Grille de cuisson

Warming Rack Rejilla para calentar

Grille de maintien au chaud

Battery Housing Compartimiento de masbaterias

Logement des plies

Rotisserie Fork Horquilla del asador giratorio

Fourche de la retissoire

Rotisserie Spit Espeten del asador giratorio

Br6che de la r6tissoire

Rotisserie Motor Motor del asador giratorio

Moteur de la r6tissoire

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

Rotisserie Bracket Soportedelasadorgiratorio ili!i!i!!iii

Support de la r6tissoire

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii i !i !i !i !i !i !i ii!iii!i!i!i!i!iil

Flavodzer ®Bar Barras Flavorizer e

Barre Flavorizer ¢

Smoker Bar Barra del ahumador

Barre du fumoir

Smoker Box Caja del ahumador

Boftier du fumoir

Side Burner Table Mesa del quemador lateral

Tablette du brQleur lateral

Side Table Mesa lateral Tablette laterale

Wrench

Llave Cle

Nylon Washer Arandela de nilen

Rondelle de nylon

Truss Head Screw (¼-20 × 1 inch)

Tornillo de cabeza segmentada (Tornillo ¼-20 x 1 pulgadas)

Vis etete bombee large de (¼-20 x 1 pouces)

Keps Nut (1A-20 keps nut) Tuerca keps(Tuerca keps ¼-20)

Ecrou e rondelle dentee (ecrou & rondelle dentee de ¼-20)

1 inch Bolt (IA-20 x 1 inch Bolt) Perno 1 pulgada (Perno ¼-20 x 1 pulgadas)

Ecrou de 1 pouce (ecrou de ¼-20 x 1 pouce)

Screw

Tornillo Vis

Plastic Plug Tapen plastico

Bouchon en plastique

VISION I_CLATI_E, DIAGRAMA DE DESPIECE

$470 LP US

4 5

7 8

10 41

11 12

13 14

43 44

38 39

17 18

19 20

21 22

24.

28 29

32 33

52 53

56 57

LISTA DEL DIAGRAMA DE DESPIECE, LISTE DE LA VISION I_CLATI_E

1. Shroud Hardware 22. Sear Station TMKnob 43. Accesorios de la cubierta Perilla de la estaci6n para dorar Structure de protection Bouton du br_leur Sear Station

2. Shroud 23. Battery Housing 44. Cubierta Compartimiento de la bateria

T61ede protection Logement des piles

3= Thermometer

Term6metro Thermometre

24. Water Baffle/Heat Shield 45. Side Burner Reflector de agua / Pantalla termica Quemador lateral Protection contre I'eau/Cloison anti-chaleur Br_leur lat@al

4. Thermometer Bezel 25. Disposable Drip Pan 46. Cookbo× Moldura decorativa del term6metro Bandeja de goteo desechable Caja de cocci6n Plaque indicatrice du thermometre Egouttoir jetable Boitier de cuisson

5. Handle 26. Drip Tray 47 Bulkhead Asa Bandeja de goteo Tabique divisorio

Poignee Plateau-egouttoir Cloison

6. Grill Out TM Handle Light Luz de asa Grill Out TM

Lampe de poignee Grill OutTM

7. Rotisserie Motor Motor del asador

Moteur de la r6tissoire

8. Rotisserie Bracket Soporte del asador giratorio Support de la r6fissoire

9. Warming Rack Rejilla de calentamiento

Grille de rechauffage

10. Cooking Grates Parrillas de coccJ6n

Grilles de cuisson

11. Flavorizer ® Bars Barras Flavorizer _ Barres Flavorizer _

12. Burner Tubes Tubos quemadores

Tubes des br_leurs

13.

Side Table Mesa lateral

Tablette laterale

14. LeftTool Holder 35. Portaherramientas izquierdo

Support d'ustensiles de gauche

15. Control Panel Wiring Harness 36. Cableado prefabricado del panel de control

Harnais des cb,bles du panneau de commande

16. Manifold 37. Multiple

Collecteur

27. Catch Pan Plato recolector

Egouttoir

28. Catch Pan Holder Soporte del plato recolector

Support d'egouttoir

29. Left Door Puerta izquierda Porte gauche

30. Door Handles Asas de las puertas Poignees de portes

31. Right Door Puerta derecha

Porte droite

32. Left Frame Panel Panel izquierdo del bastidor

Panneau du cadre gauche

33. Bottom Panel Panel inferior Panneau inferieur

34. IR Burner Cover Tapa del quemador IR Cache du brQleur IR

Infrared Burner

Quemador infrarrojo BrQleur b, infrarouge

IR Burner Box

Caja del quemador infrarrojo Boitier du brQleur IR

IR Burner Igniter Wire

Cable de encendido del quemador IR Cb,ble de I'allumeur du brQleur IR

17. Control Panel 38. Thermocouple 59. Matchstick Holder Tablero de control Termopar Portacerillos Panneau de commando Thermocouple Porte-allumette

18. Small Knob Bezel 39. IR Burner Hose 60. Caster Moldura decorativa de la perilla pequeSa Manguera del quemador IR Rueda giratoria Plaque indicatrice du petit bouton Tuyau du brQleur IR Roulette

19. Small Knob 40. Rotisserie Spit Assembly 61. Locking Caster Perilla pequeSa Ensamble del espet6n del asador giratorio Rueda giratoria con bloqueo

Petit bouton Ensemble de la broche de la r6tissoire Roulette autobloquante

20.

Large Knob 41. Smoker Box

Perilla grande Caja del ahumador Grand bouton Boitier du fumoir

21.

Large Knob Bezel Moldura decorativa de la perilla grande Plaque indicatrice du grand bouton

42. Smoker Bar Barra del ahumador Barre du fumoir

Smoker Burner Quemador del ahumador Br_leur du fumoir

Sear Station Burner Quemador de la estaci6n para dorar

Br_leur Sear Station

48. Manifold Hose Manguera del multiple

Tuyau du collecteur

49. Side Burner Lid Tapa del quemador lateral

Couvercle du br_leur lat@al

50.

Side Burner Table

Mesa del quemador lateral Tablette du brQleur lateral

51.

Hose / Regulator

Manguera / Regulador Tuyau/Regulateu r

52. Right Tool Holder Portaherramientas derecho

Support d'ustensiles de droite

53. Side Burner Hose Manguera del quemador lateral

Tuyau du brQleur lateral

54. Frame Support Soporte del bastidor

Support du cadre

55. Back Panel Panel trasero

Panneau arriere

56. Right Frame Panel Panel derecho del bastidor

Panneau du cadre droit

57. Tank Scale Bascula del tanque

Plateau de la bouteille

Tank Glide

58. Deslizadera del tanque Glissieres de la bouteille

• Adjust doors, if necessary

• Si fuese necesario, ajuste la puerta

• Ajustez la porte si n_cessaire .................................................

2 3

Requires 3 "D"alkailne batteries (included). Use alkaline batteries only. Do not mix old and new batteries or different types

of batteries (standard, alkaline or rechargeable).

Requiere 3 baterias alcalinas "D" (incluidas).Use solamente baterias alcalinas. No mezcle baterfas nuevas con viejas o

diferentes tipos de baterfas entre sf (normales, alcalinas o recargables).

Fonctionne avec 3 piles alcalines "D" (Fournies). Utilisez des piles alcalines uniquement. Ne melangez pas des piles usagees

et des piles neuves ou differents types de piles (ordinaires, alcalines ou rechargeables).

iiii_ii_ii_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_i_i_ii!!!

The Weber Grill Out TM Handle Light has a "Tilt Sensor": Lid up - ON / Lid Closed - OFF. The power button (a) activates or deactivates the "Tilt Sensor." For daytime use, deactivate the sensor by

pressing power button (a).

La L_.mpara de Asa Weber Grill Out TM tiene un "sensor de inclinaci6n": tapa abierta - ENCENDIDA / tapa cerrada - APAGADA. El bot6n de encendido (a) activa o desactiva al "sensor de inclinaci6n". Para uso durante el dfa, desactive al sensor pulsando el bot6n de encendido (a).

La Lampe de poignee Weber Grill Out TM est pourvu d'un "Detecteur Tilt" : Couvercle releve - MARCHE

/ Couvercle ferme - ARRET (OFF). Le bouton d'alimentation electrique (a) active ou desactive le "Detecteur Tilt." Pour une utilisation pendant la journee, veuillez desactiver le detecteur en appuyant

sur le bouton d'alimentation electrique (a).

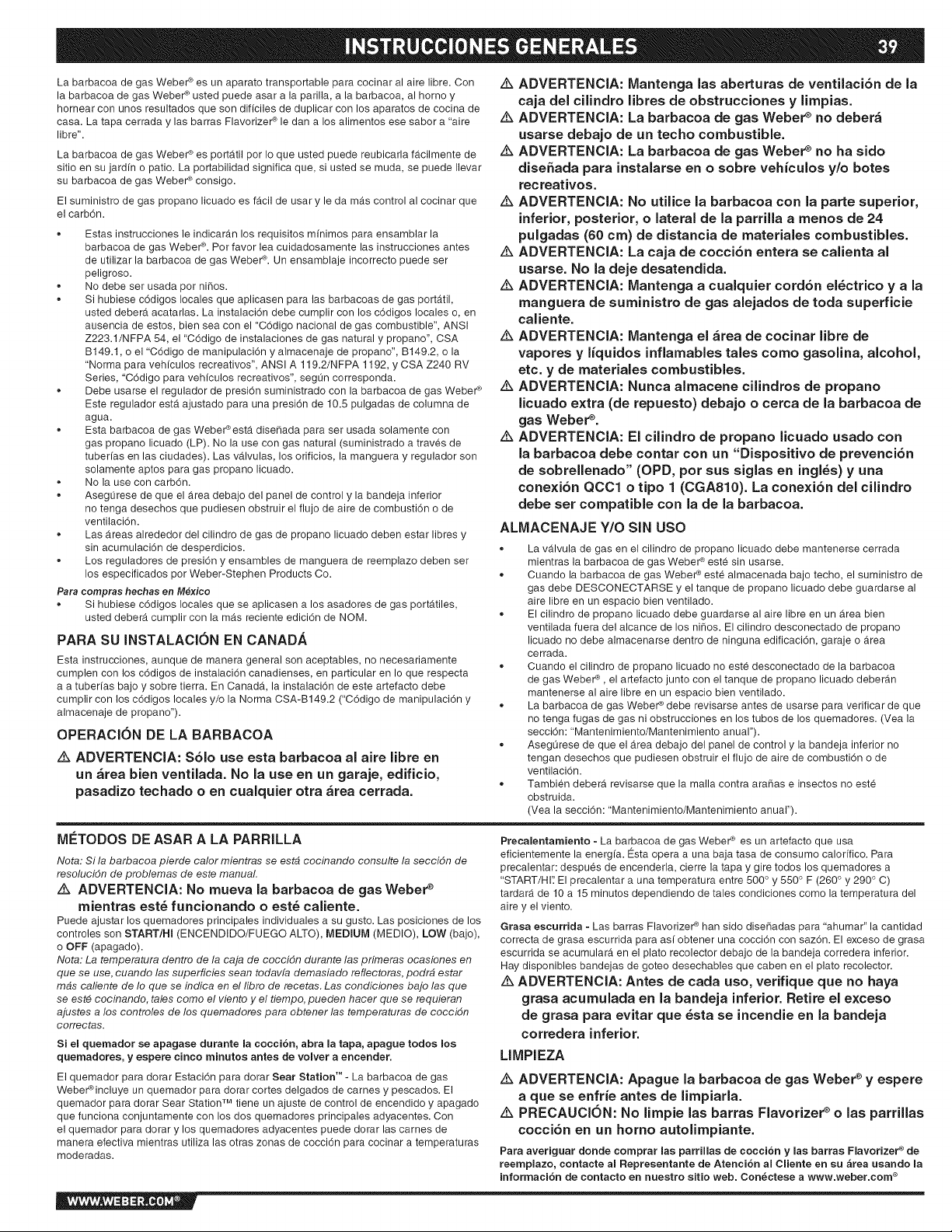

YourWebei_gasbarbecueisaportableoutdoorcookingappliance.WiththeWeber¢ gasbarbecueyoucangrill,barbecue,roastandbakewithresultsthataredifficultto

duplicatewithindoorkitchenappliances.TheclosedlidandFlavorizer¢Barsproduce that"outdoor"flavorinthefood.

TheWeber¢gasbarbecueisportablesoyoucaneasilychangeitslocationinyouryard oronyourpatio.PortabilitymeansyoucantakeyourWeber_gasbarbecuewith,ifyou move.

LiquidPropane(LP)gassupplyiseasytouseandgivesyoumorecookingcontrolthan charcoalfuel.

o Theseinstructionswillgiveyoutheminimumrequirementsforassemblingyour

Weber¢gasbarbecue.Pleasereadtheinstructionscarefullybeforeusingyour Weber¢gasbarbecue.Improperassemblycanbedangerous.

Notforusebychildren. Iftherearelocalcodesthatapplytoportablegasgrills,youwillhavetoconformto them.Installationmustconformwithlocalcodesor,intheabsenceoflocalcodes,

witheithertheNationalFuelGasCode,ANSIZ223.1/NFPA54,NaturalGasand PropaneInstallationCode,CSAB149.1,orPropaneStorageandHandlingCode,

B149.2,ortheStandardforRecreationalVehicles,ANSIA119.2/NFPA1192,and CSAZ240RVSeries,RecreationalVehicleCode,asapplicable.

ThepressureregulatorsuppliedwiththeWeber¢gasbarbecuemustbeused. Thisregulatorissetfor11inchesofwatercolumn(pressure).

ThisWeber_gasbarbecueisdesignedforusewithliquidpropane(LP)gasonly. Donotusewithnatural(pipedincity)gas.Thevalves,orifices,hoseandregulator

areforLPgasonly. Donotusewithcharcoalfuel.

Checkthattheareaunderthecontrolpanelandthebottomtrayarefreefrom debristhatmightobstructtheflowofcombustionorventilationair.

TheareasaroundtheLPcylindermustbefreeandclearfromdebris. Replacementpressureregulatorsandhoseassembliesmustbethosespecified

byWeber-StephenProductsCo.

FOR INSTALLATION IN CANADA

These instructions, while generally acceptable, do not necessarily comply with the Canadian Installation codes, particularly with piping above and below ground. In

Canada the installation of this appliance must comply with local codes and/or Standard CSA-B149.2 (Propane Storage and Handling Code).

OPERATING

WARNING: Only use this barbecue outdoors in a well- ventilated area. Do not use in a garage, building, breezeway or any other enclosed area. WARNING: Keep ventilation openings for cylinder enclosure

free and clear from debris.

z_ WARNING: Your Weber _ gas barbecue shall not be used

under overhead combustible construction.

z_ WARNING: Your Weber _ gas barbecue is not intended to be

installed in or on recreational vehicles and/or boats. WARNING: Do not use the barbecue within 24 inches of

combustible materials to the back or sides of the grill. WARNING: The entire cooking box gets hot when in use. Do

not leave unattended.

z_ WARNING: Keep any electrical supply cord and the fuel

suppJy hose away from any heated surface. WARNING: Keep the cooking area clear of flammable vapors and liquids such as gasoline, alcohol, etc., and combustible

materials.

z_ WARNING: Never store an extra (spare) LP cylinder under or

near the Weber _ gas barbecue. WARNING: The LP cylinder used with your barbecue must be with a listed OPD (Overfilling Prevention Device) and a QCCl or Type 1 (CGA810) cylinder connection. The

cylinder connection must be compatible with the barbecue

connection.

STORAGE AND/OR NONUSE

,, The gas must be turned off at the liquid propane cylinder when the Webei _ gas

barbecue is not in use.

,, When the Weber ¢gas barbecue is stored indoors, the gas supply must be

DISCONNECTED and the LP cylinder stored outdoors in a well-ventilated space.

,, LP cylinder must be stored outdoors in a well -ventilated area out of reach of

children. Disconnected LP cylinder must not be stored in a building, garage or any other enclosed area.

,, When the LP cylinder is not disconnected from the Webei _ gas barbecue, the

appliance and LP tank must be kept outdoors in a well-ventilated space.

,, The Weber ¢gas barbecue should be checked for gas leaks and any obstructions

in the burner tubes before using. (See Section: "Maintenance/Annual Maintenance).

,, Check that the areas under the control panel and the slide out bottom tray are free

from debris that might obstruct the flow of combustion or ventilation air.

,, The Spider/Insect Screens should also be checked for any obstructions.

(See Section: "Maintenance/Annual Maintenance").

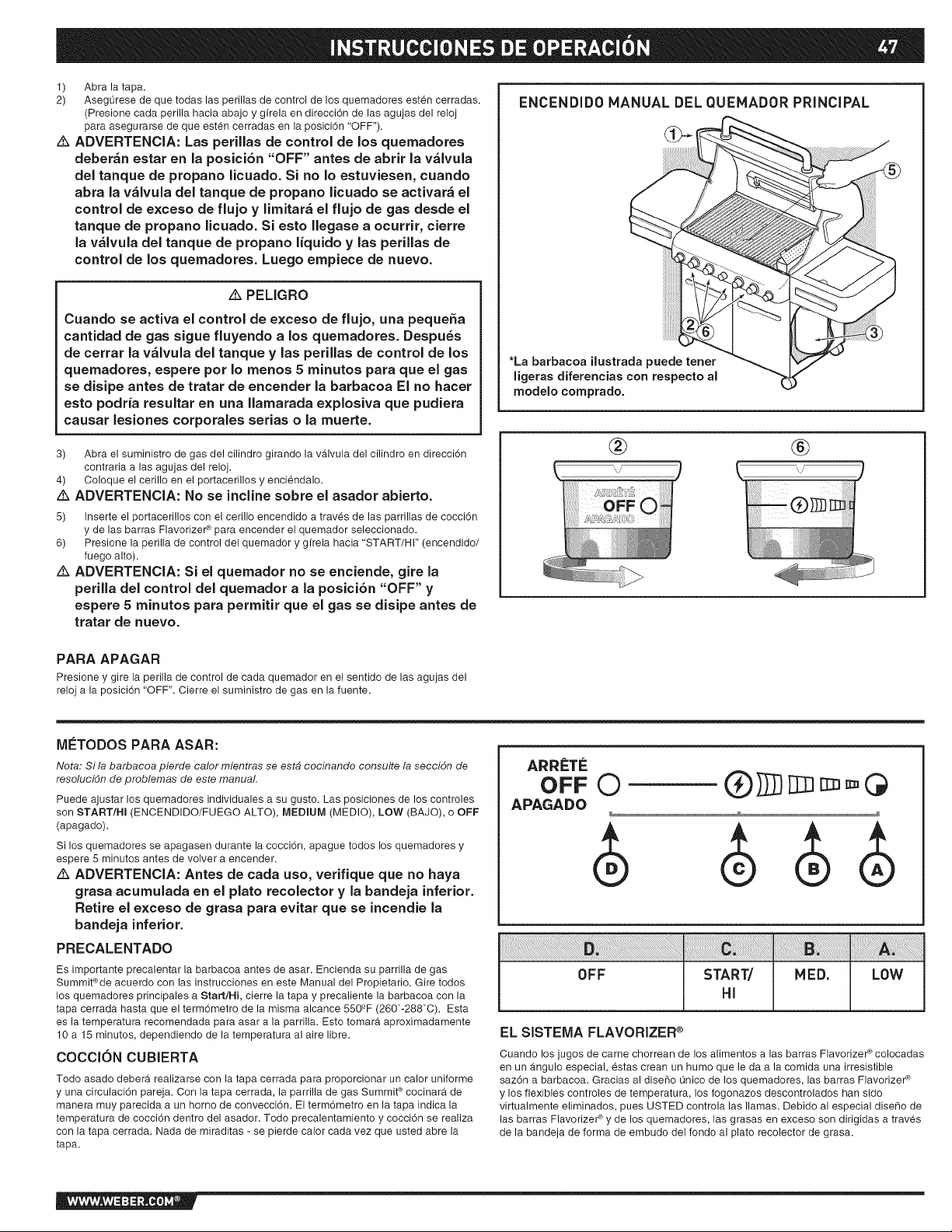

GRILLING METHODS

Note: If grill loses heat while cooking refer to the troubleshooting section of this manual.

A WARNING: Do not move the Weber _ gas barbecue when

operating or while barbecue is hot.

You can adjust the individual main burners as desired.The control settings are START/ HL MEDIUM, LOW, or OFF.

Note: The temperature inside your cooking box for the first few uses, while surfaces are still very reflective, may be hotter than those shown in your cookbook. Cooking

conditions, such as wind and weather, may require the adjustment of the burner controls to obtain the correct cooking temperatures.

if burners go out during cooking, open lid, turn off aimburners and wait five minutes before relighting.

Sear Station"' - Your Weber _ gas barbecue includes a sear burner for searing thin meats and fish. The Sear Station" burner has an on or off control setting that works with

the two adjacent main burners. With the sear and adjacent burners you can effectively sear meats while using other cooking areas for cooking with moderate heat.

Preheating - Your Weber _ gas barbecue is an energy-efficient appliance. It operates at an economical low BTU rate.To preheat: after lighting, close lid and turn all burners to

"START/HI': Preheating to between 500 ° and 550 ° F (260 ° and 290 ° C) will take 10 to 15 minutes depending on conditions such as air temperature and wind.

Drippings and grease - The Flavorizer ¢ bars are designed to "smoke" the correct amount of drippings for flavorful cooking. Excess drippings and grease will accumulate in

the catch pan under the slide out bottom tray. Disposable foil drip pans are available that fit the catch pan.

WARNING: Check the bottom tray for grease build-up before

each use. Remove excess grease to avoid a grease fire in the slide out bottom tray.

CLEANING

WARNING: Turn your Weber ®gas barbecue off and wait for it to cool before cleaning. CAUTION: Do not clean your Flavorizer _ bars or cooking

grates in a self-cleaning oven.

For availability of replacement cooking grates and Fmavorizer ° bars contact the Customer Service Representative in your area using the contact information on

our website. Log onto www.weber.com ® Outside surfaces - Use a warm soapy water solution to clean, then rinse with water.

z_ CAUTION: Do not use oven cleaner, abrasive cleansers

(kitchen cleansers), cleaners that contain citrus products, or abrasive cleaning pads on barbecue or cart surfaces.

Slide out Bottom tray - Remove excess grease, then wash with warm soapy water, then rinse.

Flavorizer ®bars and Cooking grates - Clean with a suitable brass bristle brush. As needed, remove from grill and wash with warm soapy water, then rinse with water.

Catch pan - Disposable foil trays are available, or you can line the catch pan with aluminum foil. To clean the catch pan, wash with warm soapy water, then rinse.

Thermometer - Wipe with warm soapy water; clean with plastic scrub ball. Inside cooking module - Brush any debris off of burner tubes. DO NOT ENLARGE

BURNER PORTS (OPENINGS). Wash inside of cooking box with warm soapy water and a water rinse.

Inside Lid - While lid is warm, wipe inside with paper towel to prevent grease build-up. Flaking built-up grease resembles paint flakes.

Stainless steel surfaces - Wash with a soft cloth and a soap and water solution. Be careful to scrub with the grain direction of the stainless steel.

Do not use cleaners that contain acid, mineral spirits or xylene. Rinse well after cleaning.

Preserve Your Stainless Steel - Your grill or its cabinet, lid, control panel and shelves may be made from stainless steel. To keep the stainless steel looking its best is a

simple matter. Clean it with soap and water, rinse with clear water and wipe dry. For stubborn particles, the use of a non-metallic brush can be used.

Z_ IMPORTANT: Do not use a wire brush or abrasive cleaners

on the stainless steel surfaces of your grill as this will cause scratches.

z_ IMPORTANT: When cleaning surfaces be sure to rub/wipe

in the direction of the grain to preserve the look of your stainless steel.

IMPORTANT LP CYLINDER INFORMATION

Failure to follow these DANGER statements exactly may result in a fire causing death or serious injury.

AkDANGER

Z_ NEVER store a spare LP Cylinder under or near this

barbecue.

Z_ NEVER fill the tank beyond 80% full.

Your Weber ®gas grill is equipped for a cylinder supply system designed for vapor withdrawal.

Z_ WARNING: Only use this grill outdoors in a well=ventilated

area. Do not use in a garage, building, breezeway or any other enclosed area.

CONNECTING THE LIQUID PROPANE CYLINDER

All Weber ¢ liquid propane gas grill regulators are equipped with a UL-Listed tank connection as per the latest edition of ANSI Z21.58. This will require a liquid propane

tank that is similarly equipped with a Type 1 connection in the tank valve. This Type 1 coupling allows you to make a fast and totally safe hookup between your gas grill and

your liquid propane tank. It eliminates the chance of leaks due to a POL fitting that is not properly tightened. Gas will not flow from the tank unless the Type 1 coupling is fully engaged into the coupling.

z_ WARNING: Make sure that the LP cylinder valve is closed.

Close by turning valve clockwise.

DANGER

Do not use an open flame to check for gas leaks. Be sure

there are no sparks or open flames in the area while you check for leaks. Sparks or flames will result in a fire or

explosion which can cause serious bodily injury or death, and damage to property.

The proper filling methods for the filling of your cylinder are by weight or volume, as described in NFPA 58. Please make sure your filling station fills your LP cylinder by

weight or volume. Ask your filling station to read purging and filling instructions on the LP cylinder before attempting to fill.

LEAK CHECK PREPARATION

CHECK THAT ALL BURNER VALVES ARE OFF

Valves are shipped in the "OFF" position, but you should check to be sure that they are turned off. Check by pushing down and turning clockwise. If they do not turn, they are

off. Proceed to the next step. If they do turn continue turning them clockwise until they stop, then they are off. Proceed to the next step.

1 Type 1 Valve 2 Hand Wheel

3 External Thread 4 Thermally Sensitive Nut

5 Propane Regulator

TO CONNECT THE HOSE TO THE CYLINDER:

1) Locate hose retention clip (a) on regulator hose. Secure into slot (b) on underside of tank scale.

z_ WARNING: The hose must be secured to the tank scale

with the Hose Retention Clip. Failure to do so could cause damage to the hose resulting in a fire or explosion which can cause serious bodily injury or death, and damage to

property.

Some LP tanks have differing top collar assembles. (The top collar is the metal protective ring around the valve.) One series of tanks mount with the valve facing

front (a). The other tanks mount with the valve facing away from the fuel scale (b). Weber recommends the use of cylinder manufacturer's Manchester and

Worthington, with a 47.6 Ibwater capacity. Other cylinders may be acceptable for use with the appliance provided they are compatible with the appliance retention

means (see illustrations).

(a)

The LP cylinder is installed inside the base cabinet, on the tank scale (right side).

2) Open base cabinet doors.

3) Turn the LP cylinder so the opening of the valve is either to the front, side or rear of the Weber _ gas barbecue. Lift and

hook the cylinder onto the fuel gauge.

4) Lift tank up into position on the tank scale.

5) Loosen the cylinder lock wing nut. Swing the cylinder lock down. Tighten the wing nut.

TO CONNECT THE HOSE TO THE CYLINDER:

6) Remove the plastic dust cover from the valve.

7) Screw the regulator coupling onto the tank valve, clockwise, or to the right. Hand-tighten only.

Note. This connection tightens clockwise and will not aflow gas to flow unless the connection is tight. The connection requires

tightening by hand only.

z_ WARNING: Do not use a wrench to tighten the

connection. Using a wrench could damage

the regulator coupling and could cause a leak.

You will need: LP cylinder, a soap and water solution and a rag or brush to apply it.

8) Mix soap and water.

9) Turn on the cylinder valve.

10) Check for leaks by wetting the fitting with the soap and water solution and watching for bubbles. If bubbles form, or if a bubble grows, there is a leak.

if there is a leak, turn off the gas and tighten the fitting. Turn the gas back on and recheck with the soap and water solution.

if leak does not stop do not use the barbecue. Contact the customer service representative in your area using the contact information on our web site. Log

onto www.weber.com ®.

11) When leak checking is complete, turn gas supply off at the source and rinse connections with water.

- i

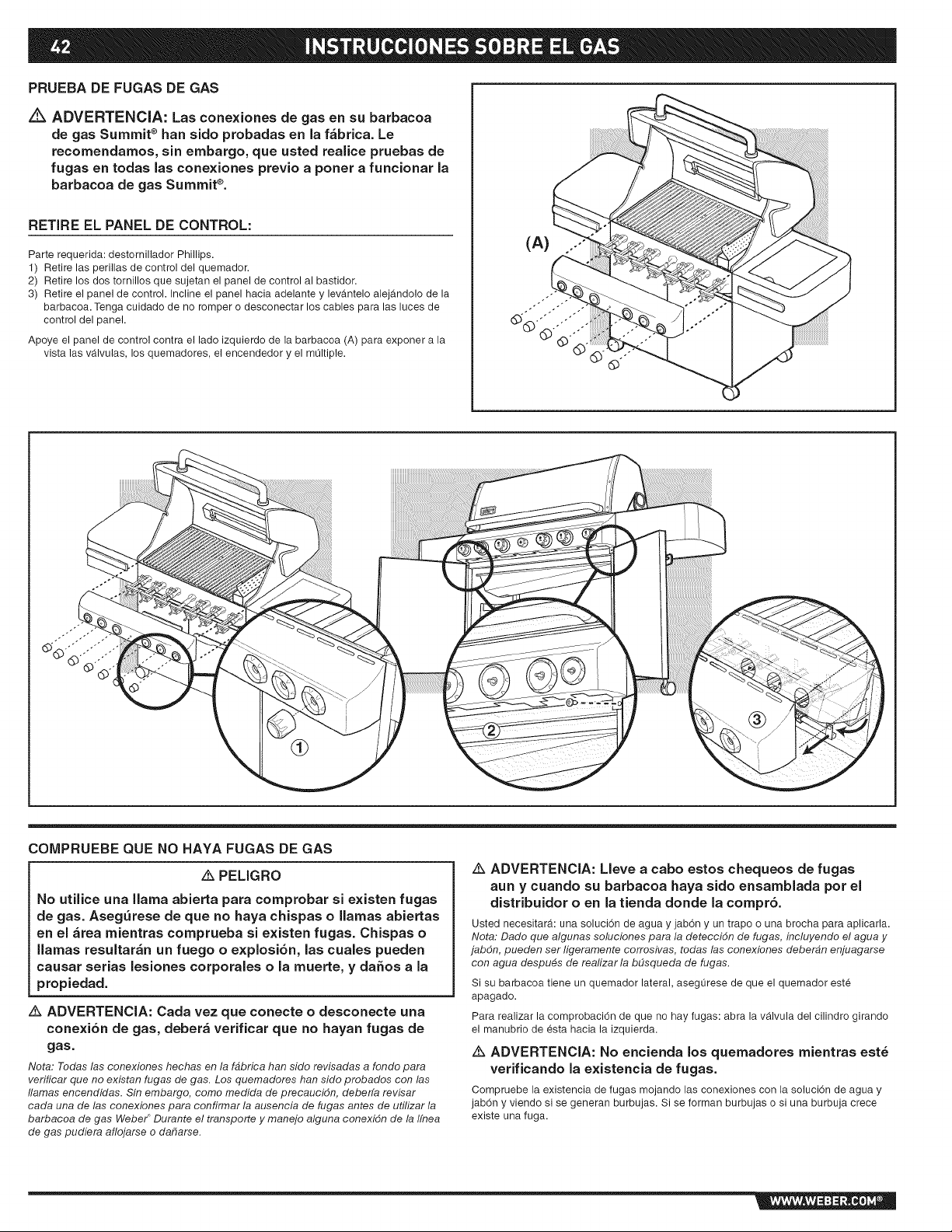

CHECK FOR GAS LEAKS

WARNING: The gas connections of your Summit e gas grill

have been factory tested. We do however recommend that you leak check all gas connections before operating your Summit ®gas grill.

REMOVE CONTROL PANEL

Part required: Phillips Screwdriver.

1) Remove the burner control knobs.

2) Remove the two screws that secure the control panel to the frame.

3) Remove the control panel.Tilt panel forward and lift up and away from grill. Be careful not to break or disconnect the wires for the control panel lights.

Rest the control panel against the left side of the grill (A) exposing the valves, burners, igniter, and manifold.

(A) o.o

CHECK FOR GAS LEAKS

DANGER

Do not use an open flame to check for gas leaks. Be sure there are no sparks or open flames in the area while you check for leaks. Sparks or open flames will result in a fire or explosion, which can cause serious bodily injury or death and damage to property.

WARNING: You should check for gas leaks every time you disconnect and reconnect a gas fitting.

Note: All factory-made connections have been thoroughly checked for gas leaks. The burners have been flame-tested. As a safety precaution however, you should recheck

all fittings for leaks before using your WebeK Gas Barbecue. Shipping and handling may loosen or damage a gas fitting.

WARNING: Perform these leak checks even if your barbecue was dealer or store assembled.

You will need: a soap and water solution, and a rag or brush to apply it.

Note: Since some leak test solutions, including soap and water, may be slightly corrosive, aft connections should be rinsed with water after checking for leaks.

If your grill has a side burner make sure the side burner is off. To perform leak checks: open cylinder valve by turning the cylinder valve hand-

wheel counterclockwise.

WARNING: Do not ignite burners when leak checking.

Check for leaks by wetting the connections with the soap and water solution and watching for bubbles. If bubbles form or if a bubble grows, there is a leak.

CHECK:

1) Main gas line to manifold connection.

2) Rotisserie (I.R. Burner) gas line connection.

3) Bulkhead and gas supply hose connection.

Z_ WARNING: If there is a leak at connection (1,2, or 3),

retighten the fitting with a wrench and recheck for leaks with soap and water solution.

if a leak persists after re-tightening the fitting, turn off the gas. DO NOT OPERATE THE GRILL. Contact the Customer Service

Representative in your area using the contact information on our web site. Log onto www.weber.com ®.

4) Side burner hose to bulkhead connection.

5) Side burner hose to quick disconnect connection, side burner valve and orifice connections.

6) Hose to regulator connection.

7) Regulator to cylinder connection.

8) Valves to manifold connections.

z_ WARNING: If there is a leak at connections (4, 5, 6, 7, or 8),

turn off the gas. DO NOT OPERATE THE GRILL. Contact the Customer Service Representative in your area using the

contact information on our web site. Log onto www.weber.com ®.

When leak chocks are complete, turn gas supply off at the source and rinse connections with water.

REINSTALLCONTROLPANEL

Parts required: control panel, screws and burner control knobs. Hook the top edge of the control panel onto the control panel brackets on either side of

the front of the cooking box. Line up screws with screw holes on both the control panel bracket and the frame.

Tighten screws. Place corresponding control knobs onto the valve stems.

*The grill illustrated may have

slight differences than the model purchased.

® ®

REFILLING THE LIQUID PROPANE CYLINDER

We recommend that you refill the LP cylinder before it is completely empty. Removal of the LP cylinder

1) Close cylinder valve (turn clockwise).

2) Unscrew regulator coupling by turning counterclockwise, by hand only.

3) Loosen cylinder lock wing nut and turn cylinder lock up out of the way.

4) Lift cylinder o11. To fill, take the LP cylinder to a gas propane dealer, or look up "gas-propane" in the

phone book for other sources of LP gas.

WARNING: We recommend that your LP cylinder be filled at an authorized LP gas dealer, by a qualified attendant, who fills the cylinder by weight. IMPROPER FILLING IS

DANGEROUS.

z_ CAUTION: Place dust cap on cylinder valve outlet whenever

the cylinder is not in use. Only install the type of dust cap on the cylinder valve outlet that is provided with the cylinder valve. Other types of caps or plugs may result in leakage of propane.

(3) ,(1)

CHECKING THE FUEL LEVEL IN YOUR TANK

Check the fuel level by viewing the color indicator level line on the side of the tank scale.

1) Empty

2) Medium

3) Full

SAFE HANDLING TIPS FOR LIQUID PROPANE GAS CYLINDERS

o Liquid Propane (LP) gas is a petroleum product as are gasoline and natural gas.

LP gas is a gas at regular temperatures and pressures. Under moderate pressure, inside a cylinder, LP gas is a liquid. As the pressure is released, the liquid readily

vaporizes and becomes gas. LP gas has an odor similar to natural gas. You should be aware of this odor. LP gas is heavier than air. Leaking LP gas may collect in low areas and prevent

dispersion. To fill, take the LP cylinder to a gas propane dealer, or look up "gas-propane" in

the phone book for other sources of LP gas.

WARNING: We recommend that your LP cylinder be filled at an authorized LP gas dealer, by a qualified attendant, who fills the tank by weight. IMPROPER FILLING IS

DANGEROUS.

Air must be removed from a new LP cylinder before the initial filling. Your LP dealer is equipped to do this.

The LP cylinder must be installed, transported and stored in an upright position. LP cylinders should not be dropped or handled roughly. Never store or transport the LP cylinder where temperatures can reach 125 ° F

(too hot to hold by hand - for example: do not leave the LP cylinder in a car on a hot day).

Note: A refill will last about 18-20 hours of cooking time at norma! use. The fuel scale will indicate the propane supply so you can refill before running ouL You do not have to run out before you refill.

Treat "empty" LP cylinders with the same care as when full. Even when the LP tank is empty of liquid there still may be gas pressure in the cylinder. Always

close the cylinder valve before disconnecting.

z:_CAUTION: Place dust cap on cylinder valve outlet whenever

the cylinder is not in use. Only install the type of dust cap on the cylinder valve outlet that is provided with the cylinder

valve. Other types of caps or plugs may result in leakage of propane.

= Do not use a damaged LP cylinder. Dented or rusty LP cylinders or LP cylinders

with a damaged valve may be hazardous and should be replaced with a new one immediately.

Liquid Propane (LP) Cylinder(a) = The joint where the hose connects to the LP cylinder must be leak tested each

time the LP cylinder is reconnected. For example, test each time the LP cylinder is refilled.

(1) (2) (3)

Be sure the regulator is mounted with the small vent hole pointed downward so that it will not collect water. This vent should be free of dirt, grease, bugs etc.

The gas connections supplied with your Weber _ gas barbecue have been designed and tested to meet 100% CSA and ANSI requirements.

WARNING: Replacement LP tanks must match the regulator connection supplied with this barbecue.

LIQUID PROPANE CYLINDER REQUIREMENTS

Check to be sure cylinders have a D.O.T. certification (1), and date tested (2) is within five years. Your LP gas supplier can do this for you.

All LP tank supply systems must include a collar to protect the cylinder valve. The LP cylinder must be a 20-lb. size approximately (18_A inches high, 12_A

inches in diameter). The cylinder must be constructed and marked in accordance with the

Specifications for LP - Gas Cylinders of the U.S. Department of Transportation (D.O.T.) or the National Standard of Canada, CAN/CSA-B339, Cylinders,

Spheres and Tubes or Transportation of Dangerous Goods; and Commission, as applicable.

IN CANADA

LIQUID PROPANE CYLINDER REQUIREMENTS

Note: Your retailer can help you match a replacement tank to your barbecue.

The LP cylinder must be constructed and marked in accordance with the specifications for LP gas cylinders, T.C.

ooJo_

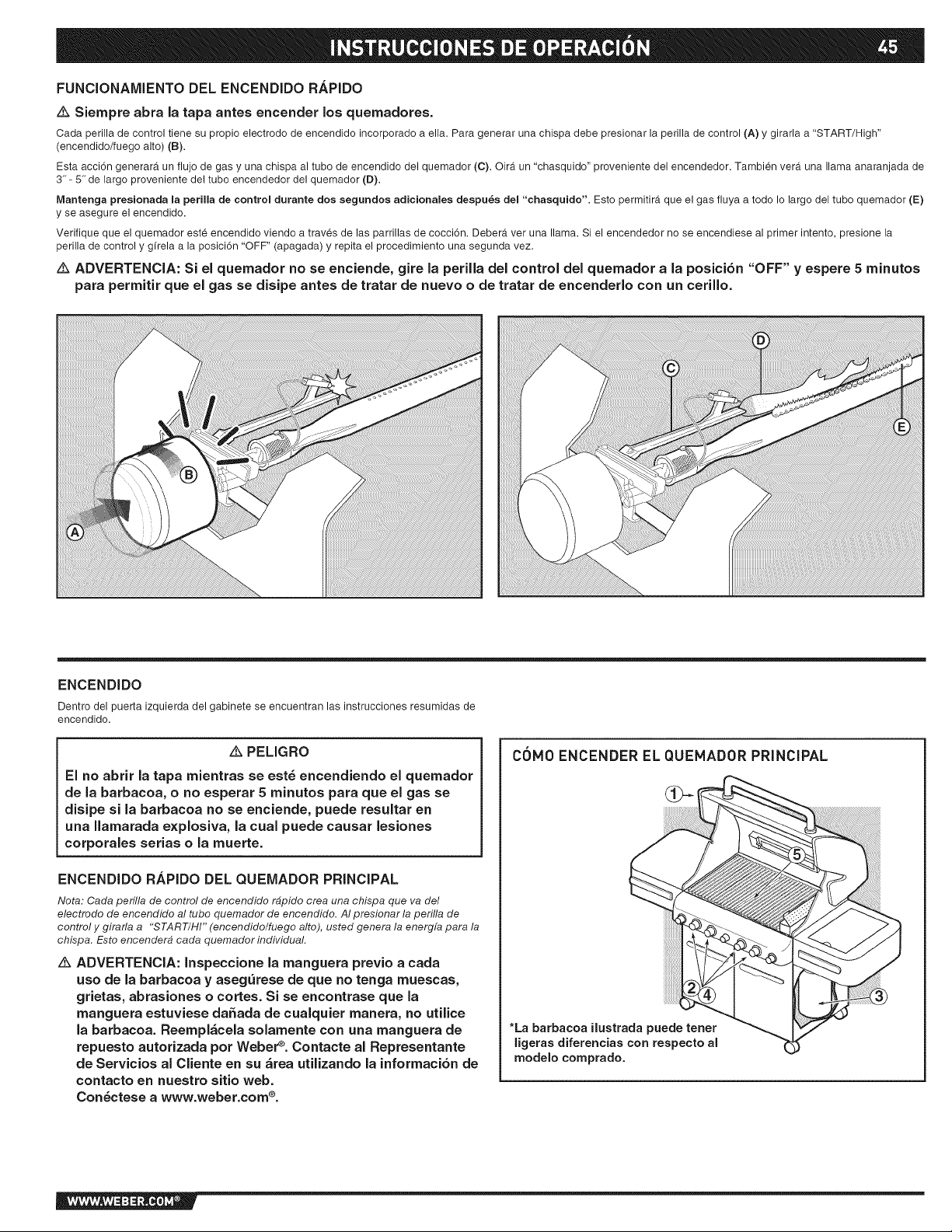

SNAP IGNITION OPERATION

Always open the lid before igniting the burners

Each control knob has its own igniter electrode built in. To create a spark you must push the control knob in (A) and turn to "START/High" (B). This action will generate gas flow and a spark to the burner lighting tube (C). You will hear a "snap" from the igniter. You will also see a 3" - 5" orange flame coming from the burner

lighting tube at the left side of the burner (D). Continue to hold the burner control knob in for two seconds after the "snap". This will allow gas to flow completely down the burner tube (E) and insure ignition. Check that the burner is lit by looking through the cooking grates. You should see a flame. If burner does not light on first try, push control knob in and turn to OFF.Repeat lighting

procedure a second time.

z_ WARNING: if the burner still does not light, turn the burner control knob to "OFF" and wait 5 minutes to let the gas clear before

you try again or try to light with a match.

LIGHTING

Summary lighting instructions are inside the left hand cabinet door.

DANGER

Failure to open the lid while igniting the barbecue's burners,

or not waiting 5 minutes to allow the gas to clear if the

barbecue does not light, may result in an explosive flame=up

which can cause serious bodily injury or death.

MAIN BURNER SNAP IGNITION

Note: Each control knob snap igniter creates a spark from the igniter electrode to the burner lighting tube. You generate the energy for the spark by pushing in the control

knob and turning to "START/HI". This will ignite each individual burner.

& WARNING: Check hose before each use of barbecue for

nicks, cracking, abrasions or cuts. if the hose is found to be damaged in any way, do not use the barbecue. Replace using only Weber _ authorized replacement hose. Contact the Customer Service Representative in your area using the

contact information on our web site. Log onto www.weber.com ®.

1) Open the lid.

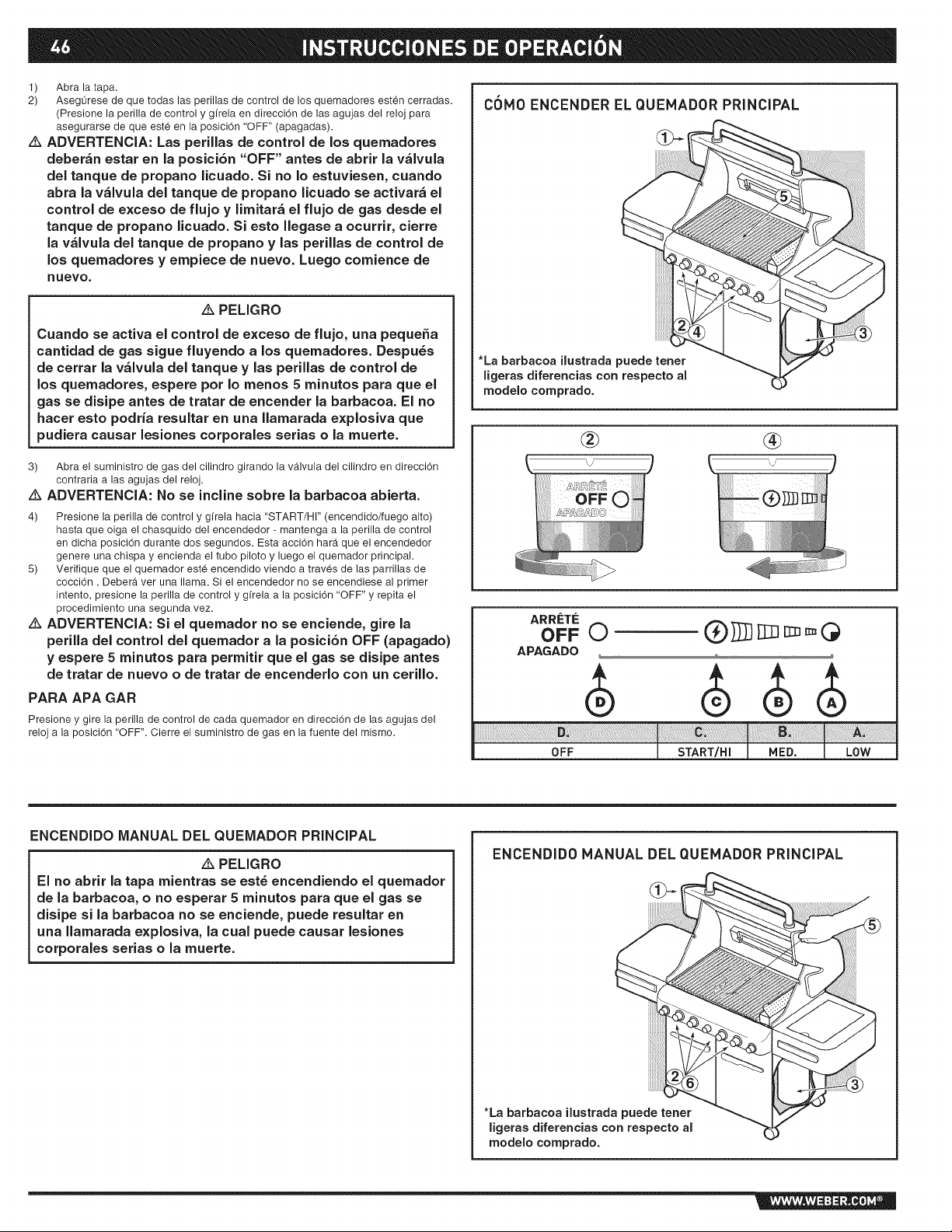

MAIN BURNER LIGHTING

*The grill illustrated may have slight

differences than the model purchased.

2) Makesureallburnercontrolknobsareturnedoff.(Pushcontrolknobinandturn

clockwisetoensurethatitisinthe"OFF"position.)

WARNING: The burner control knobs must be in the "OFF" position before turning on the liquid propane cylinder tank

valve. If they are not in the "OFF" position, when you turn on the LP cylinder valve, the "excess gas flow control" feature will activate, limiting the flow of gas from the LP cylinder. If this should occur, turn off the LP cylinder valve and burner

control knobs. Then start over.

DANGER

When the "excess gas flow control" feature is activated, a small amount of gas is still flowing to the burners. After turning off the cylinder and burner control knobs, wait at

least 5 minutes for the gas to clear before attempting to light the grill. Failure to do so may result in an explosive flare=up, which can cause serious bodily injury or death.

3) Turn the cylinder on by turning the cylinder valve counterclockwise.

z_ WARNING: Do not lean over the open barbecue.

4) Push the control knob in and turn to "START/HI" until you hear the igniter snap - continue to hold control knob in for two seconds. This action will spark the igniter,

the burner lighting tube and then main burner.

5) Check that the burner is lit by looking through the cooking grates. You should see a flame. If burner does not light on first try, push control knob in and turn to OFF.

Repeat lighting procedure a second time.

WARNING: If the burner still does not light, turn the burner control knob to "OFF" and wait 5 minutes to let the gas clear before you try again or try to light with a match.

TO EXTINGUISH

Push in and turn each burner control knob clockwise to "OFF" position. Turn gas supply off at the source.

MAIN BURNER LIGHTING

*The grill illustrated may have slight

differences than the model purchased.

® ®

ARRI_T_:

MAIN BURNER MANUAL LIGHTING

DANGER

Failure to open the lid while igniting the barbecue's burners,

or not waiting 5 minutes to allow the gas to clear if the

barbecue does not light, may result in an explosive flame=up

which can cause serious bodily injury or death.

APAGADO

OFF | STARTIHI | MED, | LOW

MAIN BURNER MANUAL LIGHTING

*The grill illustrated may have slight

differences than the model purchased.

1) Openthelid.

2) Makesureallburnercontrolknobsareturnedoff.(Pusheachknobinandturn clockwisetoensuretheyareinthe"OFF"position.)

WARNING: The burner control knobs must be in the "OFF" position before turning on the liquid propane cylinder valve.

If they are not in the "OFF" position, when you turn on the LP cylinder valve, the "excess gas flow control" feature will activate, limiting the flow of gas from the LP cylinder. If this

should occur, turn off the LP tank valve and burner control knobs. Then start over.

DANGER

When the "excess gas flow control" feature is activated, a small amount of gas is still flowing to the burners. After

turning off the cylinder and burner control knobs, wait at

least 5 minutes for the gas to clear before attempting to light the barbecue. Failure to do so may result in an explosive flame=up, which can cause serious bodily injury or death.

3) Turn the cylinder on by turning the cylinder valve counterclockwise.

4) Put match in the match holder and strike match.

z_ WARNING: Do not lean over open barbecue.

5) Insert match holder and lit match down through cooking grates and Flavorize_ bars to ignite the selected burner.

6) Push the control knob in and turn to "START/HI".

WARNING: If the burner does not light, turn the burner control knob to "OFF" and wait 5 minutes to let the gas clear

before you try again.

TO EXTINGUISH

Push in and turn each burner control knob clockwise to "OFF" position.Turn gas supply off at the source.

MAIN BURNER MANUAL LIGHTING

i!!!!!!!!!

*The grill illustrated may have slight

differences than the model purchased.

® ®

GRILLING METHODS

Note. If grill looses heat while cooking refer to the troubleshooting section of this manual.

You can adjust the individual burners as desired. The control settings are START/HI, MEDIUM, LOW, or OFF.

If burners go out during cooking, turn off all burners and wait 5 minutes before relighting.

WARNING: Check the bottom tray and catch pan for grease build-up before each use. Remove excess grease to avoid a grease fire in the bottom tray.

PREHEATING

Preheating the grill before grilling is important. Light your Summit e gas grill according to the instructions in this Owner's Manual. Turn all of the main burners to Start/

Hi, close the lid, and preheat grill with the lid down until grill thermometer reaches 550-°F (260°-288°C).This is the recommended broiling temperature. This will take

approximately 10 to 15 minutes, depending on outside temperatures.

COVERED COOKING

All grilling is done with the lid down to provide uniform, evenly circulated heat. With the lid closed, the Summit ®gas grill cooks much like a convection oven. The thermometer

in the lid indicates the cooking temperature inside the grill. All preheating and grilling is done with the lid down. No peeking -- heat is lost every time you lift the lid.

FLAVORIZER ®SYSTEM

When meat juices drip from the food onto the specially angled Flavorizer _ bars,

ARRi_Ti_

APAGADO

OFF START/ MED. LOW

they create smoke that gives foods an irresistible barbecued flavor. Thanks to the unique design of the burners, Flavorizer ¢ bars and the flexible temperature controls,

uncontrolled flare-ups are virtually eliminated, because YOU control the flames. Because of the special design of the Flavorizer ¢ bars and burners, excess fats are

directed through the funnel-shaped bottom tray into the grease catch pan.

Themostimportantthingtoknowaboutgrillingiswhichcookingmethodtousefora specificfood,DirectorIndirect.Thedifferenceissimple:placethefooddirectlyoverthe

fire,orarrangethefireoneithersideofit.Usingtherightmethodistheshortestrouteto greatresults--andthebestwaytoensuredonenesssafety.

DIRECT COOKING

The Direct Method, similar to broiling, means the food is cooked directly over the heat source. For even cooking, food should be turned once halfway through the grilling time.

Use the Direct method for foods that take less than 25 minutes to cook: steaks, chops, kabobs, sausages, vegetables, and more.

Direct cooking is also necessary to sear meats. Searing creates that wonderful crisp, caramelized texture where the food hits the grate. It also adds great color and flavor to

the entire surface. Steaks, chops, chicken breasts, and larger cuts of meat all benefit from searing.

To sear meats, place them over Direct High heat for 2 to 5 minutes per side. Smaller pieces require less searing time. Usually after searing you finish cooking the food at a lower temperature. You can finish cooking fast-cooking foods by the Direct method; use

the Indirect method for longer-cooking foods. To set up your gas grill for Direct cooking, preheat the grill with all burners on "HI". Place

food on the cooking grate, and then adjust all burners to the temperature noted in the recipe. Close the lid of the grill and lift it only to turn food or to test for doneness at the

end of the recommended cooking time.

INDIRECT COOKING

The Indirect Method is similar to roasting, but with the added benefits of that grilled texture, flavor, and appearance you can't get from an oven. To set up for Indirect

cooking, gas burners are lit on either side of the food but not directly beneath it. Heat rises, reflects off the lid and inside surfaces of the grill, and circulates to slowly cook the

food evenly on all sides, much like a convection oven, so there's no need to turn the food.

Use the Indirect method for foods that require 25 minutes or more of grilling time or that are so delicate that direct exposure to the flame would dry them out or scorch them.

Examples include roasts, ribs, whole chickens, turkeys, and other large cuts of meat, as well as delicate fish fillets.

To set up your gas grill for Indirect cooking, preheat the grill with all burners on "HI". Then adjust the burners on each side of the food to the temperature noted in the recipe and turn off the burner(s) directly below the food. For best results, place roasts, poultry,

or large cuts of meat on a roasting rack set inside a disposable heavy-gauge foil pan. For longer cooking times, add water to the foil pan to keep drippings from burning. The

drippings can be used to make gravies or sauces.

4 Uumsr

food

1 2 3 4

H H H H

Direct Method

Food is placed on the area of the cooking grates directly over the lit burners.

Indirect Method

Food is placed on the area of the cooking grates between the lit burners.

GRILLING TIPS & HELPFUL HINTS

o Always preheat the grill before cooking. Set all burners on "HI" heat and close lid;

heat for 10 minutes, or until thermometer registers 500°-550°F (260°-288°C). Sear meats and cook with the lid down for perfectly grilled food every time.

Grilling times in recipes are based on 70°F (20°C) weather and little or no wind. Allow more cooking time on cold or windy days, or at higher altitudes. Allow less

cooking time in extremely hot weather. Grilling times can vary because of the weather, or the amount, size and shape of

the food being grilled. The temperature of your Summit ®gas grill may run hotter than normal for the first

few uses. Grilling conditions may require the adjustment of the burner controls to attain the

correct cooking temperatures. In general, large pieces of meat will require more cooking time per pound than

small pieces of meat. Foods on a crowded cooking grate will require more cooking time than just a few foods. Foods grilled in containers, such as baked beans, will

require more time if grilled in a deep casserole rather than a shallow baking pan.

• Trim excess fat from steaks, chops and roasts, leaving no more than a scant _A inch (6.4mm) of fat. Less fat makes cleanup easier, and is a virtual guarantee

against unwanted flare-ups.

• Foods placed on the cooking grate directly above burners may require turning or moving to a less hot area.

• Use tongs rather than a fork for turning and handling meats to avoid losing natural

juices. Use two spatulas for handling large whole fish.

• If an unwanted flare-up should occur, turn all burners off and move food to another area of the cooking grate. Any flames will quickly subside. After flames

subside, relight the grill. NEVER USE WATER TO EXTINGUISH FLAMES ON A GAS GRILL.

Some foods, such as a casserole or thin fish fillets, will require a container for grilling. Disposable foil pans are very convenient, but any metal pan with ovenproof handles can also be used.

• Always be sure the bottom tray and grease catch pan are clean and free from debris.

Do not line the funnel-shaped bottom tray with foil. This could prevent the grease from flowing into the grease catch pan.

• Using a timer will help to alert you when "well-done" is about to become "over- done."

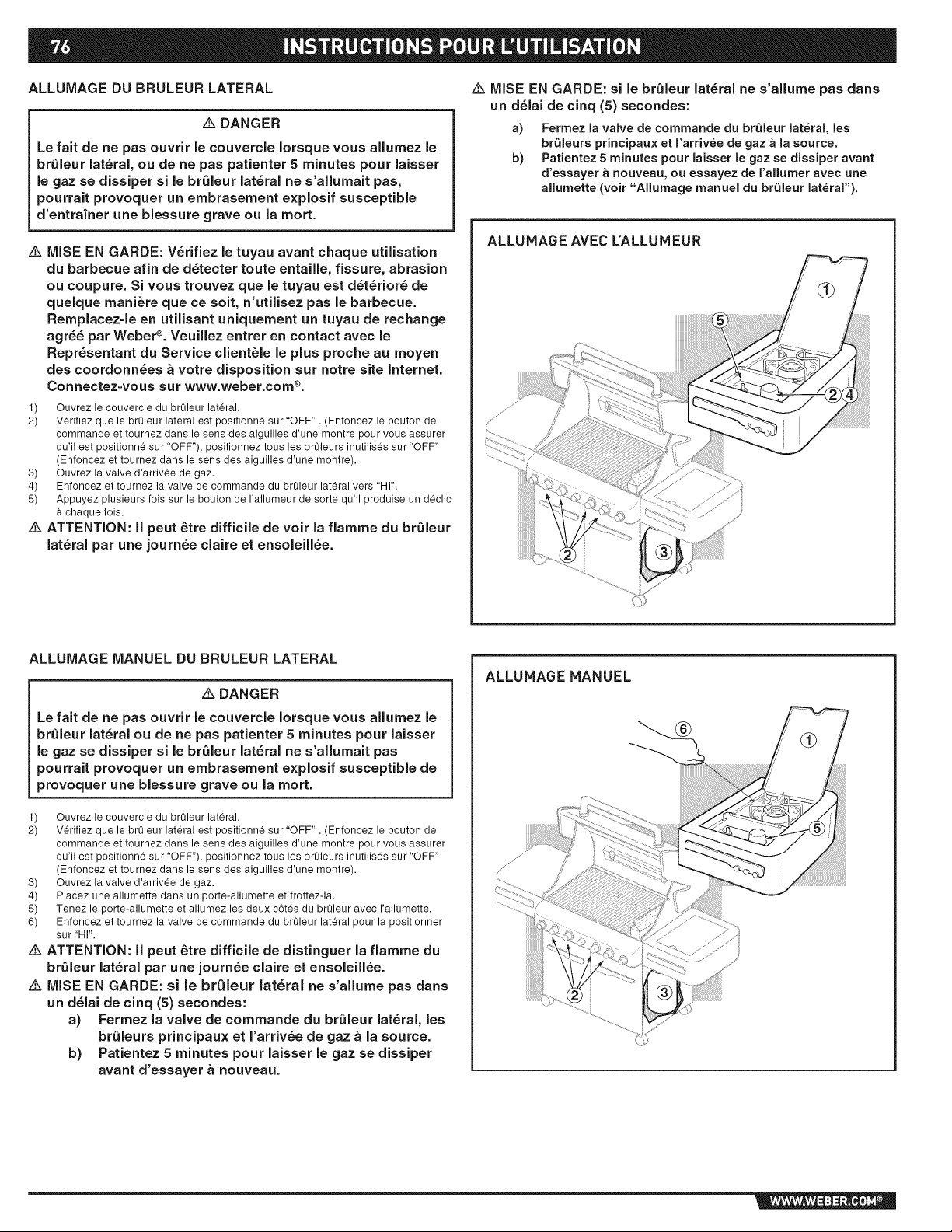

LIGHTING THE SIDE BURNER

DANGER

Failure to open the lid while igniting the side burner, or not

waiting 5 minutes to allow the gas to clear if the side burner does not light, may result in an explosive flame=up which can

cause serious bodily injury or death.

WARNING: Check hose before each use of barbecue for nicks, cracking, abrasions or cuts. Ifthe hose isfound to be damaged in any way, do not use the barbecue. Replace using only Weber _

authorized replacement hose. Contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com ®.

1) Open the side burner lid.

2) Check that the side burner valve is turned off (Push control knob in and turn clockwise to ensure that it is in the "OFF" position), turn all burners not being used to the "OFF" position (push in and turn clockwise).

3) Turn the gas supply valve on.

4) Push down and turn the side burner control valve to "HI".

5) Press the igniter button several times so it clicks each time.

z_ CAUTION: Side burner flame may be difficult to see on a

bright sunny day.

z_ WARNING: if the side burner does not light in five (5)

seconds:

a) Turn off the side burner control vaJve, main burners

and gas supply at source.

b) Wait 5 minutes to let the gas clear before you try

again, or try lighting with a match (see "Manually Lighting the Side Burner").

SIDE BURNER LIGHTING

MANUALLY LIGHTING THE SIDE BURNER

DANGER

Failure to open the lid while igniting the side burner, or not

waiting 5 minutes to allow the gas to clear if the side burner

does not light, may result in an explosive flare=up that can cause serious bodily injury or death.

1) Open the side burner lid.

2) Check that the side burner valve is turned off (Push control knob in and turn clockwise to ensure that it is in the "OFF" position), turn all burners not being used

to the "OFF" position (push in and turn clockwise).

3) Turn the gas supply valve on.

4) Put match in a match holder and strike match.

5) Hold match holder and lit match by either side of the side burner.

6) Push down and turn the side burner control valve to "HI".

z_ CAUTION: Side burner flame may be difficult to see on a

bright sunny day.

z_ WARNING: If the side burner does not light in five (5)

seconds:

a) Turn off the side burner controJ valve, main burners

and gas supply at source.

b) Wait 5 minutes to let the gas clear before you try

again.

HANUAL SIDE BURNER LIGHTING

USING THE SEAR STATION TM

Your Webed _gas barbecue includes a sear burner for searing meats such as steak, poultry parts, fish, and chops).

Searing is a direct grilling technique which browns the surface of the food at a high temperature. By searing or browning both sides of the meat you will create a more

desirable flavor by caramelizing the food surface. Searing will also enhance appearance of the meat with sear marks from the cooking grates. This along with the contrast of

textures and flavors can make food more interesting to the palate The Sear Station" burner has an on or off control setting that works with the two

adjacent main burners. With the sear and adjacent burners you can effectively sear meats while using other cooking areas for grilling with moderate heat.

TO USE THE SEAR STATION TM

Before searing you should turn all of the main burners on HI for 15 minutes to preheat the grill. Note: Always grill with the lid closed to allow for maximum heat and to avoid flare ups.

Once the grill is preheated, turn the outer burners off or down to low. Leave the center two burners on HI and ignite the Sear Station Burner (See Sear Station" lighting

Instructions).

Place the meat directly over the Sear Station". You will Sear each side anywhere from

1 to 4 minutes, depending on the type of meat and thickness. You may turn the food a quarter turn to make crossing sear marks (1) before you sear the other side in the same manner.

Once you are done searing you can finish grilling by moving the meat to a more moderate heat over the outside burners to achieve the desired doneness.

As you gain experience in using your Sear Station", we encourage you to experiment with different searing times to find results that work best for your taste.

4 burner

Sear Method

Food isplaced inthe area of intense heat between the lit burners

SEAR STATION TM BURNER LIGHTING

Summary lighting instructions are inside the left hand cabinet door.

DANGER

Failure to open the lid while igniting the barbecue's burners, or not waiting 5 minutes to allow the gas to clear if the

barbecue does not light, may result in an explosive flame-up which can cause serious bodily injury or death.

The Sear Station" burner has an on or off control setting. To ignite the Sear Station TM burner you must first ignite the two adjacent main burners.

ADJACENT MAIN BURNER SNAP IGNiTiON

Note:Each main burner control knob snap igniter creates a spark from theigniter electrode to theburner lighting tube.Yougenerate theenergy for the spark by pushing in the control knob and turning to"START/HI"This will ignite each individual bume_

WARNING: Check hose before each use of barbecue for

nicks, cracking, abrasions or cuts. If the hose is found to

be damaged in any way, do not use the barbecue. Replace

using only WebeP authorized replacement hose. Contact

the Customer Service Representative in your area using the

contact information on our web site. Log onto www.weber. corn ®.

1) Open the lid.

2) Make sure all burner control knobs are turned off. (Push control knob in and turn clockwise to ensure that it is in the "OFF" position.)

WARNING:The burner control knobs must be in the "OFF"

position before turning on the liquid propane cylinder tank valve. If they are not in the "OFF" position, when you turn on the LP cylinder valve, the "excess gas flow control" feature

will activate, limiting the flow of gas from the LP cylinder. If this should occur, turn off the LP cylinder valve and burner

control knobs. Then start over.

DANGER

When the "excess gas flow control" feature is activated, a small amount of gas is still flowing to the burners. After

turning off the cylinder and burner control knobs, wait at

least 5 minutes for the gas to clear before attempting to light the grill. Failure to do so may result in an explosive flare=up, which can cause serious bodily injury or death.

3) Turn the cylinder on by turning the cylinder valve counterclockwise.

WARNING: Do not lean over the open barbecue.

4) Ignite each adjacent Sear Station" main burner. Push the control knob in and turn to "START/HI" until you hear the igniter snap - continue to hold control knob in for

two seconds. This action will spark the igniter, the burner lighting tube and then main burner.

5) Check that the burner is lit by looking through the cooking grates. You should see a flame. If burner does not light on first try, push control knob in and turn to OFR

Repeat lighting procedure a second time.

To ignite the Sear Station'" burner continue with Step 6.

Sear Burner Lighting: Ignition by an adjacent ignited Main BurneK

6) Turn Sear Station" burner control knob to the ON position.

7) Verify burner ignition by visual inspection of a flame.

WARNING: If ignition does not occur in 5 seconds, turn burner control OFF, wait 5 minutes, and repeat steps 6 & 7, or

see Match Lighting instructions. WARNING: If the burner still does not light, turn the burner control knob to "OFF" and wait 5 minutes to let the gas clear before you try again or try to light with a match.

Note: See Maintenance for burner removal and cleaning

procedure.

ARR_:TE ENMARCHE

OFF O O ON

APAGADO ENCENDIDO

SEAR STATIONBURNER LIGHTING

*The grill illustrated may have slight

differences than the model purchased.

® ®

TO EXTINGUISH

Push in and turn each burner control knob clockwise to "OFF" position. Turn gas supply off at the source.

SEAR STATION'" BURNER MANUAL LIGHTING

DANGER

Failure to open the lid while igniting the barbecue's burners, or not waiting 5 minutes to allow the gas to clear if the

barbecue does not light, may result in an explosive flame=up which can cause serious bodily injury or death.

The Sear Station TM burner has an on or off control setting. To ignite the Sear Station TM burner you must first ignite the two adjacent main burners.

ADJACENT MAIN BURNER SNAP IGNITION

Note: Each main burner control knob snap igniter creates a spark from the igniter electrode to the burner fighting tube. You generate the energy for the spark by pushing

in the control knob and turning to"START/HI"This will ignite each individual bume_

1) Open the lid.

2) Verify each adjacent Sear Station TM main burner is lit by visual inspection of a

flame.

3) Put match in the match holder and strike match.

z_ WARNING: Do not lean over open barbecue.

4) Insert match holder and lit match down through cooking grates and Flavorizer _

bars to ignite the Sear Station TM burner.

5) Push the Sear Station TM control knob in and turn to the ON position.

WARNING: If the burner does not light, turn the burner

control knob to "OFF" and wait 5 minutes to let the gas clear before you try again.

Note: See Maintenance for burner removal and cleaning procedure.

TO EXTINGUISH

Push in and turn each burner control knob clockwise to "OFF" position. Turn gas supply

off at the source.

ARRE.TE. EN MARCHE

OFF O O ON

APAGADO ENCENDIDO

SEAR STATIONTM BURNER MANUAL LIGHTING

*The grill illustrated may have slight

differences than the model purchased.

USING THE SMOKER

The smoker uses presoaked wood chips. For best results with faster cooking foods like steaks, burgers and chops, etc., we recommend using finer wood chips because they

ignite and create smoke faster. For longer cooking foods such as roasts, chicken and turkeys, etc., we recommend using larger wood chunks because they ignite slowly and

provide smoke for a longer period of time. As you gain experience in using your smoker, we encourage you to experiment with different combinations of wood chips and chunks

to find the smoke flavor that best suits your taste.

TO USE THE SMOKER

As a starting point, soak wood chips in water for at least 30 minutes before using. (Wet wood will produce more smoke flavor.) Place a handful of wood chips or a few larger

chunks in the bottom of the smoker body (1). As you gain experience in smoking, increase or decrease the amount of wood to suit your taste.

Note: Always grill with the lid closed to allow the smoke to fully penetrate the food.

Light the smoker burner by following the instructions for Lighting The Smoker Burner After wood starts to smolder turn control knob to "LOW".

Smoke will start in approximately 10 minutes and last as long as 45 minutes. If you require more smoke flavor, refill the smoker with wood chips and/or chunks. Keep the

lid of the grill closed while cooking.

Note: After refilling smoker, smoke will take about 10 to 15 minutes to start again. The smoker may be used to enhance meat, poultry and fish recipes. Cook with the lid down according to the times indicated in charts or recipes.

DANGER

Do not use any flammable fluid in the smoker to ignite the

wood. This will cause serious bodily injury.

CLEANING THE SMOKER

Before each use, empty the smoker of ash to allow proper air flow.

Note: Smoking will leave a "smoke" residue on the surface of the smoker. This residue cannot be removed and will not affect the function of the smoker. To a lesser degree a

"smoke" residue will accumulate on the inside of your gas grill. This residue need not be removed and will not adversely affect the function of your gas grill.

MGHTING THE SMOKER BURNER

DANGER

Failure to open the lid while igniting the grill, or not waiting

5 minutes to allow the gas to clear if the grill does not light,

may result in an explosive flare=up which can cause serious bodily injury or death.

SMOKER BURNER SNAP iGNiTiON

Note: The control knob snap igniter creates a spark from the igniter electrode to the burner lighting tube. You generate the energy for the spark by pushing in the control

knob and turning to "START/HI". This will ignite the smoker burner.

WARNING: Check hose before each use of grill for nicks, cracking, abrasions or cuts. if the hose is found to be

damaged in any way, do not use the grill. Replace using only Weber_ authorized replacement hose. Contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com ®.

1) Open the grill lid.

2) Open smoker box lid.

3) Fill smoker with water soaked wood chunks or chips.

4) Make sure that all burner control knobs not being used are turned to "OFF". (Push control knob in and turn clockwise to ensure that it is in the "OFF" position).

WARNING: The burner control knobs must be in the "OFF" position before turning on the liquid propane cylinder tank

valve. If they are not in the "OFF" position, when you turn on the LP cylinder valve, the "excess gas flow control" feature

will activate, limiting the flow of gas from the LP cylinder. If this should occur, turn off the LP cylinder valve and burner

control knobs. Then start over.

*The grill illustrated may have slight

differences than the model purchased.

DANGER

When the "excess gas flow control" feature is activated, a small amount of gas is still flowing to the burners. After

turning off the cylinder and burner control knobs, wait at

least 5 minutes for the gas to clear before attempting to light the grill. Failure to do so may result in an explosive flare=up, which can cause serious bodily injury or death.

5) Turn the cylinder on by turning the cylinder valve counter-clockwise.

z_ WARNING: Do not lean over the open grill while lighting.

6) Push the control knob in and turn to "START/HI" until you hear the igniter snap - continue to hold control knob in for two seconds. This action will spark the igniter, the burner lighting tube and then main burner.

7) Check that the burner is lit by looking through the cooking grates. You should see a flame. If burner does not light on first try, push control knob in and turn to OFF.

Repeat lighting procedure a second time

DANGER

If the smoker burner still does not light, turn the burner

control knob to "OFF" and wait 5 minutes to let the gas clear before you try again, or try lighting with a match (see

"Manually Lighting the Smoker Burner").

8) Close smoker cover after wood starts to smolder and turn control knob to "LOW".

TO EXTINGUISH

Push in and turn each burner control knob clockwise to "OFF" position. Turn gas supply off at the source.

MANUALLY LIGHTING THE SMOKER BURNER

WARNING: Check hose before each use of grill for nicks, cracking, abrasions or cuts. if the hose is found to be damaged in any way, do not use the grill. Replace using only Webe¢ _authorized replacement hose. Contact the Customer

Service Representative in your area using the contact information on our web site. Log onto www.weber.com ®.

1) Open the lid.

DANGER

Failure to open the lid while igniting the grill, or not waiting

5 minutes to allow the gas to clear if the grill does not light,

may result in an explosive flare=up which can cause serious bodily injury or death.

2) Open smoker box lid.

3) Fill smoker with water soaked wood chunks or chips.

4) Make sure that all burner control knobs not being used are turned to "OFF". (Push

control knob in and turn clockwise to ensure that it is in the "OFF" position).

WARNING: The burner control knobs must be in the "OFF"

position before turning on the liquid propane cylinder tank valve. If they are not in the "OFF" position, when you turn on

the LP cylinder valve, the "excess gas flow control" feature will activate, limiting the flow of gas from the LP cylinder. If this should occur, turn off the LP cylinder valve and burner

control knobs. Then start over.

*The grill illustrated may have slight

differences than the model purchased.

DANGER

When the "excess gas flow control" feature is activated, a small amount of gas is still flowing to the burners. After turning off the cylinder and burner control knobs, wait at

least 5 minutes for the gas to clear before attempting to light

the grill. Failure to do so may result in an explosive flare=up, which can cause serious bodily injury or death.

5) Turn the cylinder on by turning the cylinder valve counter-clockwise.

6) Put a match in the match holder and strike the match.

7) Insert match holder and lit match down through cooking grates and Flavorize_

bars to ignite smoker burner.

z_ WARNING: Do not lean over the open grill while lighting.

8) Push smoker burner control knob in and turn to "START/HI".

9) Check that the burner is lit by looking down through the cooking grate.

DANGER

If the smoker burner does not light, turn the burner control

knob to "OFF" and wait 5 minutes to let the gas clear before

you try again.

10) Close smoker cover after wood starts to smolder and turn control knob to "LOW".

TO EXTINGUISH

Push in and turn each burner control knob clockwise to "OFF" position. Turn gas supply off at the source.

USING THE ROTISSERIE

Note: Before using your rotisserie, measure your food at the widest poinL If it exceeds g½" (241.8mm), it is too large to fit the rotisserie. If it is too large, food can be prepared

using a roast holder and the Indirect Cooking Method.

IMPORTANT SAFEGUARDS

WARNINGS

• Read all instructions before using your rotisserie.

• This rotisserie is for outdoor use only.

• Remove motor and store in a dry place when not in use.

• Do not touch hot surfaces. Use barbecue mitts.

• This rotisserie is not for use by children.

• To protect against electrical hazards do not immerse cord, plugs, or motor in water or other liquids.

• Unplug the motor from outlet when not in use or before cleaning.

• Do not use rotisserie for other than intended use.

• Make sure motor is off before placing it on the motor

bracket.

• Do not operate the rotisserie motor with a damaged cord or plug.

• Do not operate the rotisserie motor if it should malfunction.

• The rotisserie motor is equipped with a three prong (grounding) power cord for your protection against shock

hazard.

• The power cord should be plugged directly into a properly grounded three prong receptacle. If use of an

extension cord is required, be sure that it is a minimum 16 AWG(1.3ram), 3-wire, well insulated cord marked for OUTDOOR USE ONLY and properly grounded.

• When using an extension cord, make sure it is not in contact with a hot or sharp surface.

• Outdoor extension cords should be marked with the letters "W-A" and a tag stating "Suitable for use with outdoor

appliances".

• Do not cut or remove the grounding prong from the rotisserie motor power cord.

• Do not let cord hang over any sharp edge or hot surface.

• Do not expose to rain.

• To reduce the risk of electric shock, keep extension cord connection dry and off the ground.

• A short power cord is supplied to reduce the risk of tripping over the cord. Extension cords may be used, but

caution must be taken to prevent tripping over the cord.

• In absence of local codes the rotisserie motor must be

grounded electrically in accordance with the National Electric Code, ANSI / NFPA 70, or Canadian Electrical

Code, CSA C22.1.

WARNING: Setup up the rotisserie with food before lighting rotisserie burner.

OPERATING

1) Remove rotisserie shaft from grill. Remove one spit fork.

2) Push the rotisserie shaft through the center of the food.

3) Slide the spit fork onto the shaft. Insert the tines of both spit forks into the food. The food should be centered on the shaft. Tighten the spit fork screws

4) Place the motor in the bracket, slide to lock.

.5) Insert the pointed end of the rotisserie shaft into the motor. Place the handle end

of the rotisserie onto the support rollers.

6) The rotisserie shaft should rotate so that the heaw side of the meat or poultry rotates down to the bottom. Large cuts may require the removal of the cooking

grates and warming rack to allow full rotation of the shaft. Remount the food if necessary for better balance.

7) Turn the motor on.

COOKING

• Meats (except poultry and ground meat) should be brought to room temperature before cooking. (20 to 30 minutes should be adequate for most foods. If frozen

defrost completely before cooking.)

• Tie meat or poultry with a string, if necessary, to make the shape as uniform as possible before putting it on the spit.

• Remove cooking grates and warming rack to allow food to turn freely.

• Follow lighting instructions for rotisserie burner on next page.

• Set rotisserie burner on medium-high based on outside air temperatures.

• Place food within area of burner.

• If you wish to save drippings for gravy, place a drip pan directly under the food on

top of the FlavorizeP bars.

• Food preparation steps are the same for rotisserie cooking as for regular cooking.

• All cooking is done with the lid closed.

• If foods are too heavy or are irregular shapes, they may not rotate well and should

be cooked by the Indirect Method without using the rotisserie.

• Smoker can be used in conjunction with rotisserie for more smoke flavor.

Note: When using the rotisserie burner, grill thermometer will not reflect the temperature inside the cooking box.
