RANCH® KETTLE
443⁄4 inch
(114 cm)
39950
2
®
DANGER
This kettle is designed for outdoor use only. Toxic fumes may accumulate
and cause bodily injury or death if used indoors.
WARNING: Do not use gasoline, alcohol, or other highly volatile fluids
to ignite charcoal. Use a commercially prepared firestarter and make sure
that, if using lighter fluid, any fluid that may have drained through the
bottom vents is removed before lighting the charcoal.
WARNING: Never use kettle unless all parts of the unit are in place.
Make sure ash catcher is set properly on the vertical supports underneath
the bowl of the kettle.
©2004 The following trademarks are registered in the name of Weber-Stephen Products Co., an Illinois
corporation, located at 200 East Daniels Road, Palatine, Illinois 60067 U.S.A. Australia; Smokey Joe, Weber,
Kettle Silhouette®, Genesis, Austria; Kettle Silhouette®, Smokey Joe, Weber, Benelux; Kettle Silhouette®,
Smokey Joe, Weber, Compact Grill Confi guration, Botswana; Weber, Canada; Smokey Joe, Genesis, China;
Kettle Silhouette®, Denmark; Kettle Silhouette®, Smokey Joe, Weber, Finland; Smokey Joe, France; Kettle
Silhouette®, Smokey Joe, Weber, One-Touch, Germany; Smokey Joe, Weber, One-Touch, Greece; Smokey Joe,
Ireland; Kettle Silhouette®, Smokey Joe, Italy; Smokey Joe, Weber, Japan; Smokey Joe, Weber, Korea; Smokey
Joe, Weber, New Zealand; Weber, Smokey Joe, Nigeria; Weber, Norway; Smokey Joe, Weber, Portugal; Weber,
South Africa: Smokey Joe, Weber, Kettle Confi guration, Spain; Smokey Joe, Weber, Sweden; Kettle Silhouette
, Smokey Joe, Switzerland; Kettle Silhouette®, Smokey Joe, Weber, United Kingdom; Smokey Joe, Weber,
Weber One-Touch, U.S.A..; Kettle Confi guration, Kettle Silhouette®, Smokey Joe, Weber, One-Touch, Firespice,
Go-Anywhere, U.S.A.;Kettle Confi guration, Kettle Silhouette, Genesis, Flavorizer, Crossover, Flamgo, Performer,
Rapidfi re, Tuck ‘N Carry, Jumbo Joe, Bar-B-Kettle, Master-Touch, Spirit, Grill Out, Summit, Platinum, 1-800Grill-Out, Ranch, Matchless Flame, Zimbabwe; Weber, Kettle Confi guration, Kettle Silhouette®.
Assembly Instructions
Step 1
Check Package Contents. You should have received the parts shown below. In the
event a part is missing or damaged, do not return the unit. Contact:
WEBER-STEPHEN PRODUCTS CO.
Customer Service Center
1890 Roselle Road, Suite 308 Schaumburg, IL 60195
1(800) 446-1071 www.weber.com
®
Assembly Tools needed
Hammer Pliers Block of wood
7/16 inch, 1/2 inch open-end or an adjustable wrench
Parts

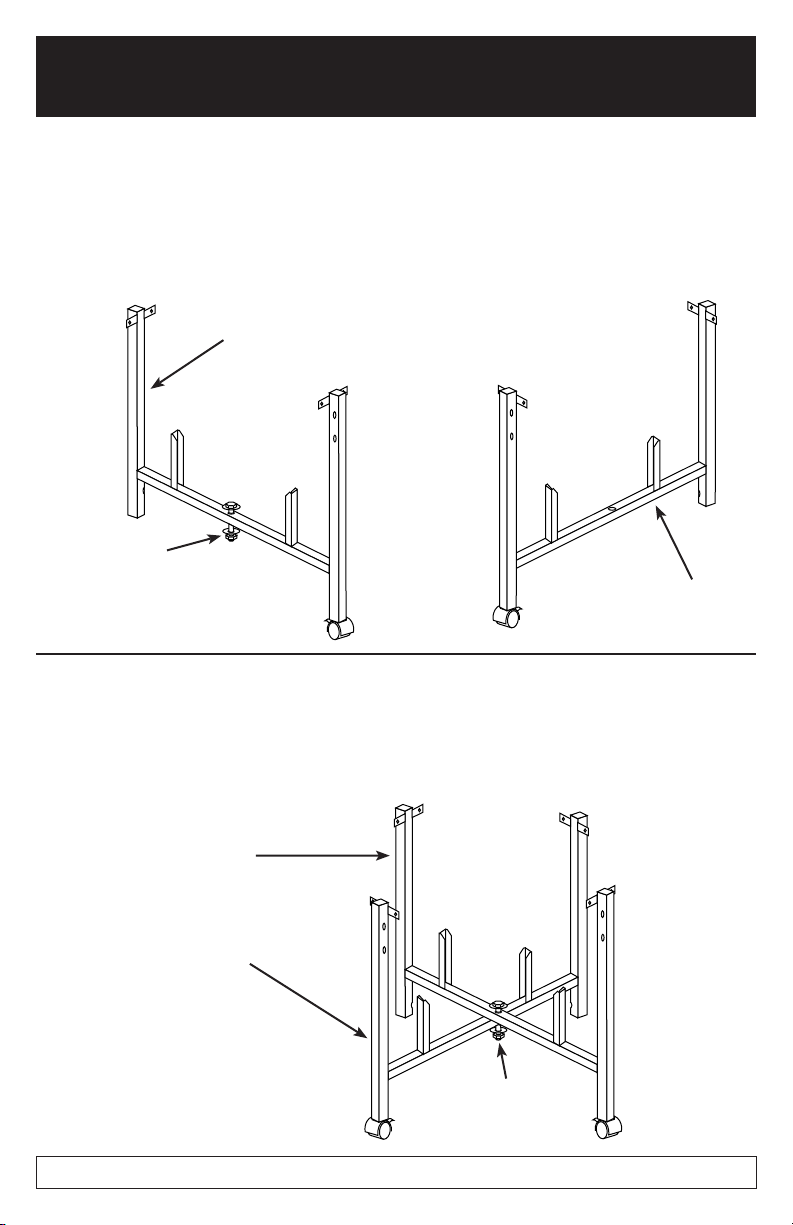

Top Frame Assembly
Bottom Frame Assembly
3
Charcoal grate
Tuck-Away frame support
Axle

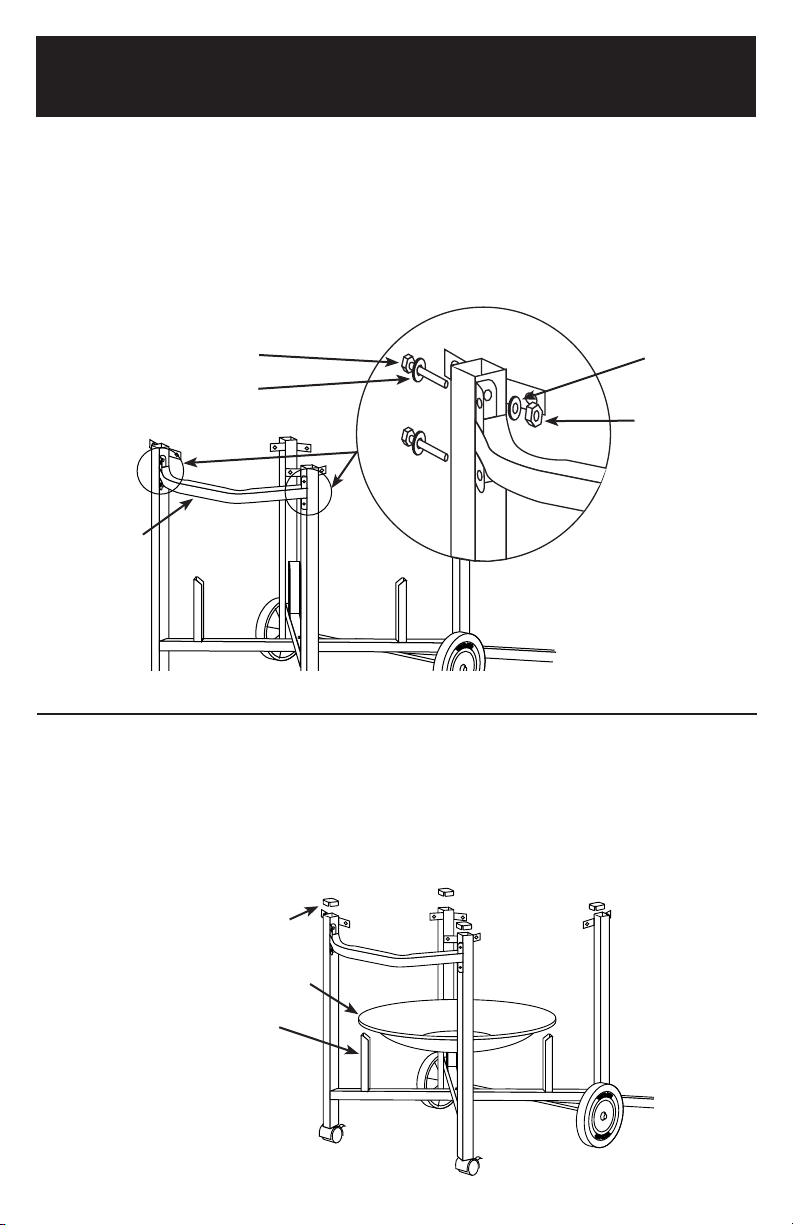

Frame handle
Lid Assembly

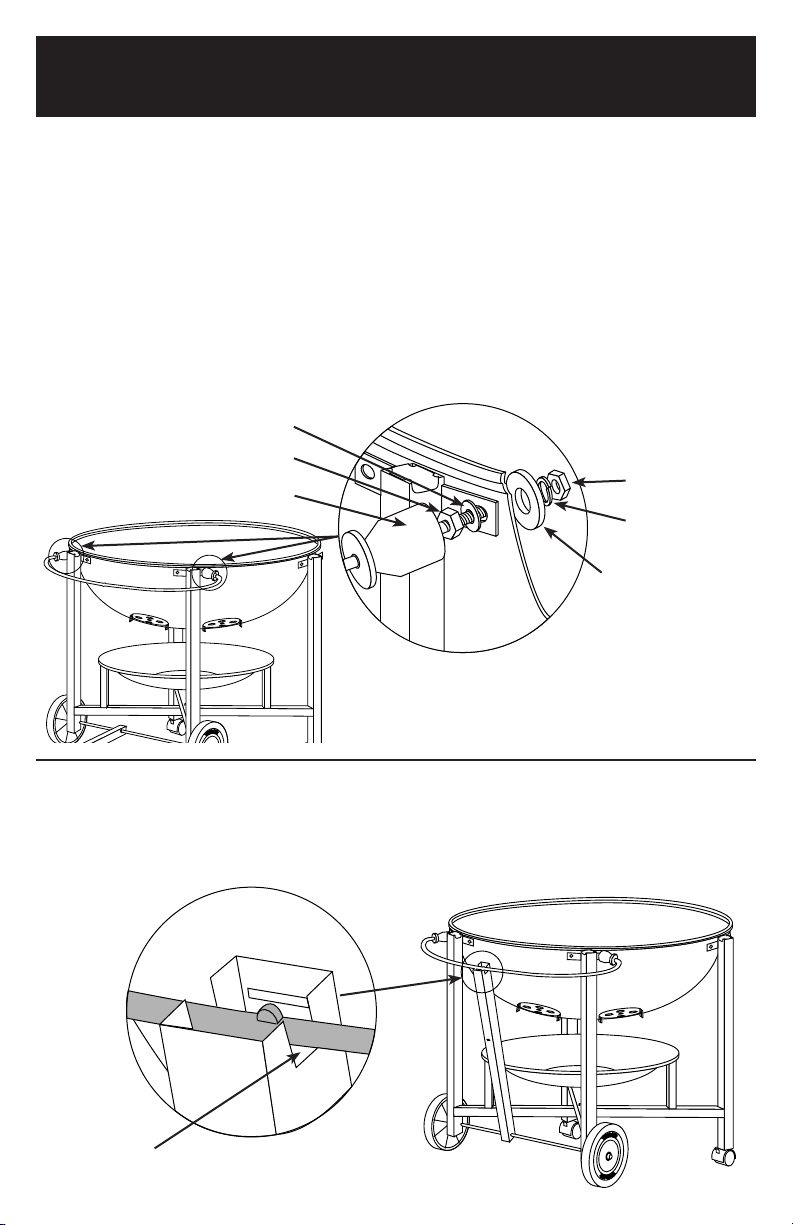

Bowl Assembly
Ash Catcher
Hinged cooking grate
Wire lid holder assembly
Tuck-Away support bracket
Two lid tabs
4
Three tool holders
Plastic tubing plug
Four aluminum tubing plugs
R
R
E
E
W
W
B
B
E
E
E
E
B
B
W
E
W
E
R
R

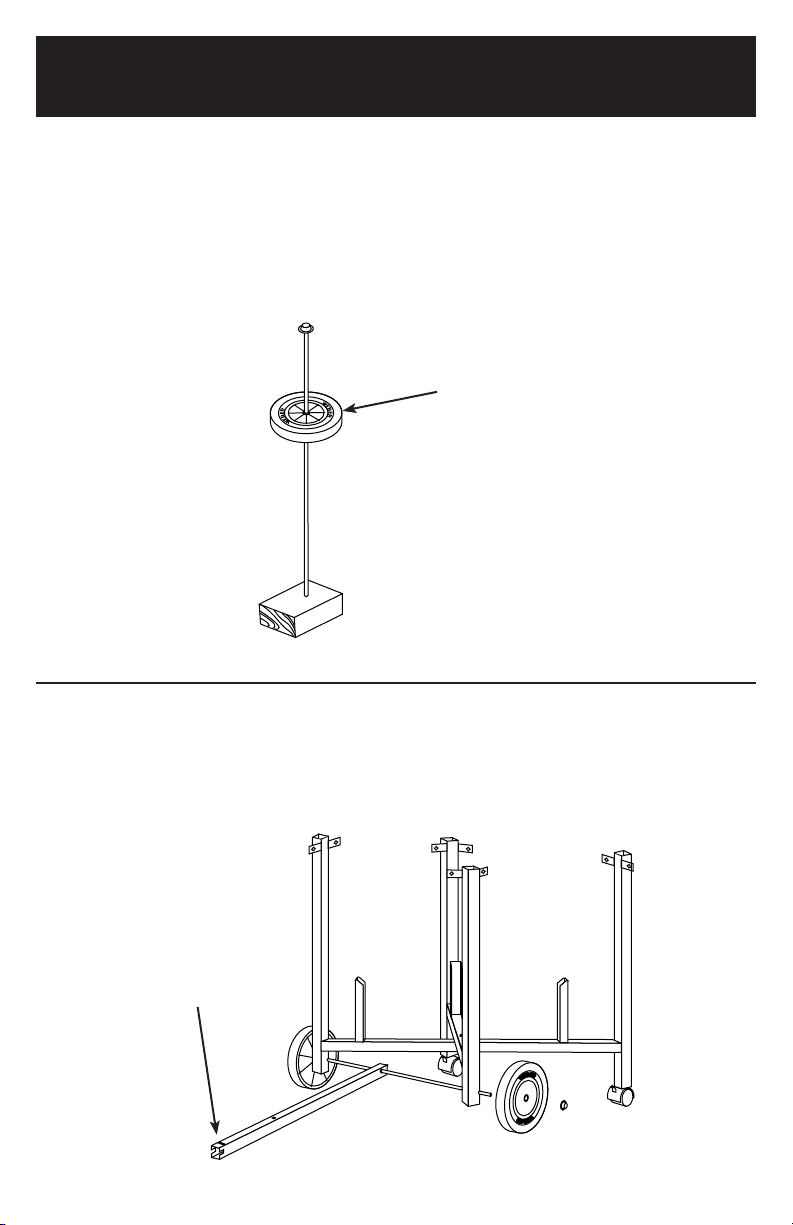

Two wheels
Five 1/4-20 x 1 3/4 inch
bolts (actual size)
Six 5/16 inch steel washers
(actual size)
Six 5/16-18 x 7/8 inch
bolts (actual size)
Eight 5/16-18 hex nuts
(actual size)
Two wheel hubcaps
Five 1/4-20 hex nuts
(actual size)
Ten nylon washers
(actual size)
Eight 5/16 inch lock washers
(actual size)
Six 7/8 inch aluminum washers
(actual size)
