Weber D002.G, A127.C, B018.A, C016.C User Manual

Owners Guide
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flames.
3. Open lid
4. If odor continues, keep away from the appliance and immediately call your gas supplier or your fire department.
Leaking gas may cause a fire or explosion which can cause serious bodily injury or death, or damage to property.
WARNING
1. Do not store spare liquid propane cylinder within 10 feet (3m) of this appliance.
2. Do not store or use gasoline or other flammable liquids or vapors within 25 feet (8m) of this appliance.
Liquid Propane Gas
®
®
R
W
E
B
E
E
B
E
W
R
R
W
E
B
E
E
B
E
W
R
WARNING: Follow all leak-check procedures carefully in this manual prior to barbecue operation. Do this even if the barbecue was dealer-assembled.
NOTICE TO INSTALLER: These instructions must be left with the owner and the owner should keep them for future use.
THIS GAS APPLIANCE IS DESIGNED FOR OUTDOOR USE ONLY.
WARNING: Do not try to light this appliance without reading the “Lighting” Instructions section of this manual
YOU MUST READ THIS OWNERS GUIDE
BEFORE
OPERATING YOUR GAS GRILL
A127.c B018.a C016.c D002.g
55059 05/16/01
DANGER
Failure to follow the Dangers, Warnings and Cautions contained in this Owner’s Manual may result in serious bodily injury or death, or in a fire or an explosion causing damage to property.
WARNINGS
Do not store a spare or disconnected liquid propane cylinder under or near this barbecue. Improper assembly may be dangerous. Please carefully follow the assembly instructions in
this manual. After a period of storage, and/or nonuse, the Weber Gas Barbecue should be checked for gas leaks and burner obstructions before use. See instructions in this manual for correct procedures.
Do not operate the Weber gas barbecue if there is a gas leak present. Do not use a flame to check for gas leaks. Combustible materials should never be within 24 inches of the top, bottom, back or sides of
your Weber gas barbecue. Do not put a barbecue cover or anything flammable on, or in the storage area under the barbecue. Your Weber Gas Barbecue should never be used by children. Accessible parts of the barbecue may be very hot. Keep young children away while it is in use. You should exercise reasonable care when operating your Weber gas barbecue. It will be hot during cooking or cleaning and should never be left unattended, or moved while in operation. Should the burners go out while in operation, turn all gas valves off. Open the lid and wait five minutes before attempting to relight, using the lighting instructions.
Do not use charcoal or lava rock in your Weber gas barbecue. Never lean over open grill or place hands or fingers on the front edge of the cooking box. Should a grease fire occur, turn off all burners and leave lid closed until fire is out. Do not enlarge valve orifices or burner ports when cleaning the valves or burners. The Weber Gas Barbecue should be thoroughly cleaned on a regular basis. Liquid propane gas is not natural gas. The conversion or attempted use of natural gas in a
liquid propane unit or liquid propane gas in a natural gas unit is dangerous and will void your warranty.
Do not attempt to disconnect any gas fitting while your barbecue is in operation. Use heat-resistant barbecue mitts or gloves when operating barbecue. Combustion byproducts produced when using this product contain chemicals known to the
state of California to cause cancer, birth defects, or other reproductive harm.
LIQUID PROPANE GAS UNITS ONLY:
Use the regulator that is supplied with your Weber Gas Barbecue. Do not attempt to disconnect the gas regulator or any gas fitting while your barbecue is in
operation. A dented or rusty liquid propane cylinder may be hazardous and should be checked by your liquid propane supplier. Do not use a liquid propane cylinder with a damaged valve. Although your liquid propane cylinder may appear to be empty, gas may still be present, and the cylinder should be transported and stored accordingly. If you see, smell or hear the hiss of escaping gas from the liquid propane cylinder:
1. Move away from liquid propane cylinder.
2. Do not attempt to correct the problem yourself.
3. Call your fire department.
A-2

Warranty

Weber-Stephen Products Co. (Weber) hereby warrants to the ORIGINAL PURCHASER of this Weber Gas Grill that it will be free of defects in material and workmanship from the date of purchase as follows:
Aluminum Castings, lifetime, 1 year paint
Porcelain Hood Section, 25 years
Porcelain Side Table, 25 years
Burners, 10 years
Igniter, 3 years
Cooking Grates, 7 years no rust through
Flavorizer Bars, 5 years no rust through
Thermoplastic Parts, 10 years
All Remaining Parts, 5 years,
when assembled and operated in accordance with the printed instructions accompanying it. Weber may require reasonable proof of your date of purchase. THEREFORE, YOU SHOULD RETAIN YOUR SALES SLIP OR INVOICE. This Limited Warranty shall be limited to the repair or replacement of parts that prove defective under normal use and service and which on examination shall indicate, to Weber’s satisfaction, they are defective. Before returning any parts, contact the Customer service representative in your region using the contact information sheet provided with your manual. If Weber confirms the defect and approves the claim, Weber will elect to replace such parts without charge. If you are required to return defective parts, transportation charges must be prepaid. Weber will return parts to the purchaser, freight or postage prepaid. This Limited Warranty does not cover any failures or operating difficulties due to accident, abuse, misuse, alteration, misapplication, vandalism, improper installation or improper maintenance or service, or failure to perform normal and routine maintenance, including but not limited to damage caused by insects within the burner tubes, as set out in this owner’s manual. Deterioration or damage due to severe weather conditions such as hail, hurricanes, earthquakes or tornadoes, discoloration due to exposure to chemicals either directly or in the atmosphere, is not covered by this Limited Warranty.
There are no other express warrants except as set forth herein and any applicable implied warranties of merchantability and fitness are limited in duration to the period of coverage of this express written Limited Warranty. Some regions do not allow limitation on how long an implied warranty lasts, so this limitation may not apply to you. Weber is not liable for any special, indirect or consequential damages. Some regions do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you. Weber does not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment; and no such representations are binding on Weber. This Warranty applies only to products sold at retail.
WEBER-STEPHEN PRODUCTS CO. Customer Service Center 1890 Roselle Road, Suite 308 Schaumburg, IL 60195 USA
LP Cylinder The LP cylinder manufacturer is responsible for the materials, workmanship and performance of the cylinder. If the cylinder has a defect, malfunctions, or you have a question regarding the cylinder, call the cylinder manufacturer’s customer service center. The phone number is on the warning decal, which is permanently attached to the cylinder. If the cylinder manufacturer has not resolved the issue to your satisfaction, then call Weber-Stephen Products Co., Customer Service Center.
A-3

Contents

Danger & Warnings ....................................................................... A-2
Warranty ........................................................................................ A-3
General Instructions ......................................................................A-5
Exploded View............................................................................... A-6
Parts List ....................................................................................... A-10
Assembly Instructions ................................................................... B-1
Installing work surfaces and gas supply Guidelines ...................... C-1
Operating ...................................................................................... D-1
Lighting.......................................................................................... D-1
Manual Lighting ............................................................................. D-2
Cooking .........................................................................................D-3
Storage and/or Nouse ................................................................... D-3
Cleaning ........................................................................................D-3
Refilling the LP Cylinder ................................................................ D-4
Safe handling tips for LP Gas Cylinders..........................................
Annual Maintenance ..................................................................... D-7
General Maintenance .................................................................... D-8
Replacing Main Burners ................................................................ D-9
Crossover Ignition System Operations .......................................... D-10
Troubleshooting ............................................................................. D-11
D-5
A-4

General Instructions

Your Weber Gas Barbecue is a portable outdoor cooking appliance. With the Weber Gas Barbecue you can grill, barbecue, roast and bake with results that are difficult to duplicate with indoor kitchen appliances. The closed lid and Flavorizer® Bars produce that “outdoor” flavor in the food. The Weber Gas Barbecue is portable so you can easily change its location in your yard or on your patio. Portability means you can take your Weber Gas Barbecue with, if you move. Liquid Propane (LP) gas supply is easy to use and gives you more cooking control than charcoal fuel.
These instructions will give you the minimum
requirements for assembling your Weber Gas Barbecue. Please read the instructions carefully before using your Weber Gas Barbecue. Improper assembly can be dangerous.
Not for use by children.
If there are local codes that apply to portable gas
grills, you will have to conform to them. If there are no local codes, you must conform to the latest edition of the National Fuel Gas Code: ANSI Z
223.1.
The pressure regulator supplied with the Weber
Gas Barbecue must be used. This regulator is set for 10.5 inches of water column (pressure).
This Weber Gas Barbecue is designed for use with
liquid propane (LP) gas only. Do not use with natural (piped in city) gas. The valves, orifices, hose and regulator are for LP gas only.
Do not use with charcoal fuel.
Check that the area under the control panel and
the bottom tray are free from debris that might obstruct the flow of combustion or ventilation air.
The areas around the LP cylinder must be free
and clear from debris.

Storage

The gas must be turned OFF at the LP cylinder
when the Weber Gas Barbecue is not in use.
When the Weber Gas Barbecue is stored indoors,
the gas supply must be disconnected and the LP cylinder stored outdoors in a well-ventilated space.
LP cylinders must be stored outdoors in a well-
ventilated area out of the reach of children. Disconnected LP cylinders must not be stored in a building, garage or any other enclosed area.
When the LP cylinder is not disconnected from the
Weber Gas Barbecue, the appliance and LP cylinder must be kept outdoors in a well-ventilated space.
Operating
WARNING: Only use this barbecue outdoors in a well-ventilated area. Do not use in a garage, building, breezeway or any other enclosed area. WARNING: Never use your Weber Gas Barbecue under an unprotected combustible roof or overhang. WARNING: Your Weber Gas Barbecue is not intended to be installed in or on recreational vehicles and/or boats. WARNING: Do not use combustible materials within 24 inches of the top, bottom, back or sides of the grill. WARNING: The entire cooking box gets hot when in use. Do not leave unattended. WARNING: Keep any electrical supply cord and the fuel supply hose away from any heated surface. WARNING: Keep the cooking area clear of flammable vapors and liquids such as gasoline, alcohol, etc., and combustible materials. WARNING: Never store an extra (spare) LP cylinder under or near the Weber Gas Barbecue.

For Installation in Canada

These instructions, while generally acceptable, do not necessarily comply with the Canadian Installation codes, particularly with piping above and below ground. In Canada the installation of this appliance must comply with local codes and/or Standard CAN/ CGA-B149.2 (Installation Code for Propane Burning Appliances and Equipment).
A-5
1
2
Genesis Gold-B LP
051601
10
11
12
13
14
15 16
17 18
3 4 5
6 7
8
9
36
37
38 39 40
41
42
43
44
45
46
19 20
21 22 23
24 25 26
27
28
29
30
31 26
32
47
48 41
17 16
19
18
49 50
51
52
53
54
55
33
34
35
56
57
A-6
1. Hair Pin Cotter
2. Hinge Pin
3. Left Endcap
4. Shroud
5. 1/4-20 x 1 1/4 inch Bolt
6. Handle lock
7. Handle
8. Warm-Up™ Basket
9. Warming Rack
10. Cooking Grates
11. Flavorizer® Bars
12. Cooking Box
13. 1/4-20 keps nut
14. Slide Out Bottom Tray
15. Catch Pan Holder
16. Work Surface Trim
17. Work Surface
18. Side Frame (Right front/Left rear)
19. Side Frame (Left front/Right rear)
20. Tool holders
21. Nylon Retaining Washer
22. #8 - 16 x 7/8 screw Bolt
23. Catch Pan
24. Drip Pans
25. 1/4 - 20 x 2 inch Bolt
26. Frame Connector
27. Nylon Washer
28. Front Panel
29. Condiment Basket
30. Front Frame
31. 1/4-20 x 1/2 inch Bolt
32. Casters
33. Wheels
34. Hubcaps
35. Bottom Shelf
36. Thermometer
37. Right Endcap
38. Burner Control Knobs
39. Control Panel
40. Igniter Button
41. Control Panel Hardware
42. Crossover Tube
43. Front and Back Burners
44. Center Burner
45. Manifold, Hose and regulator (assembled)
46. Manifold Hardware
47. Igniter
48. Igniter Bracket
49. Back Panel
50. Plastic buttons
51. Rear Frame
52. Wing Nut
53. Cylinder Panel
54. Fuel Guage
55. Liquid Propane Cylinder
56. Cylinder Glides
57. Frame Connector
A-7
© 2001 Weber-Stephen Products Co., Weber, the silhouette, and the kettle configuration are registered trademarks
®
of Weber-Stephen Products Co., 200 East Daniels Road, Palatine, IL, 60067-6266, U.S.A. This product is covered by one or more United States patents and patents in other nations globally. Printed in the U.S.A.
A-8

Remove Packaging from Grill

Remove all tape from packaging. Remove bottom rack from top of packaging. Remove outer box. Pull out bottom tray from cooking box. Remove packaging material from bottom tray, catch pan holder, catch pan, and drip pan.
Remove Grill from Lower Packaging
WARNING: Lifting the barbecue from the lower packaging requires at least two people.
With two people: lift straight up and over lower packaging and cardboard support.
A-9

You will need:

Phillips screwdriver
7/16 open-end or an adjustable wrench
Flavorizer Bars - 5
Cooking Grates - 2
1/2 inch bolts (1/4 x 20 x 1/2 inch bolts) - 4
Nylon Washers - 4
Left Work Surface - 1
Condiment basket - 1
Bottom Shelf - 1
Slide Out Buttom Tray - 1
Catch pan holder - 1
Right Work Surface - 1
LP Cylinder - 1
Catch Pan - 1
Disposable Drip Pans - 2
A-10

Assembly Instructions

Install the slide out bottom tray

You will need: the slide out bottom tray(1), catch pan holder(2), catch pan and one disposable drip pan.
(1) (2)
Hook the ends of the catch pan holder into the hole in the slide out bottom tray. The front of the catch pan
holder must be on the same side as the finger grip(1) of the bottom tray.
Slide the bottom tray onto the mounting rails under the cooking box with finger grip toward you(1).
WARNING: Do not line bottom tray with alumi­num foil. It can cause grease fires by trapping the grease and not allowing grease to flow into the catch pan.
(1)
Put the disposable drip pan into the catch pan.
Slide the catch pan into the catch pan holder with its finger grip towards you(1).
(1)
B018.a
B-1

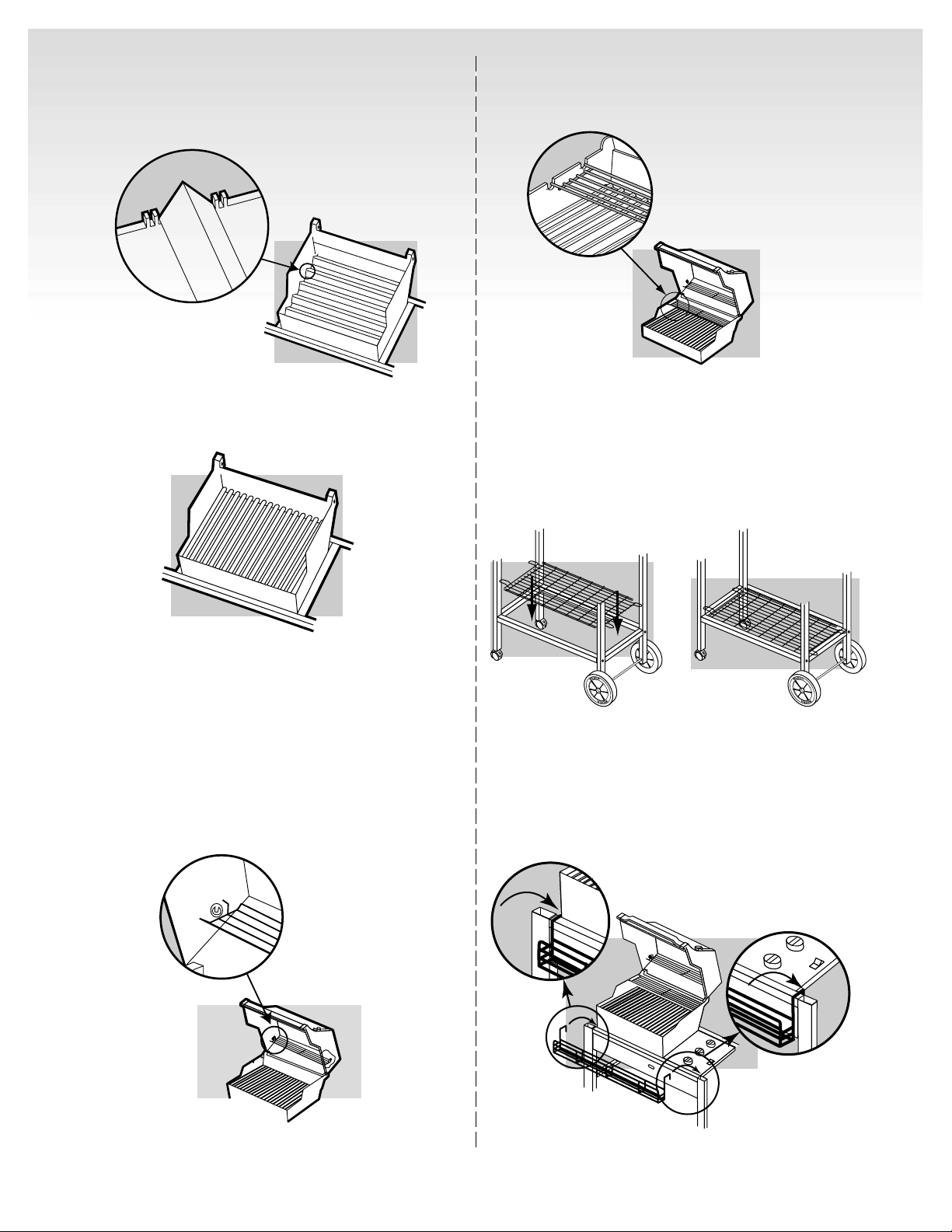

Install Flavorizer® Bars and Cooking Grates

You will need: five Flavorizer Bars and two cooking grates.
Place the Flavorizer Bars side by side in the cooking box.
Set the cooking grates onto the ledges in the cooking box with the rounded sides up.

Installing the warming rack

You will need: warming rack.
Set the warming rack into the slots at the rear of the cooking box.

Install the bottom shelf

You will need: Bottom shelf.
Set the bottom shelf in place between the two frame connectors underneath the cooking box.

Installing the Warm-Up™ Basket

You will need: Warm-Up Basket
Insert one end of the Weber Warm-Up Basket into the hole at the right side of the inside of the lid, and the other end into the slot at the left side of the lid.

Install the condiment basket

Place the wire hooks over the front frame to the left of the cooking box and to the right of the control panel.
B-2
Installing work Surfaces &
Gas Connection Guidelines

Install Left Work Surface

You will need left work surface, two 1/2 inch bolts, two nylon washers and a 7/16 inch or adjustable wrench. Insert the left work surface tabs in the slots in the frame(1). Slip washers on the bolts and insert the bolts as shown(2). Tighten
(1)
(2)
Check that all burner valves are off
You will need: burner control knobs.
Valves are shipped in the OFF position, but you should check to be sure that they are turned OFF. Put the knob on each valve. Check by pushing down and turning clockwise. If they do not turn, they are off. Proceed to the next step. If they do turn continue turning them clockwise until they stop, then they are off. Proceed to the next step.

Fill liquid propane cylinder

Note - The liquid propane cylinder manufacturer is responsible for the materials, workmanship and performance of the cylinder. If the cylinder has a defect, malfunctions, or you have a question regarding the cylinder, call the cylinder manufacturer’s customer service center. The phone number is on the warning decal, which is permanently attached to the cylinder. If the cylinder manufacturer has not resolved the issue to your satisfaction, then contact the Customer Service Representative in your region using the contact information sheet provided with your manual.
To fill, take the liquid propane cylinder and filler adapter to an RV center or look up gas-propane in the phone book for other sources of liquid propane gas.
WARNING: We recommend that your liquid propane cylinder be filled at an authorized liquid propane gas dealer by a qualified attendant, who fills the tank by weight. IMPROPER FILLING IS DANGEROUS.
Tell your liquid propane dealer that this is a new liquid propane cylinder. The air must be removed from a new liquid propane cylinder before the initial filling. Your liquid propane cylinder dealer is equipped to do this. The liquid propane cylinder must be installed, transported and stored in an upright position, and should not be dropped or handled roughly. Never store or transport the liquid propane cylinder where temperatures can reach 125° Fahrenheit (too hot to hold by hand – for example: do not leave the liquid propane cylinder in a car on a hot day). For full instructions on safe handling of liquid propane cylinders, see Section “Operating”.
C016.c
C-1

Important LP Cylinder Information

Failure to follow these DANGER statements exactly may result in a fire causing death or serious injury.
DANGER
NEVER store a spare LP Cylinder under or near
this barbecue. NEVER fill the tank beyond 80% full.
Your Weber gas grill is equipped with a cylinder supply system designed for vapor withdrawal. WARNING: Only use this grill outdoors in a well­ventilated area. Do not use in a garage, building, breezeway or any other enclosed area.
The LP cylinder supplied with your barbecue is equipped with an OPD (Overfilling Prevention Device) and a QCC1 or Type 1 (CGA810) cylinder connection. The cylinder connection is compatible with the barbecue connection.
This is a secondary device to prevent the overfilling of your LP cylinder. The proper filling methods for the filling of your cylinder are by weight or volume, as described in NFPA 58. Please make sure your filling station fills your LP cylinder by weight or volume. Ask your filling station to read purging and filling instructions on the LP cylinder before attempting to fill.
WARNING: Do not exchange the LP tank provided with your barbecue, unless the exchange LP tank is equipped with an OPD. Otherwise you will lose the OPD (Overfilling Prevention Device) feature. If there is not an LP tank available for exchange equipped with an OPD, we recommend that you have your LP tank filled at an authorized LP gas dealer by a qualified attendant.
Hang filled liquid propane cylinder on fuel gauge
Loosen the tank lock wing nut. Swing the cylinder lock up. Tighten the wing nut so that the cylinder lock is up and to the side. Hook the liquid propane cylinder onto the fuel gauge. Loosen the tank lock wing nut. Swing the tank lock down. Tighten the wing nut.
Raises up while filling then stops when full.
C-2
Connect filled liquid propane cylinder WARNING: Make sure that the cylinder valve is closed. Close by turning clockwise.
Remove plastic dust cover from the fuel cylinder valve. Screw the regulator coupling onto the tank valve(1), clockwise, or to the right. Hand tighten only.
Note: This is a new type of connection. It tightens clockwise and will not allow gas to flow unless the connection is tight. The connection requires tightening by hand only.
WARNING: Do not use a wrench to tighten the connection. Using a wrench could damage the regulator coupling and could cause a gas leak.
Regulator vent hole should be at 3, 6, or 9 oclock. It should not be pointed up.(2)
(1)
Remove the control panel
(1) Unscrew the two phillips screws, located on the
right edge of the control panel.
(2) Take off the burner control knobs.
(2)
(1)
(3) Lift off the control panel.
C-3
(1)
(2)
(3)
(4)
Check for gas leaks
DANGER
Do not use an open flame to check for gas leaks. Be sure there are no sparks or open flames in the area while you check for leaks. Sparks or open flames will result in a fire or explosion which can cause serious bodily injury or death and damage to property.
WARNING: You should check for gas leaks every time you disconnect and reconnect a gas fitting.
Note - All factory-made connections have been thoroughly checked for gas leaks. The burners have been flame-tested. As a safety precaution however, you should recheck all fittings for leaks before using your Weber Gas Barbecue. Shipping and handling may loosen or damage a gas fitting.
WARNING: Perform these leak checks even if your barbecue was dealer or store assembled.
You will need: a soap and water solution, and a rag or brush to apply it.
To perform leak checks: open tank valve by turning the tank valve handwheel counterclockwise. Check for leaks by wetting the connections with the soap and water solution and watching for bubbles. If bubbles form or if a bubble grows, there is a leak.
Note - Since some leak test solutions, including soap and water, may be slightly corrosive, all connections should be rinsed with water after checking for leaks.
WARNING: Do not ignite burners when leak checking.
Check:
1) Hose to manifold connection.
WARNING: If there is a leak a connection(1), retighten the fitting with a wrench and recheck for leaks with soap and water solution. If a leak persists after retightening the fitting, turn OFF the gas. DO NOT OPERATE THE BARBECUE. Contact the Customer Service Representative in your region using the contact information sheet provided with your manual.
2) Regulator to Cylinder connection
3) Valves to manifold connections
4) Hose to regulator connection
WARNING: If there is a leak at connections(2,3) or(4) turn OFF the gas. DO NOT OPERATE THE BARBECUE Representative in your region using the contact information sheet provided with your manual.
When leak checks are complete, turn gas supply OFF at the source and rinse connections with water.
Contact the Customer Service
C-4
(1)

Reinstall control panel (after checking for gas leaks)

(1) Set the control panel in place over both sides of
the frame. Hold the crossover ignition button up while setting the control panel in place.
(2) Line up the control panel with the white plastic
plugs in the frame brace. Insert screws and tighten with a Phillips screwdriver until snug. Do not overtighten.
(3) Push each of the burner control knobs onto their
valve.
(1)
(3)

Install Right Work Surface

You will need right work surface, two 1/2 inch bolts, two nylon washers and a 7/16 inch or adjustable wrench. Insert the right work surface tabs in the slots In the frame(1). Slip washers on the bolts and insert the bolts as shown(2). Tighten
(2)
(2)
C-5

Operating

Lighting

Summary lighting instructions are on the control panel.
m DANGER Failure to open the lid while igniting the barbecue’s burners, or not waiting 5 min­utes to allow the gas to clear if the barbe­cue does not light, may result in an explo­sive flame-up which can cause serious bodily injury or death.
Crossover Ignition® System
Note - The Crossover Ignition System ignites the Front burner with a spark from the igniter electrode inside the Gas Catcher™ Ignition Chamber. You generate the energy for the spark by pushing the Crossover Ignition Button until it clicks.
m WARNING: Check hose before each use of barbecue for nicks, cracking, abrasions or cuts. If the hose is found to be damaged in any way, do not use the barbecue. Replace using only Weber authorized replacement hose. Contact the Cus­tomer Service Representative in your region using the contact information sheet provided with your manual.
1
m DANGER:
When the “excess gas flow control” feature is activated, a small amount of gas I still flowing to the burners. After turning OFF the cylinder knobs, wait at least 5 minutes for the gas to clear before attempting to light the barbecue. Failure to do so may result in an explosive flame-up, which can cause serious bodily injury or death.
3) Turn the cylinder on by turning the cylinder valve counterclockwise.
m W ARNING: Do not lean over the open barbecue. Keep your face and body at least one foot away from the matchlight hole when lighting the barbe­cue.
4) Push Front burner control knob down and turn to START/HI.
5) Push the Crossover Ignition Button several times, so it clicks each time.
6) Check that the burner is lit by looking through the matchlight hole on the front of the cooking box. You should see a flame.
m WARNING: If the burner does not light, turn the Front burner control knob to OFF and wait 5 minutes to let the gas clear before you try again or try to light with a match.
7) After the FRONT burner is lit you can turn on the other burner or burners.
Note - Always light the FRONT burner first. The other burner or burners ignite from the FRONT burner.
2
7
5
3
6
4

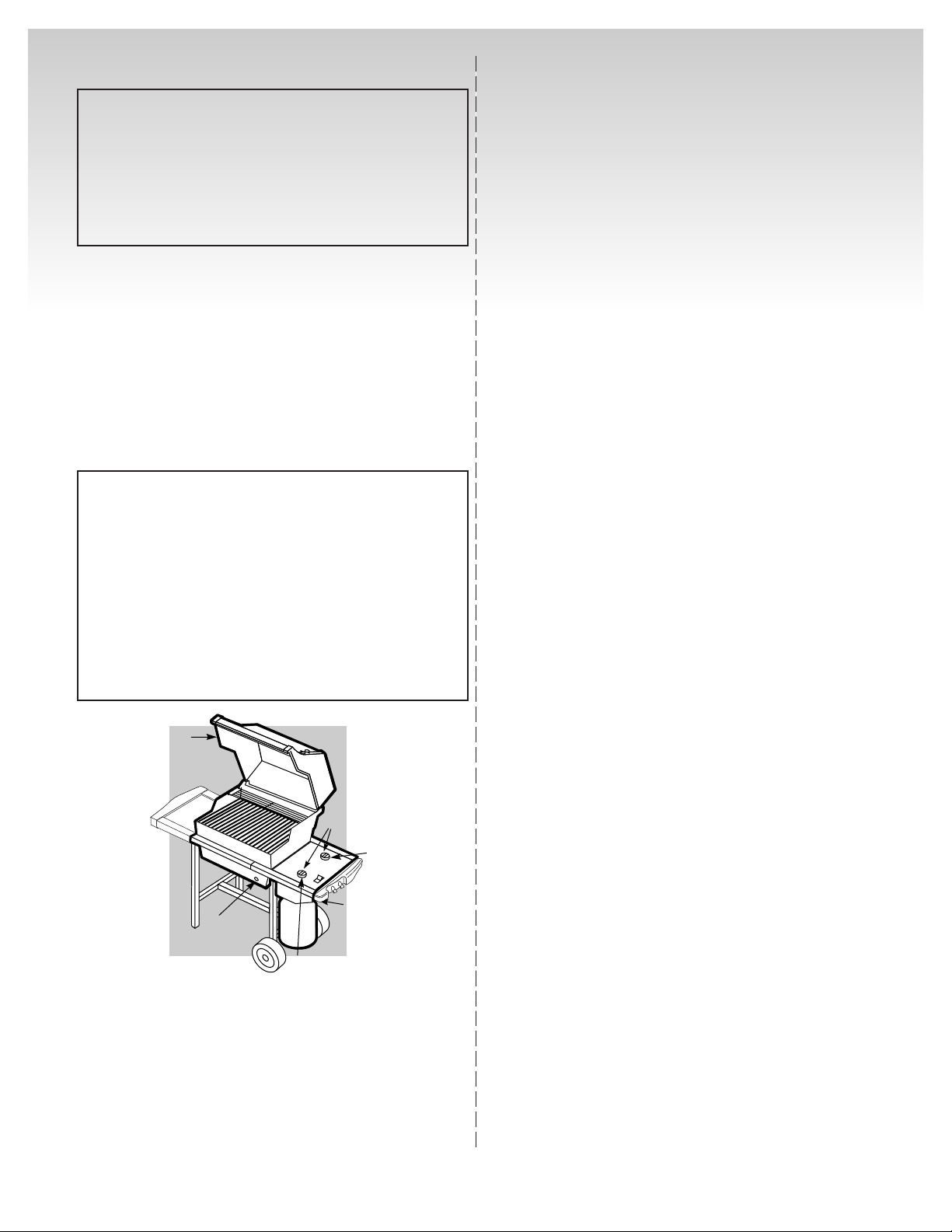

*The grill illustrated may have slight differences than the model purchased.
1) Open the lid.
2) Make sure all burner control knobs are turned OFF. (Push control knob down and turn clockwise to ensure that it is in the OFF position.)
m W ARNING: The burner control knobs must be in the OFF position before turning on the liquid propane cylinder tank valve. If they are not in the OFF position, when you turn on the LP cylinder valve, the “excess gas flow control” feature will activate, limiting the flow of gas from the LP cylinder. If this should occur, turn OFF the LP cylinder valve and burner control knobs. Then start over.
D002.e

To Extinguish

Push down and turn each burner control knob clockwise to the OFF position. Turn gas supply OFF at the source.
D-1

Manual Lighting

m DANGER
Failure to open the lid while igniting the barbecue’s burners, or not waiting 5 min­utes to allow the gas to clear if the barbe­cue does not light, may result in an explo­sive flame-up which can cause serious bodily injury or death.
1) Open the lid.
2) Make sure all burner control knobs are turned OFF. (Push each knob down and turn clockwise to ensure they are in the off position.)
m W ARNING: The burner control knobs must be in the OFF position before turning on the liquid propane cylinder valve. If they are not in the OFF position, when you turn on the LP cylinder valve, the “excess gas flow control” feature will activate, limiting the flow of gas from the LP cylinder. If this should occur, turn OFF the LP tank valve and burner control knobs. Then start over.
m DANGER
When the “excess gas flow control” fea­ture is activated, a small amount of gas is still flowing to the burners. After turning OFF the cylinder and burner control knobs, wait at least 5 minutes for the gas to clear before attempting to light the barbecue. Failure to do so may result in an explosive flame-up, which can cause serious bodily injury or death.
3) Turn the cylinder on by turning the cylinder valve counterclockwise.
4) Strike a match and put the flame into the matchlight hole in the front of the cooking box.
m W ARNING: Do not lean over open barbecue. Keep your face and body at least one foot away from the matchlight hole when lighting the barbe­cue.
5) Push Front burner control knob down and turn to START/HI.
6) Check that the burner is lit by looking through the matchlight hole on the front of the cooking box. You should see a flame
m WARNING: If the burner does not light, turn the Front burner control knob to OFF and wait 5 minutes to let the gas clear before you try again or try to light with a match.
7) After the FRONT burner is lit you can turn on the other burner.
Note - Always light the FRONT burner first. The other burner or burners ignite from the FRONT burner.
To Extinguish
Push down and turn each burner control knob clockwise to the OFF position. Turn gas supply OFF at the source.
1
2
7
3
4,6
5
*The grill illustrated may have slight differences than the model purchased.
D-2

Cooking

m WARNING: Do not move the Weber Gas Barbe­cue when operating or while barbecue is hot.
You can adjust the FRONT and BACK burners as desired. The control settings: High (H), Medium (M), Low (L), or Off (O) are described in your Weber cookbook. The cookbook uses these notations to describe the settings of the FRONT and BACK burn­ers. For example, to sear steaks, you would set all burners at H (high). Then to complete cooking, you would set FRONT and BACK at M (medium). Refer to your Weber cookbook for detailed cooking instructions.
Note: The temperature inside your cooking box for the first few uses, while surfaces are still very reflective, may be hotter than those shown in your cookbook. Cooking conditions. Such as wind and weather, may require the adjustment of the burner controls to obtain the correct cooking temperatures.
m CAUTION: Replace thermometer in lid when not in use. Do not leave thermometer in food while cooking. If burners go out during cooking, open lid, turn off all burners and wait five minutes before relighting. Preheating - Your Weber Gas Barbecue is an energy-
efficient appliance. It operates at an economical low BTU rate. To preheat: after lighting, close lid and turn all burners to high (HH). Preheating to between 500° and 550° F (260° and 290° C) will take 10 to 15 minutes depending on conditions such as air tempera­ture and wind. Drippings and grease - The Flavorizer® Bars are designed to “smoke” the correct amount of drippings for flavorful cooking. Excess drippings and grease will accumulate in the catch pan under the slide out bottom tray. Disposable foil drip pans are available that fit the catch pan.
m WARNING: Check the bottom tray for grease build-up before each use. Remove excess grease to avoid a grease fire in the slide out bottom tray.

Storage and/or Nonuse

The gas must be turned off at the liquid propane cylinder when the Weber Gas Barbecue is not in use.
When the Weber Gas Barbecue is stored indoors, the gas supply must be DISCONNECTED and the LP cylinder stored outdoors in a well-ventilated space.
LP cylinder must be stored outdoors in a well ­ventilated area out of reach of children. Disconnected LP cylinder must not be stored in a building, garage or any other enclosed area.
When the LP cylinder is not disconnected from the Weber Gas Barbecue, the appliance and LP tank must be kept outdoors in a well-ventilated space.
The Weber Gas Barbecue should be checked for
gas leaks and any obstructions in the burner tubes before using. (See Sections: “General Maintenance and Annual Maintenance.”)
Check that the areas under the control panel and
the slide out bottom tray are free from debris that might obstruct the flow of combustion or ventilation air.
The Spider Stopper ™ Guards should also be
checked for any obstructions. (See Section: “Annual Maintenance.”)

Cleaning

m WARNING: Turn your Weber Gas Barbecue OFF and wait for it to cool before cleaning. m CAUTION: Do not clean your Flavorizer® Bars or cooking grates in a self-cleaning oven. For availability of replacement cooking grates and Flavorizer Bars contact the Customer Service Representative in your region using the contact information sheet provided with your manual. Outside surfaces - Use a warm soapy water solution
to clean, then rinse with water.
m CAUTION: Do not use oven cleaner, abrasive cleansers (kitchen cleansers) cleaners that contain citrus products, or abrasive cleaning pads on barbecue or cart surfaces. Slide out Bottom tray - Remove excess grease, then
wash with warm soapy water, then rinse Flavorizer® Bars and Cooking Grates - Clean with a suitable brass bristle brush. As needed, remove from grill and wash with warm soapy water, then rinse with water. Catch pan - Disposable foil trays are available, or you can line the catch pan with aluminum foil. To clean the catch pan, wash with warm soapy water, then rinse. Thermometer - Wipe with warm soapy water; clean with plastic scrub ball. Do not put in dishwasher or submerge in water. Inside cooking module - Brush any debris off of burner tubes. DO NOT ENLARGE BURNER PORTS (OPENINGS). Wash inside of cooking box with warm soapy water and a water rinse. Inside Lid - While lid is warm, wipe inside with paper towel to prevent grease build-up. Flaking built-up grease resembles paint flakes. Stainless steel surfaces - Wash with a soft cloth and a soap and water solution. Thermoset surfaces - Wash with a soft cloth and a soap and water solution.
Do not use cleaners that contain acid, mineral spirits or xylene. Rinse well after cleaning.
Thermoset work surfaces are not to be used as cutting boards.
D-3
Refilling the Liquid Pro­pane Cylinder
We recommend that you refill the LP cylinder before it is completely empty.
Removal of the LP cylinder
1) Close cylinder valve (turn clockwise).
2) Unscrew regulator coupling by turning counter­clockwise, by hand only.
3) Loosen cylinder lock wing nut and turn cylinder lock up out of the way.
4) Lift cylinder off.
To refill, take LP cylinder to a “Gas Propane” dealer.
m W ARNING: We recommend that your LP cylinder be filled at an authorized LP gas dealer, by a qualified attendant, who fills the cylinder by weight. IMPROPER FILLING IS DANGEROUS. m CAUTION: When transporting the LP cylinder make sure the plastic dust cover is in place over the valve. This will keep dust and dirt from the threaded portion of the valve.
(1)
This is a secondary device to prevent the overfilling of your LP cylinder. The proper filling methods for the filling of your cylinder are by weight or volume, as described in NFPA 58. Please make sure your filling station fills your LP cylinder by weight or volume. Ask your filling station to read purging and filling instruc­tions on the LP cylinder before attempting to fill.
mWARNING: Do not exchange the LP tank pro­vided with your barbecue, unless the exchange LP tank is equipped with an OPD. Otherwise you will lose the OPD (Overfilling Prevention Device) feature. If there is not an LP tank available for exchange equipped with an OPD, we recommend that you have your LP tank filled at an authorized LP gas dealer by a qualified attendant.
(3)
(2)
Important LP Cylinder Information
Failure to follow these DANGER statements exactly may result in a fire causing death or serious injury.
mDANGER
mNEVER store a spare LP Cylinder under or near
this barbecue. mNEVER fill the tank beyond 80% full.
Your Weber gas grill is equipped with a cylinder supply system designed for vapor withdrawal. mWARNING: Only use this grill outdoors in a well­ventilated area. Do not use in a garage, building, breezeway or any other enclosed area.
The LP cylinder supplied with your barbecue is equipped with an OPD (Overfilling Prevention Device) and a QCC1 or Type 1 (CGA810) cylinder connection. The cylinder connection is compatible with the barbecue connection.
Raises up while filling then stops when full.
Connecting the Liquid Propane Cylinder
m WARNING: Make sure that the LP cylinder valve is closed. Close by turning valve clockwise.
m DANGER Do not use an open flame to check for gas leaks. Be sure there are no sparks or open flames in the area while you check for leaks. Sparks or flames will result in a fire or explosion which can cause serious bodily injury or death, and damage to property.
You will need: LP cylinder, a soap and water solution and a rag or brush to apply it.
1) Turn the LP cylinder so the opening of the valve is
either to the front, side or rear of the Weber Gas Barbecue. Lift and hook the cylinder onto the fuel guage.
D-4
2) Loosen the cylinder lock wing nut. Swing the cylinder lock down. Tighten the wing nut.
To Connect the hose to the cylinder:
3) Remove the plastic dust cover from the valve.
4) Screw the regulator coupling onto the tank valve, clockwise, or to the right. Hand-tighten only.
Note: This is a new type of connection. It tightens clockwise and will not allow gas to flow unless the connection is tight. The connection requires tightening by hand only.
m WARNING: Do not use a wrench to tighten the connection. Using a wrench could damage the regulator coupling and could cause a leak.
5) Mix soap and water.
6) Turn on the cylinder valve.
7) Check for leaks by wetting the fitting with the soap and water solution and watching for bubbles. If bubbles form, or if a bubble grows, there is a leak.
If there is a leak, turn off the gas and tighten the fitting. Turn the gas back on and recheck with the soap and water solution. If leak does not stop, Contact the Customer Service Representative in your region using the contact information sheet provided with your manual. Do not use the barbecue.
8) When leak checking is complete, turn gas supply OFF at the source and rinse connections with water.
Liquid Propane Cylinder
The liquid propane cylinder manufacturer is respon­sible for the materials, workmanship and performance of the tank. If the tank has a defect malfunctions, or you have a question regarding the tank, call the tank manufacturer’s customer service center. The phone number is on the warning decal, which is permanently attached to the tank. If the tank manufacturer has not resolved the issue to your satisfaction, then contact the Customer Service Representative in your region using the contact information sheet provided with your manual.
D-5
Safe handling tips for
DOT 4BA240
00/00
(1)
(2)
Liquid Propane Gas Cyl­inders
Liquid Propane (LP) gas is a petroleum product as are gasoline and natural gas. LP gas is a gas at regular temperatures and pressures. Under moderate pressure, inside a cylinder, LP gas is a liquid. As the pressure is released, the liquid readily vaporizes and becomes gas.
LP gas has an odor similar to natural gas. You should be aware of this odor.
LP gas is heavier than air. Leaking LP gas may collect in low areas and prevent dispersion.
To fill, take the LP cylinder to an RV center, or look up “gas-propane” in the phone book for other sources of LP gas.
m W ARNING: We recommend that your LP cylinder be filled at an authorized LP gas dealer, by a qualified attendant, who fills the tank by weight. IMPROPER FILLING IS DANGEROUS. m W ARNING: If you exchange y our LP c ylinder, make sure you get a similar tank in return. Your LP cylinder is equipped with a quick closing coupling or type 1 valve and an OPD (Overfilling Prevention Device). Other LP cylinders may not be compatible with your barbecue connection.
Air must be removed from a new LP cylinder before the initial filling. Your LP dealer is equipped to do this.
The LP cylinder must be installed, transported and stored in an upright position. LP cylinders should not be dropped or handled roughly.
Never store or transport the LP cylinder where temperatures can reach 125° F (too hot to hold by hand - for example: do not leave the LP cylinder in a car on a hot day).
Note - A refill will last about 20 hours of cooking time at normal use. The fuel scale will indicate the propane supply so you can refill before running out. You do not have to run out before you refill.
Treat “empty” LP cylinders with the same care as when full. Even when the LP tank is empty of liquid there still may be gas pressure in the cylinder. Always
close the cylinder valve before disconnecting. m CAUTION: When transporting the LP cylinder make sure the plastic dust cover is in place over the valve. This will keep dust and dirt from the threaded portion of the valve.
Do not use a damaged LP cylinder. Dented or rusty LP cylinders or LP cylinders with a damaged valve may be hazardous and should be replaced with a new one immediately.
Liquid Propane (LP) Cylinder(s)
The joint where the hose connects to the LP cylinder
must be leak tested each time the LP cylinder is reconnected. For example, test each time the LP cylinder is refilled.
Be sure the regulator is mounted with the small vent
hole pointed downward so that it will not collect water. This vent should be free of dirt, grease, bugs etc.
The LP cylinder and connections supplied with your
Weber Gas Barbecue have been designed and tested to meet government, American Gas Association, and Underwriters Laboratories requirements.
Liquid Propane Cylinder requirements
Replacement LP cylinders supplied by Weber satisfy
the above requirements. Check to be sure other cylinders have a D.O.T. certification(1), and date tested(2) is within five years. Your LP gas supplier can do this for you.
If you have questions about spare LP cylinders contact the Customer Service Representative in your region using the contact information sheet provided with your manual.
All LP tank supply systems must include a collar to
protect the cylinder valve.
The LP cylinder must be a 20-lb. size (18 1/4 inches
high, 12 1/4 inches in diameter).
The LP cylinder must be constructed and marked in
accordance with the specifications for LP gas cylinders of the U.S. Department of Transportation (D.O.T.).
D-6

Annual Maintenance

After a period of nonuse, we recommend that you perform the following maintenance procedures for your safety.
m WARNING: Check the hose before each use of the barbecue for nicks, cracking, abrasions or cuts. If the hose is found to be damaged in any way, do not use the barbecue. Replace using only Weber authorized replacement hose. Contact the Customer Service Representative in your region using the contact information sheet provided with your manual.
Inspect the burners for correct flame pattern. Clean if necessary, following the procedures outlined in the “General Maintenance” section of this manual.
Check all gas fittings for leaks.
m DANGER Do not use an open flame to check for gas leaks. Be sure there are no sparks or open flames in the area while you check for leaks. Sparks or flames will result in a fire or explosion, which can cause serious bodily injury or death, and damage to property.
m WARNING: You should check for gas leaks every time you disconnect and reconnect a gas fitting.
Note - All factory-made connections have been thoroughly checked for gas leaks. The burners have been flame tested. As a safety precaution however, you should recheck all fittings for leaks before using your Weber Gas Barbecue. Shipping and handling may have loosened or damaged a gas fitting.
m WARNING: Perform these leak checks even if your barbecue was dealer- or store-assembled.
You will need: a soap and water solution and a rag or brush to apply it. To perform leak checks: Make sure all Burners are in the off position. Turn on gas supply.
m W ARNING: Do not ignite burners while leak checking.
Check for leaks by wetting the connections with the soap and water solution and watching for bubbles. If bubbles form, or if a bubble grows, there is a leak.
Note - Since some leak test solutions, including soap and water, may be slightly corrosive, all connections should be rinsed with water after checking for leaks.
Check:
1) Hose-to-manifold connection.
2) Regulator-to-Cylinder connection.
m W ARNING: If there is a leak at connection (1), retighten the fitting with a wrench and recheck for leaks with soap and water solution. If a leak persists after retightening the fitting, turn OFF the gas. DO NOT OPERATE THE BARBECUE.
Contact the Customer Service Representative in your region using the contact information sheet provided with your manual.
Check:
3) Valves-to-manifold connections.
4) The hose-to-regulator connection.
m W ARNING: If there is a leak at connections (2), (3) or (4), turn OFF the gas. DO NOT OPERATE THE BARBECUE. Contact the Customer Service Representative in your region using the contact information sheet provided with your manual.
When leak checks are complete, turn gas supply OFF at the source and rinse connections with water.
(1)
(2)
(3)
(4)
Inspection and Cleaning of the Weber Spider Stopper™ Guards
To inspect the Spider Stopper Guards, remove the control panel and look to see if they have dust or dirt on their outside surfaces. If they are dirty, brush off the outside surface of the Spider Stopper Guards with a soft bristle brush (an old toothbrush for example). Check that there are no gaps in the Spider Stopper Guards’ seams or in the fit around the burners or valves. (See Section “General Maintenance.”)
D-7

General Maintenance

Weber Spider Stopper™ Guards
Your Weber Gas Barbecue, as well as any outdoor gas appliance, is a target for spiders and other insects. They can nest in the venturi section (Venturi(1), air shutter(2), venturi fin(3) ) of the burner tubes. This blocks the normal gas flow, and can cause the gas to flow back out of the air shutter. This could result in a fire in and around the air shutters, under the control panel, causing serious damage to your barbecue.
(1)

Main Burner Flame Pattern

The Weber Gas Barbecue burners have been factory set for the correct air and gas mixture. The correct flame pattern is shown.
1) Burner tube
2) Tips occasionally flicker yellow
3) Light blue
4) Dark blue
(1)
(2) (3)
(4)
(2) (3)
The Weber Spider Stopper™ Guard(1) is factory installed. It fits tightly around the air shutter section of the burner tube and the valve, thereby preventing spiders and other insects access to the burner tubes through the air shutter openings.
(1)
We recommend that you inspect the Weber Spider Stopper Guards at least once a year. (See Section “Annual Maintenance”.) Also inspect and clean the Spider Stopper Guards if any of the following symptoms should ever occur:
1) The smell of gas in conjunction with the burner
flames appearing yellow and lazy.
2) Barbecue does not reach temperature.
3) Barbecue heats unevenly.
4) One or more of the burners do not ignite.
If the flames do not appear to be uniform throughout the burner tube, follow the burner cleaning procedures.

Main Burner Cleaning Procedure

Turn off the gas supply. Remove the manifold.
Look inside each burner with a flashlight.
Clean the inside of the burners with a wire (a straight­ened-out coat hanger will work). Check and clean the air shutter opening at the ends of the burners. Check and clean the valve orifices at the base of the valves. Use a brass bristle brush to clean outside of burners. This is to make sure all the burner ports are fully open.
CAUTION: Do not enlarge the burner ports when cleaning.
m DANGER Failure to correct the above mentioned symptoms may result in a fire, which can cause serious bodily injury or death, and cause damage to property.
D-8

Replacing Main Burners

1) Your Weber Gas Barbecue must be OFF and cool.
2) Turn gas OFF at source.
3) To remove control panel: take off the burner
control knobs. Remove the screws holding the control panel in place. Lift off the control panel.
4) Unlatch the Spider Stopper™ Guards and remove
them.
5) Remove the manifold bracket and unscrew the two
wing nuts(1) that hold the manifold to the cooking box. Pull the manifold and valve assembly out of the burners and carefully set it down.
7) Lift and twist the burner assembly slightly, to separate the crossover tube(1) from the burners. Remove the burners from the cooking box.
(1)
8) To reinstall the burners, reverse 3) through 7).
m CAUTION: The burner openings(1) must be positioned properly over the valve orifices(2).
Check proper assembly before fastening manifold in place.
(2)
(1)
6) Slide the burner assembly out from under the guide screw and washer(1) in the corners of the cooking box.
(1)
(1)
D-9
9) Reinstall the Spider Stopper Guards. Slightly rotate the Spider Stopper Guards so that the seams are in line with the Venturi fins(1). There should be no gaps in the seams or in the fit around the burners(2) and valves(3).
(1)
(3)

Crossover® Ignition System Operations

If the Crossover Ignition System fails to ignite the Left burner, light the Left burner with a match. If the Left burner lights with a match, then check the Crossover Ignition System.
Check that both the white(1) and black(2) ignition wires are attached properly.
(2)
m CAUTION: If the Spider Stopper Guards do not fit tightly, contact the Customer Service Represen­tative in your region using the contact information sheet provided with your manual. m WARNING: After reinstalling the gas lines, they should be leak checked with a soap and water solution before using the barbecue. (See Step: “Check for gas leaks.”)
(1) (2)
Check that the Crossover Ignition button pushes the igniter (button) down, and returns to the up position.
Check to see if the igniter is loose in the frame. Tighten if necessary; See Step “Install igniter” for correct procedure. If the Crossover Ignition System still fails to light, Contact the Customer Service Representative in your region using the contact information sheet provided with your manual.
D-10

Troubleshooting

Problem Check Cure
Burners burn with a yellow or orange flame, in conjunction with the smell of gas.
Burners do not light. -or- Burners have a small flickering flame in the HIGH position. -or­Barbecue temperature only reaches 250˚ to 300˚ in the HIGH position.
Burner does not light, or flame is low in HIGH position.
Experiencing flare-ups:
Inspect Weber Spider Stopper Guards for possible obstructions. (Blockage of holes.)
The excess flow satety device, which is part of the barbecue to cylinder connection, may have activated.
Is LP fuel low or empty? Is fuel hose bent or kinked? Does the Front burner light with a
match?
Are you preheating barbecue in the prescribed manner?
Clean Weber Spider Stopper Guards. (See Section “Annual Maintenance”)
To reset the excess flow safety device turn all burner control knobs and the cylinder valve OFF . Disconnect the regulator from the cylinder. T urn burner control knobs to HIGH. Wait at least 1 minute. T urn burner control knobs OFF. Reconnect the regulator to the cylinder. Turn cylinder valve on slowly. Refer to “Lighting Instructions”.
Refill LP cylinder. Straighten fuel hose. If you can light the Front burner with
a match, then check the Crossover Ignition System.
All burners on high for 10 to 15 minutes for preheating.
m CAUTION: Do not line the bottom tray with aluminum foil.
Burner flame pattern is erratic. Flame is low when burner is on HIGH. Flames do not run the whole length of the burner tube.
Inside of lid appears to be “peeling.” (Resembles paint peeling.)
Are the cooking grates and Flavorizer bars heavily coated with burned-on grease?
Is the bottom tray “dirty” and not allowing grease to flow into catch pan?
Are burners clean?
The lid is porcelain-on-steel, not paint. It cannot “peel”. What you are seeing is baked on grease that has turned to carbon and is flaking off.
THIS IS NOT A DEFECT.
Clean thoroughly. (See Section “Cleaning”)
Clean bottom tray
Clean burners. (See Section “General Maintenance”.)
Clean thoroughly. (See Section “Cleaning”.)
If problems cannot be corrected by using these methods, please contact the Customer Service Representative in your region using the contact information sheet provided with your manual.
Loading...
