Wayteq X995 BT User's Manual

WayteQ x985BT GPS navigation

User’s manual

The user’s manual can be found at:
http://wayteq.eu/en/download

1. TECHNICAL SPECIFICATION

Processor

MStar MSB2531A

Memory (RAM)

256 MB

Internal memory
(storage)

8 GB
LCD display

5” TFT LCD, 800x480 pixel

Memory card support

microSD card, max. 32 GB

USB

MiniUSB connector

Speaker

Built-in

Earphone output

2.5 mm stereo jack

GPS receiver

Built-in, MStar MSR2112, (66
channels)

Battery

Built-in, Lithium-Ion

Charging current

DC 5V / 1,5 A

Car charger

DC 12-24V – 5V/1,5A

Operating system

Microsoft Windows CE 6.0

Navigation software

Optional

FM transmitter

Supported

Bluetooth
speakerphone

Supported

Operating conditions

5°C ~ 40°C operating

-10°C ~ 50°C storage
86KPa ~ 106KPa pressure
35% ~ 80% RH operating
30% ~ 90% RH storage

2

2. CONTROLS

1

2

3

4

5

6

7

8

9

3

1. Notification LED

2. Earphone output

3. MicroSD memory card

4. LCD touchscreen

5. MiniUSB charging and data socket

6. Power ON/OFF switch

7. Speaker

8. RESET button

9. Microphone

3. CHARGING WITH THE AC CHARGER

WARNING: During charging, the LED glows in red color. Do
not disconnect the device from the charger until charging
is complete and the LED glows in blue color. Charge the
device when the battery level is low.

Connecting the car charger

Use continuous power supply with
the supplied car charger when the

device in use.
WARNING: in order to avoid sudden power surges, attach
the device only after you have started the engine.

Indicator of the fully charged battery.

Battery

The device can be operated between 5 - 40°C, and it can
be stored safely between -10 - 50°C. Do not expose the

4

device to high temperatures or hot environment for a
prolonged time. For example do not leave the device
exposed to direct sunlight in the car. To avoid damage to
the device, keep it away from harsh environment.
Please follow the local guidelines and regulations before
you dispose the battery.

4. USING THE DEVICE

4.1 Turn ON/OFF

In order to turn on the device, press the POWER button for
3 seconds. You will see the following screen when the
system is started and it is ready to use:

Touch the icon to start the navigation program.

Touch the icon to start the music player.

5

Touch the icon to display the desktop.

4.2 GPS

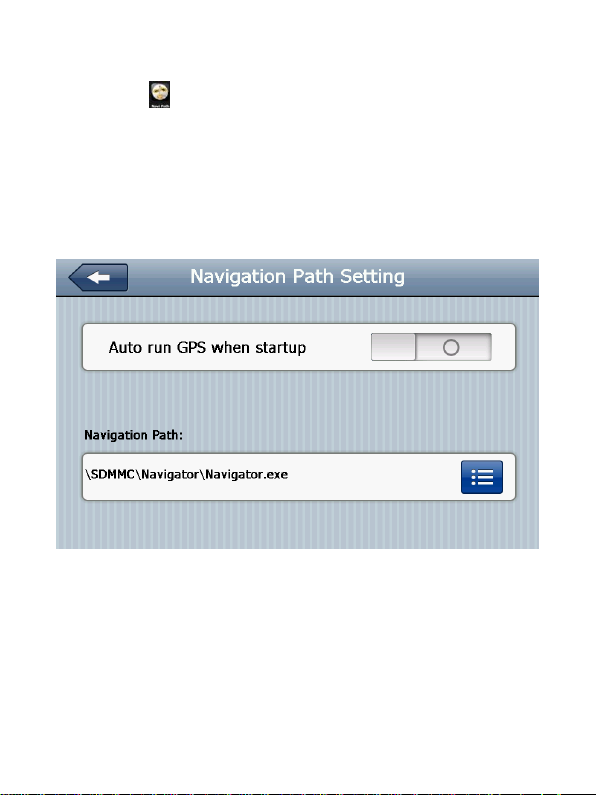

Touch the GPS icon to start the navigation application. If
you purchased the device with a Sygic navigation software,

please refer to the software’s documentation that you can
find in the internal memory’s „Manual” folder, in PDF

format.
Further information can be obtained at: www.sygic.hu.

4.3 FM transmitter

Touch the icon. Using the FM transmitter, you can
wirelessly forward the sound of the applications to your
car stereo. Search for an FM frequency that is not used in
your area to avoid any interference. Tune your car’s radio
equipment to the same FM frequency so you can hear the
sound of your device.

Notice: A connected car charger is required to use the FM
transmitter.
