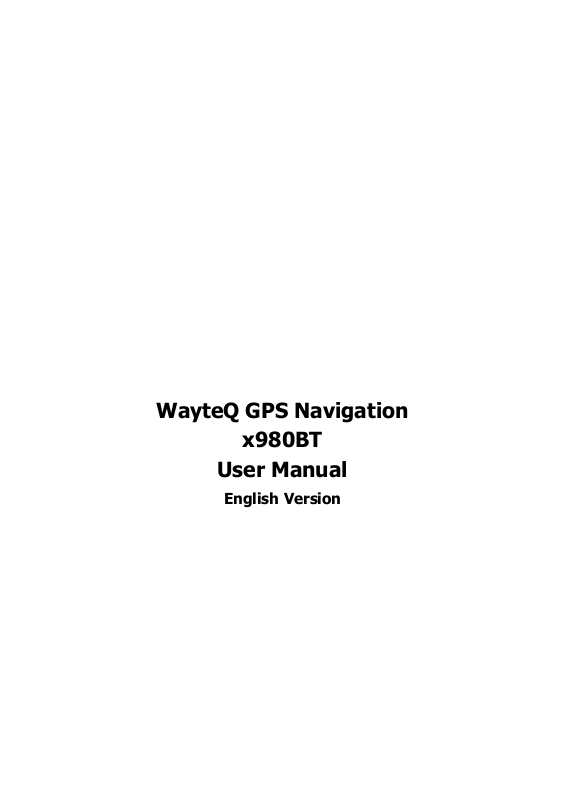

WayteQ GPS Navigation

x980BT

User Manual

English Version

English

Thanks for using WAYTEQ products !

 WAYTEQ reserves the rights of final interpretation of the manual.

 The product is subject to change without any further notice. Please accept our apology for your inconvenience.

 Please back up your information in the GPS navigator. WAYTEQ assumes no responsibility for any loss caused by

material loss.

 The manual might contain a few mistakes though it has been checked. If mistakes are found, please contact the

WAYTEQ customer service center.

 Please read carefully the instructions in this manual and use only accessories of WAYTEQ to avoid unpredicted damage.

Failure to follow the instructions will invalidate warranty and might endanger personnel safety, for which WAYTEQ

assumes no responsibility.

 Data of navigation electronic maps might be inconsistent with actual traffic signals due to transportation development.

Please follow traffic regulations and signs and drive according to road situation.

 Operating the GPS navigator device while driving might cause serious accidents. Please shorten your time in viewing

the navigator and use the voice prompt function. While driving, try to shorten your time in operating the navigator, for

example, inputting addresses, changing settings or using other functions. WAYTEQ assumes no responsibility for

accidents and loss due to improper use.

 For safe driving, please pay attention to road and weather conditions as well.

 The pictures in the manual are subject to the material object.

English

Welcome!

Thanks for using the WAYTEQ GPS featured with navigation as the major function as well as other amusement functions like

audio play, video play, photo browsing, e-book reading, and games, etc.

 Mstar MSB2531 800 MHz CPU with high performance and low power consumption

 Friendly user interfaces for simple operation

 Power management for longer and more stable operation

 Data transmission with computers via Mini USB

 Quality reception for accurate positioning and satisfactory navigation service

 Leisure partner with audio/video/amusement functions

You may use the GPS navigator anytime anywhere, for example while driving, walking or cycling. Its navigation and

amusement functions will enrich your life and work!

To fully exert the functions of WAYTQ GPS and to understand the operation details, please read the manual carefully.

This manual is applicable only to the WAYTEQ GPS

.

Basic Introduction

A. Charging Indication

F. Mini USB

B. Speaker

G. Stylus Pen Slot

C. Power

H. Reset

D. 3.5mm Earphone Socket

I. MIC

E. Memory Card Slot

J. Warranty label

1. Overview

English

2. Charging by AC Adapter

Caution: The charging indicator light is red during charging. Do not unplug the charge until the battery is fully charged and

the indicator light turns green. Please charge the GPS navigator when the battery is low or used up in succeeding use.

3. Charging by Car Charger

Caution: To protect your device against suddenness, please connect the car charger only after the car engine has been

started.

English

4. Battery

The navigator has a working temperature of 0~50°C and storage temperature -10~60°C. Do not expose the device in

excessive heat or hot areas, for example in the car under strong sunlight. To avoid damaging the device, keep it away from

direct sunlight.

Follow local regulations while disposing the battery.

5. Install the Car Cradle and Bracket

Caution: Do not place the GPS navigator in positions obstructing the driver’s vision, for example at the steering wheel,

pedal or gear lever. Do not place it without fixing it, or in the place of air bag or the area after the air bag is inflated.

While using the mounting kit, follow local regulations. WAYTEQ will have no responsibility for any penalty or damage

resulting from traffic violation.

6. Using T-Flash Card

Caution: Do not take out the T-Flash card while an navigation program is being run or a media file is being played.

To avoid drop or crash of the T-Flash card, do not exert heavy pressure on it or bend it.

Mind the direction while inserting the T-Flash card to avoid damaging the slot or the card.

7. Restarting the system

When the system does not response, press the reset key on the right side of the GPS navigator to restart the system.

Caution: Restarting the system by pressing the reset key will result in loss of unsaved data. Please backup your data

regularly.

Main Functions Introduction

1. Starting Up and Power Off

Long press the “Power” button to power the equipment on and you can see the main interface as below :

Tap the “ ” to Set the system date and time.

English

A. Return to main menu

F. Pause / Play

B. Volume control

G. Previous

C. Select desired music file

H. Speed bar

D. Stop

I. Play modes

E. Next

J. Equalizer

Long press the “Power” button again to enter into the below interface :

Tap the “Turn off” button to turn the unit off.

Tap the “Sleep” button to enter a suspend state and the system stops operation.

Tap the “Cancel” button to turn back to the screen.

2. GPS Navigation

Double tap the “GPS” icon to start navigation program.

Caution: Please refer to navigation software instructions for details.

In case if you puchased the device with preinstalled Sygic navigation software, you can find user manual of it in PDF
format in ”Manuals” folder in the bulit-in memory.

3. Music

Tap the icon " " to enter into the following interface :
