Introduction
The MS 7000 series is a versatile access-layer switch for broadband networks. The
switch is available in models with different number of interfaces and for different operating temperature ranges.
This manual is intended for persons installing MS 7000 units in a network. You will
need to be familiar with the Waystream products including iBOS, and the hardware
used in your networking system.
After reading this manual, you will be able to install, power up and handle basic troubleshooting of the MS 7000 series routers.
This manual describes the following:
• Product Overview
• Installing the MS 7000
• Checking the MS 7000 Installation
• Appx A - Product Description
• Appx B - SFP Products
For complete information of the product, including specifications for hardware and
software functionality, refer to the MS 7000 Product Specification.
For more information on configuring the boot options of the MS 7000, refer to the
MS 7000 Bootloader User Guide.
1
Page 6
2
Page 7
Product Overview
This chapter provides an overview of the MS 7000 for installation purposes only.
For a complete specification of the product, refer to the Product Description.

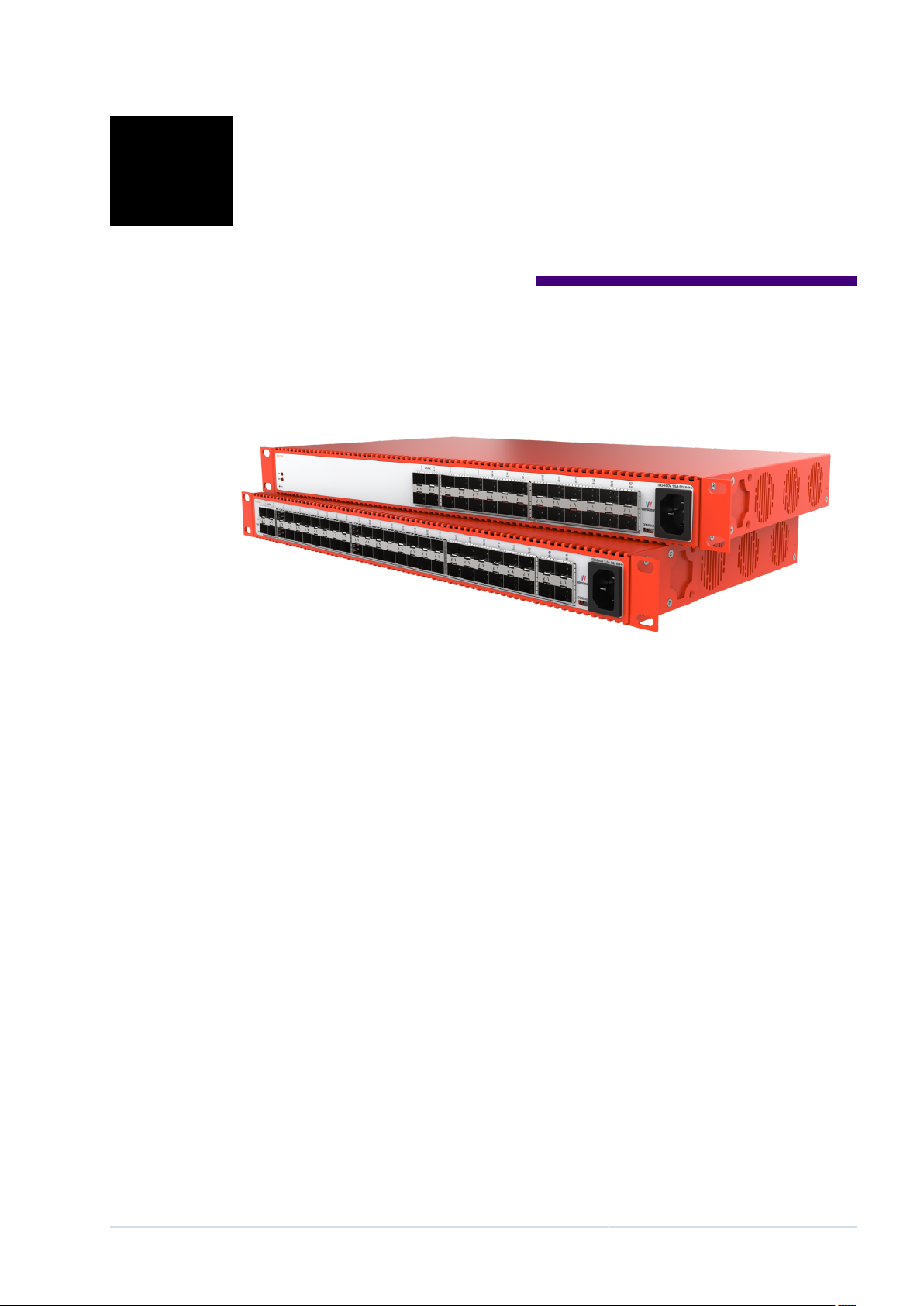

Figure1.MS 7000 Series Switch
The MS 7000 is designed for installation in a standard 19" rack.
3
Page 8
MS 7000 Installation Guide
Product Models
The MS 7000 series switches are fan-cooled, and are designed for central office environments. The E-models support an extended temperature range (-20°C to +70°C)
which also allows installation in locations with heat-trap provided sufficient room is
available for proper air-flow.
This installation guide covers the following models of the MS 7000 series router.
• MS 7024
• MS 7048
• MS 7024E (extended temperature)
• MS 7048E (extended temperataure)
MS 7024 / MS 7024E
The MS 7024 has the following interfaces:
• Four (4) 10 GigabitEthernet SFP+ uplink ports
• Twenty four (24) GigabitEhernet SFP downlink ports
• One (1) serial console port (using custom Waystream connector)
The MS 7024 is available with 100-240V internal AC power supply and has a 12V
DC connector for redundant power input at the rear side.
The operating temperature range for MS 7024 is 0°C to 45°C. The operating temperature range for MS 7024E is -20°C to 70°C.

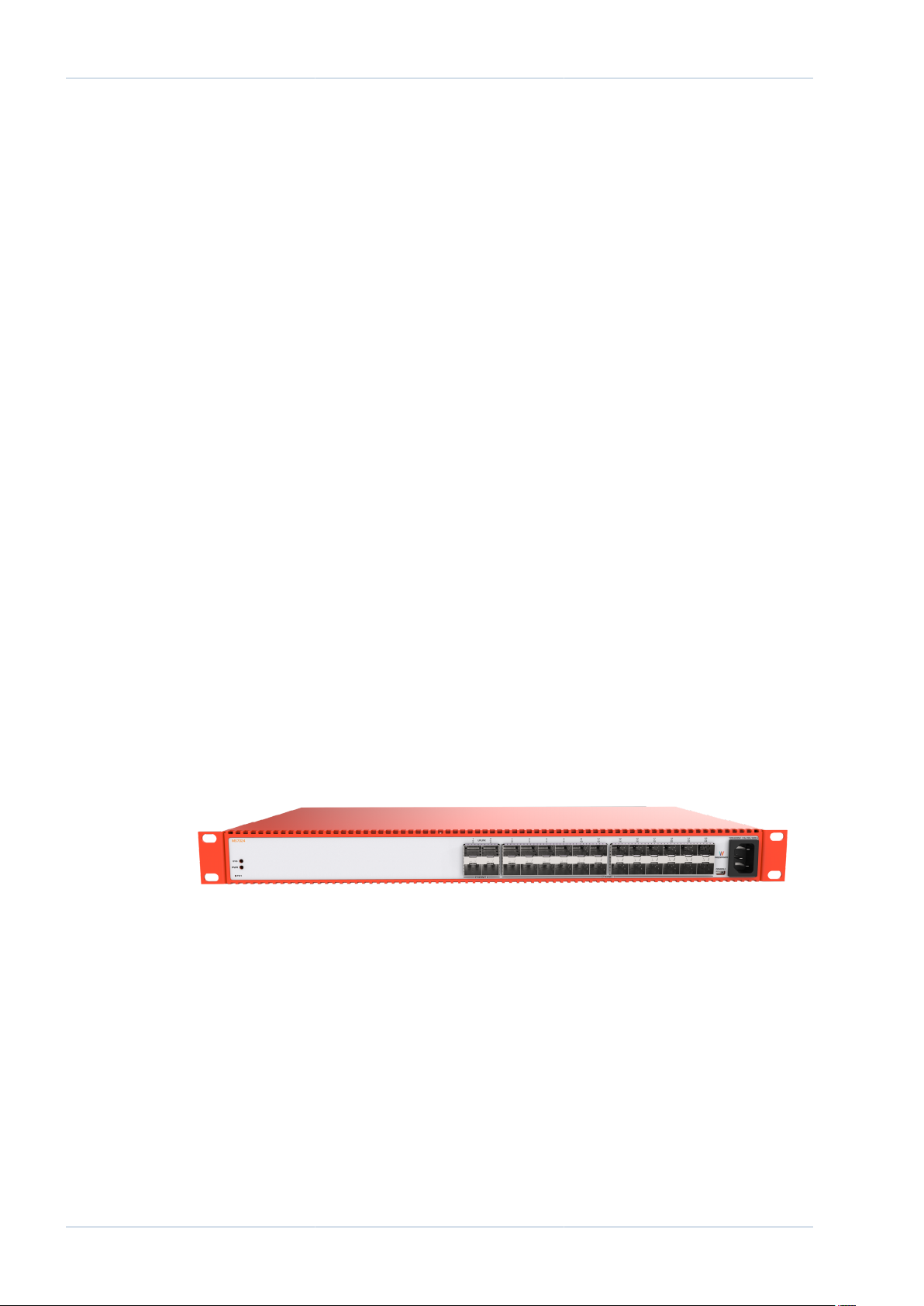

Figure2.MS 7024
All twenty eight 10 GigabitEthernet interfaces are capable of running
1000/2500/10000 Mbps on fibre cables, or copper cable (CAT5/CAT6) if using Copper SFP/SFP+.
4
Page 9
MS 7048 / MS 7048E
The MS 7048 has the following interfaces:
• Four (4) 10 GigabitEthernet SFP+ uplink ports
• Fourty eight (48) GigabitEhernet SFP downlink ports
• One (1) serial console port (using custom Waystream connector)
The MS 7048 is available with 100-240V internal AC power supply and has a 12V
DC connector for redundant power input at the rear side.
The operating temperature range for MS 7048 is 0°C to 45°C. The operating temperature range for MS 7048E is -20°C to 70°C.

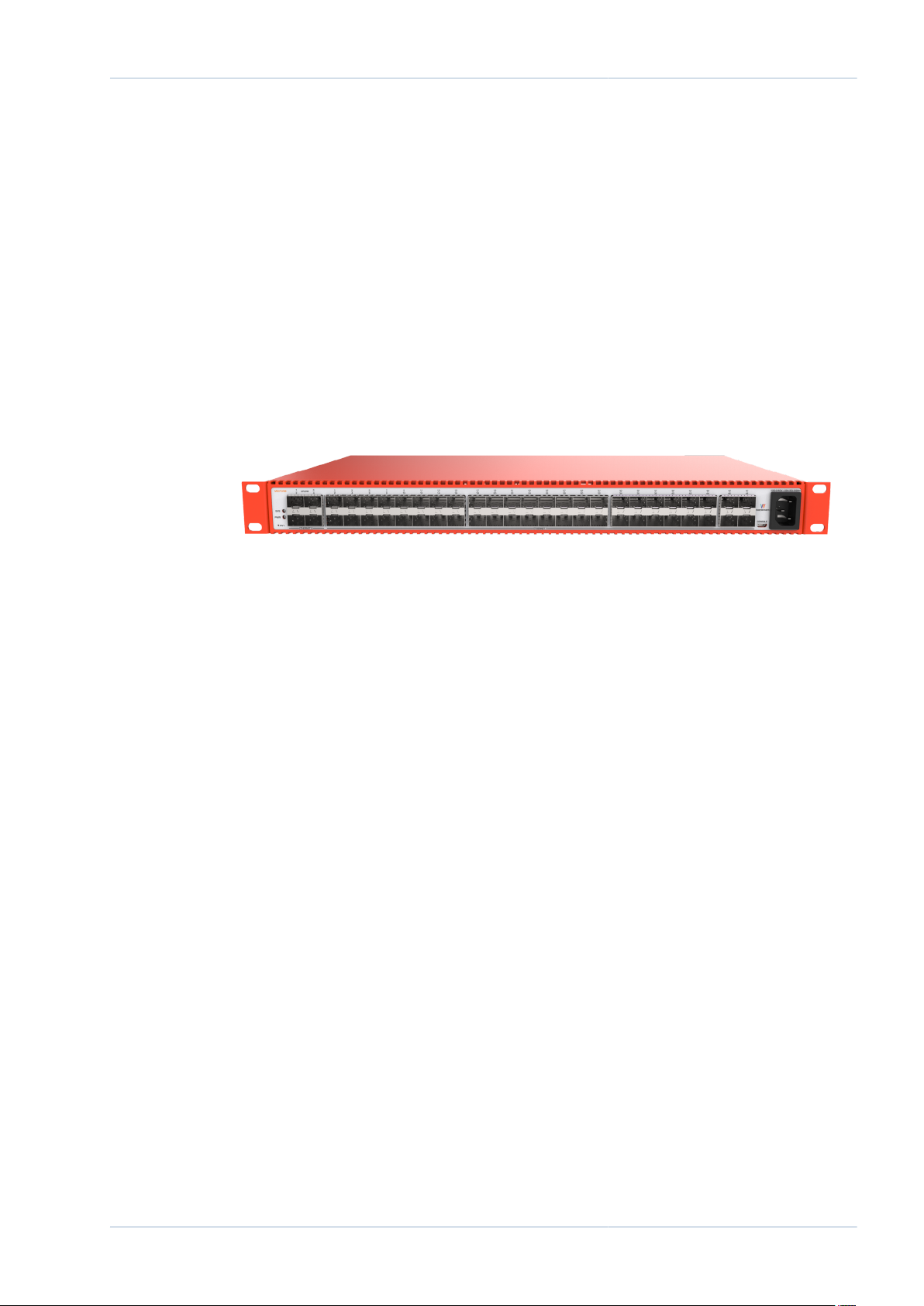

Figure3.MS 7048
Product Overview
All fifty two 10 GigabitEthernet interfaces are capable of running 1000/2500/10000
Mbps on fibre cables, or copper cable (CAT5/CAT6) if using Copper SFP/SFP+.
5
Page 10
MS 7000 Installation Guide
The MS 7000 Front Panel
All connectors are placed in the front of the switch for easy operation. Each interface
has a LED indicating link status, speed and activity. There are two additional LED’s,
one for indicating power and one for system status.

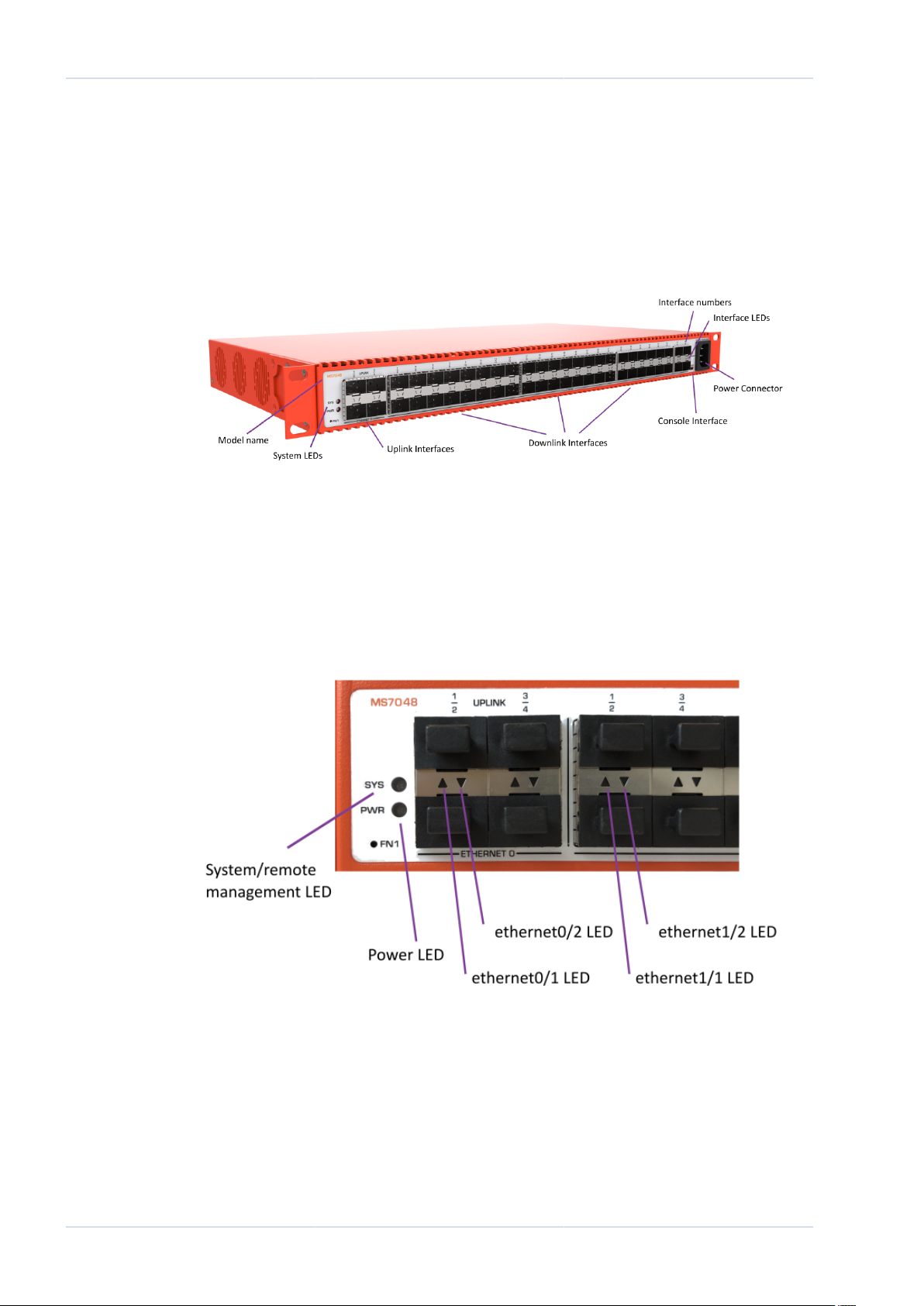

Figure4.MS 7000 Front Panel
LEDs
The front panel has LEDs to show the status of the power supply, system status, as well
as for the uplink and downlink interfaces.
Figure5.MS 7000 LEDs
6
Page 11
System LEDs
The MS 7000 has two LEDs for showing system status; SYS and PWR.
Table 1. System Status LED Status
LED STATE Description
PWR
SYS
LED for Uplink and Downlink Interfaces
For the uplink and downlink interfaces, the unit has slots for SFP+ modules that can
reach speeds of up to 10 Gbps. Read more about the SFPs in SFP Products.
Product Overview
OFF Power is OFF
GREEN Power is ON
AMBER A critical error has occured
OFF System is not loaded
FLASHING GREEN System is booting
GREEN System successfully booted
AMBER Connected to remote management system
When an interface is active, the status is shown on the LED panel. See the table below
Table 2. Link LED Status
LED STATE Description
1-2
OFF No link established
ON Link is established
• GREEN =10 Gbps
• AMBER = 1 Gbps
FLASHING Port is active, packets sent on port
• GREEN = 10 Gbps
• AMBER = 1 Gbps
7
Page 12
MS 7000 Installation Guide
Console Port
The MS 7000 has one serial console port for management of the unit that is able to
operate from 9600 to 115200 bps. The connector type is Waystream specific that requires an adapter cable to convert it to RS-232 RJ45. Default speed is 115200 bps,
but can be changed through the command line interface of the Bootloader or iBOS
software. Refer MS 7000 Bootloader Configuration Guide.
To connect to the console port, the adapter is used together with a serial console cable.
Adapter and console cable are not included for environmental reasons, but can be ordered separately from Waystream or approved partner. Your terminal software should
be configured to 8 data bits, no parity and 1 stop bit (8N1). No flow-control or hardware flow-control (RTS/CTS) should be used.
Warning
The console port on the MS 7000 is not compatible with the USB standard.
Use only with Waystream provided adapter cable!
Figure6.MS 7000 Waystream to RS-232 RJ-45 adapter cable
MS 7000 AC Power Connector
The power connector is located at the front of the MS 7000. A standard IEC C13 EU
power cable is supplied. The unit can operate using either the front AC power input
or the rear DC power input. For redundant power input, both DC and AC can be
used at the same time.

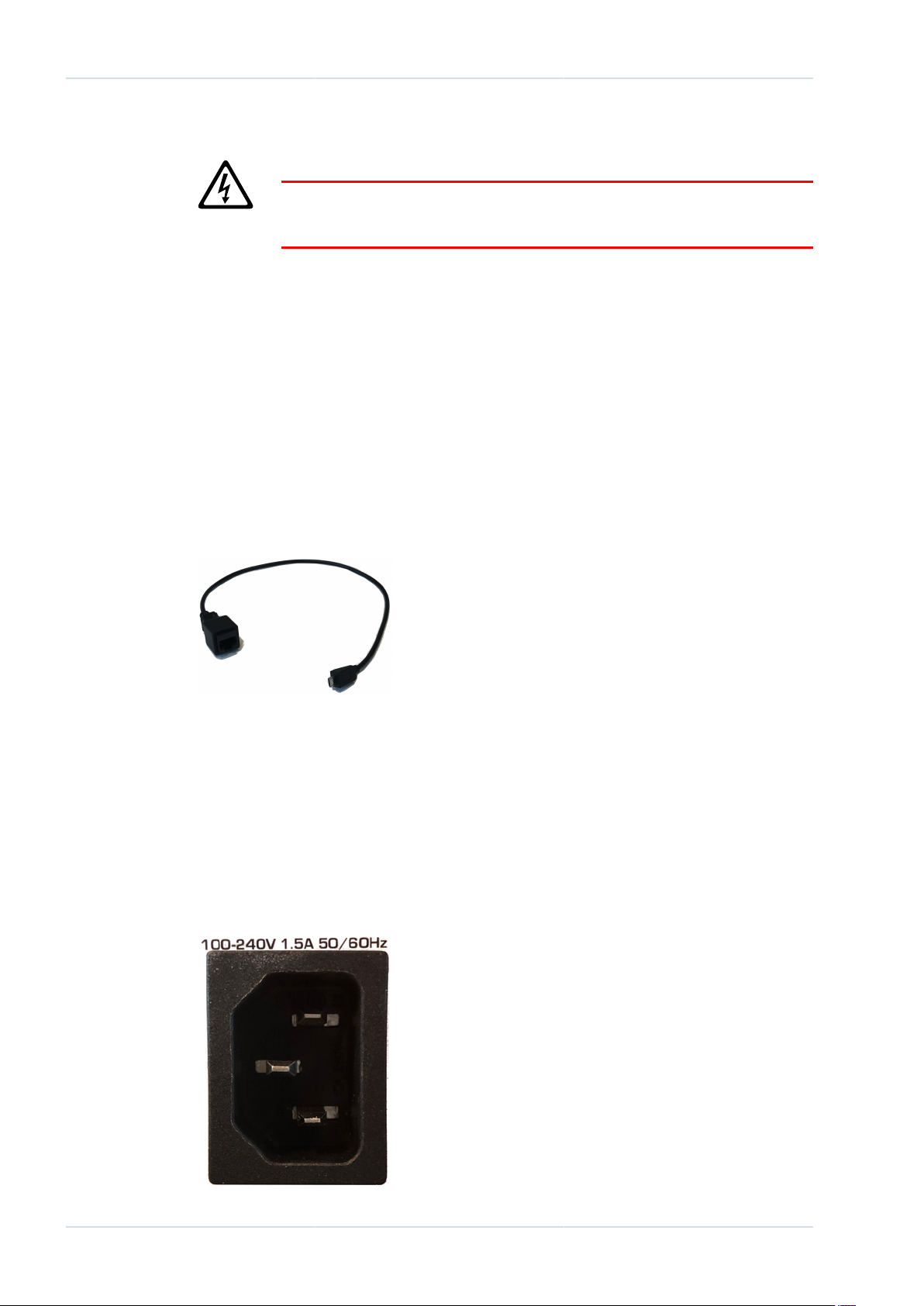

Figure7.MS 7000 AC Power Connector
8
Page 13
MS 7000 DC Power Connector
An additional 12V DC power connector is located at the rear of the unit. The connector
type is DMH-06 and the pin layout is as indicated on the label above the connector.

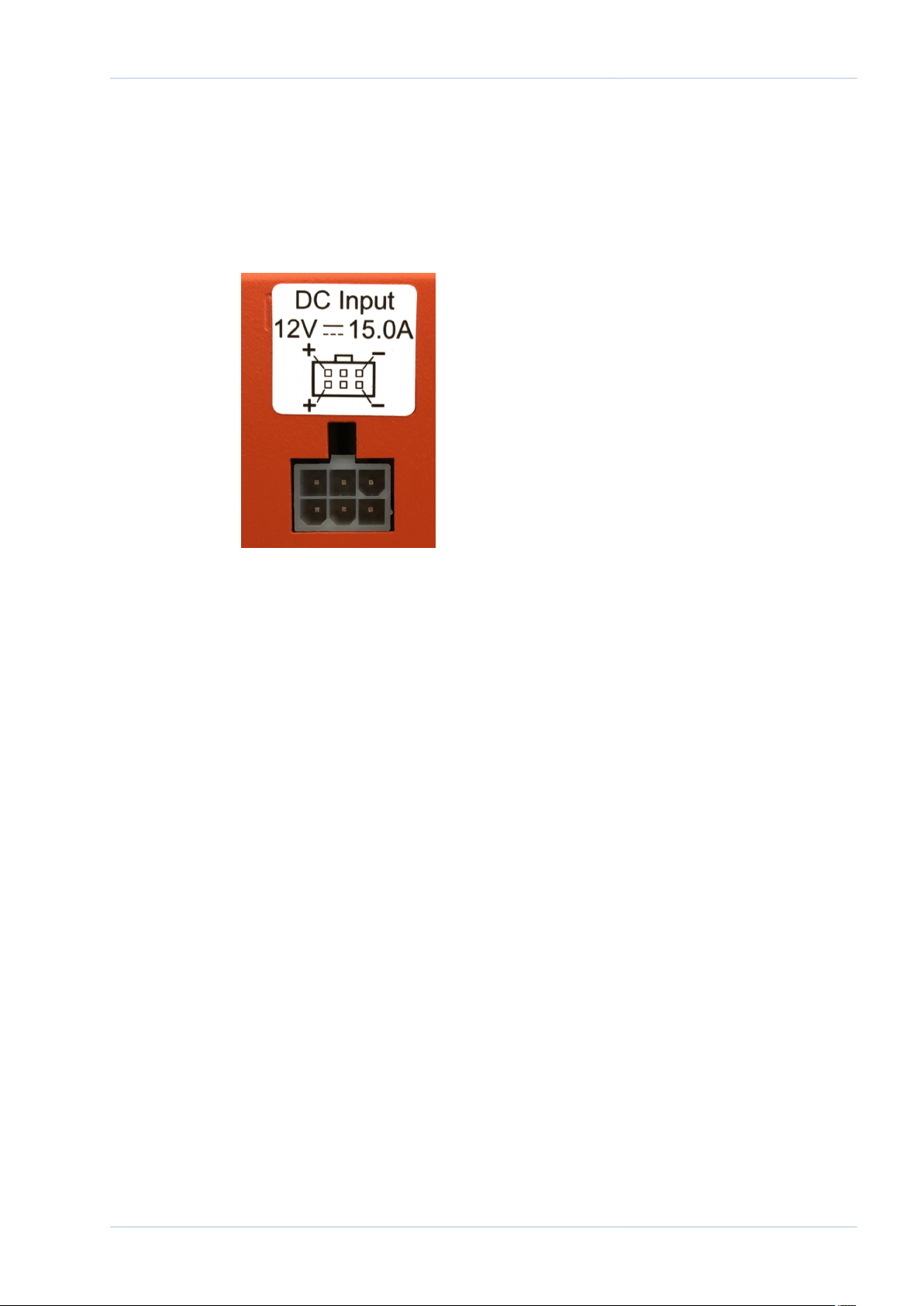

Figure8.MS 7000 DC Power Connector
Product Overview
The rear power connector requries 12VDC 15A. A compatible external AC-to-DC
power supply is available from Waystream, but other DC-power sources can also be
used. The unit can operate using either the rear DC or the front AC power input. For
redundant power input, both DC and AC can be used at the same time.
MS 7000 Ground Connector
If required, a ground connector screw is located on the back of the switch. Using the
ground screw and washer supplied, fasten the ground cable to the chassis in the following way:
1. Loosen the ground terminal screw
2. Attach the lug of the grounding cable between screw and washer and ensure that
the other end of the grounding cable is connected to GND
3. Tighten the screw and check that the grounding cable is securely fixed to the chassis.
9
Page 14
MS 7000 Installation Guide

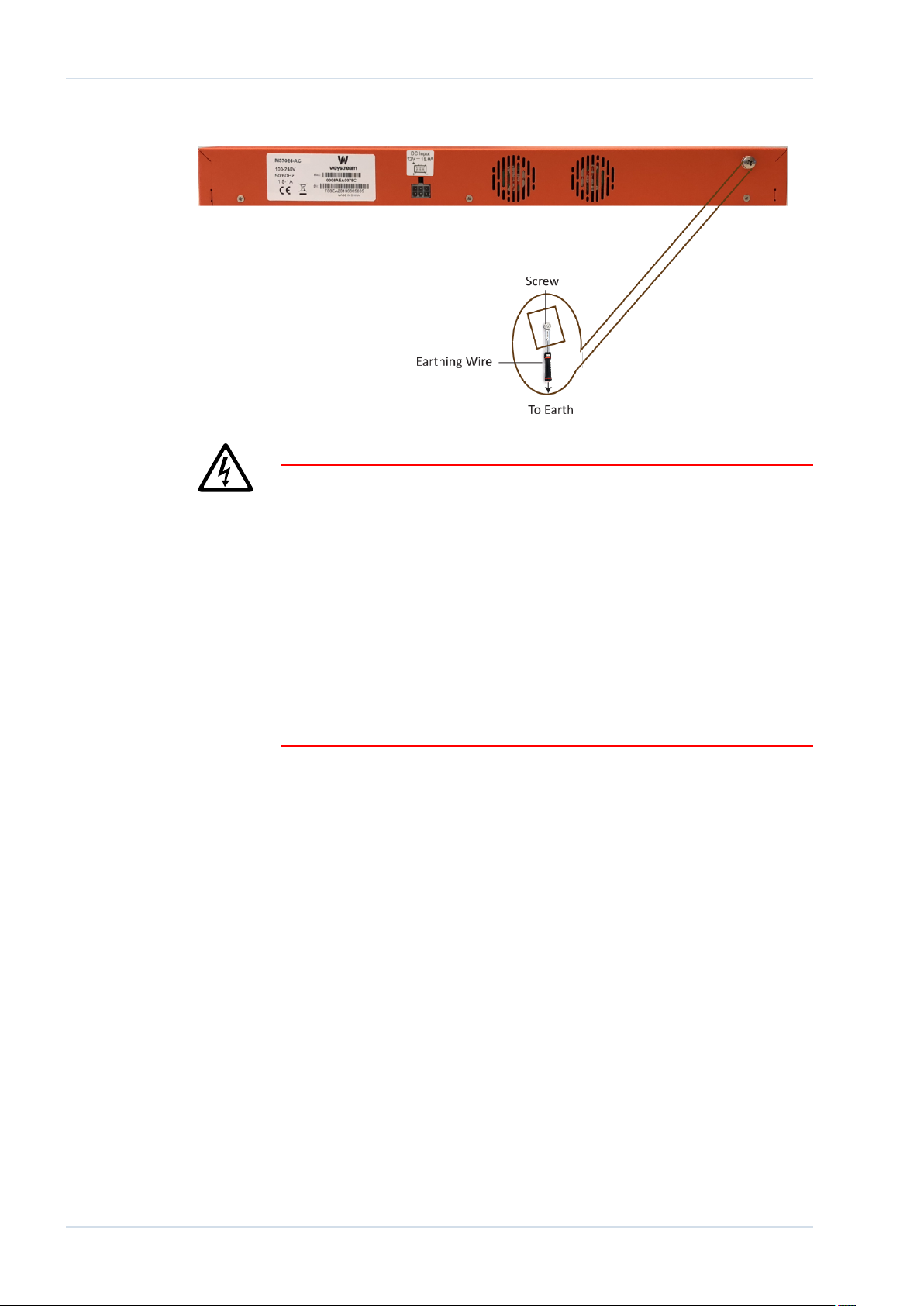

Figure9.Attach Grounding Cable to MS7000 Chassis
Warning
• Connect the switch casing to earth before it is powered ON for the first
time,
• Proper grounding (connection to earth) is very important to protect the
switch from bad effects of external noise and to reduce the risk of electrocution in the event of a direct lightning strike.
• For removal of the switch, disconnect the grounding cable after the power is switched OFF and all other cables are disconnected.
• For the earthing wire, green and yellow insulation is required and the
cross-sectional area of the conductor must not be less than 0.75 mm2
or 18 AWG.
10
Page 15
Installing the MS7000
Tools Required
The MS 7000 does not include any tools required to install the units. Appropriate
screwdrivers, ratchets etc. must be obtained elsewhere.
To complete this installation, the following extra materials are also needed:
• 10 GigabitEthernet (SFP+) or GigabitEthernet (SFP) modules for uplink and downlink ports
• 1-4 patch cables, fibre for uplink ports
• 1-48 patch cables, fibre for downlink ports
Safety Guidelines
Follow these guidelines to ensure the required level of safety.
General Safety
• Keep the chassis area clear and dust-free during and after installation.
• Do not wear loose clothing or jewellery that could get caught in the chassis. Fasten
your tie or scarf and roll up your sleeves.
• Wear safety glasses if you are working under any conditions that might be hazardous
to your eyes.
• Do not perform any action that creates a potential hazard to people or that makes
the equipment unsafe.
• Disconnect all power by turning OFF the power and unplugging the power cord
before installing or removing a chassis or working near power supplies.
• Do not work alone if potentially hazardous conditions exist.
• Never assume that power is disconnected from a circuit; always check the circuit first.
Warning
The unit has multiple power inputs. Ensure that both the front and rear
power inputs are disconnected before performing work on the unit.
11
Page 16
MS 7000 Installation Guide
Operating Safety
• Electrical equipment generates heat. Ambient air temperature may not be adequate
• Ensure that the chassis cover is secure. The chassis design allows cooling air to circu-
• Electrostatic discharge (ESD) can damage equipment and impair electrical circuitry.
• Wear an ESD-prevention wrist strap, ensuring that it has good skin contact, If no
• Periodically check the resistance value of the anti-static strap, which should be be-
to cool equipment to acceptable operating temperatures without adequate circulation. Be sure that the room in which you choose to operate your system has adequate
air circulation.
late effectively. An open chassis permits air leaks, which may interrupt and redirect
the flow of cooling air from internal components.
ESD damage occurs when electronic components are improperly handled and can
result in complete or intermittent failures. Be sure to follow ESD-prevention procedures when removing and replacing components to avoid these problems.
wrist strap is available, ground yourself by touching the metal part of the chassis.
tween 1 and 10 megaohms.
EMC Notice
This equipment has been tested and found to comply with Class A of
EN55032:2015+AC:2016 and EN55035:2017. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in
a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with this document, may
cause harmful interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference in which case owners will be
required to correct the interference at their own expense.
Equipment List
Warning
Optical modules may reach temperatures in excess of 55 degrees. Risk of
burn damage if touched or handled unprotected.
12
The following table lists the typical quantities of items supplied with each MS 7000
unit.
• MS 7000 unit
• One (1) 180 cm EU power cable with mains plug
• Rack kit (pre-installed) including;
• Two (2) angle brackets
• Eight (8) screws for angle bracket
Page 17
• Four (4) cage nuts and screws (M6) with plastic washers
• Grounding kit including:
• Two (2) screws for grounding (M5) with lock washers
Note
a console adapter cable (to RJ45) is not included and must be ordered separately.
MS 7000 Environment
The MS 7000 is designed to be mounted in a 19-inch rack in a restricted access location.
For restricted access locations, the following applies:
• Access can only be gained by SERVICE PERSONS or by USERS who have been
instructed about the reasons for the restrictions applied to the location and about
any precautions that shall be taken.
Installing the MS7000
• Access is through the use of a TOOL or lock and key, or other means of security,
and controlled by the authority responsible for the location.
The switch is designed to be mounted in a single shelf of a 19-inch rack. The cooling
fans are located on the side of the unit so ventilation must be available to allow free
airflow so that the fans can maintain a persistent and satisfactory ambient temperature.

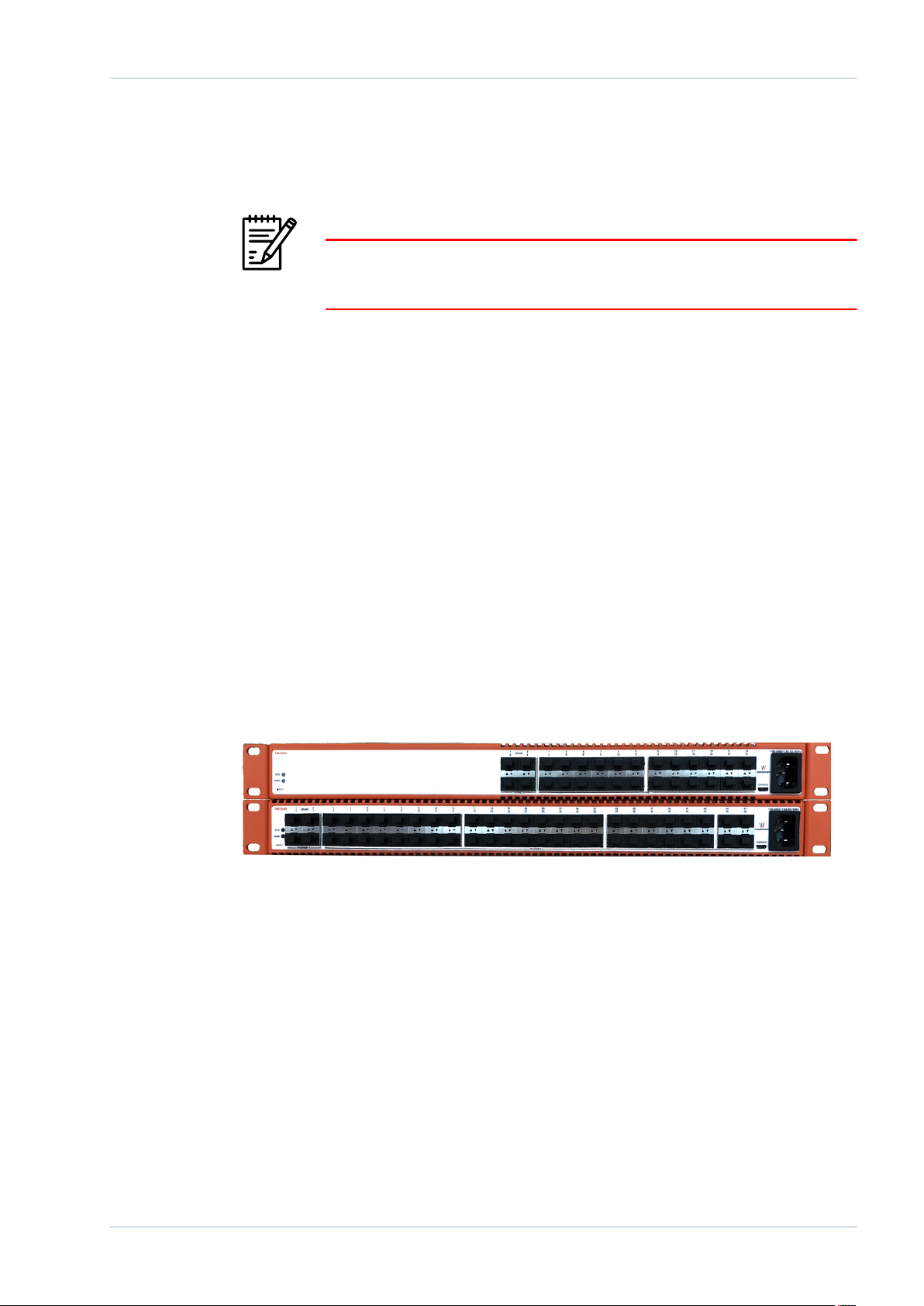

Figure10.MS 7000 in Rack
For rack installations, the following considerations must be taken:
• Elevated Operating Ambient Temperature - When installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment
may be greater than the room ambient. Therefore, consideration should be given
to installing the equipment in an rack environment compatible with the maximum
ambient temperature, refer to the MS 7000 Product Description.
• Reduced Air Flow - Installation of the equipment in a rack should be such that the
amount of air flow required for safe operation of the equipment is not compromised.
• Mechanical Loading - Mounting of the equipment in the rack should be such that
a hazardous condition is not achieved due to uneven mechanical loading.
• Circuit Overloading - Consideration should be given to the connection of the
equipment to the supply circuit and the effect that overloading of the circuits might
13
Page 18
MS 7000 Installation Guide
have on overcurrent protection and supply wiring. Appropriate consideration of
equipment nameplate ratings should be used when addressing this concern.
• Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular attention should be given to supply connections other than direct
connections to the branch circuit (e.g. use of power strips).
Ventilation of MS 7000
The MS 7000 is cooled by built-in fans. Ensure that air can flow freely from the front
to the sides in the cabinet. On the E-models air also need to flow out on the rear side.
A free distance of 4 cm the unit is recommended for proper air flow when using the Emodel. To extend the lifetime of the fans, ensure that the air is filtered and free from
dust particles.
Table 3. Ventilation
Model Fans Air-flow
MS7024 2 front-to-sides
MS7024E 5 front-to-sides-and-rear
MS7048 4 front-to-sides
MS7048E 8 front-to-sides-and-rear
Rack Installation of MS 7000
As shown in MS 7000 in Rack, multiple MS 7000 units can be mounted in a 19-inch
rack on top of each other. All connectors are located in the front of the MS 7000 for
easy access.
The rack brackets are pre-attached for fast installation. When the switch is installed,
the front panel will be flush with the front of the rack frame, see Default rack bracket
on MS 7000 below.
14
Page 19
Figure11.Default rack bracket on MS 7000
Installing the MS7000

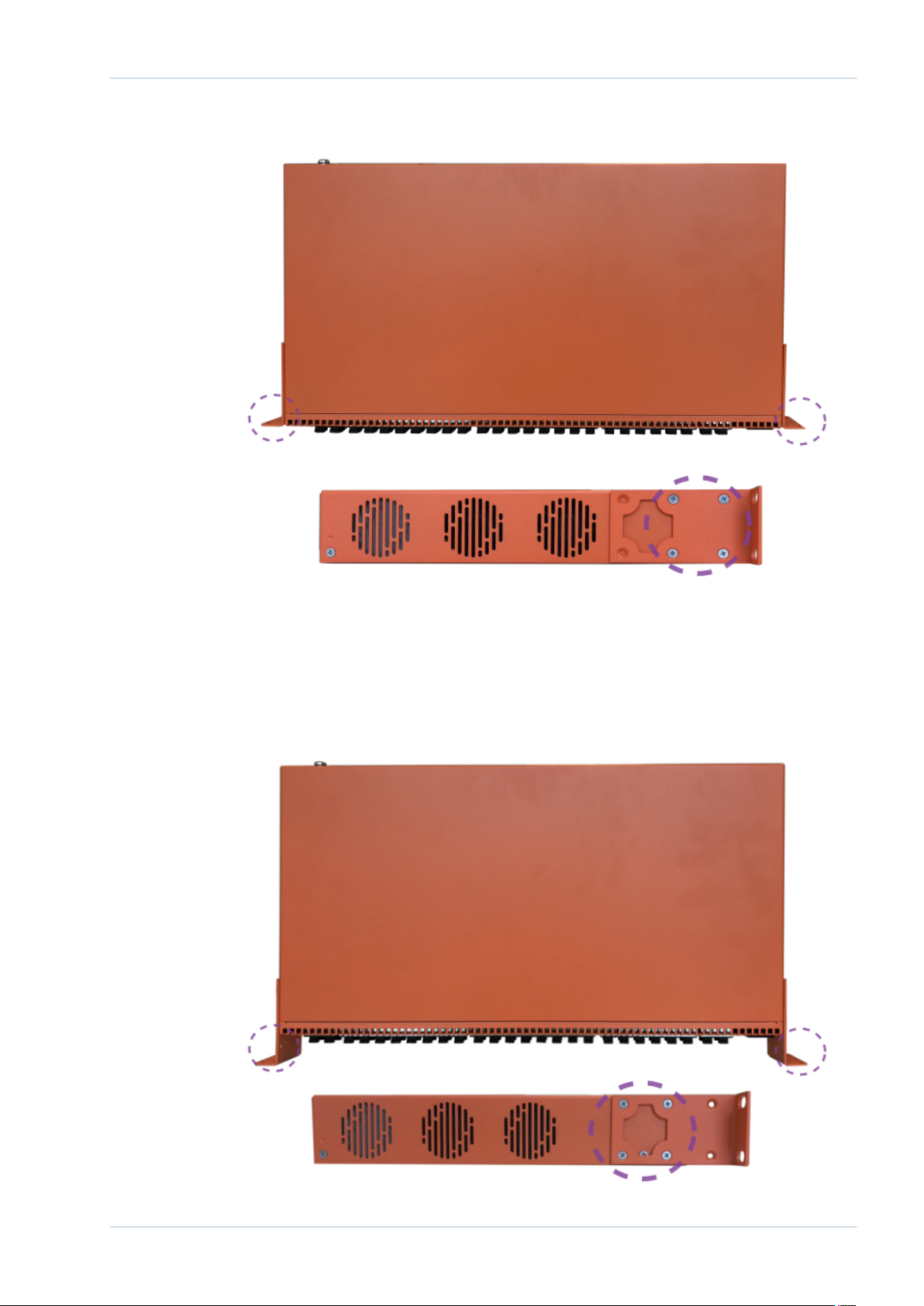

For cabinets with doors that require more space for cables etc. in front of the unit, it is
possible to remove the four bracket screws and reposition the brackets using the extra
screwholes to provide 25 mm space in front of the switch, see Rack bracket installed
for extra space below.
Figure12.Rack bracket installed for extra space
15
Page 20
MS 7000 Installation Guide
To install the switch in the rack, hold the MS 7000 firmly in position and use the
supplied screws and nut baskets to fix the unit in the 19-inch rack space.
Connecting Power to the MS 7000
The information below is valid for all MS 7000 units.
The MS 7000 runs on 100-240V 50/60Hz AC. Installation of 100-240V mains power
outlets must be performed by a licensed electrician.
Warning
The MS 7000 unit must be connected to ground before power supply units,
computers or other electrical or electronic equipment is connected to the
MS 7000 (including the serial console port).
Optionally the MS 7000 runs on 12V DC using an external power supply.
16
Page 21
Power ON
Installing the MS7000
When the mains power is connected to the MS 7000, the MS 7000 will automatically
boot and attempt to establish the uplink connection with the network. To prevent any
sudden power surges at startup, it is recommended to have a separate ON/OFF switch
for the main power supply.
To power up the MS 7000, do the following:
1. Connect the mains power cable to the MS 7000 power connector.
2. Connect the mains power cable to the power socket.
3. If there is an ON/OFF switch, then flip the ON/OFF switch to ON.
The MS 7000 power LED will now light up.
You can also use the rear DC power input, or both the front and rear power inputs.
Installing SFP Modules
The MS 7000 is designed to use Small Form Factor Pluggables (SFP+) modules for
10 GigabitEthernet uplinks. For information about insertion and removal of SFP+
modules and important safety information, please refer to the SFP Products.
Connecting the MS 7000 to the Network
In most network topologies, the 10 GigabitEthernet SFP+ modules will be used as
uplinks, connecting the MS 7000 to the network.
Connecting Uplink Interfaces
To connect the uplink interfaces to the MS 7000:
1. Select the appropriate patch cables for the SFP modules installed.
2. Remove dust cover on SFP and connect the patch cable to the SFP
3. Connect the patch cable to the network fibre patch panel or fibre connector
If the MS 7000 establishes an uplink, connection the uplink LED will light up.
17
Page 22
MS 7000 Installation Guide
Connecting Downlink Interfaces
To connect the downlink interfaces to the MS 7000:
1. Select the appropriate patch cables for the SFP modules installed.
2. Remove dust cover on SFP and connect the patch cable to the SFP
3. Connect the patch cable to the network fibre patch panel or fibre connector
If the MS 7000 has received configuration and there are client devices connected at
the subscriber side of the connection, the LED will indicate that link is present on the
interface.
18
Page 23
Checking the MS7000
Installation
The MS 7000 router has a console interface that is used to view configuration information when the switch is running. During the boot process, the switch outputs information about the boot progress, and if any problems are encountered.
Figure13.MS 7000 Console port
To connect to the console port, you need a Waystream to RJ-45 adapter cable and a
serial console cable that can be ordered separately.
Connecting to the Console Interface Port
1. Connect your terminal to the console port using the Waystream to RJ45 adapter
cable and then an RS-232 RJ45 cable.
2. Configure your terminal software using the following settings:
• 8 data bits, no parity and 1 stop bit (8N1)
• No flow-control or hardware flow-control (RTS/CTS)
• 115200 bps send rate
19
Page 24
MS 7000 Installation Guide
The Boot Process
When the power is first turned on, the MS 7000 immediately starts the bootloader
software. The bootloader performs basic system initialization, decompresses, and runs
the iBOS software image that is stored on flash memory. The boot process can be
followed on the console.
The Bootloader locates a bootable image either on the flash memory (if it exists) . The
image is compressed to conserve file system space, and must therefore be decompressed
when read into memory. The Bootloader displays the following message when it is
decompressing the iBOS image:
Decompressing ibos-cma-7.5.0-ED-R.bz2 (press any key to abort)
Note
The local filename of the image being decompressed is displayed, e.g. the
image filename is ibos-cma-7.5.0-ED-R.bz2.
When the iBOS image has been loaded into RAM, the Bootloader will start the main
software. The following message is displayed:
Running ELF executable at address: 0x80200000
Troubleshooting the Bootloader
When a terminal is connected to the switch console port, pressing any key aborts the
boot process and enters the bootloader command line interface. Situations where the
bootloader fails to complete the boot process are:
• If the boot process is looping, it may be necessary to download new software or to
make changes to the boot configuration if the switch is not able to complete the
boot process.
• If there is no valid iBOS image on the flash file system .
For more information on the Bootloader CLI, refer to the MS 7000 Bootloader User
Guide.
20
Page 25
Troubleshooting iBOS
The iBOS software is the switch operating system that enables services and also has
internet connection features. When connected to the switch using the console port or
the management port, an iBOS command line interface appears after a successful boot
process.
Access to iBOS command line normally requires login. There is no default username
or password configured, and if the switch is unconfigured simply press the Enter key
when prompted for username and password.
Note
If local or remote user authentication has been configured in the switch, the
correct username and password must be used to gain access to the command
line interface via the console port.
The command line interface displays the MS 7000 hostname (if configured), the system
uptime etc.
Checking the MS7000 Installation
Check System
To display the system information, use the show version command. The information
displayed includes the version of iBOS running in the system, the system hostname
and uptime, the model and characteristics of the MS 7000, its serial number, and other
information.
Example 1. show version
ibos> show version
Intelligent Broadband Operating System (iBOS), Version 7.5.0-ED-R
Copyright (c) 2001-2019 by Waystream AB
Routing Engine Copyright (C) 2001-2011 IP Infusion Inc.
Compiled Tue Jun 18 17:34:20 CEST 2019 by builder
Source ID: 73edd14664d8b72d3bb4d12b4806703211606ebc
ibos uptime is 0 minutes
Last boot: warm start
System image file is "ibos-cma-7.5.0-ED-R.bz2", version ibos-cma-7.5.0-ED-R
System: MS7048-AC, 4 1/10GE SFP+, 48 1G SF+, L2 Switch, AC
Bootloader version: wsboot-cma-5.0.0-R
Board type/version: 0/0
Product ID: 7350008015975
Serial number/Base MAC address: 0008AEA002BC
Processor: CN7130 [pass 1.2] (mipseb)
524288K bytes CPU RAM
CPLD1 revision: 0.5
CPLD2 revision: 0.5
ibos>
21
Page 26
MS 7000 Installation Guide
Check Available Devices
The PFDP protocol is exchanged between all Waystream network products. The iBOS
command show pfdp neighbours displays a summary of all known Waystream devices that are connected this system. The information is valuable to identify what other
PFDP-enabled devices (ASR, MS, etc.) are connected to this system.
Example 2. show pfdp neighbours
ibos> show pfdp neighbours
ethernet1/23 with 1 neighbour(s):
"DRG800" running "drgosl-drg800-1.1.0-R" on model "DRG886"
remote interface uplink1, last activity 0s ago, unidirectional
ethernet1/24 with 1 neighbour(s):
"DRG508s_MK1" running "DMA0081-R2N20" on model "DRG508s_MK1"
remote interface wan1, last activity 53s ago, unidirectional
ethernet0/1 with 1 neighbour(s):
"Small-BTU1-2" running "iBOS 7.5.0-ED-R" on model "ASR6126"
remote interface gigabitethernet2, last activity 22s ago, bidirectional
ethernet0/2 with 1 neighbour(s):
"Small-BTU1-8" running "iBOS 7.5.0-ED-R" on model "ASR6026"
remote interface gigabitethernet1, last activity 28s ago, bidirectional
ibos>
If LLDP has been enabled the iBOS command show lldp neighbours may also be
used to display known neighbours.
Check SFP Interface
To examine the SFP statistics on the uplink interface, use the iBOS command show
interface sfp for one of the uplink interfaces. (Pay special attention to the TX/RX
input/output power details).
Example 3. show interfaces sfp
ibos# show interface ethernet0/1 sfp
Small Form-factor Pluggable (SFP) at ethernet0/1
LC connector
10000-SR capable
64B/66B encoding, nominal bitrate: 10300 Mbps
Supported links
50um multi mode fiber: 80 m
62.5um multi mode fiber: 30 m
Laser wavelength: 850 nm
Diagnostics Normal Warning
Entity Status Unit Current Low High Low High
--------------------------------------------------------------------------
Operating temp: OK C 40.88 -3.00 73.00 -5.00 75.00
Supply voltage: OK V 3.27 3.14 3.47 2.97 3.63
TX current: OK mA 5.30 2.00 11.00 1.00 12.00
TX output power: OK mW 0.55 0.32 0.66 0.25 0.83
RX input power: ALRM(L) mW 0.00 0.02 0.79 0.01 1.00
22
ibos#
Page 27
Check the Uplink Interface
To check that the uplink interface gets an IP address from the network boot server, use
the command show ip bootp.
Example 4. show ip bootp
ibos> show ip bootp
BOOTP Client state: Standby
mode: Persistent
serial: 0008.ae86.0440
protos: http,tftp
version: ibos-cma-7.5.0-ED-R
Interface ethernet0/2
BOOTP mode is Standby, interface is Up
Last assigned: 10.130.1.29/30 gateway 0.0.0.0 server 10.66.110.10 (1D17h49m41s
ago)
Packet counters:
1 sent, 1 received
0 dropped due to erroneous data
0 dropped because we couldn't comply
0 with matching addresses, 1 used assignments
Interface ethernet0/1
BOOTP mode is Standby, interface is Up
Last assigned: 10.130.1.2/30 gateway 10.130.1.1 server 10.66.110.10 (1D17h49m40s
ago)
Packet counters:
1 sent, 1 received
0 dropped due to erroneous data
0 dropped because we couldn't comply
0 with matching addresses, 1 used assignments
Checking the MS7000 Installation
ibos#
Check VLAN Interfaces
By default, the uplink interfaces are assigned to VLAN 1 and all downlink interfaces are
assigned to VLAN 2. To check the VLAN connections, use the command show vlan.
Example 5. show vlan
ibos# sh vlan
VLAN Interfaces
---------------------------------------------------------------- 1 ethernet0/1 ethernet0/2 ethernet0/3
ethernet0/4
2 ethernet1/1 ethernet1/2 ethernet1/3
ethernet1/4 ethernet1/5 ethernet1/6
ethernet1/7 ethernet1/8 ethernet1/9
ethernet1/10 ethernet1/11 ethernet1/12
ethernet1/13 ethernet1/14 ethernet1/15
ethernet1/16 ethernet1/17 ethernet1/18
ethernet1/19 ethernet1/20 ethernet1/21
ethernet1/22 ethernet1/23 ethernet1/24
ibos#
23
Page 28
24
Page 29
Appx A - Product Description
This appendix describes product details for specific models that may be required while
installing the switch.
MS 7000 Interfaces
• Four SFP+ module slots for 10 GigabitEthernet uplink ports
• MS7024: Twenty four SFP module slots for GigabitEthernet downlink ports
• MS7048: Fourty eight SFP module slots for GigabitEthernet downlink ports
Interface Specification
For a detailed specification and pictures of the interfaces for each specific model, refer
to the Product Overview.
25
Page 30
MS 7000 Installation Guide
Technical Data
Physical Dimensions
Table 4. Physical Dimensions
MS 7000
H x W x D (mm) = 43 x 441 x 240
Weight: 4 kg
Standard 19-inch rack mounting
Power and Safety
Power
• Single AC power input 100-240V, 50/60 Hz, compliant with ETSI EN 300132
V2.1.1 Part1.
• Single DC power input 12V, 15A.
Safety
• LVD (2014/35/EU)
• IEC/EN 60825-1, IEC/EN 60825-2
• CE mark: EN 62368-1:2014+A11
• CB scheme: IEC/EC 62368-1
EMC
• CE EMC (2014/30/EU)
• Emission:
• EN55032: 2015+AC:2016 Class A
• EN 61000-3-2: 2014
• EN 61000-3-3: 2013
• Immunity:
• EN55035: 2017
26
• EN 61000-4-2 :2009
• EN 61000-4-3:2006+A1:2008+A2:2010
• EN 61000-4-4:2012
• EN 61000-4-5:2014
• EN 61000-4-6:2014
• EN 61000-4-8:2010
• EN 61000-4-11:2004
Page 31
Environmental
Appx A - Product Description
RoHS, WEEE and REACH
• RoHS 2011/65/EU and its subsequent amendments (EU) 2015/863
• WEEE 2012/19/EU
• SFS2016:1067
• REACH
All MS 7000 models:
• MS7024/MS7048: Operating temperature: 0° to 45° C
• MS7024E/MS7048E: Operating temperature: -20° to 70° C
• Storage temperature: -10° to 70° C
• Operating humidity: 5% to 95%, non-condensing
• Max heat dissipation:
• MS 7024 AC/DC: 35W
• MS 7024E AC/DC: 41W
• MS 7048 AC/DC: 85W
• MS 7048E AC/DC: 87W
27
Page 32
28
Page 33
Overview
Appx B - SFP Products
The Waystream SFP (Small Formfactor Pluggable) GigabitEthernet products are a series of optical transceiver modules that enable the MS 7000 to be fitted with suitable
network interfaces for different needs.
Using standardized safety requirements, the modules are certified for use together with
the Waystream products.
Waystream-approved SFP modules have a serial EEPROM that contains the module
serial number, the vendor name and ID, a unique security code, and cyclic redundancy
checksum (CRC).
This manual does not describe the full product specifications for all approved SFP
modules. Model and data for Waystream SFPs is listed in separate data sheets. The
SFPs named in this document are used for examples only, and are not ranked in any
preferential order.
All Waystream SFPs have bale-clasp latches for safe operation.

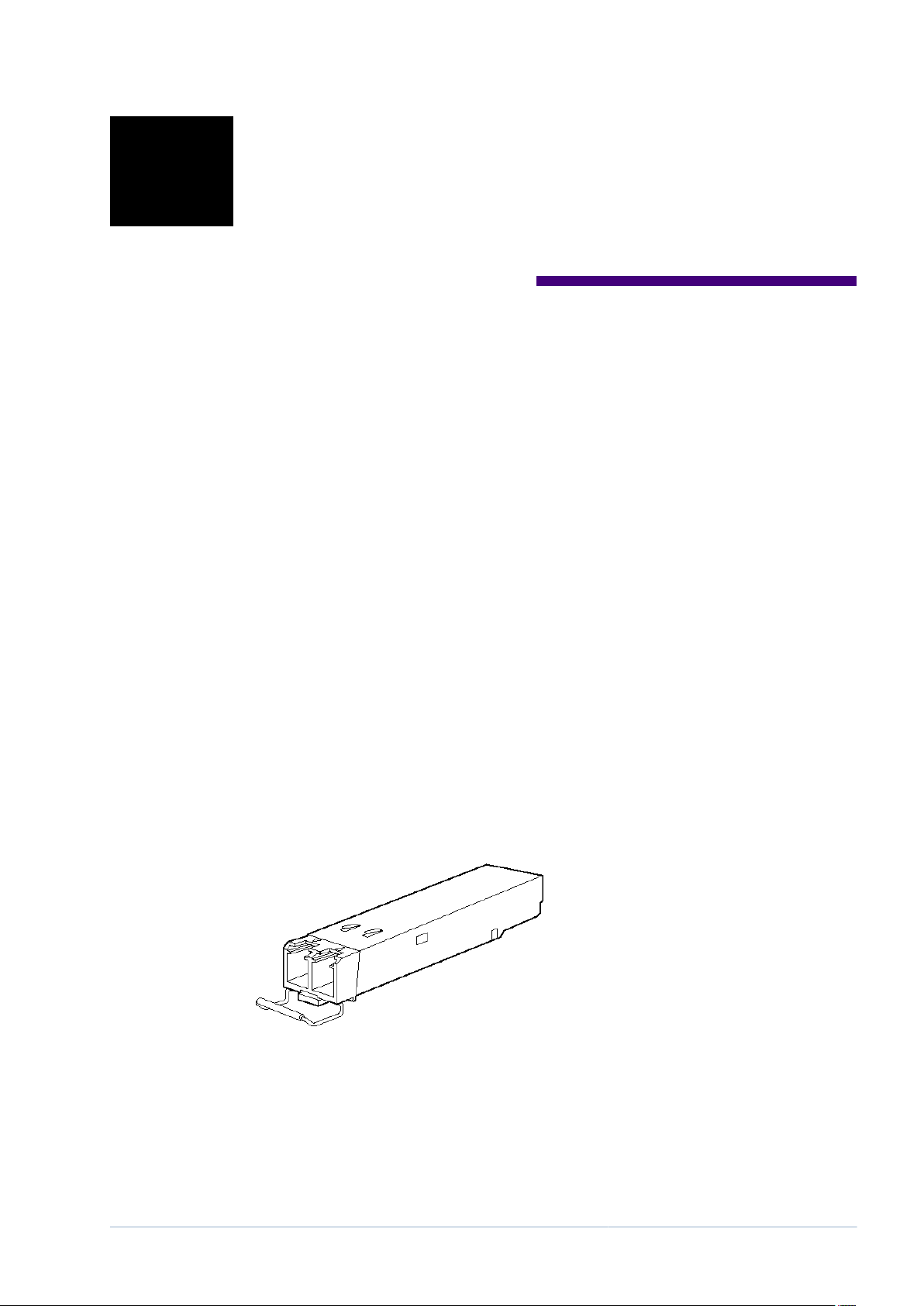

Figure14.SFP with bale-clasp Latch
When the SFP is inserted, the MS 7000 software reads the EEPROM to check the
serial number, vendor name and ID, and recomputes the security code and CRC.
The SFP also provides link status information and other valuble statistics to determine
the operation and quality of the connection to the adjacent device. This information
is displayed using the iBOS command show interface sfp.
29
Page 34
MS 7000 Installation Guide
Warning
Use of non-Waystream approved SFPs will void the product warranty.
30
Page 35
Safety
Appx B - SFP Products
Before installing an SFP module or handling a Waystream broadband router equipped
with SFP slots, you should read and understand the safety information in this document. Laser warnings only apply to fiber-optic SFP modules.
Table 5. Warning symbol
Table 6. Caution symbols
Warning
Class 1 laser product. Do not position your eye directly infront of the SFP
if the dust plugs are not installed!
Warning
Laser beam is exposed when dust plug is removed and fiber not installed.
Warning
Only trained staff should install or replace SFPs.
Warning
Optical modules may reach temperatures in excess of 55 degrees. Risk of
burn damage if touched or handled unprotected.
31
Page 36
MS 7000 Installation Guide
Caution
SFPs are electronic devices and sensitive to static electricity. Always use an
ESD-preventive wrist strap when handling an SFP. ESD damages can cause
performance and lifetime degradation.
Caution
Protect your fiber-optic components, like SFPs and cables, by inserting
clean dust plugs when not connected to other equipment. Clean the optic
components whenever you intend to connect them. Avoid getting dust and
other contaminants into the optical receptacles, as fibre optics do not work
correctly when obstructed with dust.
Caution
When using shorter distances of single-mode fiber cable, you may need
to insert an inline optical attenuator in the link to avoid overloading the
receiver. When the fiber-optic cable is less than 20 km and the link budget
is more than 15dB, insert a 5 to 10 dB optical attenuator between the fiberoptic cable plant and the receiving port of the SFP.
Caution
Under no circumstances should the SFP insertion or removal require physical force. handling. Always be gentle and use only your thumb and index
finger!
32
Page 37
Insertion and Removal
When inserting or removing SFPs, always observe the following precautions:
• Attach an ESD-preventive wrist strap to your wrist and to a bare metal surface on
the chassis or the common ground connector at the back of the module.
• Hold the SFP modules by the side only and do not touch the connectors on the
insertion end of the module
Note
For other SFPs, please see the manufacturer instructions for installation and
removal.
Inserting an SFP module
1. Align the SFP module in front of the SFP slot. Note that the top side (with
Waystream sticker) faces up for upper row slots but faces down for lower row slots.
This allows more space for connecting the cables to the SFPs.
Appx B - SFP Products
2. Carefully slide the SFP module into the slot until you feel the connector on the
module snap into place.
3. Push the bale-clasp latch up until it locks the SFP in position.
4. Remove the dust plugs from the cable and the SFP. Clean the connectors and the
SFP with dedicated fibre cleaning tools and carefully insert the cable(s) until they
snap into place.
5. The SFP is now ready. The SFP state is indicated by the port LED
Note
Do not remove the dust plugs from the fiber-optic SFP module port or the
rubber caps from the fiber-optic cable until you are ready to connect the
cable. The plugs and caps protect the SFP module ports and cables from
contamination and ambient light.
33
Page 38
MS 7000 Installation Guide
Removing an SFP Module
1. Disconnect the cable from the SFP module and reinstall the dust plugs.
2. All Waystream SFPs have bale-clasp latches. Gently pull the bale-clasp latch out and
down until the SFP releases.
3. Place the removed SFP module in an antistatic bag or other protective environment.
Note
For other SFPs, please see the manufacturer instructions for installation
and removal
Warning
Optical modules may reach temperatures in excess of 55 degrees. Risk of
burn damage if touched or handled unprotected.
34
Page 39
Page 40
www.waystream.com
Loading...
