WaveWare TE-300 User Manual
USER MANUAL
VHF UHF Transmitter
Models : TE-300 50KEY Transmitter
TE-300 Transmitter is used to page guests or staffs in a limited area,
especially suitable for factory, restaurant and hospital. The operation is
simple and friendly to keep good communication with your guests and
staffs.
There are 50 push buttons for your choice. Each button is able to
independently page a single person and also available to page
more than one person at the same time, as well. In addition, it
has the flash light as a reminder and also can repeat paging the
guests/staffs automatically when the one you page has not shown
up.
Transmitter
Be aware at following situations ,which will help to extend the life
cycle of transmitter.
N Don't change transmitter or tamper with its original
appearance.
N Don't put transmitter close to a heat source or in light direct
sun.
tA
te
n
t
io
n
N Don't put transmitter in dust , moisture or on uneven surface.
N Don't soak transmitter into the water.
N Never operate the device with out the correct Gold Apollo
antenna , or a suitable artificial load , connected.
1
I
N
S
T
R CT
U
1.Activate paging:
Press any button among these 50 push buttons, the light will flash
and enter active mode, then send the signal out.
To repeat paging : In the active mode, it can be programmed to
send the same message every 30 sec. or 45 sec, or 60 sec, or 2
minutes, or 5 minutes or continuo
To page more than one person :
More than one button can be activated at the same time to page
more than one person.
[Option]
LED Sign Display (Only for Gold Apollo LED Sign) :
It's an option on the software.
When the button is pressed, it will activate to send the signal
and show the number on the LED Display at the same time.
The numbers on the Display will be arranged by sequence, the
first number always shows up firstly. , 30 minutes ,
I
ON
FO
R
OP
E
RATI
ON:
pe
a n
tioO r
2
2. Stop paging:
In the active mode or Time out mode, pressing the same
button again to stop paging, at the same time the repeating
and the number on the LED sign will be cancelled.

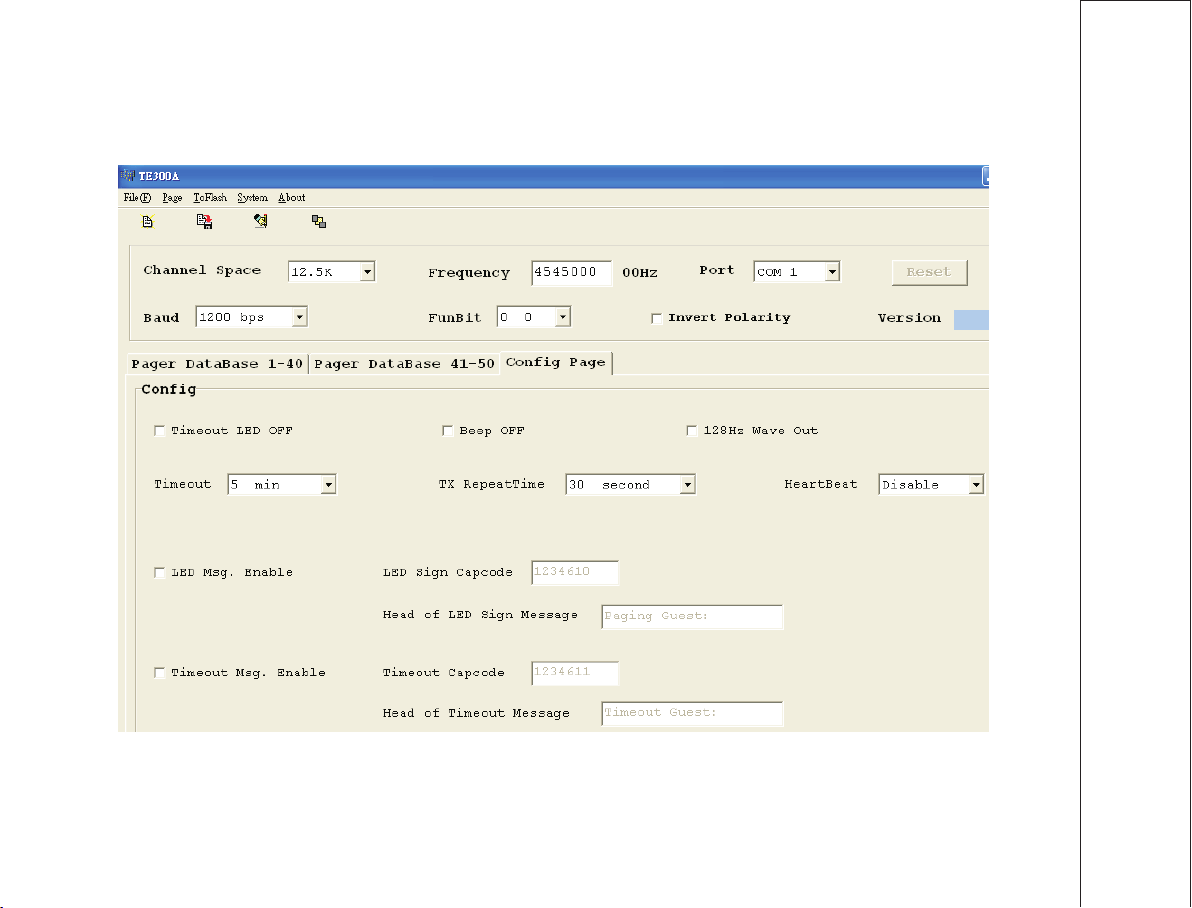

3."Time out" Message display:
Once the option of "Time Out" message display is enable, the
button will be flash after being pressed for a certain time, and
will also send the message to the assigned location or person
as a reminder
4.Heart Beat ( anti-theft):
After activate the option of " heart beat ", the transmitter
will send heart beat signal every 15 sec, 30 sec, 45 sec,1
minute, 2 minutes, 4 minutes or 6 minutes. The time-gap is
programmable.
Op
e
r
at n
io
3
Function \ Location
Outlook
Function \ Location
1.TX (Rad) Transmit LED
2.PWR(Orange) Power LED
1. Antenna Connect (BNC 50 ohm)
2. Power Connect (8.4V/1.5A)
3. RS232 D-SUB (FEMALE 9PIN)
4
