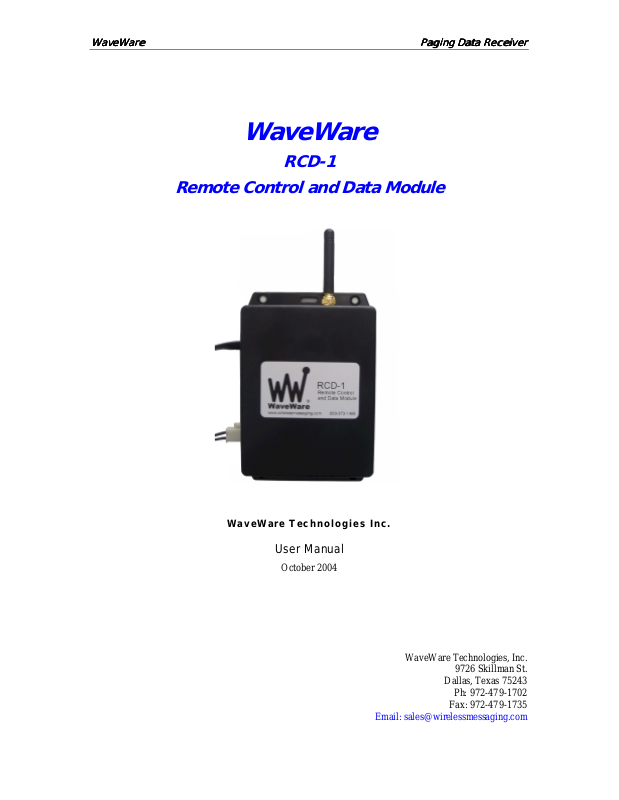

WaveWare RCD-1 User Manual

Download

WaveWare

WaveWareWaveWare

Paging Data Receiver

Paging Data ReceiverPaging Data Receiver

WaveWare

RCD-1

Remote Control and Data Module

WaveWare Technologies Inc.

User Manual

October 2004

Email: sales@wirelessmessaging.com

WaveWare Technologies, Inc.

9726 Skillman St.

Dallas, Texas 75243

Ph: 972-479-1702

Fax: 972-479-1735

WaveWare

WaveWareWaveWare

Paging Data Receiver

Paging Data ReceiverPaging Data Receiver

RCD-1 User Manual

This manual covers the following products:

Part Number: 0604-1001 RCD-1 Remote Control and Data Module. Available in VHF

POCSAG, UHF POCSAG, and 900 band FLEX. Specify operating frequency, capcode, and RF data rate (VHF/UHF only). Also specify interface type: LED sign, PC data, Remote Switching, or LED sign with Annunciation.

Copyright  2004 by WaveWare Technologies, Inc. This manual is Copyrighted and may be reproduced for distribution with the RCD-1 series of products as long as the manual remains intact, in its entirety, with all Copyright, intellectual property, and Trademark notices. Portions of this manual are copyrights of Gold Apollo Co., Ltd.

Notice:

Changes or modifications to this device that are not expressly approved by WaveWare are prohibited and could void the user’s warranty and possibly his authority to operate

this product.

WaveWare

WaveWareWaveWare

Paging Data Receiver

Paging Data ReceiverPaging Data Receiver

1. Table of Contents

1. Table of Contents.................................................................................................................................... 3

2. Specifications.......................................................................................................................................... 4

3. Introduction.............................................................................................................................................5

4. Addressing.............................................................................................................................................. 6

5. Serial Data Output...................................................................................................................................7

6. Control Output........................................................................................................................................ 8

7. Annunciation......................................................................................................................................... 10

7.1. Command Messages (Selective Annunciation).............. 10

7.2. Internal Function Commands (Global Annunciation) .... 11

8. Programming.........................................................................................................................................12

8.1. Programming Screens .................................................... 12

9. RCD-1 Connectors...............................................................................................................................14

9.1. External Antenna Jack....................................................14

9.2. Power/Data Modular Connector.....................................14

9.3. Relay Output Connector................................................. 14

9.4. Power/Data LED............................................................ 14

10. Warranty ...........................................................................................................................................15

10.1. Limitations of Warranty:................................................15

10.2. Warranty Procedure.......................................................15

WaveWare

WaveWareWaveWare

Paging Data Receiver

Paging Data ReceiverPaging Data Receiver

2. Specifications

Physical and Environmental Specifications

Dimensions: 3.70” x 5.75” x 1.33” enclosure, not including connectors or antenna Operating Temperature: -10 to +60°C Humidity: 95 % non-condensing Vibration: 0.27 G (5 to 500 Hz) Shock: 3G or 2 ft. drop RF I/O: external rubber duck antenna

General Electrical Specifications

Power supply: +5VDC Frequency stability: 3ppm Power consumption: <80mA at 5V Frequency range: 150-160MHz (POCSAG)

450-470MHz (POCSAG) 929-931MHz (FLEX) RF circuits no-tune bandwidth: 10MHz VHF, 462-470MHz UHF, 4MHz FLEX

(using external antenna) Received Signaling Format POCSAG at 512, 1200, or 2400 bps (VHF/UHF only), or FLEX (900 band and speed: only). Maximum message length: 2000 characters

Specifications of Receiver Section

Receiver sensitivity (512 bps): 99% decode at 0.20uV measured at SMA connector.

Adjacent channel rejection: 65dB Image and spurious rejection: 55dB Intermodulation rejection: 60dB Channel Spacing: 25 kHz

User Features

Digital outputs: 1 Relay output, SPST-NO, Form A, 2A 30VAC or 30VDC rated capacity,

10mA minimum current load Serial output: 2-wire RS-232 (TX and GND) Address codes: 8 capcodes with 4 function codes per capcode (POCSAG), or 16 capcodes

(FLEX) Serial port baud rates: 2400, 4800, 9600, 19200, 38400 Control outputs: The relay output responds to commands similar to Motorola’s

1, e.g. 77XX and 7014X formats. The relay output can also be configured to

automatically activate for X seconds on new message arrival.

DataNet RCD-

WaveWare

WaveWareWaveWare

Paging Data Receiver

Paging Data ReceiverPaging Data Receiver

3. Introduction

The RCD-1 family of paging data receivers are high performance receiver modules which are ideal for remote control, one-way telemetry, and wide-area wireless messaging. They feature:

• 1 relay output port, configurable as automatically or command code controlled

• Uses POCSAG or FLEX digital paging formats, depending upon factory configuration

• Receives 512, 1200, or 2400 baud POCSAG (applies only to POCSAG Model)

• Synthesized receiver - No crystals required

• RS-232 port for data output

• Compact size

• Activity and Power LED

• Receives alpha or numeric messages

• External antenna

• Timed or static digital output when relay output is used

• Positive lock connectors

• Wall mountable case

• Directly compatible with Adaptive™ LED message boards

• Responds to industry standard “7xxx” output control commands when configured for relay

control mode

WaveWare’s RCD-1 paging data receivers allow a user to remotely control electrical devices over very wide areas, even nation-wide! Because they use industry standard paging protocols, an RCD-1 communication system may be as small or as large as one wishes. A user may utilize their own on-site transmitter or they may utilize a paging carrier’s wide-area network.

The RCD-1 receivers decode paging signals, and provide an RS-232 output of the received message. If the RCD-1 is configured for remote control, and a message is formatted in the common “7xxx” output control format, the digital output relay will respond appropriately. The digital output may be used to control relays, external loads, or a host of other electro-mechanical devices. A built-in timer allows the outputs to be turned on for specific amounts of time, after which they are automatically turned off. This is particularly useful for lighting and pump control.

WaveWare

WaveWareWaveWare

Paging Data Receiver

Paging Data ReceiverPaging Data Receiver

4. Addressing

The POCSAG communication protocol is used to send data to VHF and UHF versions of the RCD-1. POCSAG requires that all data transmitted be sent to a particular address. POCSAG addresses use a 21 bit address, meaning they are in the range of 0000001 through 2097151. Some companies refer to these addresses as capcodes. The 900 band version of the RCD-1 receiver uses the FLEX communication protocol.

Up to eight addresses (capcodes) can be programmed into an RCD-1 receiver POCSAG models, and 16 addresses can be programmed into the RCD-1 receiver FLEX models. One capcode is generally used for the unit’s individual address, and another is generally used as a group address. The POCSAG models of the RCD-1 receiver can also be configured to use POCSAG function codes for addressing. There are four POCSAG function codes per capcode.

“7xxx” output control commands and data messages can also include an ad ditional sub-address or password that can be used to share one capcode between a number of devices. The RCD-1 will respond to up to two passwords or sub-addresses, allowing one to be used as an individual address and the other to be used as a group address. It is possible to selectively control serial data output using sub-addresses.

The addresses are programmed into a unit via PC programming software and a programming kit. Refer to the Programming Section of this manual for information on how to program the RCD-1.

WaveWare

WaveWareWaveWare

Paging Data Receiver

Paging Data ReceiverPaging Data Receiver

5. Serial Data Output

The RCD-1 provides an RS-232 type serial output interface. When configured for serial data output, all messages that are received by the RCD-1 are sent out the RS-232 serial data interface in the ASCII format. For a message to be properly received, it must be sent to an address that matches one of the addresses programmed into the RCD-1. Output control commands can be associated with addresses, allowing automatic output control upon reception of a new message for a particular address. See the Annunciation Section of this manual for details.

Some paging carrie rs insert dashes into messages sent to numeric pagers. If thi s i s a problem, contact your carrier and request that dashes not be inserted, or tell them to send the messages in alphanumeric format.

The RCD-1 RS-232 port is a 3-wire interface, and thus does not use hardware flow control. The serial port output baud and parity are programmable using the optional programming kit. An up to 30 character message Header and Trailer may be programmed into the RCD-1, entered as HEX

values, for each address. If a pre-programmed header and/or trailer are configured, these will be concatenated with every data message the RCD-1 sends to the serial port. If the pre-programmed header is configured, the character(s) configured will always be transmitted out the serial port immediately before the received message. If the pre-programmed trailer is configured, the character(s) will be sent out immediately after the received message.

In addition to headers and footers, there is a Timeout field associated with each address. If the Timeout field is configured for a given address, and the Msg Time Out Delay value is greater than 0 seconds, the Timeout field value will be output on the RCD-1 serial port when the Msg Time Out Delay time is elapsed after a new message is received for that address. The Msg Time Out Delay time value can range from 0 to 65,000 seconds (approximately 18 hours).

The Carriage Return insertion or Line Feed insertion feature may be enabled or disabled during programming to allow the serial output to work properly with a variety of printers. The Insert CR After Detected LF option will cause a Carriage Return to be inserted before any detected Line Feed character in the message. Similarly, the Insert LF After Detected CR option will cause a Line Feed to be inserted after any Carriage Return in the message.

If the data rate of the RS-232 serial port is slower than the rate at which messages are sent to the RCD-1 it will buffer the messages as it receives them. The buffer in the RCD-1 is 2,000 characters deep. If the buffer fills, the next message received will overwrite the buffer. If the baud rate of the serial port is equal to or greater than the over-the-air POCSAG rate, the buffer will never overflow, and the message length is limited only by the accuracy of the transmit and receive baud rates. Message lengths of 512 characters or less are recommended.

WaveWare

WaveWareWaveWare

Paging Data Receiver

Paging Data ReceiverPaging Data Receiver

6. Control Output

The RCD-1 has 1 relay output. The output is a Form A, 2A rated contact, SPST-NO, with a 10mA minimum current load and a 2A maximum current load, and a 30VDC and 30VAC maximum voltage rating.

When configured for relay command control mode, certain commands are used to set and clear the relay. The commands must be a series of numeric digits sent to one of the RCD-1’s addresses. The RCD-1 responds to commands in a manner very similar to Motorola’s DataNet paging receivers. When configured for serial data output, a particular address can be configured to perform a relay control function as each message is received.

Upon power up, RCD-1 can set the relay output to whatever state was stored in the EEPROM prior to the last power down or to a state configured in the programming software.

RCD-1 Output Control Commands are in the following format:

Function Code + Command Code + Sub-Address + Data + Checksum

The Sub-Address and Checksum are optional. If sub-addressing is enabled in the RCD-1 receiver, then the Sub-Address field is required. If checksum processing is enabled in the RCD-1 receiver, then the Checksum field is required.

The Function Code determines what function is going to be performed, or which control output is going t o be acted upon.

The Command Code tells the logical polarity of the output, or what to do with the output referenced in the Command Code.

The sub-address field can be used to specify an individual RCD-1 receiver within a group of receivers configured to share a common CAP Code, or as a password used to validate output commands. Two passwords of up to 10 characters in length can be configured in the RCD-1 receiver. When used as sub- addresses, one can be used as an individual address and the other as a group address.

The Data field is used to control the relay output. The number in the data field is the polarity to set the relay to. The number in the field must be either a “0”, or a “1”. A “0” will deactivate the relay, and a “1” will activate the relay.

The Checksum is a bit-for-bit EXCLUSIVE OR function across every ASCII byte in the command. The result of the XOR is converted to a two-byte HEX ASCII code. See the example for details. If you do not wish to use a checksum at the end of the message, you can disable it with the programming software.

Function Code Command Code Description

70 00 No output change 14 Configure state of the relay. 77 Output Relay 10 Deactivate relay 11 Activate relay 12 Cycle (activate, delay, deactivate) 13 Cycle (deactivate, delay, activate)

Command Examples:

To send a command to activate the relay, the following command could be sent:

7711

An alternative way to activate the relay is:

70141

WaveWare

WaveWareWaveWare

To send a command to activate the relay for one minute, and then have it deactivate automatically, send the following command. Note: The RCD-1 unit must have its timer already programmed to be one minute, using the Output 1 Period field in the programming software. The RCD-1 can be programmed to have a delay value as long as approximately one hour and 45 minutes, or as short as one second. See the Programming Section of this manual for details.

7712

Checksum Example:

Message: 7014123450 Function code = 70 Command code = 14 Password = 12345 Data = 0 (turn output relay OFF) Checksum: 37h XOR 30h XOR 31h XOR 34h XOR 31h XOR 32h XOR 33h XOR 34h XOR 35h XOR 30h

= 03h Converting the answer, 03h, to HEX ASCII yields two characters, one for the 0 and one for the 3.

Paging Data Receiver

Paging Data ReceiverPaging Data Receiver

Therefore, the actual message to send to the RCD-1 is :

701412345003

Note: ASCII-HEX representation of Checksums can result in non-numeric characters so alphanumeric POCSAG formatting should be used when command checksums are present. Also, command passwords/sub-addresses can also contain non-numeric characters.

WaveWare

WaveWareWaveWare

Paging Data Receiver

Paging Data ReceiverPaging Data Receiver

7. Annunciation

There are two methods of annunciating message arrival for applications that need to perform digital output manipulation while outputting message text to the serial port. The first method, called “Selective Annunciation”, is to send a 7xxx command prefix along with the message text. The second method, call ed “Global Annunciat ion”, is to configure 7xxx commands to be exe cuted immediately when the unit’s CAP Code is recognized, for all received messages.

NOTE: It is not recommended that either method be used to “power up” external equipment that will be receiving the message text through the serial port. This is because the timing between Output Control Command execution and message text output is not deterministic and may result in messages being output before the receiving equipment it prepared to process it.

7.1. Command Messages (Selective Annunciation)

Under normal circumstances output commands and text messages are sent as separate POCSAG messages. When the Function Co mmand mode is enabled, text message s must b e prefixed with a valid 7xxx output command, including passwords and/or checksums when configured. Messages not c ontaining a valid 7xxx prefix are d i scarded and not output on the serial port. When a vali d 7xxx command is included, the command is executed (and output on the serial port when serial output is enabled and Function Command Output Filtering is disabled) then the text following the command is output along with the configured header and trailer strings. This feature provides security and/or sub-addressing functionality for text messages as well as annunciation functionality on a message by message basis.

When no output change is desired, the 7000 command should be used. This command allows password/subaddress and checksum processing without performing any output activities.

Selective Annunciation Mode Examples:

Received message: “Open 9-5 Mon-Fri” Relay response: none Serial output: none Notes: 7XXX command prefix not included in message

Configuration: Subcode 1=123, Subcode 2 = 999 Received message: “7000Hello” Relay response: none Serial output: none Notes: Subcode not included as part of message prefix

Configuration: Subcode 1=123, Subcode 2=999, Header=3C, Trailer=3E Received message: “7000123What’s up?” Relay response: none Serial output: “<What’s up?>” Notes: Includes proper 7XXX command and Subcode value. Header hex value of 3C = ASCII < character

Configuration: Subcode 1=123, Subcode 2=999, Header=3C, Trailer=3E Received message: “7000WowAre you ready?” Relay response: none Serial output: none Notes: Password value of “Wow” doesn’t match programmed values of “123” or “999”

Configuration: O utput Period = 10 sec., Head er = blank, Tr ailer = blank Received message: “7712999Hello World” Relay response: Relay enabled, delay for 10 seconds, then disabled. Serial output: “Hello World”

WaveWare

WaveWareWaveWare

Configuration: Subcode 1 = 123 Received message: “70141231Hello World” Relay response: Relay enabled Serial output: “Hello World”

7.2. Internal Function Commands (Global Annunciation)

The Internal Function Command field, associated with each address, is used to enter 7xxx output control commands to be executed upon recognition of the RCD-1’s capcode (address). When configured, the command corresponding to the capcode (FLEX model) or capcode/function bits (POCSAG model) is executed as soon as the Capcode match is recognized. Any text following any output control code in the received message will be output through the serial port. In the POCSAG model of the RCD-1, there are four function code command entries corresponding to the four possible POCSAG function bit combinations. If an entry is left blank, or disabled, no relay control command will be executed upon reception of that function code. When only one response is desired, regardless of function code, all four function code entries per capcode should be set to contain the same 7XXX command value.

This feature provide s the ability to automatically annunciate the output of all message text on the serial po rt using the relay output. The common application of this feature is to cause a horn and/or strobe to sound each time a new message is displayed on an LED message board.

Paging Data Receiver

Paging Data ReceiverPaging Data Receiver

WaveWare

WaveWareWaveWare

Paging Data Receiver

Paging Data ReceiverPaging Data Receiver

8. Programming

The RCD-1 is configured by connecting a computer’s RS-232 serial port to the programming port on the receiver module within the RCD-1, using a programming kit that includes an interface board, connecting cables, power supply, and programming software. The programming kit is sold as an optional item.

The RCD-1 incorporates a Gold Apollo receiver module, and uses the Gold Apollo programming hardware and software to configure the RCD-1 feature set.

8.1. Programming Screens

Following are snapshots of the two screens in the RCD-1 programming software:

WaveWare

WaveWareWaveWare

Paging Data Receiver

Paging Data ReceiverPaging Data Receiver

WaveWare

WaveWareWaveWare

Paging Data Receiver

Paging Data ReceiverPaging Data Receiver

9. RCD-1 Connectors

Fig. 2 - RCD-1 Side View

The RCD-1 Enclosure has the following features:

9.1. External Antenna Jack

An SMA female connector is located on the top of the RCD-1. It allows one to connect an external antenna to the RCD-1. WaveWare includes an external antenna as standard equipment on the RCD-1.

9.2. Power/Data Modular Connector

An RJ-12 6 pin modular positive lock connector is provided for both power and data connections to the RCD-1. The power/data modular connector has the following functions:

Pin Function

1 +5V Input 2 N/C 3 TXD 4 N/C 5 N/C 6 GND

The modular connector allows direct connection to an Adaptive™ LED message board using a straight wired 6 pin modular patch cable. When using the RCD-1 to deliver RS-232 data to a PC, an optional DB9F modular adapter is available, that combines power and data into the adapter. When using the RCD-1 only for remote circuit switching, a power adaptor is direct connected to the power/data modular connector, and a relay output interface harness is connected to the relay output connector (see below).

9.3. Relay Output Connector

The relay output connector is a two pin Molex connector providing a positive lock connection between the RCD-1’s onboard relay and external annunciation devices. An optional relay output interface harness is available fo r connecting the external annunciation devices with the RCD-1 (see Fig. 2 above).

9.4. Power/Data LED

The power/data LED indicates both power and when data is received. On powerup, the power/data LED is always illuminated. When data is output on the serial port, the power/data LED will momentarily blink.

WaveWare

WaveWareWaveWare

Paging Data Receiver

Paging Data ReceiverPaging Data Receiver

10. Warranty

WaveWare Technologies, Inc. Limited Warranty

Subject to the Limitations of Warranty and the Warranty Procedures, hereinafter set forth, WaveWare Technologies Inc. (WaveWare) hereby warrants this product to perform substantially in accorda nce with its spec ifications for a period of on e year from the date of original purchase from WaveWare. WaveWare’s sole obligation under this warranty and the purchaser’s exclusive remedy under this or any other warranty expressed or implied, is the adjustment, repair, or replacement, at Sonik’s discretion, of the defective WaveWare product.

Some states and jurisdictions do not allow limitations of an implied warranty, so the above limitation may not apply to you.

This warranty gives you specific legal rights, and you may have others, which vary from state/jurisdiction to state/jurisdiction.

WaveWare assumes no liability for consequential damages whatsoever.

10.1. Limitations of Warranty:

a. This warranty is extended only to the original purchaser of the product and shall not be valid or

enforceable unless such original purchaser shall have proof of purchase. This warranty does not apply to products sold un der OEM agreements, and/or pr i vate label arrangements.

b. This warranty is limited to repair or replacement of any materials found to be defective, any

required servicing or adjustment of the product, or replacement of any materials found to be defective, or replacement of the product if WaveWare deems the repair of the product as

ineffective or uneconomical . c. Tampering, misuse, attempted repair, or damage to this product shall invalidate this warranty. d. This warranty only applies to this product as it existed at the time of original purchase by the

original purchaser from WaveWare. WaveWare may make design modifications and

improveme nts to this prod uct and shall b e under no obligation to modify or alte r this product

to conform to such changes, additi on s, software bug fixes, or improvements. e. WaveWare assumes no responsibility for any consequential damages cause d by or arising out

of any such defect in materials or workmanship, or with respect to any breach of any implied

warranty applicable to this product. f. WaveWare assumes no liability for consequential damages whatsoever

extent permitted by law, in no event shall WaveWare o r its suppliers be liable for any spe cial,

incidental, indirect, or consequential damages whatsoever (including, but not limited to,

damages for loss of business profits, business interruption, loss of business information, or any

other pecuniary loss) arising ou t of the use, or inability to use, the p roduct, even if WaveWare

has been advised o f the possibility of such damages. WaveWare and its supplie rs disclaim all

other warranties, either expresse d or implied, including but not limited to, implied warranties

of merchantability or fitness for a particular purpose with regard to this product, its hardware,

its software, or its firmware. Because some states d o no t allow exclusion of limitation of liability

for consequential or incidental damages, the above limitations may not apply to you.

. To the maximum

10.2. Warranty Procedure

To obtain warranty benefits provided by this warranty, it is the responsibility of the original purchaser to conform to th e following procedures:

a. Call WaveW are Customer Service Depart ment and receive a Return Material

Authorization Number (RMA). b. Without expense to WaveWare, return this product to WaveWare, attention of

the Customer Serv ice Department. WaveWare recommends t hat you insure

the shipment for full value as WaveWare is not responsible for lost

WaveWare

WaveWareWaveWare

shipments. Mark the outside of the shipping carton with t he RMA number.

Inside the shipping carton include the following items:

• The product, properly packag ed.

• A full description of the defect for wh ich w ar r ant y remedy is sought.

• Return address.

• Contact name and telephone number of person familiar with the

problem/defect.

Paging Data Receiver

Paging Data ReceiverPaging Data Receiver

WaveWare RCD-1 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
