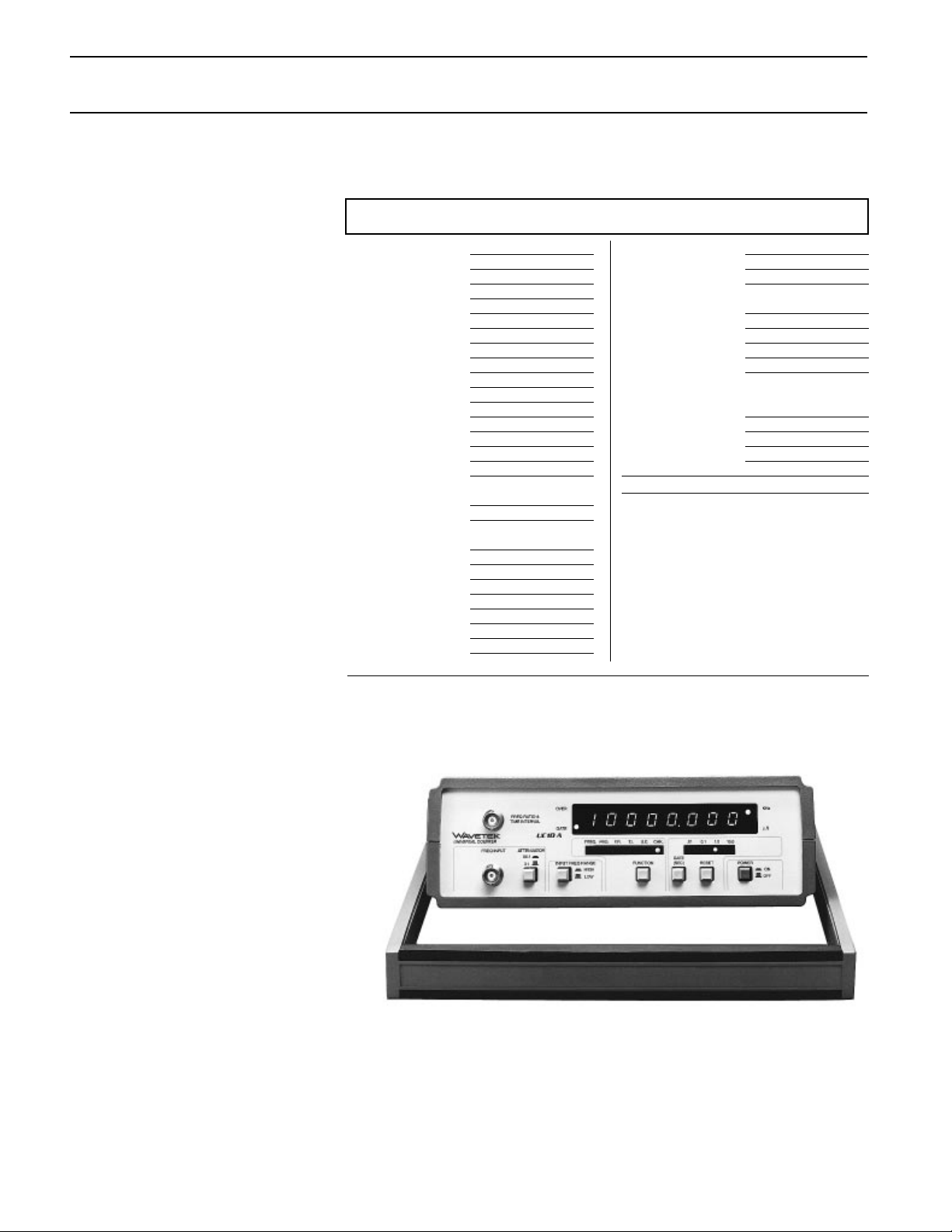

Wavetek UC10A specifications

Model UC10A

100MHz Universal Counter

◆

5Hz to 100MHz Frequency Range

◆

Two Input Channels

◆

Measures Frequency, Period, Frequency
Ratio, Time Interval, and Unit Count

◆

20mV Input Sensitivity

◆

4 Selectable Gate Times

◆

14 LED Indicators

◆

8-Digit LED Display

◆

Internal Oscillator Self Check

he UC10A is a feature-packed,
highly accurate universal counter
that measures frequency, period,

T

frequency ratio of two input signals, time
interval between two input signals, and
unit count (totalize mode). It measures
frequency from 5Hz to 100MHz with an
input sensitivity of 20mV over the entire
range. Four user-selectable gate times
allow measurements at four levels of
resolution. Push buttons provide easy
access to six functional capabilities, four
gate time selections, attenuator, input
frequency range, and reset. Function
selections are indicated by a combination
of an LED indicator and a distinctive
annunciator tone. A large, 8-digit LED
indicates all readings. OVER, GATE, kHz
and µsec are separately identified by
LEDs. A built-in 10:1 attenuator mini­mizes false counting by reducing sensitiv­ity and thus noise effects. To verify
internal time base generator and counter
accuracy, the UC10A has complete self­check capability.

The UC10A is housed in a stylish case,
featuring a cushion grip carrying handle/tilt
stand, rear cord wrap, and recessed areas in
the top cover for easy stacking of multiple
units.

UC10A Specifications

Frequency Input

Low Range 5Hz to 10MHz
High Range 50Hz to 100MHz

Frequency Measurement

Range 5Hz to 100MHz
Gate Time Selectable 0.01s, 0.1s, 1.0s, 10s
Resolution

5Hz to 10MHz 100Hz, 10Hz, 1Hz, 0.1Hz
50Hz to 100MHz 1000Hz, 100Hz, 10Hz, 1Hz

Accuracy ± (time base stability ± 1 count)

Period Measurement

Range 0.04µs to 0.2s
Gate Time Selectable 0.01s, 0.1s, 1.0s, 10s
Resolution

5Hz to 2.5MHz 0.1ns, 1.0ns, 10ns, 100ns

2.5MHz to 25MHz 0.01ns, 0.1ns, 1.0ns, 10ns

Accuracy ±1 count ± time base stability

Frequency Ratio

Low Range Freq. Input: 5Hz to 10MHz

High Range Freq. Input: 50Hz to 100MHz

Time Interval

Input Frequency 5Hz to 2.5MHz (low range only)
Range 0.4µs to 0.2s
Resolution 100ns, 10ns, 1.0ns, 0.1ns
Accuracy ±1 count ± trigger error

(at 23°C ±5°C; <70% R.H.)

± trigger error of signal

Ratio Input: 5Hz to 2.5MHz

Ratio Input: 50Hz to 25MHz

Unit Count (Totalize)

Input Frequency 5Hz to 10MHz (low range only)
Count Capacity 99,999,999

Self-Check Checks and displays the internal

time base oscillator frequency

Input Sensitivity

Frequency Input X1.0: 20mVRMS
Attenuator X10: 200mVRMS

Ratio Input 20mVRMS

Input Impedance Constant 1MΩ ±50kΩ shunted

by less than 30pF over frequency
range and attenuator position.

Max. Input Peak Voltage (DC+AC peak)

5Hz to 1kHz 212V
At 100MHz 7V

GENERAL
Display: 8 digit, 8mm (0.3”) high LED display; Functions:

Frequency, Period, Frequency Ratio, Time Interval, Unit Count, Self­Check; Indicators: kHz, µ s, OVER, GATE, 6functions, 4 gate times;
Accessories: AC power cord, two coaxial cables, two spare fuses,
Operator’s Manual; Operating Temperature: 0°C to 50°C (32°F
to +122°F), 80% R.H.: Storage Temperature: -40°C to 70°C
(-40°F to 158°F); Time Base Temperature Stability: ±5ppm
25°C ±5°C (77°F ±9°F); Initial Time Base Calibration : ± 5ppm
max. at 23°C (73.4°F); Aging Rate: 1ppm per month max.; Power:
117VAC or 234VAC, 50 or 60Hz, ≤15VA; Dimensions (H x W
x D): 7.9 cm x 23cm x 33cm (3.1” x 9.0” x 13.0”) (Exclusive of
Handle); Weight: 2kg (4.4 lb); Warranty: One year
