For Residential and Light Commercial Applications
ES-WQ-PWPL
Job Name
Job Location
Engineer
Approval
–––––––––––––––––––––––––––––––––––––––––––
–––––––––––––––––––––––––––––––––––––––––
–––––––––––––––––––––––––––––––––––––––––––––
–––––––––––––––––––––––––––––––––––––––––––––
Series PWPL
Pleated Filter Cartridges
Greater surface area for longer life and
reduced filtration costs.
Watts Pleated filter cartridges outperform wound, spun, melt
blown, resin bonded, and other ”depth” type filter elements
because of our high surface area.
Lower pressure drop is another significant advantage. Using
pleated cartridges allows for increased flow rates and the use
of smaller filter housings to reduce capital equipment costs.
Further savings are provided because our 100% synthetic
filter media is cleanable, 5 micron and up, to lower cartridge
replacement costs. Pleated filter cartridges outperform other
pleated elements because our high-performance filter media is
systematically produced using 100% synthetic fibers, with no
binders or additives to leave a residue, foam or contaminate.
Our filter media is dramatically thicker than other products.
For this reason, Pleated cartridges provide “depth” filtration for
greater sediment removal, along with more surface area.
Contractor
Approval
Contractor’s P.O. No.
Representative
––––––––––––––––––––––––––––––––––––––––––––
–––––––––––––––––––––––––––––––––––––––––––––
––––––––––––––––––––––––––––––––––––––––
PURE WATER
Pleated Filter Cartridges
––––––––––––––––––––––––––––––––––
Features
• Filter media is pleated for greater surface area
• Synthetic filter media is cellulose-free
• “Thicker” filter media has a greater capacity to capture and
retain particles, compared to thin, more rigid media types,
which have less void space for particle retention
• One micron absolute and 0.35 media use a
multi-ply laminate for superior performance
• Long lengths have netting to hold pleats in place
• All cartridge types and lengths are wrapped
• Full product line (Large selection of types, lengths &
micron ratings)
• Low pressure drop, long life, and reduced filtration costs,
compared to wound and spun cartridges
• No additives or binders, which may cause foaming
• Increased dirt holding capacity, longer life, fewer
cartridge replacements needed, and reduced filtration costs,
compared to other pleated cartridge suppliers
• Increased particle removal efficiency
• Superior performance and appearance
A multi-ply laminate is used with our sub and one micron
absolute grades for longer life and greater solids removal.
Note: Do not use with water that is microbiologically unsafe or
of unknown quality without adequate disinfection before or after
the system.
Watts product specifications in U.S. customary units and metric are approximate and are provided for reference only. For precise measurements,
please contact Watts Technical Service. Watts reserves the right to change or modify product design, construction, specifications, or materials without prior notice and without incurring any obligation to make such changes and modifications on Watts products previously or subsequently sold.
Lower pressure drop for higher flow rates
These cartridges are pleated, so initial pressure drop is significantly less compared to depth cartridges, such as wound,
spun, melt blown and resin bonded. As a result, higher flow
rates are possible, reducing filter housing size requirements to
lower capital equipment costs.
Depth Cartridge
(5 micron)
Use the pressure drop charts shown below to help determine the ideal flow rate for your particular application:
Standard Cartridges (93⁄4") Big Blue (B-B) Cartridges Jumbo Cartridges
Pleated® Cartridge
(5 micron)
Note: Pressure drop data shown above include filter housing and cartridge.
Flow rates
Maximum flow rate guidelines for our cartridges are shown below:
MAXIMUM FLOW RATES PER CARTRIDGE (GPM)
Micron Rating Standard Cartridge 10" Big Blue 20" Big Blue Jumbo Cartridge
1 Absolute 3 6 9 8 12 20 40 80
0.35 Micron 4 8 12 9 13 25 50 100
1 Micron 4 8 12 10 15 30 60 120
5 Micron 7 14 21 15 25 50 100 150
20 Micron 8 16 24 15 25 50 100 150
50 Micron 10 20 30 15 25 50 100 150
Note: Filter housing selection should also be considered when flow rate per cartridge is determined.
3
9
⁄4" 20" 291⁄4" 40 90 170
Washable & reusable
Our cartridges (5 micron and
up) are washable and reusable, to reduce filtration costs.
For best results, direct spray
into pleats to dislodge sediment. Or, let dry and brush
off filter cake from surface of
the media.
All cartridges
are individually
shrink wrapped
for purity

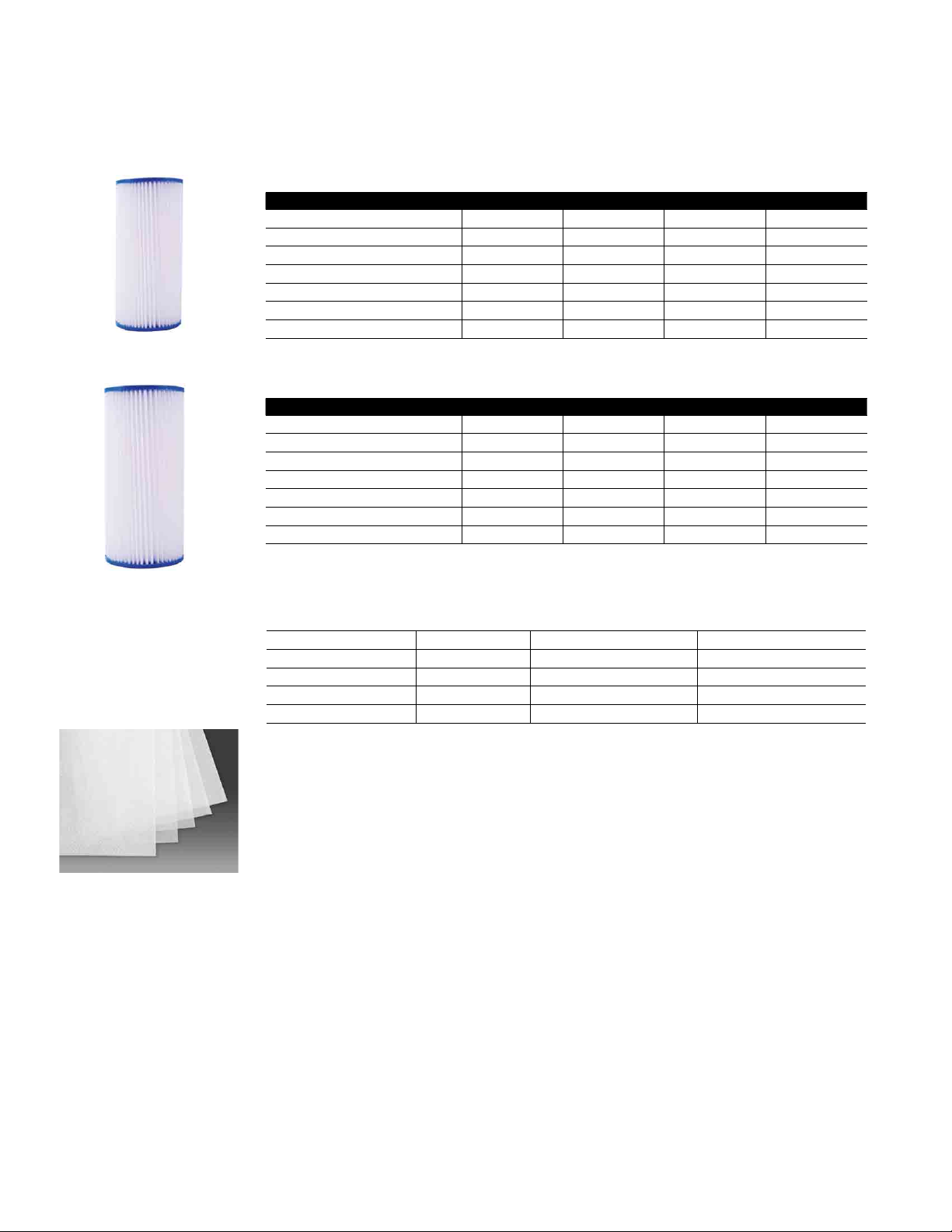

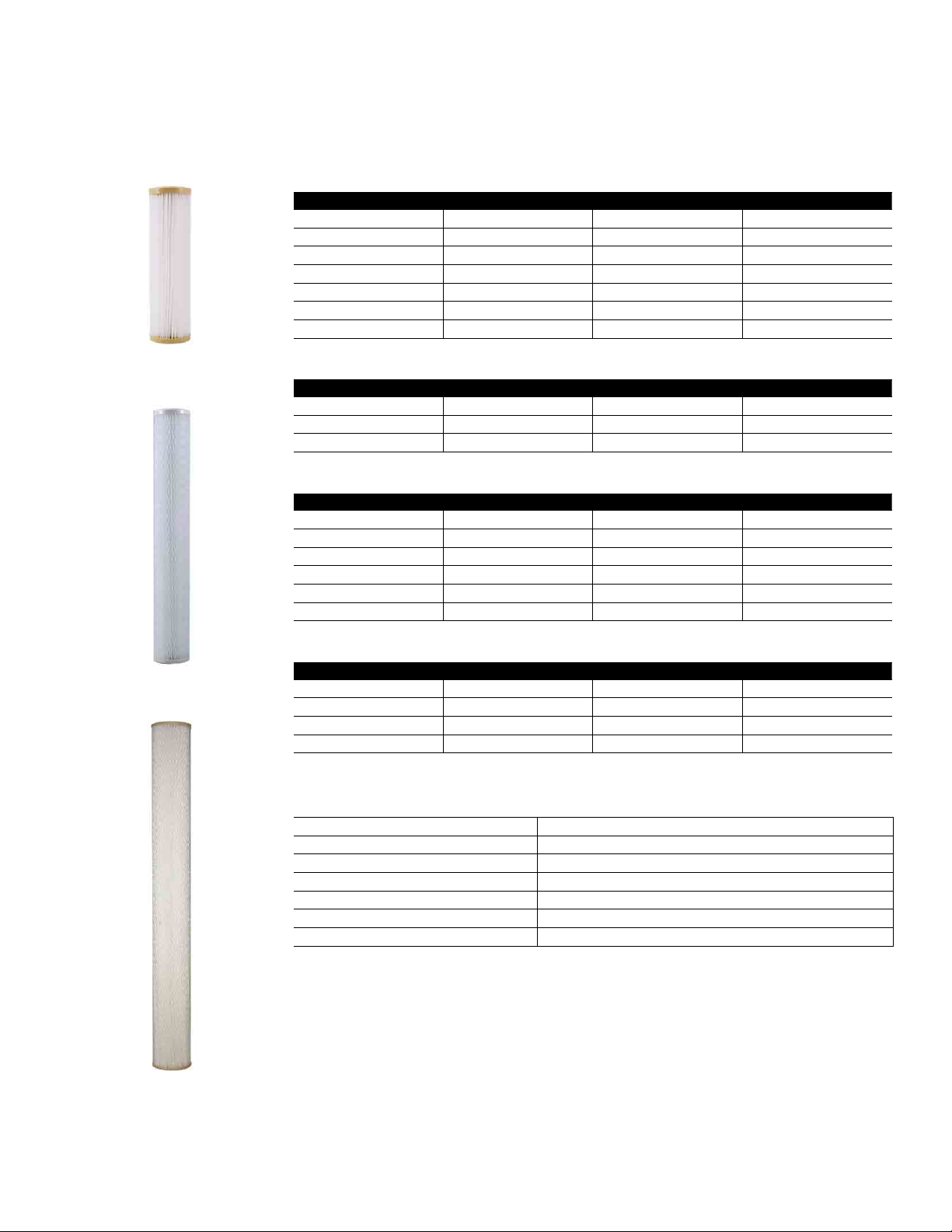

Pleated Filter Cartridges
Greater surface area for longer life and reduced filtration costs.
Standard 23⁄4" OD x 93⁄4" Length
MODEL NO. MEDIA TYPE MICRON RATING NUMBER PER CASE
PWPL10M1AB Synthetic 1 Absolute 24
PWPL10M.35 Synthetic 0.35 24
PWPL10M1 Synthetic 1 24
PWPL10M5 Synthetic 5 24
PWPL10M20 Synthetic 20 24
PWPL10M50 Synthetic 50 24
PWPL10M100 Synthetic 100 24
PWPL10
PWPL195
Standard 2
MODEL NO. MEDIA TYPE MICRON RATING NUMBER PER CASE
PWPL195M1 Synthetic 1 24
PWPL195M5 Synthetic 5 24
PWPL1950M20 Synthetic 20 24
Standard 2
MODEL NO. MEDIA TYPE MICRON RATING NUMBER PER CASE
PWPL20M1AB Synthetic 1 Absolute 24
PWPL20M.35 Synthetic 0.35 24
PWPL20M1 Synthetic 1 24
PWPL20M5 Synthetic 5 24
PWPL20M20 Synthetic 20 24
PWPL20M50 Synthetic 50 24
Standard 2
MODEL NO. MEDIA TYPE MICRON RATING NUMBER PER CASE
PWPL40M1 Synthetic 1 24
PWPL40M5 Synthetic 5 24
PWPL40M20 Synthetic 20 24
PWPL40M50 Synthetic 50 24
3
⁄4" OD x 191⁄2" Length
3
⁄4" OD x 20" Length
3
⁄4" OD x 40" Length
PWPL40
Specifications
Filter media Synthetic (100% cellulose-free)
End caps Plastisol (PVC)
Center tubes Polypropylene
Temperature range 40°F - 140°F (4.4°C - 60°C)
Maximum Pressure 40 PSID
Recommended change out 20 - 30 PSID
Flow rate per 10” cartridge 3-10 GPM, depending on micron rating
Pleated Filter Cartridges
Greater surface area for longer life and reduced filtration costs.
Big Blue (B-B) 41⁄2" OD x 93⁄4" Length
MODEL NO. LENGTH MEDIA TYPE MICRON RATING NUMBER PER CASE
PWPL10BB
PWPL20BB
PWPL10BBM1AB 93⁄4" Synthetic 1 Absolute 8
3
PWPL10BBM.35 9
PWPL10BBM1 9
PWPL10BBM5 9
PWPL10BBM20 9
PWPL10BBM50 9
Note: Cartridges listed above fit in Full-Flow and Big-Blue
⁄4" Synthetic 0.35 8
3
⁄4" Synthetic 1 8
3
⁄4" Synthetic 5 8
3
⁄4" Synthetic 20 8
3
⁄4" Synthetic 50 8
®
filter housings.
Big Blue (B-B) 4
MODEL NO. LENGTH MEDIA TYPE MICRON RATING NUMBER PER CASE
1
⁄2" OD x 20" Length
PWPL20BBM1AB 20” Synthetic 1 Absolute 4
PWPL20BBM.35 20” Synthetic 0.35 4
PWPL20BBM1 20” Synthetic 1 4
PWPL20BBM5 20” Synthetic 5 4
PWPL20BBM20 20” Synthetic 20 4
PWPL20BBM50 20” Synthetic 50 4
®
Note: Cartridges listed above fit in Full-Flow and Big-Blue
filter housings.
Specifications (synthetic media for sediment)
Maximum temperature 140°F (60°C) Center tubes PVC
Minimum temperature 40°F (4.4°C) End caps Molded Urethane
Maximum pressure 40 PSID Maximum flow rate, model 40 50 GPM (12m3HR)
Recommended change out 25-30 PSID Maximum flow rate, model 90 100 GPM (24m3HR)
Filter media PE & PP Maximum flow rate, model 170 150 GPM (36m3HR)
Highly efficient, five ply filter media
Our one micron absolute and 0.35 micron filter cartridges use a
five ply filter media for greater efficiency and longer life. They are
ideal for surface water filtration to reduce Cryptosporidium and
Giardia cysts.

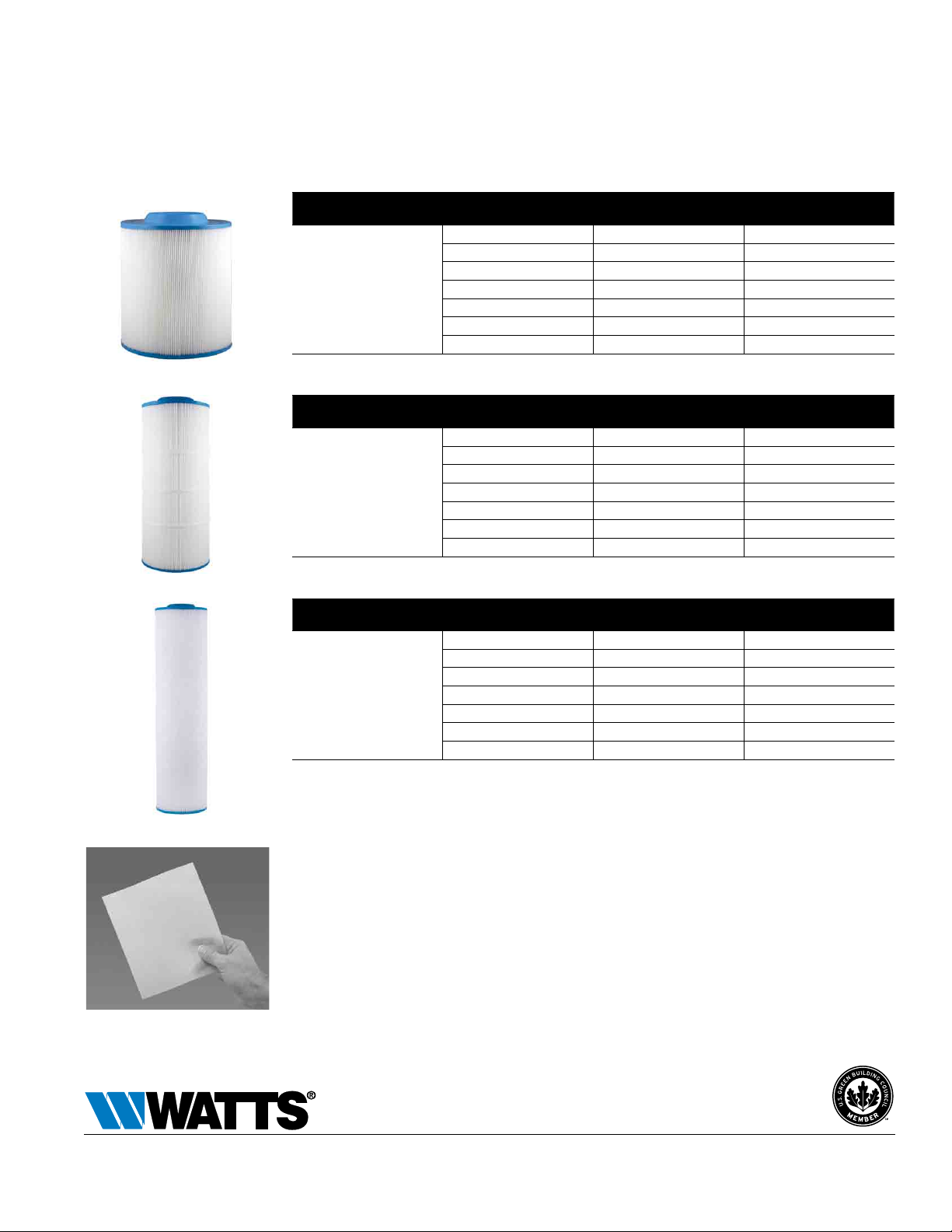

Jumbo Filter Cartridges
For S.S. (stainless steel) series Jumbo Filter Cartridge Housings with
cellulose-free synthetic and mesh media in a wide range of micron ratings.
PWPL40
FILTER HOUSING MODEL NO. MICRON RATING MODEL NO. WITH
SYNTHETIC MEDIA
1 Absolute PWPL40M1AB 1
0.35 PWPL40M.35 1
1 PWPL40M1 1
5 PWPL40M5 1
20 PWPL40M20 1
50 PWPL40M50 1
100 PWPL40M100 1
SYNTHETIC MEDIA
1 Absolute PWPL90M1AB 1
0.35 PWPL90M.35 1
1 PWPL90M1 1
5 PWPL90M5 1
20 PWPL90M20 1
50 PWPL90M50 1
100 PWPLM90M100 1
SYNTHETIC MEDIA
1 Absolute PWPL170M1AB 1
0.35 PWPL170M.35 1
1 PWPL170M1 1
5 PWPL170M5 1
20 PWPL170M20 1
50 PWPL170M50 1
100 PWPLM170M100 1
PWPL40
PWPL90
40
PWPL90
FILTER HOUSING MODEL NO. MICRON RATING MODEL NO. WITH
90
PWPL170
FILTER HOUSING MODEL NO. MICRON RATING MODEL NO. WITH
170
NUMBER PER CASE
NUMBER PER CASE
NUMBER PER CASE
PWPL170
PP Mesh Media
A Watts Water Technologies Company
ES-WQ-PWPL 1225 © 2012 Watts
USA: Tel. (800) 224-1299 • www.watts.com
Canada: Tel. (888) 208-8927 • www.watts.ca
