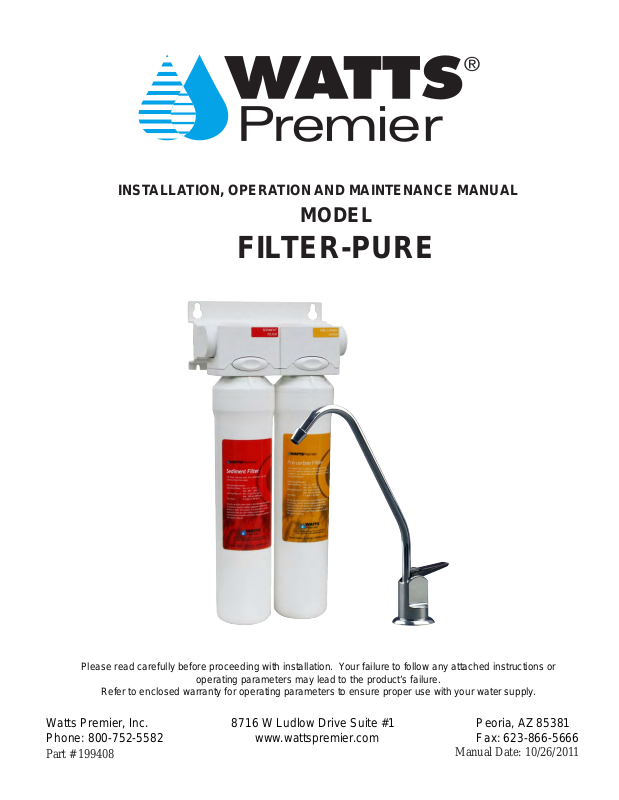

Watts Premier Filter-pure User Manual

INSTALLATION, OPERATION AND MAINTENANCE MANUAL

MODEL

FILTER-PURE

Please read carefully before proceeding with installation. Your failure to follow any attached instructions or

operating parameters may lead to the product’s failure.

Refer to enclosed warranty for operating parameters to ensure proper use with your water supply.

Watts Premier, Inc. 8716 W Ludlow Drive Suite #1 Peoria, AZ 85381
Phone: [phone] www.wattspremier.com Fax: [phone]

Part # 199408

Manual Date: 10/26/2011

Thank you for your purchase of a state of the art Watts Premier Water Treatment system.

This lter pure system is equipped with a unique swivel valve in head push button assembly. This
allows for a simple and sanitary push button lter change that does not require you to turn off the
water source to the ltration system.

This two stage system is equipped with a sediment prelter and a high quality carbon block lter.
The sediment lter reduces the sand, silt, sediment and rust particles that may be in your water.
The high end carbon block lter reduces the chlorine tastes and odors that may be in your water,

providing you crisp clean great tasting water at your tap.

Watts Premier also has a series of replacement lters that t into this unique swivel head system.

These include:

Granular Activated Carbon lter for chlorine, taste and odor reduction with higher ow.

·

Ultra Filtration Membrane for greater particle reduction including cysts like Cryptosporidium,

·

Toxoplasma, Giardia and Entamoeba.

Lead and VOC lter block for the reduction of lead and harmful chemicals. It is estimated that

·

VOC’s are present in one-fth of the nation’s water supplies. These water contaminants can

enter ground water from a variety of sources including localized use of herbicides and pesticides,

gasoline or oil spills, leaking underground fuel tanks, septic system cleaners, and chemicals used

in the dry-cleaning industry.

System Maintenance

Just because you can not taste it, does not mean that it is not there. Many contaminants in the

drinking water are undetectable to the taste. Additionally, over time if you do not replace the
lter elements, other bad tastes and odors will be apparent in your drinking water. This is why
it is important to change your lters at the recommended intervals as indicated in this system

manual.

When replacing any of the lter elements, pay special attention to any cleaning instructions. Should

you have any further questions please refer to our web site at www.wattspremier.com or call our

customer service department at 1-800-752-5582.

2

With proper installation and maintenance, this system will provide you with high quality water

for years to come. All of our water enhancement products are rigorously tested by
independent laboratories for safety and reliability.

Table of Contents

Operational Parameters ................................................................................................

Contents of the Filter-Pure System ...............................................................................

Tools Recommended For Installation ............................................................................

Flow Diagram..................................................................................................................

Attach Tubing to System................................................................................................

Mount the System Under the Sink.................................................................................

Drill / Punch a Hole for the Faucet..................................................................................

Faucet Installation .........................................................................................................

Connecting Blue tube to faucet.......................................................................................

Adapt-a-V alve Installation...............................................................................................

System Start Up.............................................................................................................

Filter Change..................................................................................................................

Performance Data Sheet ...............................................................................................

Other Products by Watts.................................................................................................

Warranty Registration.....................................................................................................

Service Record...............................................................................................................

Warranty ........................................................................................................................

4
4
4
5
5
5
6
7
7
8
8
9
10
11-12
13-14
15
16

Operational Parameters

Installation must comply with State and local plumbing regulations. Do not use with water that
is micro biologically unsafe or of unknown quality without adequate disinfection before or after
the system. System is intended to be installed using the cold water supply only.

Maximum Minimum
Operational Temperature 100°F (37.8°C) 40°F (4.4°C)
Operating Pressure 85 psi (5.98 kg/cm²) 20 psi (1.406 kg/cm²)
pH Parameters 10 5
Flow Rate 0.5 GPM @ 60 psig

Contents of the Filter-Pure System

√ 1 FILTER PURE Unit √ 1 Parts Bag √ 1 Green Tube
√ 2 Filters √ 1 Faucet Assembly √ 1 Blue Tube

If any of the items are missing, please contact Watts Premier prior to installing

Tools Recommended For Installation

√ 1/2" Diamond Tipped Hole Saw bit for faucet opening (Porcelain Sinks) or,
√ 1/2" Hole Saw Bit for faucet opening (Most Counter Tops - excluding marble) or,
√ 1/2” Round Knock out Punch for faucet opening (Stainless Sinks)
√ 1 1/4” Adjustable Wrench
√ 1/2" Open End Wrench
√ Adjustable Pliers
√ Sharp Knife
√ 1/8" diamond tip bit, pilot hole
√ Electric Drill
√ Phillips Screw Driver
√ Phillips bit for electric drill

4

Flow Diagram

This system has been designed to t under most kitchen sinks.

Please read the entire manual carefully before proceeding with installation.

Two Stage Under Counter (Filter Pure)

Counter Top

Sink

Blue

Tubing

Green
Tubing

HOT COLD

Attach Tubing to System

Step 1 The two quick connect elbows are pre installed in to the back of the Filter-Pure

system. These elbows can be rotated in order to allow for the green and blue tube

Step 2

Step 3

Take the green tube and push in to the quick connect elbow that is by the red colored
sediment lter on the left of the system. Make sure the tube is fully pushed in all the

way to the tube stop.

Take the blue tube and push in to the quick connect elbow that is by the yellow
colored carbon lter on the right of the system. Make sure the tube is fully pushed

in all the way to the tube stop.

Mount the System Under the Sink

Step 4 Determine best location for the ltration system to be mounted near the cold water

supply angle stop valve to allow for future system maintenance.

Step 5

Using the mounting holes on the system bracket, mark the location for the mounting

screws on the cabinet wall. In the parts bag, locate the 2 self tapping screws. Using
an electric drill with a Phillips bit, screw them into the cabinet wall.

Mount the ltration system.

5

Drill a Hole for the Faucet in a Porcelain Sink

Note:

Step 6

Step 7

Step 8

Most sinks are pre drilled with 1 ¼” diameter hole that you can use for your faucet.
(If you are already using it for a sprayer or soap dispenser, see step 1)

Porcelain sinks are extremely hard and can crack or chip easily.
Use extreme caution when drilling. Watts Premier accepts no responsibility for
damage resulting from the installation of faucet.
Diamond tip drill bit is recommended for drilling in porcelain.

Determine desired location for the faucet on your sink and place a
piece of masking tape over where the hole is to be drilled. Mark the

center of the hole on the tape.

1

Using a variable speed drill set on the slowest speed, drill a

hole through both porcelain and metal casing of sink at the marked
center of the desired location. Use lubricating oil or liquid soap to keep
the drill bit cool (If drill bit gets hot it may cause the porcelain to crack
or chip).

Using a 1/2” Drill Bit, proceed to drill the larger hole. Keep drill speed

on the slowest speed and use lubricating oil or liquid soap to keep the

hole saw cool during cutting.

/8“ pilot

Step 9

After drilling, remove all sharp edges and make sure the surroundings
of the sink are cooled before mounting the faucet.

Punch a Hole for the Faucet in a Stainless Steel Sink

Note:

Step 10

If mounting faucet to a Stainless Steel Sink you will need a 1/2”
Hole Punch. The faucet opening should be centered between the
back splash and the edge of the sink, ideally on the same side as
the vertical drain pipe.

Drill a 1/8“ pilot hole. Use a 1/2” Hole Punch and an adjustable wrench

to punch the hole in the sink.

The faucet can now be installed.

6

Faucet Installation

Choose the conguration that matches your faucet:

Connect Blue tube to Faucet

Step 11 In the faucet parts bag locate a brass compression nut, plastic

ferrule sleeve and a plastic tube insert. To assemble- place the
compression nut on the open end of the blue tube attached

to the ltration system, then the plastic ferrule sleeve (small
tapered end of sleeve pointing to the end of tube), nally push

the white plastic insert all the way into the end of blue tube.
Insert the assembled blue tube into the faucet stem and tighten
the brass compression nut with a wrench.

DO NOT overtighten.

7

Adapt-a-Valve Installation

Caution:

Conguration for 3/8”

(With Brass Fittings)

* Insert White Washer

Step 12

Step 13

Step 14

Water supply line to the system must be from the cold water supply line only.
Hot water will severely damage your system.

* Washer

Do not use Teon tape with the Adapt-a-Valve.WARNING:

Turn off the cold water supply to the faucet by turning the angle stop valve completely

off. Open cold water on the sink faucet to relieve pressure.

Choosing the conguration that ts your plumbing, attach the adapt-a-valve as

illustrated in the three photos above.
*Do not forget to install the white compression washer for 3/8” conguration.

Locate the 1/4” green tube attached to the ltration system.

Insert the open end of the green 1/4” tube into the open 1/4”

quick connect tting on the plastic adapt-a-valve making

sure the tube is pushed in all the way passed the o-ring to
the tube stop.

Hot

Supply

Cold

Supply

Conguration for 1/2”

(Without Brass Fittings)

Green Tube

Adapt-a-Valve

Step 15

Turn on the cold water supply at the angle stop valve, make
sure the adapt-a-valve is in the “ON” position and check for
leaks. Tighten/check any leaking ttings.

System Start-up

Step 16

Step 17

Turn the faucet handle to the open position to start the ow
of water through the ltration system. Run approximately 7
gallons of water through the ltration system to ush out the
normal black carbon nes. The water may “sputter” until the

air is purged out from the system and the water may appear
cloudy due to air purging out from the system.

(Your faucet may vary).

Check for leaks over the next 24 hours.

Once the ushing process is completed the water from the ltration system can be

used.

ON

8

Changing The Filter Cartridges

Your system is equipped with valved heads which will automatically turn off the

water supply to each lter when the lter is released, thus you do not need to turn

off the incoming water supply at the Adapt-a-Valve. The faucet must be off when

lters are replaced. To make the removal of the lter cartridges easier, the heads

& cartridges may be swiveled up to 90 degrees as shown in the pictures below.

6 Month System Maintenance

Replace:

Step 1

Step 2

Step 3

√ One sediment lter (Red Label P/N: 105311)
√ One carbon Block (Yellow Label P/N: 105351)

Place a towel under the RO module to catch any excess water that

may drip out from the lters during the changeover.

To remove a lter cartridge: Push & hold the button on the

valved head above the lter. Pull cartridge downward (from the
head) to remove. Release button and discard old lter.

To install a lter cartridge: Remove the seal cap and insert

the cartridge into the valved head until you hear an audible “click”
(the button does not need to be pressed to install new lters).

Optional Filters:

√ UF Membrane Filter (P/N: 105321)
√ Lead+Chemical Reducing CB (P/N: 105371)

9

Performance Data Sheet

Watts Premier Inc.

8716 W Ludlow Drive Suite #1

Peoria, AZ 85381

FILTER PURE

GENERAL USE CONDITIONS:

1: System has been independently tested for the removal of microbiologically contaminated water. The system is not intended
for the treatment of water that has an obvious contamination source, such as raw sewage. This system is not intended to
convert wastewater to microbiologically safe drinking water.

2: Operating Temperature: Maximum 100o F (37.8o C) Minimum 40o F (4.4o C)
3: Operating Water Pressure: Maximum 85-psi (5.98 kg/cm2) Minimum 20-psi

4: Maximum ow Rate: 0.50 gpm (1.89 lpm)

5: Rated Capacity: 2000 Gallons (7,500 liters)

RECOMMENDED REPLACEMENT PARTS AND CHANGE INTERVAL:

Note: Depending on incoming feed water conditions replacement time frame may vary.
Description Part Number Change Time Frame Cost
Stage 1: Sediment: 105311 6 Months $ 9.95*
Stage 2: Carbonblock 105351 6 Months $15.95*

*All prices subject to change without notice

This system has been tested according to NSF/ANSI Standard 42 for the reduction of the substances listed below. The concentration of the indicated
substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as

specied in NSF/ANSI 42. Testing performed under standard laboratory conditions, actual performance may vary.

California Proposition 65 Warning
WARNING: this product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. (Installer:
California law requires that this warning be given to the consumer). For more information: www.wattsind.com/prop65.

Contaminant   InuentChallengeConcentration  PercentReductionAchieved

ChlorineTaste&Odor   2.0mg/L+10%    97%
Particles     ClassIV     96%

Questions? Contact Watts Premier 800-752-5582 www.wattspremier.com
480-675-7995

10

Other Products from Watts Premier

Watts Premier has other ne water ltration products and accessories to enhance your water and to
compliment your water ltration system. Listed on this page are only a few of the items we offer. Visit

our web site at www.wattspremier.com or call our Customer Service Representatives at

1-800-752-5582 (inside USA) 1-480-675-7995 (outside USA) for more products.

Watts Premier Ice Maker Filter Kit - High efciency replaceable lter that

can last up to 5 years or 20,000 gallons. Perfect for residential and com-

mercial ice makers as well as refrigerators, drinking fountains, coffee & tea

brewers, motor homes and campers. Reduces chlorine taste and odor.

Part No. 500327 *$36.95/ea

Whole House Filter

Great for sediment problems such as in well water supply or areas where dirt

and rust particles are a problem. Includes three 50 micron sediment lters

and wrench

(3/4” ports)

Part No. 500223 *$42.95/ea

Replacement lter

Part No. 304007 *$ 4.50/ea

Watts Premier Hot Water Recirculation System

Bring convenience and savings to your home, giving you hot water instantly

at every faucet, when you need it. This unique product is easy to install and

not only provides you with the convenience of hot water when you need it, but
saves an average of over 15,000 gallons per year.

Part No. 500800 *$229.99/ea
Water Pressure Gauge

This gauge mounts onto your outside hose connection to accurately show
your home’s water pressure up to 300 psi. A red needle shows peak over­night pressure, which may exceed readings during the day. High pressure
readings may indicate the need for a pressure regulator to prevent damage
to appliances.

Part No. 261003 *$11.50/ea
One Piece Manifold 5-Stage Reverse Osmosis WP-5

This state of the art manifold reverse osmosis system provides a seamless
water path eliminating 17 connections from standard style units. Includes

carbon block technology and high production 24gpd Thin Film Membrane

- NSF Certied for the reduction of a wide range of contaminants including:

Arsenic, Chromium, Perchlorate, Lead, Radium, and many others.

Part No. 500023 *$239.00/ea

*All prices subject to change without notice.

11

Removing chlorine from your shower

Special Chlorgon & KDF media – More effective then carbon medias with

hot water applications in the removal of the following.

√ Free Chlorine (CL-)
√ Combined Chlorine (Sodium Hypochlorite)
√ Hydrogen Sulde (Rotten egg smell)
√ Plus, its pH balanced.

Deluxe Shower Handle with Built in Filter Replacement lters 2PK
5-Way Massaging Spray
72” Reinforced Hose

High Strength Bracket

Triple Plated Finish

Reversible Filter Cartridge (Model HHC)

Cartridge Life Rating: 3 months

Part No. 107070 WHITE *$38.95
Part No. 107091 CHROME *$44.95
Part No. 107092 GOLD *$44.95

Shower Falls Deluxe Shower Handle with Built in Filter

Curved Ergonomic Shower Handle Replacement lters 2PK
Filter Handle Extension
Dual Swivel Adjustment
Ultra Deluxe 5 Way Massaging Spray
72” Reinforced Hose

Chrome Plated Brass Bracket & Swivel Ball Extension

Triple Plated Finish

Reversible Filter Cartridge (Model HHC)

Cartridge Life Rating: 3 months
Part No. 107095 CHROME *$55.95

√ Iron oxide (rust water)
√ Dirt, sediment
√ Odors

Part No. 107075 *$15.95/pk

Part No. 107075 *$15.95/pk

All-In-One reversible High-Flow Filter Replacement lter

Deluxe 5-Way Massaging Spray

Soft-Touch Adjustment Pads

Anti-Scaling Spray Nozzle
High Strength Housing
Triple Plated Finish
Cartridge Life Rating: 6 months

Part No. 107098 White/Chrome *$39.95 Part No. 107080 *$13.95/ea

*All prices subject to change without notice.

12

WARRANTY REGISTRATION

Thank you for selecting Watts Premier for your water ltration needs.

4 Ways to Register

1. On-line at www.wattspremier.com

Register your product on-line and receive a 5% discount on your next on-line order, Plus receive reduced shipping.

2. Call in your information 1-800-752-5582

Call and we will enter your registration information for you.

3. Fax in your information 623-866-5666

Fax this form directly to us.

Registering will

insure you

receive Watts

FREE

4. Mail in the information.

Please complete the form below. Mail to: Watts Premier

8716 W Ludlow Drive Sutie #1
Peoria, AZ 85381

Watts Premier Inc. is concerned for the safety of your personal information. Watts Premier collects personal information when you register

with Watts Premier. This information is stored in our data base and we do not rent, sell, or share personal information with other people

or nonafliated companies. We reserve the right to send you certain types of communications such as direct mail, email, or by telephone

relating to our products or products that you have purchased. We limit access to your personal information to those employees who will
directly provide you with services or products in order to do their jobs. We want to offer you four ways to communicate with us. 1.Online,

2.Fax, 3.Telephone, and 4. Mail the form below. By registering your product you will receive the full benet of our warranty. Watts Premier
will also send you a semiannual lter change reminder beginning six months from date of installation. To insure the highest quality of your
water, lters should be replaced every 6 months. If you have any questions or comments please give us a call at 1-800-752-5582 M-F

8:00am -5:00pm MST.

First Name:_________________________ Last Name:____________________________
Address: ________________________________________ City: ____________________

Filter

Reminder

Notice

State: _______________________________________ Zip Code: ___________________
Country: USA CANADA MEXICO OTHER ____________
Phone # ______-__________ -__________ Email Address: ______________________
Date of Purchase: ___________________ Date of Install: _______________________
Installed By: SELF Plumbing Professional Where Purchased: ____________
Model Number: _______________________ Serial Number: ____ - __________

Watts Premier, Inc. 8716 W Ludlow Drive Sutie #1 Peoria, AZ 85381
Phone: [phone] www.wattspremier.com Fax: 623-866-

13

XXXXX

XXXXXX

-

WARRANTY REGISTRATION

Please Fill out and keep for your Records

First Name:_________________________ Last Name:____________________________
Address: ________________________________________ City: ____________________
State: _______________________________________ Zip Code: ___________________
Country: USA CANADA MEXICO OTHER ____________
Phone # ______-__________ -__________ Email Address: ______________________
Date of Purchase: ___________________ Date of Install: _______________________
Installed By: SELF Plumbing Professional Where Purchased: ____________
Model Number: _______________________ Serial Number: ____ - __________

XXXXX

Iowa Department of Public Health - Sales in Iowa require this to be completed, signed and returned.

These signatures will be retained on le for two years.

Insert into envelope and return to Watts Premier

Watts Premier
8716 W Ludlow Drive Sutie #1
Peoria, AZ 85381

XXXXXX

-

14

Service Record

Date of Purchase:__________ Date of Install:___________ Installed by:_____________

Model Number:__________ Serial Number:___________

Date

Sediment
Filter
(6 months)

Carbon
Block
(6 Months)

Date

Sediment
Filter
(6 months)

Carbon
Block
(6 Months)

NOTES:

8716 W Ludlow Drive Sutie #1 • Peoria, AZ 85381

Limited Warranty

What your Warranty Covers:

If any part of your WATTS PREMIER FILTER PURE unit is defective in workmanship (excluding replaceable lters ),
return unit after obtaining a return authorization (see below), within 3 years of original retail purchase, WATTS PREMIER

will repair or, at WATTS PREMIER’S option, replace the system at no charge.

How to obtain Warranty Service:

For warranty service, call 1-800-752-5582 for a return authorization number. Then, ship your unit to our factory, freight and
insurance prepaid, with proof of date of original purchase. Please include a note stating the problem. Premier will repair it,

or replace it, and ship it back to you prepaid.

What this warranty does not cover:

This warranty does not cover defects resulting from improper installation, (contrary to WATTS PREMIER’S printed

instructions), from abuse, misuse, misapplication, improper maintenance, neglect, alteration, accidents, casualties, re,
ood, freezing, environmental factors, water pressure spikes or other such acts of God.

This warranty will be void if defects occur due to failure to observe the following conditions:

1. The Filter-Pure System must be hooked up to a potable municipal or well cold water supply.

2. The pH of the water must not be lower than 5 or higher than 10.

3. The incoming water pressure must be between 20 and 85 pounds per square inch.

4. Incoming water to the Counter Top cannot exceed 100 degrees F (38 degrees C.)

This warranty does not cover any equipment that is relocated from the site of its original installation.

This warranty doe not cover any charges incurred due to professional installation.

This warranty does not cover any equipment that is installed or used outside the United States of America and Canada.

LIMITATIONS AND EXCLUSIONS:

WATTS PREMIER WILL NOT BE RESPONSIBLE FOR ANY IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE. WATTS PREMIER WILL NOT BE RESPONSIBLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES, INCLUDING TRAVEL EXPENSE, TELEPHONE CHARGES, LOSS OF REVENUE, LOSS OF TIME,
INCONVENIENCE, LOSS OF USE OF THE EQUIPMENT, AND DAMAGE CAUSED BY THIS EQUIPMENT AND ITS FAILURE TO
FUNCTION PROPERLY. THIS WARRANTY SETS FORTH ALL OF PREMIER’S RESPONSIBILITIES REGARDING THIS EQUIPMENT.

OTHER CONDITIONS:

If WATTS PREMIER chooses to replace the equipment, WATTS PREMIER may replace it with reconditioned equipment. Parts used in
repairing or replacing the equipment will be warranted for 90 days from the date the equipment is returned to you or for the remainder of

the original warranty period, whichever is longer. This warranty is not assignable or transferable.

YOUR RIGHTS UNDER STATE LAW:

Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of

incidental or consequential damages, so the above limitations or exclusions may not apply. This warranty gives you specic legal rights,

and you may have other legal rights which vary from state to state.
