ISCA-550

Service Sink Carrier

Tag:

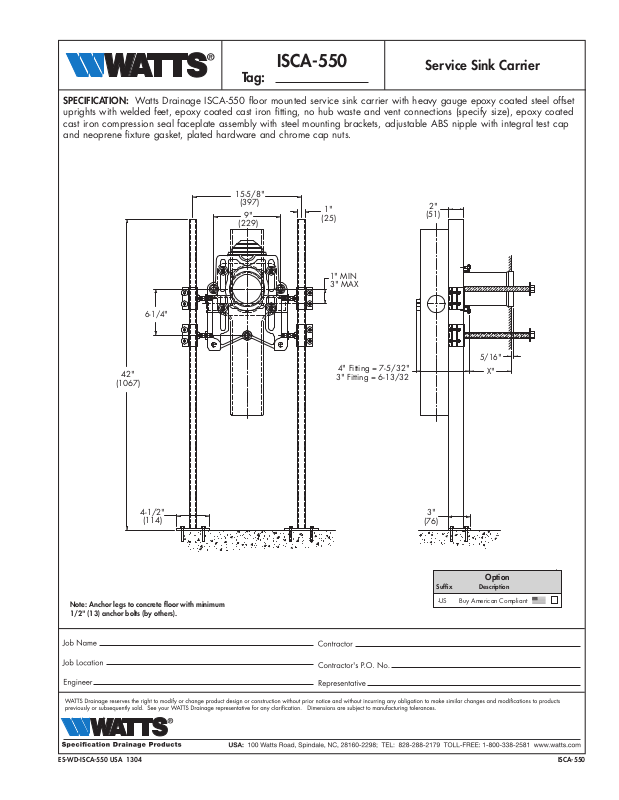

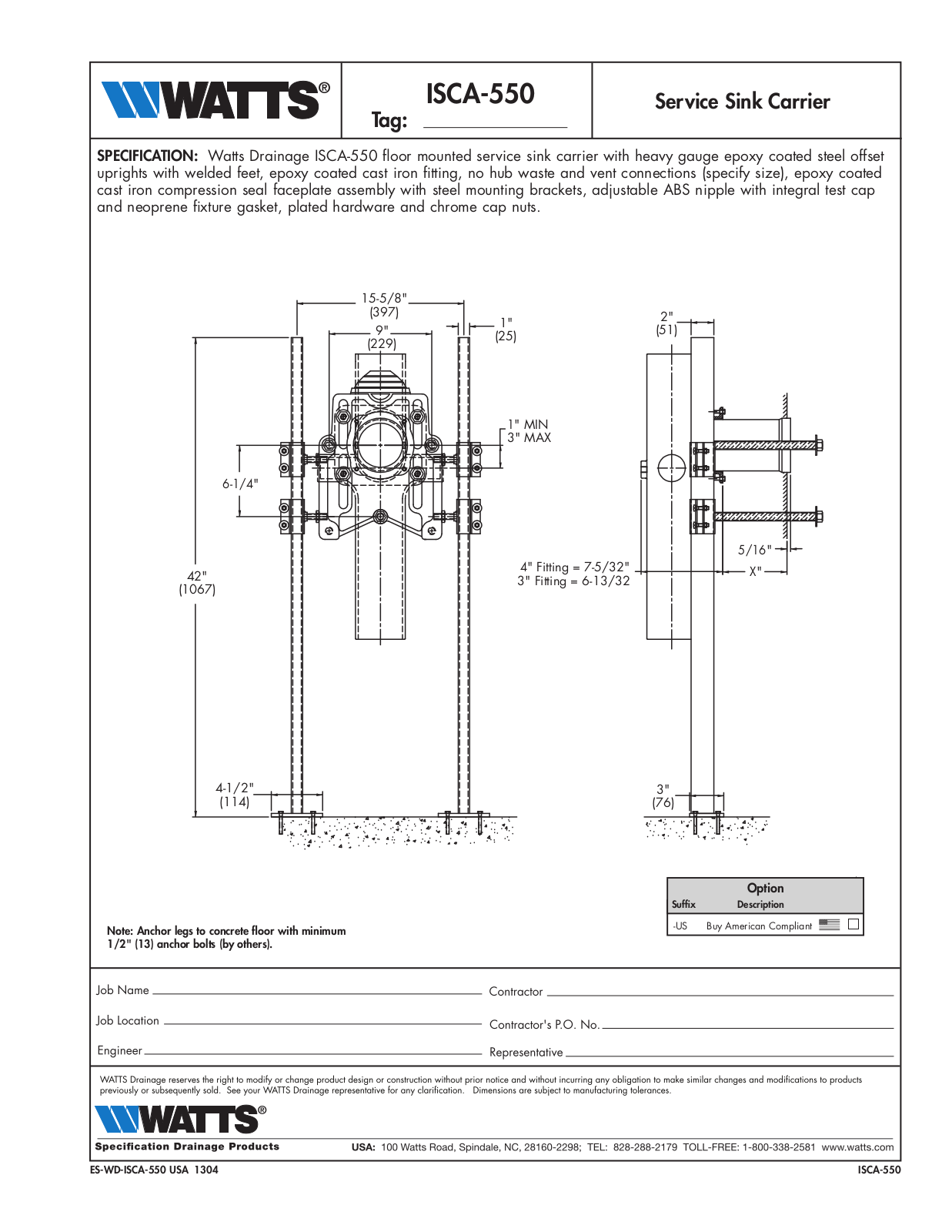

SPECIFICATION: Watts Drainage ISCA-550 floor mounted service sink carrier with heavy gauge epoxy coated steel offset

uprights with welded feet, epoxy coated cast iron fitting, no hub waste and vent connections (specify size), epoxy coated
cast iron compression seal faceplate assembly with steel mounting brackets, adjustable ABS nipple with integral test cap
and neoprene fixture gasket, plated hardware and chrome cap nuts.

15-5/8"

6-1/4

(397)

9"

(229)

"

1"

(25)

1

" MIN

3" MAX

2"

(51)

42"

(1067)

4-1/2"

(114)

Note: Anchor legs to concrete floor with minimum
1/2" (13) anchor bolts (by others).

4

" Fitting = 7-5/32"

3" Fitting = 6-13/32

5/16

X

"

3"

(76)

Suffix Description

-US Buy American Compliant

Option

"

ES-WD-ISCA-550 USA 1304 ISCA-550
