Watts ISCA-132-D User Manual
ISCA-132-D
Tag:

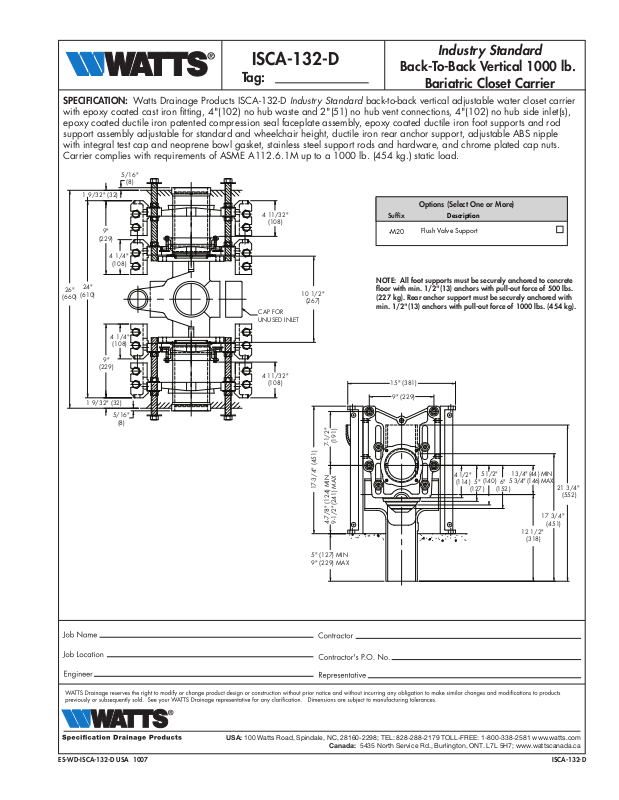

SPECIFICATION: Watts Drainage Products ISCA-132-D Industry Standard back-to-back vertical adjustable water closet carrier
with epoxy coated cast iron fitting, 4"(102) no hub waste and 2"(51) no hub vent connections, 4"(102) no hub side inlet(s),
epoxy coated ductile iron patented compression seal faceplate assembly, epoxy coated ductile iron foot supports and rod
support assembly adjustable for standard and wheelchair height, ductile iron rear anchor support, adjustable ABS nipple
with integral test cap and neoprene bowl gasket, stainless steel support rods and hardware, and chrome plated cap nuts.
Carrier complies with requirements of ASME A112.6.1M up to a 1000 lb. (454 kg.) static load.
5/16"
(8)
1 9/32" (32)
4 11/32"
(108)
CAP FOR
UNUSED INLET
4 11/32"
(108)
10 1/2"
(267)
26"
(660)
(229)
24"
(610)
(229)
1 9/32" (32)
9"
9"
4 1/4"
(108)
4 1/4"
(108)
5/16"
(8)
Back-To-Back Vertical 1000 lb.
Bariatric Closet Carrier
Options (Select One or More)
Suffix
-M20
NOTE: All foot supports must be securely anchored to concrete
floor with min. 1/2"(13) anchors with pull-out force of 500 lbs.
(227 kg). Rear anchor support must be securely anchored with
min. 1/2"(13) anchors with pull-out force of 1000 lbs. (454 kg).
15" (381)
9" (229)
Description
Flush Valve Support
Industry Standard
(191)
7-1/2"
17-3/4" (451)
9-1/2"(241) MAX
4-7/8" (124) MIN
5" (127) MIN
9" (229) MAX
4 1/2"
(114 )
5"
(127 )
5 1/2"
(140 )
1 3/4" (44 ) MIN.
5 3/4" (146) MAX.
6"
(152 )
12 1/2"
(318)
21 3/4"
17 3/4"
(451)
(552)
