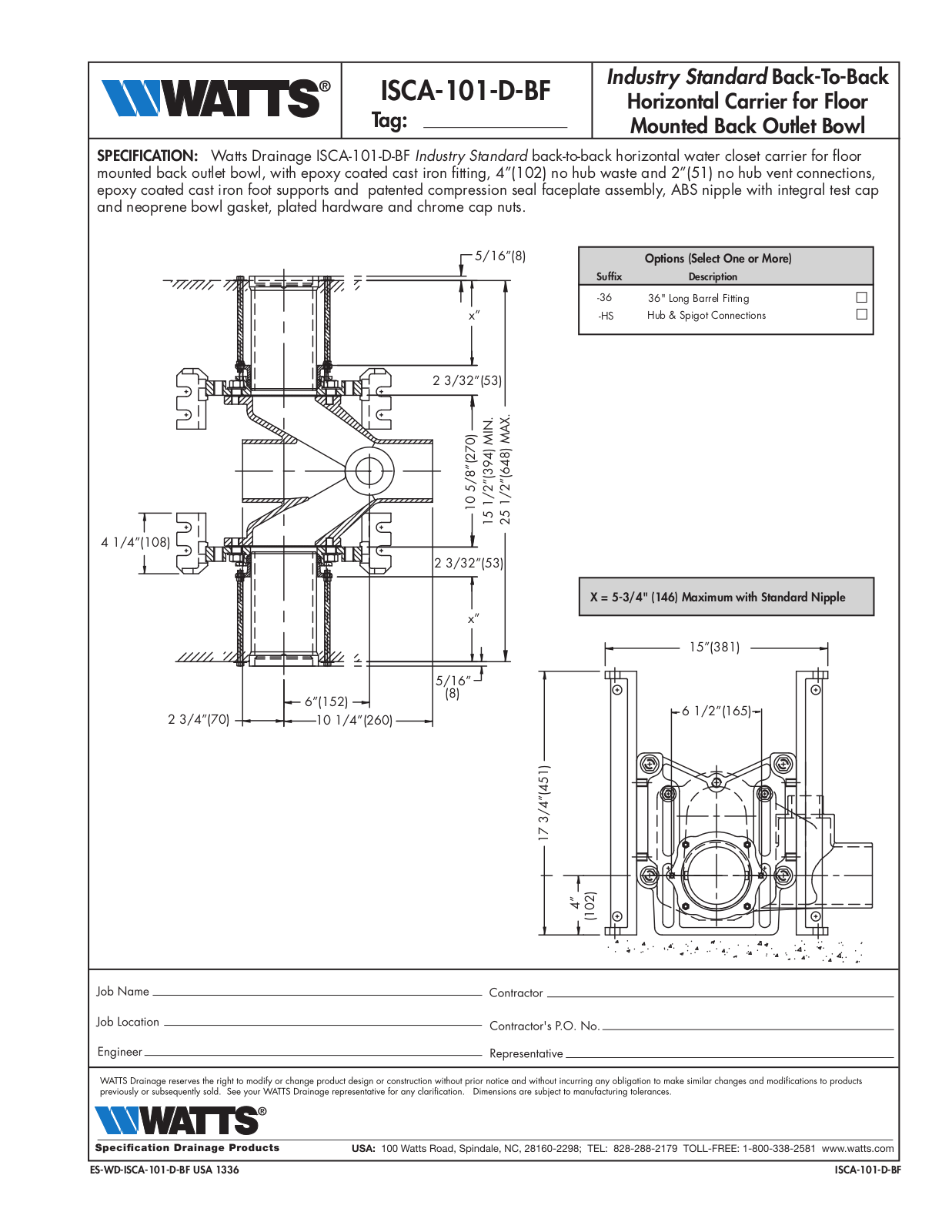

Watts ISCA-101-D-BF User Manual

ISCA-101-D-BF

Tag:

Industry Standard Back-To-Back

Horizontal Carrier for Floor

Mounted Back Outlet Bowl

SPECIFICATION: Watts Drainage ISCA-101-D-BF Industry Standard back-to-back horizontal water closet carrier for floor

mounted back outlet bowl, with epoxy coated cast iron fitting, 4”(102) no hub waste and 2”(51) no hub vent connections,
epoxy coated cast iron foot supports and patented compression seal faceplate assembly, ABS nipple with integral test cap
and neoprene bowl gasket, plated hardware and chrome cap nuts.

4 1/4”(108)

2 3/4”(70)

6”(152)

10 1/4”(260)

5/16”(8)

x”

2 3/32”(53)

10 5/8”(270)

2 3/32”(53)

x”

5/16”

(8)

25 1/2”(648) MAX.

15 1/2”(394) MIN.

Options (Select One or More)

Suffix

-36

-HS

X = 5-3/4" (146) Maximum with Standard Nipple

Description

36" Long Barrel Fitting

Hub&SpigotConnections

15”(381)

6 1/2”(165)

17 3/4”(451)

4”

(102)

ES-WD-ISCA-101-D-BF USA 1336 ISCA-101-D-BF
