SECTION 15: SA T 3C/D/F
INST ALLA TION GUIDE
SAT 3C/D/F General Specifi cations................... 15-1
SAT 3C/D/F Benefi ts and Features .................... 15-2
Typical WCC III System Installation ................. 15-3
Globally Addressable Control Points ............... 15-5
SAT 3C Zone Summary Sheet........................... 15-6
SAT 3D Zone Summary Sheet........................... 15-7
SAT 3F Zone Summary Sheet .......................... 15-8
Dip Switch Settings and LEDs .......................... 15-9
SAT 3C Satellite Addressing........................... 15-12
SAT 3D/F Satellite Addressing ........................ 15-13
TUC Addressing .............................................. 15-14
RTU-17 Addressing ......................................... 15-15
SAT 3F Zone Addressing ................................15-16
Typical System Confi guration
with SAT 3C ..................................................... 15-17
Typical System Confi guration with SAT 3D ... 15-18
Typical System Confi guration with SAT 3F .... 15-19
System Components ....................................... 15-20
SAT 3C/D/F Controller Installation
and Mounting ..................................................15-10
WattMaster Controls Inc.
8500 NW River Park Drive · Parkville , MO 64152
Toll Free Phone: 866-918-1100
PH: (816) 505-1100 · FAX: (816) 505-1101 ·
E-mail: mail@wattmaster.com
Visit our web site at www.wcc-controls.com
Form: WCCIII-SAT3CDF-INSTALL-TGD-01A Copyright 2012 WattMaster Controls, Inc.
WattMaster Controls, Inc. assumes no responsibility for errors, or omissions.
This document is subject to change without notice.
SECTION 15:
SA T 3C/D/F INST ALLA TION GUIDE
__________________________________________
ON OFF
ON OFF
SATREC
SATXMIT
TUC REC
TUC XMIT
BATTON/ OFF
OPTION 4
OPTION 3
OPTION 2
OPTION 1
LOCALSET DISABLE
LOCALSET
TEST
128
64
32
16
8
4
2
1
LOCAL SET
STATUS
"C" MODE
"D" MODE
SATADDRESS
SAT IIICD
Communications Interface
X
"C" MODEADDRESSING NOTES
"C" MODE SATIII ADDRESSING STARTS
ATADDRESS 8.
EACH "C" MODE SATIII TAKES UP
8 SATIII LOGICAL ADDRESSES.
A"C" MODE SATIII CAN COMMUNICATE
WITH 8 DEVICESTOTAL.
"D" MODEADDRESSING NOTES
"D" MODE SATIII ADDRESSING STARTS
ATADDRESS 4.
EACH "D" MODE SATIII TAKES UP4
SATIII LOGICAL ADDRESSES.
A"D" MODE SAT III CAN COMMUNICATE
WITH 32 DEVICESTOTAL.
15. SAT 3C/D/F INSTALLATION
SA T 3C/D/F Overview
TUC COMMUNICATIONS LOOP
RS-485 @ 9600 BAUD
C
D
F
SATCOMMUNICATIONS LOOP
RS-485 @ 19200 BAUD
SAT 3C/D/F General Specifications:
The SAT 3C/D/F controller is a drop-in replacement for the older SAT 2d or SAT 2c line of controllers that WattMaster
Controls Inc. manufactured from 1983 to 2006. The SAT 3C/D/F is an advanced product improvement over the older SAT 2c/d
type controller.
The SAT 3C/D/F is a communication interface that converts/transfers data between the WCC III satellite based system and the
WattMaster Controls series of standalone controllers that are referred to as TUC (Terminal Unit Controllers) or RTU (Roof
Top Units.
The SAT 3C provides the ability to communicate with up to 8 RTUs or TUC5Rs depending on the SAT 3C’s application software
code.
The SAT 3D provides the ability to communicate with up to 32 TUC2Rs, VAVZ IIs, TUC5RXs or TUC5Rs depending on the
SAT 3D’s application software code.
The SAT 3F provides the ability to communicate with up to 16 TUC2Rs, VAVZ IIs, TUC5RXs or TUC5R depending on the
SAT 3F’s application software code.
The SAT 3C/D/F features the following:
Two RS-485 communication ports. The satellite communications port runs at 19.2K baud and is connected to other SAT 3 type
devices, while the TUC communication port runs at 9600 baud and connects between the SAT 3C/D/F interface and to the
TUC or RTU type devices.
On the front cover of the SAT 3C/D/F controller, there are 8 LEDs for easier user troubleshooting diagnostics.
There are two 8 position dipswitches that are also located on the cover of the SAT 3C/D/F controller. One dipswitch is a
satellite address base switch, and the other is an option switch to select various different options on the SAT 3C/D/F controller.
The SAT III type interconnecting communications:
It is a WattMaster Controls proprietary RS-485 based protocol, and it is based on packetized data in pre-defined parameter
blocks. Troubleshooting of the SAT III RS-485 communication’s loop and the TUC RS-485 communication’s loop is possible
with a Digital Volt Meter. (The older SAT II communications was based on Manchester encoded data, and was very reliable,
but was hard to troubleshoot)
For the WCC III system. WattMaster Controls has developed a new isolated 485 communication bus that can support 239 SAT
IIIs on four separate communications channels (60 Satellite loads per channel) .
A single channel can support up to 60 SAT III type loads on one communications loop. This is for redundant operation—if for
some unknown reason a WCC III communications channel loop goes down, it will not cause other SAT III type controllers on
the other loops to lose communications to the WCC III - MCD.
WCC III Technical Guide
15-1
15. SAT 3C/D/F INSTALLATION
SA T 3C/D/F Benefits and Features
SAT 3C/D/F CONTROLLER
WATTMASTER CONTROLS
ON OFF
ON OFF
SATREC
SATXMIT
TUC REC
TUC XMIT
BATTON/ OFF
OPTION 4
OPTION 3
OPTION 2
OPTION 1
LOCALSET DISABLE
LOCALSET
TEST
128
64
32
16
8
4
2
1
LOCAL SET
STATUS
"C" MODE
"D" MODE
SATADDRESS
SAT IIICD
Communications Interface
D
"C" MODEADDRESSING NOTES
"C" MODE SATIII ADDRESSING STARTS
ATADDRESS 8.
EACH "C" MODE SATIII TAKES UP
8 SATIII LOGICALADDRESSES.
A"C" MODE SATIII CAN COMMUNICATE
WITH 8 DEVICESTOTAL.
"D" MODEADDRESSING NOTES
"D" MODE SATIII ADDRESSING STARTS
ATADDRESS 4.
EACH "D" MODE SATIII TAKES UP4
SATIII LOGICALADDRESSES.
A"D" MODE SAT III CAN COMMUNICATE
WITH 32 DEVICESTOTAL.
SAT 3C/D/F CONTROLLER VERSES SAT 2C/D CONTROLLER BENEFITS
THE SAT 3C/D/F CONTROLLER HAS A SMALLER MECHANICAL FOOT PRINT THAN THE OLD SAT 2C/D CONTROLLER
THE SAT 3C/D/F CONTROLLER USES THE SAME WIRING AS THE SAT 2C/D CONTROLLER
THE SAT 3C/D CONTROLLER USES THE SAME TUC AND RTU COMMUNICATION PROTOCOL AS THE SAT 2C/D CONTROLLER SO IN THEORY, A TUC
CONTROLLER. BUT MUCH BETTER CONTROL IS GENERALLY POSSIBLE WITH THE NEWER WCC III BASED TUC/RTU SOFTWARE.
THE SAT 3C/D/F CONTROLLER USES THE SAME SATELLITE DATA FILES AS THE SAT 2C/D CONTROLLER
THE SAT 3C/D/F CONTROLLER PROGRAM UPDATESARE AVAILABLE VIAA "FLASH" PROGRAMMING OR A DOWNLOADED
UPDATE. THE SAT 2C/D CONTROLLER SOFTWARE UPDATES HAD TO BE CHANGED OUT WITH A EPROM. THE SAT 3C/D/F
CONTROLLER CAN BE CHANGED BY REMOTELY DOWNLOADING THE SOFTWARE OR BY "FLASHING" A NEW PROGRAM
INTO THE SAT 3 D CONTROLLER'S MEMORY. A FLASHC/ /F PROGRAMMING TOOL IS AVAILABLE TO THE CONTRACTOR.
BOTH USB AND PARALLEL PORT VERSIONS OF THE FLASH PROGRAMMING TOOL ARE AVAILABLE.
OR RTU CHANGE OUT IS NOT REQUIRED WHEN CHANGING ASAT 2C/D CONTROLLER TO A SAT 3C/D
ADDED SAT 3C/D/F CONTROLLER FEATURES
A TUC2R (WM part # 320) would have 2 control relays on board. (With two different types of optional expansion boards there could be eitherOE
3 or 4 more relays)
A TUC5R (WM part # OE330-21) would have 5 control relays on board. (No expansion possible) (-21 is on metal back plate)
A TUC5R+ (WM part # OE331-21)would have 5 control relays on board. (With a series of different types of expansion boards)
(-21 is on metal back plate)
A TUC5RX (WM part # OE332-23) would have 5 control relays on board. (With a series of different types of expansion boards)
(-23 is a Plastic circuit board cover)

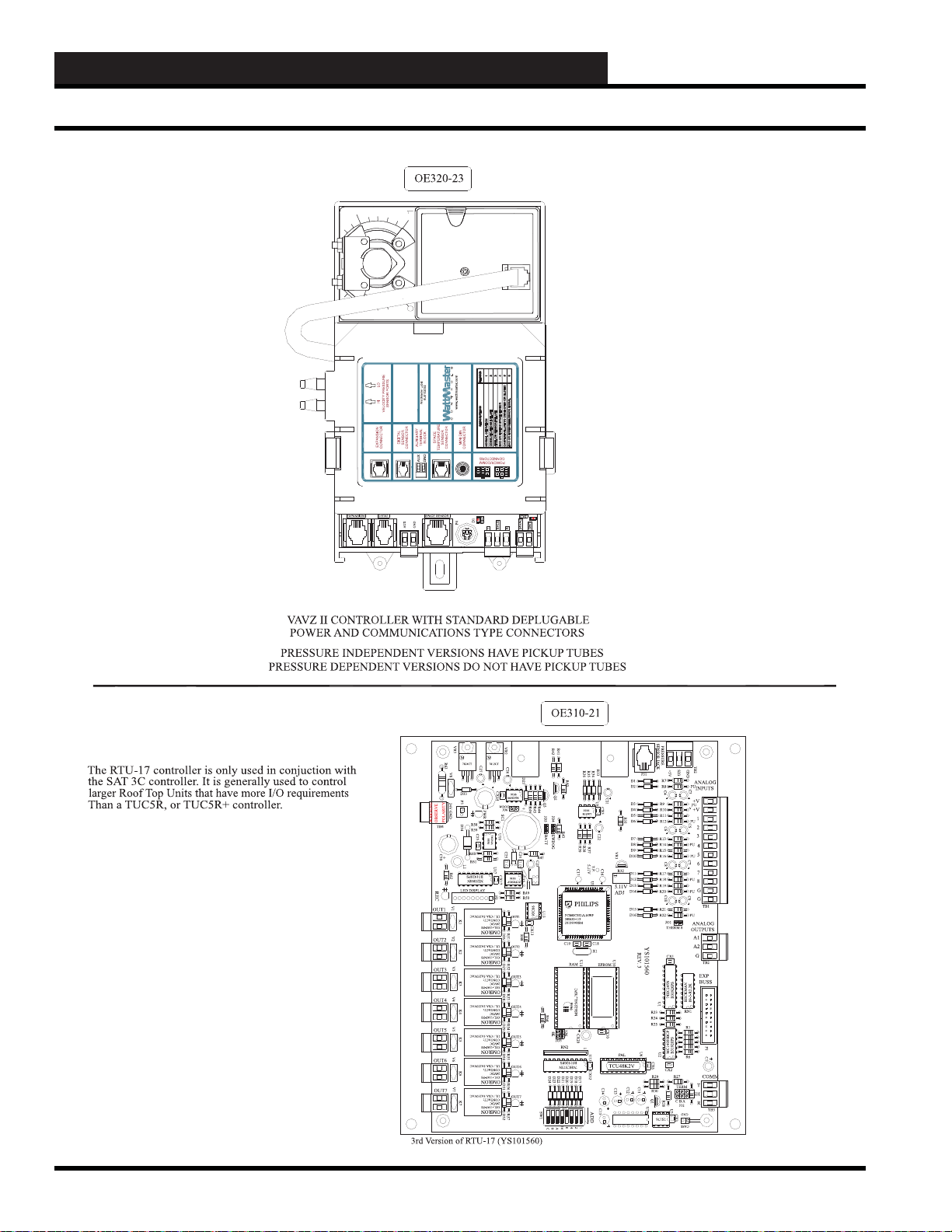

A VAVZ-II Box Controller (WM part # OE324-23) is an all in one plastic housing for VAV Zoning control that can be used with the optional
WM OE217 LCD display Temperature sensor. An optional I C Relay expansion board is available for this controller, but it is different
than the O 321 and OE322. (-23 is in plasticE enclosure)
The most common TUC2R application is what is called VAVBOX control, with a tri-state actuator used to modulate a damper for the temperature
Zone. This VAVBOX software can be configured for pressure dependent operation or pressure independent operation with the addition of an optional
pressure sensor. An optional expansion board can be added for control of Series or Parallel Fan and stages of electric Box Heat. There is another
optional expansion board that can be added instead for control of series or parallel fan, stages of electric box heat, and an analog output for an analog
controlled actuator for hot water reheat. WattMaster WCC II VAVBOX WM Software #S 5001. Original WCC II VAVBOX - last released 1995. TheS
WM software version is 2.03. WattMaster WCC III VAVBOX. WM Software # 5010. Updated version of WCC II VAVBOX software thatSS
was modified from the WattMaster Control’s other line of
older versions of the TUC2R controller so that software upgrades are possible.
The most common TUC5R+ application is what is called a WCC III Heat Pump / CV Air Handler.
WattMaster WCC III Heat Pump / CV Air Handler with CO Sensor control. WM Software # SS5011. The current version is 1.02, and it is for a
TUC5R+ board.
New to the WCC III is the VAVZ-II Box Controller. SAT 3D version is WM Software # SS5014, and the current software is version 3.10.
When ordering a WattMaster controller, please specify the controller’s "OE" part number followed by the "SS" software part number.
WM part # OE321 is a 4 Relay expansion board for the TUC2R controller and is software dependent. ( 5001 only)SS
WM part # OE322 is a 3 Relay and one analog output for HW valve control, is an expansion board for the TUC2R controller, and is software
Dependent. (SS5010 only)
There was "custom" TUC2R and TUC5R software that was written in 1980s and 1990s, and you would have to read the EPROM label of the boards
to get replacement controllers if needed. Call WattMaster for further details.
THE SAT 3C/D/F CONTROLLER HAS AN ADDITIONAL FOUR LEDS THAT DISPLAY THE STATUS OF THE RECEIVEAND TRANSMIT
FOR THE SAT LOOP RS-485 AND TUC LOOP RS-485 COMMUNICATIONS. IT DOES THIS FOR BOTH THE SAT III COMMUNICATIONS
LOOP AND THE TUC PORT. IN ADDITION, THERE IS ASEPARATE LOCAL SET LED,AND THREE STATUS LEDS.
THE SAT 2C/D CONTROLLER ONLY HAD AN LED THAT WAS A COMBINATION - POWER, COMMUNICATIONS, AND LOCAL SET
INDICATOR FOR THE SATELLITE MANCHESTER COMMUNICATIONS LOOP.
SAT III - COMMUNICATIONS
THE SAT 3C/D/F CONTROLLER NOW USES RS-485 COMMUNICATIONS. THE SAT 2C/D CONTROLLER USED ATRANSFORMER
COUPLED MANCHESTER ENCODED PROTOCOL THAT WAS DIFFICULT TO TROUBLESHOOT. THE BEST BENEFIT OF HAVING
RS-485 COMMUNICATIONS IS THAT IT CAN BE TROUBLESHOT WITH ADIGITAL VOLTMETER.
2
VAVBOX Controllers. Current version is 3.04 and uses the TUC32K2 PAL for use in
²
SATELLITE PART NUMBERS
OE421 SAT III CONTROLLER
(SS5003)
OE454 SAT 3C CONTROLLER
(SS5004)
OE455 SAT 3D CONTROLLER
(SS5005)
OE456 SAT 3F CONTROLLER
(SS5016)
15-2
