T ABLE OF CONTENTS
SECTION 17:
BINAR Y INPUT W/TIME DELA Y
BOARD INST ALLA TION
WCC3 Binary Input w/Time Delay
Board Sequence ........................................17-1
SAT III Controller Connection for a
Binary Input w/Time Delay Board
Type Connection ....................................... 17-2
Duplicating The Original SAT II
Binary Input w/Time Delay Board Type
Connection ................................................17-2
Dimensions of the WCC3 Binary Input
w/Time Delay Board .................................. 17-4
WCC3 Binary Input w/Time Delay Board
Connections ..............................................17-4
WCC3 Binary Input w/Time Delay Board
Installation and Mounting .........................17-4
17. Binary Input w/Time Delay Board Installation
Installation Instructions
ENGINEERING INSTALLATION GUIDE

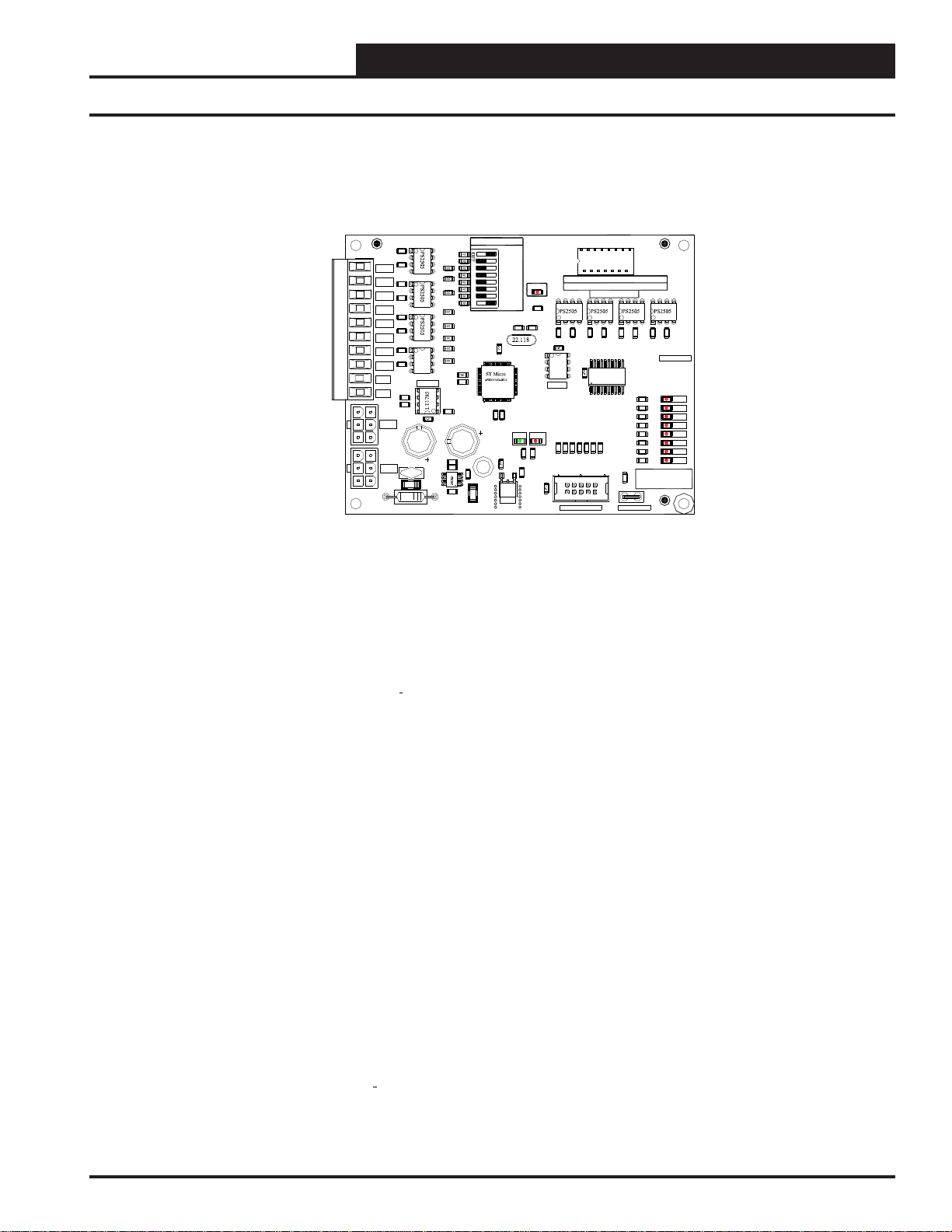

WCC3 HSS BINARY INPUT WITH TIME DELAY BOARD
WATTMASTER PART # OE431-01 (SS5006)
U1
R1
1001
TB1
R2
1001
BIN1
R3
U3
BIN2
1001
R12
BIN3
1001
BIN4
R13
U4
1001
BIN5
R14
1001
BIN6
R15
U6
PS2505
1001
BIN7
R16
1001
BIN8
GND
485 DRV
R36
GND
1000
1000
R34
HSS
P2
HSS
V1
P3
D11
R40
TIME DELAY
R4
R5
R50
R6
R51
R7
R8
R52
R9
R10
R11
R53
R54
R55
R56
R57
R48
4701
C11
3831
R46
1211
R45
U12
3300
R41
15 MIN
30 MIN
1 HR
2 HRS
3 HRS
4 HRS
L1-8
L9-16
SW1
C6 C5
22pF 22pF
C4
X1
C3
10uF
C7
U2
10uF
10uF
C2
C1
STAT
C16
3650
C14
100pF
D12
R17
10uF
-3.3
LP2950
U14
POWER
D13
R49
3650
1001
U8
93C46
EEPROM
R21
COMM
D2D1
1002
3650
R18
C15
C9
J1
WCC3 BINARY IN W/ TIME DELAY
WATTMASTER CONTROLS, INC
YS102072 REV 2
U9U7
R19
C10
R28
1002
PROGRAM SOCKET
U11
R38
R33
R30
R20
1001
1001
1001
1001
C8
74HC541
U5
R22
R29
R31
R27
R26
1002
1002
R32
R25
R24
R23
R35
R37
1002
1002
1002
R39
R42
C17
.01uF
P1
CHASSIS GND
1001
U13
R43
3650
3650
3650
3650
3650
3650
3650
3650
R44
1001
SERIAL #
P4
R47
1001
MADE IN USA
BIN1
BIN2
BIN3
BIN4
BIN5
BIN6
BIN7
BIN8

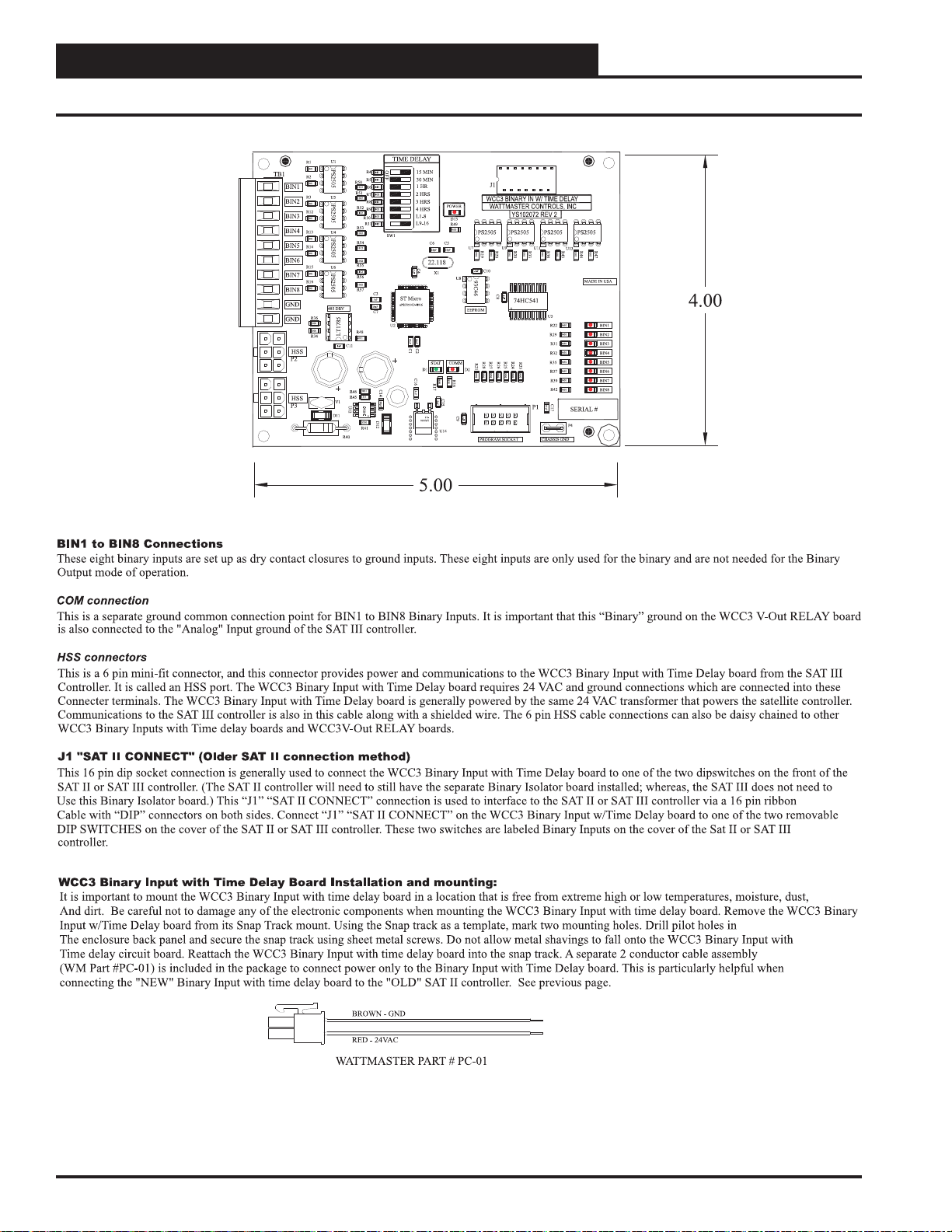

The new WCC3 Binary Input w/time delay board provides a terminal point for landing wire for an external input switch / relay contact. It can interface
To the SAT II or SAT III controller via a 16 pin ribbon cable with “DIP” connectors on both sides.
WCC3 Binary Input w/time delay board to one of the two removable DIP SWITCHES on the cover of the SAT II or SAT III controller. These two
Switches are labeled Binary Inputs on the cover of the SAT II or SAT III controller. Or an alternative method of connection to only the SAT III
Controller is provided by the 6 pin HSS communications port on the side of the SAT III Controller. This HSS communications port does not exist on the
SAT II controller.
The eight Binary Inputs on the new WCC3 Binary Input /w time delay board are dry contact closures to ground only.
There is an 8 position time delay switch on the new WCC3 Binary Input w/time delay board. This time delay switch determines how long the input will
stay on after a momentary switch contact is applied to the input of the new WCC3 Binary Input /w time delay Board.
With the time delay dipswitch (1 to 4) all OFF, there is no delay ON for all eight inputs.
Time Delay dipswitch # 1 - (15 MIN) ON there is a 15 minute delay ON for all eight inputs.
Time Delay dipswitch # 2 - (30 MIN) ON there is a
Time Delay dipswitch # 3 - (1 HOUR) ON there is a 1 hour delay ON for all eight inputs.
1
hour delay ON for all eight inputs.
2
Time Delay dipswitch # 4 - (2 HOUR) ON there is a 2 hour delay ON for all eight inputs.
Time Delay dipswitch # 5 - (3 HOUR) ON there is a 3 hour delay ON for all eight inputs.
Time Delay dipswitch # 6 - (4 HOUR) ON there is a 4 hour delay ON for all eight inputs.
These Dipswitch settings are additive. With
Time Delay dipswitch (1 - 15 MIN, 2 - 30 MIN, and 3 - 1 HOUR) ON there is a 1 hour and 45 minute delay
ON for all eight inputs. The eight LEDs marked BIN1 to BIN8 follow the Time Delay set by the Time Delay dipswitch #1 to # 6.
Time Delay dipswitch #7 - (L1-8) selects Binary Inputs 1 to 8. Is used only when the SAT III HSS port is connected to the WCC3 Binary Input w/
time delay board
via a PCC cable.
Time Delay dipswitch #8 - (L9-16) selects Binary Inputs 9 to 16. Is used only when the SAT III HSS port is connected to the WCC3 Binary Input w/
time delay board via a PCC cable.
You should never have both Time Delay dipswitch #7
& #8 ON at the same time. One or the other but not both.
Note:
These Time Delay dipswitches #1 to #6 are ignored when the Binary Input w/ time delay board is connected via the HSS port with an HSS cable (WM
Part # PCC-XX with XX = 01, 1.5, 03, 25, 40, 80, 120. With “XX” meaning how long the cable is in feet). This cable provides both Power and
Communications to the WCC3 Binary Input /w time delay board via the SAT III Controller's HSS communications port. The HSS connects are meant to
be daisy chained with each HSS expansion board having two HSS connectors on it.
There are 16 independent time delays on the Binary Input screen of the WCC III front end software. One for each of the 16 binary inputs.
The eight input status LEDs on the new WCC3 Binary Input /w time delay board also do not work during a time delay when it is connected to the SAT
III via the HSS port.
This Binary Input board power requirements are 24VAC and it draws 5 VA.
The 24 VAC power connection is through P2 or P3, and you must observe polarity when connecting the special supplied power cable (WM Part # PC-01)
for this power connection to the SAT III controller.
When ordering the WCC3 Binary Input /w time delay board you must specify the length of the HSS cable at the time of the order
Note: PC-01 (Power Only Cable - 1 foot long) and PCC-03 (Power and Communications Cable - 3 feet long) are included in the package.
The cables below are also available for order:
PCC-01 (Power and Communications Cable - 1 foot long)
PCC-1.5 (Power and Communications Cable PCC-25 (Power and Communications Cable - 25 feet long)
PCC-40 (Power and Communications Cable - 40 feet long)
PCC-80 (Power and Communications Cable - 80 feet long)
PCC-120 (Power and Communications Cable - 120 feet long)
