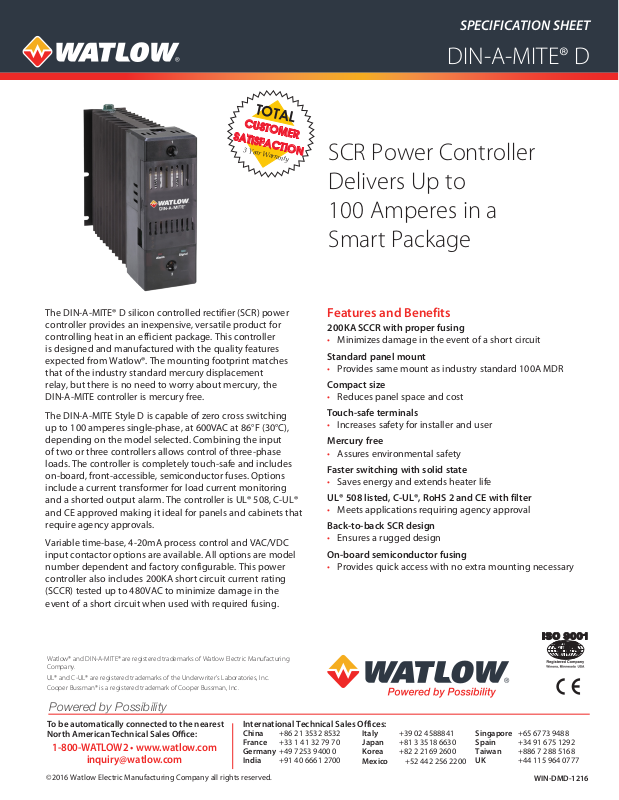

Watlow DIN-A-MITE D Data sheet

SPECIFICATION SHEET

TOTAL

3 Year Warranty

CUSTOMER

SATISFACTION

DIN-A-MITE® D

SCR Power Controller
Delivers Up to
100 Amperes in a
Smart Package

The DIN-A-MITE® D silicon controlled rectifier (SCR) power
controller provides an inexpensive, versatile product for
controlling heat in an efficient package. This controller
is designed and manufactured with the quality features
expected from Watlow®. The mounting footprint matches
that of the industry standard mercury displacement
relay, but there is no need to worry about mercury, the
DIN-A-MITE controller is mercury free.

The DIN-A-MITE Style D is capable of zero cross switching
up to 100 amperes single-phase, at 600VAC at 86°F (30°C),
depending on the model selected. Combining the input
of two or three controllers allows control of three-phase
loads. The controller is completely touch-safe and includes
on-board, front-accessible, semiconductor fuses. Options
include a current transformer for load current monitoring
and a shorted output alarm. The controller is UL® 508, C-UL®
and CE approved making it ideal for panels and cabinets that
require agency approvals.

Variable time-base, 4-20mA process control and VAC/VDC
input contactor options are available. All options are model
number dependent and factory configurable. This power
controller also includes 200KA short circuit current rating
(SCCR) tested up to 480VAC to minimize damage in the
event of a short circuit when used with required fusing.

Features and Benefits

200KA SCCR with proper fusing

• Minimizes damage in the event of a short circuit

Standard panel mount

• Provides same mount as industry standard 100A MDR

Compact size

• Reduces panel space and cost

Touch-safe terminals

• Increases safety for installer and user

Mercury free

• Assures environmental safety

Faster switching with solid state

• Saves energy and extends heater life

UL® 508 listed, C-UL®, RoHS 2 and CE with filter

• Meets applications requiring agency approval

Back-to-back SCR design

• Ensures a rugged design

On-board semiconductor fusing

• Provides quick access with no extra mounting necessary

Watlow® and DIN-A-MITE® are registered trademarks of Watlow Electric Manufacturing
Company.

UL® and C-UL® are registered trademarks of the Underwriter’s Laboratories, Inc.

Cooper Bussman® is a registered trademark of Cooper Bussman, Inc.

Powered by Possibility

To be automatically connected to the nearest
North American Technical Sales Oce:

1-800-WATLOW2 • www.watlow.com

©2016 Watlow Electric Manufacturing Company all rights reserved.

[e-mail]

International Technical Sales Offices:

China [phone]
France [phone]
Germany [phone]
India [phone]

Italy [phone]
Japan [phone]
Korea [phone]
Mexico [phone]

Singapore [phone]
Spain [phone]
Taiwan [phone]
UK [phone]

WIN-DMD-1216

Specifications

Max. Internal Enclosur

Amperage

• See the Output Rating Curve chart below

• Max. surge current for 16.6ms, 1,800A peak

• Latching current: 500mA max.

• Holding current: 200mA max.

• Power dissipation is 1.4 watts per ampere switched including
on-board fusing

• 200KA SCCR, Type 1 and 2 approved with the recommended
fusing; see user manual

Line Voltage

• 24 to 48VAC units: 20VAC min. to 53VAC max.

• 100 to 240VAC units: 48VAC min. to 265VAC max.

• 277 to 480VAC units: 85VAC min. to 528VAC max.

• 277 to 600VAC units: 85VAC min. to 660VAC max.

• 50/60Hz independent ±5%

Control Mode, Zero Cross

• Control option C: VDC input, contactor output

• Control option K: VAC input, contactor output

• To increase service life, the cycle time should be less than

three seconds

• Control option F: 4 to 20mA DC input, variable time-base

control output

Control Input

• AC contactor: 24VAC ±10%, 120VAC +10/-25%, 240VAC

+10/-25% @ 25 mA max. per controlled leg

• DC contactor: 4.5 to 32VDC: max. current @ 4.5VDC is 8mA

per leg

• Loop powered linear current 4 to 20mA DC: loop-powered,

control option F0 only (requires current source with 8.0VDC
available, no more than two DIN-A-MITE inputs can be
connected in series)

Shorted SCR Alarm Option

• Alarm state when the input command signal off and a 15A or
more load current is detected by the current transformer

Alarm Output

• Energizes on alarm, non-latching

• Triac 24 to 240VAC external supply with a current rating of
300mA @ 77°F (25°C)

Current Sensing

• On-board current transformer (CT), typically 0.2VAC output
signal per ampere sensed into 1,000Ω load

Agency Approvals

• CE with proper filter:
204/108/EC Electromagnetic Compatibility Directive
EN 61326-1: Industrial Immunity Class A Emissions
Not suitable for Class B emissions environment
2006/95/EC Low Voltage Directive
EN 50178 Safety Requirements

• UL® 508-listed and C-UL® File E73741

Control Input Terminals

• Compression: will accept 26 to 12 AWG (0.13 to 3.3 mm2) wire

Line and Load Terminals

• Compression: will accept 6 to 2 AWG (13.3 to 33.6 mm2) wire

Operating Environment

• Operating temperature range: -4 to 176°F (-20 to 80°C)

• 0 to 90% RH (relative humidity), non-condensing

• Vibration: 2 g, 10Hz to 150Hz, applied in any one of three axes

• Storage temperature: -40 to 185°F (-40 to 85°C)

• Insulation tested to 3,000 meters

• Installation Category III, pollution degree 2

Mounting

• Back-panel mounting; fits the same mounting pattern as a 100A,
single-phase mercury displacement relay

• On-board semiconductor fusing

Dimensions

• 7.3 in. (185 mm) high x 2.6 in. (66 mm) wide x 9.4 in.
(239 mm) deep

• Weight: 6.5 lb (2.95kg)

Specifications are subject to change without notice.

Output Rating Curve

DIN-A-MITE Style D Natural Convection Ratings at 100% On

85

80

75

e

70

65

60

55

50

45

40

Ambient Temperature (˚C )

35

30

25

0510 15 20 25 30 35 40 45 50 55 60 65 70

Current (Amperes) Into a Resistive Load

75 80 85 90 95 100 105

Ordering Information

Part Number

①

D

③

1 =

④

0 = Natural convection

⑤ ⑥

02 =
24 =
48 =
60 =

⑦ ⑧

C0 =
F0 =
K1 =
K2 =
K3 =

②

D

1-phase, 1 controlled leg

Cooling and Current Rating (see rating curve)

24 to 48VAC
120 to 240VAC
277 to 480VAC
277 to 600VAC

4.5 to 32VDC input, contactor output
4 to 20mA DC input, variable time-base output
22 to 26VAC input, contactor output
100 to 120VAC input, contactor output
200 to 240VAC input, contactor output

③

④

Cooling &

Current

Phase

Rating

–

Phase

Line and Load Voltage

Control

⑤ ⑥

Line &

Load

Voltage

⑦ ⑧

Control

⑨

⑩

⑪ ⑫

Current
Sensing

or Alarm

User

Manual

Custom
Options

–

⑨

0 =

No alarm

1 =

Load current transformer

S =

Shorted SCR alarm

⑩

0 =

English

1 =

German

2 =

Spanish

3 =

French

⑪ ⑫

00 =

Standard part

Recommended Semiconductor Fuse

Watlow Part Nbr. Cooper Bussman® Part Nbr.

0808-0096-0000 170N3437

Current Sensing or Alarm

Custom Options

User Manual
