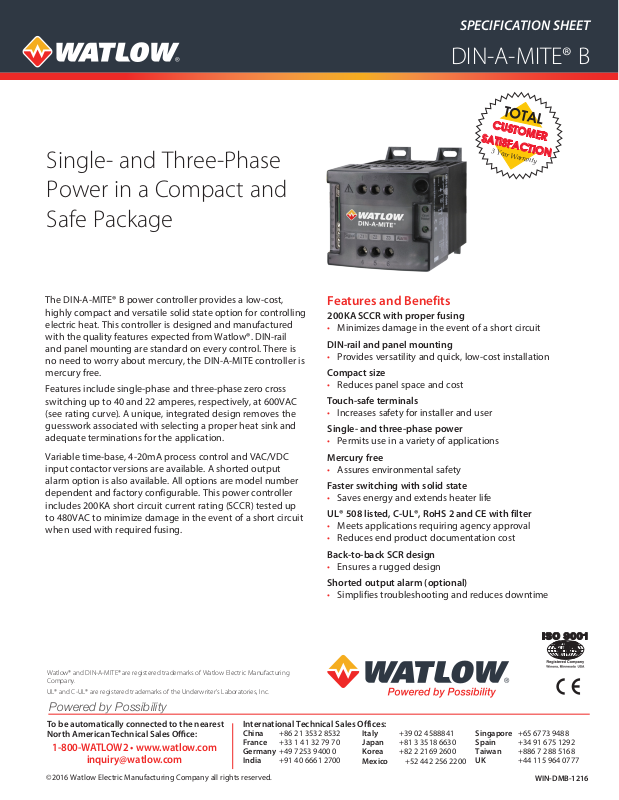

Watlow DIN-A-MITE B Data sheet

Single- and Three-Phase

TOTAL

3 Year Warranty

CUSTOMER

SATISFACTION

Power in a Compact and
Safe Package

SPECIFICATION SHEET

DIN-A-MITE® B

The DIN-A-MITE® B power controller provides a low-cost,
highly compact and versatile solid state option for controlling
electric heat. This controller is designed and manufactured
with the quality features expected from Watlow®. DIN-rail
and panel mounting are standard on every control. There is
no need to worry about mercury, the DIN-A-MITE controller is
mercury free.

Features include single-phase and three-phase zero cross
switching up to 40 and 22 amperes, respectively, at 600VAC
(see rating curve). A unique, integrated design removes the
guesswork associated with selecting a proper heat sink and
adequate terminations for the application.

Variable time-base, 4-20mA process control and VAC/VDC
input contactor versions are available. A shorted output
alarm option is also available. All options are model number
dependent and factory configurable. This power controller
includes 200KA short circuit current rating (SCCR) tested up
to 480VAC to minimize damage in the event of a short circuit
when used with required fusing.

Features and Benefits

200KA SCCR with proper fusing

• Minimizes damage in the event of a short circuit

DIN-rail and panel mounting

• Provides versatility and quick, low-cost installation

Compact size

• Reduces panel space and cost

Touch-safe terminals

• Increases safety for installer and user

Single- and three-phase power

• Permits use in a variety of applications

Mercury free

• Assures environmental safety

Faster switching with solid state

• Saves energy and extends heater life

UL® 508 listed, C-UL®, RoHS 2 and CE with filter

• Meets applications requiring agency approval

• Reduces end product documentation cost

Back-to-back SCR design

• Ensures a rugged design

Shorted output alarm (optional)

• Simplifies troubleshooting and reduces downtime

Watlow® and DIN-A-MITE® are registered trademarks of Watlow Electric Manufacturing
Company.

UL® and C-UL® are registered trademarks of the Underwriter’s Laboratories, Inc.

Powered by Possibility

To be automatically connected to the nearest
North American Technical Sales Oce:

1-800-WATLOW2 • www.watlow.com

©2016 Watlow Electric Manufacturing Company all rights reserved.

[e-mail]

International Technical Sales Offices:

China [phone]
France [phone]
Germany [phone]
India [phone]

Italy [phone]
Japan [phone]
Korea [phone]
Mexico [phone]

Singapore [phone]
Spain [phone]
Taiwan [phone]
UK [phone]

WIN-DMB-1216

Specifications

Ambient Temperature (°C)

Operator Interface

• Control input and indication light

• Alarm output and indication light

Amperage Rating

• See the output rating curve

• Max. surge current for 16.6ms, 380A peak

• Max. I2t for fusing is 4,000A2s

• Latching current: 400mA max.

• Holding current: 200mA max.

• Off-state leakage 1mA at 77°F (25°C) max.

• Power dissipation = 1.2 watts per ampere per leg switched

• 200KA SCCR, Type 1 and 2 approved with the recommended
fusing; see user manual.

Line Voltage

• 24 to 660VAC model number dependent; see ordering

information

Control Mode, Zero Cross

• Control option C: VDC input, contactor output

• Control option K: VAC input, contactor output

• To increase service life on contactor models, the cycle time

should be less than three seconds

• Control option F: 4 to 20mA DC input, variable time-base

control output

Control Input

• AC contactor: 24VAC ±10%, 120VAC +10/-25%, 240VAC

+10/-25% @ 25mA max. per controlled leg

• DC contactor: 4.5 to 32VDC: max. current @ 4.5VDC is 6mA

per leg. Add 2mA per LED used to the total current

• Loop powered linear current 4 to 20mA DC: loop-powered,

control option F0 only (requires current source with 8.0VDC
available, no more than two DIN-A-MITE inputs can be
connected in series)

Alarm

Shorted SCR Alarm Option

• Alarm state when the input command signal off and a 10A or

more load current is detected by the current transformer (two
turns required for 5A and three turns for 2.5A)

Alarm Output

• Energizes on alarm, non-latching

• Triac 24 to 240VAC, external supply with a current rating of

300mA @ 77°F (25°C), 200mA @ 122°F (50°C), 100mA @
176°F (80°C) and a holding current of 200 µA with a latching
current of 5mA typical

Ordering Information

Part Number

①

D

③

1 =

1-phase, 1 controlled leg

2 =

3-phase, 2 controlled legs

3 =

3-phase, 3 controlled legs

8 =

2 independent zones (control options C or K)

9 =

3 independent zones (control options C or K)

④

0 = Natural convection

⑤ ⑥

02 =
24 =
60 =

⑦ ⑧

C0 =
F0 =
K1 =
K2 =
K3 =

Cooling and Current Rating (see rating curve)

24 to 48VAC
120 to 240VAC
277 to 600VAC

4.5 to 32VDC input, contactor output
4 to 20mA DC input, variable time-base output
22 to 26VAC input, contactor output
100 to 120VAC input, contactor output
200 to 240VAC input, contactor output

②

B

③

④

Cooling &

Current

Phase

Rating

Phase

Line and Load Voltage

Control

⑤ ⑥

Line &

Load

Voltage

–

⑦ ⑧

Control

Agency Approvals

• CE with proper filter:
204/108/EC Electromagnetic Compatibility Directive
EN 61326-1: Industrial Immunity Class A Emissions
2006/95/EC Low Voltage Directive
EN 50178 Safety Requirements
Installation category III, pollution degree 2

UL® 508 listed and C-UL® File E73741

•

• 2011/65/EU RoHS 2

Control Input Terminals

• Compression: will accept 24 to 16 AWG (0.2. to 1.5 mm2) wire

Line and Load Terminals

• Compression: will accept 18 to 8 AWG (0.8 to 8.4 mm2) wire

Operating Environment

• See the output rating curve

• 0 to 90% RH (relative humidity), non-condensing

• Storage temperature: -40 to 185°F (-40 to 85°C)

• Operating temperature: -4 to 176°F (-20 to 80°C)

• Insulation tested to 3,000 meters

DIN-rail Mount

• DIN EN 50022, 35 mm by 7.5 mm

Back-Panel Mount

• Four mounting holes No. 6 to No. 8 (M3 to M4) fastener

Dimensions

• 3.7 in. (94 mm) high x 3.3 in. (83 mm) wide x

4.9 in. (124 mm) deep

• Weight: 1.5 lb (0.68kg)

Specifications are subject to change without notice.

Output Rating Curve

DIN-A-MITE Style B Ratings at 100% On

90

85

Natural Convection

80

75

70

65

60

55

50

45

Max. Internal Enclosure

40

35

30

25

0510 15 20 25 30 35 40 45 50 55 60

⑨

Alarm

Current (Amperes) into a Resistive Load

Manual

⑩

User

3-phase, 2 leg

3-phase, 3 leg

⑪ ⑫

Custom
Options

Single Phase

Current Rating Table

Phase Cooling

1 0 35A
2, 8 0 25A
3, 9 0 17A

–

⑨

0 =

No alarm

S =

Shorted SCR alarm

⑩

0 =

English

1 =

German

2 =

Spanish

3 =

French

⑪ ⑫

00 =

Standard part

XX =

Any letter or number, custom options

Recommended DIN-rail Mount Fuses and Fuse Holders

Semiconductor Fuses and Holders

Part Nbr. Description

17-8020 20A fuse
17-8025 25A fuse
17-8030 32A fuse
17-8040 40A fuse
17-8050 50A fuse
17-5110 10-25A holder
17-5114 32-50A holder

Alarm

User Manual

Custom Options

DFJ Combination Fuses and Holders

Part Nbr. Description

0808-0325-0020 20A fuse
0808-0325-0030 30A fuse
0808-0325-0040 40A fuse
0808-0325-0050 50A fuse
0808-0326-1530 15-30A holder
0808-0326-3560 35-60A holder

Current

at 122°F

(50°C)
