Firebox®T20, T20-W
Firebox
Hardware Guide
T20, T20-W
FS2AE5, FS2AE5W
About This Guide
Information in this guide is subject to change without notice. Companies, names, and data used in
examples herein are fictitious unless otherwise noted. No part of this guidemay be reproduced or
transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express
written permission of WatchGuard Technologies, Inc.
Guide revised: 1/24/2020
Copyright, Trademark, and Patent Information
Copyright © 1998 – 2020 WatchGuard Technologies, Inc. All rights reserved. All trademarks or trade names
mentioned herein, if any, are the property of theirrespective owners.
Complete copyright, trademark, patent, and licensing informationcan be found in the Copyright and
Licensing Guide, availableonline at https://www.watchguard.com/wgrd-help/documentation/overview.
About WatchGuard
WatchGuard® Technologies, Inc. is a global leader in network
security, providing best-in-class Unified Threat Management, Next
Generation Firewall, secure Wi-Fi, and network intelligence
products and services to more than 75,000 customers worldwide.
The company’s mission is to make enterprise-grade security
accessible to companies of all types and sizes through simplicity,
making WatchGuard an ideal solution for Distributed Enterprises
and SMBs. WatchGuard is headquartered in Seattle, Washington,
with offices throughout North America, Europe, Asia Pacific, and
Latin America. To learn more, visit WatchGuard.com.
For additional information, promotions and updates, follow
WatchGuard on Twitter, @WatchGuard on Facebook, or on the
LinkedIn Company page. Also, visit our InfoSec blog, Secplicity,
for real-time information about the latest threats and how to cope
with them at www.secplicity.org.
Address
505 Fifth Avenue South
Suite 500
Seattle, WA 98104
Support
www.watchguard.com/support
U.S. and Canada +877.232.3531
All Other Countries +1.206.521.3575
Sales
U.S. and Canada +1.800.734.9905
All Other Countries +1.206.613.0895
WatchGuard Technologies, Inc. i
Contents
WatchGuard Firebox T20/T20-W Hardware Guide iv
Fireware OS iv
About Your Hardware iv
Hardware Specifications iv
Interface Specifications v
Environmental Requirements v
Hardware Description vi
Front vi
Rear vii
AC Power Adapter ix
Wall Mounting Plate ix
Restore Factory-Default Settings x
Notices xi
Product Safety Certification xi
Safety Warning xi
Disclaimer xi
Hinweise Zur Sicherheit xi
Sicherheitshinweis xii
Aviso De Seguridad xii
Certificación de seguridad del producto xii
Advertencia de seguridad xii
Federal Communications Commission Interference Statement xiii
IMPORTANT NOTE: xiii
FCC Radiation Exposure Statement: (Wireless) xiii
Europe – EU Declaration of Conformity (Wireless) xiii
CE Notice xiv
ii WatchGuard Technologies, Inc.
RoHS Statement xiv
WEEE Statement xiv
REACH xv
Industry Canada Statement xv
Caution:(Wireless) xvi
Avertissement: xvi
For Mobile Device Usage (Wireless) xvi
Radiation Exposure Statement xvi
Déclaration d’exposition aux radiations: xvi
France (Wireless) xvi
Japan VCCI Notice (Class A ITE) xvi

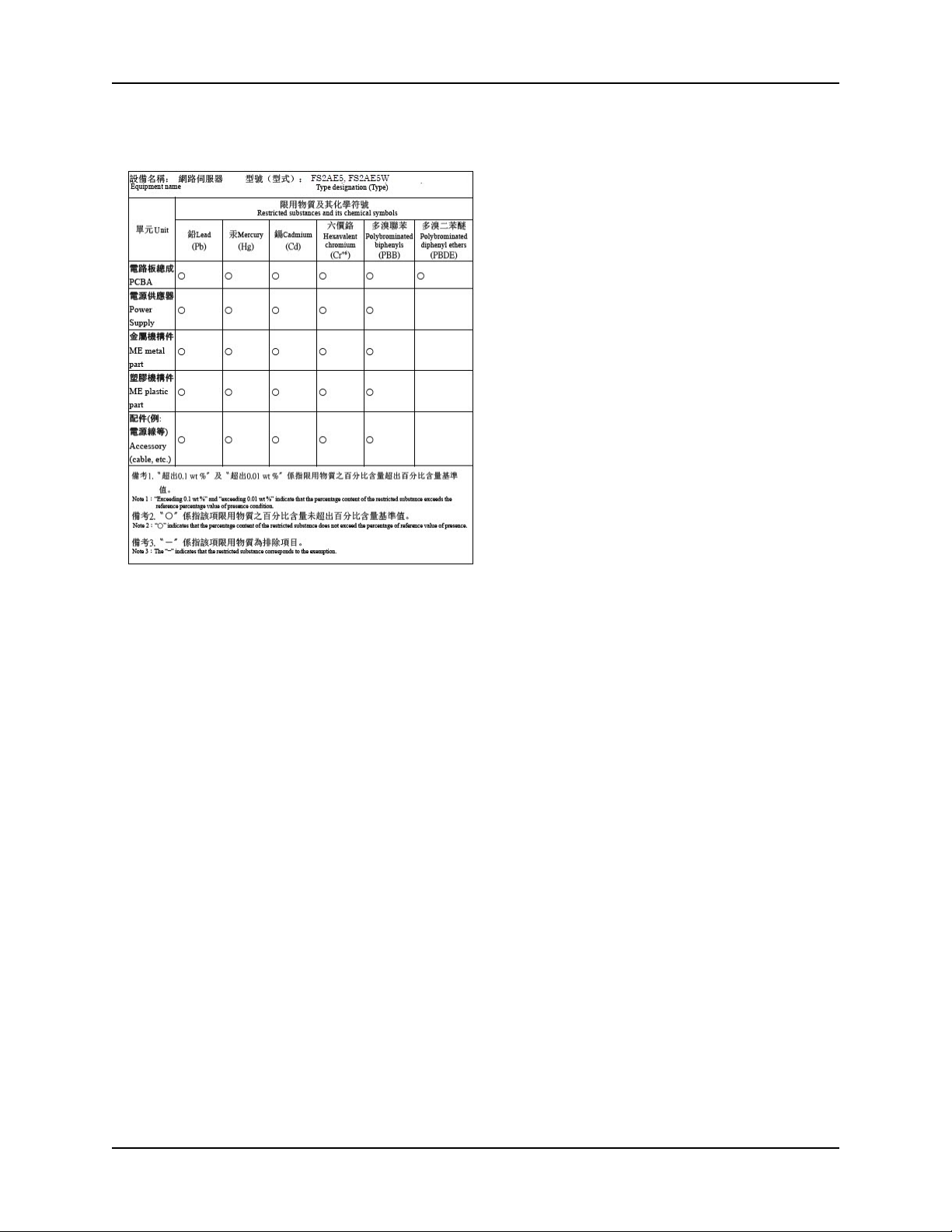

Taiwan RoHS (T20) xvii
Taiwan Class A Notice xvii
Taiwan NCC xvii
Mexico Notice xviii
Limited Hardware Warranty xviii

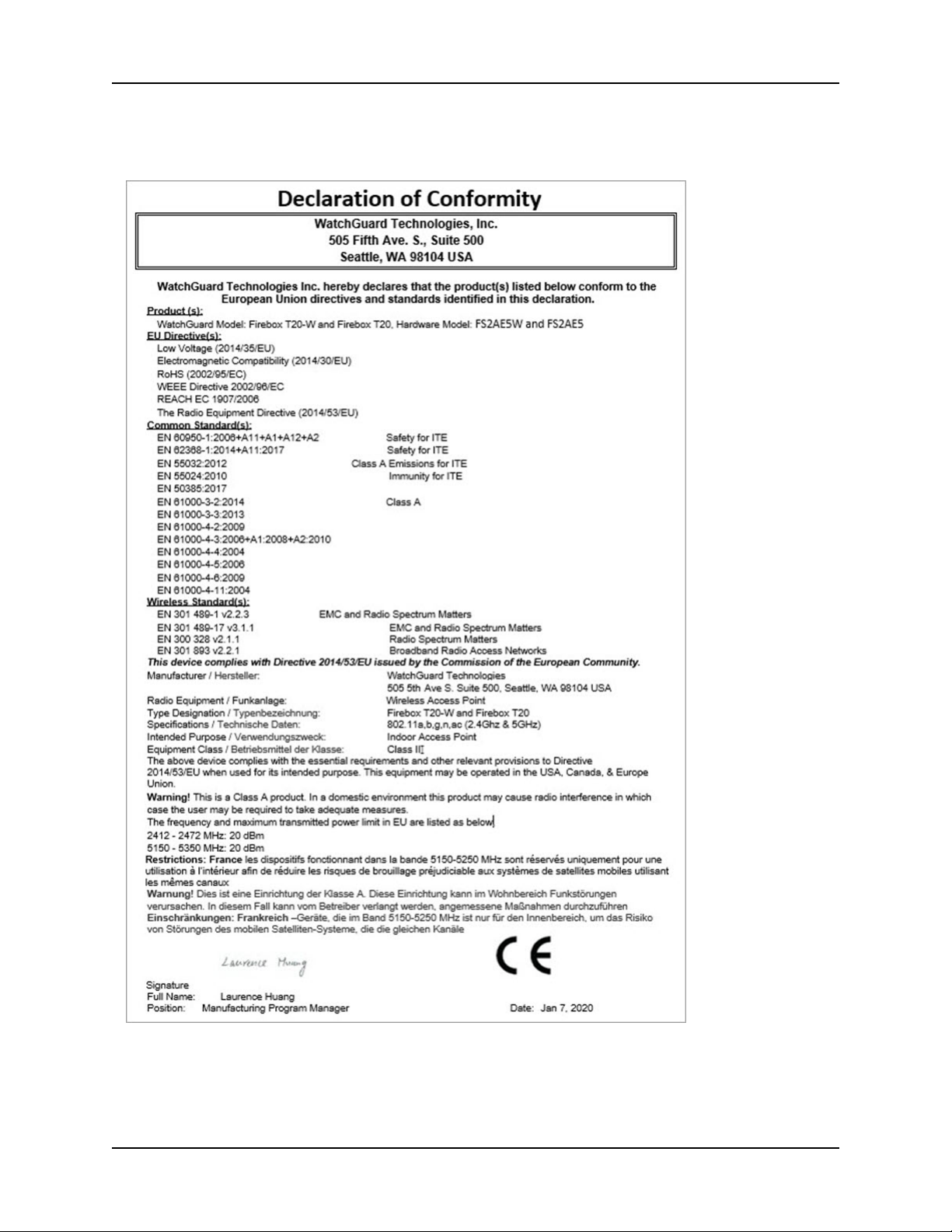

Declaration of Conformity xx
WatchGuard Technologies, Inc. iii
Processor
NXP LS1023A, 1.0GHz, 2-Core
Memory DDR4 2GB with ECC
Storage eMMC 4GB
Power Supply
Input Ratings: 100-240V AC, MAX 1.2A, 50-60Hz
Output: 12V DC
Dimensions
D = 205.5 mm (8")
W = 217mm (8.5")
H = 43 mm(1.7")
Weight T20: 0.88 kg(1.94 lbs)
T20–W: 0.9 kg (1.98 lbs)
WatchGuard Firebox T20/T20-W Hardware Guide
WatchGuard Firebox T20/T20-W Hardware Guide
WatchGuard® Firebox security appliances deliver unparalleled unified threat management, superior
performance, ease of use, and value for your small organization or branch office. Our security subscriptions
give you fully integrated protection from spyware, spam, viruses, worms, trojans, web-based exploits, and
blended threats. From firewall and VPN protection to secure remote access, WatchGuard Firebox
appliances support a broadrange of network environments.
This guide introduces the Firebox T20 RoHS-compliant (lead-free) hardware product. The Firebox T20
network security appliance is designed for small organizations and branch offices.
Fireware OS
The Firebox T20 supports WatchGuard’s next generation UTM OS—Fireware® OS. Each Firebox appliance
includes FirewareOS and delivers exceptional protection against today's sophisticated threats to make
sure that your business stays connected. For more informationon the features of Fireware OS, see
Fireware Help.
About Your Hardware
Hardware Specifications
iv WatchGuard Technologies, Inc.
WatchGuard Firebox T20/T20-W Hardware Guide
Network Interfaces
5 RJ45 connectors, 1000 Base-TX (10/100/1000Mbps)
T20-W is compliant with the IEEE802.11AC wave1 standard.
Radio Type and Frequency Band
(T20–W)
A single 3x3:3 radio that can operate on one of these bands:
n 2.4 GHz 802.11 b/g/n
n 5 GHz 802.11 a/n/ac
I/O Interfaces 2x USB3.0, Type-A
1 RJ45 Serial Port
Interface Specifications
Environmental Requirements
To safely install your Firebox, we recommend that you:
n Install it indoors.
n Put it in a secure area, such as a locked room, to block the device from people who do not have
permission to use it.
n Connect it to a conditioned power supply to prevent damage from sudden power changes.
Otherenvironmental requirements:
n Operating temperature: 0° to 40°C (32° to 104°F)
n Operating humidity: 5% to 90% non-condensing
n Non-operating temperature: –25° to 75°C (-13° to 167°F)
n Non-operating humidity: 0% to 95% non-condensing
WatchGuard Technologies, Inc. v
Indicator Indicator Color Wireless Band
WAP
Yellow 2.4 GHz radio band
Green 5 GHz radioband
WatchGuard Firebox T20/T20-W Hardware Guide
Hardware Description
Front
Front view of the Firebox:
Failover
WAP
The Failover indicator is lit when there is a WAN failover from the primary external interface to the
backup interface. After the external interface connection fails back to the primary external interface,
the indicator is not lit.
On the Firebox T20-W model, the WAP indicator is lit when the appliance is activated as a wireless
access point or a wireless client. The color indicates the active wireless radio band. The light blinks
when data is sent and received. The speed of the blink increases as the data flow increases.
vi WatchGuard Technologies, Inc.
