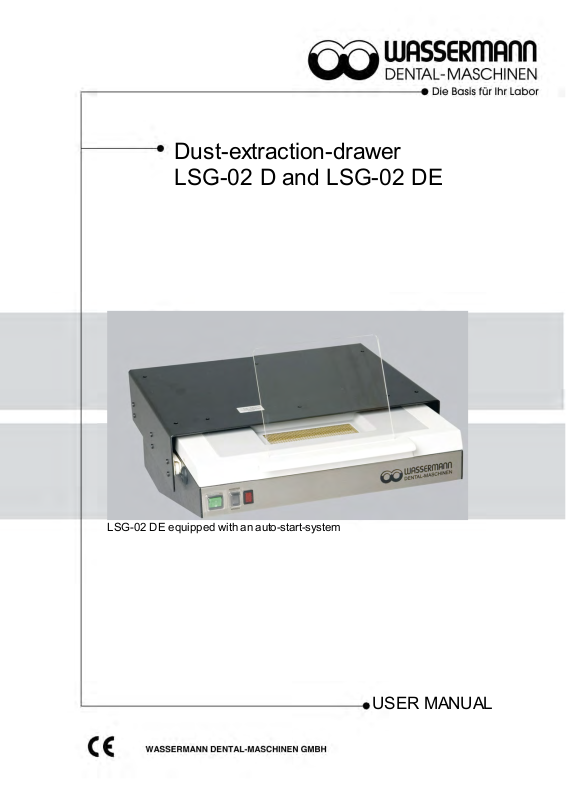

Dust-extraction-drawer
LSG-02 D and LSG-02 DE
LSG-02 DE equipped with an auto-start-system
USER MANUAL
Page 2
Dear customer,
Thank you for choosing a product from the Wassermann range. Wassermann dental
equipment incorporates the highest standards of quality and the latest technology.
In order to enjoy maximum performance and years of trouble-free operation, please read
this instruction manual carefully before you connect this device and start work, and
operate the device according to the recommended guidelines. The operation safety and
the functionality of this device can only be guaranteed if you follow both the general safety
guidelines and the applying laws to prevent accidents as well as the precautions given in
this instruction manual. We are not liable for any damages which occur due to
inappropriate usage or faulty operation of this device.
Make sure that anyone using this device has read and understood this instruction
manual.
Keep this instruction manual in a safe place where it can be referred to as required
at any time.
Company address:
Wassermann Dental-Maschinen GmbH
Rudorffweg 15-17
D-21031 Hamburg, Germany
Tel. : +49 (0)40 / 730 926 – 0 Fax.: +49 (0)40 / 730 37 24
E-mail: [email protected]
URL: http//www.wassermann-dental.com
.
Erstellt: 30.07.2008 / ms Version: 1 Auftrag: Art.-Nr.145998/075 // 145997/070
Page 3
Index
1 Features.............................................................................................................................4
2 Safety guidelines................................................................................................................5
2.1 Safety symbols used in this manual ...........................................................................5
2.2 Safety guidelines.........................................................................................................5
2.3 Responsibility for operation and damage....................................................................5
3 Application..........................................................................................................................6
4 Before starting....................................................................................................................6
4.1 Transport.....................................................................................................................6
4.2 Installation...................................................................................................................7
4.3 Storage........................................................................................................................7
5 Start-up / Installation .........................................................................................................7
5.1 Assembly.....................................................................................................................7
6 Operation...........................................................................................................................7
6.1 How to set the automatic switch-on facility of LSG-02 DE .........................................8
7 Troubleshooting.................................................................................................................8
7.1 LSG-02 D.....................................................................................................................8
7.2 LSG-02 DE..................................................................................................................8
8 Care and maintenance.......................................................................................................9
8.1 Cleaning......................................................................................................................9
8.2 Maintenance................................................................................................................9
8.3 Warranty .....................................................................................................................9
8.4 Spare parts................................................................................................................10
8.5 Scope of delivery / Accessories................................................................................10
8.6 Repairs......................................................................................................................10
9 Technical data..................................................................................................................11
10 EC Conformity Certificate..............................................................................................12
Page 4
1 Features
The LSG-02 D/DE is used for extracting dust.
The LSG-02 D has an automatic level check, which stops the unit when the filter is full,
while triggering the red warning light. In that case the filter has to be changed.
Switching the unit off cancels the signal. The filter capacity is pre-set at the factory.
The LSG-02 DE has an automatic level check and an automatic restart device. As soon as
the handpiece motor is used, the extractor unit cuts in automatically. It incorporates a 20-
second delay to allow for short breaks in the work process.
● easily operated single position suction with high degree of effectiveness
● LSG-02 DE: automatic switch-on facility for the automatic switching on of suction
via the technical apparatus
● suitable for continuous operation (switchable)
● automatically switches off at filter saturation point – including all peripheral
appliances
● optical display when filter change required
● problem-free installation, simple filter change
● gold and debris drawer optionally available as an interim drawer as well as a high
durability, monomial activated carbon filter.
● simple to handle, high safety standards via coasting automatics
● practical accessory variations with the possibility of later assembly
● manufactured totally from metal
4
Page 5
2 Safety guidelines
2.1 Safety symbols used in this manual
Warning!
This is a warning of risk situations and dangers.
Failure to observe this warning could be life-threatening. These warnings must
be observed.
Information!
This symbol draws your attention to specific features that must be observed.
2.2 Safety guidelines
● Configuring and operating this equipment requires precise knowledge
and observance of the instructions in this user manual. The equipment
is designed only for its intended application.
● Servicing and repairs should be carried out only by authorised
specialists.
● Make sure that the unit is connected to the correct mains voltage.
2.3 Responsibility for operation and damage
The responsibility for operating the unit lies exclusively with the owner or user if the said
unit is incorrectly serviced, maintained or altered by persons not employed by an
accredited dealer or if the unit is used in a manner contrary to its specified purpose.
The unit must be maintained and operated in accordance with this user manual.
Wassermann Dental-Maschinen GmbH is not responsible for damage arising from the
non-observance of these instructions.
5
Page 6
Guarantee and responsibility provisions contained in the sales and supply conditions of
Wassermann Dental-Maschinen GmbH are not extended by these instructions.
Product responsibility lapses if the equipment is altered by unauthorized
third parties or if non-original parts are installed. Use only original
WASSERMANN replacement parts.
3 Application
The LSG-02 D/DE extractor drawers are technically proven and solid items of equipment
made entirely of metal. Once pulled out, the drawers switch on automatically as soon as
you start work. If a finishing motor is attached to the extractor, it starts as soon as the
drawer is pulled out. This connection automatically switches the handpiece motor off again
as soon as the drawer is pushed in. Working without dust extraction is not possible with
this configuration.
Only use the device for this type of application.
4 Before starting
4.1 Transport
Before transporting the unit, ensure that it has been unplugged from the power socket.
Make sure that it is packed correctly in order to avoid accidental damage.
Be sure to check for any transport damage when unpacking the goods. Note down
any damage if found.
6
Page 7
4.2 Installation
Open the box, remove the packing materials, and carefully lift out the device and
accessories. Check the included accessories.
Do not install the unit outdoors or in places without proper ventilation.
Before start-up, be sure the device reaches room temperature.
4.3 Storage
If the unit is to be stored for an extended period, protect it from moisture and dust.
5 Start-up / Installation
5.1 Assembly
To install the unit, first undo the red safety screws on the left and right of the frame until
the frame can be removed from the extractor drawer.
Attach the drawer to the table plate. The front screw hole should be 110 mm from the front
edge of the plate. Fasten the frame with 4 x M5 metal screws or 5 mm strong wood
screws. Then locate the drawer on the telescopic rails. Tighten the red safety screws again
to limit the outward travel of the drawer.
6 Operation
Connect the drawer to mains power.
1. Press the (green) rocker switch.
2. A microswitch starts the extractor and any attached finishing motor as soon as the
draw is pulled out.
Switch the unit off if it will not be used for an extended period.
7
Page 8
6.1 How to set the automatic switch-on facility of LSG-02 DE
1.) Pull the drawer completly out of the mounting frame. On the upper site of the unit
there is a plastic blank plug, under which the potentiometer for setting is situated.
2.) Switch on the Suction-drawer, switch on the Automatic-starting.
3.) Turn the potentiometer with the help of a little screwdriver very slowly anti-clockwise
until it blocks.
4.) Let motor run, a little higher than lowest speed, recommended speed 5.000 min
-1
5.) Turn the potentiometer very slowly and carefully clockwise up to that point the
suction unit starts.
6.) Setting is finished.
7 Troubleshooting
7.1 LSG-02 D
Fault Cause Remedy
Filter saturation - red
light comes on
Green rocker switch
comes on but nothing
Filter full Change filter or switch to continuous
operation
Faulty mains
Mains switch must be replaced
switch
happens
7.2 LSG-02 DE
Fault Cause Remedy
Filter saturation - red
light comes on
Green rocker switch
Filter full Change filter or switch to continuous
operation
Faulty mains switch Mains switch must be replaced
comes on but nothing
happens
No control from
micromotor
Trim potentiometer
not adjusted
Adjust trim potentiometer to match model
If the above recommendations do not solve the problem, contact your dental
depot or our service department.
8
Page 9
8 Care and maintenance
8.1 Cleaning
Disconnect the power plug before starting any maintenance work.
The identification plate must always be kept in easily legible condition and must
not be removed.
The equipment should be cleaned at regular intervals to ensure trouble-free operation.
It requires only normal cleaning (sponge, damp cloth, mild detergent) - no chemical
additives.
Use only cold cleaners to avoid damaging the paintwork or removing the
lettering.
8.2 Maintenance
Filter change (optical display when filter change required).
In spite of changing the filter if required the LSG-02 D / LSG-02 DE does not require any
servicing. Just make sure that the device is kept clean.
8.3 Warranty
The warranty period for our equipment is 12 months. If faults occur within the
warranty period, contact your dental depot or get in touch directly with our service
department.
Your equipment should only be operated in perfect condition. If faults occur which
could harm operators or third parties, the unit should not be used until it has been
fixed.
This warranty does not cover damage caused by improper use, external
mechanical causes, transport damage or interference with the unit by unauthorized
persons.
9
Page 10
8.4 Spare parts
If necessary please contact our service hotline phone:
0049 (0)40 / 730 92 6-0
REF. Spare part
144011 Safety screen
511044 Rocker switch, green
511051 Protective cap for rocker switch
8.5 Scope of delivery / Accessories
REF. Included in delivery
144011 Protection sheet
592012 Supply line
- - - Micro fine dust filterbag (dust class M)
REF. Accessories
145005 Additional drawer (can also be retrofitted)
145006 Mounting frame for KaVo tables
145200 Universal extractor hood with base plate
145240 Monomer active coal filter
611015 Spare micro fine dust filterbag (dust class M)
1 set = 3 pieces
611017 Spare filterbag for plaster (class 1 / class 2)
1 set = 3 pieces
611016 Prefilter for gold
1 set = 100 pieces
8.6 Repairs
Servicing or repairs to the unit must only be carried out by qualified technicians.
Only original spare parts are to be used. Responsibility for the product is voided
if unauthorised persons alter it or if inappropriate components are installed.
10
Page 11
9 Technical data
LSG-02 D
LSG-02 DE
REF. 145998
REF. 145997
+
Voltage* 220–240 V / 50/60 Hz
Output 105 W
Power consumption 0.5 A
Power consumption connection unit max. 2 A
W x H x D/D max. 445 x 190 x 505/720 mm
Weight 17.2 kg, 17.5 kg
+
Sound level 61 dB(A)
Suction capacity
360 m3 / h (free-blowing)
*Other voltages upon enquiry
The noise level of the unit amounts to ≤ 70 dB(A).
The technical data are subject to change without prior notice.
11
Page 12
10 EC Conformity Certificate
in accordance with 2006/95/EG (low-voltage guidelines) and 2004/108/EG (EMV
guidelines) and 98/37/EG (machinery guidelines)
Manufacturer : W A S S E R M A N N
Dental-Maschinen GmbH
Rudorffweg 15 - 17
D-21031 Hamburg
Model : LSG-02 D
LSG-02 DE
Aapplicable
standards :
Hiermit wird bestätigt, dass die oben bezeichnete Maschine den genannten EG-Richtlinien
entspricht. Diese Erklärung wird ungültig, falls die Maschine ohne unsere Zustimmung
verändert wird.
This is to confirm that the above mentioned machine complies with the described EC
rules. This declaration becomes invalid if the machine is modified without our approval.
Cette machine est conforme aux normes en vigueur de la Communité Européene. Cet
avis est nul et non avenant si cette machine est modifiée sans notre accord.
DIN EN 61010-1:2004
DIN EN 61000-6-3:2005
DIN EN 61000-6-1:2002
DIN 45635-1:1984
DIN EN 60335-1:2007
Product description : Suction unit for
dental application
REF. 145998
REF. 145997
Esta máquina, anteriormente mencionada, cumple con los limites requeridos por el
reglamento EC. Ahora bien, esta declaración quedará invalidada en caso de realizar
modificaciones al aparato sin nuestra aprobación.
Hiermee wordt bevestigd dat bovengenoemde machine voldoet aan de voorgeschreven
EU normen. Deze verklaring verliest geldigheid als er zonder onze uitdrukkelijke
toestemming wijzigen aan de machine worden aangebracht.
Place, date : Hamburg, 20.07.2007 Company stamp :
Signature : ________________________
Wilfried Wassermann
(Managing Director)
12
Page 13
Notes:
131415
Page 14
Page 15
Page 16
Loading...
