Wasco DV15A User Manual [se]

DV15A

Dryer

Tørrer

Tørketrommel

Torktumlare

Pyykinkuivaaja

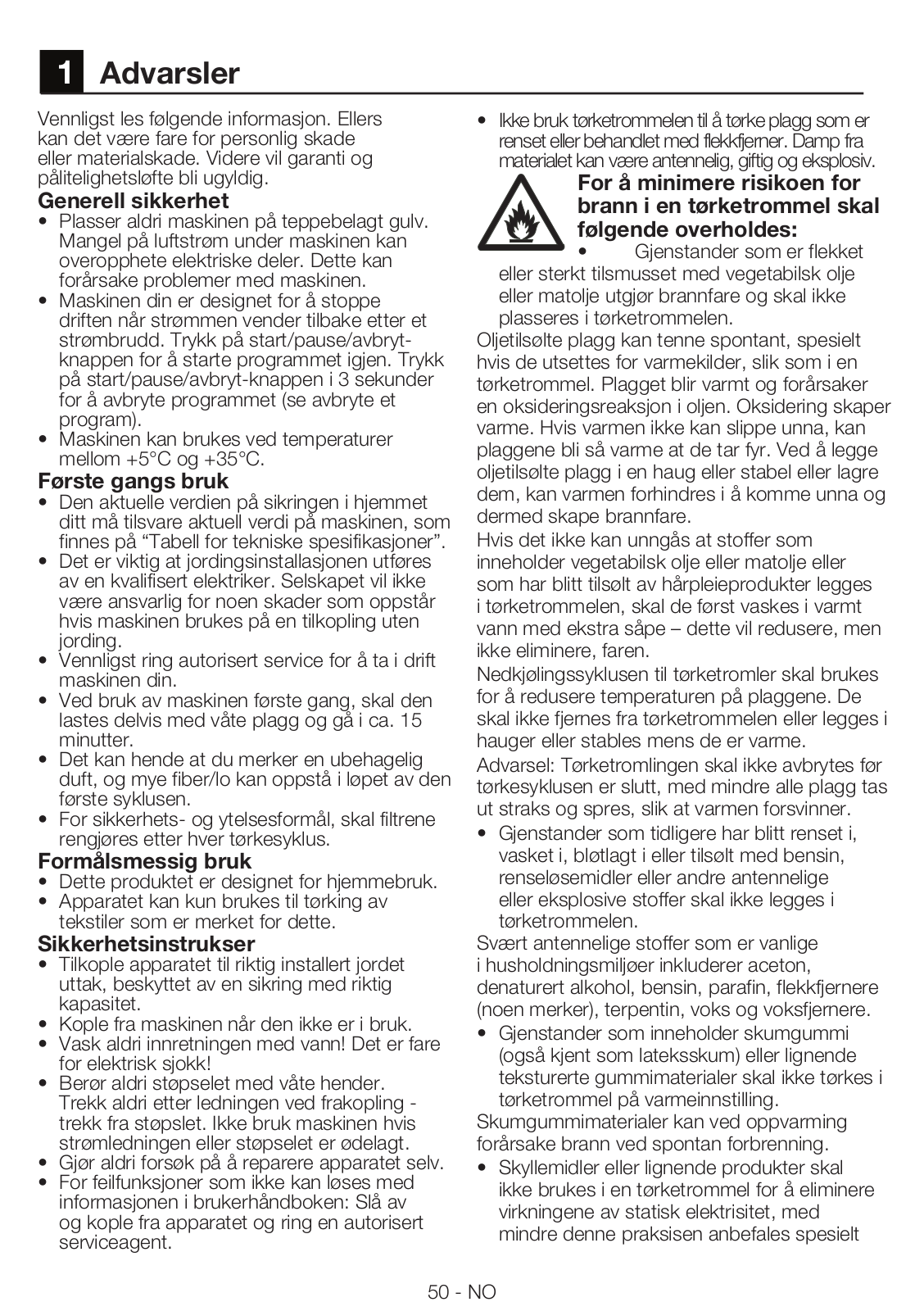

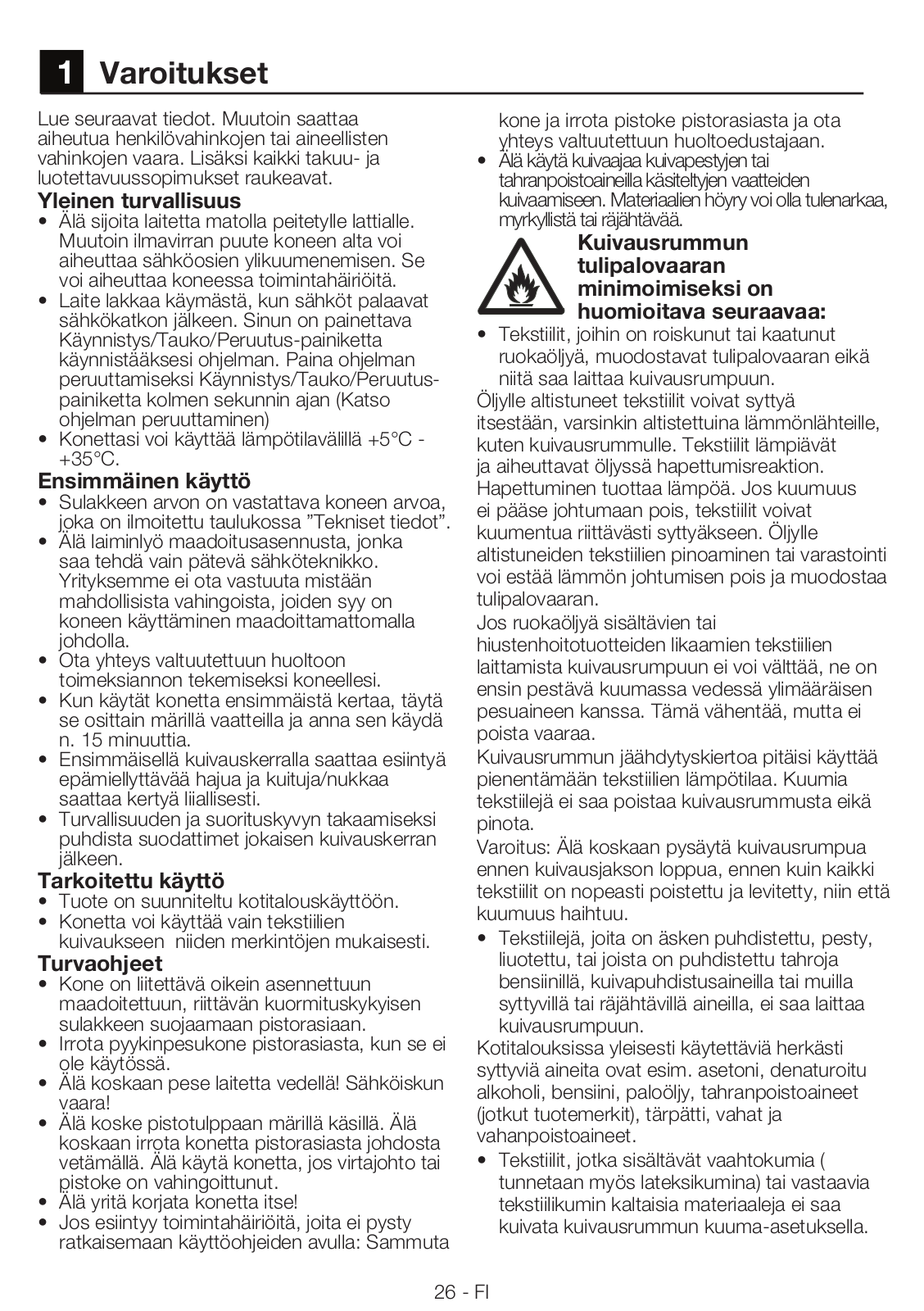

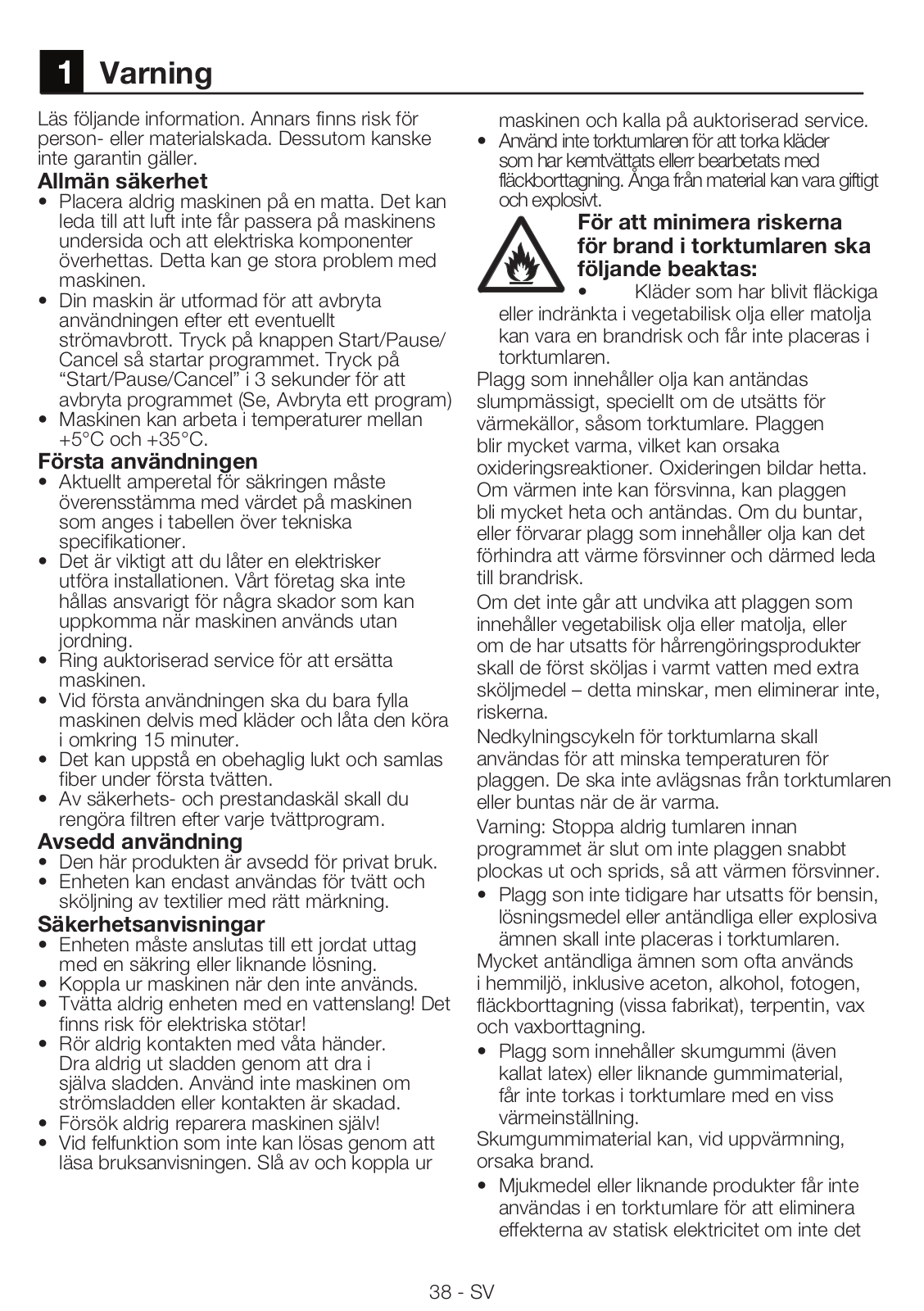

1 Warnings

Please read the following information. Otherwise, there may be the risk of personal injury or material damage. Moreover, any warranty and reliability commitment will become void.

General Safety

•Never place your machine on a carpet covered floor. Otherwise, lack of airflow from below of your machine may cause electrical parts to overheat. This may cause problems with your machine.

•Your machine is designed to stop operating in the event of power resuming after a power failure. You must press “Start/Pause/Cancel” button to resume the program. Press the

“Start/Pause/Cancel” button for 3 seconds to cancel the program (See, Canceling a

Program)

•Your machine can be operated at temperatures between +5°C and +35°C.

First Use

•Do not neglect to have the grounding installation made by a qualified electrician. Our company shall not be liable for any damages that may arise when the machine is used on a line without grounding.

•Please call the Authorized Service to commission your machine.

•When operating your machine for the first time, partly load it with wet pieces of clothes and let it run approximately for 15 minutes.

•You may smell an unpleasant odor and excessive fibre/lintmayaccumulateduring first drying cycle.

•For safety and performance purposes, clean the filters after each drying cycle.

Intended use

•This product has been designed for home use.

•The appliance may only be used for drying of textiles that are marked accordingly.

Safety instructions

•Unplug the machine when it is not in use.

•Never wash down the appliance with water! There is the risk of electric shock!

•Never touch the plug with wet hands. Never pull from the cable to unplug the machine. Do not operate the machine if the power cord or plug is damaged.

•Never attempt to repair the machine yourself.

•For malfunctions that cannot be solved by information in the operating manual: Turn off and unplug the appliance and call an authorized service agent.

To minimize the risk of fire in a tumble dryer, the following should be observed:

•Items that have been spotted or soaked with vegetable or cooking oil constitute a fire hazard and should not be placed in a tumble dryer.

Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to

catch fire. Piling, stacking or storing oil-affected items can prevent heat from escaping and so create a fire hazard.

If it is unavoidable that fabrics that contain vegetable or cooking oil or have been contaminated by hair care products be placed in a tumble dryer they should first be washed in hot water with extra detergent - this will reduce, but not eliminate, the hazard.

The ‘cool down’ cycle of tumble dryers should be used to reduce the temperature of

the items. They should not be removed from the tumble dryer or piled or stacked while hot.

Warning : Never stop tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat dissipated.

•Items that have been previously cleaned in, washed in, soaked in or spotted with petrol/ gasoline, dry-cleaning solvents or other flammable or explosive substances should not be placed in a tumble dryer.

Highly flammable substances commonly used in domestic environments include acetone, denatured alcohol, petrol/gasoline, kerosene, spot removers (some brands), turpentine, waxes and wax removers.

•Items containing foam rubber (also known as latex foam) or similarly textured rubber

like materials should not be dried in a tumble dryer on a heat setting.

Foam rubber materials can, when heated, produce fire by spontaneous combustion.

•Fabric softeners or similar products should not be used in a tumble dryer to eliminate the effects of static electricity unless this practice is specifically recommended by the manufacturer of the fabric softener or product.

2 - EN

Undergarments that contain metal reinforcements should not be placed in a tumble dryer.

Damage to the tumble dryer can result if metal reinforcements come loose during drying.

When available a drying rack could be used for such items.

•Plastic articles such as shower caps or babies’ waterproof napkin covers should not be placed in a tumble dryer.

•Rubber-backed articles, clothes fitted with foam rubber pads, pillows, galoshes and rubber-coated tennis shoes should not be placed in a tumble dryer.

If there are children in your house...

• Electrical appliances may be dangerous for

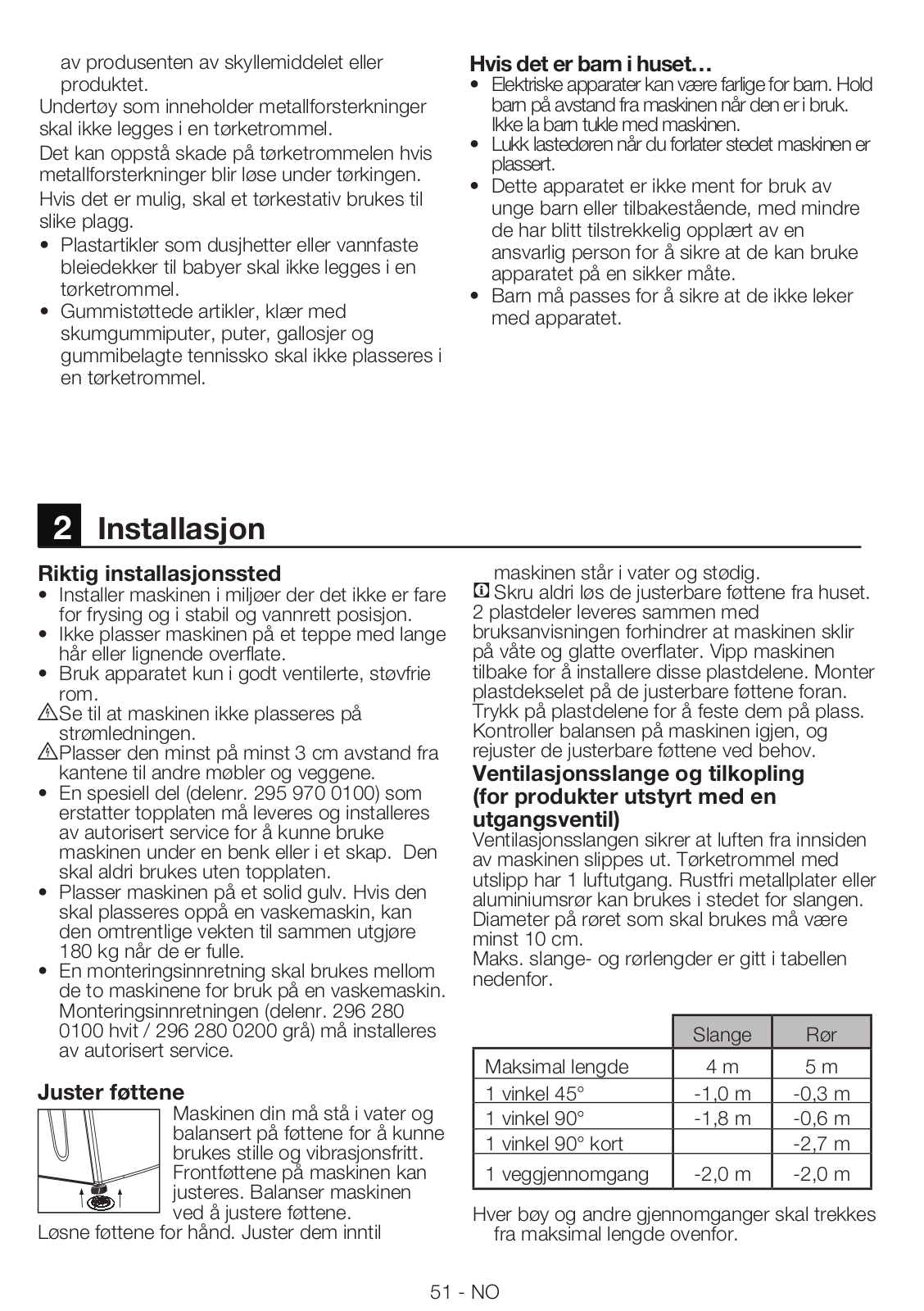

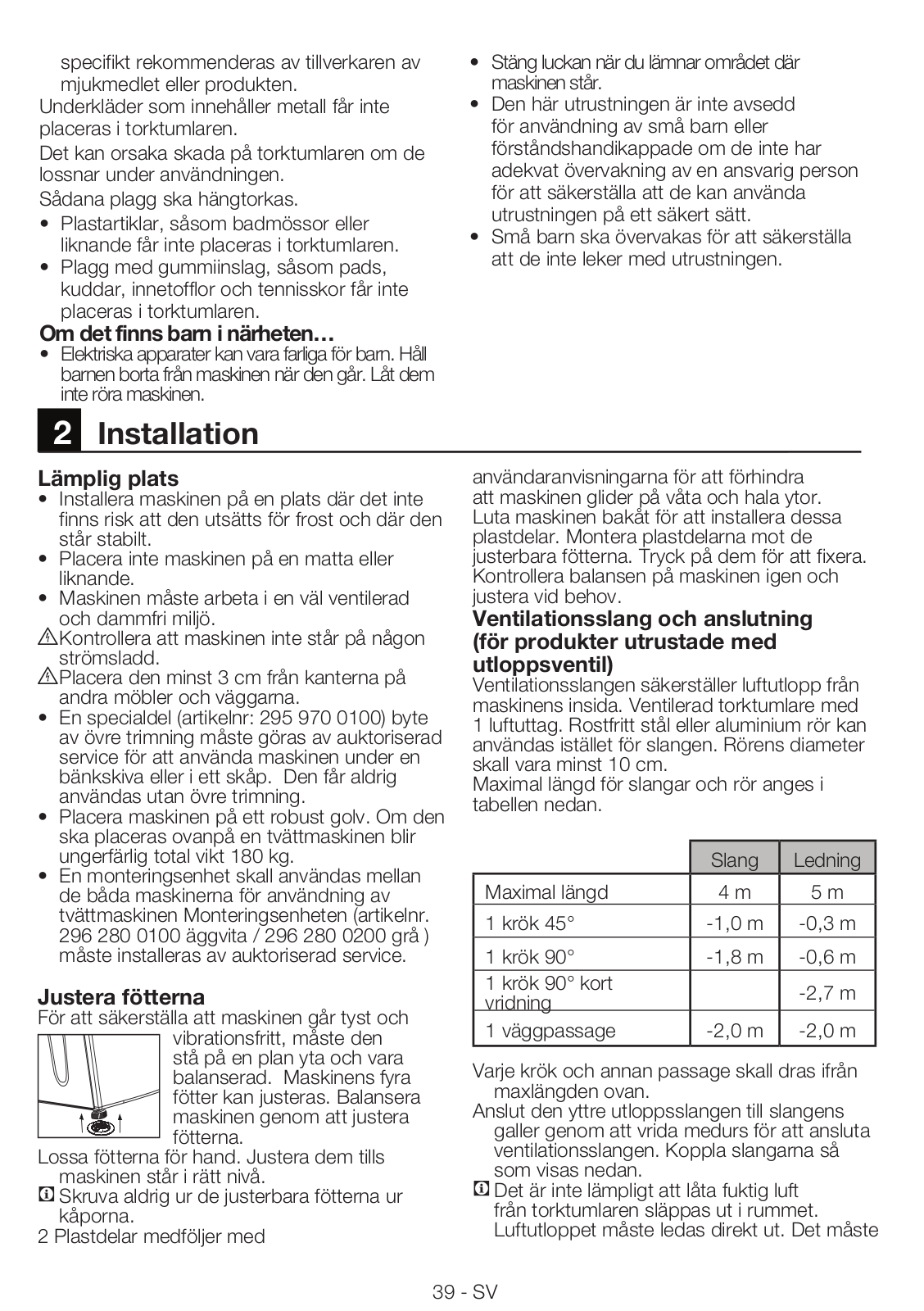

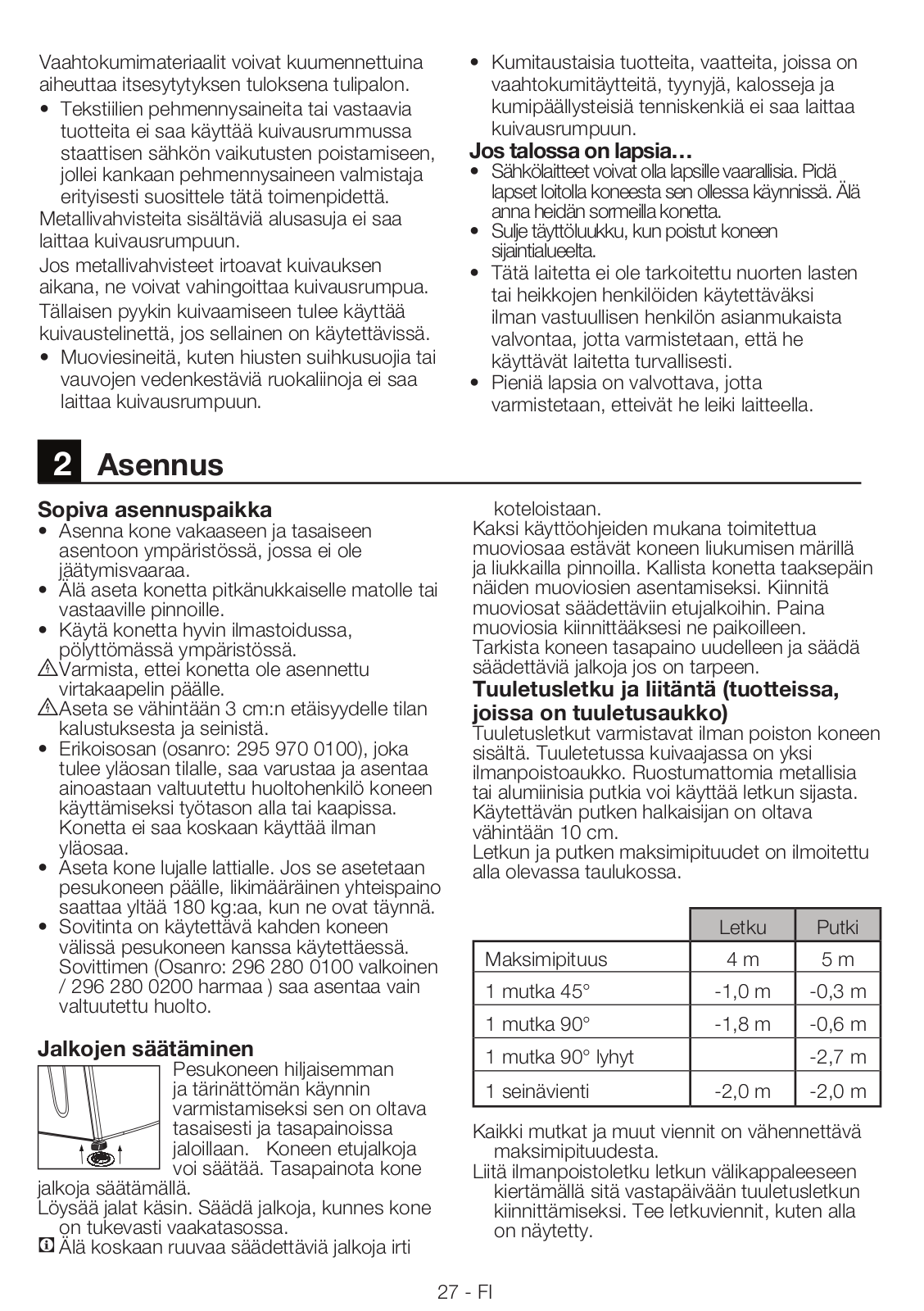

2 Installation

The proper location

• Install your machine in environments which have no risk of freezing and in a stable and level position.

• Do not place your machine on a long pile rug or on similar surfaces.

• Operate your machine in a well ventilated, dust-free environment.

BMake sure that your machine is not placed on the power cable.

BPlace it at least 3 cm away from the edges of other furniture and the walls.

•A special part (Part no: 295 970 0100) replacing the top trim must be provided and installed by the Authorized Service in order to use the machine under a counter or in

a cupboard. It should never be operated without the top trim.

•Place the machine on a sound floor. If it is to be placed on top of a washing machine, the approximate weight together may reach 180 kg when they are full.

•A fitting device should be used between the two machines for use on a washing machine.

The fitting device (Part no 296 280 0100 white/ 296 280 0200 grey ) must be installed by the Authorized Service.

Levelling

In order to ensure that your machine operates more silently and vibration-free, it must stand level and balanced on its feet.

Front feet of your machine can be adjusted. Balance the

machine by adjusting the feet.

Loosen the feet by hand. Adjust them until the machine stands level and firmly.

CNever unscrew the adjustable feet from their housings.

the children. Keep children away from the machine when it is operating. Do not let them tamper with the machine.

•Close the loading door when you leave the area where the machine is located.

•This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safely.

•Young children should be supervised to ensure that they do not play with the appliance.

2 plastic pieces supplied together with the

Operating Instructions prevent your machine from slipping on wet and slippery surfaces. Tilt your machine to backwards t install these plastic parts. Fit the plastic parts to the front adjustable feet. Press on the plastic parts to fix

them in their places. Check the balance of your machine again and readjust the adjustable feet if necessary.

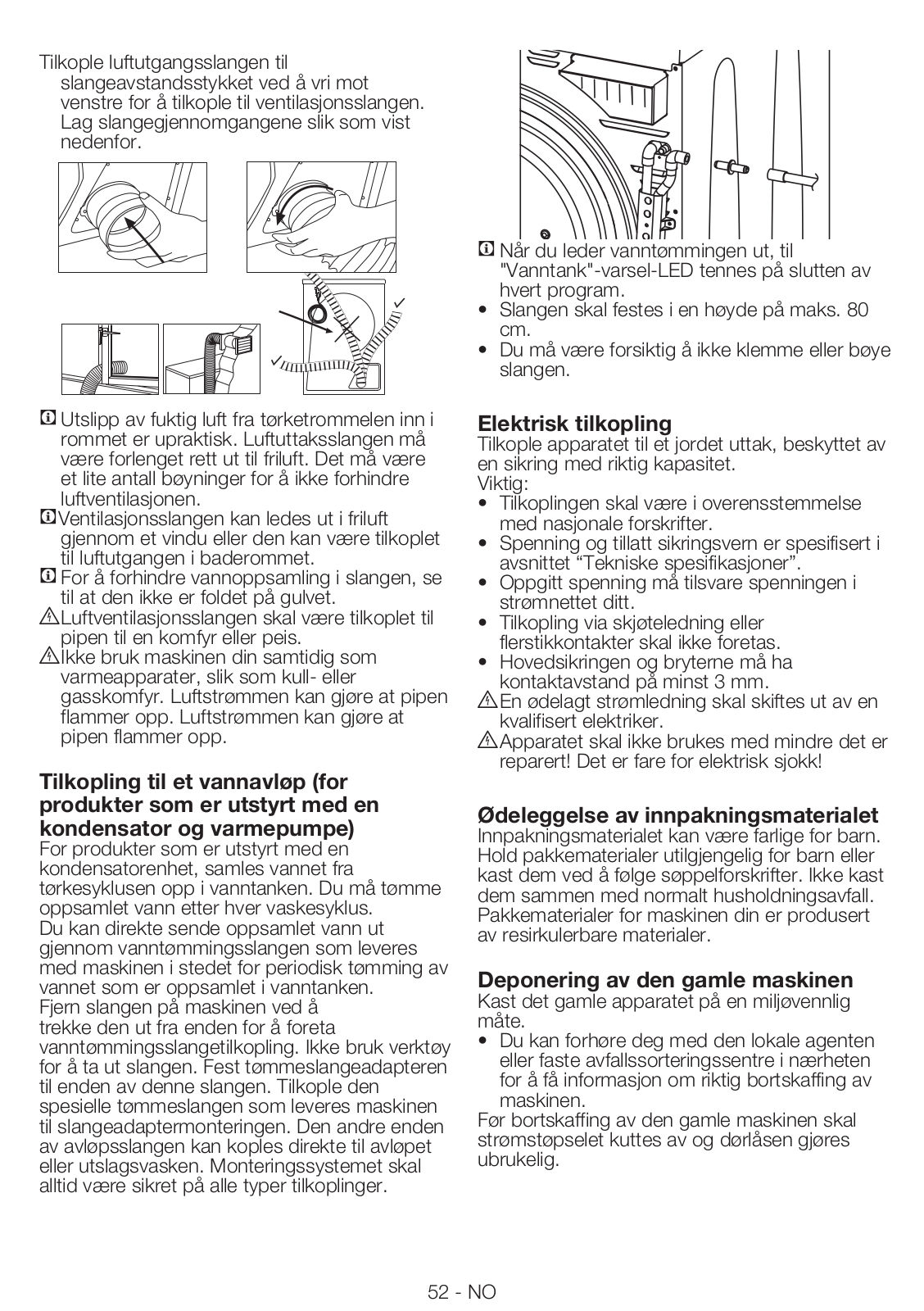

Ventilation hose and connection (for

products equipped with an outlet vent)

Ventilation hose assures exhausting of the air from inside the machine. Vented dryer has 1 air outlet. Stainless sheet metal or aluminum pipes can be used instead of the hose. The diameter of the pipe to be used should be minimum 10 cm.

Maximum hose and pipe lengths are given in the table below.

	Hose	Pipe
Maximum length	4 m	5 m
1 elbow 45°	-1.0 m	-0.3 m
1 elbow 90°	-1.8 m	-0.6 m
1 elbow 90° short		-2.7 m
1 wall passage	-2.0 m	-2.0 m

Each elbow and other passages should be subtracted from the above maximum length.

Connect the air outlet hose to the hose spacer piece by turning it anti-clockwise in order to connect the ventilation hose. Make the hose passages as shown below.

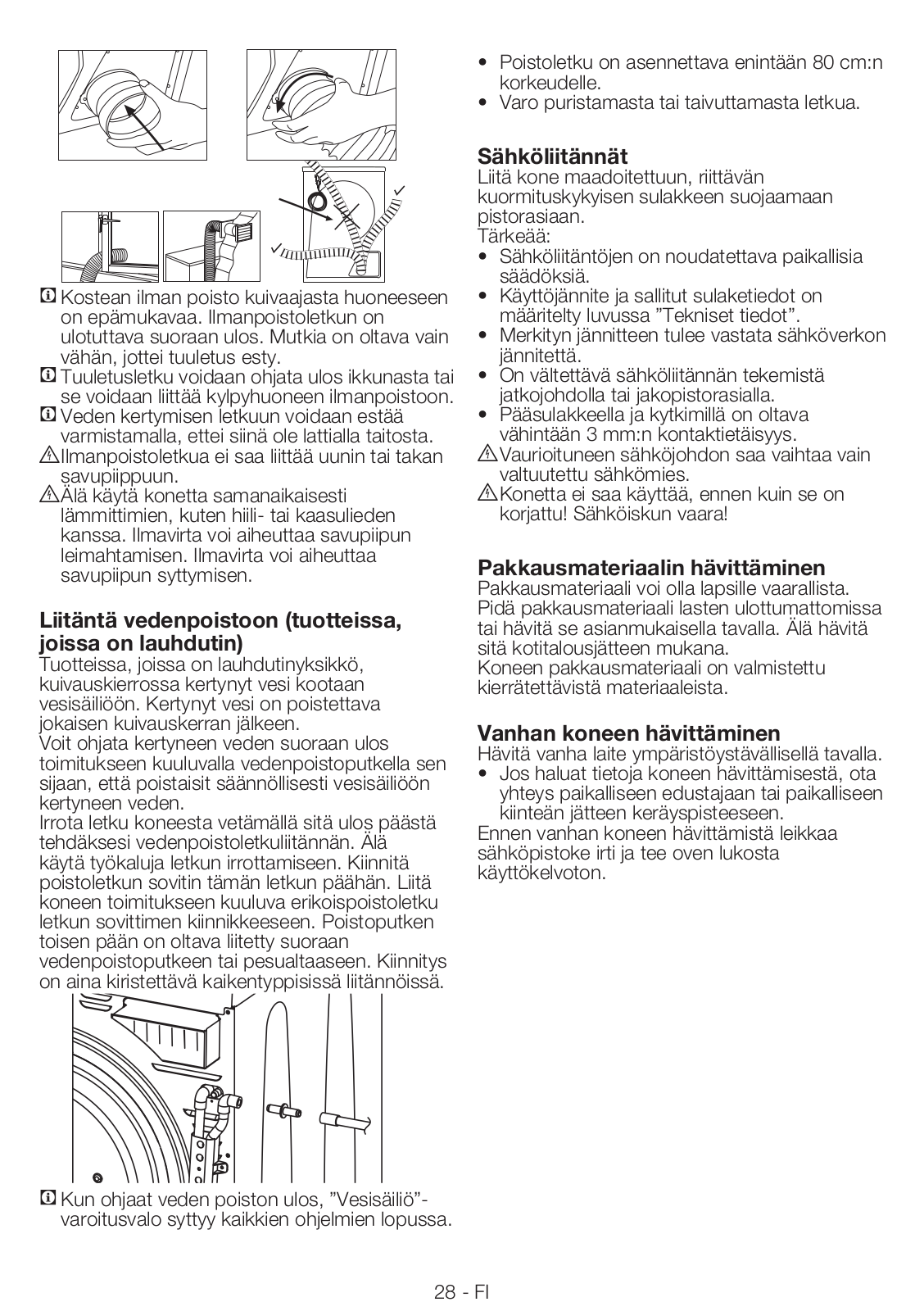

CExhaust of humid air from the dryer into the room is inconvenient. Air outlet hose must be

3 - EN

extended directly to the outdoors. There must be a small number of elbows as not to hinder air ventilation.

CThe ventilation hose can be routed outdoors via a window or it can be connected to the air outlet in the bathroom.

CTo prevent water accumulation in the hose, make sure that it is not folded on the floor.

BThe air ventilation hose should not be connected to the chimney of a stove or a fireplace.

BPay attention that the air inlet openings are unobstructed.

BDo not operate your machine at the same time with heaters such as a coal or gas stove.

Airflow may cause the chimney to flare up. Airflow may cause the chimney to flame up.

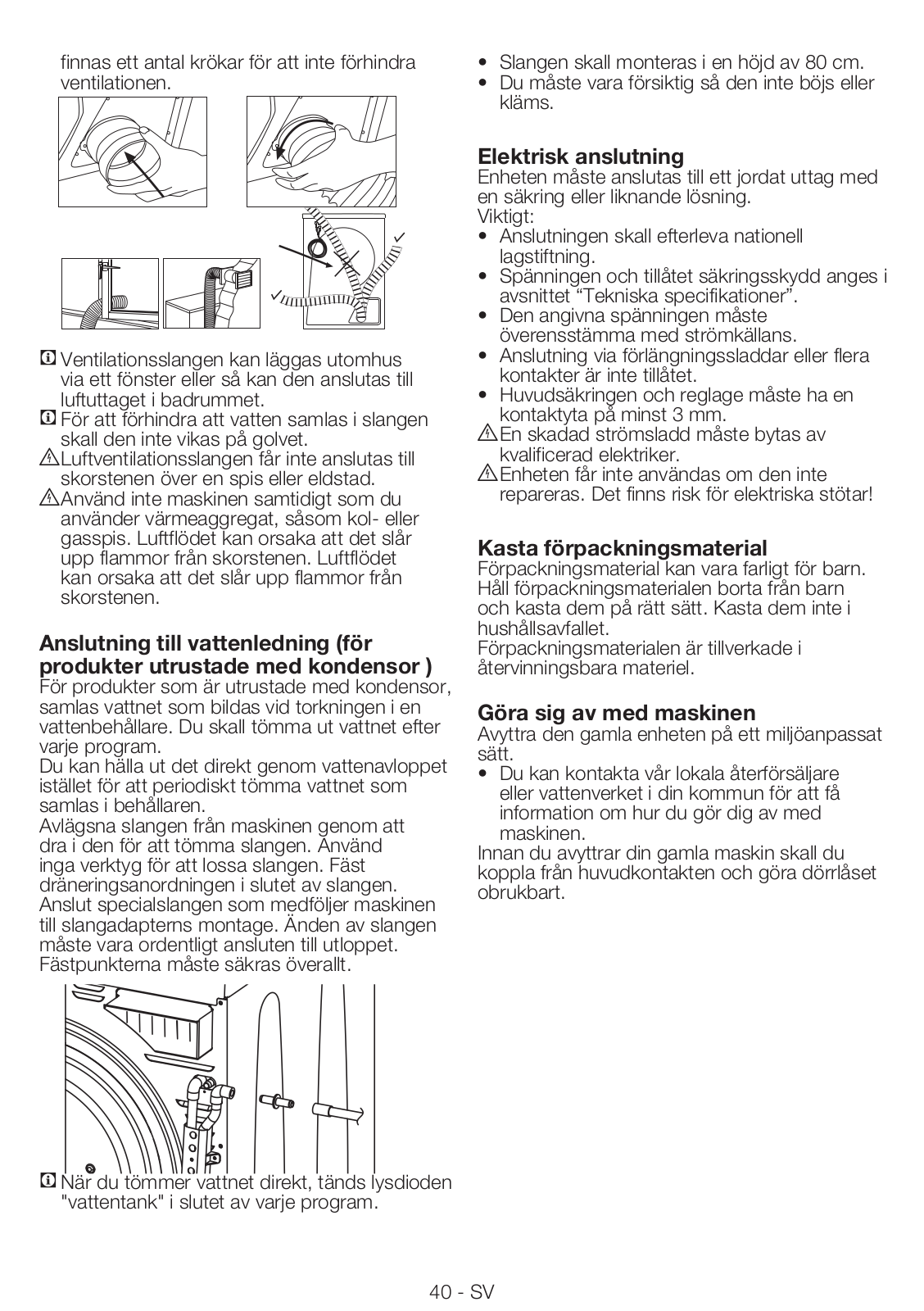

Connection to a water drain (for

products equipped with a condenser)

In products equipped with a condenser unit the water accumulated during the drying cycle is collected in the water tank. You should drain the accumulated water after each washing cycle.

You can directly send the accumulated water out through the water drain hose supplied with the machine instead of periodically draining the water collected in the water tank.

Remove the hose on the machine by pulling it out from its end in order to make the water drain hose connection. Do not use any tools to take out the hose. Attach the drain hose adaptor to the end of this hose. Connect the special drain hose supplied with the machine to the hose adaptor fitting. The other end of the drain hose can be directly connected to the wastewater drain or to the washbasin. The fitting must always be secured in all types of connections.

CWhen you direct the water drain out, “Water Tank” warning LED will light up at the end of each program.

•The hose should be attached to a height of maximum 80 cm.

•You must be careful not the pinch or bend the hose.

Electrical connection

Connect the machine to an earthed outlet protected by a fuse of suitable capacity.

Important:

• Connection should comply with national regulations.

• Power cord plug must be within easy reach after installation.

• The voltage and the allowed fuse protection are specified in the section “Technical Specifications”.

• The stated voltage must match with your mains voltage.

• Connection via extension cords or multi-plugs should not be made.

• The main fuse and switches must have a contact distance of minimum 3 mm.

BA damaged power cable must be replaced by a qualified electrician.

BThe appliance must not be operated unless it is repaired! There is the risk of electric shock!

Disposal

Packaging material can be dangerous to children. Keep the packaging materials out of the reach of children or dispose of them

accordingly. Do not dispose them together with normal domestic wastes.

Disposing of the old machine

Dispose of your old appliance in an environmental friendly manner.

•You may refer to your local agent or solid waste collection center in your municipality to learn how to dispose of your machine.

Before disposing of your old machine, cut off the mains plug and make the door lock unusable, so children will not be endangered.

4 - EN

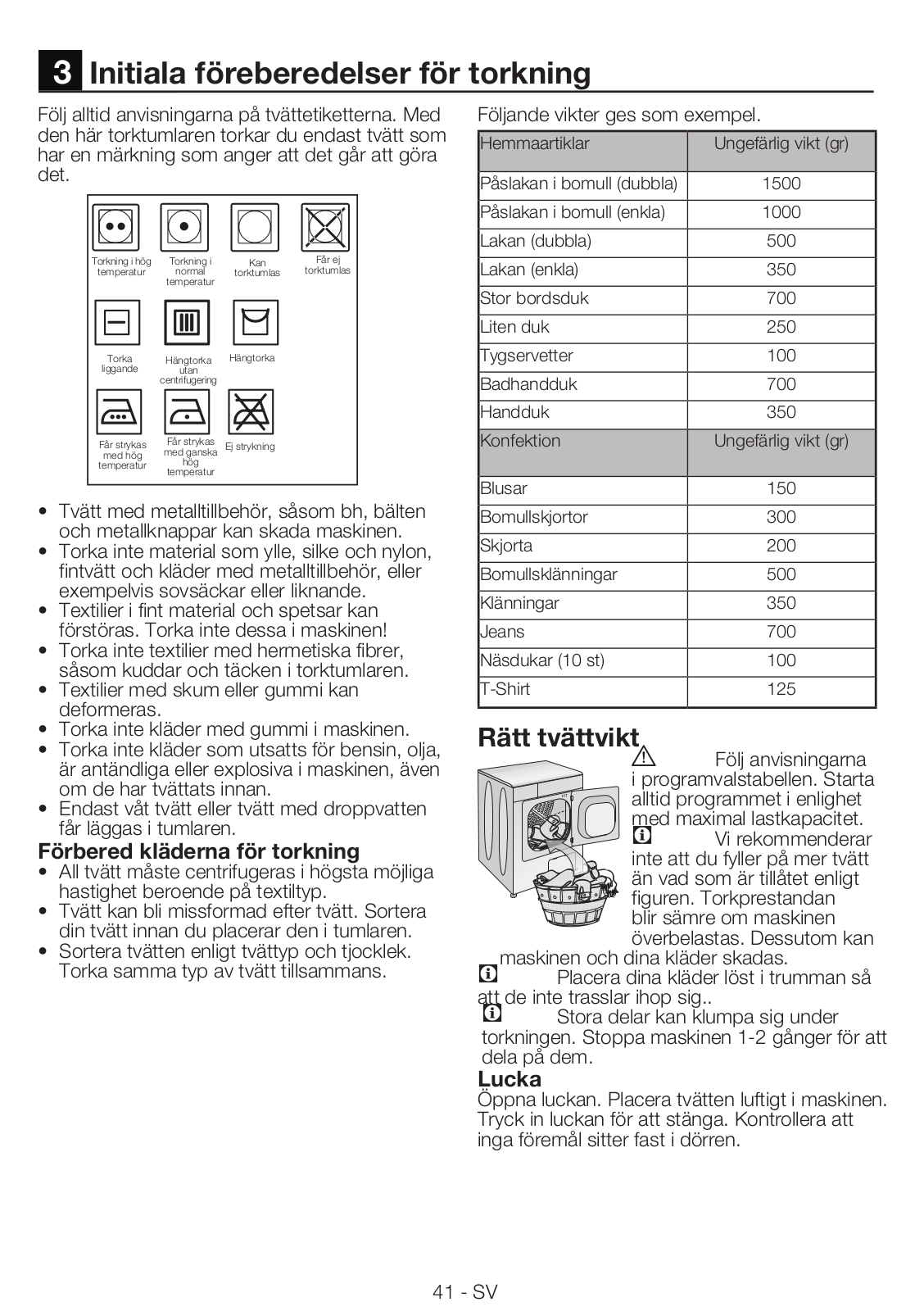

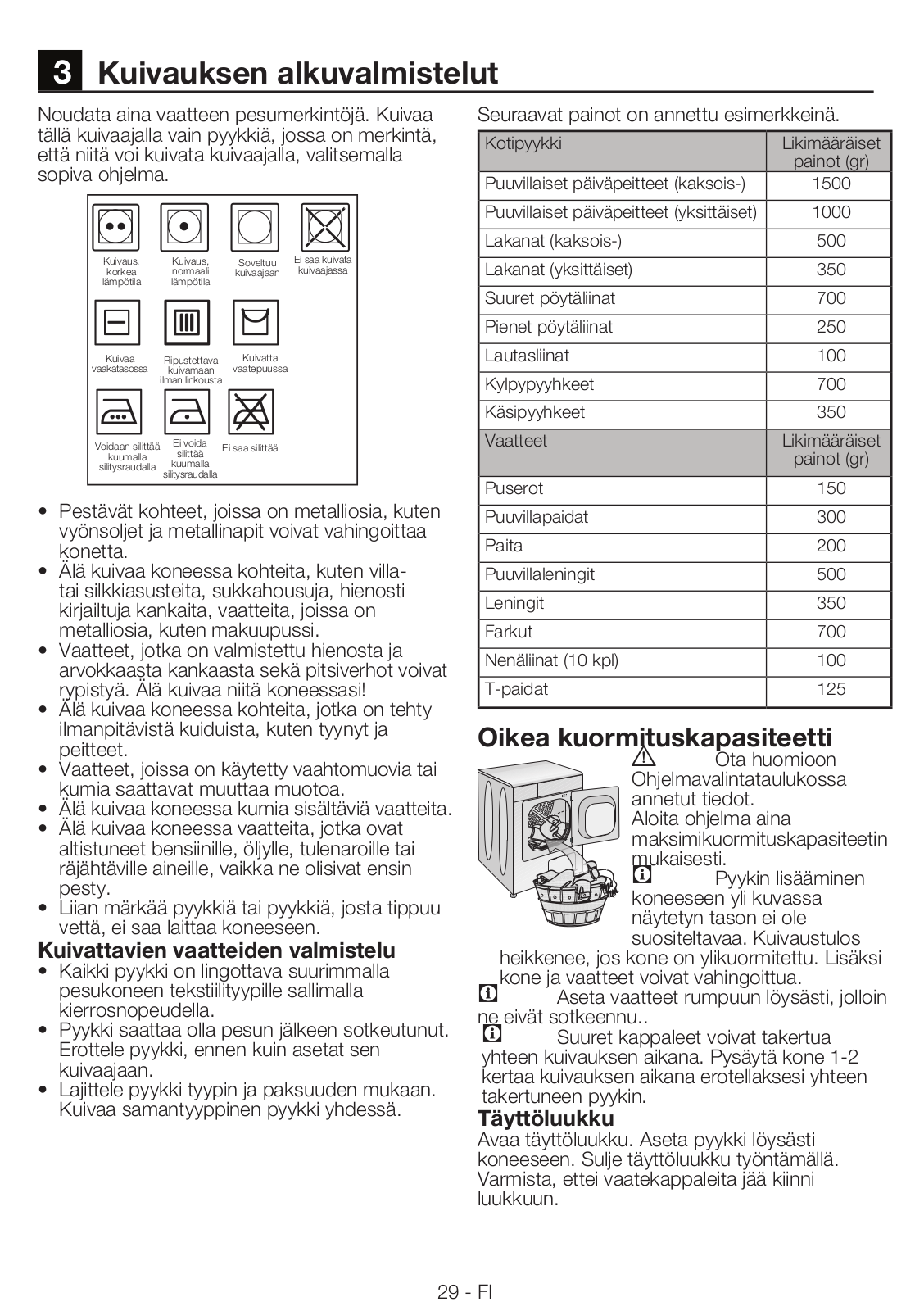

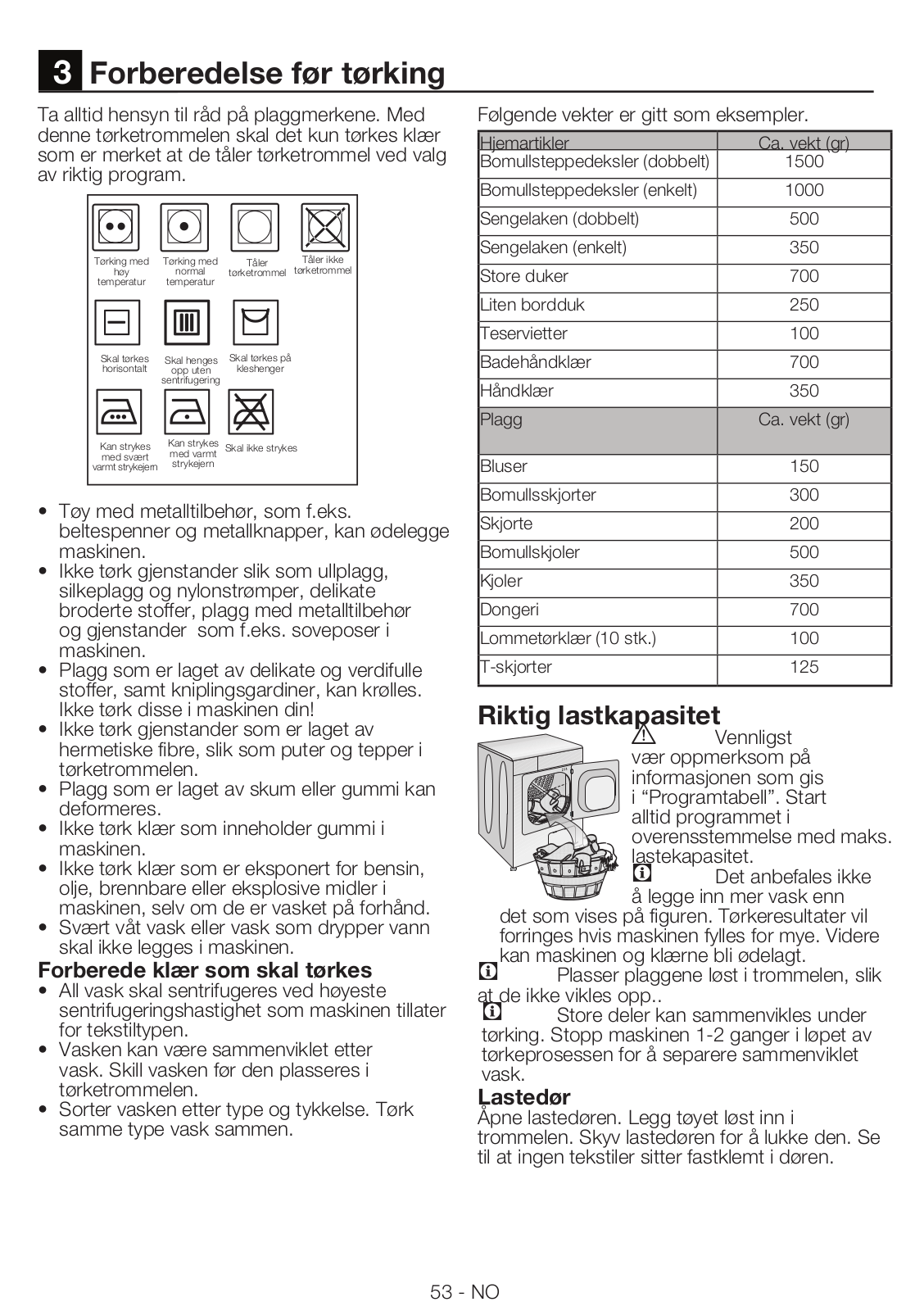

3 Before drying

Always follow the advice on the garment labels. With this dryer, dry only the laundry having a label stating that they are suitable for drying in a dryer by selecting the appropriate program.

A B C D

High-	Normal-	Suitable for	Do not dry
temperature	temperature	drier	with drier
Drying	Drying
l n m
Dry	Hang without	Dry on a
horizontally	spinning	hanger
o p q
Can be ironed	Can be	Do not iron
	ironed with
with hot iron	warm iron

•Laundry items with metal attachments such as, belt buckles and metal buttons can damage your machine.

•Do not dry items such as woolen, silk garments and nylon stockings, delicate embroidered fabrics, garments with metal accessories and items such as sleeping bags in the machine.

•Garments made of delicate and valuable fabrics as well as lace curtains can be creased. Do not dry these in your machine!

•Do not dry items made of hermetic fibers such as pillows and quilts in the drying machine.

•Garments made of foam or rubber may be deformed.

•Do not dry clothes containing rubber in the machine.

•Do not dry clothes exposed to petroleum, oil, combustible or explosive agents in the machine even if they are washed beforehand.

•Overly wet laundry or laundry with dripping water must not be put into the machine.

Preparing clothes to be dried

•All laundry must be spun at the highest possible spin speed your washing machine allows for the textile type.

•Laundry may be tangled after washing. Separate your laundry before placing them into your dryer.

•Sort your laundry according to their types and thicknesses. Dry the same type of laundry together.

Following weights are given as examples.

Home articles	Approximate weights (gr)
Cotton quit covers (double)	1500
Cotton quit covers (single)	1000
Bed sheets (double)	500
Bed sheets (single)	350
Large tablecloths	700
Small tablecloths	250
Tea napkins	100
Bath towels	700
Hand towels	350
Garments	Approximate weights (gr)
Blouses	150
Cotton shirts	300
Shirt	200
Cotton dresses	500
Dresses	350
Jeans	700
Handkerchiefs (10 pieces)	100
T-Shirts	125

Right load capacity
	A	Please consider the
	information in the “Program
	Selection Table”. Always start
	the program in accordance
	with the maximum load
	capacity.
	C	Adding laundry to
	the machine more than the
	level shown in the figure is
	not recommended.. Drying
performance will degrade when the machine
is overloaded. Furthermore, your machine and
your clothes might be damaged.
C	Place your garments into the drum
loosely so that they will not get tangled..
C	Large pieces may bunch-up during

drying. Stop the machine 1-2 times during drying process to separate bunched-up laundry.

Loading door

Open the loading door. Place laundry items loosely into the machine. Push the loading door to close. Ensure that no items are caught in the door.

5 - EN

4 Selecting a Program and Operating Your Machine

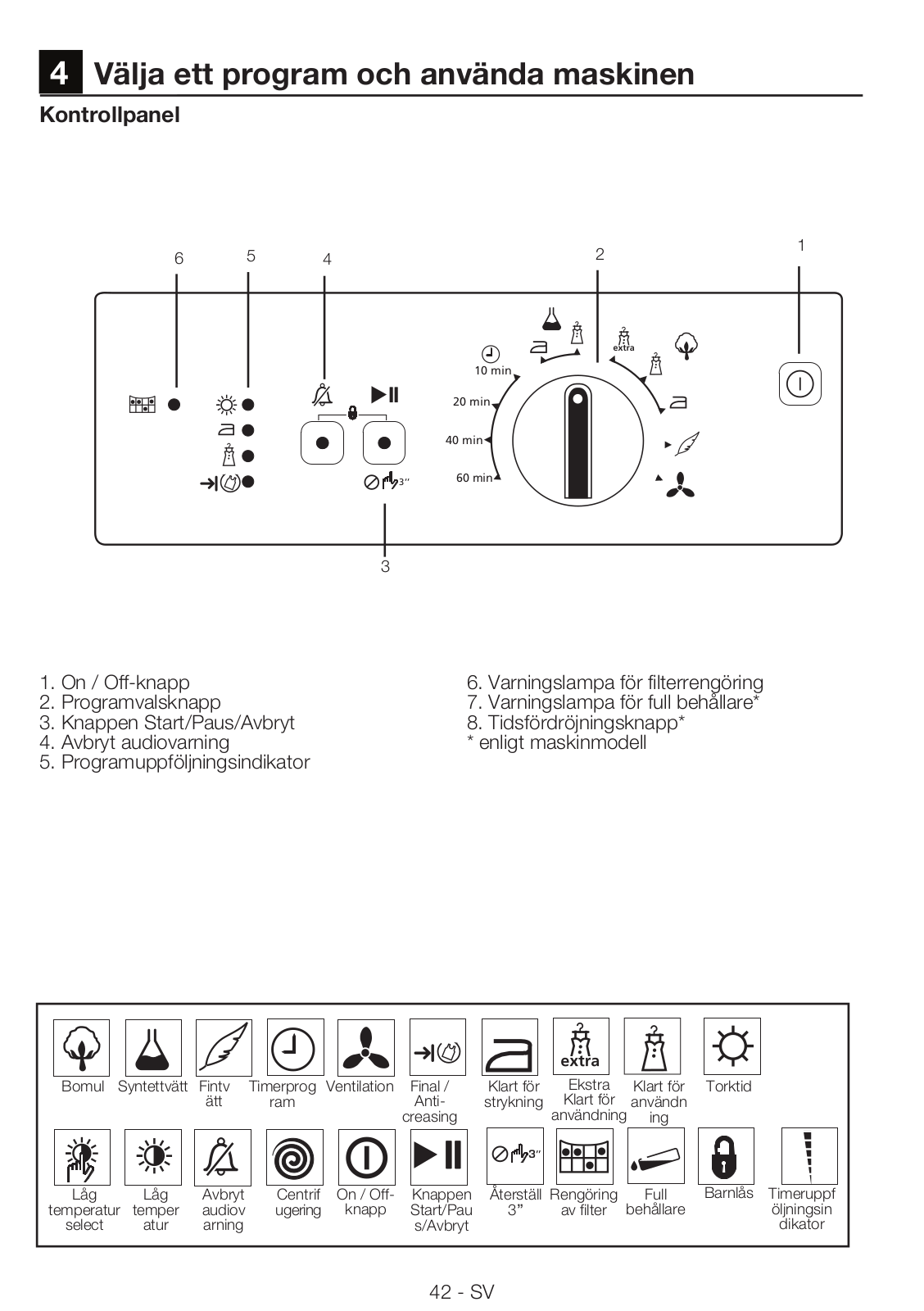

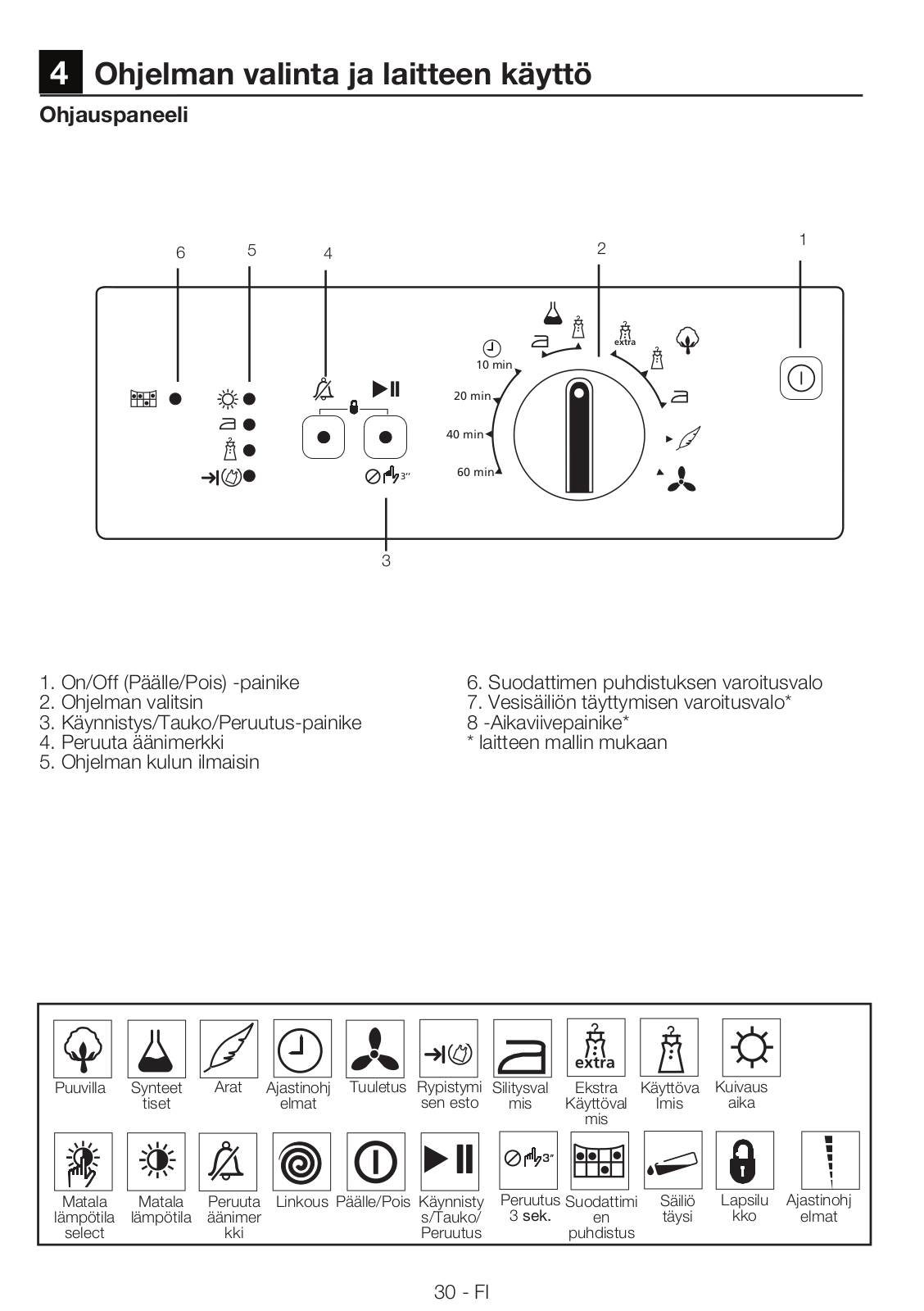

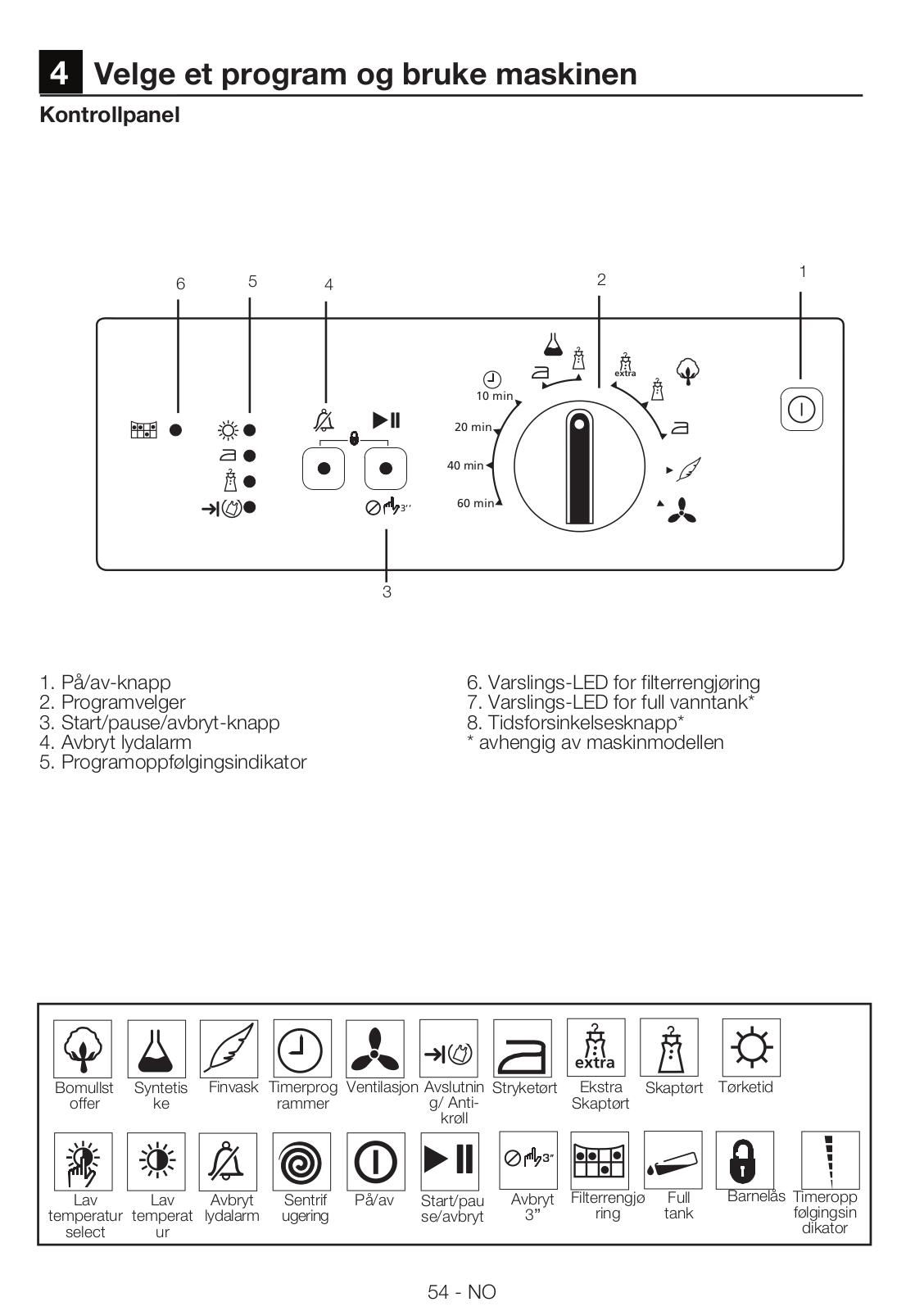

Control panel

6	5	4	2			1

10 min

20 min

40 min

3’’	60 min

3

1.	On/Off button	6.	Filter cleaning warning LED
2.	Program selection knob	7.	Water tank full warning LED*
3.	Start/Pause/Cancel button	8.	Time delay button *
4.	Cancel Audio Warning	* According to your machine’s model
5.	Program follow-up indicator

Cottons		Synthetics Delicates						Timer
								program

Ventilation	End/	Iron Dry	Extra Ready	Ready to	Drying
	Anti-		to Wear	Wear
	creasing

						3’’
Basse	Basse	Cancel	Spin	On/Off Start/Pause/	Reset	Filter	Tank	Child-proof	Timer
température température		Audio		Cancel	3 sn.	cleaning	full	lock	follow-up
select		Warning							indicator

6 - EN

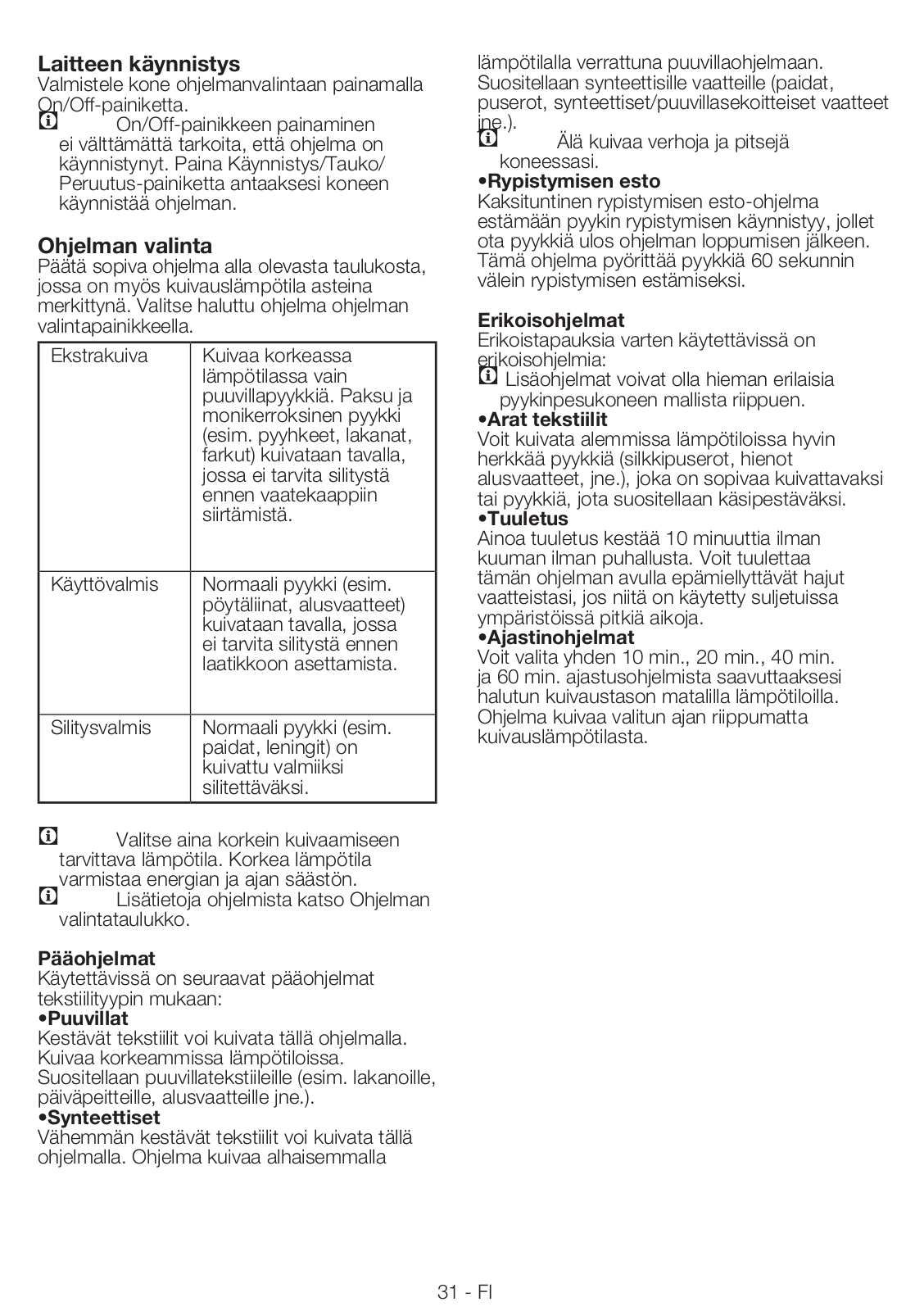

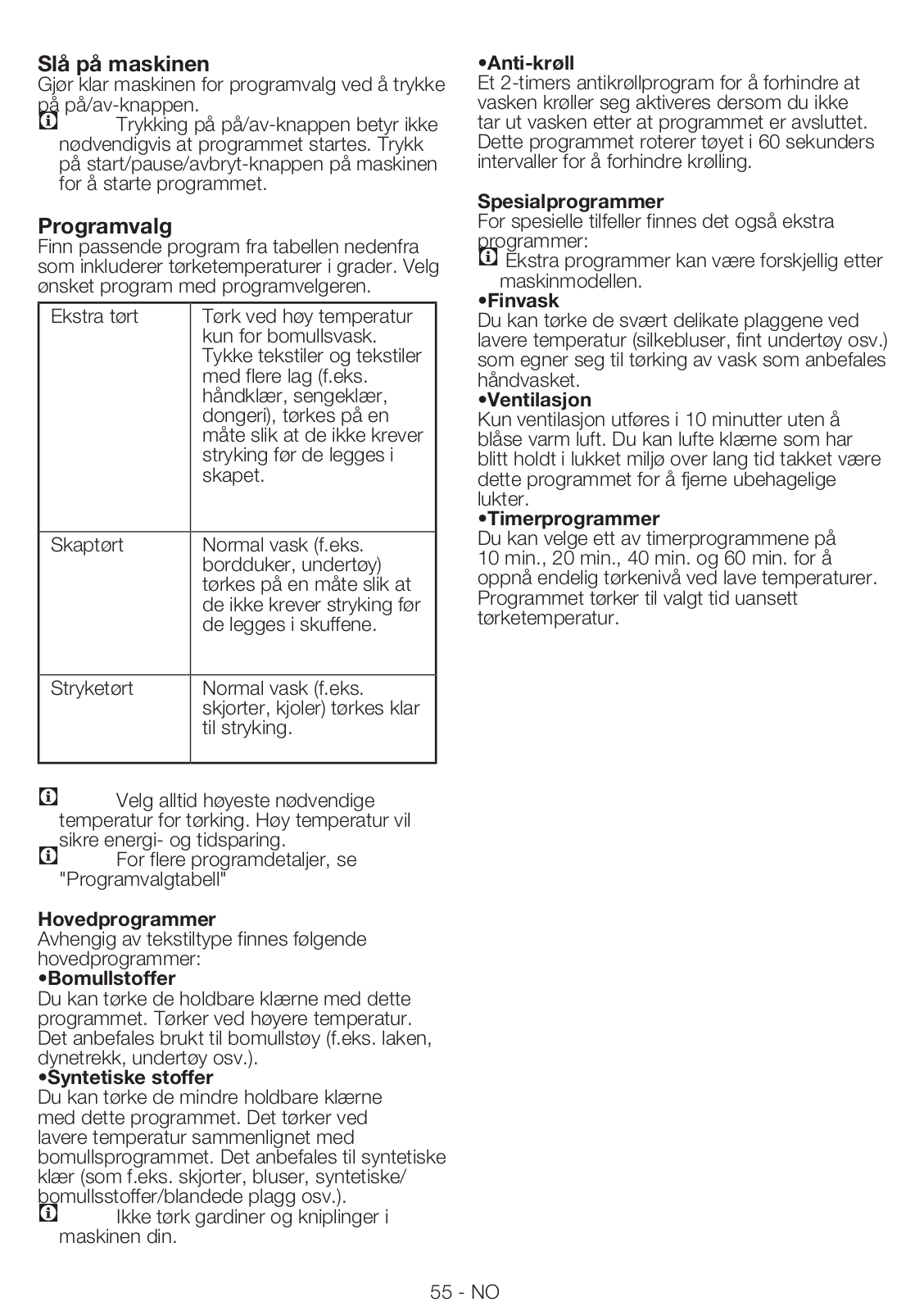

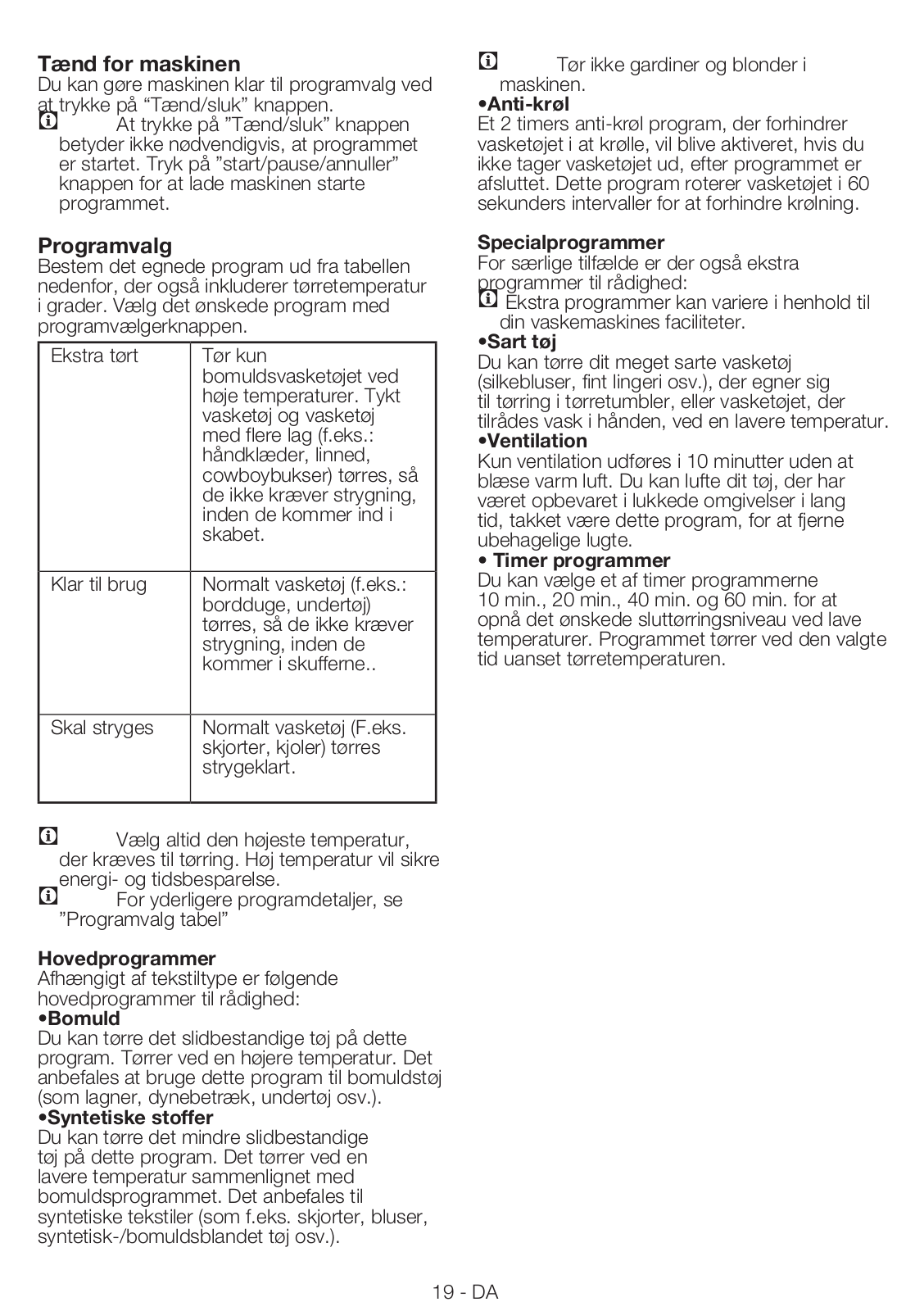

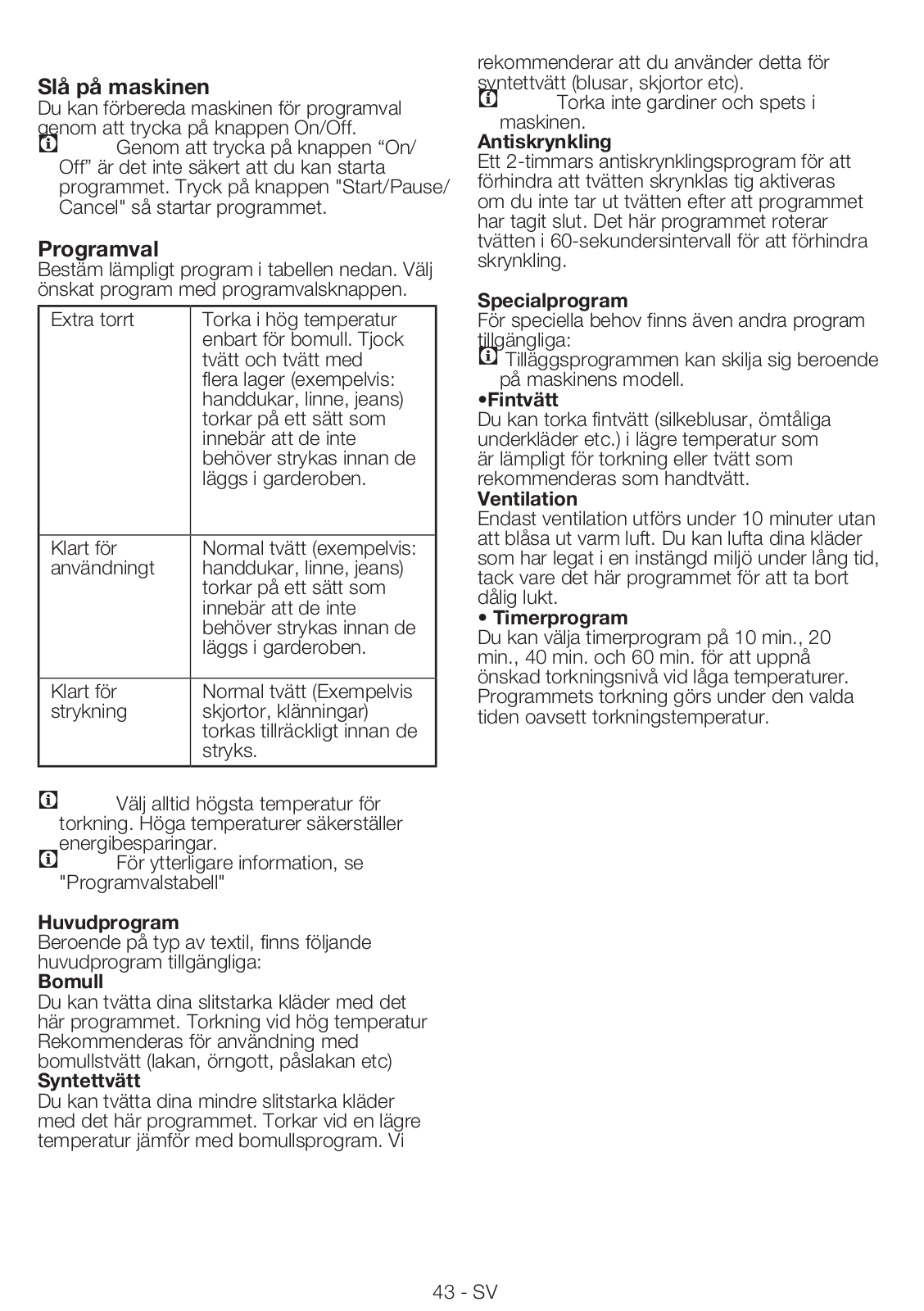

Turning the machine on

Prepare machine for program selection by pressing the “On/Off” button.

C Pressing the “On/Off” button does not necessarily mean the program has started.

Press “Start/Pause/Cancel” button to allow the machine start the program.

Program selection

Decide the appropriate program from the table below which includes drying temperature in degrees. Select the desired program with the program selection button.

	Dry at high temperature
	only for cotton laundry.
	Thick and multi layered
Extra dry	laundry (E.g.: towels,
	linens, jeans) are dried in
	a way that they do not
	require ironing before
	placing in the wardrobe.
	Normal laundry (E.g.:
	tablecloths, underwear)
Ready to Wear	are dried in a way that
	they do not require
	ironing before placing in
	the drawers.
	Normal laundry (E.g.,
Ready to Iron	Shirts, dresses) are dried
	ready to be ironed.

C Always select the highest temperature required for drying. High temperature will ensure energy and time saving.

C For further program details, see, “Program Selection Table”

Main programs

Depending on the type of textile, the following main programs are available:

•Cottons

You can dry your durable clothes with this program. Dries at a higher temperature. It is recommended to use for your cotton items (such as bed sheets, quilt cover, underclothing, etc.).

•Synthetics

You can dry your less durable clothes with this program. It dries at a lower temperature compared to the cottons program. It is recommended for your synthetic clothes (such

as shirts, blouses, synthetic/cotton blended garments, etc.).

C Do not dry curtains and lace in your machine.

•Anti-creasing

A 2-hour anti creasing program to prevent laundry from creasing will be activated if you do not take the laundry out after the program has come to an end. This program rotates the laundry in 60-second intervals to prevent creasing.

Special programs

For special cases, there are also extra programs available:

C Additional programs may differ according to the model of your machine.

•Delicates

You can dry at a lower temperature your very delicate laundry (silk blouses, fine underwear, etc.) that are suitable for drying or laundry which is advised to be hand-washed.

•Ventilation

Only ventilation is performed for 10 minutes without blowing hot air. You can air your clothes that have been kept at closed environments for a long time thanks to this program to deodorize unpleasant odors.

•Timer programs

You can select one of the 10 min., 20 min., 40 min. and 60 min. timer programs to achieve the desired final drying level at low temperatures.

Program dries at the selected time regardless of the drying level.

7 - EN

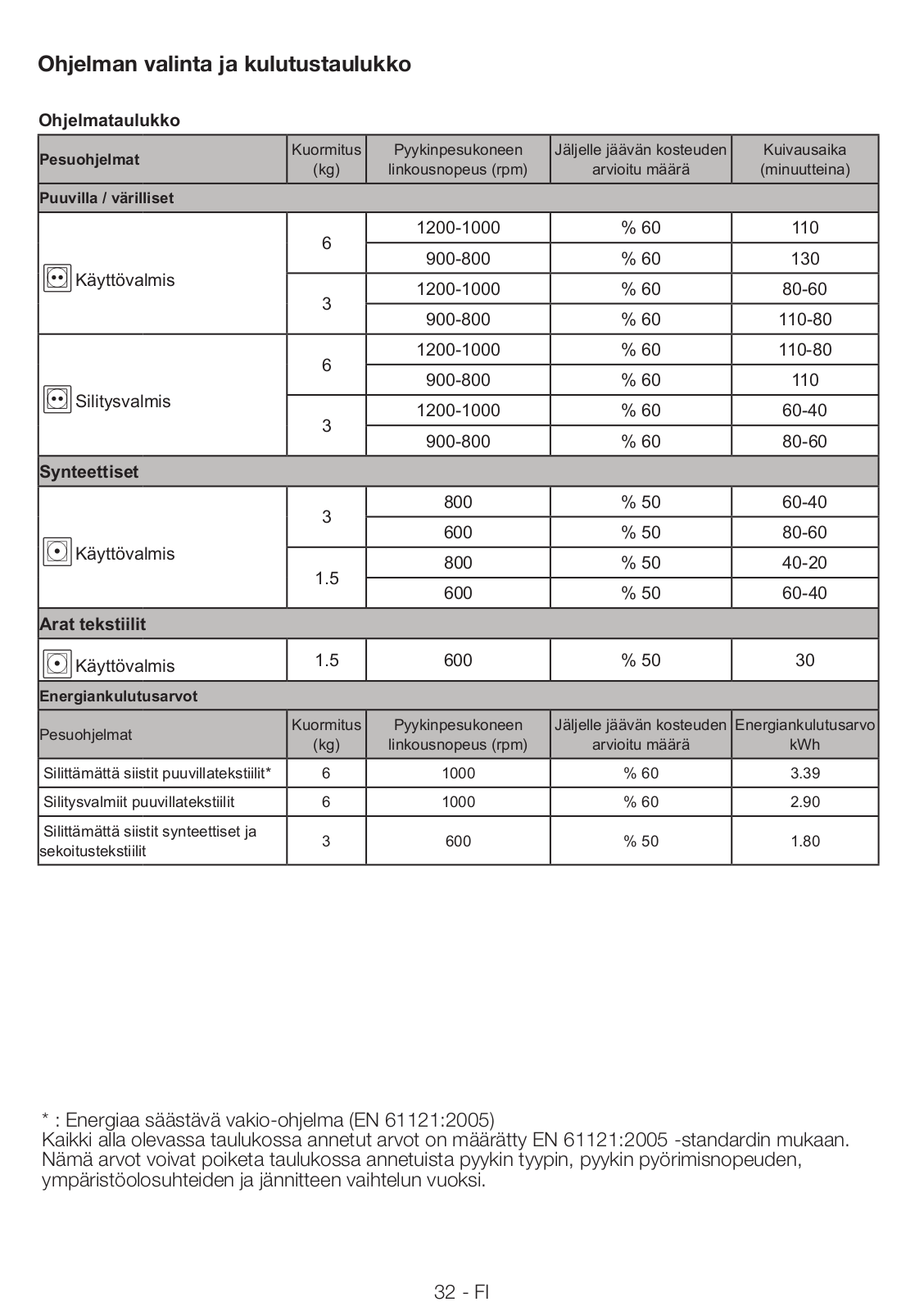

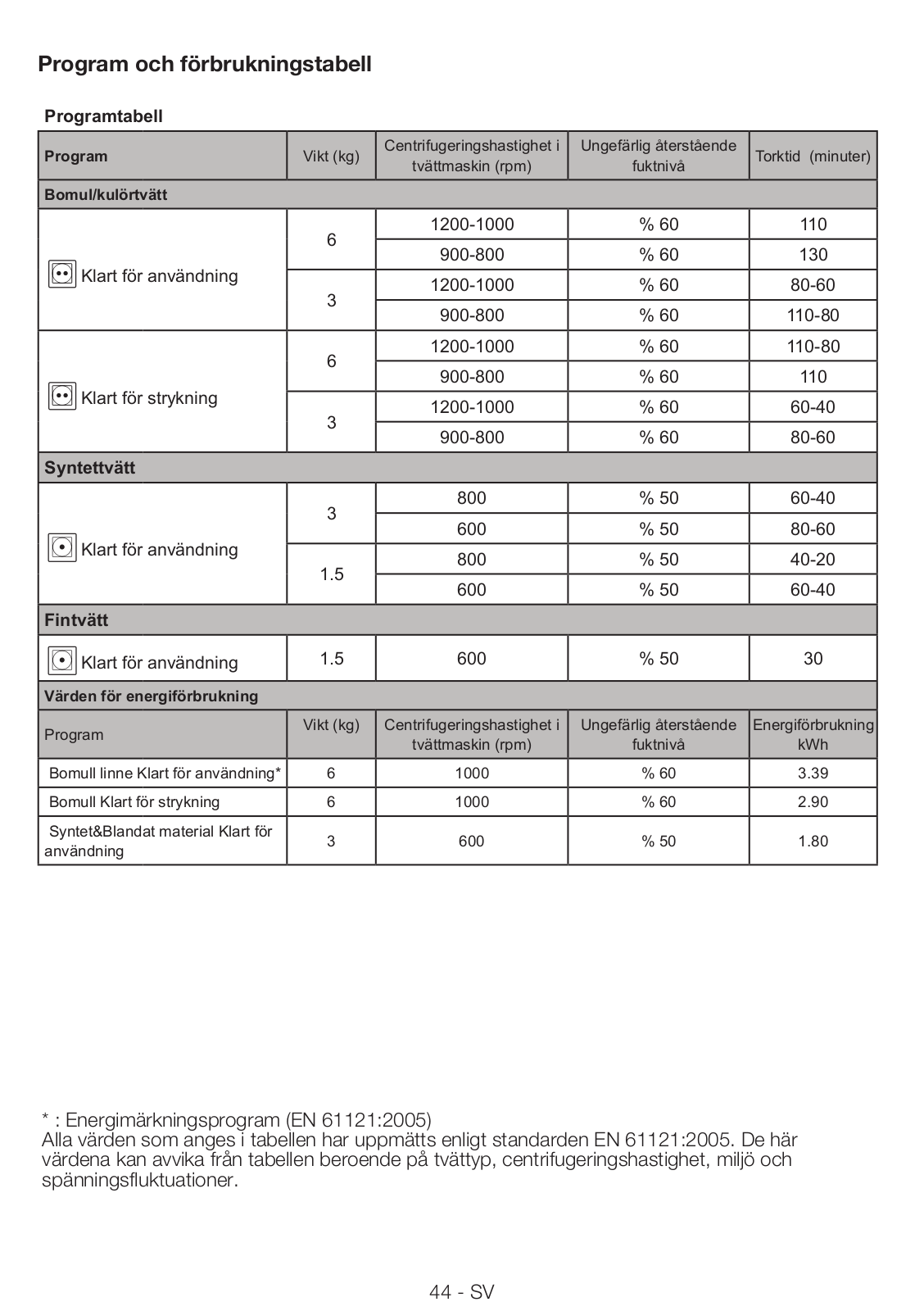

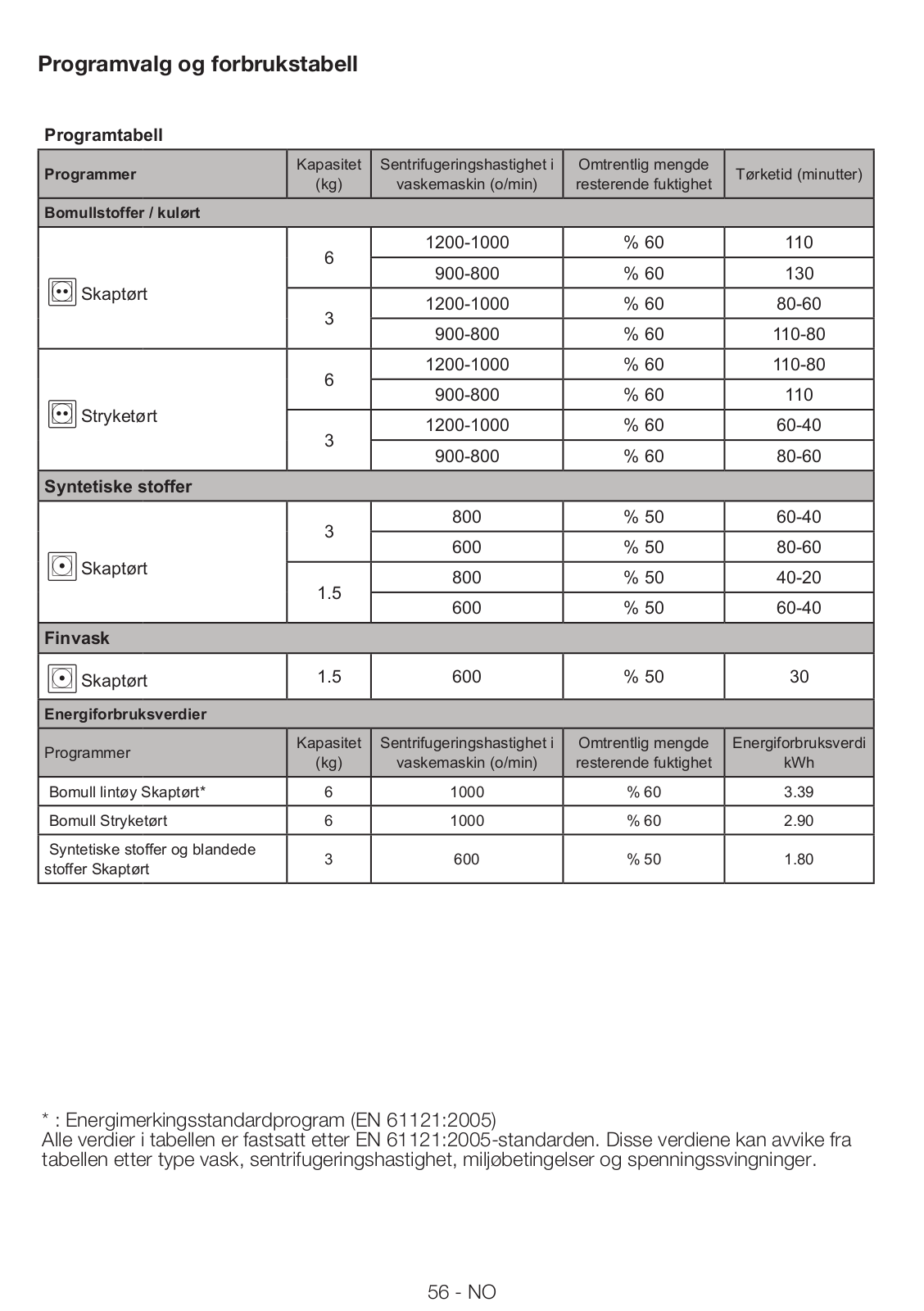

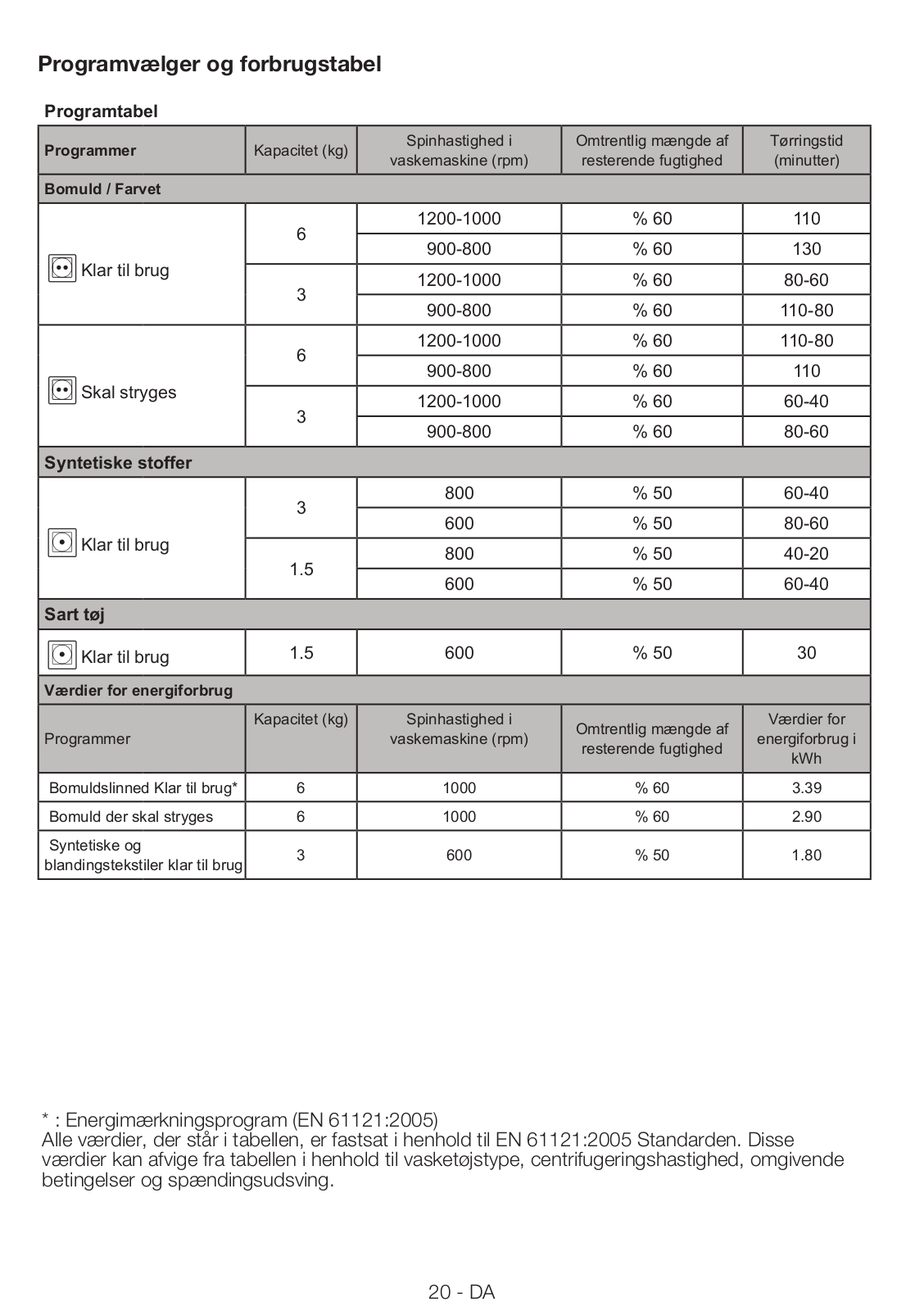

Program selection and consumption table

Program table

	Programs	Capacity	Spin speed in washing	Approximate amount of	Drying time
		(kg)	machine (rpm)	remaining humidity	(minutes)
	Cottons / Coloreds
		6	1200-1000	% 60	110
	A Ready to Wear		900-800	% 60	130
		3	1200-1000	% 60	80-60
			900-800	% 60	110-80
		6	1200-1000	% 60	110-80
	A Ready to Iron		900-800	% 60	110
		3	1200-1000	% 60	60-40
			900-800	% 60	80-60
	Synthetics
		3	800	% 50	60-40
	B Ready to Wear		600	% 50	80-60
		1.5	800	% 50	40-20
			600	% 50	60-40
	Delicates
	B Ready to Wear	1.5	600	% 50	30
	Energy consumption values
		Capacity	Spin speed in washing	Approximate amount of	Energy
	Programs	(kg)	machine (rpm)		consumption
				remaining humidity
					value kWh
	Cottons linen Ready to wear*	6	1000	% 60	3.39
	Cottons Ready to iron	6	1000	% 60	2.90
	Synthetics&Mixed fabrics	3	600	% 50	1.80
	Ready to wear

* : Energy Label standard program (EN 61121:2005)

All values given in the table have been fixed according to EN 61121:2005 Standard. These values may deviate from the table according to the laundry type, laundry spin speed, environmental conditions and voltage fluctuations.

8 - EN

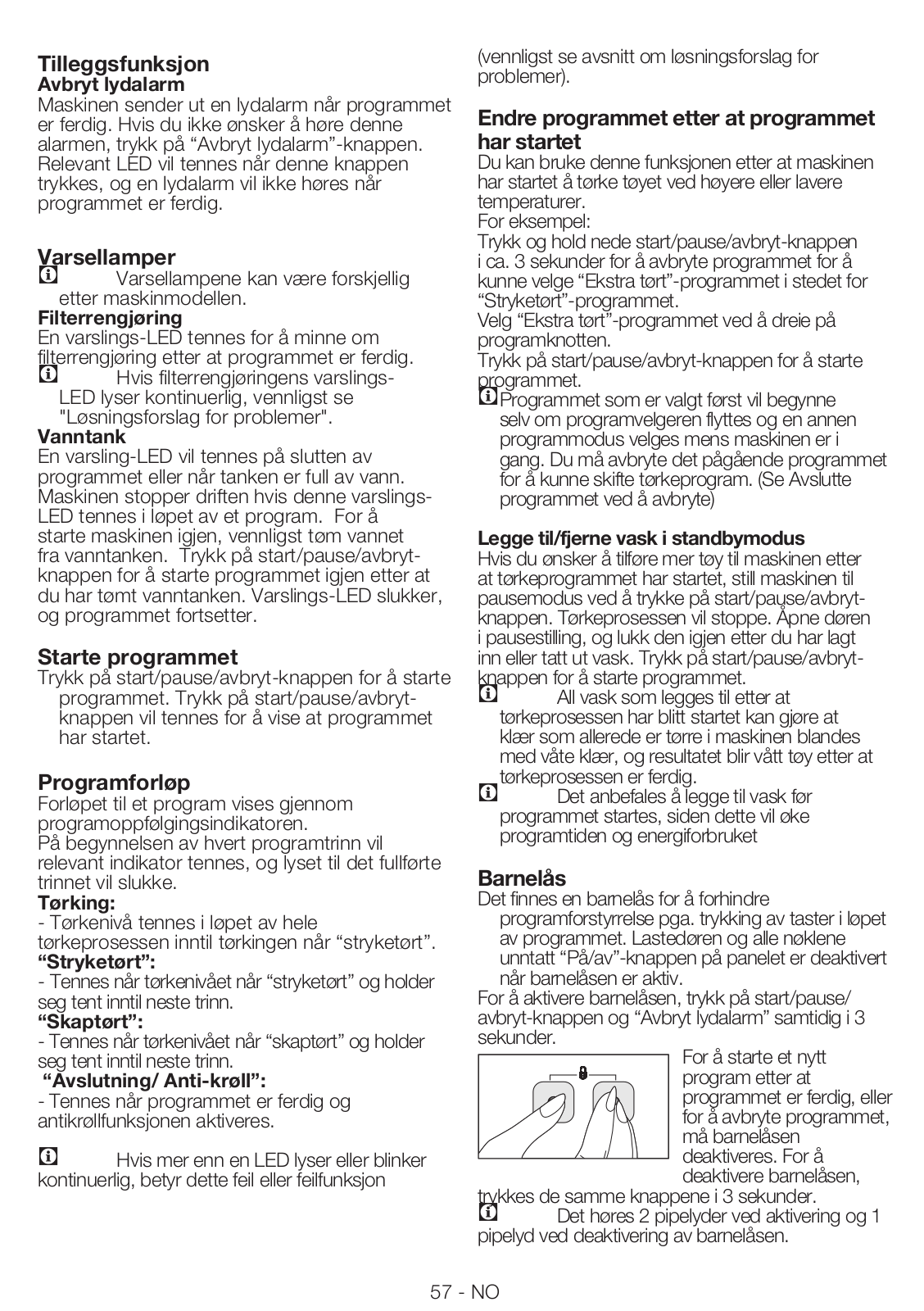

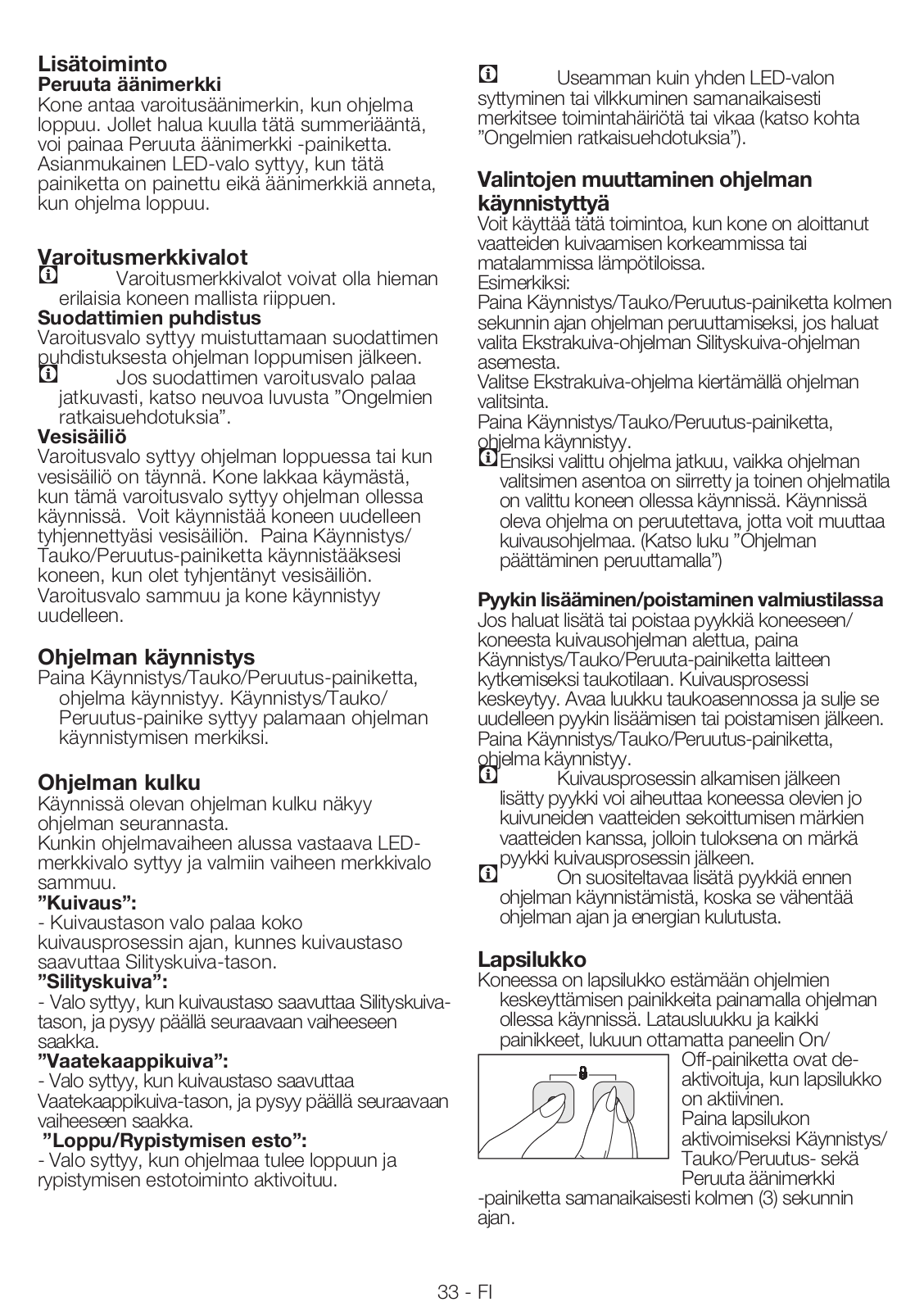

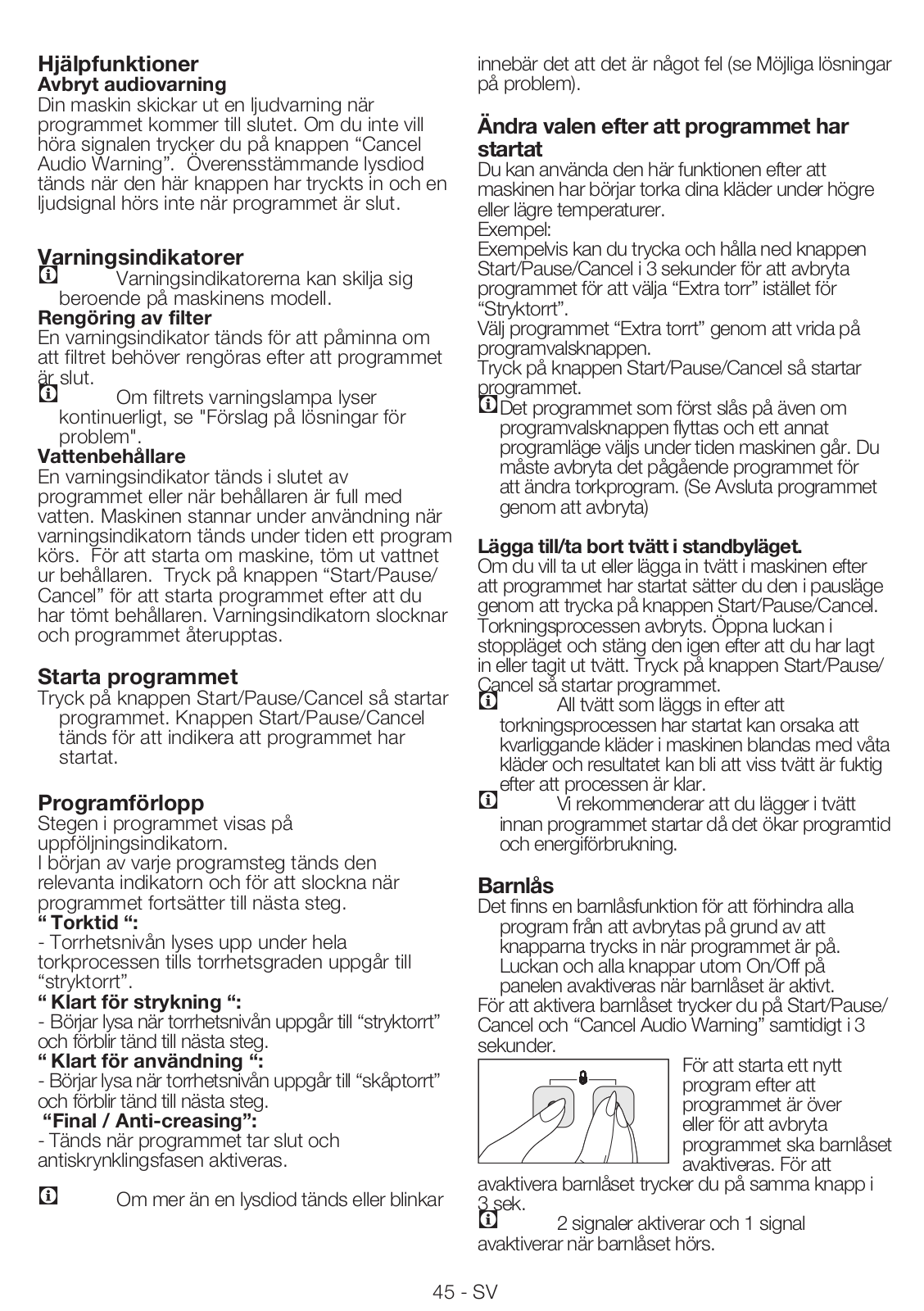

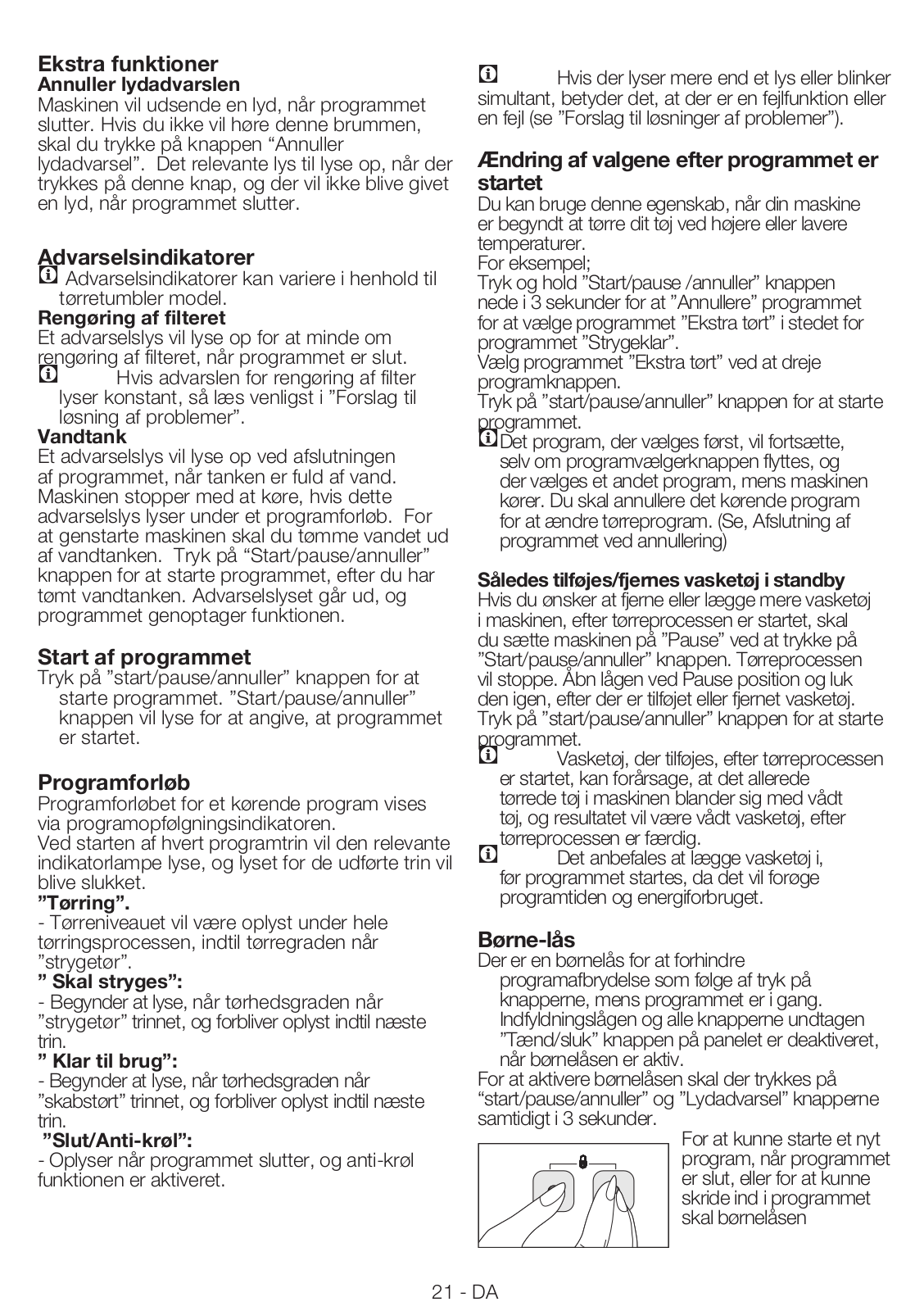

Auxiliary function

Buzzer Cancel Models Equiped

Your machine will send out an buzzer warning when the program comes to an end. If you do not want to hear this buzzing, you need to press the “Cancel Audio Warning” button. The relevant LED will light up when this button is pressed and an audio warning will not be given when the program comes to an end.

Warning indicators

C Warning indicators may differ according to the model of your machine.

Filter cleaning

A warning LED will light up to remind filter cleaning after the program finishes.

C If the filter cleaning warning LED lights up continuously, please refer to, “Solution suggestions for problems”.

Water tank

A warning LED will light up at the end of the program or when the tank is full with water. The machine stops operating when this warning LED lights up during a program running. To restart the machine, please drain the water in the water tank. Press “Start/Pause/Cancel” button to start the program after you have emptied the water tank. The warning LED goes off and the program resumes operating.

Starting the Program

Press “Start/Pause/Cancel” button to start the program. “Start/Pause/Cancel” button will light up to indicate that the program has started.

Progress of program

Progress of a running program is shown through the program follow-up indicator.

At the beginning of every program step, the relevant indicator LED will light up and light of the completed step will turn off.

“Drying”:

-Drying level will be illuminated during the whole drying process until the drying degree reaches “ Ready to Iron “.

“ Ready to Iron “:

-Starts to illuminate when the drying degree reaches “ Ready to Iron “ step and remains illuminated until the next step.

“ Ready to Wear “:

-Starts to illuminate when the drying degree reaches “ Ready to Iron “ step and remains

illuminated until the next step.

“Final / Anti-creasing”:

- Illuminates when the program comes to an end and anti-creasing function is activated.

C If more than one LED light up or flash concurrently, it means there is malfunctioning or

a failure (please see, Solution suggestions for problems).

Changing the program after the program

has started

You can use this feature after your machine has started to dry your clothes under higher or lower temperatures.

For example;

Press and hold the “Start/Pause/Cancel” button for about 3 seconds to “Cancel” the program in order to select “Extra Dry” program instead of “Iron Dry” program.

Select the “Extra Dry” program by rotating the program knob.

Press “Start/Pause/Cancel” button to start the program.

CThe program which is selected first will go on even if the program selection button is moved and another program mode is selected while the machine is operating. You must cancel the ongoing program in order to change the drying program. (See, Ending the program through canceling)

Adding/removing laundry in standby mode

If you want to add or remove laundry into/from your machine after the drying program has started, put the machine into “Pause” mode by pressing the “Start/Pause/Cancel” button. Drying process will stop. Open the door at Pause position and close

it again after adding or taking out laundry. Press

“Start/Pause/Cancel” button to start the program. C Any laundry added after the drying

process was started may cause the already dried clothes in the machine intermingle with wet clothes and the result will be wet laundry after the drying process is over.

C It is recommended to add laundry before the program is started since it will increase the program time and energy consumption.

Child-proof lock

There is a childproof lock to prevent any program interruption due to the pressing of keys while the program is on. The loading door and all keys except the “On/Off” key on the panel are deactivated when the child-proof lock is active.

In order to activate the childproof lock, press on the “Start/Pause/Cancel” and “Cancel audio warning” buttons simultaneously for 3 seconds.

To start a new program after the program is

over or to interrupt the program, the

childproof lock should be deactivated. To deactivate the childproof lock, press

the same buttons for 3 sec.

C 2 beeps when activating and 1 beep when deactivating the child-proof lock is heard.

9 - EN

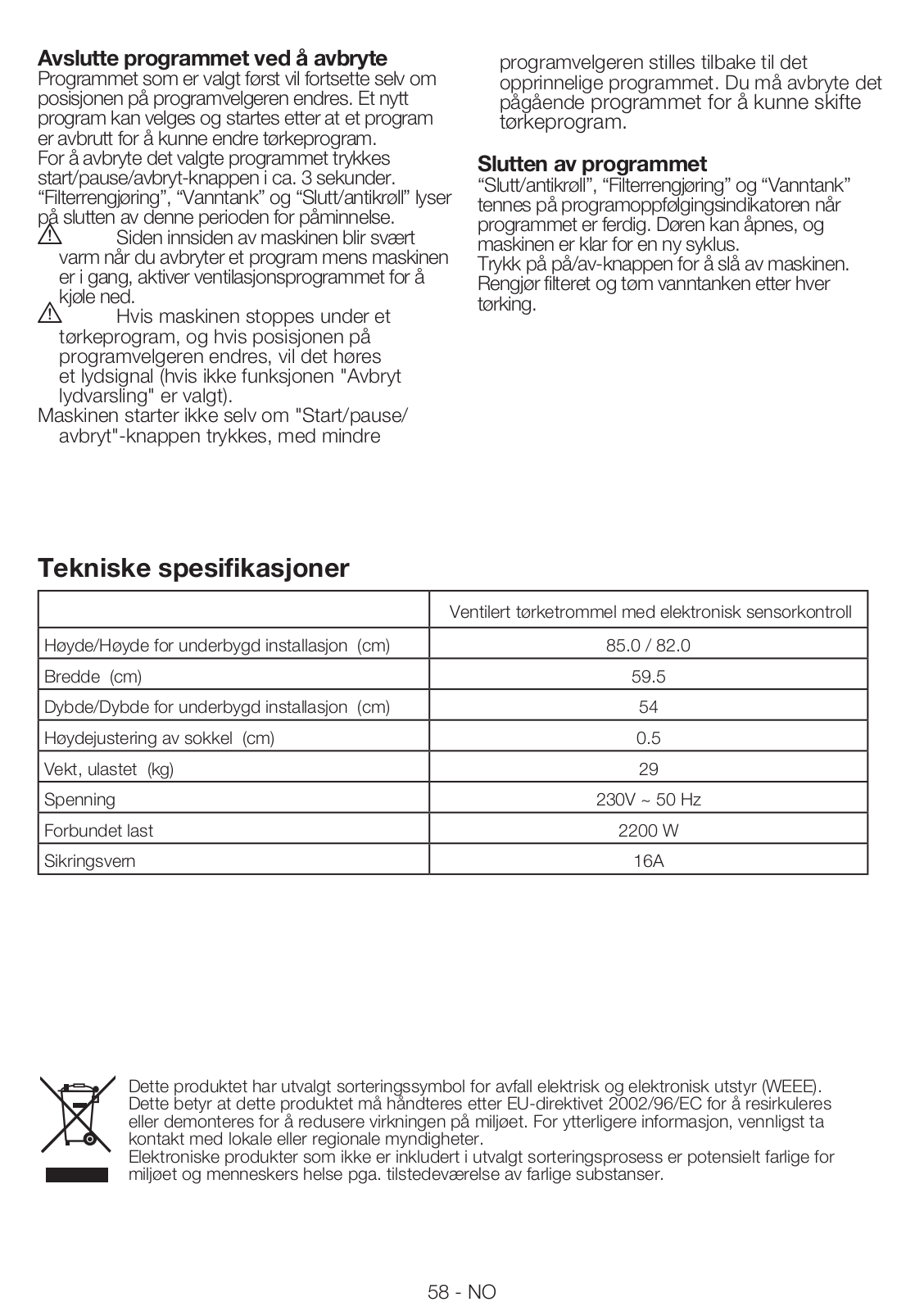

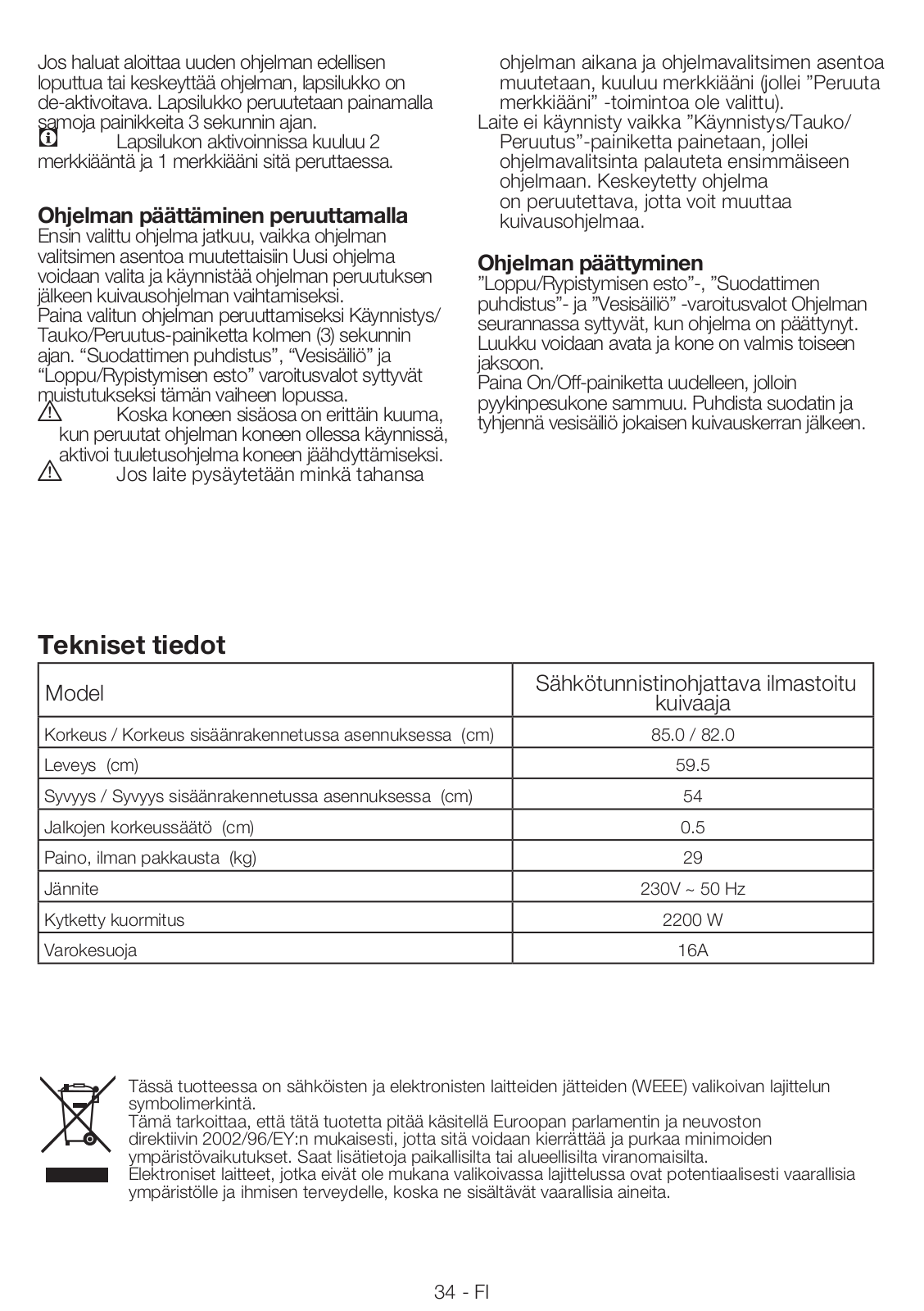

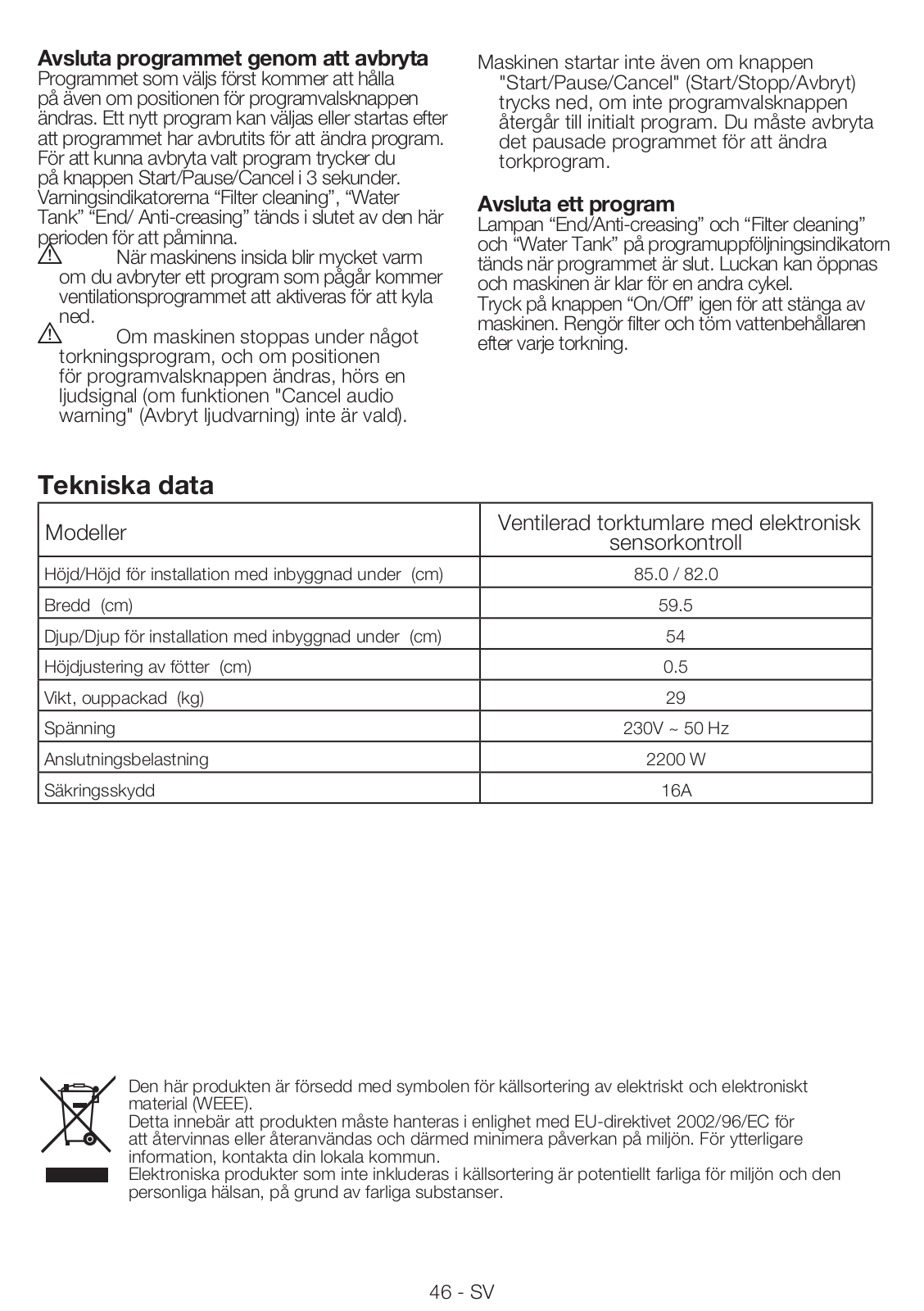

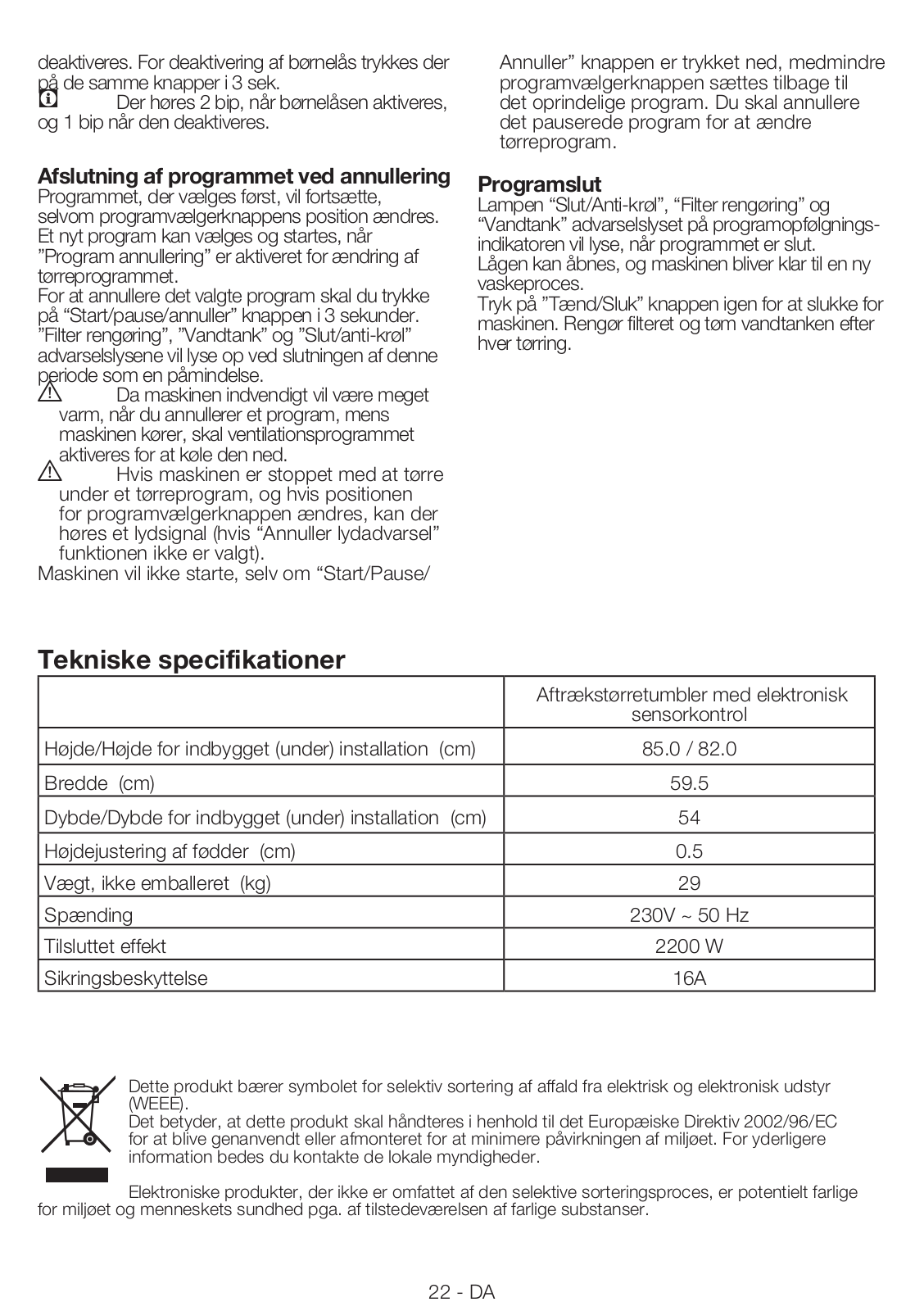

Ending the program through canceling

The program which is selected first will keep on going even if the position of the program selection button is changed. A new program can be selected and started after “Program cancel” is activated in order to change the drying program.

In order to cancel the selected program; press “Start/Pause/Cancel” button for about 3 seconds. The “Filter cleaning”, “Water tank” and “End/ Anticreasing” warning LEDs will light up at the end of this period for reminding purposes.

A As the inside of the machine will be excessively hot when you cancel the program while the machine is running, activate the ventilation program to cool it down.

A If the machine is stopped during any drying program, and if the position of the program selection knob is changed, an audio signal will be heard (if the “Cancel audio

warning” function is not selected).

The machine will not start even if the “Start/ Pause/Cancel” button is pressed, unless the program selection knob is returned to the initial program. The paused program must be cancelled in order to change the drying program.

End of program

The “End/Anti-creasing”, “Filter cleaning” and “Water tank” warning LEDs on the program follow up indicator will light up when the program comes to an end. The door can be opened and the machine becomes ready for a second cycle.

Press the “On/Off” button to shut down the machine. Clean the filter and drain the water tank after each drying.

Technical Specifications

Models	Vented Dryer with electronic Sensor control
Height / Height for built-under installation (cm)	85.0 / 82.0
Width (cm)	59.5
Depth / Depth for built-under installation (cm)	54
Height adjustment of feet (cm)	0.5
Weight, unpacked (kg)	29
Voltage	230V ~ 50 Hz
Connected load	2200 W
Fuse protection	16A

This appliance’s packaging material is recyclable. Help recycle it and protect the environment

by dropping it off in the municipal receptacles provided for this purpose. Your appliance also contains a great amount of recyclable material. It is marked with this label to indicate the

used appliances that should not be mixed with other waste. This way, the appliance recycling organised by your manufacturer will be done under the best possible conditions, in compliance

with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment. Contact your town hall or your retailer for the used appliance collection points closest to your home. We

thank you doing your part to protect the environment.

10 - EN

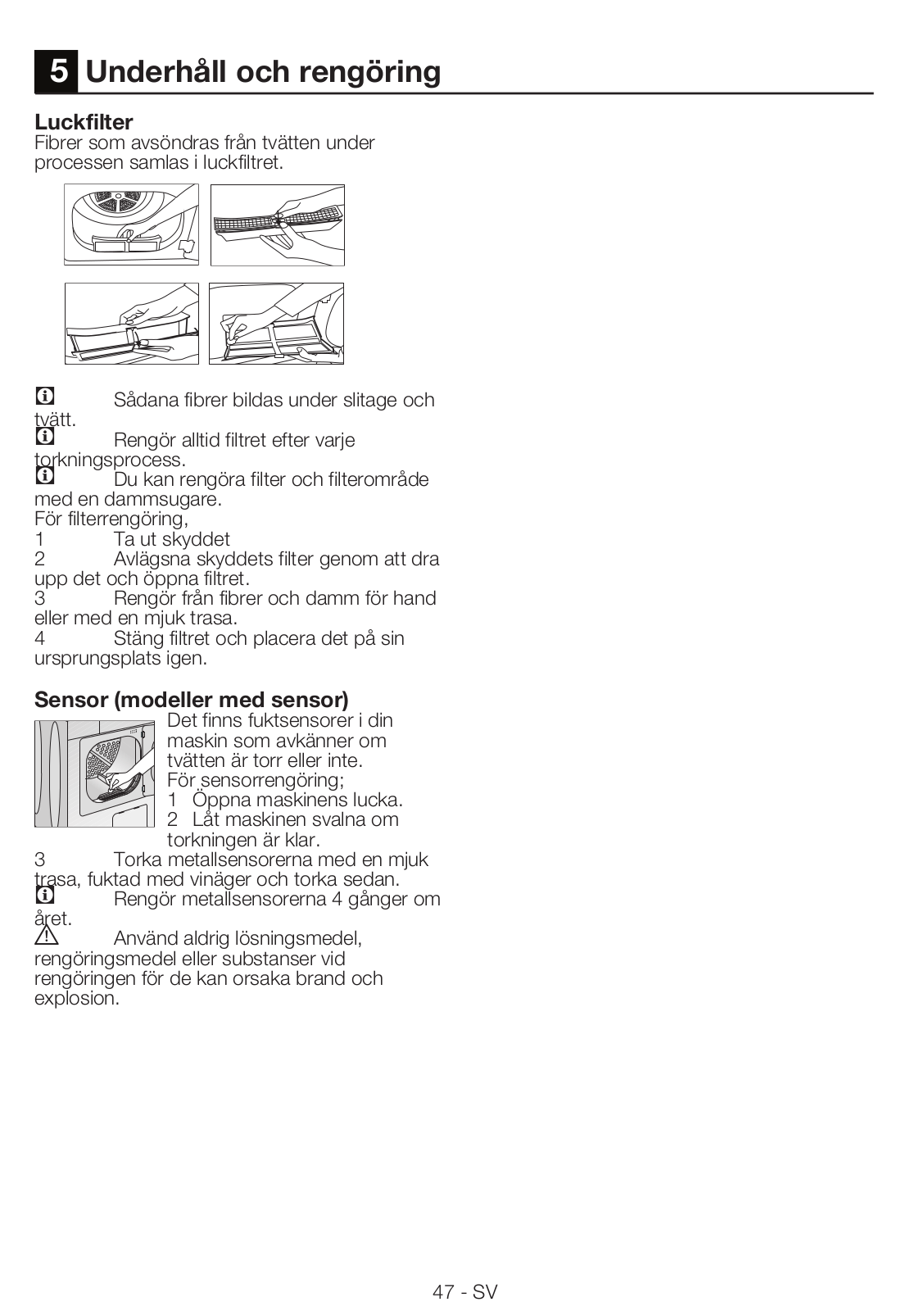

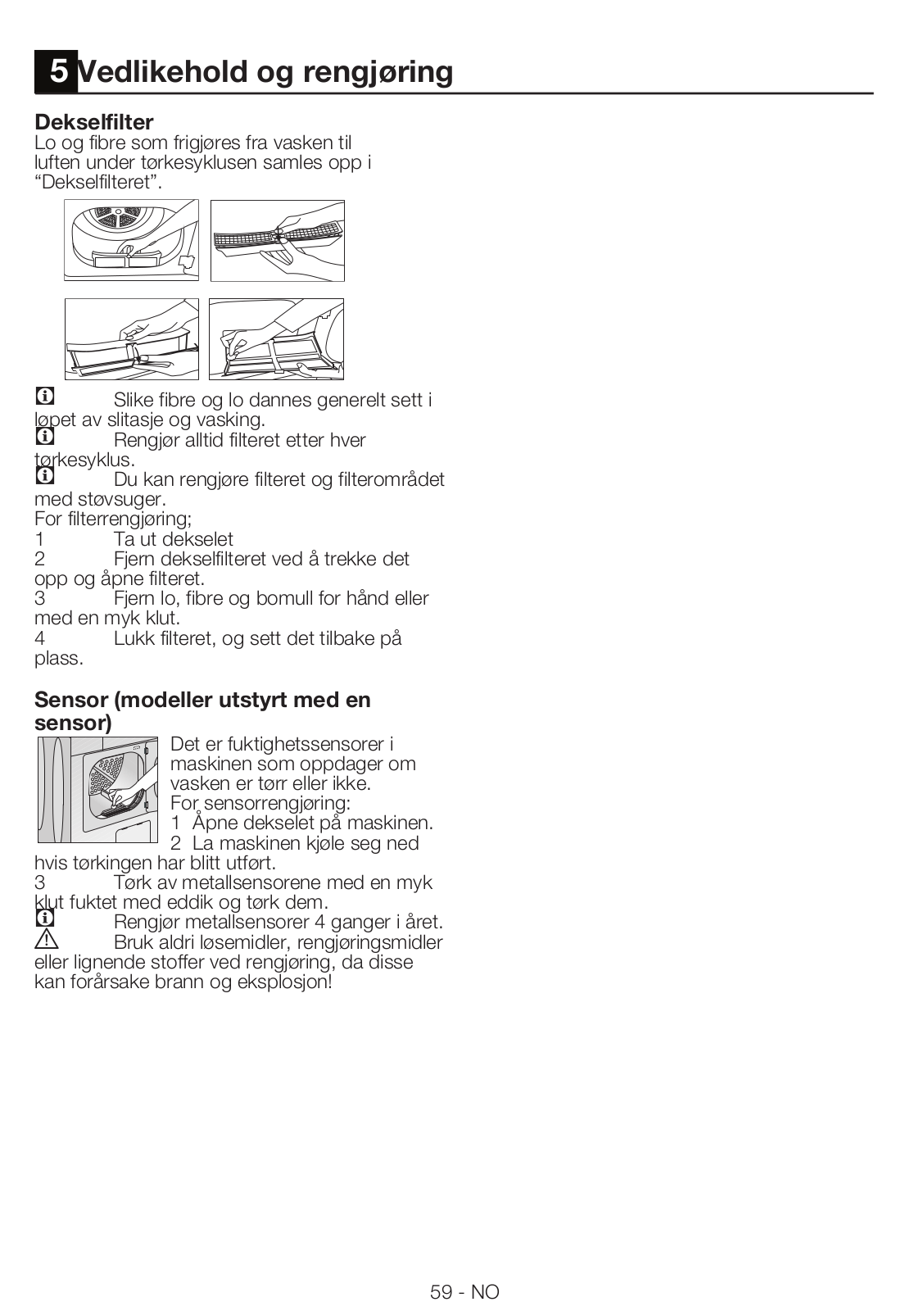

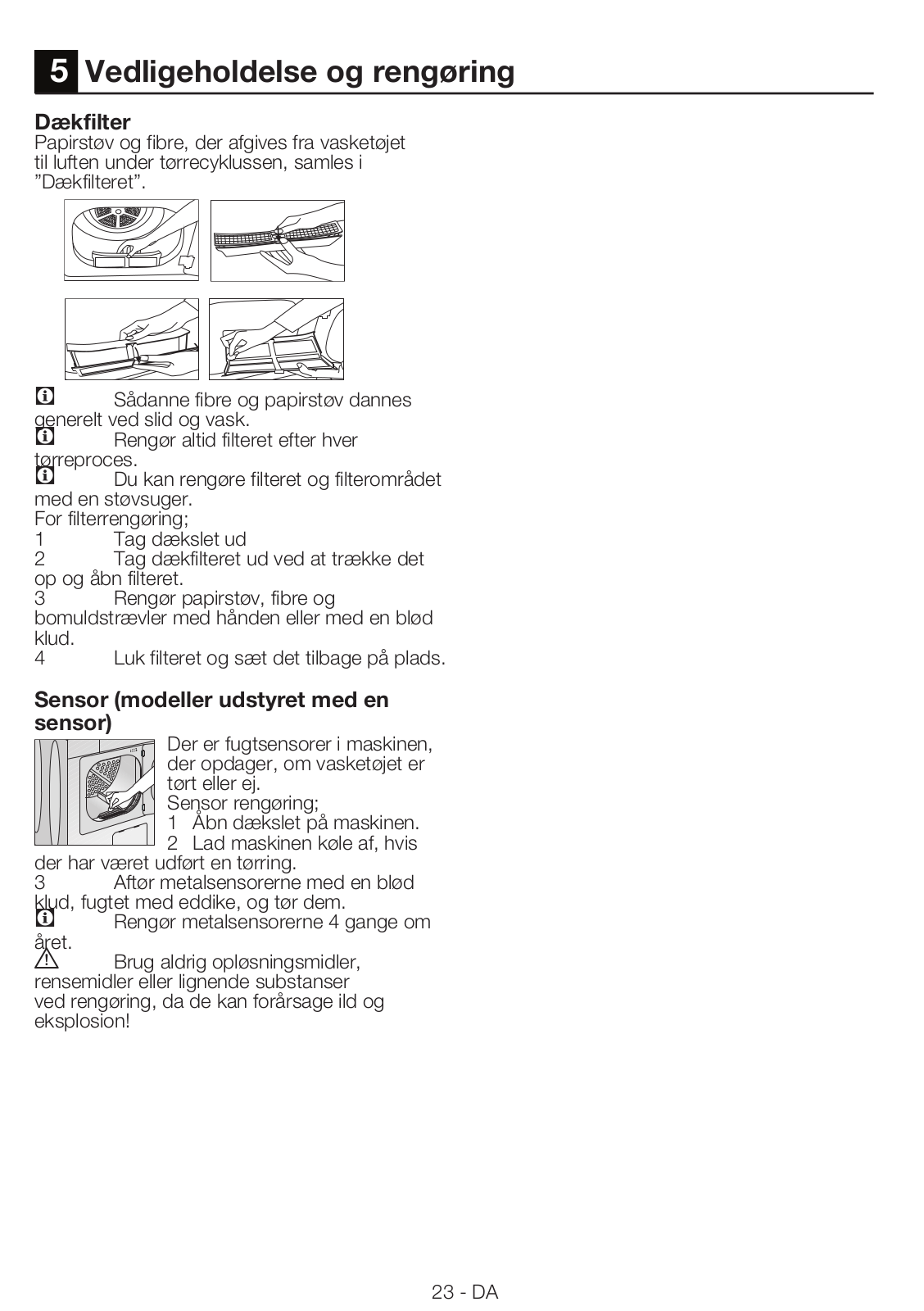

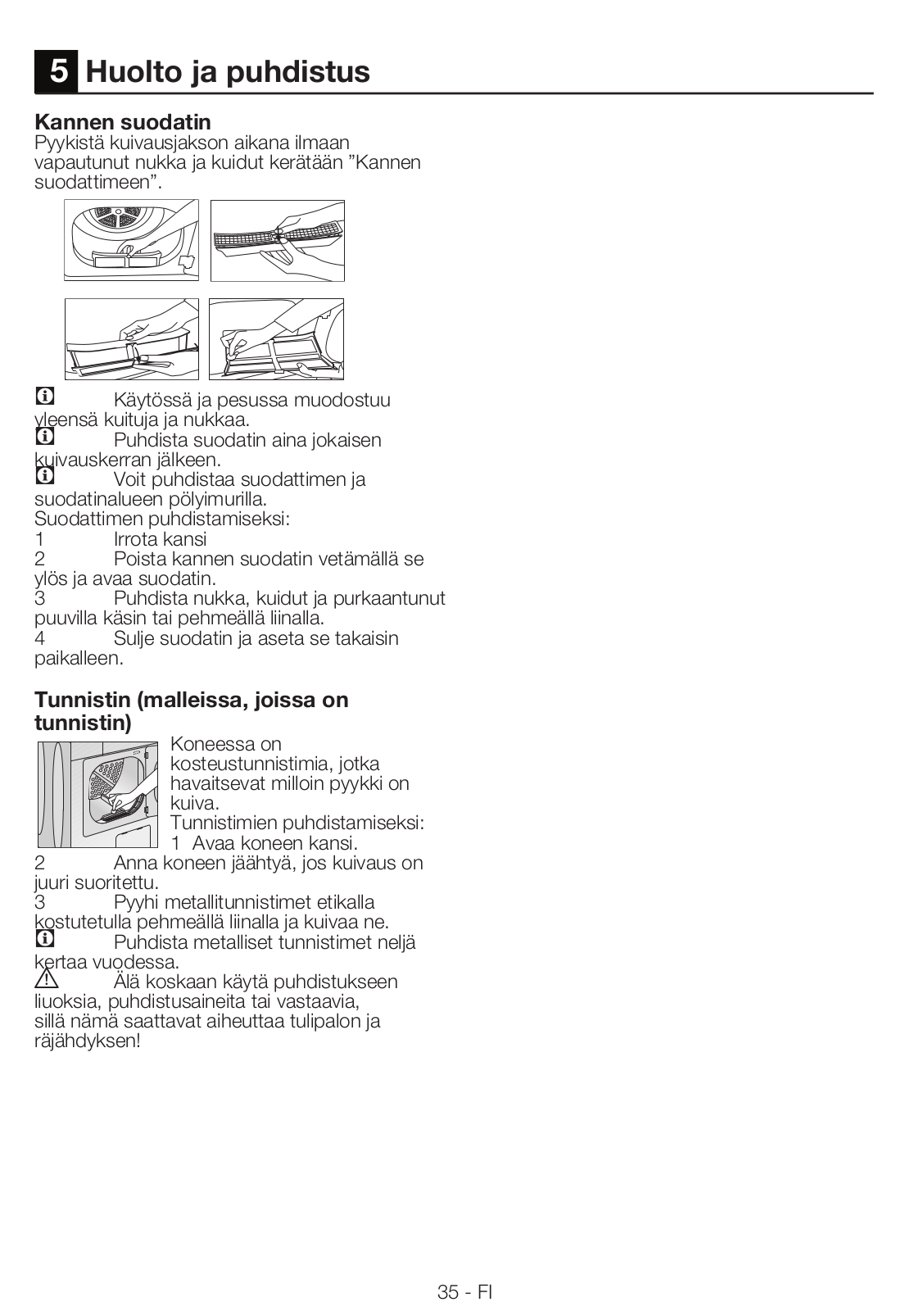

5 Maintenance and cleaning

Fluff filter

Lint and fibres released from the laundry to the air during the drying cycle are collected in the

“Fluff Filter”.

C Such fibre and lint are generally formed during wearing and washing.

C Always clean the filter after each Drying process.

C You can clean the filter and filter area by vacuum cleaner.

For Filter cleaning;

1 Open the cover

2Remove the fluff filter by pulling it up and open the filter.

3Clean lint, fibre, and the fluff by hand or with a soft piece of cloth.

4 Close the filter and place it back into its seat.

Sensor (models equipped with a

sensor)

There are humidity sensors

in your machine that detect

whether the laundry is dry or not.

For sensor cleaning;

1 Open the cover of your machine.

2 Allow the machine to cool off if drying has been carried out.

3 Wipe the metal sensors with a soft cloth, dampened with vinegar and dry them.

C Clean metal sensors 4 times a year.

A Never use solvents, cleaning agents or substances alike when cleaning as these might cause fire and explosion!

11 - EN

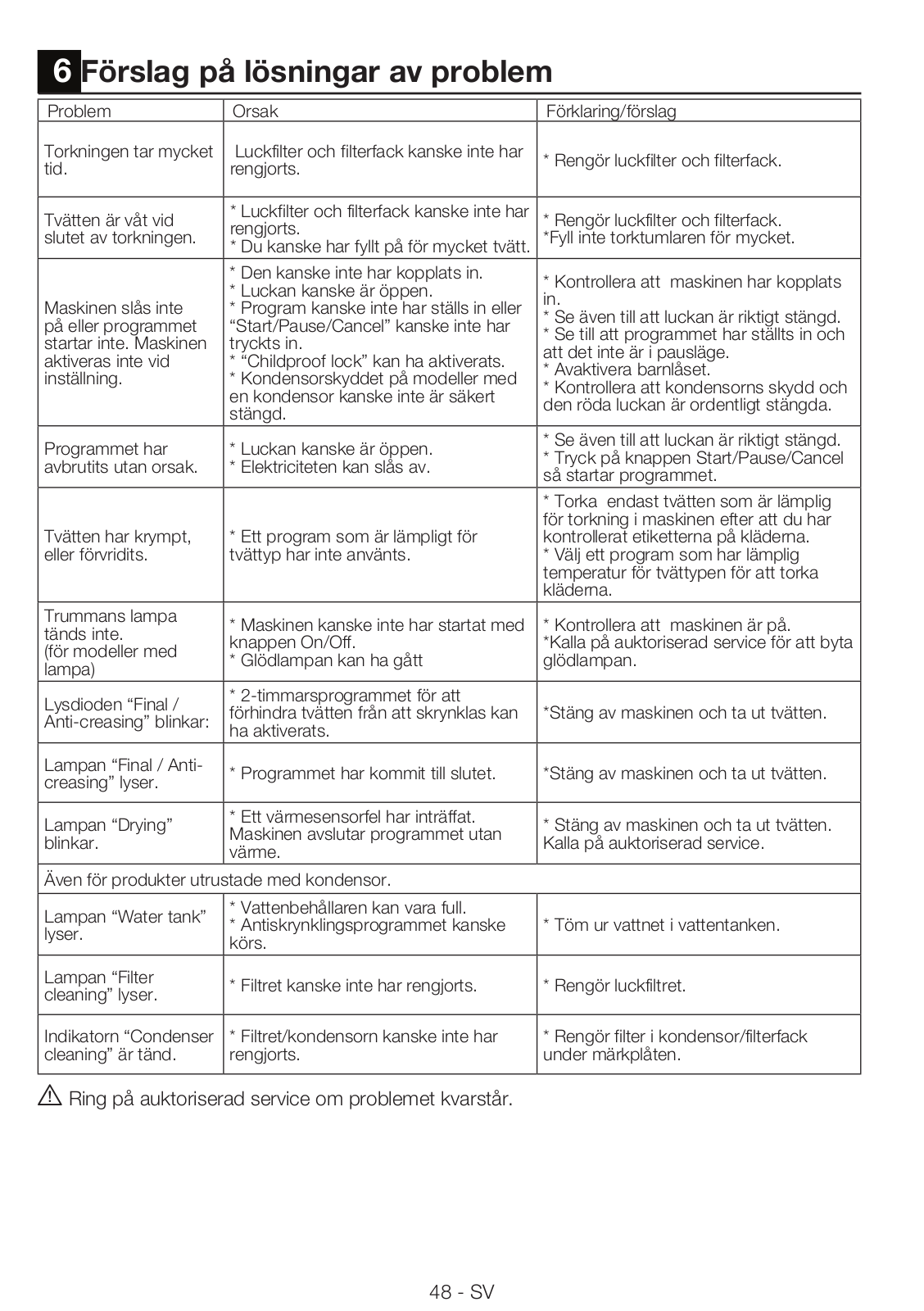

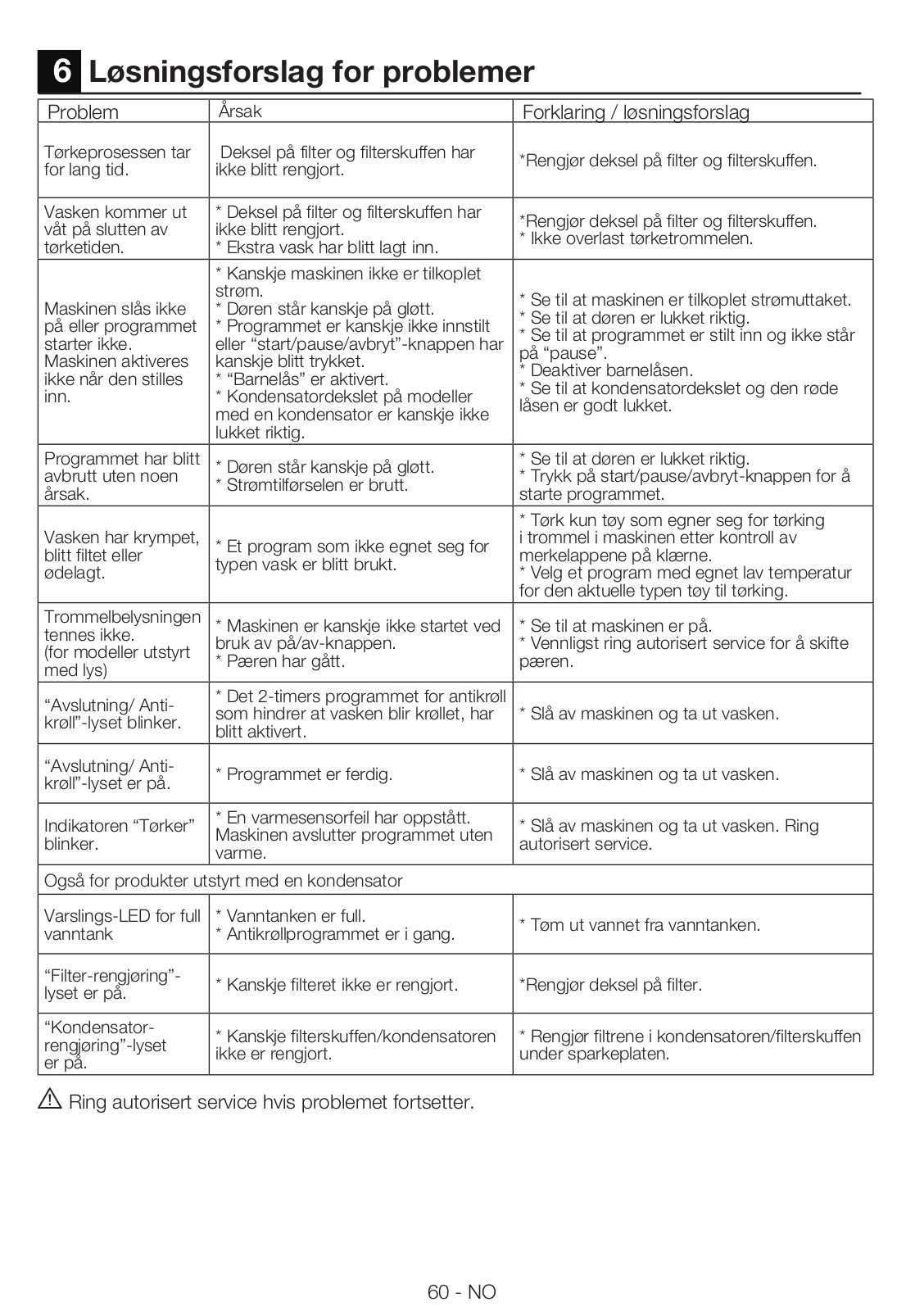

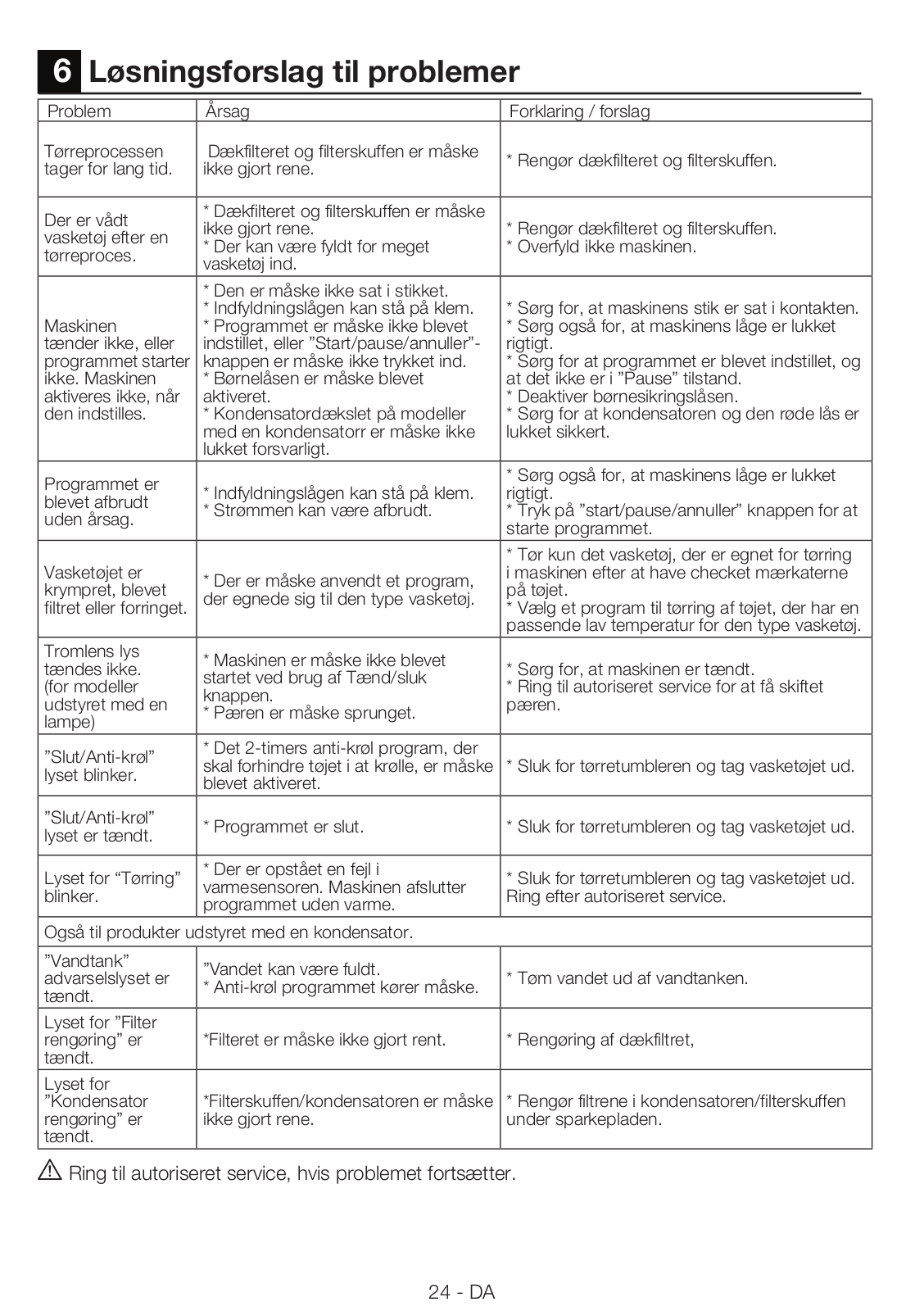

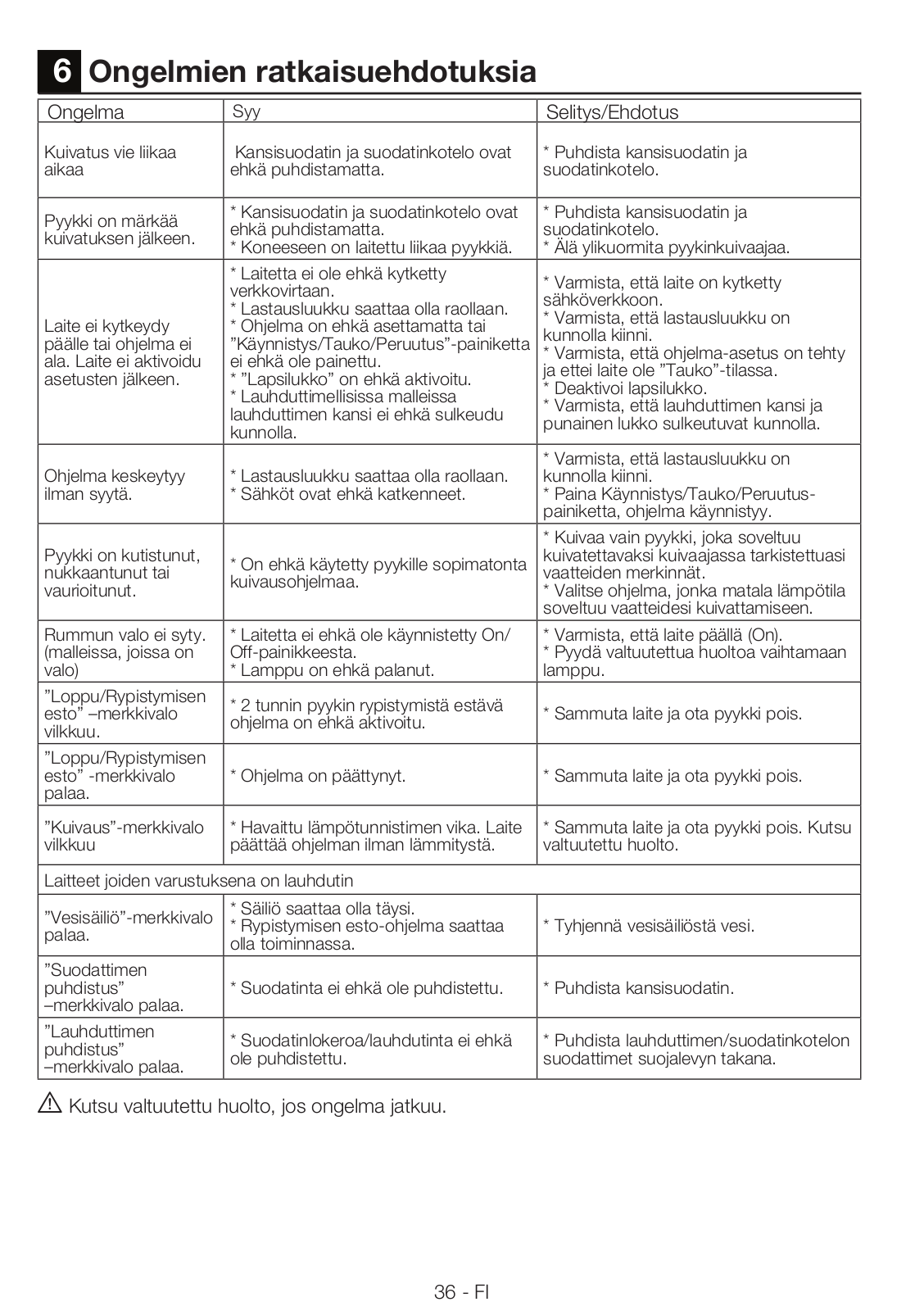

6 Solution suggestions for problems

	Problem	Cause	Explanation / Suggestion
	Drying process takes	Cover filter and filter drawer might have	* Clean the cover filter and Filter drawer.
	too much time.	not been cleaned.
		* Cover filter and filter drawer might
	Laundry come out wet	have not been cleaned.	* Clean the cover filter and Filter drawer.
	at the end of drying.	* Excessive laundry might have been	* Do not overload the machine.
		loaded in.
		* It might have not been plugged in.	* Make sure that the machine is plugged
		* The loading door may be ajar.
			in.
		* Program might have not been set or
	Machine does not		* Make sure that the loading door is
		the “Start/Pause/Cancel” button might
	switch on or the		properly closed.
	program does not	have not been pressed.	* Make sure that the program has been
		* “Childproof lock” might have been
	start. Machine is not		set and it is not in “Pause” mode.
		activated.
	activated when set.		* Deactivate the childproof lock.
		* The condenser cover on the models
			* Make sure that the condenser cover
		with a condenser might not be closed
			and the red lock is closed securely.
		securely.
	Program has been		* Make sure that the loading door is
		* The loading door may be ajar.	properly closed.
	interrupted without
		* Electricity may be cut off.	* Press “Start/Pause/Cancel” button to
	any cause.
			start the program.
			* Dry only the laundry which is suitable
	Laundry has shrunk,		for drying in your machine after checking
		* A program suitable for the laundry	the labels on your clothes.
	become felted or
		type might have not been used.	* Select a program with suitable low
	deteriorated.
			temperature for the laundry type to dry
			your clothes.
	Drum lightning does	* The machine might have not been	* Make sure that the machine is On.
	not come on.
		started by using the On/Off button.	* Call the authorized service to replace
	(for models equipped
		* Bulb may have blown.	the bulb.
	with a lamp)
	“Final / Anti-creasing”	* The 2-hour anti creasing program to	* Turn off the machine and take out the
		prevent laundry from creasing might
	LED flashes.	have been activated.	laundry.
	“Final / Anti-creasing”	* Program has come to an end.	* Turn off the machine and take out the
	LED is on.		laundry.
	The “Drying” LED	* A heat sensor failure has occurred.	* Turn off the machine and take out the
		Machine ends the program without
	flashes.		laundry. Call your authorized service.
		heating.
	Also for products equipped with a condenser
	“Water tank” warning	* Water may be full.
		* Anti-creasing program might be	* Drain the water in the water tank.
	LED is on.	running.
	“Filter cleaning” LED	* Filter might have not been cleaned.	* Clean the cover filter.
	is on.
	“Condenser cleaning”	* Filter drawer/Condenser might have	* Clean the filters in the condenser/filter
	LED is on.	not been cleaned.	drawer under the kick plate.

A Call an authorized service if the problem persists.

12 - EN

1 Advarsler

Læs venligst følgende informationer. Ellers kan der opstå risiko for personlig eller material skade. Desuden vil alle garantier og løfter om funktionssikkerhed blive ugyldige.

Generel sikkerhed

•Placer aldrig maskinen på et tæppebelagt gulv. Ellers kan manglen på luftstrøm fra undersiden af maskinen forårsage, at elektriske dele bliver overophedede. Det kan forårsage problemer for din maskine.

•Tørretumbleren er beregnet til at fortsætte sin funktion i tilfælde af strømafbrydelse.

Tryk på ”start/pause/annuller” knappen for at genoptage programmet. Tryk på ”Start/ Pause/Annuller” knappen i 3 sekunder for at annullere programmet (se under Annullering af

Program)

•Maskinen kan køre ved temperaturer mellem +5°C og +35°C.

Første anvendelse

•Den aktuelle værdi af sikringer i hjemmet skal svare til maskinens aktuelle værdi, der er angivet i tabellen med ”tekniske specifikationer”.

•Forsøm ikke at få jordinstallationen udført af en autoriseret elektriker. Vort firma kan ikke gøres ansvarligt for nogen skader, der kan være opstået som følge af anvendelse af maskinen med en ledning, der ikke er jordet.

•Tilkald autoriseret service til at gøre maskinen driftsklar.

•Når maskinen betjenes for første gang, skal den fyldes delvist med våde stykker tøj, og så skal den køre omkring et kvarter.

•Du kan måske mærke en ubehagelig luft, og der kan samle sig rigtig meget fiber/papirstøv under den første tørrecyklus.

•Med henblik på sikkerheden og ydeevnen skal filtrene rengøres efter hver tørrecyklus.

Tilsigtet anvendelse

•Dette produkt er beregnet til hjemmebrug.

•Apparatet må kun bruges til at tørre tøj, der er mærket i overensstemmelse hermed.

Sikkerhedsforskrifter

•Denne vaskemaskine skal tilsluttes en jordet stikkontakt, der er beskyttet af en sikring af passende kapacitet.

•Tag vaskemaskinen ud af stikket, når den ikke er i brug.

•Vask aldrig maskinen med vand! Der er fare for elektrisk stød!

•Berør aldrig stikket med våde hænder.

Træk aldrig i ledningen for at tage stikket ud af kontakten. Anvend ikke maskinen, hvis strømkablet eller stikket er beskadiget.

•Forsøg aldrig at reparere maskinen selv!

•Fejlfunktioner, der ikke kan løses af

informationerne i brugsvejledningen: Sluk for tumbleren og tag stikket ud af kontakten, og ring til autoriseret service.

•Undlad at bruge tumbleren til at tørre beklædningsgenstande, der er blevet kemisk renset eller behandlet med pletfjerner. Dampe fra materialet kan blive brændbare, giftige og eksplosive.

For at minimere risikoen for brand i en tørretumbler bør følgende overholdes:

• Tøjstykker, der er blevet plettet eller dyppet af vegetabilsk eller spiseolie, udgør en brandfare og skal ikke placeres i tørretumbleren.

Olieplettede tøjstykker kan antændes pludseligt, især hvis de udsættes for varmekilder som i

en tørretumbler. Tøjstykkerne bliver varme, hvilket kan forårsage en oxidationsreaktion i olien. Oxidation skaber varme. Hvis varmen ikke kan slippe væk, kan tøjstykkerne blive varme nok til at blive antændt. Stabling, stakning

eller opbevaring af olieplettede tøjstykker kan forårsage, at varmen ikke kan slippe ud og således skabe brandfare.

Hvis det ikke kan undgås, at tøj, der indeholder vegetabilsk eller madolie, eller der er blevet kontamineret med hårplejeprodukter, skal placeres i en tørretumbler, bør det først vaskes i varmt vand med ekstra sæbe – dette vil reducere, men ikke fjerne, faren.

Afkølingsprocessen for tørretumblere bør bruges til at reducere temperaturen i tøjstykkerne. Tøjet bør ikke fjernes fra tørretumbleren eller stable teller stakket, mens det er varmt.

Advarsel: Stop aldrig tørretumbleren før tørretumblerens program er færdigt, medmindre alle tøjstykkerne tages hurtigt ud og spredes ud, så varmen kan spredes.

• Tøjstykker, der tidligere er blevet renset i, vasket i, gennemvædet i eller plettet med benzin, rensemidler eller andre brandbare eller eksplosive kemikalier, bør ikke placeres i en tørretumbler.

Meget brandfarlige kemikalier, der normalt bruges i husholdningen, inkluderer acetone, denatureret alkohol, benzin, petroleum, pletfjernere (nogle mærker), terpentin, voks og voksfjernere.

•Tøjstykker, der indeholder skumgummi

(også kendt som latexskum) eller lignende

14 - DA

strukturgummi-lignende materialer, bør ikke tørres i en tørretumbler på varme.

Skumgummimaterialer kan, når de bliver opvarmet, producerer ild ved selvantændelse.

•Skyllemiddel eller lignende produkter bør ikke bruges i en tørretumbler for at fjerne statisk elektricitet, medmindre denne praksis særligt anbefales af producenten af

skyllemidlet eller produktet.

Undertøj, der indeholder metalafstivere, bør ikke puttes i en tørretumbler.

Det kan beskadige tørretumbleren, hvis metalafstiverne bliver løse under tørringsprocessen.

Hvis det er muligt, bør disse dele tørres på et tørrestativ.

•Plasticartikler så som badehætter eller babyers vandskyende hagesmække bør ikke lægges i en tørretumbler.

•Gummiforstærkede artikler, tøj med skumgummipuder, puder, galosher og gummibelagte tennissko bør ikke lægges i en tørretumbler.

Hvis der er børn i hjemmet…

•Elektriske apparater kan være farlige for børnene. Hold børn væk fra maskinen, når den kører. Lad dem ikke piller ved maskinen.

•Luk for indfyldningslågen, når du forlader området, hvor maskinen står.

•Denne tumbler er ikke beregnet til, at små børn eller svagelige personer bruger det, medmindre de overvåges på tilfredsstillende måde af en ansvarlig person, der sørger for, at de kan bruge tumbleren sikkert.

•Små børn bør overvåges for at sikre, at de ikke leger med tumbleren.

2 Installation

Passende installationssted

• Installer maskinen et sted, hvor der ikke er risiko for frost, og i en stabil og plan position.

• Undlad at placere maskinen på et langluvet tæppe eller lignende overflader.

• Maskinen skal køre et sted med god ventilation og støvfri omgivelser.

BSørg for, at maskinen ikke placeres på kraftkablet.

BPlacer den mindst 3 cm væk fra kanten af andre møbler og fra væggene.

•En speciel del (del nr.: 295 970 0100), der erstatter den øverste pynteliste skal leveres og installers af den autoriserede service for at kunne bruge maskinen under et bord eller i et skab. Den bør aldrig betjenes uden toplisten.

•Placer maskinen på et sundt gulv. Hvis den skal placeres over en vaskemaskine, må den samlede vægt ikke overstige 180 kg med fuldt læs.

•Der skal bruges et forbindelsesstykke mellem de to maskiner, før tumbleren kan bruges oven på en vaskemaskinen.

Forbindelsesstykket (del nr. 296 280 0100 hvid / 296 280 0200 grå) skal installeres af den autoriserede service.

Justering af fødderne

For at maskinen kører mere støjsvagt og vibrationsfrit, skal den stå jævnt og balanceret på fødderne. Frontfødder på maskinen kan justeres. Balancer maskinen ved at

justere fødderne.

Løsn fødderne manuelt. Juster dem, indtil maskinen står plant og fast.

CSkru aldrig de justerbare fødder fra hylstrene.

2 plasticstykker, der er leveret med brugsvejledningen, forhindrer maskinen i at glide på våde og glatte overflader. Vip maskinen bagud og installer disse plasticdele. Fastgør plasticdelene til de forreste justerbare fodder. Tryk på plasticdelene for at fastgøre dem på plads. Kontroller maskinens balance igen, og juster de justerbare fødder efter behov.

Ventilationsslange og tilslutning (til

produkter udstyret med et aftræk)

Ventilationsslangen sikrer udstrømning af luften inde fra maskinen. Aftrækstørretumbleren

har 1 luftaftræk. Rør af rustfrit tyndplade eller aluminium kan bruges i stedet for slangen.

Diameteren på røret, der skal bruges, bør være mindst 10 cm.

Maksimallængderne på slanger og rør står i tabellen nedenfor.

	Slange	Rør
Maksimal længde	4 m	5 m
1 bøjning 45°	-1,0 m	-0,3 m
1 bøjning 90°	-1,8 m	-0,6 m
1 bøjning 90° kort		-2,7 m
1 væggennemgang	-2,0 m	-2,0 m

Hver bøjning og andre passager skal trækkes

15 - DA

fra den ovennævnte maksimallængde. Tilslut luftaftræksslangen til

slangeafstandsstykket ved at dreje det mod uret for at tilslutte aftræksslangen. Lav slangepassagerne som vist nedenfor.

CNår du dirigerer vandafløbet ud, vil ”Vandtank” advarselslyset lyse op ved afslutningen af hvert program.

• Slangen skal fastgøres i en højde af højst 80 cm.

• Du skal være forsigtig ikke at klemme eller bøje slangen.

CUdtræk af fugtig luft fra tørretumbleren ind i rummet er uhensigtsmæssigt. Luftaftræksslangen skal forlænges direkte

udenfor. Der skal være et lille antal bøjninger for ikke at forhindre luftaftrækket.

CVentilationsslangen kan ledes udenfor via et vindue, eller den kan tilsluttes til luftudtaget i badeværelset.

CFor at forhindre vandakkumulering i slangen, skal du sørge for, at den ikke er foldet på gulvet.

BLuftaftræksslangen bør ikke tilsluttes skorstenen fra en brændeovn eller et ildsted.

BLad ikke maskinen køre samtidig med varmekilder som f.eks. en kuleller gasovn. Luftstrømmen kan forårsage, at skorstenen blusser op. Luftstrømmen kan forårsage, at skorstenen blusser op.

Tilslutning til vandafløb (for produkter

der er udstyret med en kondensator )

I produkter, der er udstyret med en kondensatorenhed, samles vandet, der akkumuleres under tørrecyklussen, i vandtanken. Du skal tømme det akkumulerede vand efter hver tørrecyklus.

Du kan sende det akkumulerede vand direkte ud gennem vandafløbsslangen, der er leveret med maskinen, i stedet for jævnlig tømning af vandet, der er samlet i vandtanken.

Fjern slangen på maskinen ved at trække i den ende for at forbinde vandafløbsslangen. Brug ikke noget værktøj til at tage slangen ud. Fastgør afløbsslangens mellemstykke til enden af denne slange. Forbind den specielle afløbsslange,

der er leveret med maskinen, til montering af slangens mellemstykke Enden af afløbsslangen kan tilsluttes direkte til afløbsvandets afløb eller til vaskekummen. Monteringen bør altid sikres i alle slags tilslutninger.

Elektrisk forbindelse

Tilslut denne vaskemaskine en jordet stikkontakt, der er beskyttet af en sikring af passende kapacitet.

Vigtigt:

•Tilslutningen skal overholde de nationale regulativer.

•Spændingen og den tilladte sikringsbeskyttelse er specificeret i afsnittet om ”Tekniske specifikationer”.

•Den angivne spænding skal svare til netspændingen hos dig.

•Tilslutning via forlængerledninger eller multistik bør ikke laves.

•Hovedsikringen og hovedafbryderne skal have

en kontaktafstand på mindst 3 mm.

BEn beskadiget el-ledning skal udskiftes af en autoriseret elektriker.

BMaskinen må ikke betjenes, medmindre den er repareret! Der er fare for elektrisk stød!

Destruering af emballagen

Emballagen kan være farlig for børn. Opbevaring emballagen væk fra børns rækkevidde eller bortskaf den som følge heraf. Bortskaf

den ikke sammen med det almindelige husholdningsaffald.

Emballagematerialer fra maskinen er produceret af genbrugsmaterialer.

Bortskaffelse af den gamle maskine

Bortskaf dit gamle apparat på en miljøvenlig måde.

•Du bør kontakte den lokale genbrugsstation for at finde ud af, hvor vaskemaskinen bortskaffes.

Inden du smider den gamle maskine ud, skal du skære strømstikket af og gøre dørlåsen ubrugelig.

16 - DA

3 Indledende forberedelser til tørring

Følg altid vaskeanvisningen på tøjet. Med denne tørretumbler skal du kun tørre det vasketøj,

der har en mærkat, hvorpå der står, at det er egnet til tørring i en tørretumbler ved valg af det

A B C D

Tørring ved	Tørring ved	Egnet til	Undlad at
høj	normal	tørretumbler	tørre i tumbler
temperatur	temperatur
l n m
Hænges	Hænges op	Skal tørre
vandret til	uden	på en bøjle
tørre	centrifugering
o p q
Kan stryges med Kan stryges		Stryg ikke
varmt strygejern med lunt
	strygejern

passende program.

•Vasketøj med metalpåsætninger som f.eks. messing, bæltespænder og metalknapper kan ødelægge maskinen.

•Tør ikke beklædningsstykker som f.eks. uld, silkebeklædning og nylonstrømper, sarte broderede tekstiler, beklædningsstykker med metalpåsætninger og stykker som f.eks. soveposer i maskinen.

•Beklædningsstykker, der er lavet af sarte og værdifulde tekstiler samt blondegardiner kan blive krøllet. Tør ikke disse i maskinen!

•Tør ikke stykker, der er lavet af hermetisk fibre så som puder og dundyner i tørretumbleren.

•Beklædningsstykker lavet af skum eller gummi kan blive deformeret.

•Tør ikke tøj, der indeholder gummi, i maskinen.

•Tør ikke tøj, der har været udsat for petroleum, olie, brændbare eller eksplosive stoffer i maskinen, selv om de er vasket forinden.

•Overdrevet vådt vasketøj eller vasketøj, der drypper af vand, må ikke komme i maskinen.

Forberedelse af tøj, der skal tørres

•Alt vasketøj skal centrifugeres ved højst mulige antal omdrejninger, som

vaskemaskinen tillader til den tekstiltype.

•Vasketøj kan blive sammenfiltret efter vask. Adskil vasketøjet, inden det kommer i tørretumbleren.

•Sorter vasketøj efter type og tykkelse. Tør samme type vasketøj sammen.

Følgende vægtangivelser er givet som eksempler.

Hjemmeartikler		Omtrentlige vægte (gr)
Bomuldsdynebetræk (dobbelt)		1500
Bomuldsdynebetræk (enkelt)		1000
Lagner (dobbelt)		500
Lagner (enkelt)		350
Store bordduge		700
Små bordduge		250
Dækkeservietter		100
Badehåndklæder		700
Håndklæder		350
Beklædningsstykker		Omtrentlige vægte (gr)
Bluser		150
Bomuldsskjorter		300
Skjorte		200
Bomuldskjoler		500
Kjoler		350
Cowboybukser		700
Lommetørklæder (10 stykker)		100
T-shirt		125
Korrekt indfyldningskapacitet
	A	Følg informationerne
	i “Programvælger tabellen”.
	Start altid programmet
	i overensstemmelse
	med den maksimale
	indfyldningskapacitet.
	C	Det anbefales
	ikke at fylde mere vasketøj
	i maskinen, end det er vist i
	figuren. Tørreresultaterne vil
blive dårligere, hvis maskinen er overfyldt.
Desuden vil maskinen og tøjet måske blive
beskadiget.
C	Placer beklædningsstykkerne løst i
tromlen, så de ikke filtrer ind i hinanden..
C	Store stykker kan bundte sammen

under tørring. Stop maskinen 1-2 gange under tørreprocessen for at separere bundtet vasketøj.

Indfyldningslåge

Åbn indfyldningslågen. Placer vasketøjsstykkerne løst i maskinen. Skub indfyldningslågen i. Sørg for, at der ikke sidder nogen dele fast i lågen.

17 - DA

4 Valg af program og betjening af maskinen

Kontrolpanel

6	5	4	2			1

10 min

20 min

40 min

3’’	60 min

3

1.	Tænd/sluk knap	6.	Advarselslys for filterrengøring
2.	Programvælgerknap	7.	Advarselslys for vandtank fuld*
3.	Start/pause/annuller knap	8 - Tidsforskydningsknap*
4.	Annuller lydadvarslen	*i henhold til din maskines model
5.	Programopfølgningsindikator

Bomuld	Syntetiske	Sart	Timer	Ventilation Slut/Anti-	Skal
		tøj	programm	krøl	stryges
			er

	Ekstra					Klar til				Tørringstid
	Klar til					brug
	brug

						3’’
Lav	Lav	Annuller	Centrif	Tænd	Start/paus	Annuler	Rengøring	Tank	Børne-lås	Timer
temperatur	temper	lydadvar	ugering	Sluk	e/annuller	3”	af filteret	fuld		opfølgning
select	atur	slen								sindikator

18 - DA
