One Shot Power Supply
WSCC-101
P-239-37
819-0399
Installation Instructions
Installation Instructions
Part # 901-00-014
Failure to follow these
instructions may result in product damage,
equipment damage, and serious or fatal
injury to personnel.
Introduction
Charge/Discharge Time
170/290
Figure 1
Voltage
Warner Electric’s One Shot Power Supply
provides a single overexcite voltage pulse when
the switch is momentarily closed, or held
closed, and is designed to be used with all
12VDC, 24VDC, 90VDC and 115VAC D-frame
solenoid operated Wrap Spring products that
contain an Actuator Limit Stop option.
Specifications
Input: 120/240 VAC, 50/60Hz
Output: 160/290 VDC Peak, 3
Amps Max at 160 VDC
output, 5 Amps Max at
290 VDC
output
Ambient Temperature: +32°F to +122°F
0°C to +50°C
Solenoid
12 VDC
24 VDC
90 VDC
115 VDC
VAC
Input
120 200 CPM
240 35 CPM
120 300 CPM
240 40 CPM
120 400 CPM
240 60 CPM
120 350 CPM
240 45 CPM
Table 1
Maximum Cycle
Rate
Charge
0.10 min
Minimum charge time 0.10 sec.
Minimum discharge time 0.05 sec.*
*dependent on coil used
Time
Discharge
0.05 min
Installation and Operation
Mounting
The Unit may be mounted in any position
through the use of the two mounting holes and
8 - 32 screws (See figure 2 for unit dimensions).
Wiring
The one shot must be wired as shown in Figure
3, otherwise the control will not function
properly.
1. Wire AC line voltage through fuse to yellow
connector as shown.
2. Wire solenoid coil to green connector as
shown.
3. Wire switching circuit (relay contacts) to
white, red and black connectors as shown.
When the switch/relay is actuated, the solenoid
coil is energized by the pulse from the internal
capacitor discharging. When the switch/relay is
released or deactivated the internal capacitor is
charged for the next cycle. The minimum time
between operations is 15 milliseconds.
Customer’s Switch Requirements
Terminals: Amp Inc., Fast-on 250
Series Tabs (.250 X .032),
For 14-16AWG AMP #640905-1
For 18-22AWG AMP #640903-1
2
Warner Electric • 800-825-9050 P-239-37 • 819-0399
Single pole, double throw (SPDT) switch with
contact ratings of 10 amps at 240 VAC.
Recommendations
Protect the control with a fuse on the hot side of
the AC input voltage line.
For 120 VAC operation 3AMP, 125VAC FB
For 240 VAC operation 5AMP, 250VAC FB

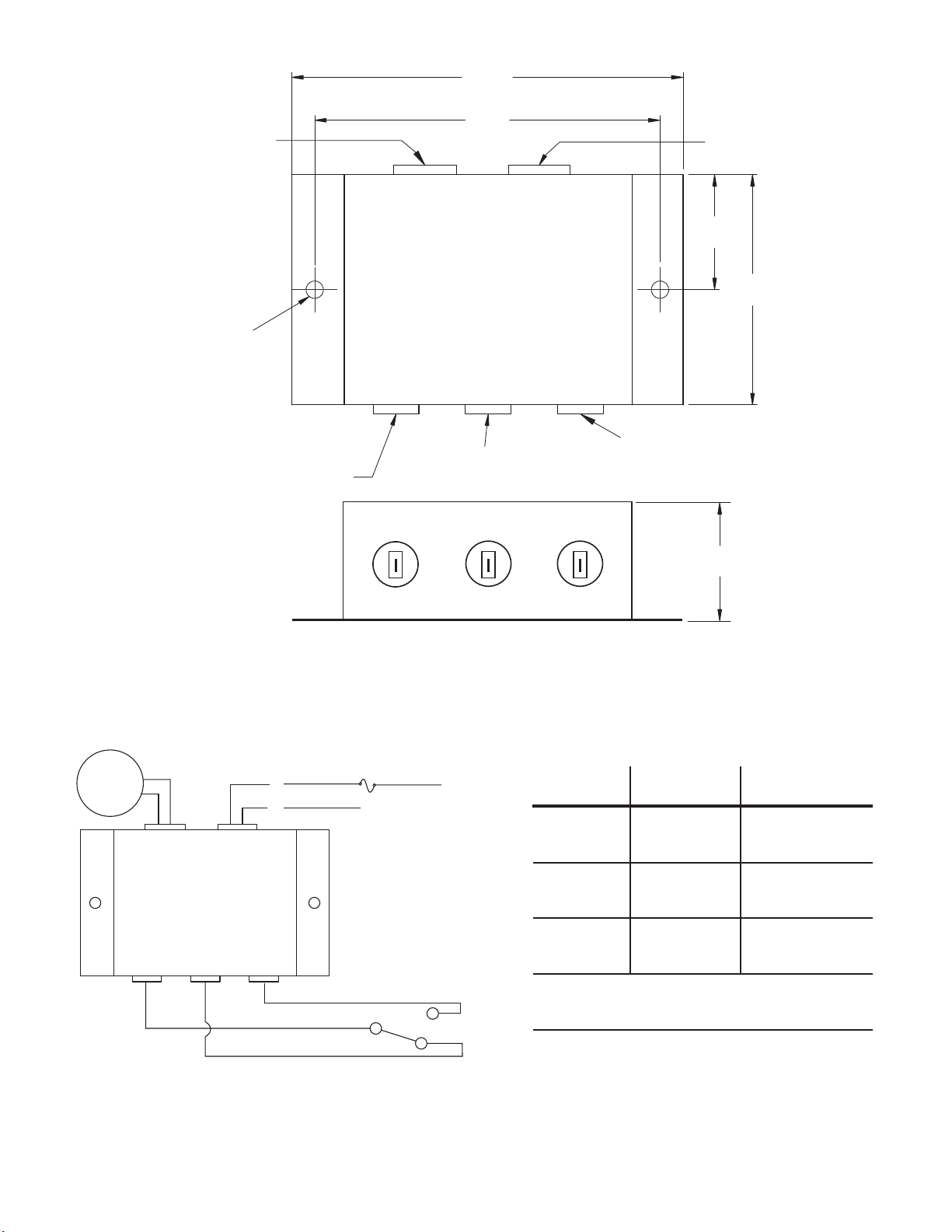

MOUNTING HOLES
(2) Ø.190
3.75"
(95.25 mm)
4.25"
(107.95 mm)
1.30"
(33.02 mm)
2.50"
(66.04 mm)
GREEN
(SOLENOID
CONNECTIONS)
WHITE
(COMMON SWITCH
CONNECTION)
YELLOW
(INPUT LINE VOLTAGE
CONNECTIONS)
RED
(NORMALLY CLOSED
SWITCH CONNECTION)
BLACK
(NORMALLY OPEN
SWITCH CONNECTION)
1.40"
(35.56 mm)
Dimensions
NC NOC
WRAP
SPRING
CLUTCH
COIL
120/240 VAC
H
N
ONE SHOT POWER SUPPLY
FOR WRAP SPRING C
LUTCH
WSCC-101
901-00-014
YEL
GRN
WHT
RED BLK
CUSTOMER SUPPLIED
SWITCH OR RELAY
SPDT OR DPDT
10AMP 240 VAC
RATED CONTACT
CUSTOMER
SUPPLIED
FUSE
Connection Diagram
Warner Electric • 800-825-9050 P-239-37 • 819-0399
Figure 3
Figure 2
Warner Electric’s Complete
Line of Wrap Spring Products
Standard CB
Super CB
(SCB)
WSC
Controls
Series Torque Models
Ratings
from 25 lb.in CB-2, CB-4,
to 2,500 lb.in CB-5, CB-6
from 250 lb.in Super CB-5,
to 2,500 lb.in Super CB-6
from 25 lb.in WSC-2, WSC-4,
to 2,500 lb.in WSC-5, WSC-6
One Shot Power Supply
WSCC-101 and One Shot Octal
Socket Power Supply WSCC-102
and CB-8
and Super CB-8
and WSC-8
Table 2
