Ultrasonic Sensors
with Solid State Relay Output
P-1256-1
819-0456
Model : UT30 UP- DSS5- 1016- CSHT
Par t Number : 7600 - 44 8- 003
Model : UT30 UP- DSS5- 2032- CSHT
Par t Number : 7600 - 44 8- 004
Technical Data Sheet
Ultrasonic Sensors
104 mm
4.1"
1.18"
30mm
with Isolated Solid State
Relay Outputs
fitted with Range
and Hysteresis Control
Threaded
plastic barrel
M 30 x 1.5
Sensing range 101..1016 mm 203..2032 mm
(4-40") (8-80")
Switching functions/output 2 Solid State Relays 2 Solid State Relays
Ordering Model description UT30UP-DSS5-1016-CSHT UT30UP-DSS5-2032-CSHT
Information Part number 7600-448-003 7600-448-004
Electrical data
Voltage range min./max. 20-30V DC reverse polarity protected 20-30V DC reverse polarity protected
Input current 50mA 50mA
Transducer frequency 212 KHz 150 KHz
Short circuit protected Yes Yes
LED Yes - green (not de tect ing), red (detecting) Yes - green (not detecting), red (de tect ing)
Response time 30 mSec 50 mSec
Range control Range and Hysteresis Range and Hysteresis
Threaded
plastic barrel
M 30 x 1.5
Mechanical data
Temperature range min./max. 0°C/+60°C / 32°F/140°F 0°C/+60°C / 32°F/140°F
Degree of protection IP 65/NEMA 12 IP 65/NEMA 12
Body material Valox plastic Valox plastic
Termination cable 2 m/6 ft. PVC 4 x 22 gauge PVC 4 x 22 gauge
Accessories 1) Brackets 1) Brackets
Humidity 0-95% non-condensing 0-95% non-condensing
1) Brackets for M 30 x 1.5
Ordering Information
Plastic - BK5-D34PA
Part number 596-0223-041
Metal - M 30 ST
Part number 7430-448-003
Wiring Data
INPUT
POWER
Plug/socket Versions available to order Versions available to order
Adjustment Pots
Di men sions
Detection and Hysteresis
Control
(Range)
P1
LED
Output Specification
brn
blu
blk
yel
wht
20-30V DC
GND
N.O.
COM
N.C.
• 2 x Solid state relays N.O. / N. C.
• 160V AC or V DC 100mA con tin u ous
• Short circuit protected
• 1500 volts RMS isolation
(Hysterisis)
P2
Ultrasonic Sensors

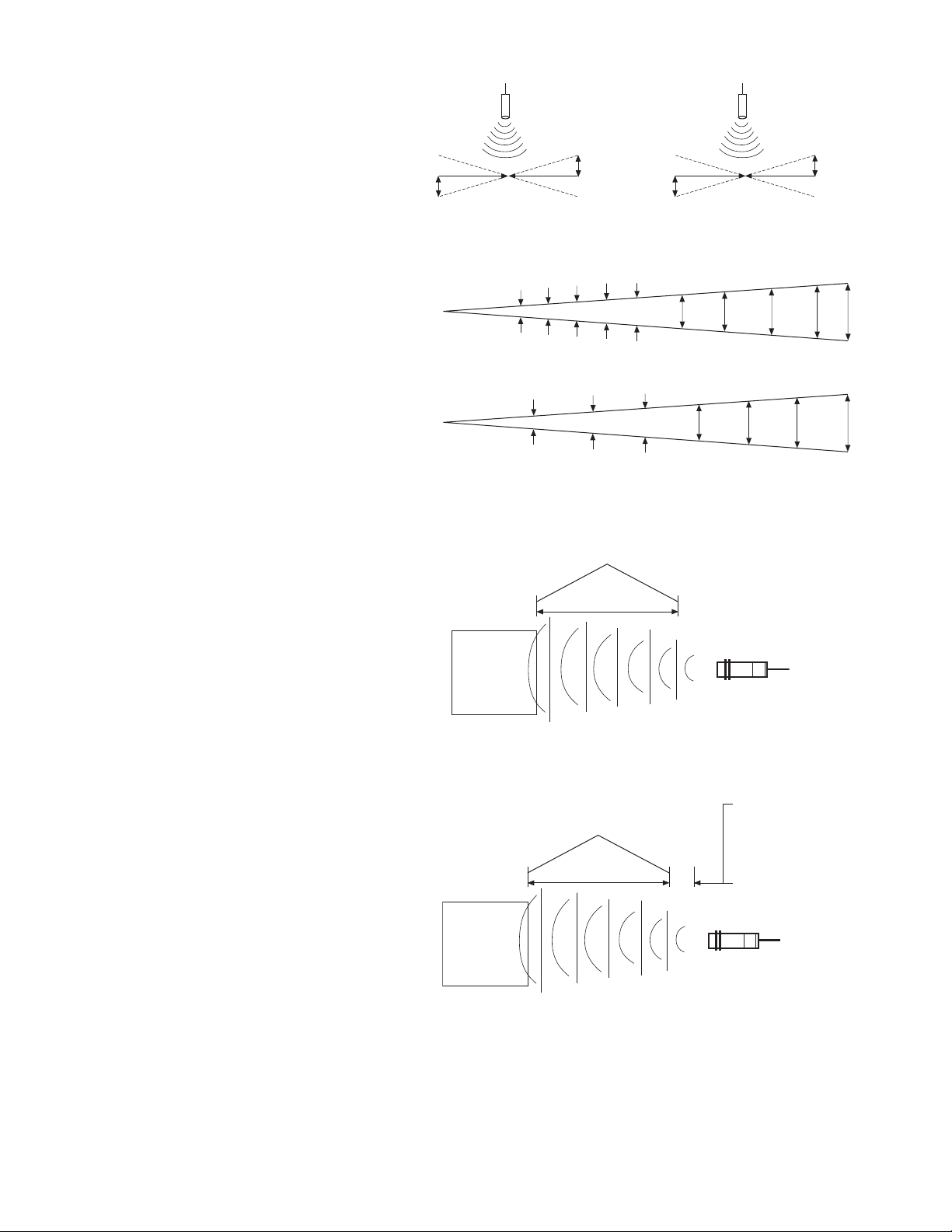

Beam Spread vs. Target Distance
1.5Beam Diameter (in.) 2.0 3.5 4.5 5.0 6.5 8.0 8.5 9.0 9.0
40
Distance from Sensor (in.)
6 8 10 12 16 20 24 28 30
4.5Beam Diameter (in.) 8.0
10.0
13.0 14.0 14.5 14.5
100
Distance from Sensor (in.)
20
30
40 50 60 72
–8
4" to 40"
+8
–10
8" to 80"
+10
Allowable Angle of Tilt
40"
80"
4"
80"
40" Range
80" Range
Adjustable Detection Point
Proximity Sensing
Target
Target
4" to 40" or 8" to 80"
Hysteresis Control
Adjustable
Turn-Off Point
Adjustable
Detection Point
(dependent upon
sensors range)
Op er a tion and Set-Up
Proximity Sensing
Proximity detection is the detection of an object at
a set distance. The sensing range is controlled by
the “Range Control” potentiometer. Any object
within the desired range is detected while objects
beyond the set range are ignored. The sensing
dis tance is dependent upon the sen sor chosen,
40" or 80".
In the proximity mode of operation, the hysteresis
potentiometer must be turned to 'off' by turning
the pot counterclockwise.
Hysteresis Control
The sensor is also fitted with a hysteresis control
potentiometer. This control allows you to adjust
the turn off point while the detection potentiometer
sets the “turn on” point.
(Example: Range pot set for 10", hysteresis pot
set for 20". With these settings the sensor will
de tect when the target reaches 10" and stays on
as the target moves away to 20".) This hysteresis
can be adjusted from .5" to 40" from the detect
point with the 40" sensor and 1" to 80" with the
80" sensor.
Sensors, Industrial Switches and Safety Technology Products
Warner Electric has many years of experience in
applying sensors in motion control applications.
Warner Electric’s broad range of innovative and
technologically advanced product range offers
our customers the exact solution to satisfy their
sensing applications.
Our full product range is available through
more than 800 distributor locations, throughout
the United States, Canada and Mexico.
Local Sales Support is provided by a well
trained sales force that is backed up by
Application Engineering providing immediate
technical support.
Non-Contact Sensors
Photoelectric Sensors
Ultrasonic Sensors
Inductive Proximity Sensors
Capacitive Sensors
Magnetic Sensors
Industrial Switches
Limit Switches
Foot Switches
Cable Pull Switches
Safety Technology Products
Safety Interlocks
Cable Pull Switches
Coded Magnetic Monitoring Systems
Warner Electric LLC
31 Industrial Park Road • New Hartford, CT 06057
815-389-3771
www.warnerelectric.com
P-1256 819-0456 6/12 Printed in USA
Approvals and Certification
Each model is individually identified with its own certification.
Documentation is available upon request.
