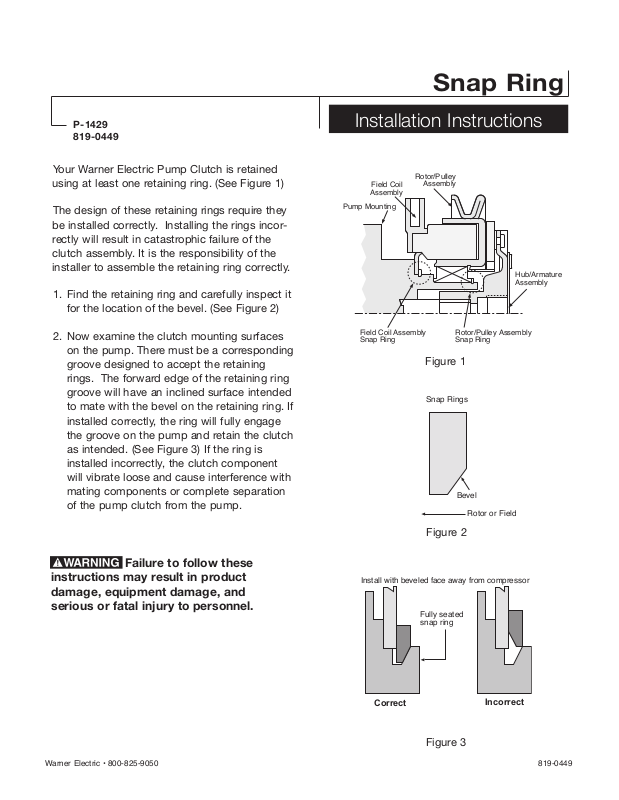

Warner Electric Snap Ring User Manual

Snap Ring

Rotor/Pulley

Assembly

Hub/Armature
Assembly

Field Coil

Assembly

Field Coil Assembly
Snap Ring

Pump Mounting

Rotor/Pulley Assembly
Snap Ring

Bevel

Snap Rings

Rotor or Field

Fully seated
snap ring

Install with beveled face away from compressor

Correct

Incorrect

P-1429
819-0449

Your Warner Electric Pump Clutch is retained
using at least one retaining ring. (See Figure 1)

The design of these retaining rings require they
be installed correctly. Installing the rings incor­rectly will result in catastrophic failure of the
clutch assembly. It is the responsibility of the
installer to assemble the retaining ring correctly.

1. Find the retaining ring and carefully inspect it
for the location of the bevel. (See Figure 2)

2. Now examine the clutch mounting surfaces
on the pump. There must be a corresponding
groove designed to accept the retaining
rings. The forward edge of the retaining ring
groove will have an inclined surface intended
to mate with the bevel on the retaining ring. If
installed correctly, the ring will fully engage
the groove on the pump and retain the clutch
as intended. (See Figure 3) If the ring is
installed incorrectly, the clutch component
will vibrate loose and cause interference with
mating components or complete separation
of the pump clutch from the pump.

Installation Instructions

Figure 1

Failure to follow these
instructions may result in product
damage, equipment damage, and
serious or fatal injury to personnel.

Warner Electric • 800-825-9050 819-0449

Figure 2

Figure 3

Warranty

Warner Electric LLC warrants that it will repair or replace (whichever it deems advisable) any
product manufactured and sold by it which proves to be defective in material or workmanship
within a period of one (1) year from the date of original purchase for consumer, commercial or
industrial use.

This warranty extends only to the original purchaser and is not transferable or assignable without
Warner Electric LLC’s prior consent.

Warranty service can be obtained in the U.S.A. by returning any defective product, transportation
charges prepaid, to the appropriate Warner Electric LLC factory. Additional warranty information
may be obtained by writing the Customer Satisfaction Department, Warner Electric LLC, 449
Gardner Street, South Beloit, Illinois 61080, or by calling 815-389-3771.

A purchase receipt or other proof of original purchase will be required before warranty service is
rendered. If found defective under the terms of this warranty, repair or replacement will be made,
without charge, together with a refund for transportation costs. If found not to be defective, you
will be notified and, with your consent, the item will be repaired or replaced and returned to you
at your expense.

This warranty covers normal use and does not cover damage or defect which results from
alteration, accident, neglect, or improper installation, operation, or maintenance.

Some states do not allow limitation on how long an implied warranty lasts, so the above limitation
may not apply to you.

Warner Electric LLC’s obligation under this warranty is limited to the repair or replacement of the
defective product and in no event shall Warner Electric LLC be liable for consequential, indirect,
or incidental damages of any kind incurred by reason of the manufacture, sale or use of any
defective product. Warner Electric LLC neither assumes nor authorizes any other person to give
any other warranty or to assume any other obligation or liability on its behalf.

WITH RESPECT TO CONSUMER USE OF THE PRODUCT, ANY IMPLIED WARRANTIES WHICH
THE CONSUMER MAY HAVE ARE LIMITED IN DURATION TO ONE YEAR FROM THE DATE OF
ORIGINAL CONSUMER PURCHASE. WITH RESPECT TO COMMERCIAL AND INDUSTRIAL
USES OF THE PRODUCT, THE FOREGOING WARRANTY IS IN LIEU OF AND EXCLUDES ALL
OTHER WARRANTIES, WHETHER EXPRESSED OR IMPLIED BY OPERATION OF LAW OR
OTHERWISE, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so
the above limitation or exclusion may not apply to you. This warranty gives you specific legal
rights and you may also have other rights which vary from state to state.

Changes in Dimensions and Specifications

All dimensions and specifications shown in Warner Electric catalogs are subject to change without
notice. Weights do not include weight of boxing for shipment. Certified prints will be furnished
without charge on request to Warner Electric.
