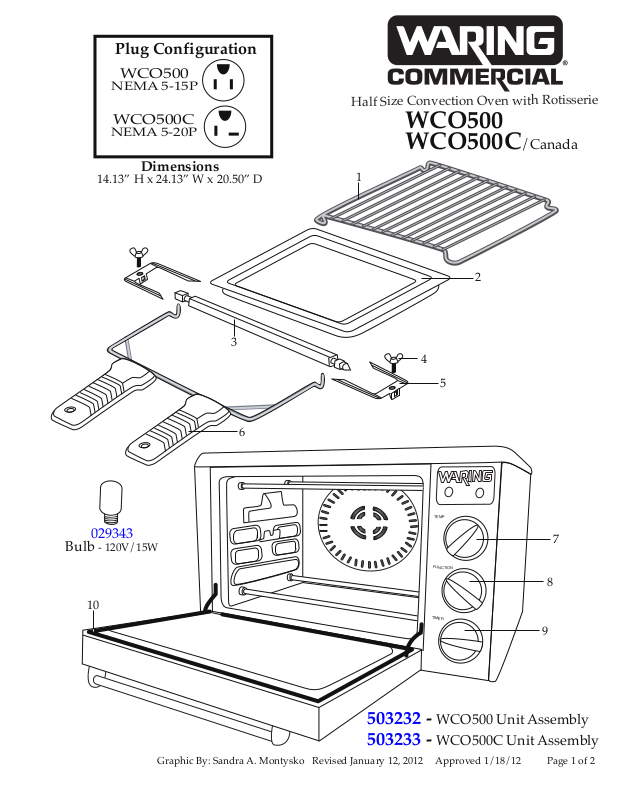

Waring WCO500C Parts Manual
Plug Configuration
WCO500
NEMA 5-15P
Half Size Convection Oven with Rotisserie
WCO500C
NEMA 5-20P
Dimensions
14.13” H x 24.13” W x 20.50” D
3
WCO500
WCO500C/Canada
1
2
4
5
Bulb
10
029343
- 120V/15W
6
TEMP
7
FUNCTION
8
TIMER
9
503232 - WCO500 Unit Assembly
503233 - WCO500C Unit Assembly
Graphic By: Sandra A. Montysko Revised January 12, 2012 Approved 1/18/12 Page 1 of 2
Catalog/Model
WCO500
WCO500C
Illustration # Part # Description
1 032338 Wire Rack 3 Req.’d
2 032339 Baking Tray
3 029342 Rotisserie Spit
4 029340 Skewer Thumb Screw 2 Req.'d
5 029341 Skewers /set
6 032274 Rotisserie Spit Removal Tool (hand grip)
7 029344 Temperature Knob
8 029345 Function Control Knob
9 029346 Timer Knob
10 029359 Door Gasket
Waring Factory Service Center
314 Ella T. Grasso Ave.
Torrington, CT 06790
Tele. 1-800-269-6640
Fax 860-496-9017
www.waringproducts.com
032942
Straight Element (top)
2 Req.’d
032943
Straight Element (bottom)
2 Req.’d
Internal Components
032944
U Element
032061
Fan /convection
032941
Timer
032945
Round Element
032062
Motor Bracket
032939
Thermostat
Function Control Switch
Page 2 of 2 Revised January 12, 2012
032940
032946
Motor /convection
