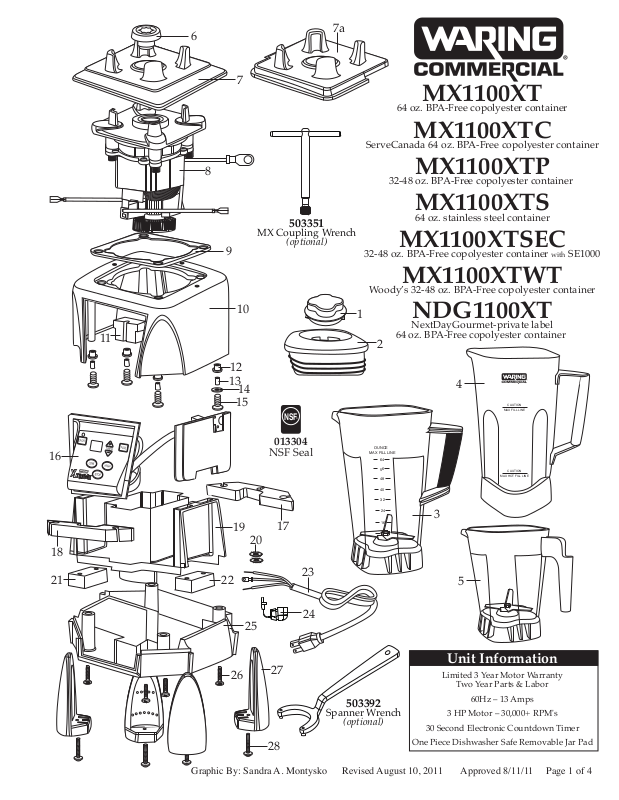

6
7a
7
MX1100XT
64 oz. BPA-Free copolyester container
MX1100XTC
ServeCanada 64 oz. BPA-Free copolyester container
16
18
11
8
MX1100XTP
32-48 oz. BPA-Free copolyester container
MX1100XTS
MX Coupling Wrench
503351
(optional)
9
32-48 oz. BPA-Free copolyester container
64 oz. stainless steel container
MX1100XTSEC
with
SE1000
MX1100XTWT
Woody’s 32-48 oz. BPA-Free copolyester container
12
13
10
15
19
14
20
®
NSF
013304
NSF Seal
17
1
2
OUNCE
MAX FILL LINE
64
56
48
40
32
24
16
NDG1100XT
NextDayGourmet-private label
64 oz. BPA-Free copolyester container
4
CAUTION
MAX FILL LINE
CAUTION
MAX HOT FILL LINE
3
8
21
22
5
24
25
Unit Information
23
26
27
503392
Spanner Wrench
(optional)
28
Graphic By: Sandra A. Montysko Revised August 10, 2011 Approved 8/11/11 Page 1 of 4
Limited 3 Year Motor Warranty
Two Year Parts & Labor
60Hz – 13 Amps
3 HP Motor – 30,000+ RPM's
30 Second Electronic Countdown Timer
One Piece Dishwasher Safe Removable Jar Pad
Catalog Model
MX1100XT MX1100XT11
MX1100XTC MX1100XTC
MX1100XTP MX1100XT21
MX1100XTS MX1100XT31
MX1100XTSEC MX1100XTSEC
MX1100XTWT MX1100XT21
NDG1100XT MX1100XT11
Illustration # Part # Description
1 026425-E Jar Lid Cover
2 026424 Jar Lid
Waring Factory Service Center
314 Ella T. Grasso Ave.
Torrington, CT 06790
Tele. 1-800-269-6640
Fax 860-496-9017
www.waringproducts.com
3 503347 Jar with Blending Assy.
4 503346 Jar with Blending Assy.
5 503348 Jar with Blending Assy.
/64 oz. Eastman
/64 oz. stainless steel
/32-48 oz. Eastman
6 028538 Drive Clutch
7 026442 Jar Pad
7a 026443 Jar Pad
/use with sound enclosure
8 028100 Motor
9 026437 Dampening Plate Gasket
10 028032-09 Top Housing /black
11 028541 Motor Foam 2 Req.’d
12 026439 Dampening Plate Bushing 4 Req.'d
13 026453 Dampening Plate Sleeve 4 Req.'d
14 026459 Washer
15 028929 Screw 4 Req.’d
026459 Washer 4 Req.'d
026455 Screw 4 Req.'d
(older units)
(older units)
16 028390 Control Panel
028904 Control Panel /NextDay Gourmet
17 028248 Housing Foam Baffle /rear
18 028249 Housing Foam Baffle /front
19 028240 Motor Housing
20 002943 Washer 2 Req.’d
21 028247 Bottom Housing Foam Baffle
22 028542 Foam Baffle
23 026925 Cord Set
24 007556 Strain Relief
25 028241-09-x Bottom Housing /black
26 012505 Screw 4 Req.'d
27 026430 Corner Post 4 Req.'d
Page 2 of 4 Revised August 10, 2011
Catalog Model
MX1100XT MX1100XT11
MX1100XTC MX1100XTC
MX1100XTP MX1100XT21
MX1100XTS MX1100XT31
MX1100XTSEC MX1100XTSEC
MX1100XTWT MX1100XT21
NDG1100XT MX1100XT11
Illustration # Part # Description
28 028928 Screw 4 Req.’d
026459 Washer 4 Req.'d
012505 Screw 4 Req.'d
29 026432 Inner Enclosure
30 026433 Outer Enclosure
31 027447 O Ring 2 Req.’d
32 026461 Screw 3 Req.’d
33 026434 Sound Enclosure Handle
34 012505 Screw 2 Req.’d
Waring Factory Service Center
314 Ella T. Grasso Ave.
Torrington, CT 06790
Tele. 1-800-269-6640
Fax 860-496-9017
www.waringproducts.com
(older units)
(older units)
35 503345 Blade Assy.
36 024271 O Ring
37 024268 Nut Gasket
38 029631 Bearing Holder Nut
39 026423-E 64 oz. Eastman Container
40 029003-E 32-48 oz. Eastman Container
Notes for 503347 & 503348 :
Torque 100-125 in/lbs
Sealant all aroung the threads, fill in flats.
Dow Corning Sealant RTV 733
35
Sealant all round
threads, fill in flats.
36
37
38
OUNCE
MAX FILL LINE
64
56
48
40
32
24
16
8
29
30
31
32
39
031060
Blending Assy. Kit
40
503347 and 503348 - Eastman Containers
34
SE1000 -
33
Revised August 10, 2011 Page 3 of 4
come with MX1100XTSEC
502962
Catalog Model
MX1100XT MX1100XT11
MX1100XTC MX1100XTC
MX1100XTP MX1100XT21
MX1100XTS MX1100XT31
MX1100XTSEC MX1100XTSEC
MX1100XTWT MX1100XT21
NDG1100XT MX1100XT11
Illustration # Part # Description
Waring Factory Service Center
314 Ella T. Grasso Ave.
Torrington, CT 06790
Tele. 1-800-269-6640
Fax 860-496-9017
www.waringproducts.com
42
43
41 026798 Support Washer
42 026648 64 oz. Containter /stainless steel
43 026649 Container Support
44 026797 Bearing Holder Gasket
45 026796 Bearing Holder Washer
46 026795 SS Jar Bearing Holder Nut
35
CAUTION
MAX FILL LINE
36
41
NDG Name Plate /
REORDER #123574
028672
032483
Blending Assy. Kit
Sealant applied all round
CAUTION
MAX HOT FILL LINE
these indicated areas.
Notes for 503346 :
Torque 100-125 in/lbs
Sealant applied all around indicated areas.
Dow Corning Sealant RTV 733
028595
Woody Label/
NDG1100XT
MX1100XTWT
44
45
46
503346 - Stainless Steel Container
Page 4 of 4 Revised August 10, 2011
Lubricant applied to O Ring
Dow Corning 200 (R) Fluid
Black
Motor
Blue
Key
Board
Main Board
Brown
Green/Yellow
Blue
Wiring Diagram
L
N
M- M+
